Used- Radial Stacker Belt Conveyor

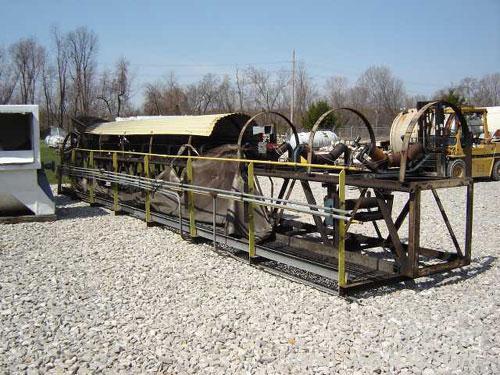

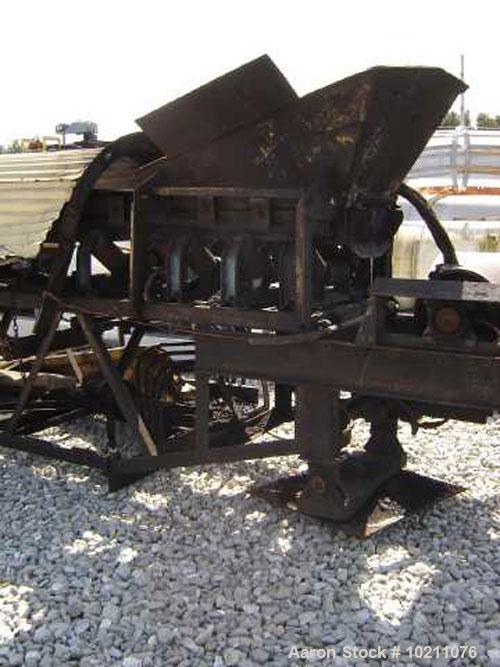

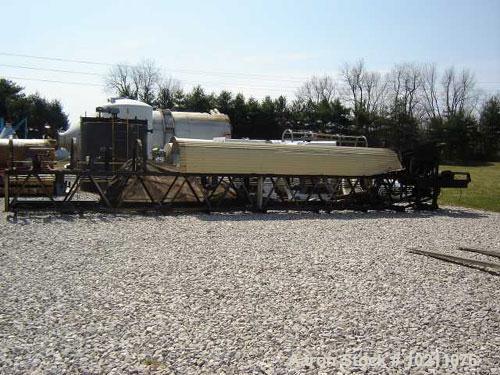

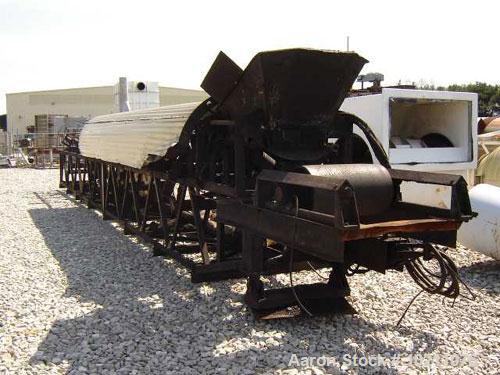

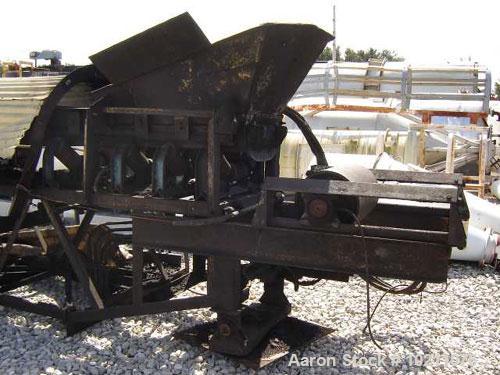

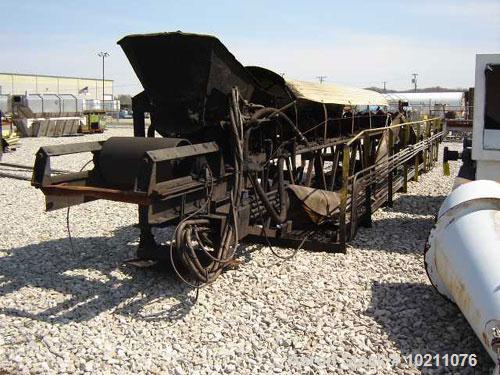

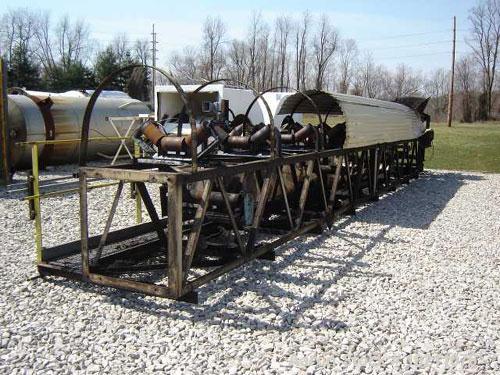

Used-24" Wide x 70' Long 15 hp Radial Stacker Belt Conveyor, no belt included. Driven by a 15 hp, 1750 rpm, 230/460 volt motor with Dodge model TXT5D shaft mount speed reducer. Carrying idlers are 5" diameter, three piece on 48" centers. Return idlers are 5" diameter on 12' centers. Truss is constructed of 3" angle for main members and 2" angles for interior support. Unit has 24" wide catwalk up the side of the conveyor with handrail. Feed section has trough hopper measuring 6' in length. Wheels are electric motor powered with sprocket drive. Partial weather cover over belt area. There is also a non-functioning hydraulic power pack (hydraulic cylinder missing) for adjusting discharge height of conveyor. Unit has been converted to manual adjustment of height with stay pins. Motor driving wheels is 3 hp, 1740 rpm, 1.15 SF, 460 volt, 182TC frame.
