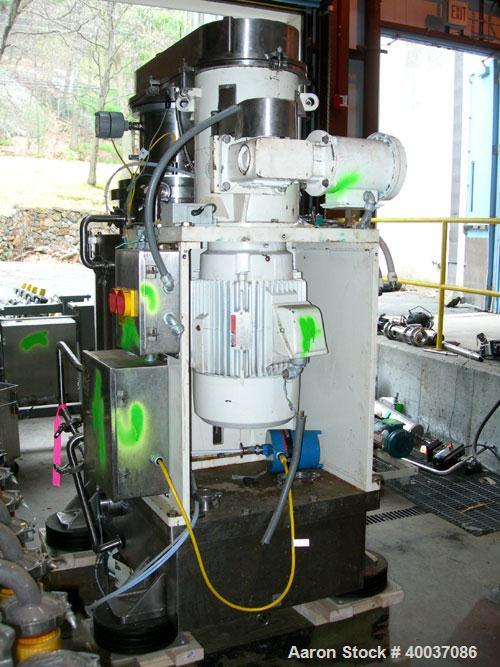

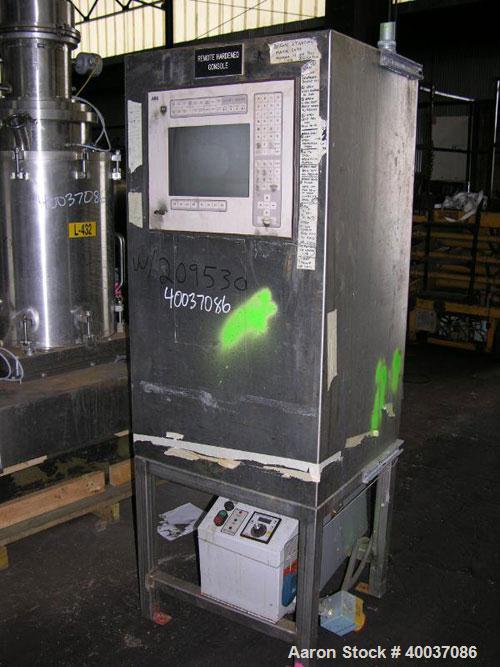

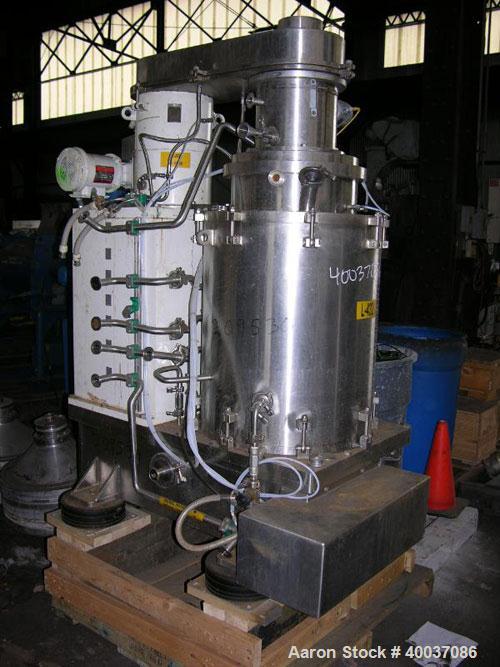

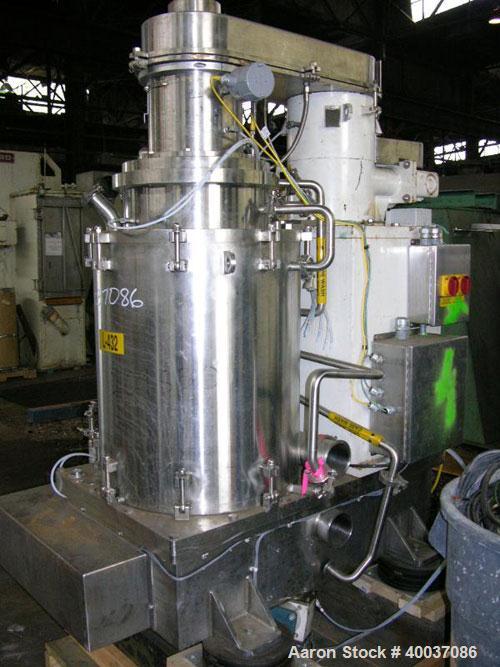

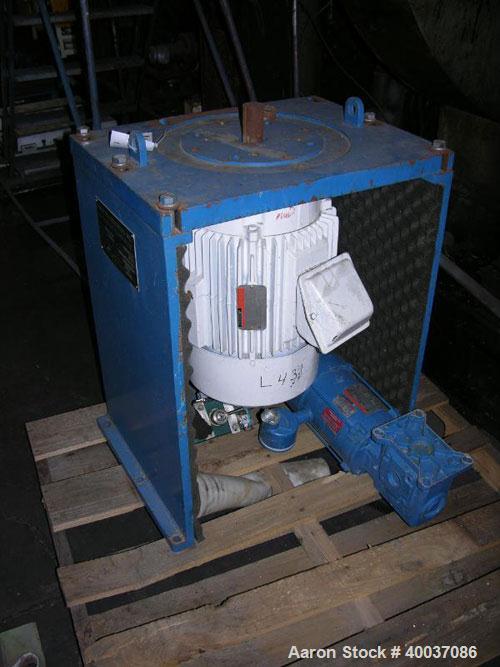

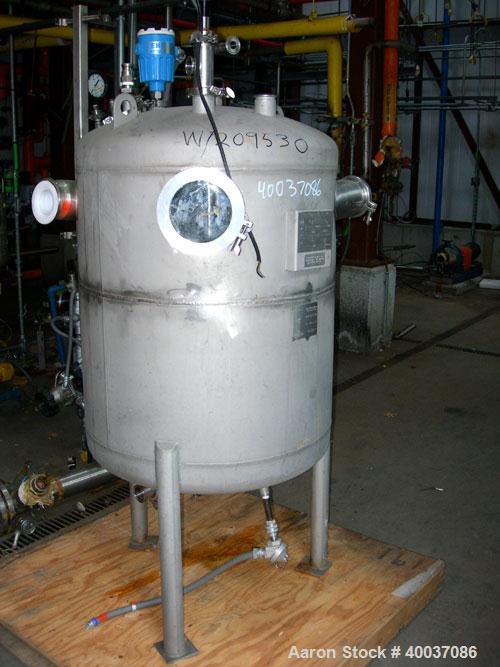

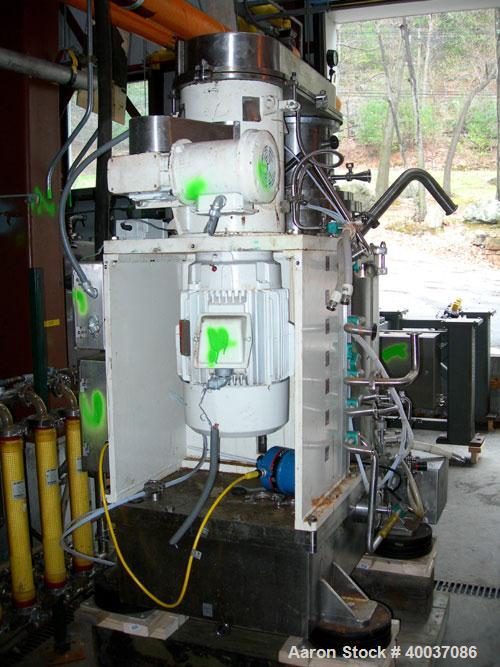

Used Carr Model HC-18 Solid Bowl Centrifuge. 18'' Titanium/316 stainless steel. Hi-Concentrate model. Unit has a vertical 18" ID bowl, 12" pool surface, rated 28 liters, with 3 baffles. Bowl is 90Ti-6AL, 4V Titanium alloy with a 316L stainless steel case. Bowl wall is rated 15,000 G's @ 7660 rpm, pool surface rated 10,000 G's @ 7660 rpm. Nominal flow capacity is 20 - 40 liters per minute. Driven by a 20 hp, 460 volt, variable frequency AC, 3 phase explosion-proof, NEMA 7, Class 1, Division 1, Group C, D, E, 1765 rpm @ 60 Hz. Scraper drive is 3/4 hp, 3 ph/60 cyc/460 volt explosion-proof. Incudes: 100 gallon filtrate recovery tank manufactured by Feldmeir, serial 50 psi/FV @ 350 degrees F internal. With ABB controls.
