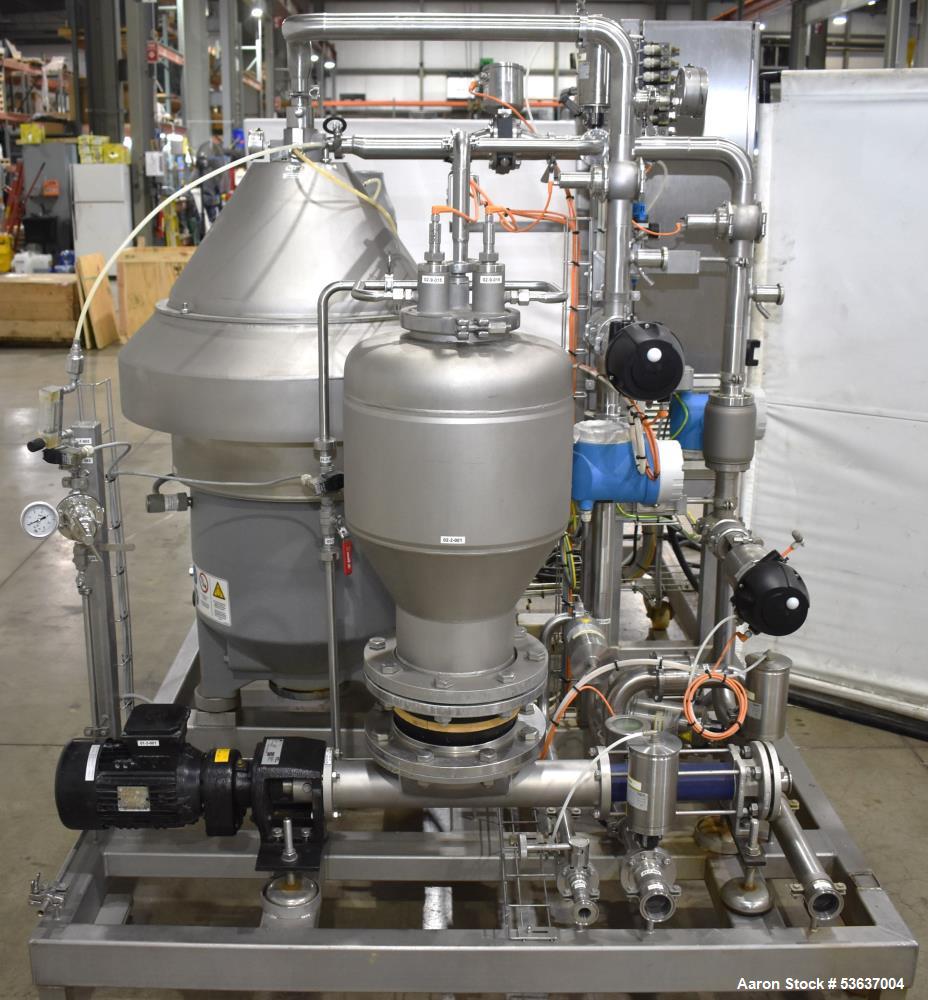

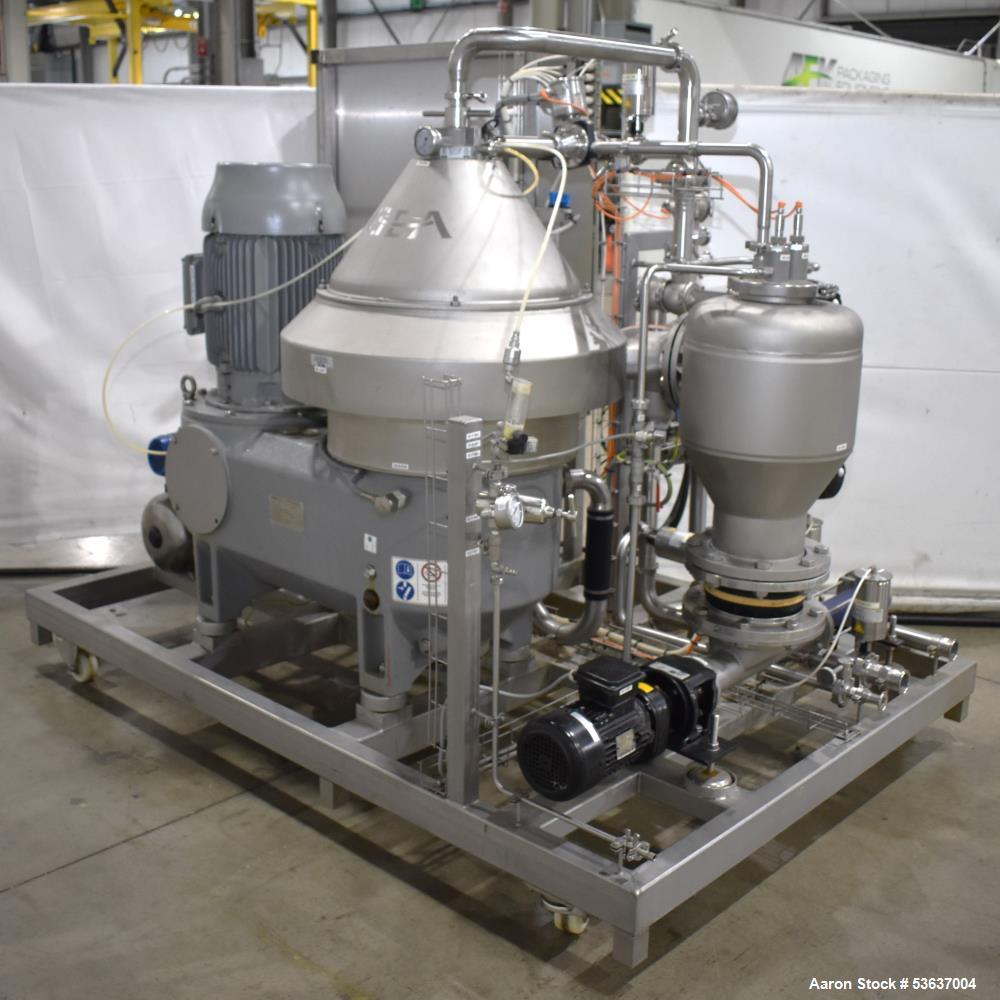

Used GEA Westfalia GSC-60-06-077 Centrifuge – 150 BBL/Hour, Rebuilt 2021 - HB1 Separation separation system

The GEA Westfalia GSC-60-06-077 is a high-performance centrifuge designed for the clarification of beverages, particularly beer.

Information:

• Manufacturer: GEA Westfalia Separator
• Model: GSC-60-06-077
• Type: Disc Stack Centrifuge
• Key Features:
  • High Throughput
  • Hydrostop Ejection System (for efficient solids removal)
  • Self-Cleaning Bowl (facilitates automated cleaning-in-place - CIP)
  • Closed System Design (minimizes contamination risks)

Keywords:

• Centrifuge
• Disc Stack Centrifuge
• GEA Westfalia
• GSC-60-06-077
• Beverage Clarification
• Beer Filtration
• Solid-Liquid Separation
• Hydrostop Ejection
• CIP (Cleaning-In-Place)
• High Throughput

Applications:

• Primary Application: Clarification of beer during the brewing process.
• Other Potential Applications: Clarification of other beverages (wine, juice), separation of solids from liquids in various industries.

Disclaimer: This information is for general knowledge and guidance only.

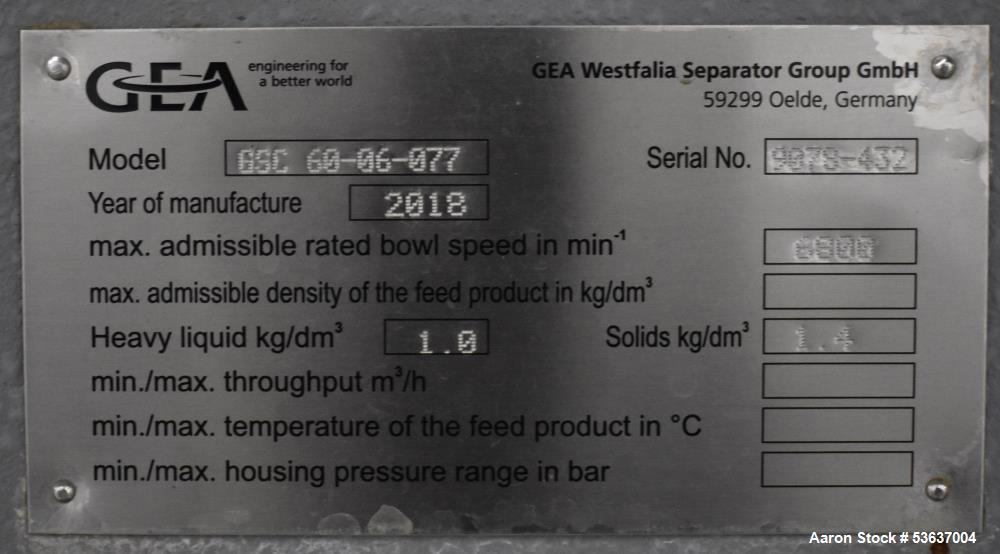

Manufacturers Info:

• Manufacturer: GEA Westfalia
• Model: GSC-60-06-077
• Serial Number: 9078-432
• Condition: Used, Rebuilt in 2021
• Capacity: Up to 150 BBL/hour
• Construction: Stainless Steel Contact Parts & Skid

Description:

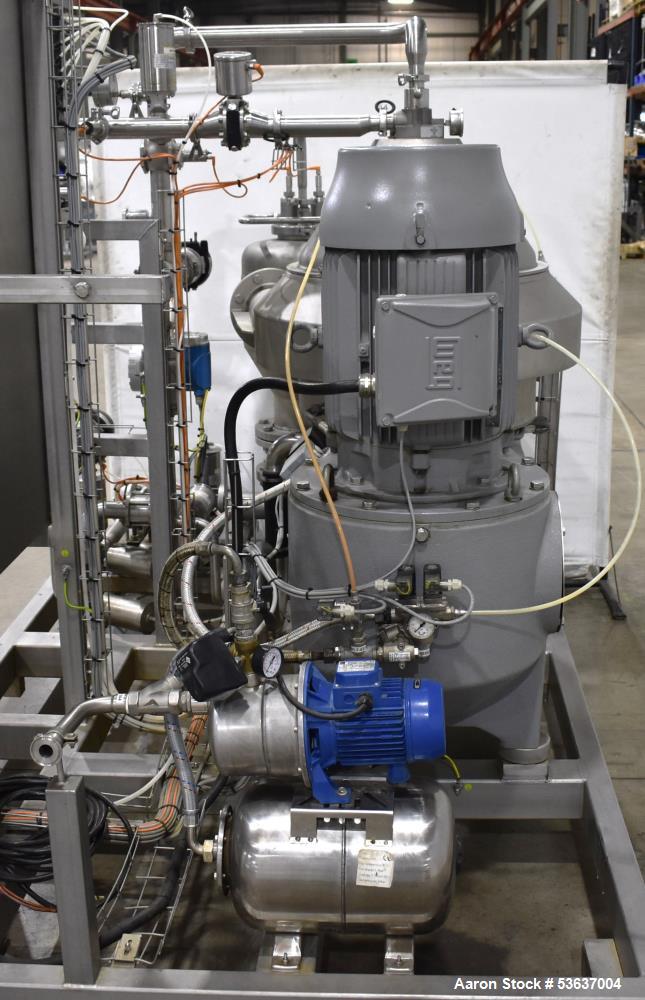

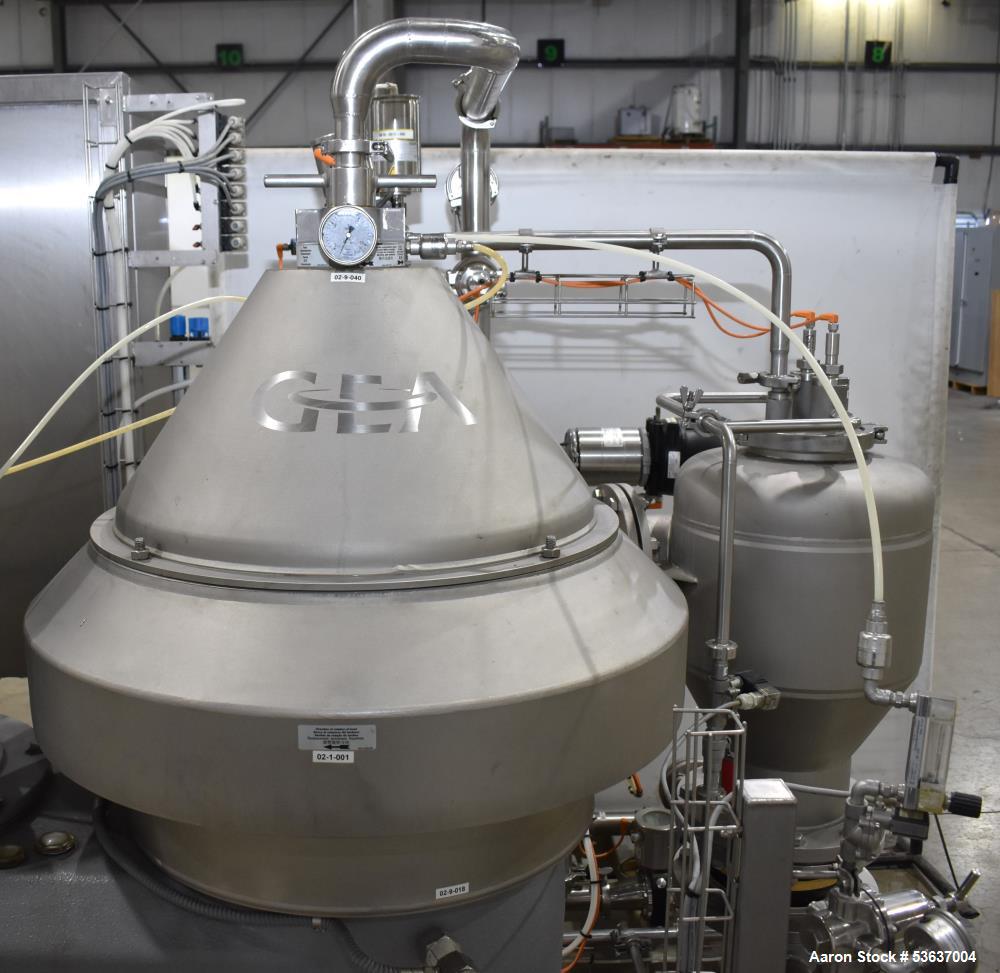

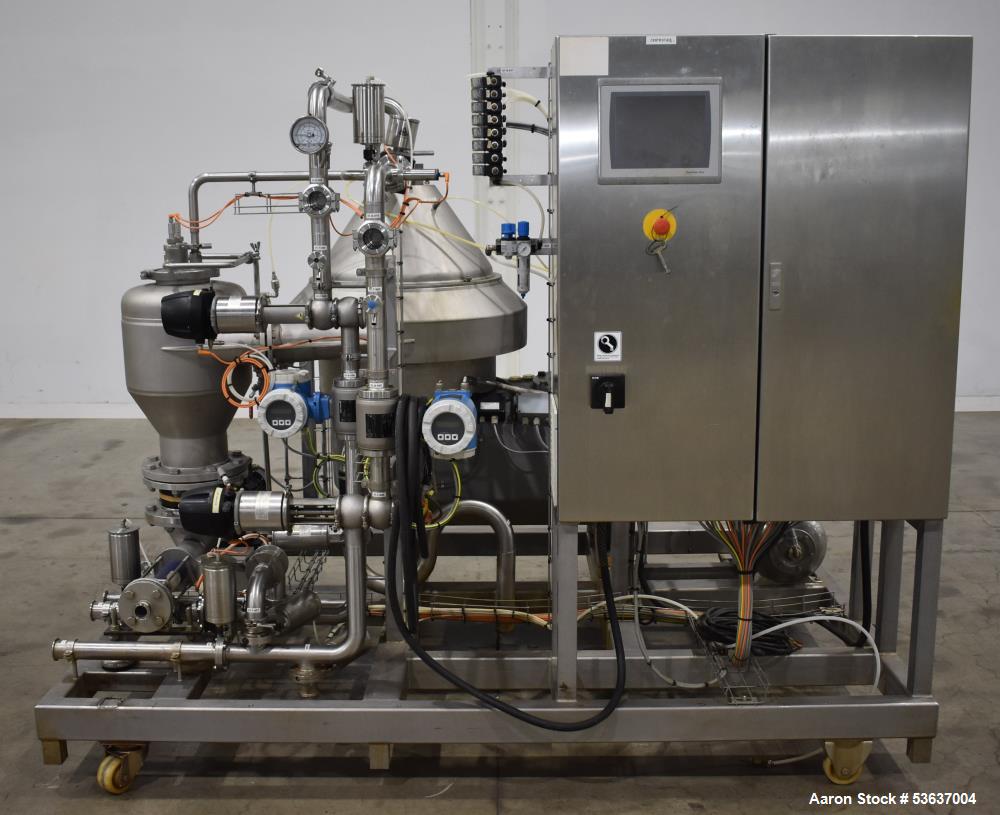

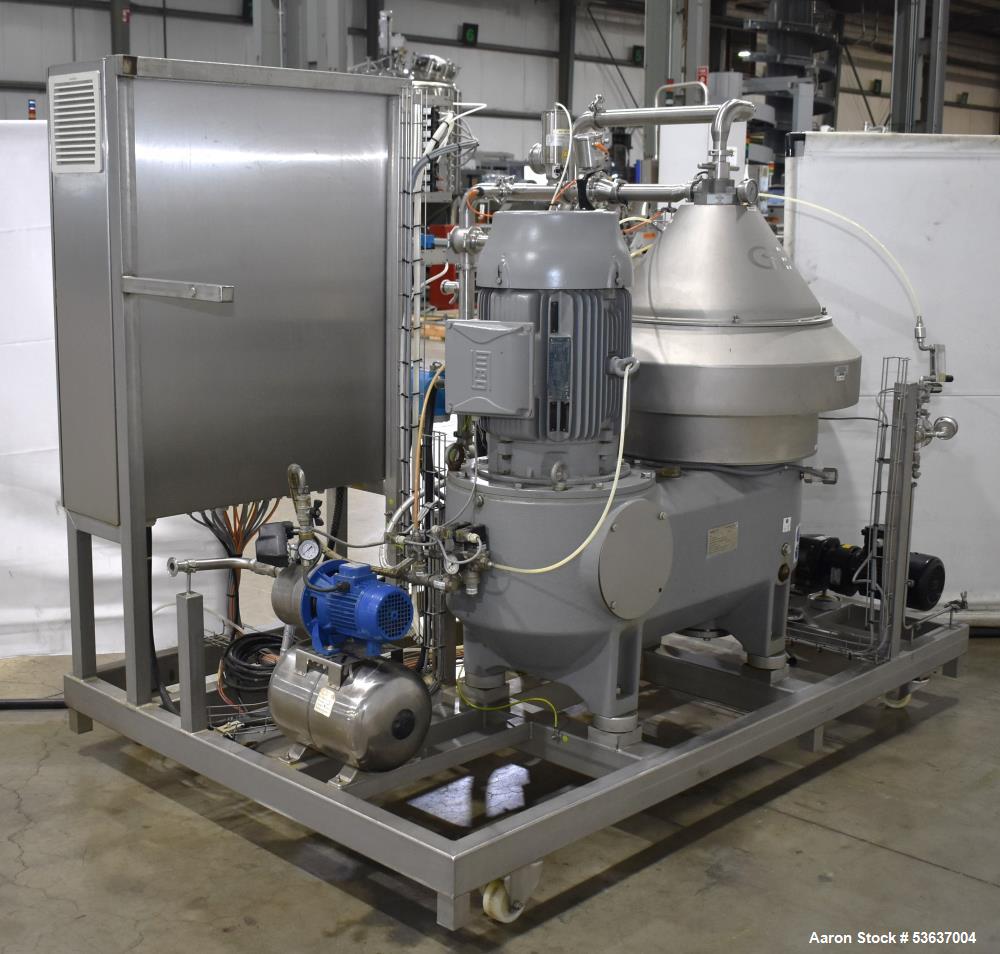

This used GEA Westfalia GSC-60-06-077 centrifuge is a high-capacity separation system designed for brewery, beverage, and liquid-solid separation applications. Previously used for dry-hopped tea, this unit provides gentle product handling with its hydro-hermetic design, eliminating the need for mechanical seals.

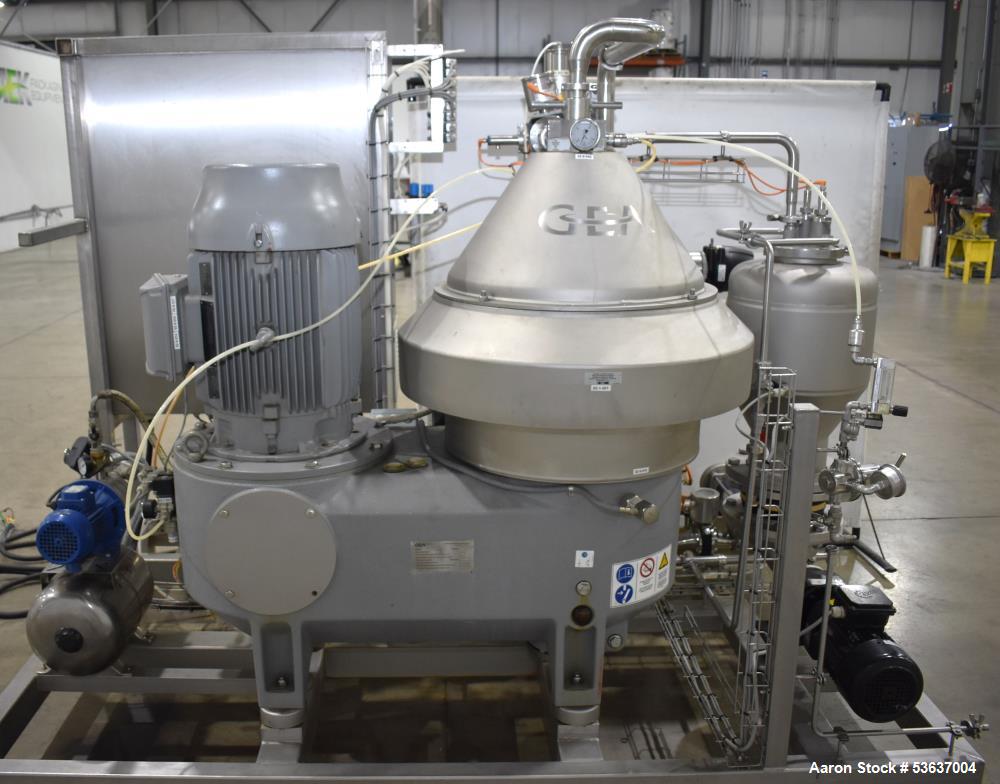

The system operates via a single flat belt drive for the cartridge assembly, featuring a hydro-stop ejection system and a clarified liquid centripetal pump for precise separation. Rebuilt in 2021, this centrifuge is equipped with a 30 kW (40 HP) main drive motor, Allen Bradley CompactLogix L24ER PLC, A/B PowerFlex 753, and A/B PanelView Plus 7 HMI. Its low-noise level (<85 dB(A)) and rugged cast iron frame mounted on stainless steel feet ensure durability and efficiency in high-volume production environments.

Specifications:

• Capacity: Up to 150 BBL/hour

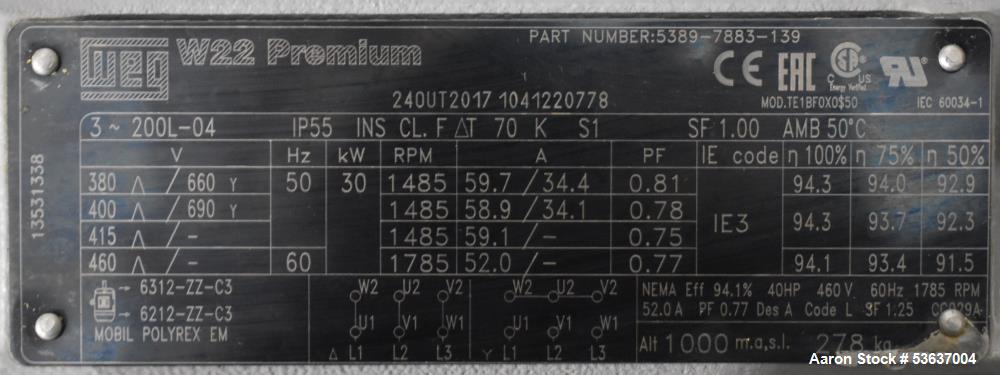

• Main Drive Motor: 30 kW (40 HP), 3/60/460V
• Voltage Compatibility: 3/60/230/460V
• Separation System: HB1 Separation System
• Discharge System: Hydro-Stop Ejection System
• Design Features:
  • Hydro-Hermetic Design – No Mechanical Seals

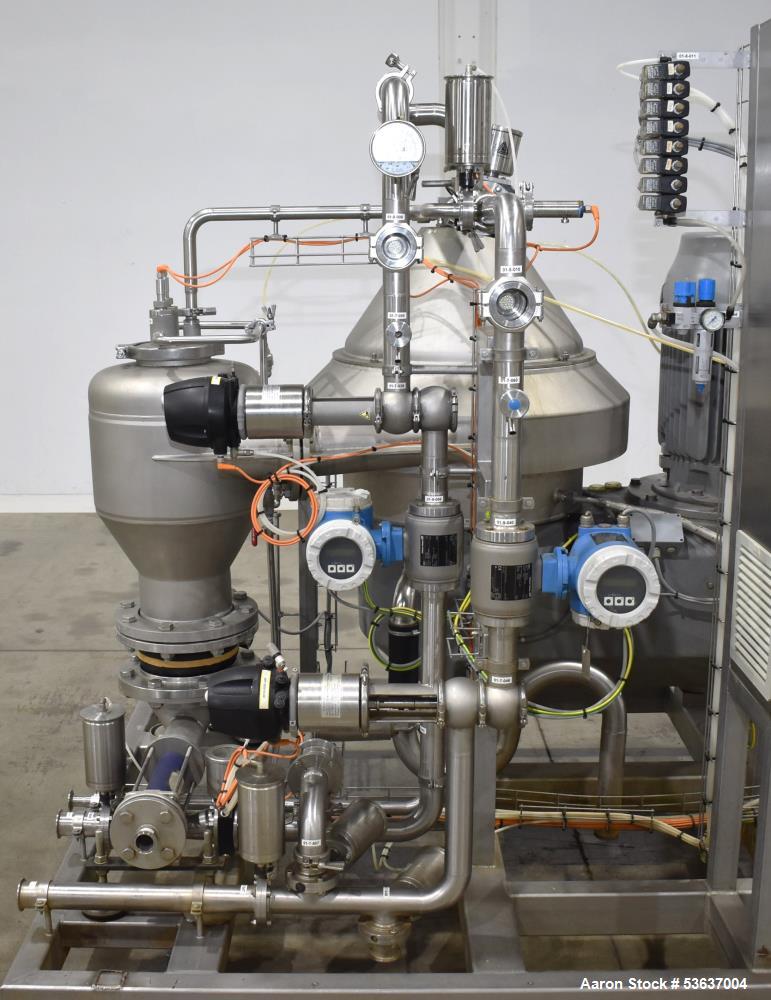

  • Clarified Liquid Centripetal Pump
  • Drive System via Single Flat Belt for Cartridge Assembly
  • Low Noise Level (<85 dB(A))
  • Vibration Sensor
• Frame & Build:
  • Rugged Cast Iron Frame
  • Mounted on Stainless Steel Feet

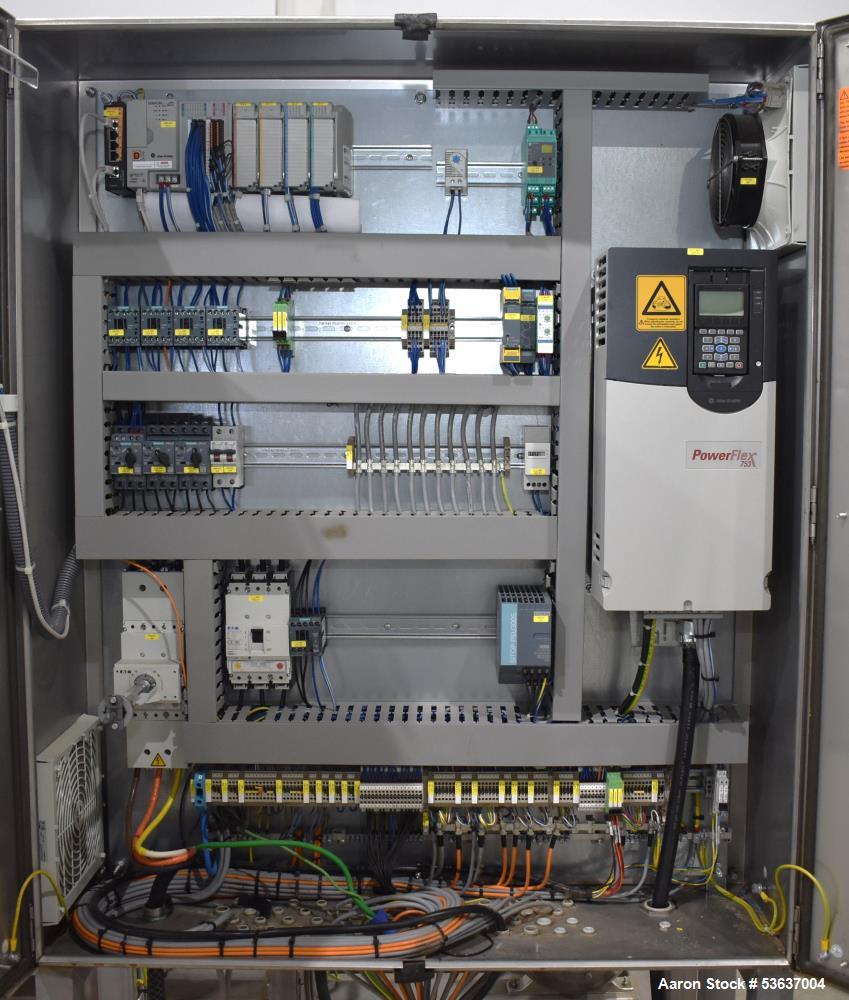

• Control System:

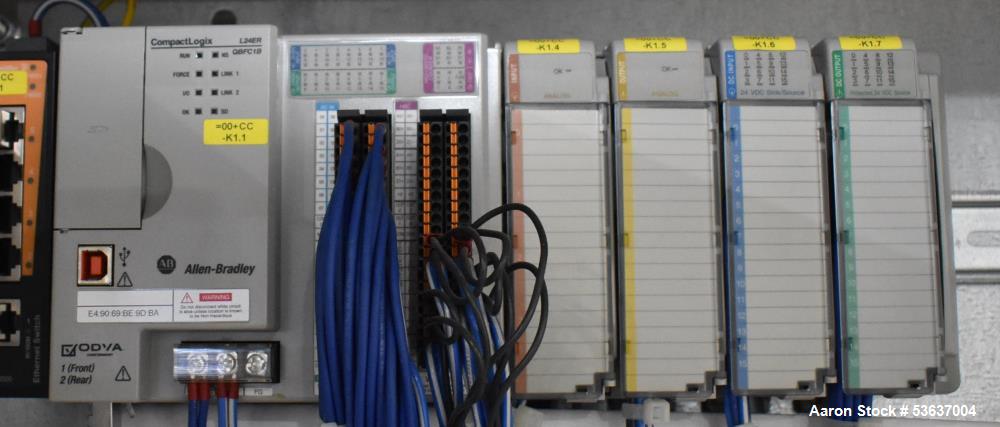

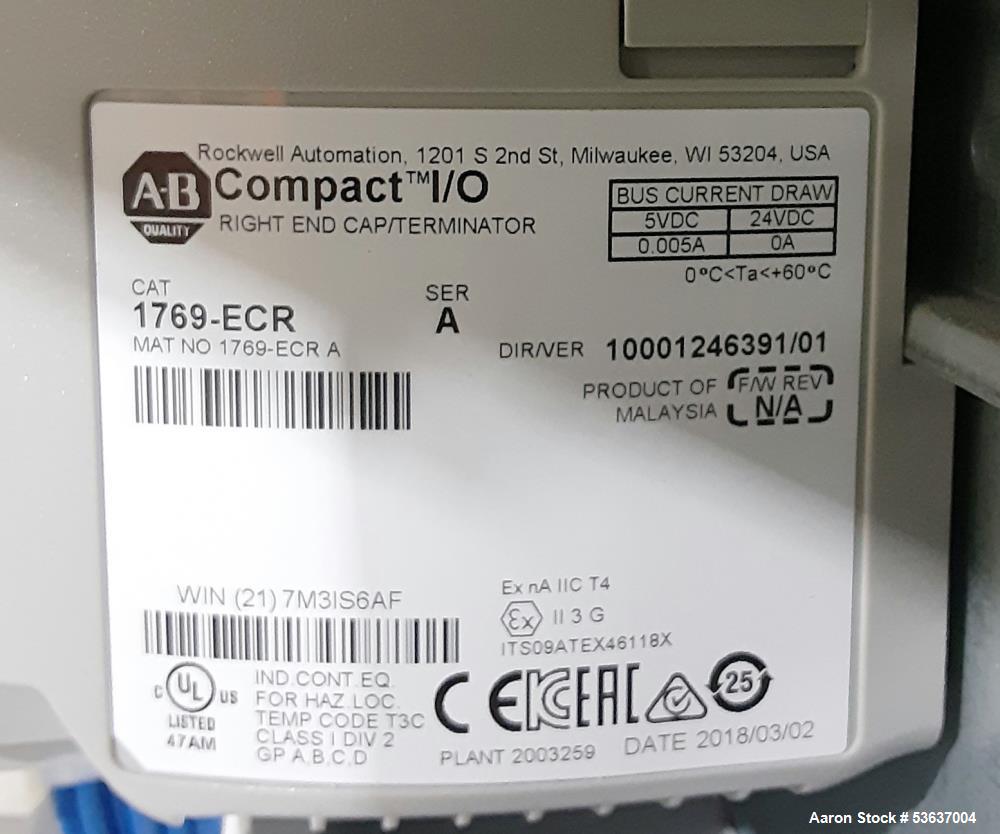

  • Allen Bradley CompactLogix L24ER PLC

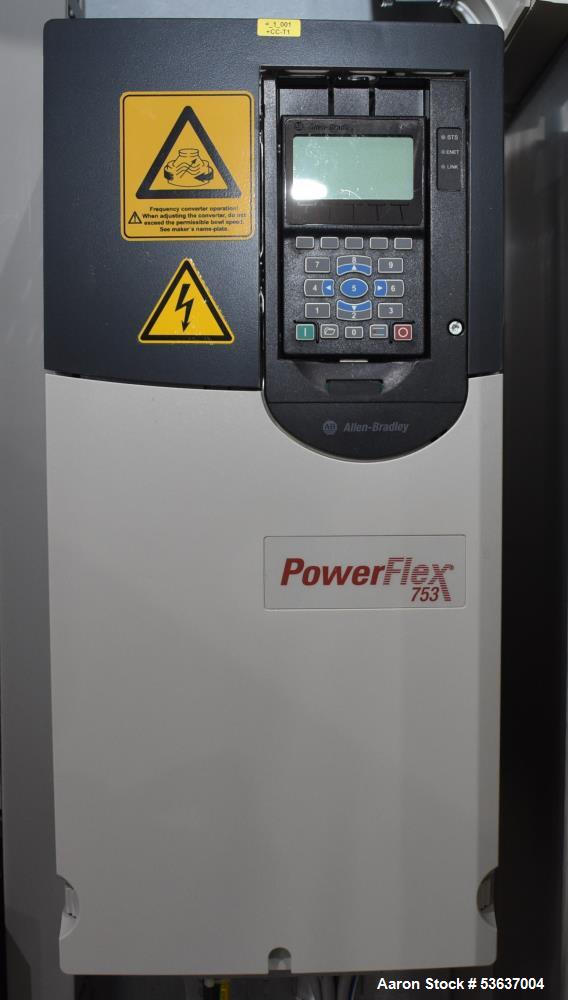

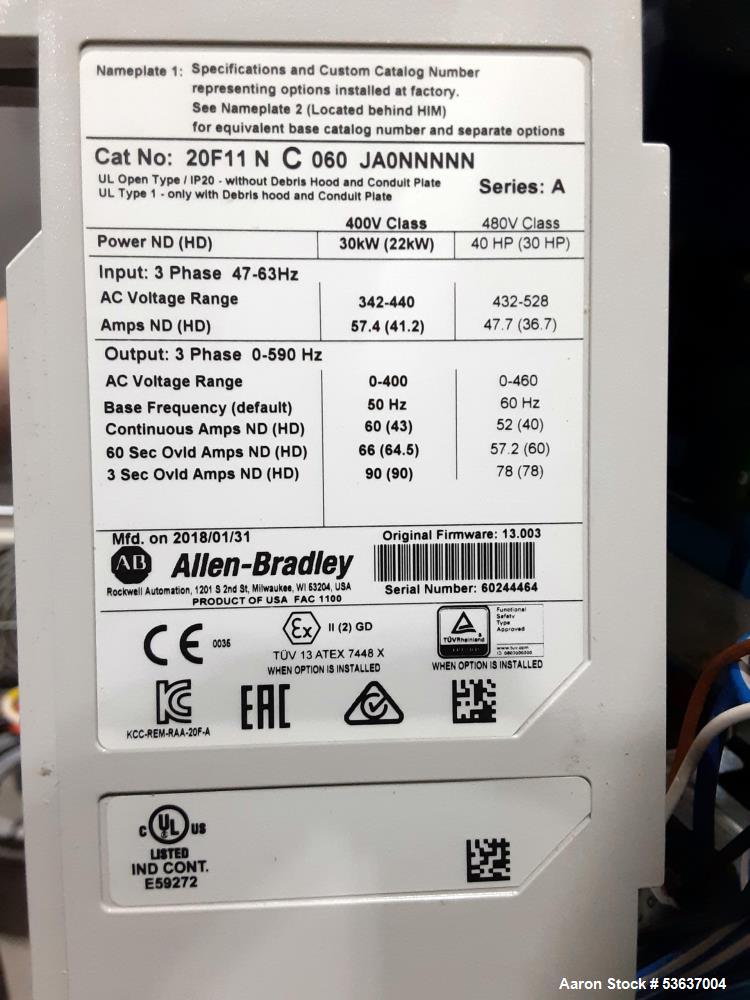

  • A/B PowerFlex 753 Drive

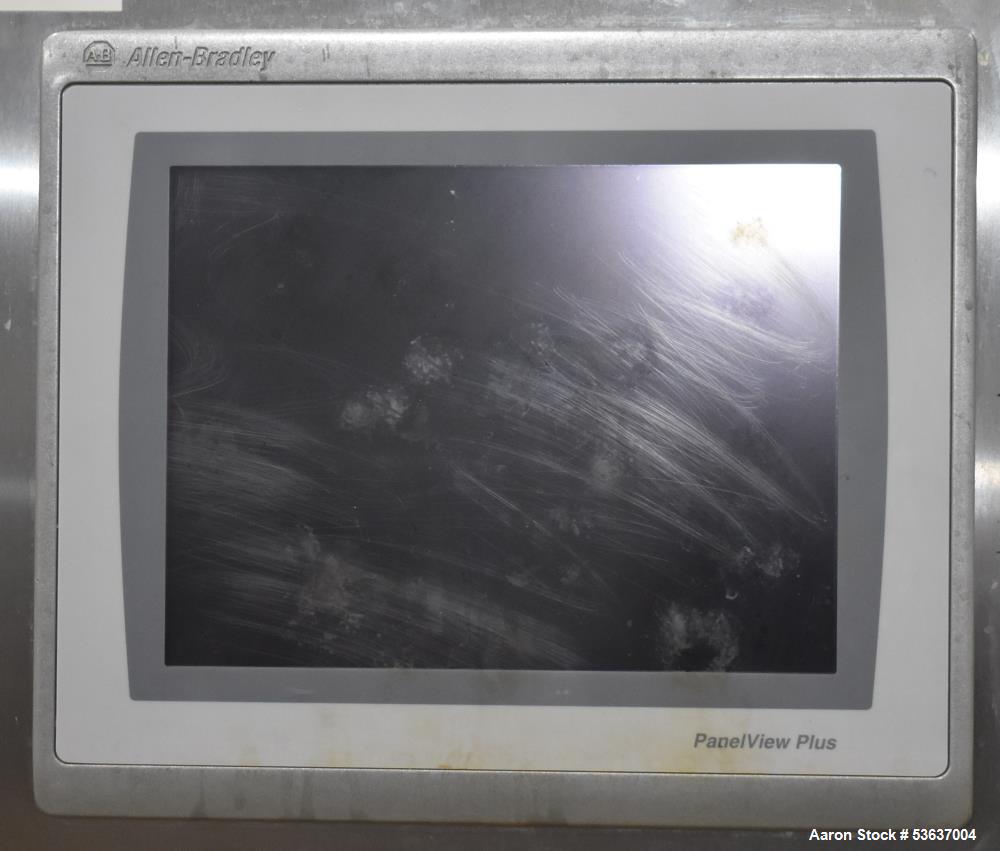

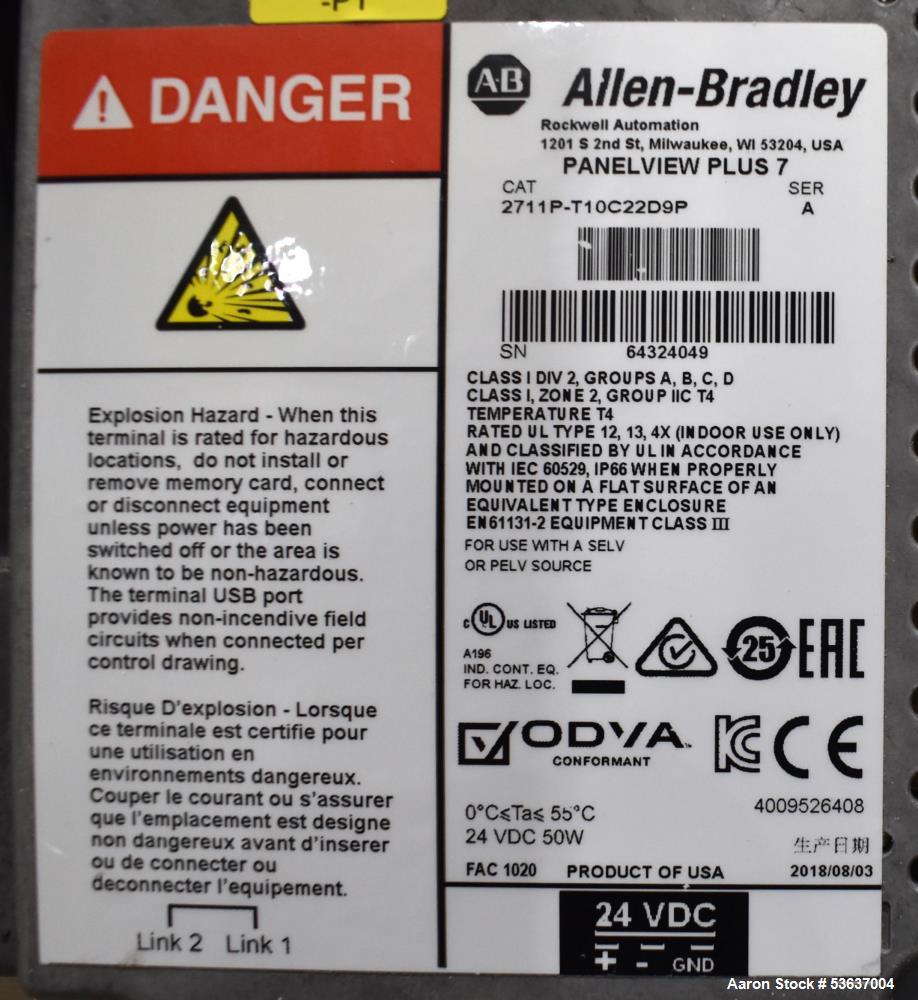

  • A/B PanelView Plus 7 HMI
• Includes:

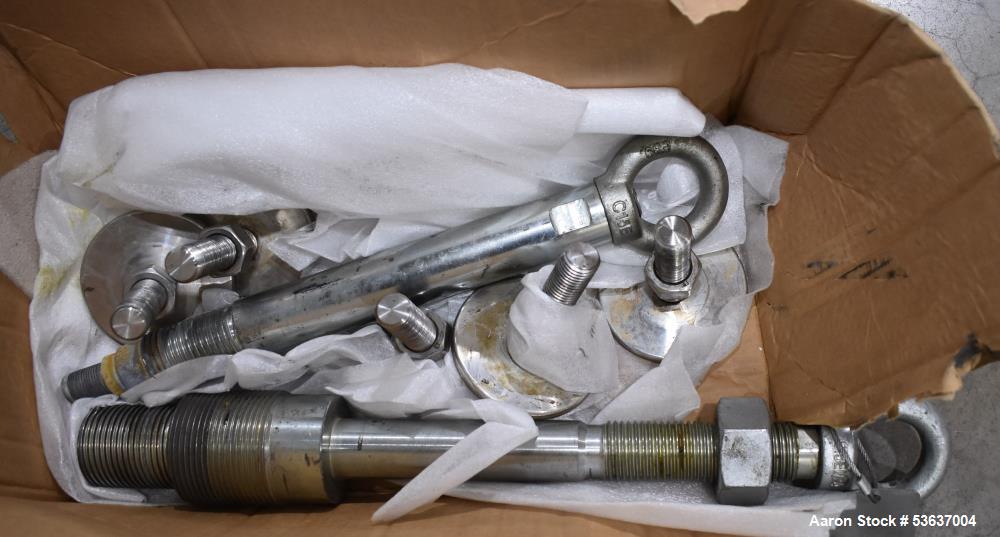

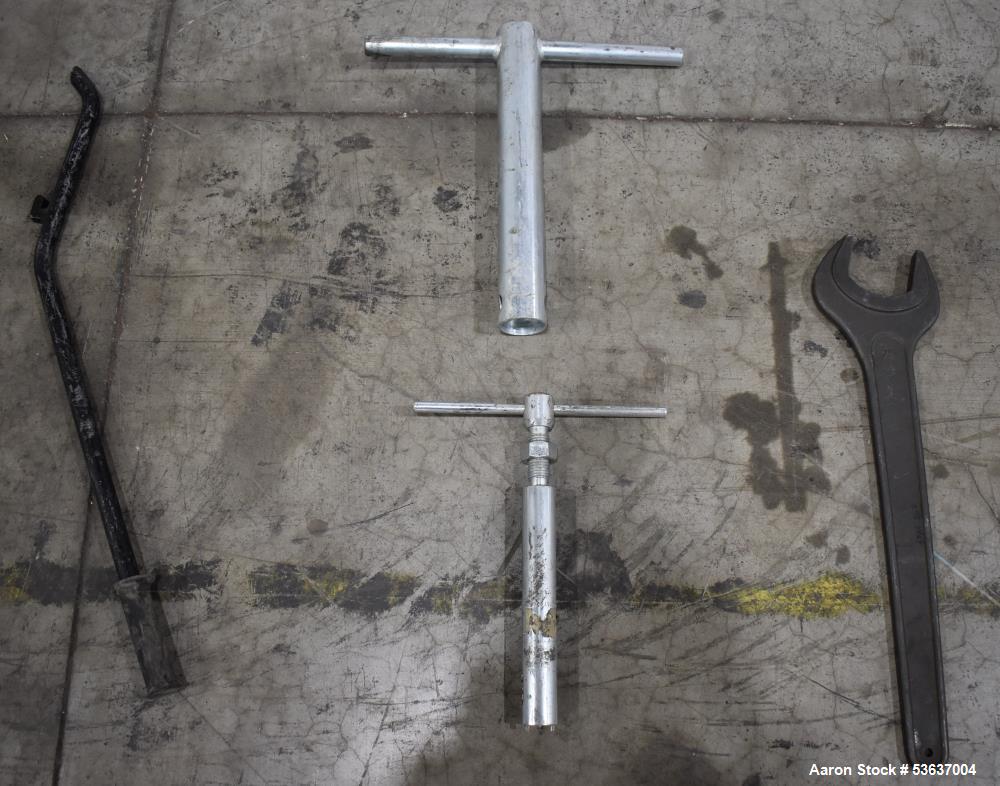

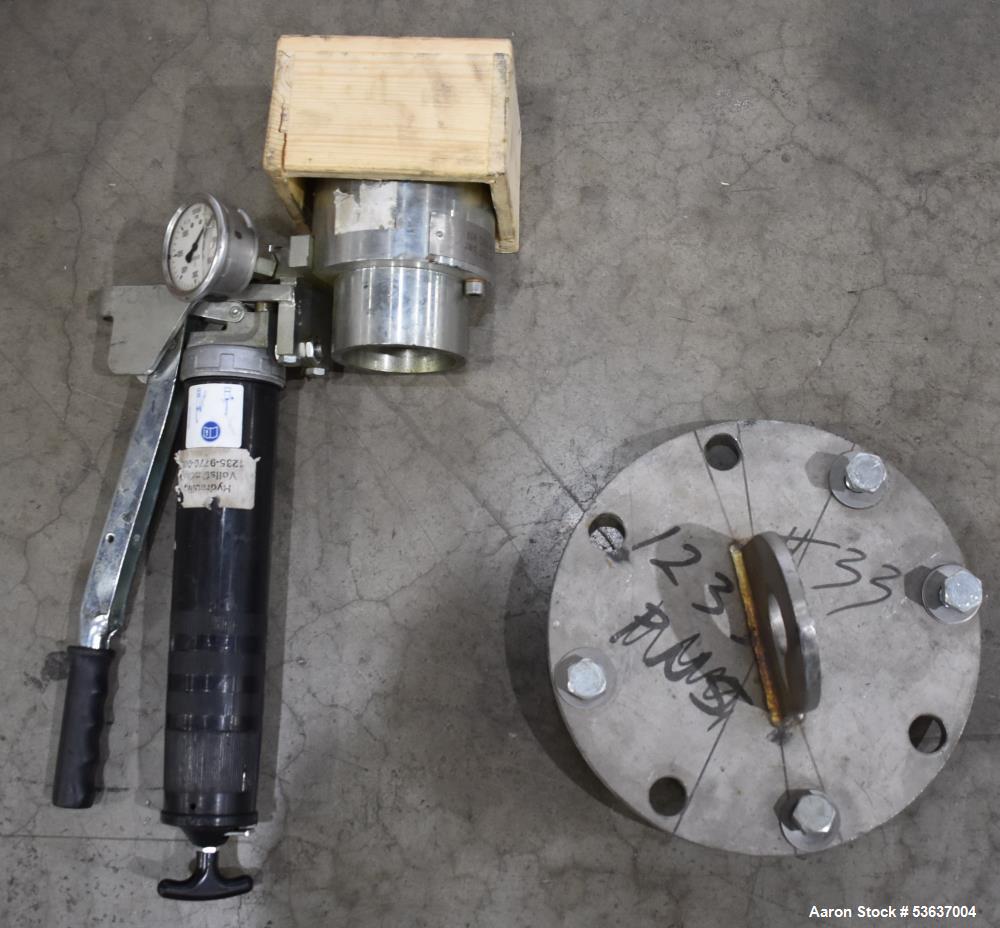

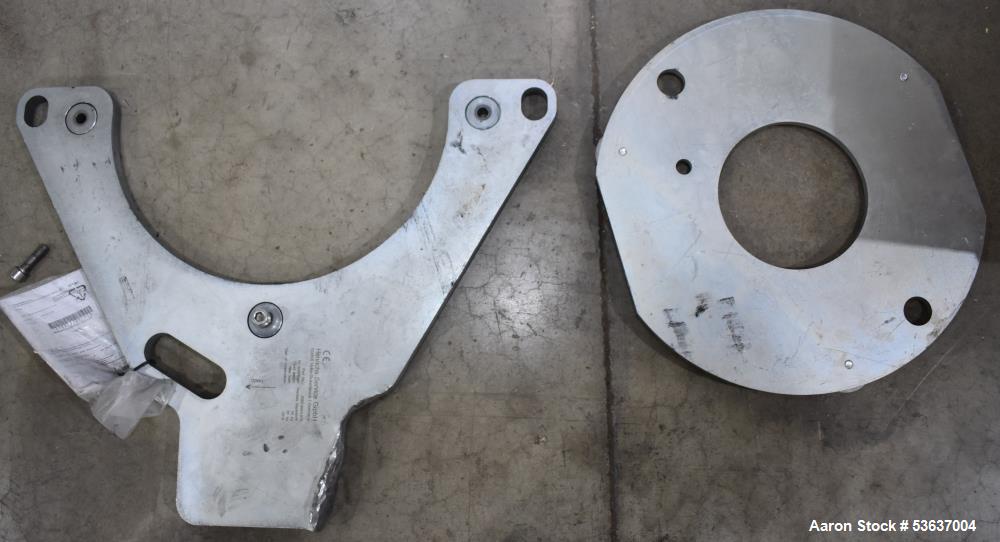

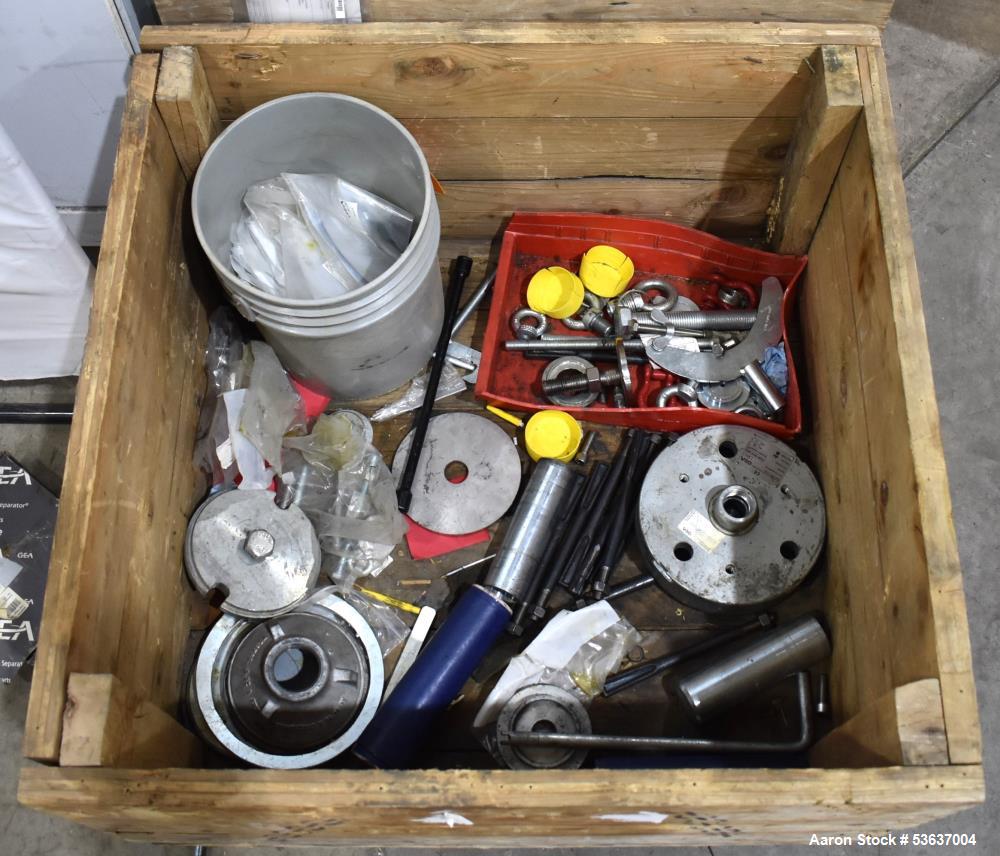

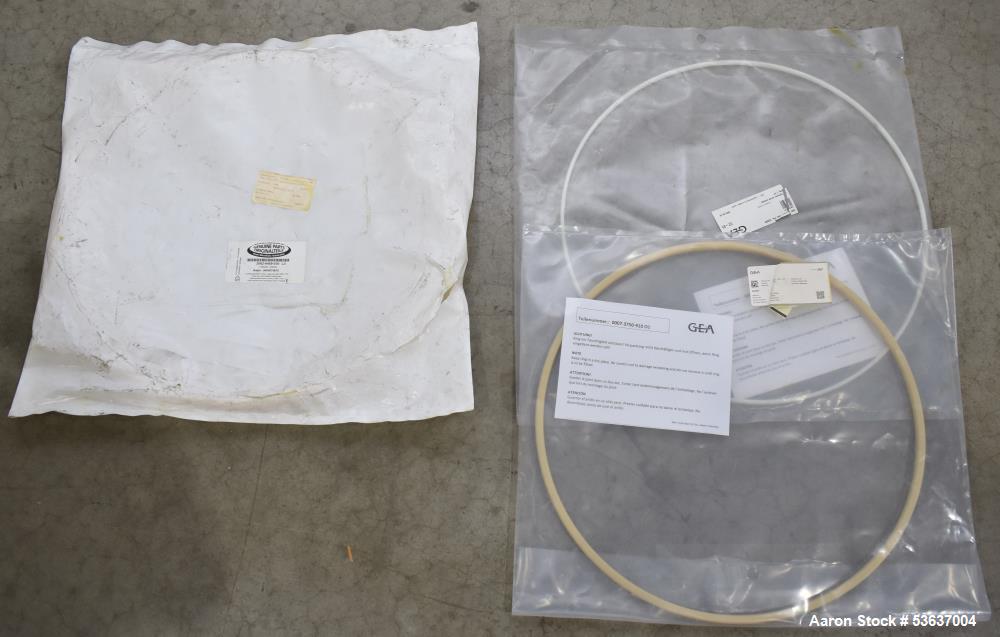

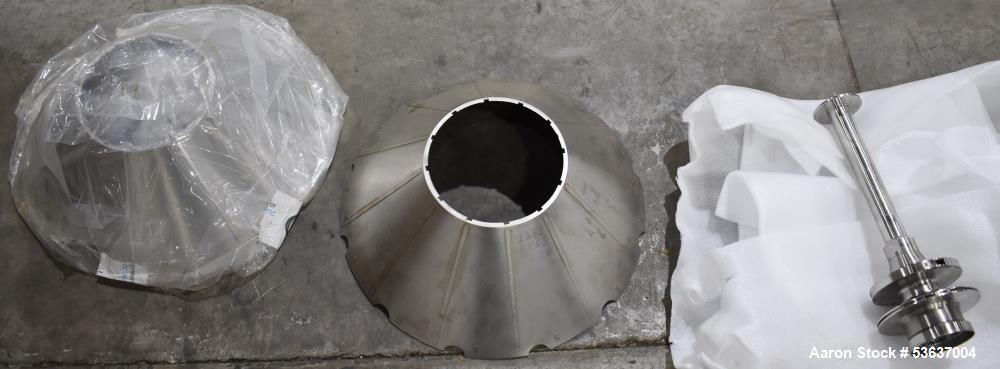

  • Spare Parts & Tools

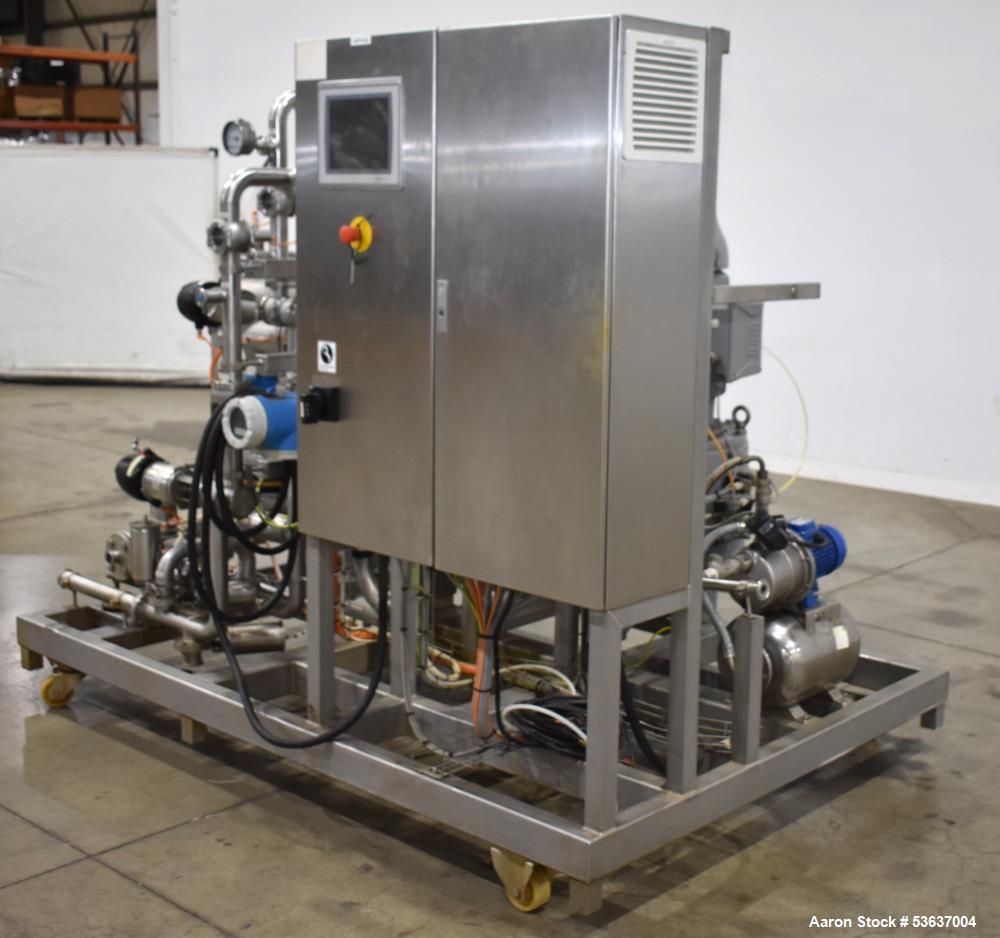

  • Stainless Steel Skid

Applications:

• Brewery & Beverage Processing
• Tea, Coffee, & Non-Alcoholic Beverage Production
• Wine & Cider Clarification
• Industrial Liquid-Solid Separation
• Dairy & Food Processing
• Pharmaceutical & Chemical Processing

Common Products Processed With This Centrifuge:

• Beer & Dry-Hopped Tea
• Wine & Cider
• Dairy Liquids & Whey Separation
• Industrial Wastewater & Sludge
• Chemical & Pharmaceutical Suspensions
