Used Sharples Pennwalt Centrifuge

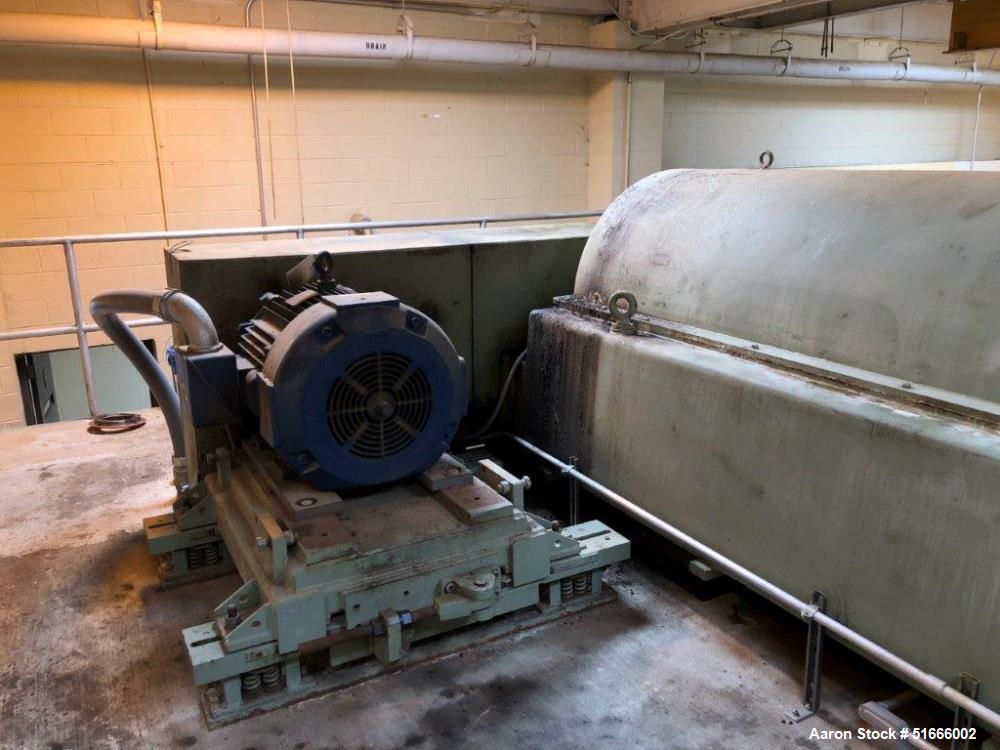

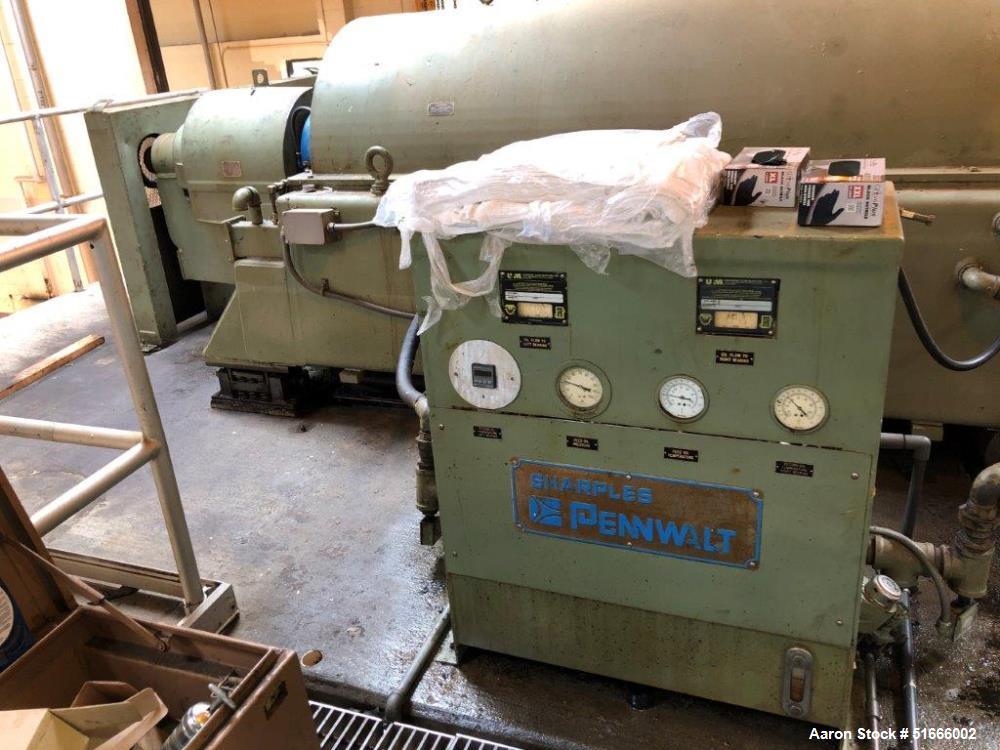

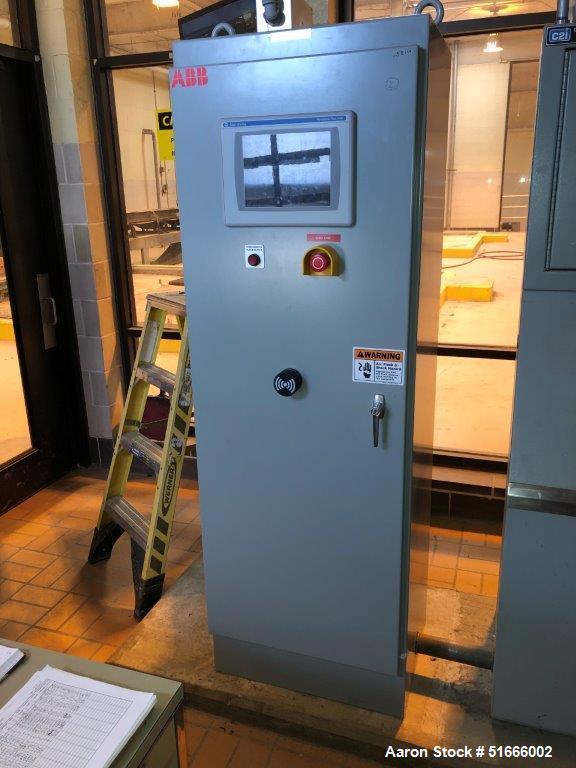

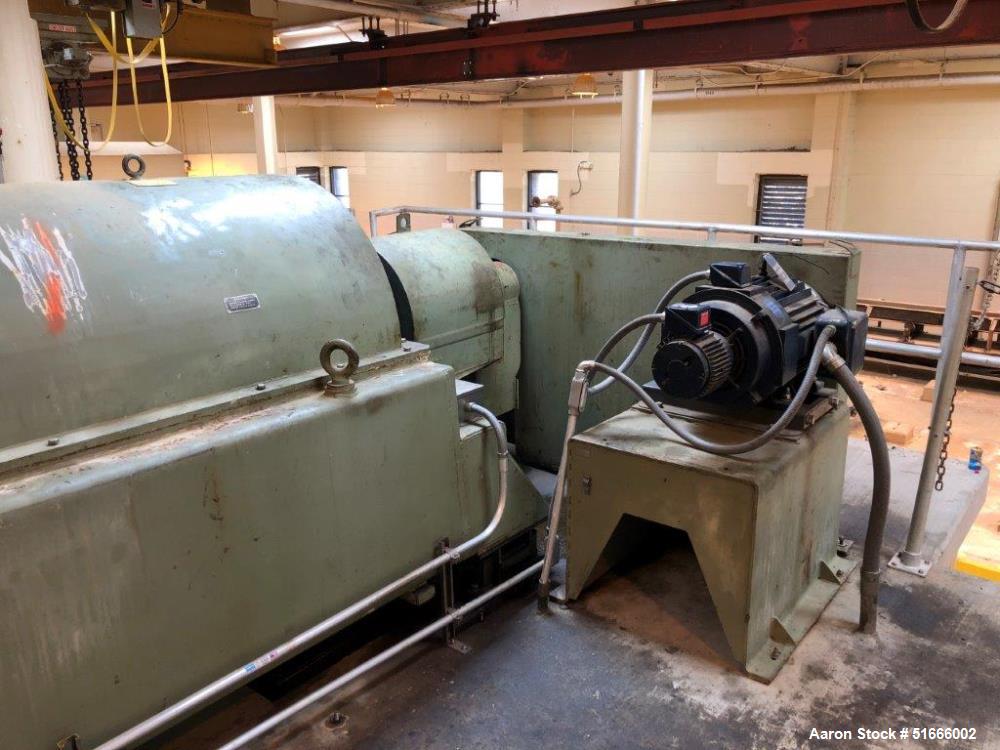

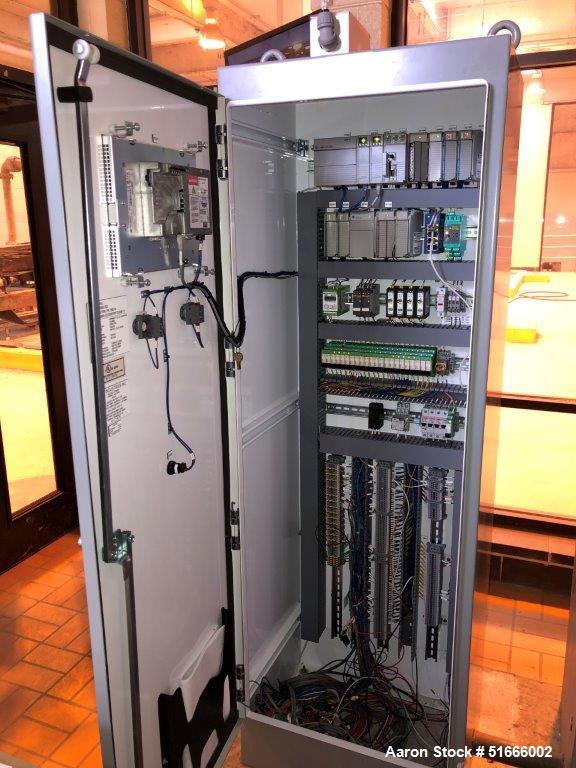

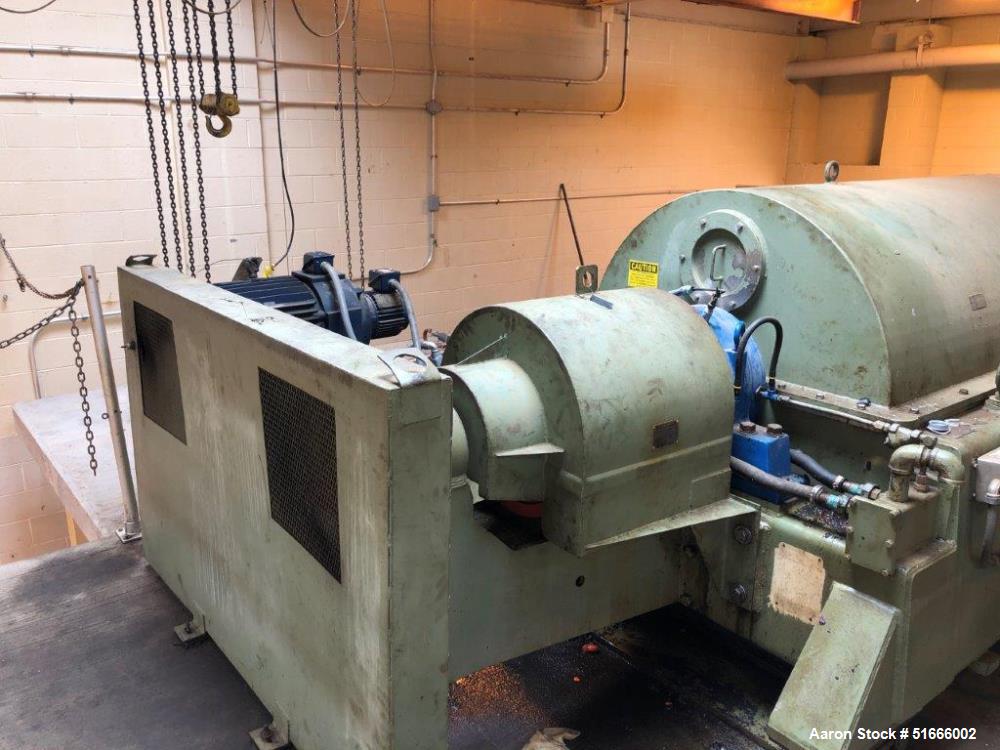

Used- Sharples Pennwalt PM76000 Centrifuge. Starter Panel - NEMA 12, 90x60x26 Enclosure, 460vac, 20,000 BTU Air Conditioner; ABB ACS800-U4, 480vac, 250hp Main VFD, ABB ACS800-U1, DC Bus Powered, 40hp BD VFD; VFD contactors (load side), Fused Disconnect, thru the-door handle; Control Panel NEMA 12, 72x24x18, Freestanding; CompactLogix 1768 Processor, 2 Ethernet ports. (1 internal, 1 for plant access);CompactLogix 1769 IO, DLM+ Standard; PanelView PLUS-6, 10.4" Color, Touchscreen HMI, Ethernet Switch; Temperature and Vibration sensors CMSS793T-3 (2 sensors and monitors per machine) with SKF monitoring Option. Reported to be reconditioned.

ManufacturerSharples
ModelPM76000

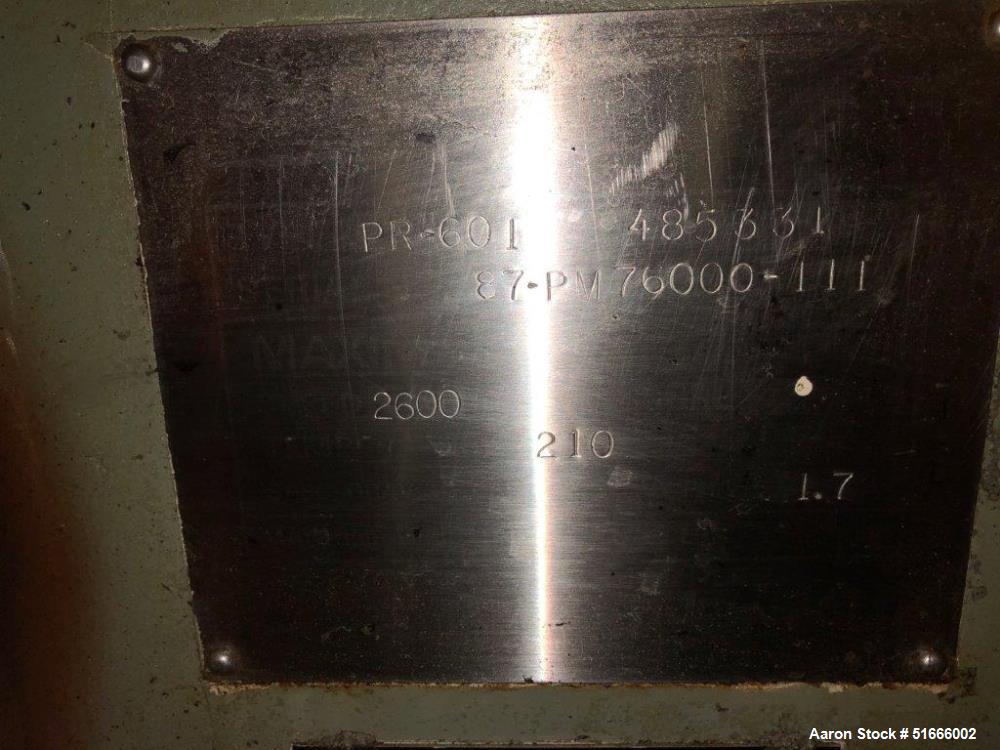

Serial #87-PM76000-111
CategoryCentrifuges
SubcategoryDecanter

We offer a variety of finance programs. Please contact your sales person for more information.
