THIS ITEM HAS SOLD! View similar equipment

Stock No.: 41174042

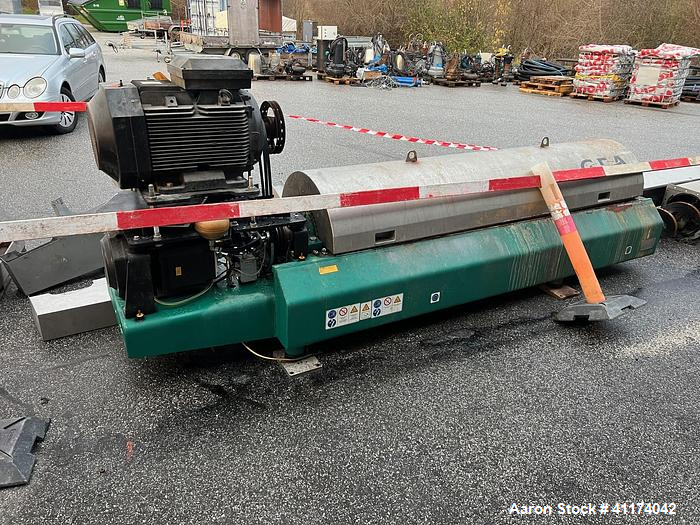

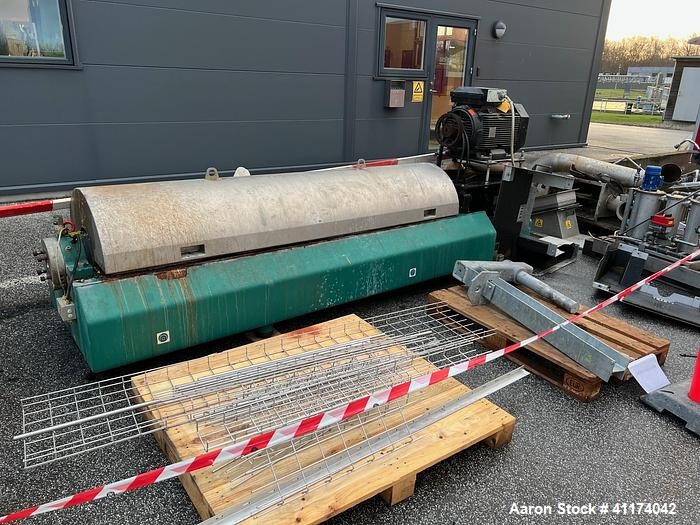

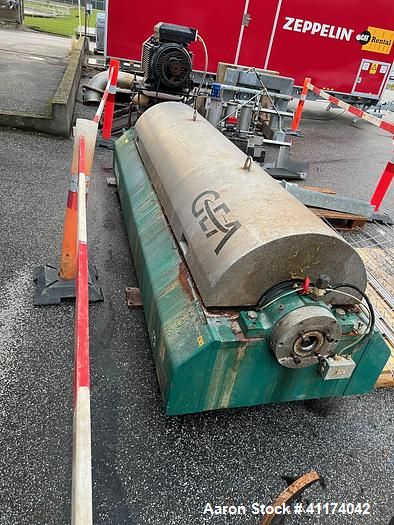

Used GEA Westfalia Solid Bowl Decanter Centrifuge

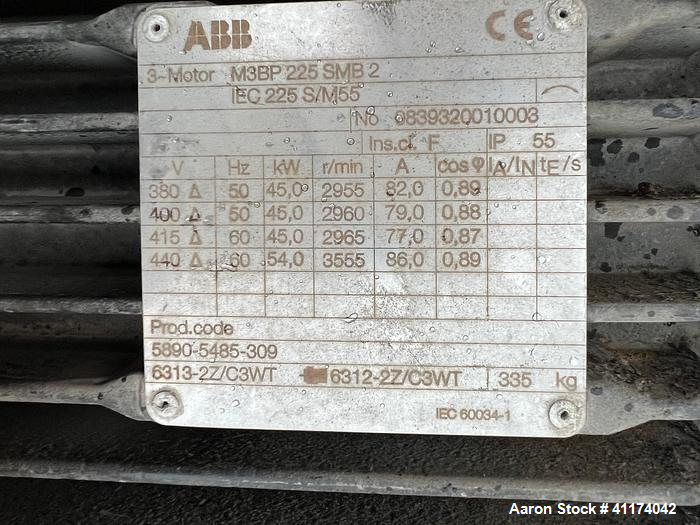

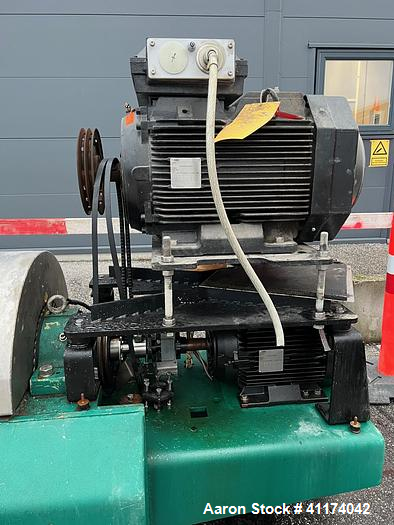

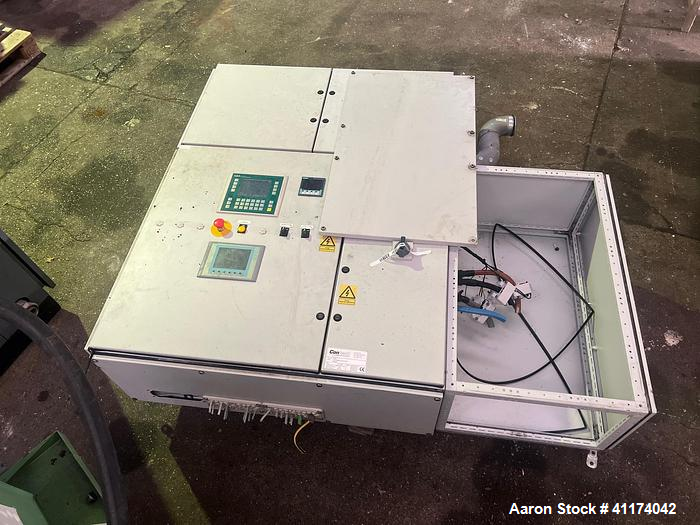

Used- GEA Westfalia Solid Bowl Decanter Centrifuge, type UCF-466-00-32. X2CrNiN23-4 (1.4462) stainless steel (DUPLEX steel with addition of Molybdenum) construction (product contact areas). Bowl diameter 300 mm, maximum bowl speed 4500 rpm, 4" single lead with welded hard face, lined cake solids discharge ports with cake flingers, ring liquid dam plates, base, casing gearbox, feed pipe with poly addition port, 67.5 HP/45Kw-380 volt/50 cycle/3Ph main drive motor, 16.5 HP/11 kw 380volt/50 cycle/3Ph automatic back drive. Incl. Control panel. New 2008.

ManufacturerGEA Westfalia
ModelUCF-466-00-32. X2CrNiN23-4
CategoryCentrifuges
SubcategoryDecanter
Backdrive Hp16.5
Base MaterialCarbon Steel
Bowl MaterialStainless Steel
Case MaterialStainless Steel
Feed PipePoly
Main Drive Hp67.5
Motor Voltage380 Volt
Bowl Speed4500

We offer a variety of finance programs. Please contact your sales person for more information.
