Stock No.: 48744001

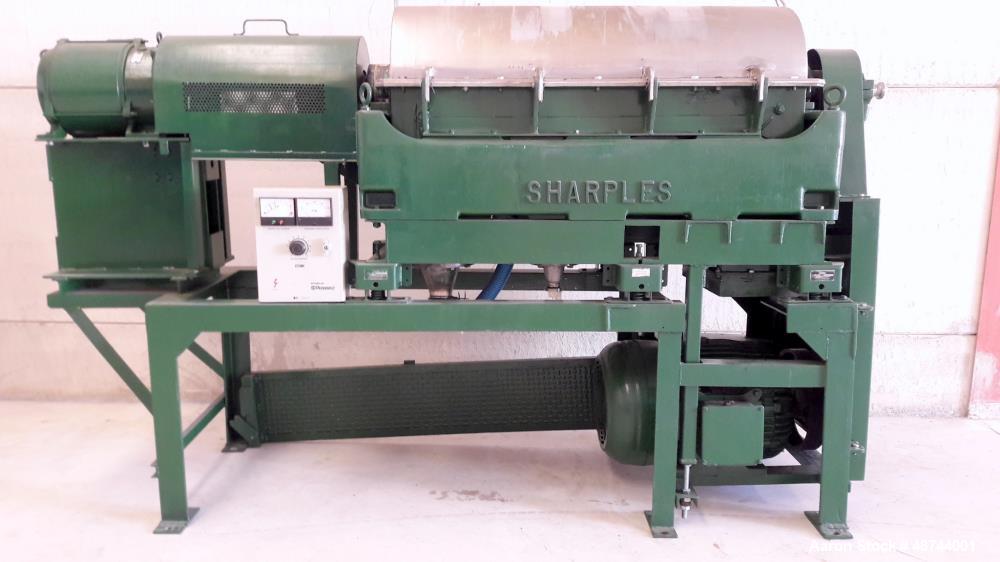

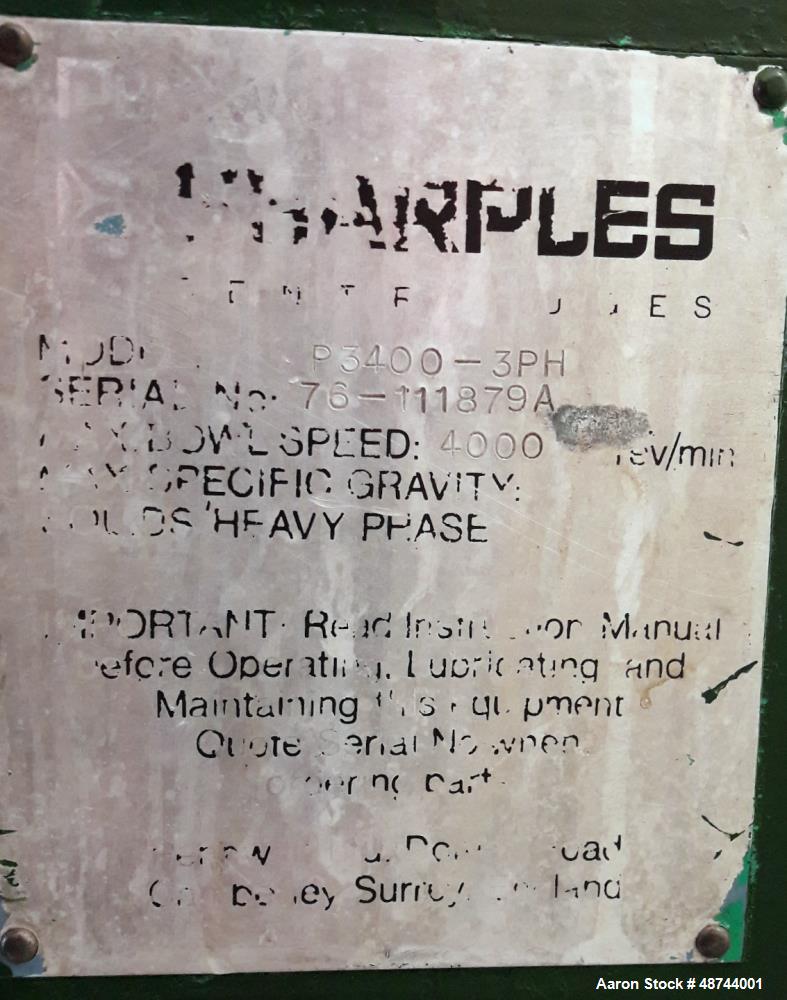

Used Sharples P-3400-3PH Super-D-Canter Centrifuge.

Used- Sharples P-3400-3PH Super-D-Canter Centrifuge. 316 Stainless Steel construction (product contact areas). Two or three phase separation (presently set for two phase - liquid, solids), maximum bowl speed 4000 rpm. Hogged-out cake discharge ports with wear liners, double lead conveyor, liquid plate dams, gearbox, base, casing approximate drive motor 30kw (40.2hp), 380/50/3. Approximate 7.5 kw (10hp) back drive, mounted on a carbon steel frame, on 6 legs. Previous used on olive oil.

ManufacturerFlottweg
ModelZ4D 3/441
CategoryCentrifuges
SubcategoryDecanter
Backdrive Hp10
Bowl Material316 Stainless Steel construction (product contact areas)
Main Drive Hp40.2
Motor Voltage380 Volt
Bowl Speed4000 rpm

Product Details

Decanting Centrifuge
Sharples Super-D-Canter Centrifuge
Three phase separation, liquid, liquid, solids
Tricanter Centrifuge

We offer a variety of finance programs. Please contact your sales person for more information.
