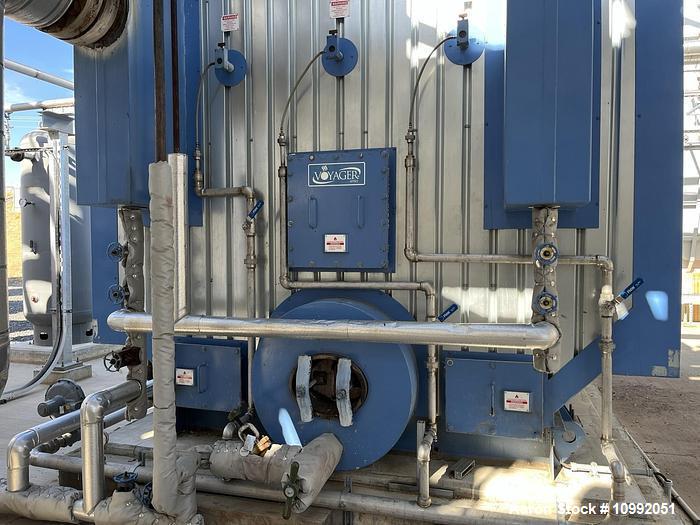

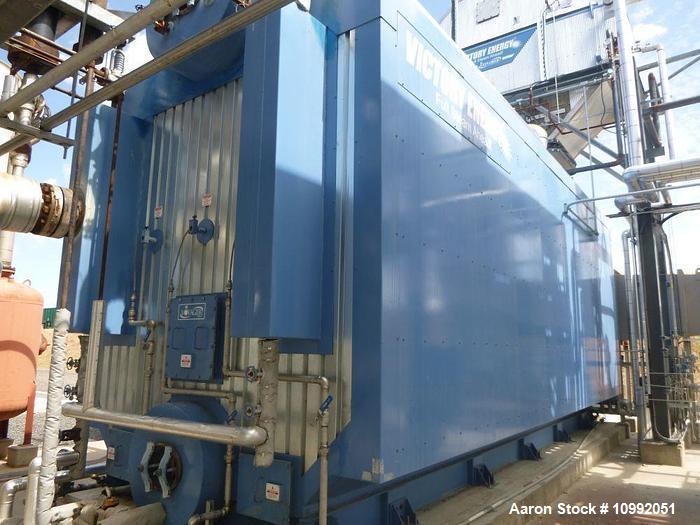

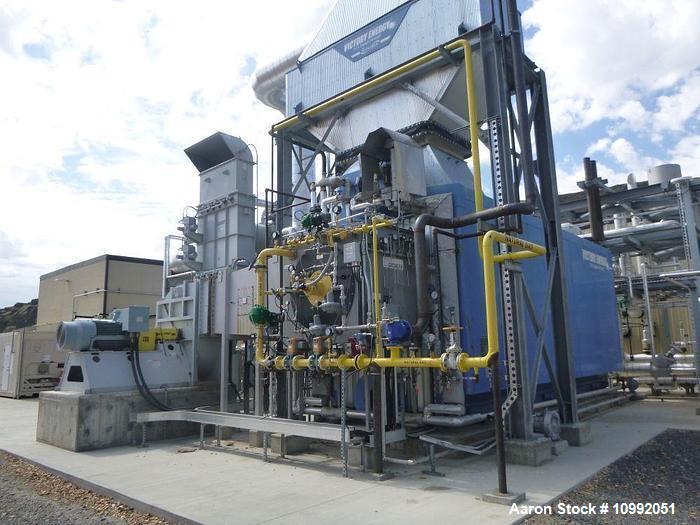

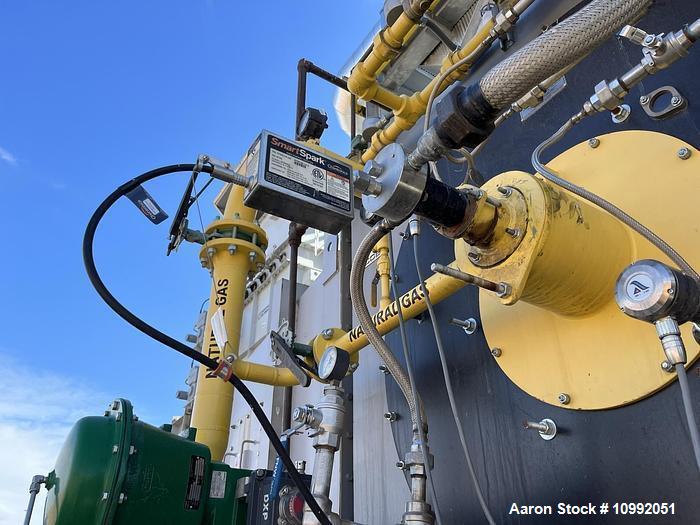

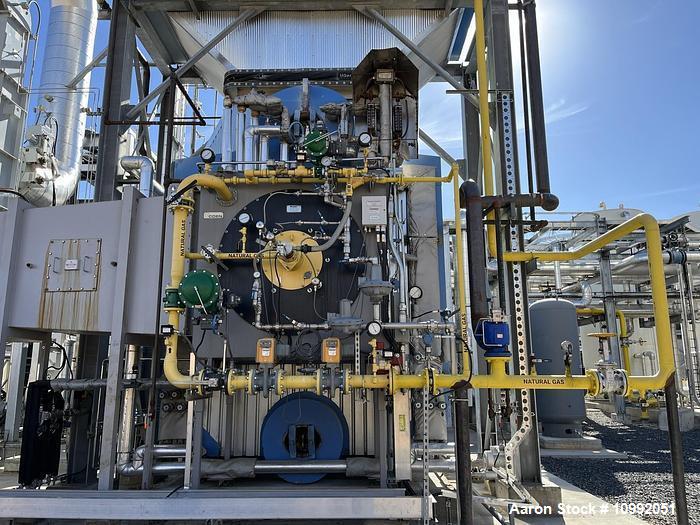

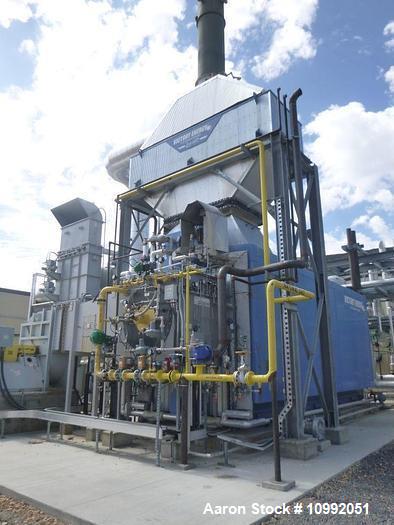

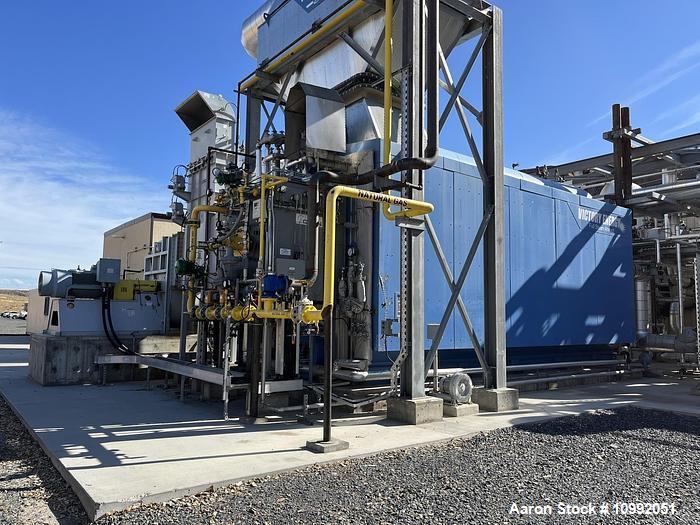

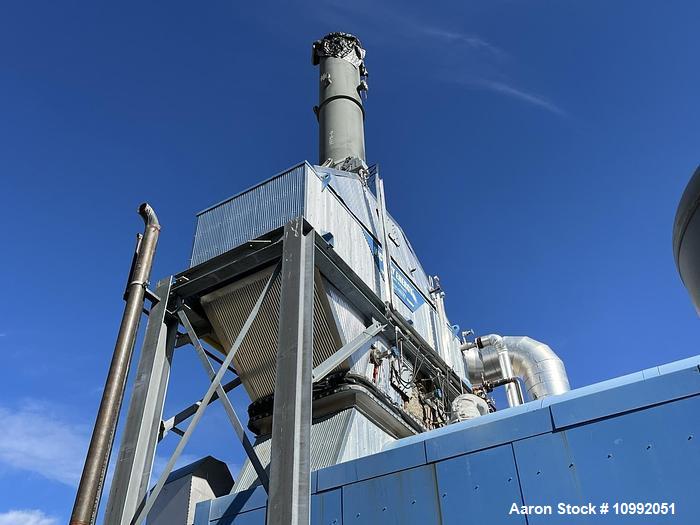

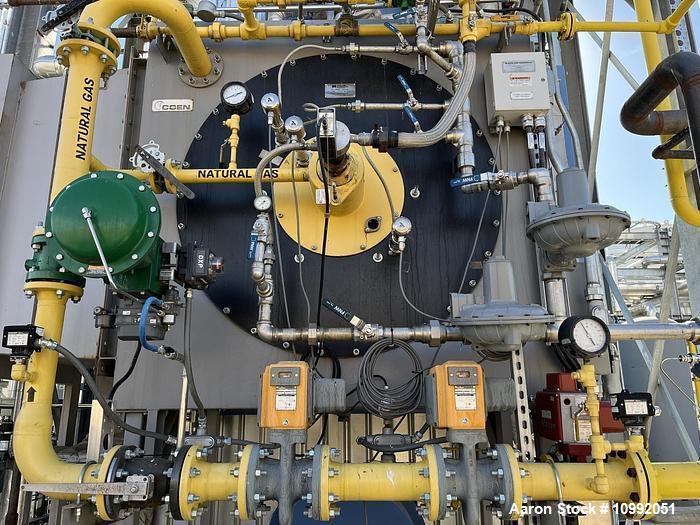

Used Victory Energy Voyager Series Model VS-5-78SP SH 90,000 LBS/HR PPH Natural Gas Package Boiler, Rated 90,000 lb/hr Saturated Steam. Design Pressure: 950 PSIG. Operating Pressure: 800 PSIG. Operating Temperature: 863F SH Steam at the NRV outlet. Feedwater Temperature: 227F to Economizer Inlet. Primary Fuel: Natural Gas. Complete economizer system. Furnace Radiant Heating Surface 889 Sq. Ft. Boiler Convective Heating Surface 6,455 Sq. Ft. Total Heating Surface 7,344 Sq. Ft. Superheater Surface 980 Sq. Ft. Furnace Volume 1,633 Cu. Ft. Overall Width 8- 10". Average Height 8- 6". Furnace Length 21- 11". Overall height: 50 Feet. Drums Submerged arc automatic welded and stress relieved with radiographed welded seams. Drum material is SA-516 Gr. 70. Tubes are rolled and expanded into the drum. Mud Drum is provided with a 12" x 16" hinged manway access in each drumhead. Steam Drum is provided with a 12" x 16" hinged manway access in each drumhead. All tubes enter the drum radially with full parallel bearing through the drum plate. All tubes are full diameter tubes with no swaging. Front Wall 2" O.D., 0.135" M.W., SA-178 A. Rear Wall 2" O.D., 0.135" M.W., SA-178 A. Furnace Floor, Sides & Roof 2" O.D., 0.135" M.W., SA-178 A. Convection: 2" O.D., 0.120" M.W., SA-178 A. Outer Side Wall: 2" O.D., 0.135" M.W., SA-178 A. Superheater: 2" O.D., 0.180" M.W., SA-213TP304H. NB# 589, Serial# 13288, built 2018. In operation only 1 year.
Drying, Heating, Industrial, Industrial Heating, Industrial Manufacturing, Mechanical Work, Power, Power Generation, Power Generation Plants, Sanitation, sanitizer, Sterile, Sterilization, Sterilizer, Warehousing, Water, Water Treatment
Used Victory Energy Voyager Series Model VS-5-78SP SH 90,000 LBS/HR PPH Natural Gas Package Boiler, Rated 90,000 lb/hr Saturated Steam. Design Pressure: 950 PSIG. Operating Pressure: 800 PSIG. Operating Temperature: 863F SH Steam at the NRV outlet. Feedwater Temperature: 227F to Economizer Inlet. Primary Fuel: Natural Gas. Complete economizer system. Furnace Radiant Heating Surface 889 Sq. Ft. Boiler Convective Heating Surface 6,455 Sq. Ft. Total Heating Surface 7,344 Sq. Ft. Superheater Surface 980 Sq. Ft. Furnace Volume 1,633 Cu. Ft. Overall Width 8- 10". Average Height 8- 6". Furnace Length 21- 11". Overall height: 50 Feet. Drums Submerged arc automatic welded and stress relieved with radiographed welded seams. Drum material is SA-516 Gr. 70. Tubes are rolled and expanded into the drum. Mud Drum is provided with a 12" x 16" hinged manway access in each drumhead. Steam Drum is provided with a 12" x 16" hinged manway access in each drumhead. All tubes enter the drum radially with full parallel bearing through the drum plate. All tubes are full diameter tubes with no swaging. Front Wall 2" O.D., 0.135" M.W., SA-178 A. Rear Wall 2" O.D., 0.135" M.W., SA-178 A. Furnace Floor, Sides & Roof 2" O.D., 0.135" M.W., SA-178 A. Convection: 2" O.D., 0.120" M.W., SA-178 A. Outer Side Wall: 2" O.D., 0.135" M.W., SA-178 A. Superheater: 2" O.D., 0.180" M.W., SA-213TP304H. NB# 589, Serial# 13288, built 2018. In operation only 1 year.
