Used Diemme Kappa 15 Destemmer Crusher – 8–13 TPH, Stainless, Adjustable Rollers, 2005

🏭 Manufacturer

Diemme Enologia
Model: Kappa 15
Type: GZ03
Serial #: C 225 158
Year: 2005

📄 Description

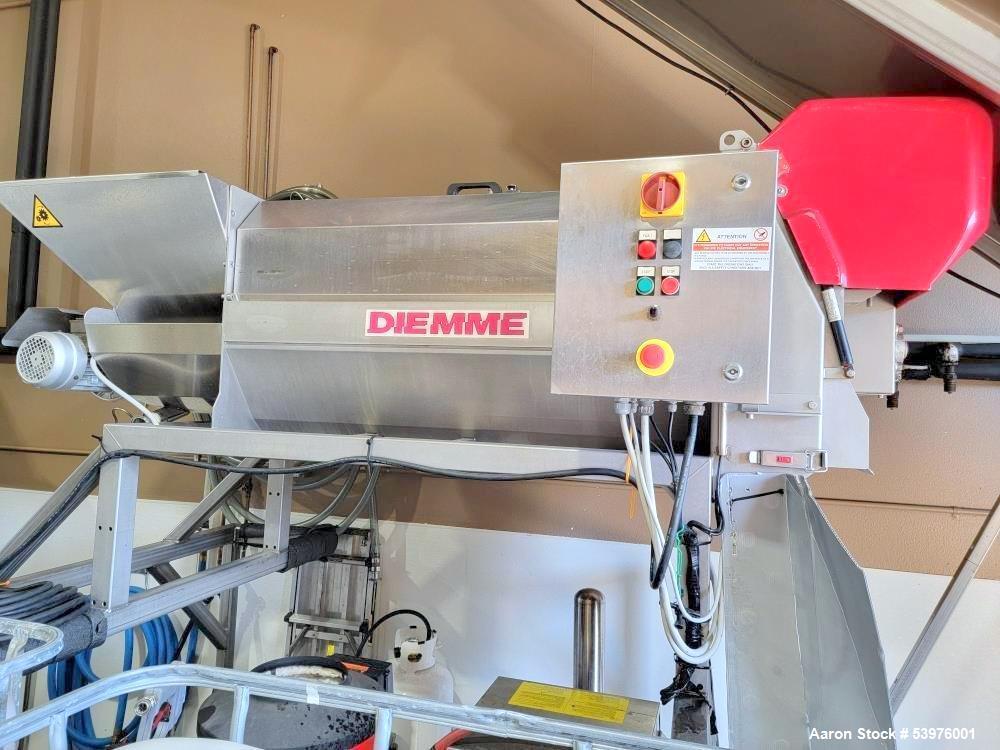

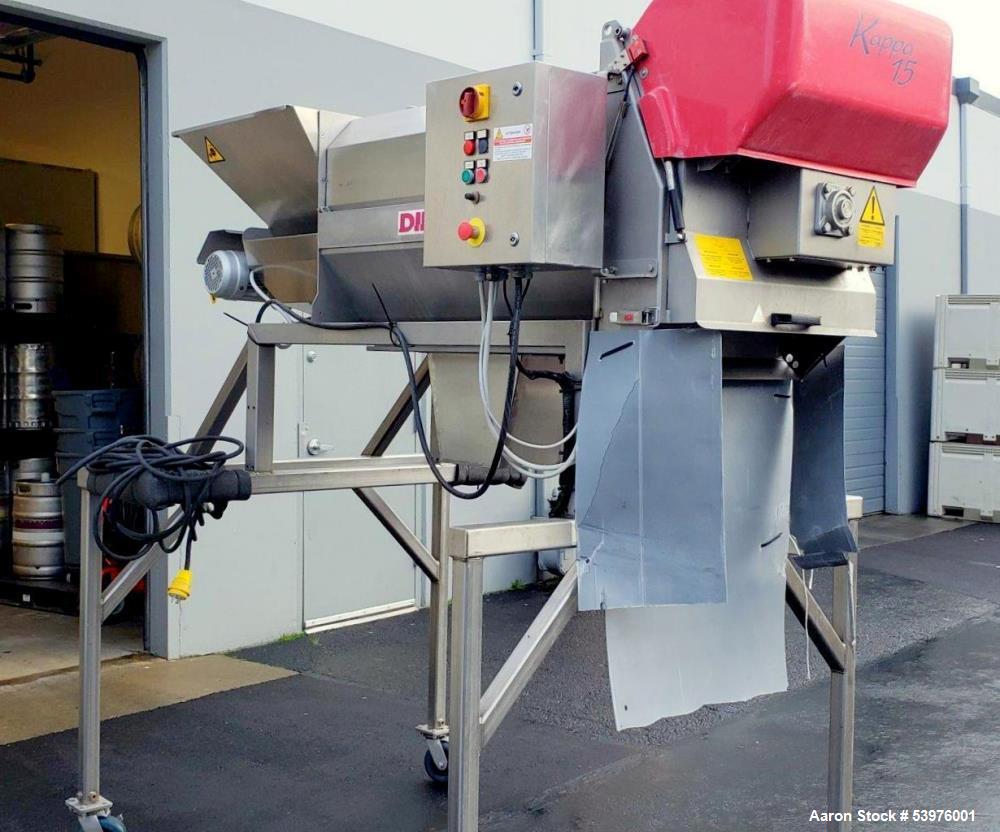

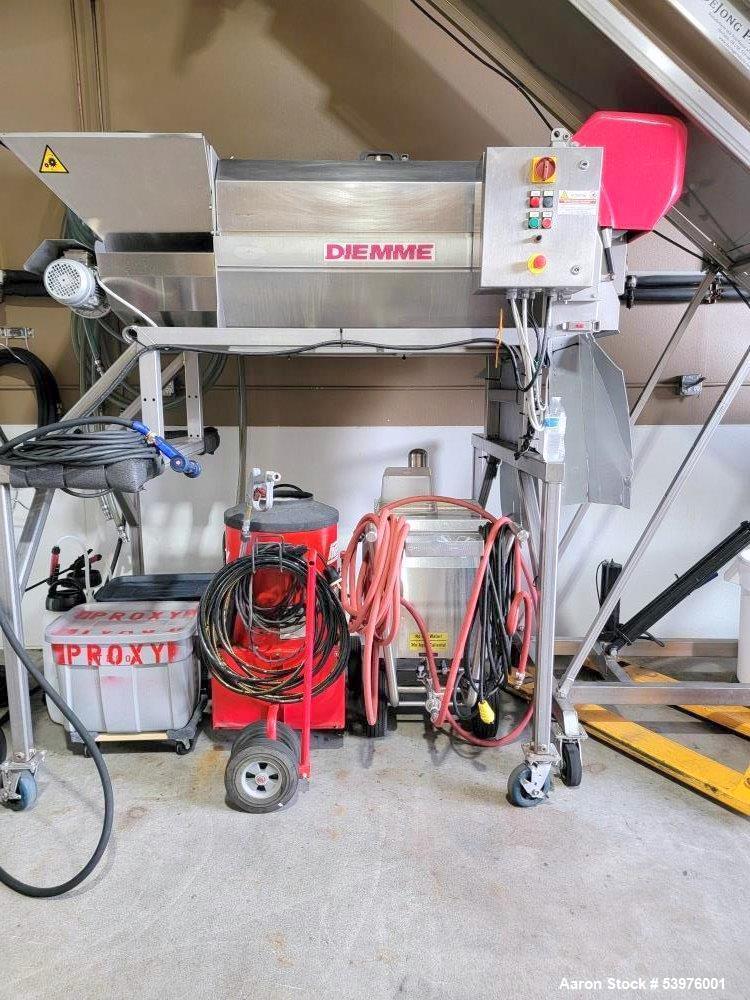

The Diemme Kappa 15 Destemmer Crusher (Type GZ03) is a premium wine production machine built for high-throughput grape processing. With a capacity of 8 to 13 tons per hour, it is ideal for small to mid-sized wineries requiring high-quality, efficient destemming and crushing. This unit is constructed from 304 stainless steel for food-grade sanitation and long-term durability.

It features electronic speed variation for both the cage and the beater shaft, allowing precise control over fruit handling. The beater shaft includes adjustable height and orientation, with interchangeable stainless steel or rubber tips to match specific grape varieties. The sliding crushing unit incorporates rubber rollers with an adjustable gap, ensuring gentle fruit treatment and reduced skin breakage. Additional features include a blocked crusher sensor, integrated washing device, and overall compact, service-friendly design.

⚙️ Specifications

• Model: Kappa 15 (Type GZ03)

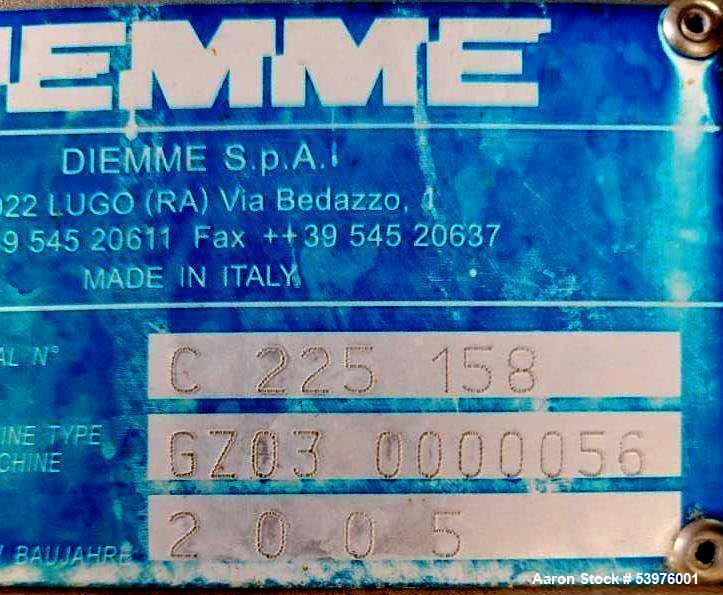

• Serial Number: C 225 158

• Manufacturer: Diemme Enologia

• Construction: 304 Stainless Steel

• Throughput Capacity: 8 – 13 tons/hour

• Beater Shaft:

  • Electronic speed variator

  • Adjustable height and orientation

  • Stainless steel or rubber tips

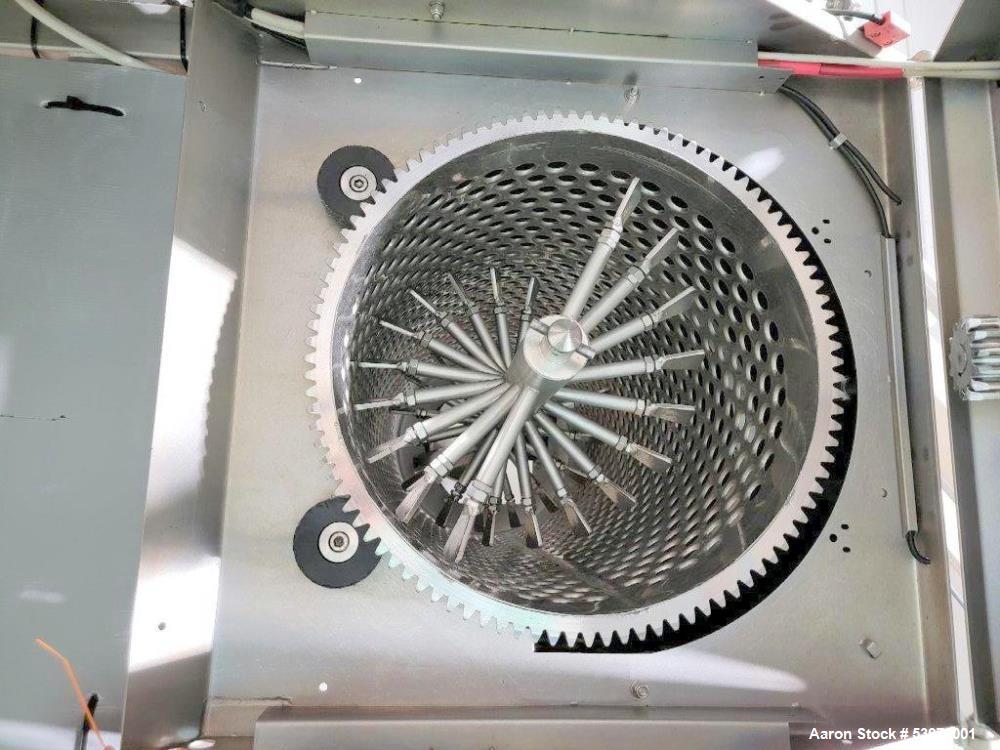

• Destemming Cage: Electronic speed control

• Crushing Unit:

  • Rubber rollers

  • Adjustable roller distance

  • Sliding/removable for cleaning

• Sensors: Crusher blockage sensor

• Cleaning: Integrated washing device

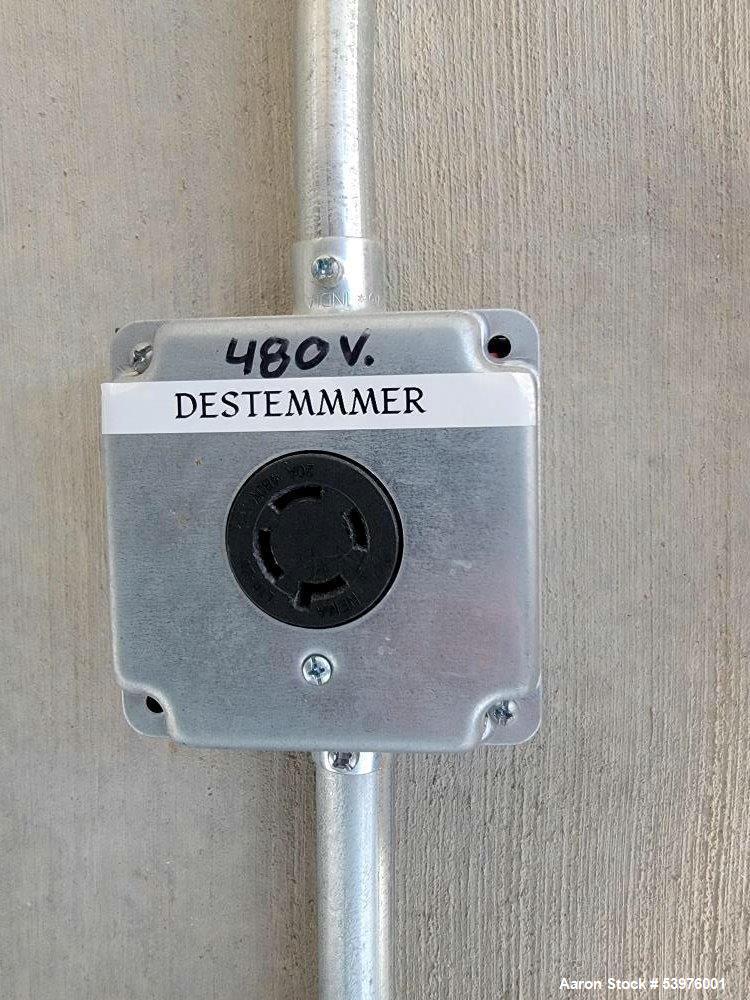

• Power Requirements: (Typically 3/60/400V, verify per nameplate)

• Year Built: 2005

🔧 Applications

Designed for premium wine production, the Diemme Kappa 15 is ideal for:

• Winery grape processing

• White and red varietal production

• Gentle destemming and skin preservation

• Mid-volume boutique wine production

• Fruit handling for high-integrity must

• Custom crush facilities

• Vineyard cooperatives and mobile bottling operations

• Grape testing/pilot production facilities

📦 What Products Would This Be Used For?

• Whole cluster grape processing

• Red wine fermentation prep

• White grape crushing

• Organic grape destemming

• Small-batch wine production

• Gentle skin-intact must production

• Pinot Noir or thin-skinned varietal processing

• Destemmed and crushed Syrah, Merlot, Cab

• Winery harvest intake

• Mid-scale grape crushing and sorting
