Stock No.:
45477003Used Heat Transfer Systems 4,749 Sq. Ft. U-Tube Shell & Tube Heat Exchanger
Used Heat Transfer Systems horizontal U-tube shell and tube heat exchanger with approximately 4,749 sq. ft. of heat transfer surface area and carbon steel construction. Previously installed in a biodiesel processing plant. Carbon steel shell is rated for 80 psi at -20 to 330 degrees F. Equipped with (466) carbon steel 3/4" diameter x 26' long tubes rated for 100 psi at -20 to 150 degrees F, with carbon steel tubesheet and head. Shell-side openings include 6" and 18", with (2) 14" tube-side openings. Unit is mounted on carbon steel saddles. Serial #12915-6, National Board #1804, built 2007. Overall dimensions approximately 372"L x 43"W x 63"T with a weight of approximately 25,000 lbs. U-1 National Board paperwork available. Possible applications include biodiesel production and industrial process heating or cooling of feedstocks such as animal tallow, unrefined oils, used vegetable oils and distillers corn oil, a co-product of ethanol manufacturing.
MFR: Heat Inc
Stock No.:
54041001Used SPX APV Gaulin G185Q-4.7P UHT Homogenizer – 18,000 LPH
Used SPX APV Gaulin Model G185Q-4.7P Stainless Steel UHT High-Pressure Homogenizer With 18,000 Liter Per Hour Capacity And 200 kW Drive. Industrial high-capacity homogenizer designed for ultra-high-temperature (UHT) processing applications, liquid homogenization, emulsification and particle size reduction of compatible food, beverage, cosmetic and other liquid products. Rated for processing capacities up to 18,000 liters per hour (approximately 4,755 gallons per hour). Features an intake pressure range of 3 to 10 bar (43 to 145 psi), maximum operating pressure of 12 bar (174 psi) and specified outlet pressure of 25 bar (363 psi). Operating temperature range is 5 C to 85 C, with a maximum temperature rating of 160 C for 45 minutes per 24-hour period. Driven by a 200 kW (approximately 268 HP) motor rated at 1,490 RPM, operating on 415 volts, 50 Hz electrical service. Includes Schneider variable frequency drive (VFD) for motor speed control. Stainless steel construction. Serial #J2-13.462. Approximately 833 recorded operating hours. Additional spare parts available for purchase at extra cost, subject to availability. Freight and international shipping assistance available, including door-to-door transportation and customs documentation support. Possible applications include UHT milk processing, dairy beverage homogenization, cream processing, plant-based beverages, flavored milk, nutritional drinks, liquid food emulsions, cosmetic emulsions and other compatible liquid products requiring homogenization or particle size reduction.
MFR: SPX
Stock No.:
46379013Unused Daekyung Machinery & Engineering Model AJ12S 54X216 4,625 Sq. Ft. 2-Pass Shell & Tube Heat Exchanger
Unused Daekyung Machinery & Engineering Model AJ12S 54X216 horizontal 2-pass shell and tube heat exchanger with approximately 4,625 sq. ft. of heat transfer surface area and carbon steel construction. Shell is rated for 358 psi/full vacuum at -20 to 650 degrees F. Equipped with (1,078) 1" diameter x 18' long tubes rated for 470 psi/full vacuum at -20 to 650 degrees F. Shell-side openings include 24" and (2) 18", with (2) 24" tube-side openings. Unit is saddle mounted. Serial #DK2007-235, National Board #2486, built 2008. Overall dimensions approximately 338"L x 88"W x 102"T with a weight of approximately 69,200 lbs. Documents available. Unit was nitrogen purged by the manufacturer after testing and prior to storage. Possible applications include industrial process heating, cooling, condensing and heat recovery service with suitable process fluids compatible with carbon steel construction.
MFR: Daekyung Machinery & Engineering
Stock No.:

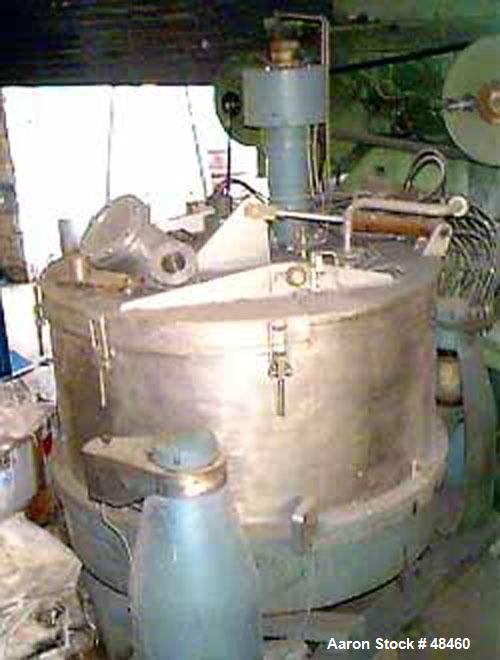

48460Used Escher Wyss V-130 Ploughing Centrifuge – 1250mm SS Bowl, 950 RPM, 30 kW, Hydraulic Drive, Nitrogen Purged
Used- Escher Wyss Ploughing Centrifuge Type V-130 with Stainless Steel Nitrogen Purged Bowl 1,250mm Dia X 600mm Deep with Hydraulic Plough Centrifuge and Drive Motor 30 kW (40.2 hp). Hydromatic Drive with Rexroth Hydraulic Pneumatic Sequence Controls. 950 rpm. Made in 1977. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Escher Wyss
Stock No.:
40425048Used Sweco MX48S888TLWC 48” Vibratory Screener – Industrial Stainless Steel Separator
Used- Sweco Model MX48S888TLWC 48" Diameter Screener, Stainless Steel Construction. 48" inside diameter. Double deck, triple separation. Driven by 2.5 hp 3/60/460 volt, 1160 rpm motor. Mounted on carbon steel base. Serial# 98180-A05/11.
MFR: Sweco
Stock No.:
10151586Used Kason K48-2-SS Stainless Steel Vibratory Separator – 40” Diameter, 2-Deck Screening System
Used- Kason 2-Deck Kason Stainless Steel Separator Screen, Model K48-2-SS. 40" diameter. Driven by a 2.5 hp motor, 230/460 volt. Mounted on wheels. Serial# M-9646. Built 2013. Last ran a whey product.
MFR: Kason
Stock No.:
10151590Used Thermal Engineering SAB-48BD11 Stainless Steel Separator Screener – 48" 2 Deck Vibratory Screener
Used-Thermal Engineering Stainless Steel Separator Screener, Model SAB 48BD11. 48" diameter. 2 decks 3 separation. Serial# SAB-97-1959. Driven by a 2.5 hp motor, 230/460V. Built 1997.
MFR: Thermal Engineering
Stock No.:
11453481Ketema/ATM 48" x 30" Mark III Perforated Basket Centrifuge. Used.
Used-Ketema/ATM 48" x 30" Mark III Perforated Basket Centrifuge, 316L stainless steel construction (product contact areas), top load, bottom unload, Max bowl speed 1380 rpm, tri-pod suspension, single motion plow, feed and rinse pipes, rated 85#/cu. ft. capacity, hinged inspection door w/sight-glass, (2) CIP nozzles; Built 1992.
MFR: Ketema
Stock No.:
51258037Used American Autotie DC6348-8T30 Automatic Horizontal Recycling Baler
Used American Autotie Model DC6348-8T30 Automatic Horizontal Recycling Baler With 63" x 48" Feed Opening, Built 2015. Industrial hydraulic baler designed for compacting and baling compatible recyclable materials for material handling, storage and transportation. Features a large 63" wide x 48" long feed opening for accepting bulk recyclable materials. Equipped with an 8" diameter main hydraulic cylinder and (2) 30 HP motors providing a combined 60 HP of installed motor power. Automatic tying system designed for securing compressed material into manageable bales. Electrical requirements are 460 volts, 3-phase, 60 Hz. Manufactured in 2015. Possible applications include high-volume recycling, waste compaction and baling of compatible corrugated cardboard, old corrugated containers (OCC), paper, paperboard, packaging waste and other suitable recyclable materials.
MFR: American
