Stock No.:
52862011Used Doyle and Roth Vertical Shell & Tube Heat Exchanger – 20.2 Sq Ft
Used- Doyle and Roth Vertical Shell and Tube Heat Exchanger, Approximate 20.2 Square Feet. Carbon steel shell rated 150 psi / FV at -20 to 200 degrees F. (27) .75" diameter x 48" long Hastelloy C-276 tubes rated 15 psi / FV at -20 to 300 degrees F. Openings: (1) 4", (2) 1", (3) .75". 40,025 BTU/H. Single pass. Baffle spacing 4.125". Side lug mounted. National Board# 20734, Serial# S1989-4, 2008. No bottom head.
MFR: Doyle & Roth
Stock No.:
52862012Doyle and Roth Vertical Shell and Tube Heat Exchanger. Used.
Used- Doyle and Roth Approximate 20.2 Square Feet Vertical Shell and Tube Heat Exchanger. Carbon steel shell rated 150 psi / FV at -20 to 200 degrees F. (27) .75" diameter x 48" long Hastelloy C-276 tubes rated 15 psi / FV at -20 to 300 degrees F. Openings: (1) 4", (2) 1", (3) .75". 40,025 BTU/H. Single pass. Baffle spacing 4.125". Side lug mounted. National Board# 20733, Serial# S1989-3, 2008. No bottom head.
MFR: Doyle & Roth
Stock No.:
52862013Doyle and Roth Shell & Tube Exchanger – 20.2 Sq Ft, Side Lug Mount
Used- Doyle and Roth Shell and Tube Vertical Heat Exchanger, Approximate 20.2 Square Feet. Carbon steel shell rated 150 psi / FV at -20 to 200 degrees F. (27) .75" diameter x 48" long Hastelloy C-276 tubes rated 15 psi / FV at -20 to 300 degrees F. Openings: (1) 4", (2) 1", (3) .75". 40,025 BTU/H. Single pass. Baffle spacing 4.125". Side lug mounted. National Board# 20732, Serial# S1989-2, 2008. No bottom head.
MFR: Doyle & Roth
Stock No.:
54687081Used Sargent single-pass continuous conveyor dryer. The dryer has a 3 heating zone system, each with an electric heat source. The first zone appears to have a 350° F maximum temperature and zones two...
Used-Sargent single-pass continuous conveyor dryer. The dryer has a 3 heating zone system, each with an electric heat source. The first zone appears to have a 350° F maximum temperature and zones two and three appear to have a 700° F maximum temperature based on the original drawing. The conveyor dyer has a 20.5" wide stainless steel perforated conveyor belt that passes through a 210" long x 78" wide x 85" tall tunnel. The tunnel has three side access doors. The dryer has a 6" diameter inlet that is 124" from ground level and a 6" diameter outlet that is 30" from the ground. Overall dimensions of the unit are 295" long x 78" wide x 147" tall with drives and motors. Serial # 2036. Built 1976.
MFR: Sargent-Welch
Stock No.:
54687097Used U.S. Filter Company Auto jet self cleaning (rotating leaves) vertical pressure leaf filter. This unit is insulated for chill filtering. It has 16 each 34" rotating leaves vertical mounted filtra...
Used U.S. Filter Company Auto jet self cleaning (rotating leaves) vertical pressure leaf filter. This unit is insulated for chill filtering. It has 16 each 34" rotating leaves vertical mounted filtration screens on a horizontal rotating shaft. Quick openning head. 2.5" and 3.5" Inlet and 6'' diameter discharge. Driven by 1/2 hp a Duty Master Motor 1725 RPM. Requires 230/460 vac 3 ph. The Unit has 68" x 84" overall width and length and 87" overall height. Shell tested as 304 stainless.
MFR: US Filter
Stock No.:
54687049Used Paul Mueller 200 gallon 304 stainless steel Reactor. Serial # P11720-14. National Board # 9905. Internal is rated for 50 psi @ 450 f. The jacket is rated a 150 psi @ 450 f with a glycol medi...
Used-Paul Mueller 200 gallon 304 stainless steel Reactor. Serial # P11720-14. National Board # 9905. Internal is rated for 50 psi @ 450 f. The jacket is rated a 150 psi @ 450 f with a glycol medium. Shell is also rated for full Vacuum. The tank is 36" in diameter with 32" straight side height and 8" dish bottom and dome top. Agitator is a 3 blade prop type with a 200 rpm Philadelphia 1 hp motor drive. The top has a 18" manway cover with pnuematic assist and glass view port. Top also has (3) 2" sanitary fittings, (3) 3" sanitary fittings and a 6 flange fitting with a glass view port. The bottom has a 2" sanitary center discharge. The side has 3" flange fittings (currently covered with a blind flange). Requires 230 vac 3 ph electrical supply. Built in 1984. Good Condition.
MFR: Paul Mueller
Stock No.:
54687050Used Paul Mueller 200 gallon 304 stainless steel Reactor. Serial # P11720-15. National Board # 9906 Interior is rated for 50 psi @ 450 f. The shell is rated a 150 psi @ 450 f with a glycol medium. S...
Used-Paul Mueller 200 gallon 304 stainless steel Reactor. Serial # P11720-15. National Board # 9906 Interior is rated for 50 psi @ 450 f. The shell is rated a 150 psi @ 450 f with a glycol medium. Shell is also rated for full Vacuum. The tank is 36" in diameter with 32" straight side height and 8" dish bottom and dome top. Agitator is a 3 blade prop type with a 200 rpm Philadelphia 1 hp motor drive. The top has a 18" manway cover with pnuematic assist and glass view port. Top also has (3) 2" sanitary fittings, (3) 3" sanitary fittings and a 4" flange fitting with a glass view port. The bottom has a 2" sanitary center discharge. The side has 3" flange fittings (currently covered with blind flange). Requires 230 vac 3 ph electrical supply. Built in 1984. Good Condition.
MFR: Paul Mueller
Stock No.:

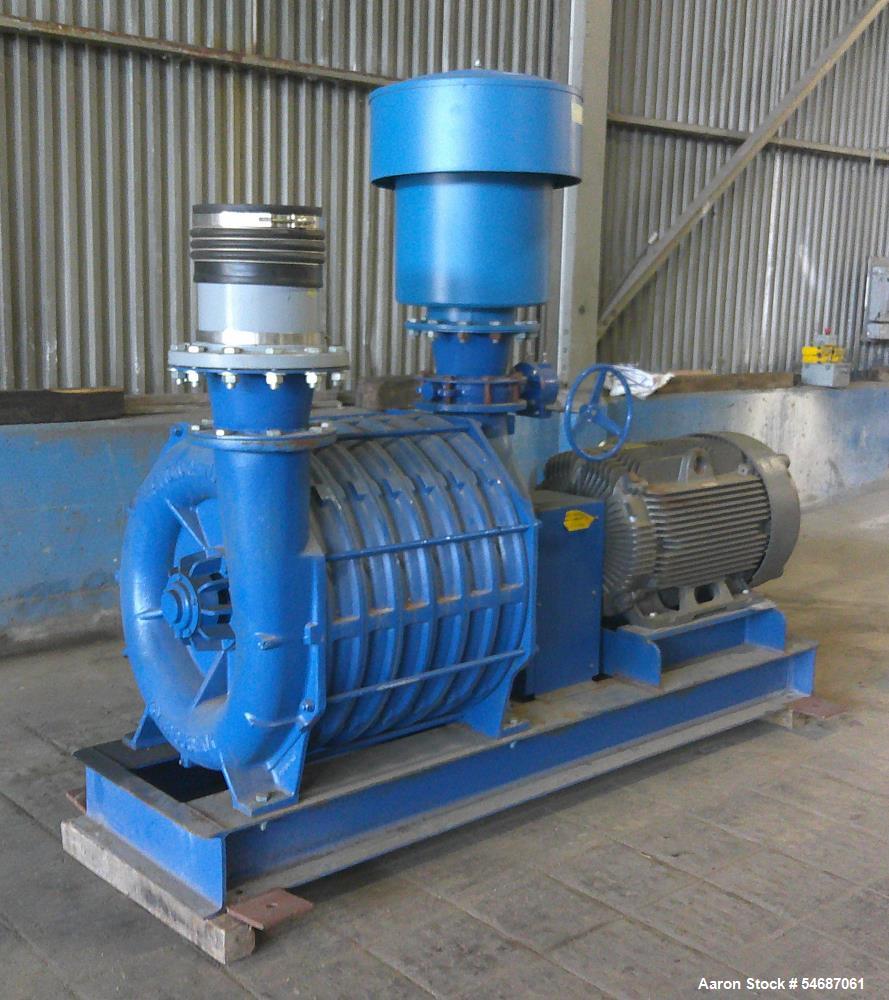

54687061Used National Turbine 7 stage centrifugal blower. According to the curve it can blow 3,000 cfm @10 psi, 4,000 cfm @ 8.5 psi. Model # NT88307-5-00-2-AD. Serial # 2111020. Driven by 200 hp electric m...
Used-National Turbine 7 stage centrifugal blower. According to the curve it can blow 3,000 cfm @10 psi, 4,000 cfm @ 8.5 psi. Model # NT88307-5-00-2-AD. Serial # 2111020. Driven by 200 hp electric motor. Blower has 8" air intake and 8" export ports. Requires 460 vac 3ph electrical supply. Overall dimensions 40" wide x 83" tall x 100" tall. Curve on file.
Stock No.:
54280002Used 200 Gallon Stainless Steel Vertical Mix Tank – Propeller Agitated, Leg Moun
Used 200 Gallon Mix Tank, Stainless Steel, Vertical. Approximately 48" diameter, 24" straight side. Flat top (with cover), Dished bottom. Clamp-on Top entering 3-blade propeller-style agitator, driven by a 3/4hp, 3/60/208-230/460 volt, 1725rpm washguard motor. Opening Top: 2", 2-1/2" diameter. 2" Center bottom outlet with 14" discharge height. Mounted on (3) stainless steel legs. No Manufacturer Tag.
MFR: Unknown
Stock No.:
53026001Used SSI Single Rotor Shredder, Model SR-375 | 52.4" x 15" Rotor | 200 HP Drive | 111 RPM | Control Panel Included
Used- SSI Single Rotor Shredder. Model SR-375. 52.4" wide x 15" diameter rotor. 30/60/90 cutters. 111rpm rotor speed. Driven by a 200hp motor. With control panel. Serial# U0008-SR375. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: SSI
Stock No.:
52905003Hamilton 200 Gallon Triple Motion Stainless Steel Kettle
Used- Hamilton 200 Gallon Triple Motion Stainless Steel Kettle. 48" dia x 36" deep. Hemispherical bottom. Side/bottom scrape triple agitation with pivoting bridge. Jacket rated 125 PSI @ 345 Deg F. 5HP drive, 3/50/60/230/460V. Split stainless lids. 3" Tri-Clamp discharge fitting. Serial# 2475, National Board# A8223. Last used in food.
MFR: Hamilton
