Stock No.:
52862011Used Doyle and Roth Vertical Shell & Tube Heat Exchanger – 20.2 Sq Ft
Used- Doyle and Roth Vertical Shell and Tube Heat Exchanger, Approximate 20.2 Square Feet. Carbon steel shell rated 150 psi / FV at -20 to 200 degrees F. (27) .75" diameter x 48" long Hastelloy C-276 tubes rated 15 psi / FV at -20 to 300 degrees F. Openings: (1) 4", (2) 1", (3) .75". 40,025 BTU/H. Single pass. Baffle spacing 4.125". Side lug mounted. National Board# 20734, Serial# S1989-4, 2008. No bottom head.
MFR: Doyle & Roth
Stock No.:
52862012Doyle and Roth Vertical Shell and Tube Heat Exchanger. Used.
Used- Doyle and Roth Approximate 20.2 Square Feet Vertical Shell and Tube Heat Exchanger. Carbon steel shell rated 150 psi / FV at -20 to 200 degrees F. (27) .75" diameter x 48" long Hastelloy C-276 tubes rated 15 psi / FV at -20 to 300 degrees F. Openings: (1) 4", (2) 1", (3) .75". 40,025 BTU/H. Single pass. Baffle spacing 4.125". Side lug mounted. National Board# 20733, Serial# S1989-3, 2008. No bottom head.
MFR: Doyle & Roth
Stock No.:
52862013Doyle and Roth Shell & Tube Exchanger – 20.2 Sq Ft, Side Lug Mount
Used- Doyle and Roth Shell and Tube Vertical Heat Exchanger, Approximate 20.2 Square Feet. Carbon steel shell rated 150 psi / FV at -20 to 200 degrees F. (27) .75" diameter x 48" long Hastelloy C-276 tubes rated 15 psi / FV at -20 to 300 degrees F. Openings: (1) 4", (2) 1", (3) .75". 40,025 BTU/H. Single pass. Baffle spacing 4.125". Side lug mounted. National Board# 20732, Serial# S1989-2, 2008. No bottom head.
MFR: Doyle & Roth
Stock No.:
54687081Used Sargent single-pass continuous conveyor dryer. The dryer has a 3 heating zone system, each with an electric heat source. The first zone appears to have a 350° F maximum temperature and zones two...
Used-Sargent single-pass continuous conveyor dryer. The dryer has a 3 heating zone system, each with an electric heat source. The first zone appears to have a 350° F maximum temperature and zones two and three appear to have a 700° F maximum temperature based on the original drawing. The conveyor dyer has a 20.5" wide stainless steel perforated conveyor belt that passes through a 210" long x 78" wide x 85" tall tunnel. The tunnel has three side access doors. The dryer has a 6" diameter inlet that is 124" from ground level and a 6" diameter outlet that is 30" from the ground. Overall dimensions of the unit are 295" long x 78" wide x 147" tall with drives and motors. Serial # 2036. Built 1976.
MFR: Sargent-Welch
Stock No.:
10986027Used AB Process / JBT Mixing System | 200 Gallon Jacketed Skid-Mounted Mixer
Used AB Process / JBT Mixing System | 200 Gallon Jacketed Skid-Mounted Mixer. Jacket rated 150 PSI at 366 degrees F. 36" straight side x 41" diameter tank dimensions, cone bottom. Scrape agitator. 15 HP SPX product pump. On Mettler Toledo load cells. Mounted on skid Built 2018.
MFR: JBT Foodtech
Stock No.:
11252214Used Hamilton 200-Gallon Stainless Steel Agitated Kettle – 120 PSI Jacket
Used- Hamilton 200 Gallon Agitated Kettle, stainless steel construction with 3/4 jacket, rated for 120 PSI at 342 degrees F. Features top mounted full sweep agitator, currently less drive. Hinged lid top covers. Hemispherical bottom with 2-1/2" diameter center bottom outlet.
MFR: Hamilton
Stock No.:

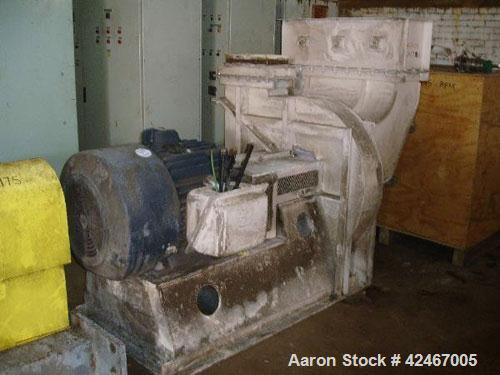

42467005Used Carbon Steel Blower – 200 HP, 8" x 44" Housing, 12" x 36" Inlet
Used- Blower, Carbon Steel. Approximate 8" x 44" housing. Driven by a 200 HP, 460 Volt, 3570 RPM motor. 12" x 36" inlet, 8" x 16" outlet.
MFR: No
Stock No.:
44974Used Werner & Pfleiderer UK17 Double Arm Mixer – 200 Gal, Stainless Steel Clad, Jacketed
Used- Werner & Pfleiderer Double Arm Mixer, Model UK17, Stainless Steel Clad 200 Gallon. Sigma tangential blades, jacketed bowl (bottom only) 43" front-back x 53" left-right x approximately 36" deep. Geared both ends. Set up for hydraulic tilt 7.5 hp, 220/440V, 1750 rpm. No base, no drive. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
MFR: Werner & Pfleiderer
Stock No.:
46389003Heavy-Duty SSI Two-Shaft Shredder – Model M100H(75) for Bulky Material
Used SSI Dual-Shear Shredder, Model M100H(75), Hydraulic Drive, 200 HP. 50mm (2") Cutter Thickness, 530mm (20.9") Cutter Diameter, 188mm (74") Shaft Diameter, 1,040mm x 1,600mm (40.9" x 63") Cutting Chamber, 1,562mm x 2,502mm (61.5" x 98.5") Hopper Opening. 140 Gallon Hydraulic Power Unit. The Dual-Shear M100 from SSI Shredding Systems is a low-speed, high-torque, two-shaft, rotary shear shredder engineered and built to efficiently process a wide variety of difficult to shred materials. Dual-Shear M100 industrial shredders are versatile machines commonly employed in bulky item reduction, product destruction or pre-conditioning (primary shredding) where particle size variation is acceptable. Output consists of strips" the width of the cutters - usually 25mm-76 mm (1"-3"). Built 2013.
MFR: SSI
Stock No.:
50059005Used Howard 200 Gallon Double Arm Mixer – 304 Stainless Steel, Hydraulic Tilt
Used- Howard Double Arm Mixer, Approximate 200 Gallon, 304 Stainless Steel. Non-jacketed bowl approximate 50" left to right x 44-1/8" front to back x 34-1/2" deep. Overlapping sigma blades set up for hydraulic drive, no power pack. Dual ram hydraulic tilt, top safety grate. Mounted on a stainless steel frame. Serial# H3649-2, built 2001.
MFR: Howard
Stock No.:
50823099Used 600 HP Schutte-Buffalo Hammermill with Twin City Blower, Heavy-Duty
Used- Schutte-Buffalo-Astec Model AHM-20 Carbon Steel Hammermill. Approximate 48" diameter x 50" wide rotor. Top feed with hopper, bottom discharge. Driven by a 600 HP, 3/60/460 volt, 1790 rpm motor. Mounted on a frame. Serial# 16088HM1. Includes a Twin City blower, Type RBR-SW, size 926, driven by a 200 HP, 3/60/230/460 volt, 1785 rpm motor. Astec serial# 16088HM1.
MFR: Schutte
Stock No.:
51065004Used Ross HDM-200 Double Planetary Mixer with 200 Gallon Capacity
Used Charles Ross & Son Model HDM-200 Double Planetary Industrial Mixer With 200 Gallon Maximum Working Capacity. Designed for heavy-duty batch mixing of compatible viscous and high-consistency materials, with an operating capacity range of 30 to 200 gallons. Equipped with (2) carbon steel planetary mixing stirrers operating at approximately 24 RPM orbital speed and 26 RPM stirrer rotation speed. Features a top dust hood with charging port, bottom fume hood and hydraulic lift system with dedicated hydraulic power pack for raising and lowering the mixing assembly. Includes (1) removable mixing can measuring 44" diameter x 33-3/4" deep. Driven by a 40 HP explosion-proof (XP) motor rated at 1,740 RPM, operating on 460 volts, 3-phase, 60 Hz electrical service. Power is transmitted through a Delroyd Model HV120 reduction gearbox with a 74.21:1 gear ratio. Mixer is mounted on a heavy-duty structural I-beam frame. Serial #35555. Additional mixing cans are available for purchase at an additional cost, subject to availability. Possible applications include batch mixing, blending, kneading and processing of compatible high-viscosity adhesives, sealants, coatings, pastes, putties, resins, polymer compounds, construction materials and other suitable industrial formulations.
MFR: Charles Ross
