Used Thermo Scientific Single Use Bioreactor – Model HyClone 1000 Liters

Description

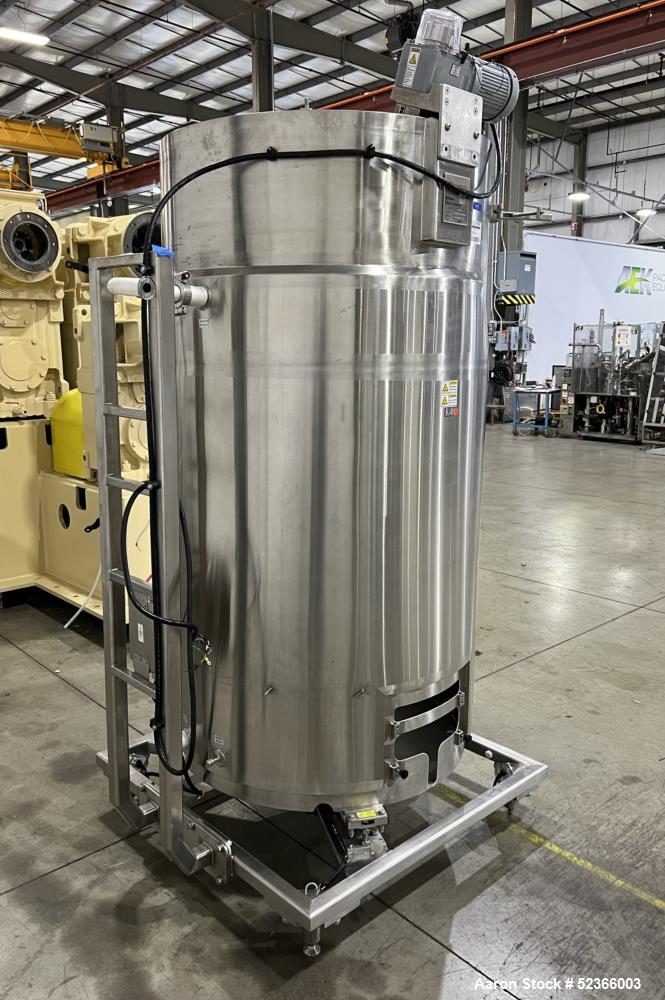

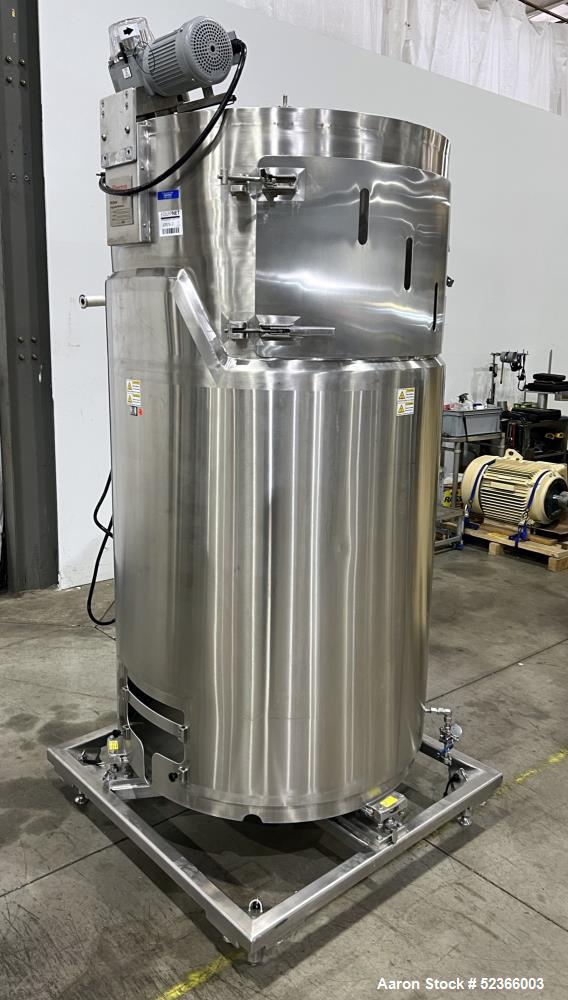

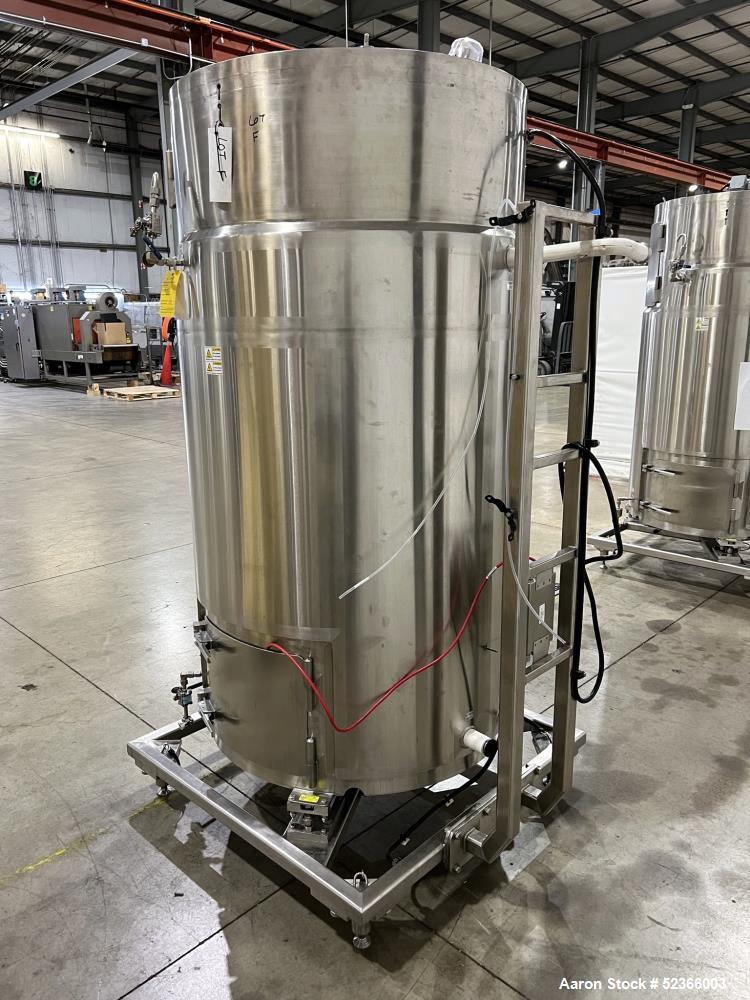

This Thermo Scientific HyClone bioreactor offers a 1000-liter capacity and is constructed with a robust stainless steel shell. Featuring an open top and flat bottom design, the unit is enhanced with a dimple jacket for superior thermal control. It measures approximately 38" in diameter with a 50" straight side, providing ample volume for cell culture or bioprocessing applications. Designed to operate within an ambient to 40 ± 0.1°C (104 ± 0.2°F) range, it maintains a precise 0.5 psi bag pressure. The system is driven by a Brother 3-phase induction motor (1/2 hp, 3/60/208-230/460V, 1720 rpm) with a 15:1 reduction ratio, ensuring efficient mixing and process control. The bioreactor is securely mounted on a stainless steel frame.
Serial#: H10289-03

Specifications

• Capacity: 1000 Liters
• Material: Stainless Steel
• Design:
  • Open top

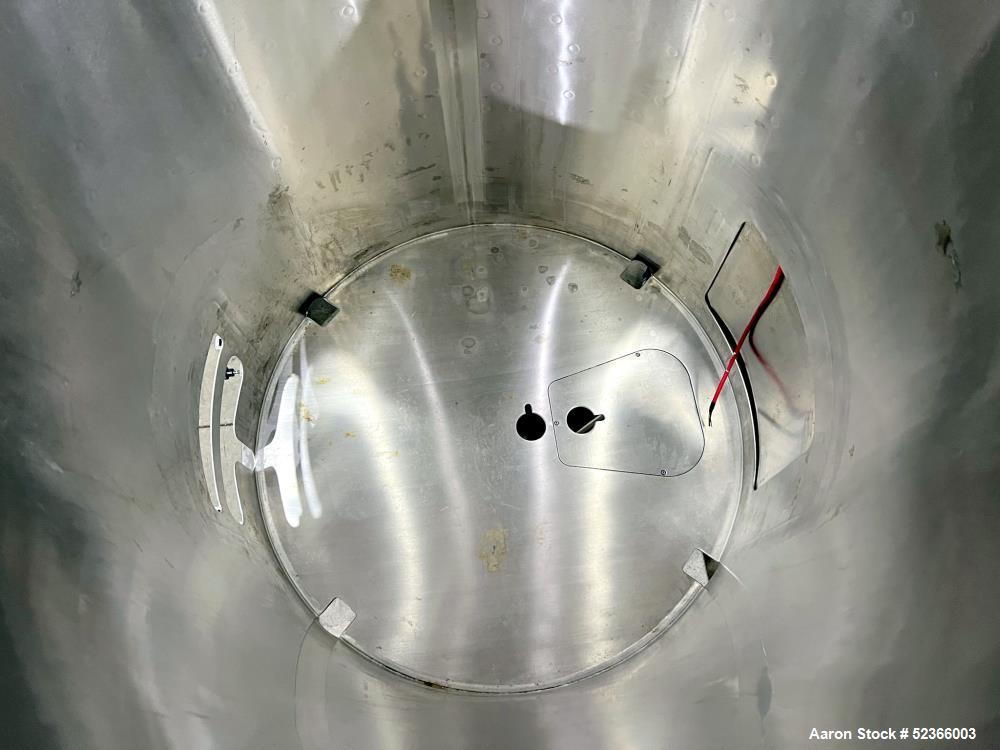

  • Flat bottom shell
  • Dimple jacket for enhanced thermal control
• Dimensions: Approximately 38" Diameter x 50" Straight Side
• Operating Temperature: Ambient to 40 ± 0.1°C (104 ± 0.2°F)
• Bag Pressure: 0.5 psi

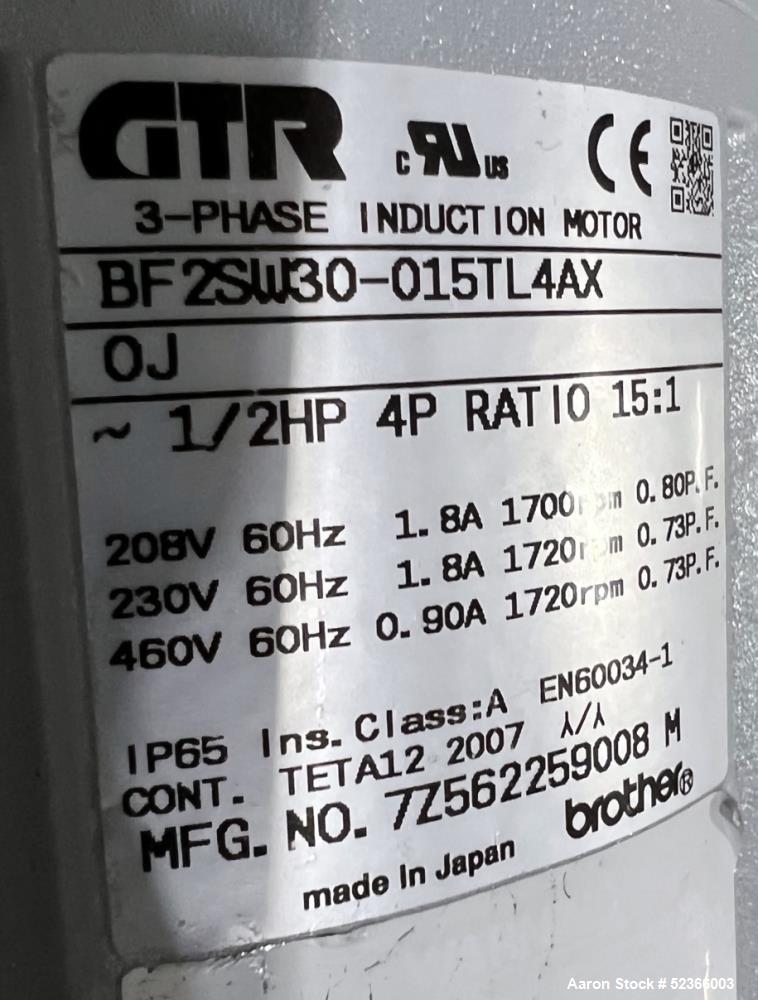

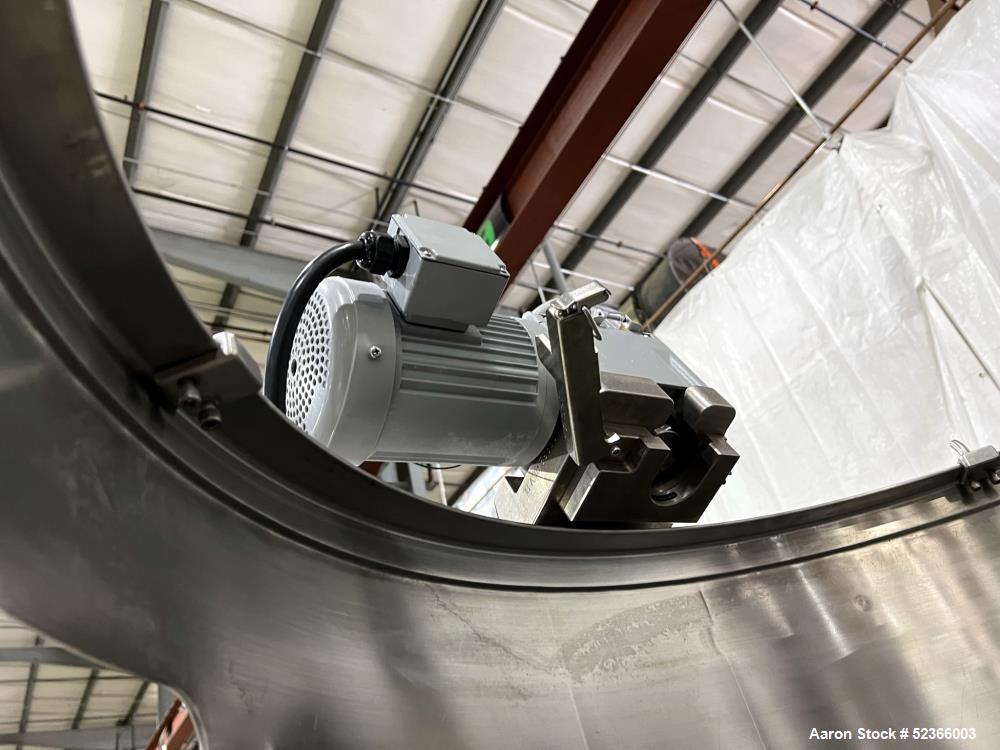

• Motor: Brother 3-phase induction motor
  • 1/2 hp, 3/60/208-230/460V, 1720 rpm
  • 15:1 reduction ratio

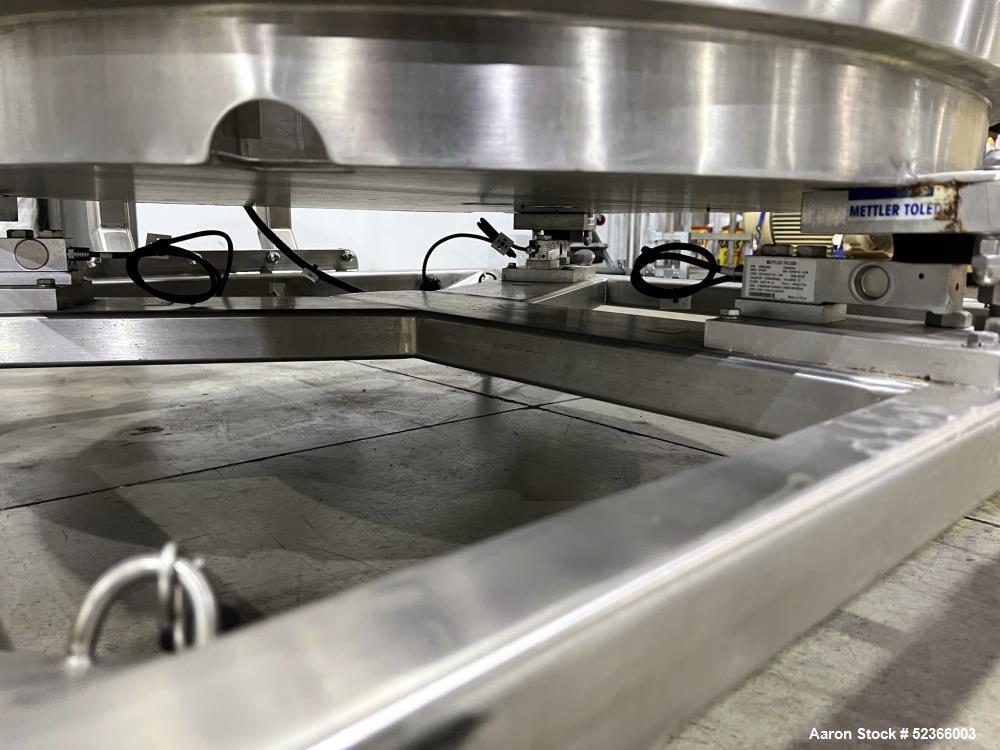

• Mounting: Stainless Steel Frame

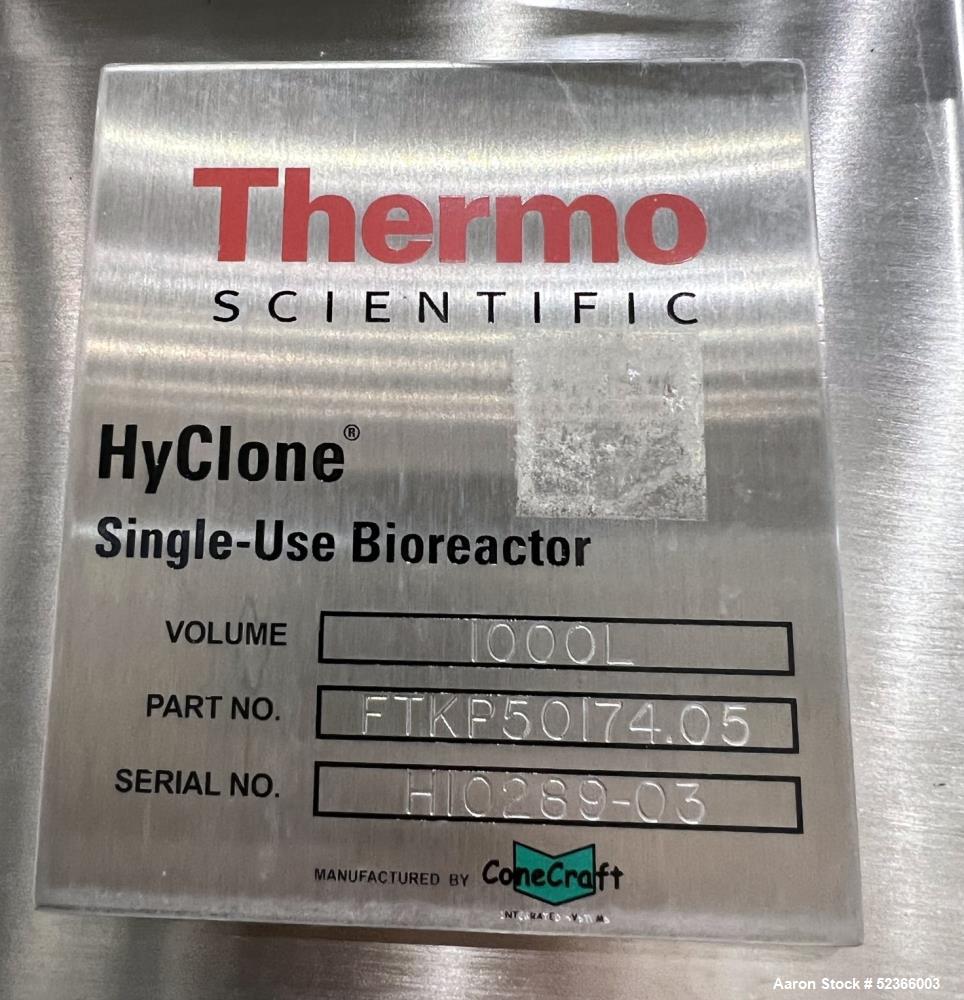

• Serial Number: H10289-03

Applications

Ideal for bioprocessing and biopharmaceutical manufacturing, this bioreactor is designed for:

• Cell culture and fermentation
• Production of vaccines and monoclonal antibodies
• Recombinant protein production
• Biologics and advanced therapy manufacturing
• Research and development in biotechnology

What Products Would This Be Used For

• Vaccines
• Monoclonal antibodies
• Recombinant proteins
• Cell-based therapies
• Other biologics and bioprocessing products
