Used Lee Vertical Mix Tank, Pressurized, 316L Stainless Steel 250 Liter, Model 250 LDBT

Description

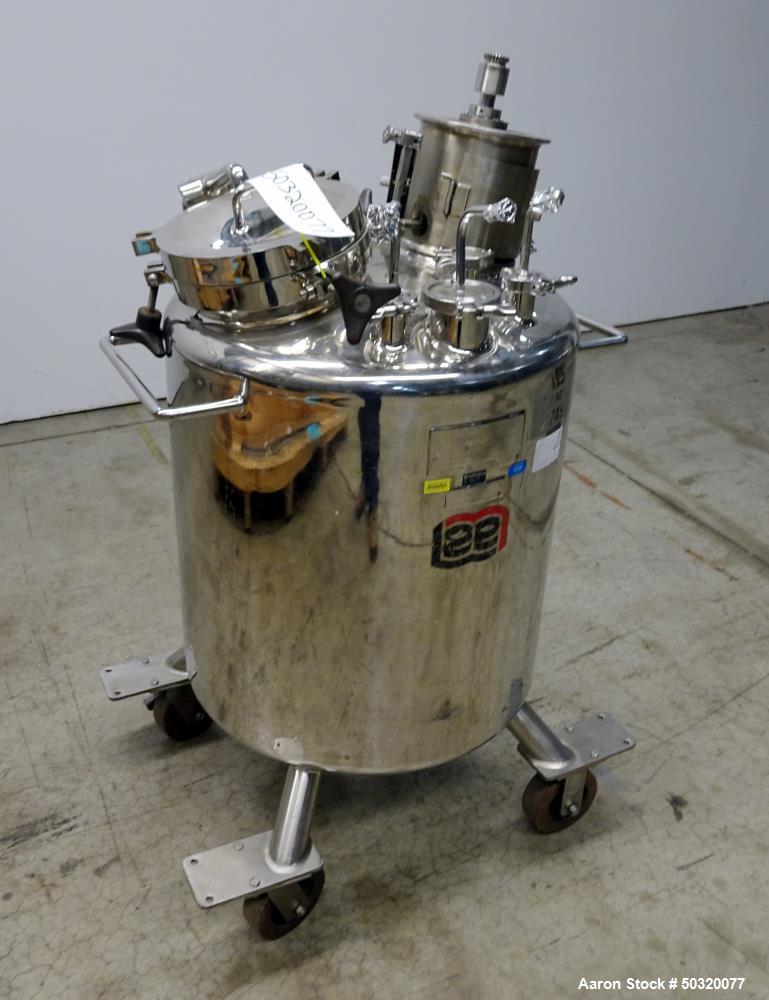

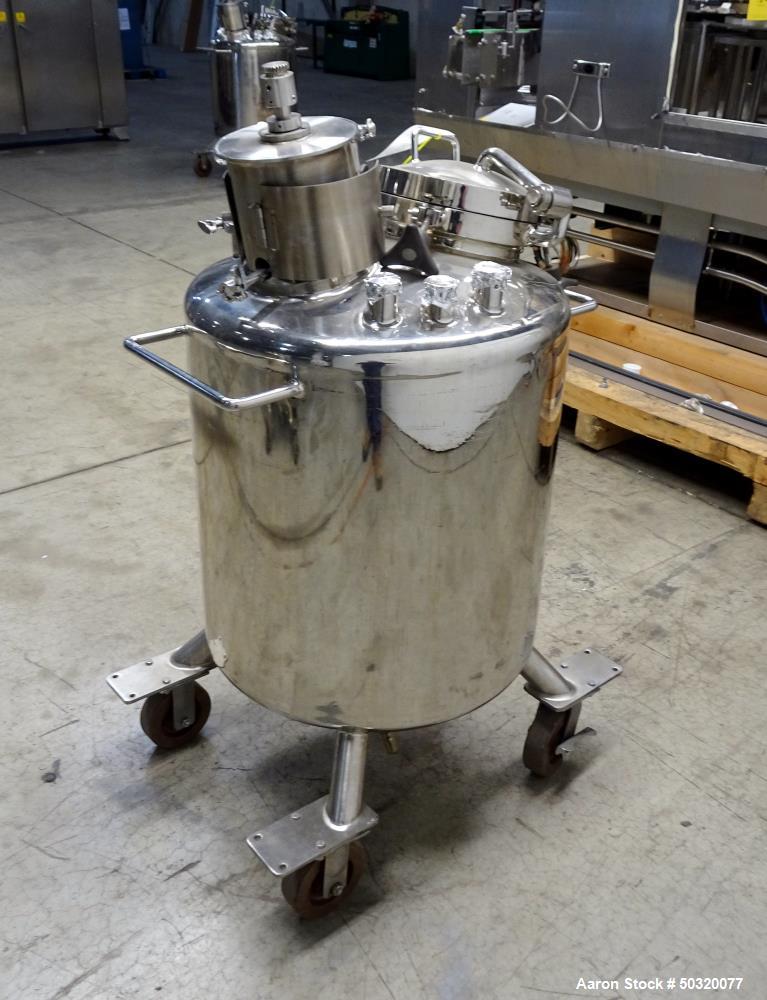

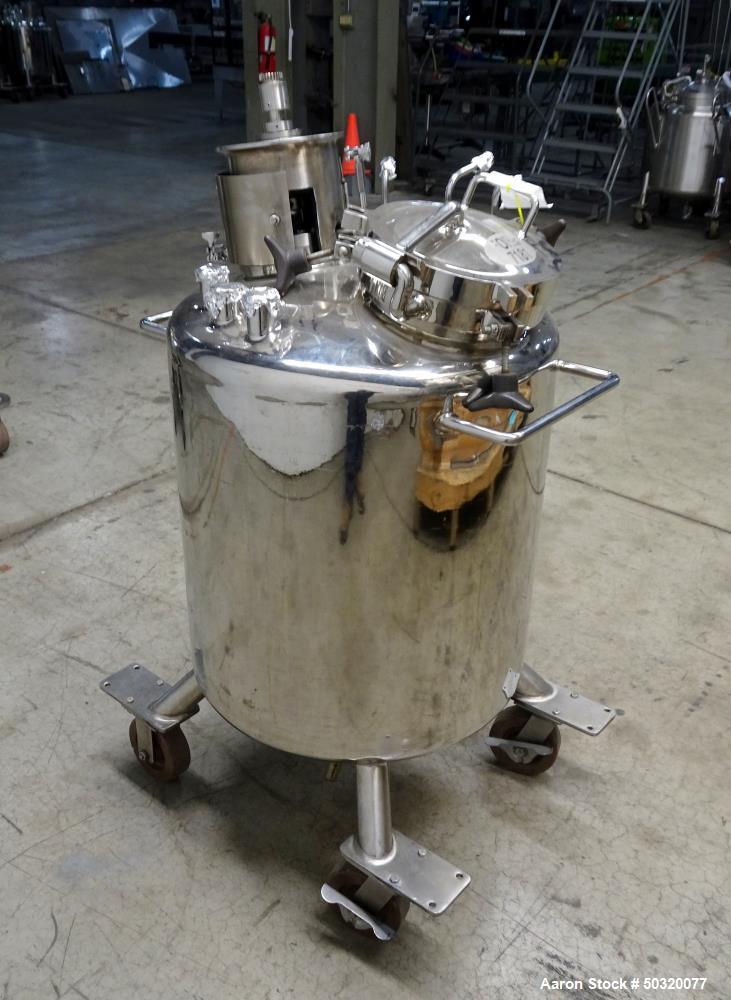

This used 250-liter pressurized mix tank from Lee Industries is built from 316L stainless steel, designed for high-performance industrial mixing applications. It features a dished top and bottom for improved mixing and drainage and has an approximate 26" diameter with a 25" straight side.

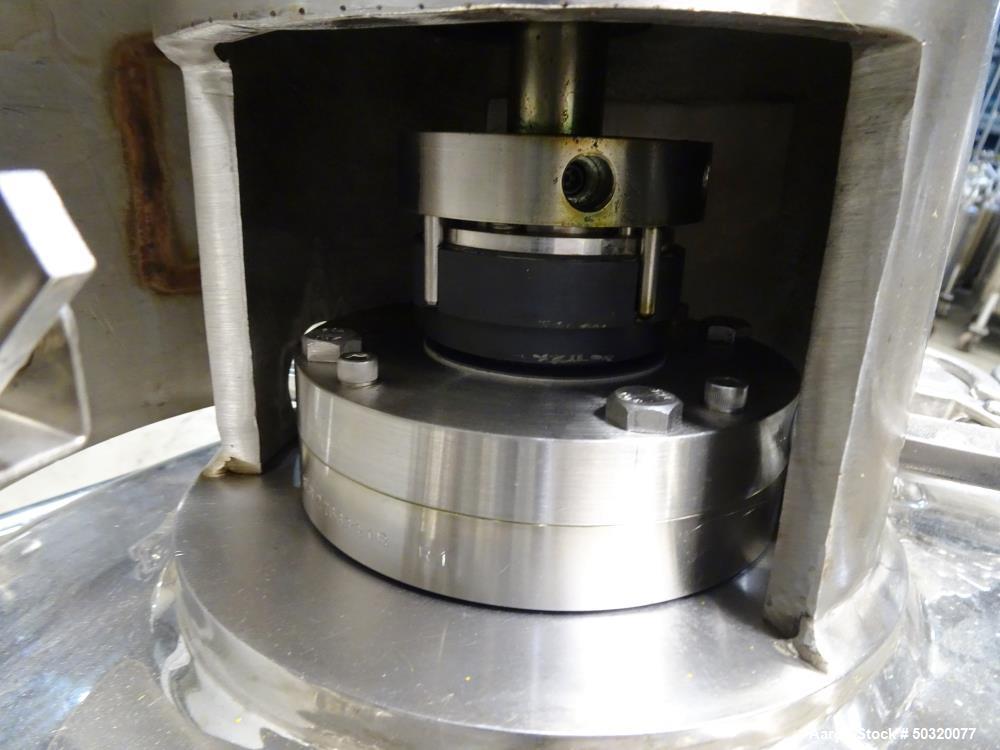

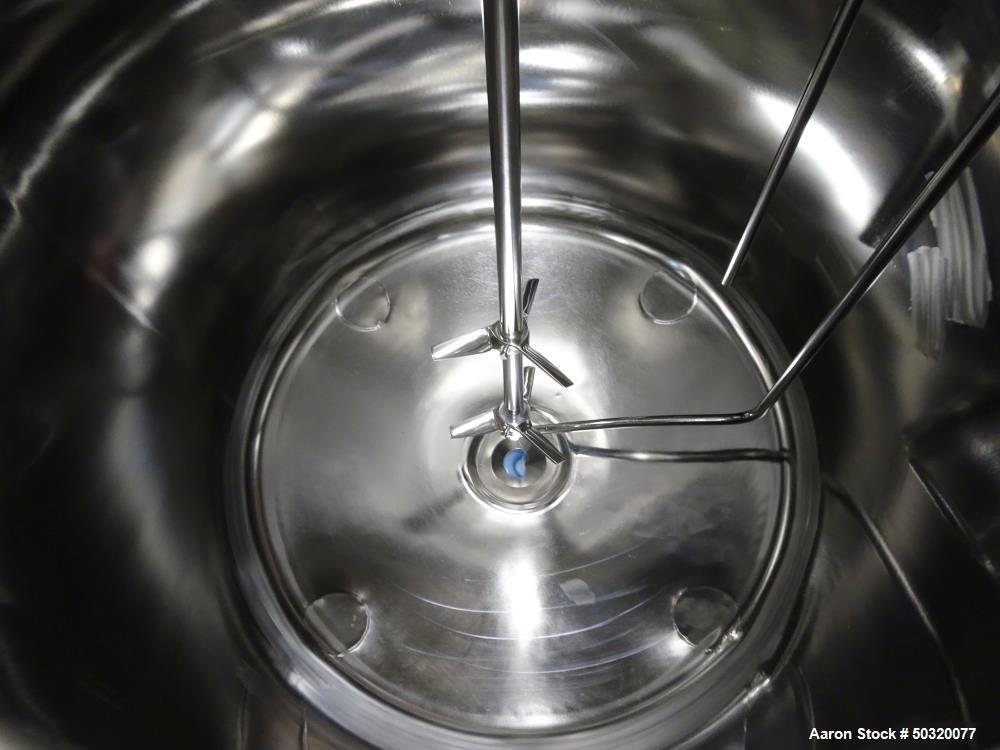

The tank is internally rated at 30 psi and can operate at temperatures ranging from -20°F to 300°F, with vacuum internal capability. It is equipped with a top-entering dual turbine agitator (motor/drive required but not included), making it an excellent choice for processes requiring consistent and controlled mixing.

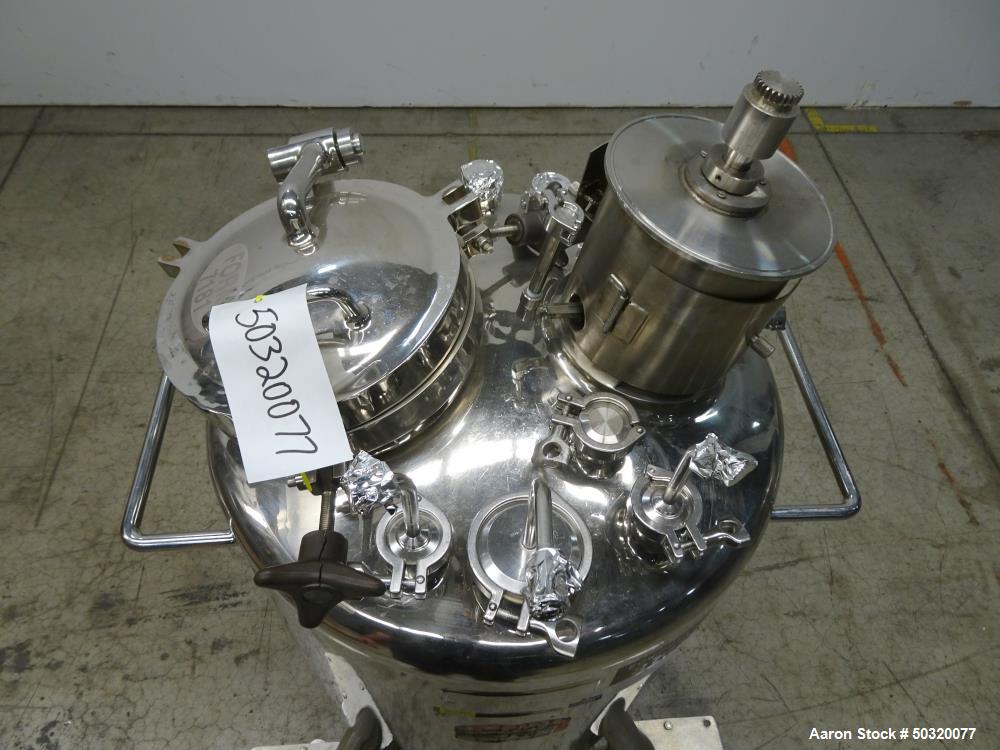

For easy access, the top of the tank features a 10" opening with cover, one 3" opening, and six 1-1/2" openings. The 1-1/2" center bottom outlet has an approximate discharge height of 5-1/2", ensuring efficient product flow. The unit is mounted on four legs with casters, allowing for easy mobility within a production facility.

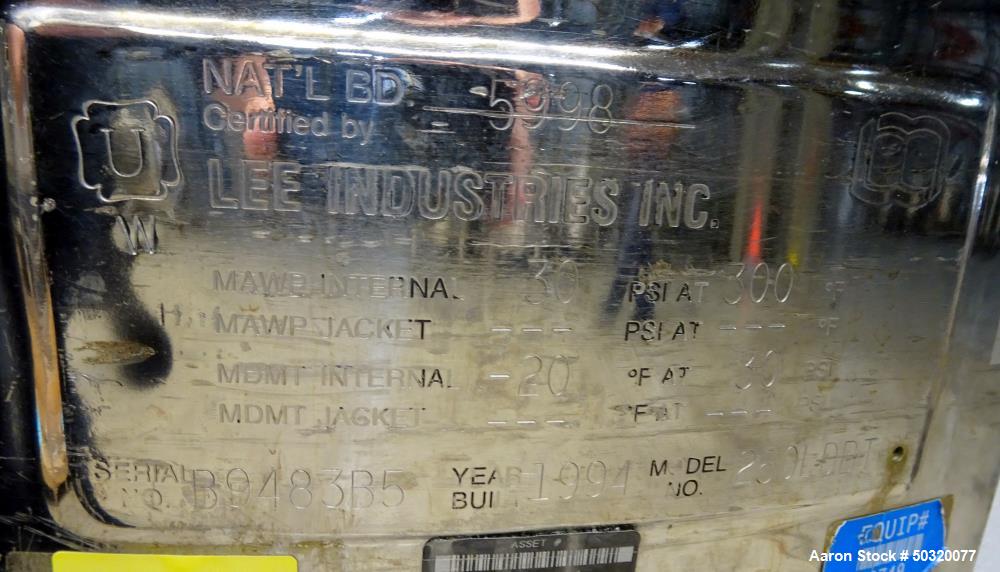

National Board#: 5998, Serial#: B9483B5, Built 1994

Specifications

• Capacity: 250 Liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Dimensions: Approx. 26" Diameter x 25" Straight Side
• Design Features:
  • Dished top and bottom for enhanced processing efficiency

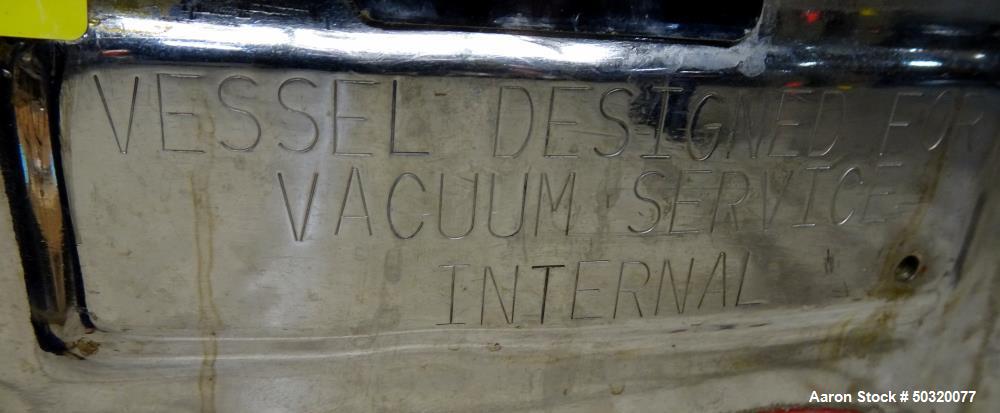

  • Internal pressure rating: 30 psi (-20°F to 300°F, vacuum internal)
• Agitator:
  • Top-entering dual turbine agitator (motor/drive required, not included)
• Top Openings:
  • 10" opening with cover
  • 1 opening at 3"
  • 6 openings at 1-1/2" each
• Outlet:

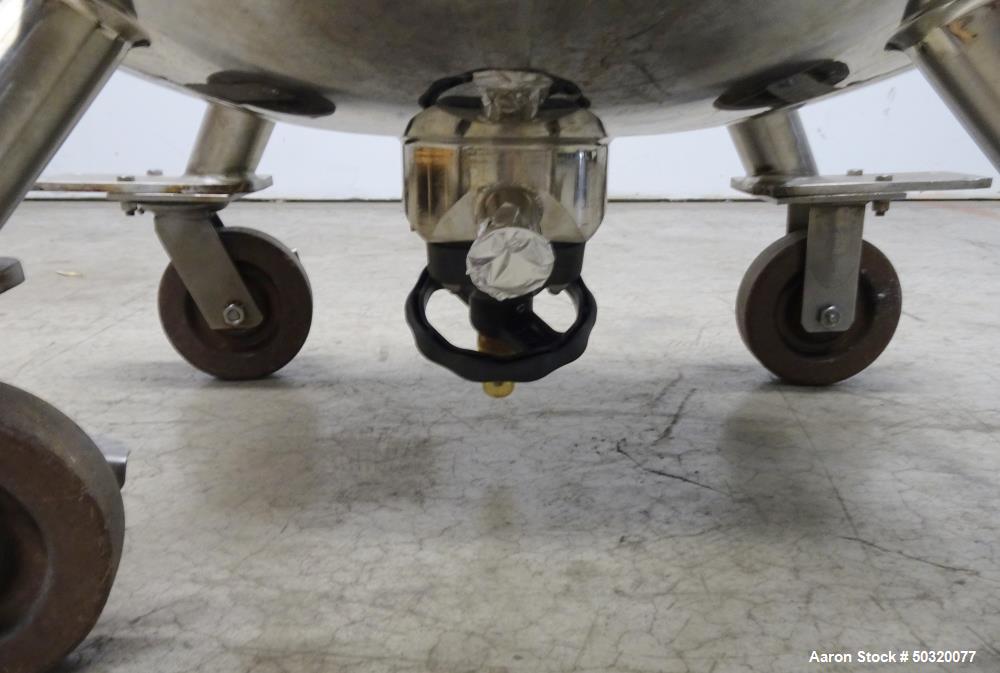

  • 1-1/2" center bottom outlet
  • Discharge height: Approx. 5-1/2"
• Mounting: Four legs with casters for mobility
• Identification: National Board# 5998, Serial# B9483B5, Built 1994

Applications

This pressurized mix tank is ideal for a wide range of industrial applications, including:

• Chemical processing and formulation
• Pharmaceutical and biotech manufacturing
• Laboratory-scale batch processing
• Specialty chemical blending
• Food and beverage processing
• Industrial mixing operations requiring controlled pressure and temperature conditions

What Products Would This Be Used For?

• Chemical compounds and solvents
• Pharmaceutical formulations and emulsions
• Biotech and fermentation processes
• Food ingredients, flavorings, and extracts
• Specialty chemicals and coatings
• Industrial lubricants and oil-based formulations
