Used Lee Industries, Vertical 316L Stainless Steel Pressure Mix Tank, 250 Liter Capacity

Description

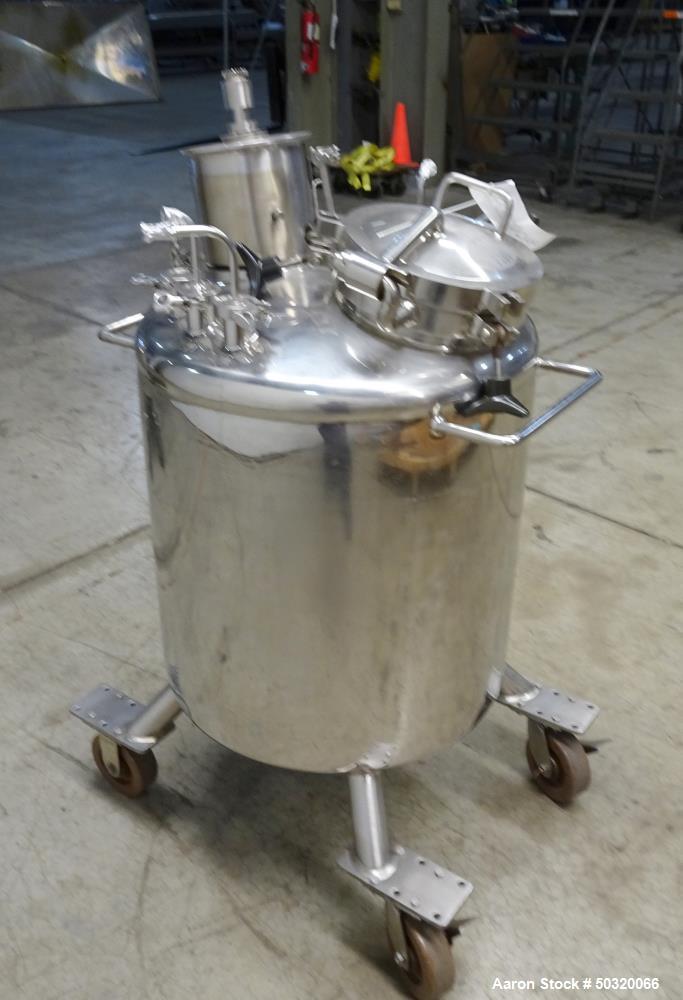

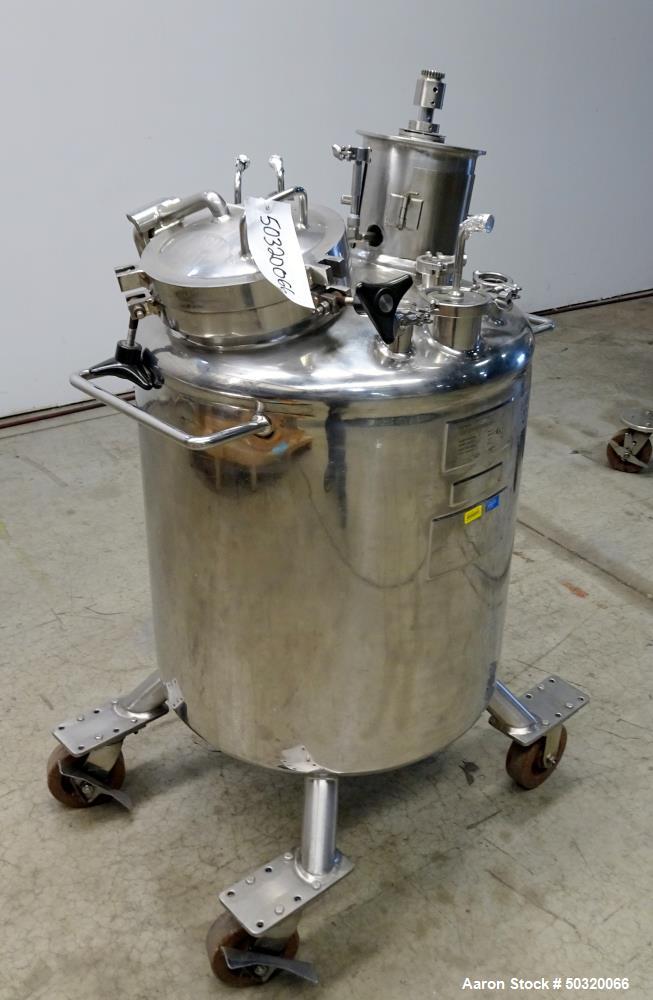

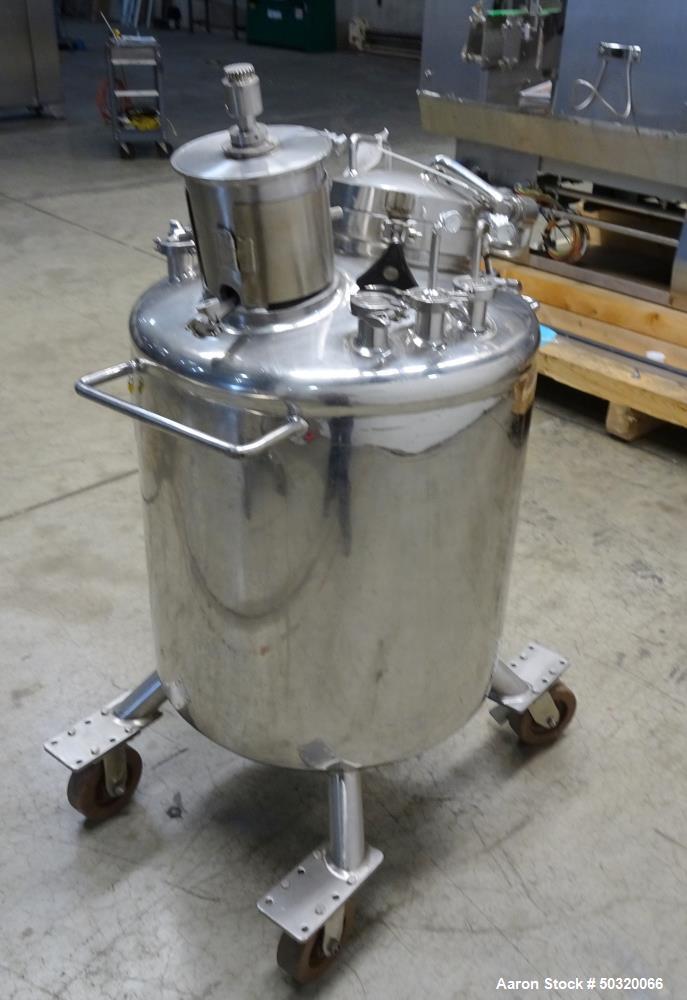

This used 250-liter pressure mix tank features a robust 316L stainless steel construction in a vertical design. Unlike earlier models, this unit has an approximate 26" diameter and a 25" straight side with dished top and bottom for enhanced mixing and drainage. It is internally rated at 30 psi for temperatures ranging from -20°F to 300°F, with vacuum internal capability. Designed for efficient mixing, it comes with a top-entering dual turbine agitator (motor/drive not included) for improved performance. The tank's top includes a 10" opening with cover, one 3" opening, and six 1-1/2" openings for process connectivity. A 1-1/2" center bottom outlet provides an approximate 5-1/2" discharge height. The unit is mounted on four legs with casters for ease of mobility.

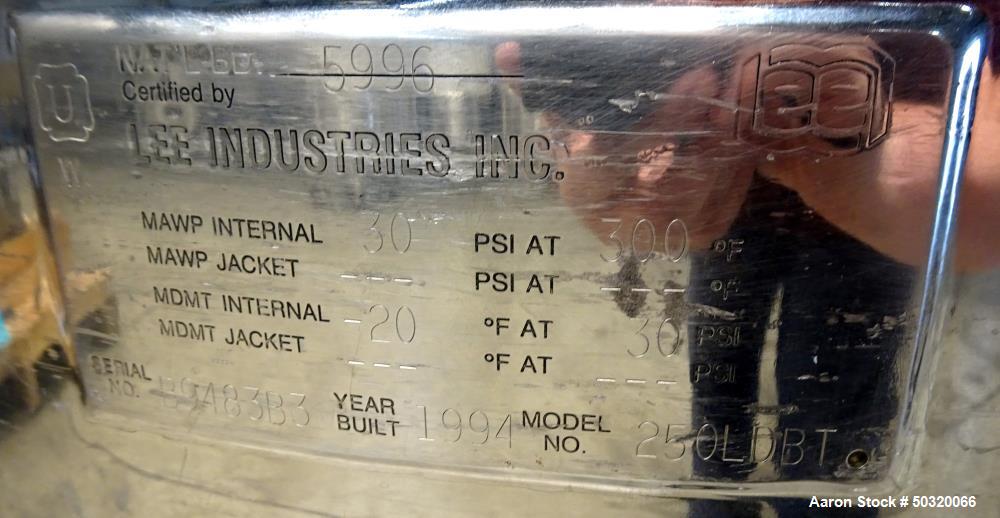

National Board#: 5996, Serial#: B9483B3, Built 1994

Specifications

• Capacity: 250 Liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Dimensions: Approximately 26" Diameter x 25" Straight Side
• Design Features:
  • Dished top and bottom

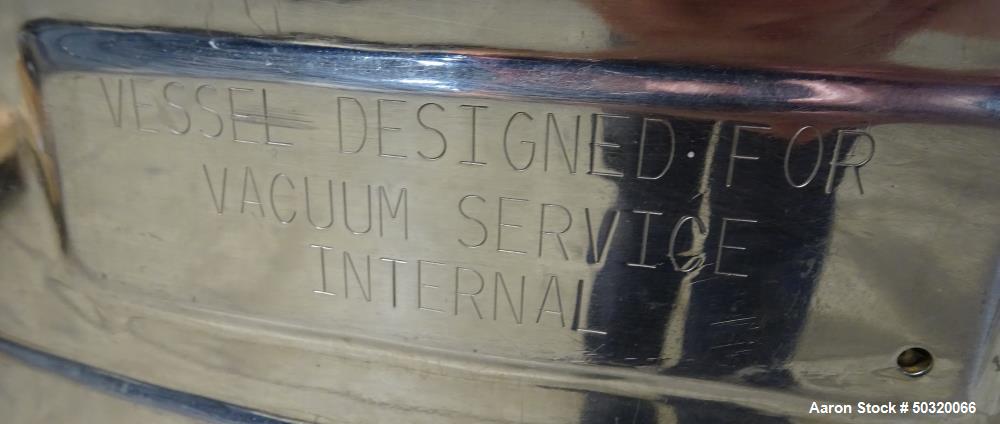

  • Internal pressure rating: 30 psi at -20°F to 300°F (vacuum internal)
• Agitator:

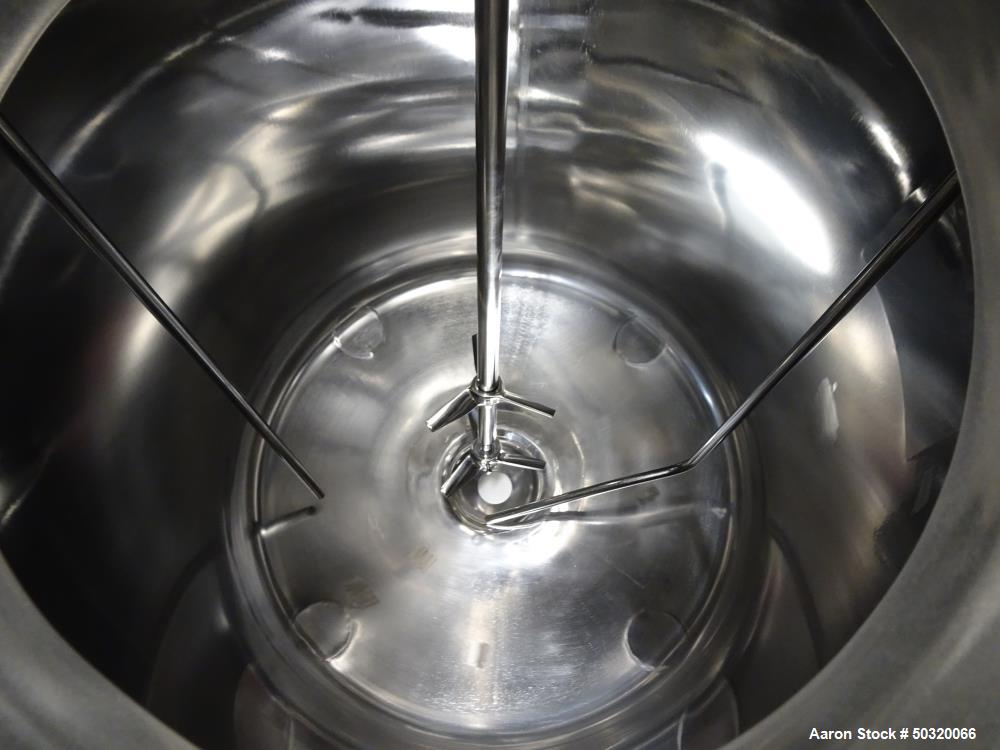

  • Top-entering dual turbine agitator (motor/drive required, not included)

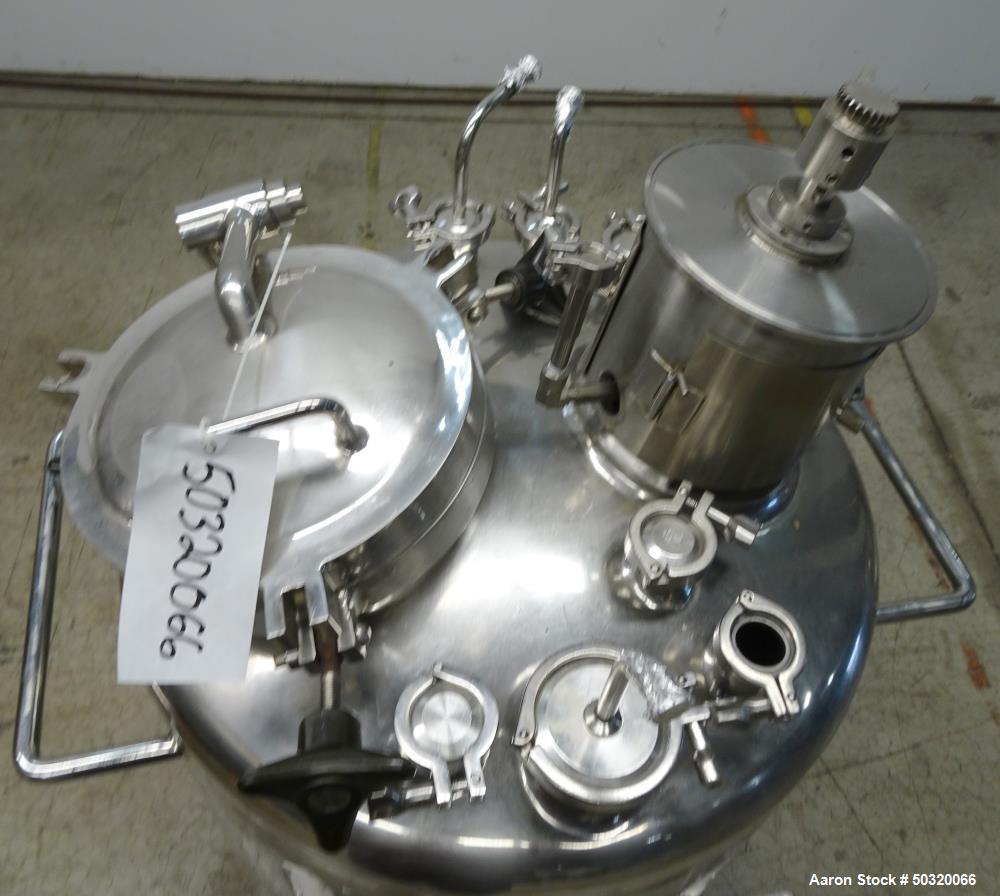

• Top Openings:
  • 10" opening with cover
  • 1 opening at 3"
  • 6 openings at 1-1/2" each
• Outlet:
  • 1-1/2" center bottom outlet
  • Discharge height: Approximately 5-1/2"
• Mounting: On 4 legs with casters
• Identification: National Board# 5996, Serial# B9483B3, Built 1994

Applications

This pressure mix tank is ideal for:

• Chemical and process mixing
• Pharmaceutical and biotech formulations
• Laboratory-scale batch processing
• Specialty chemical blending
• Industrial mixing operations requiring controlled pressure conditions
