Used Lee Industries, Model 250 LDBT, 316L Stainless Steel Mix Tank

Description

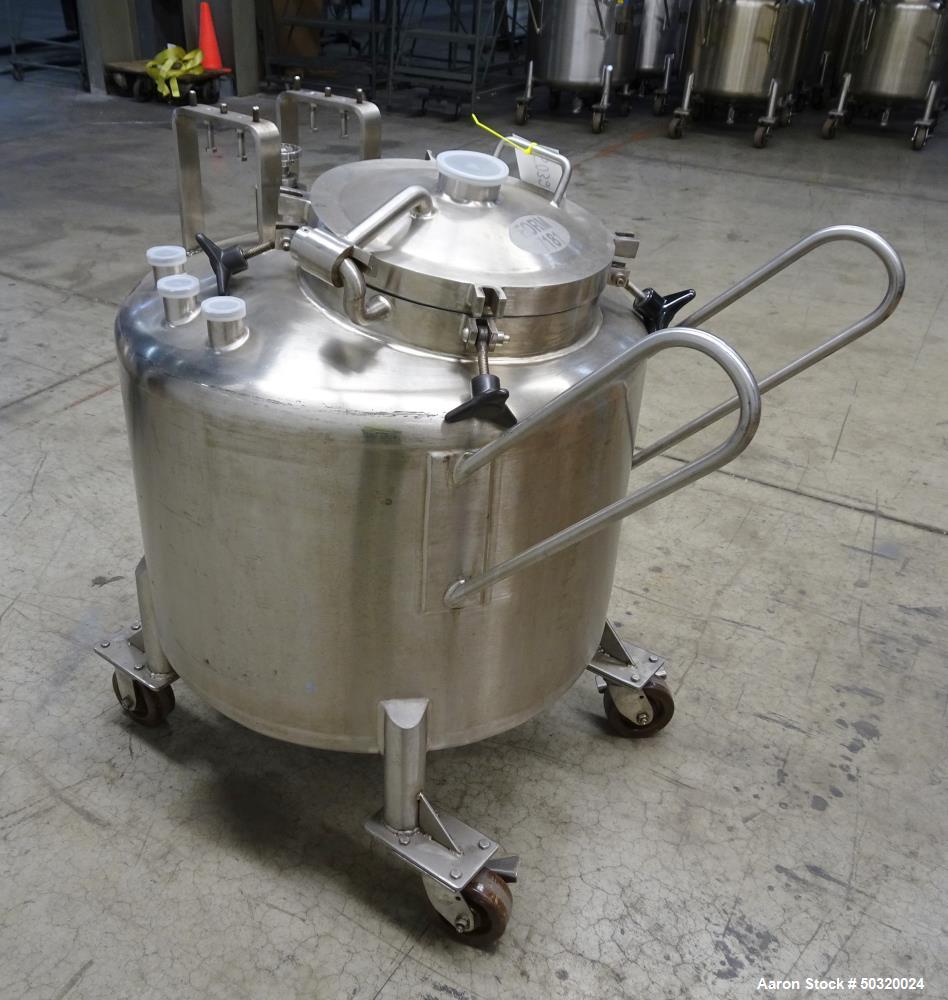

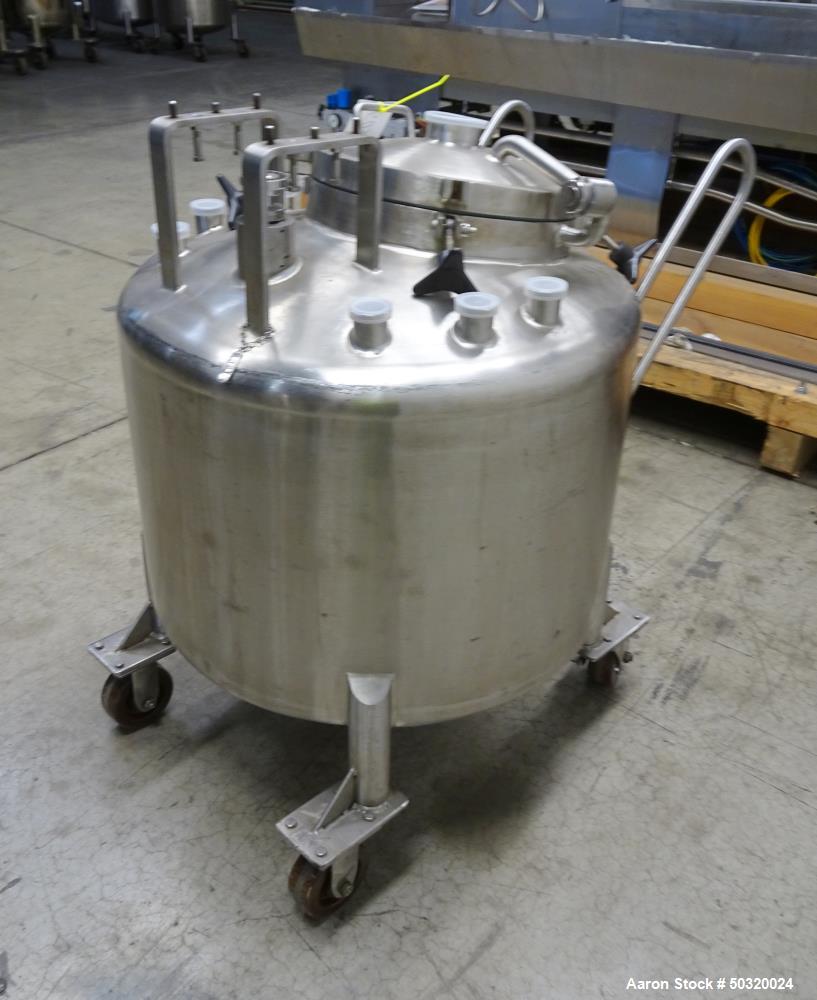

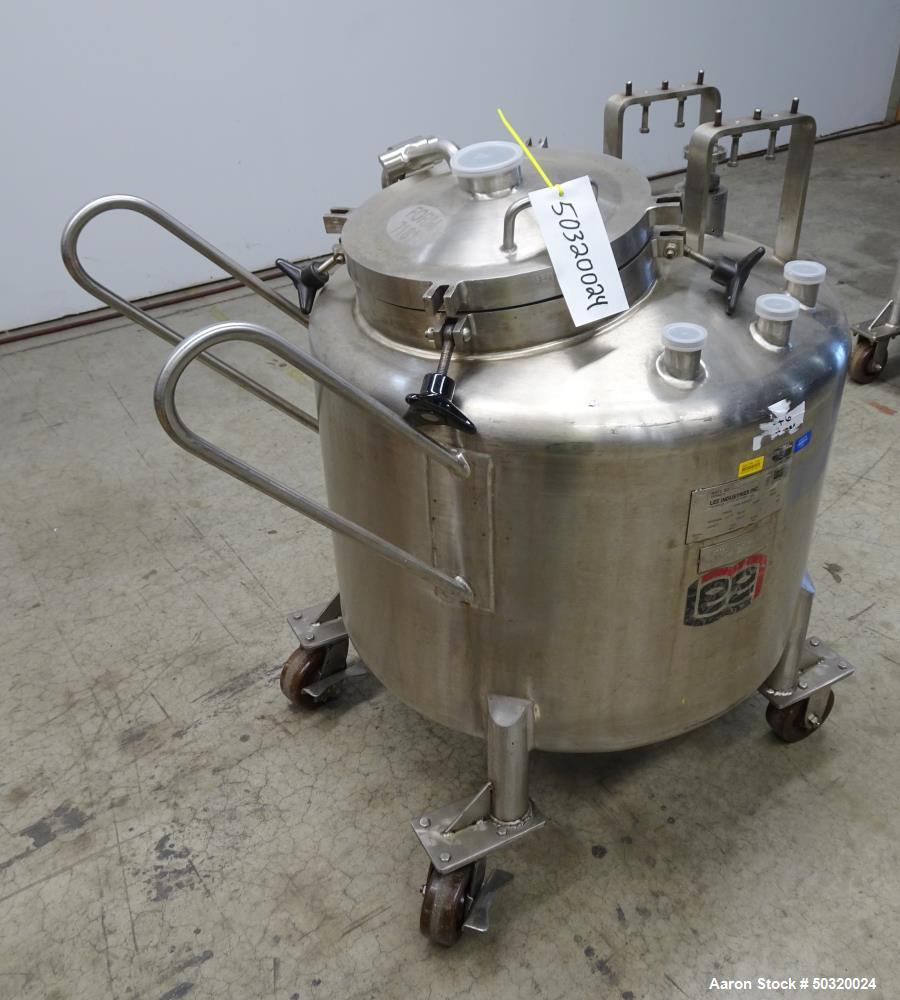

This used 250-liter mix tank features a robust construction in 316L stainless steel with a vertical design. It has an approximate 30" diameter and a 19" straight side with dished top and bottom for optimal mixing and drainage. The tank is internally rated at 35 psi at 275°F with vacuum capability, ensuring reliable performance under demanding conditions. It is designed to be equipped with a top-entering 3-blade turbine agitator (motor/drive not included) to provide effective mixing. The top of the tank includes multiple access openings—a 14" opening with cover, one 3" opening, and six 1-1/2" openings. The bottom outlet is 1-1/2" in diameter, offering an approximate discharge height of 6-1/2" without a valve and 2-1/8" with a valve. The unit is mounted on four legs with casters for ease of mobility.

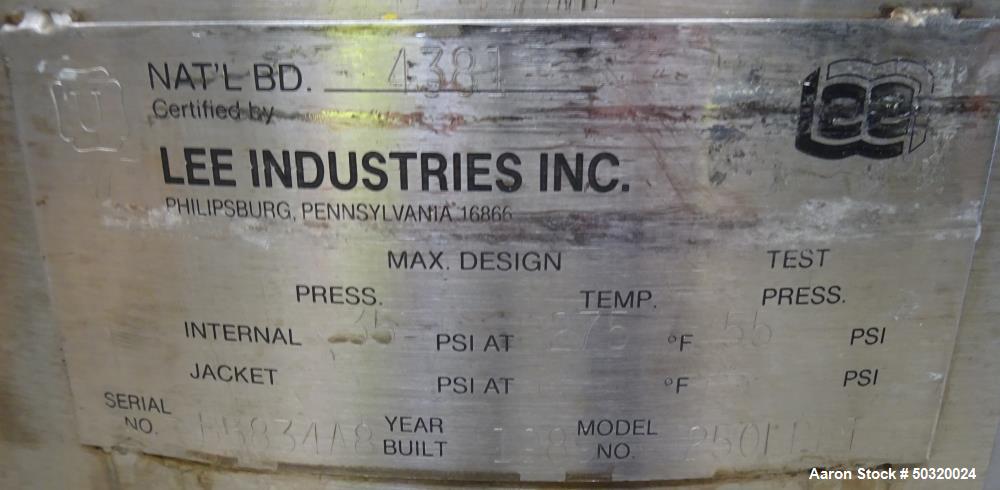

National Board#: 4381, Serial#: B3834A8, Built 1989

Specifications

• Capacity: 250 Liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Dimensions: Approximately 30" Diameter x 19" Straight Side
• Design Features:
  • Dished top and bottom

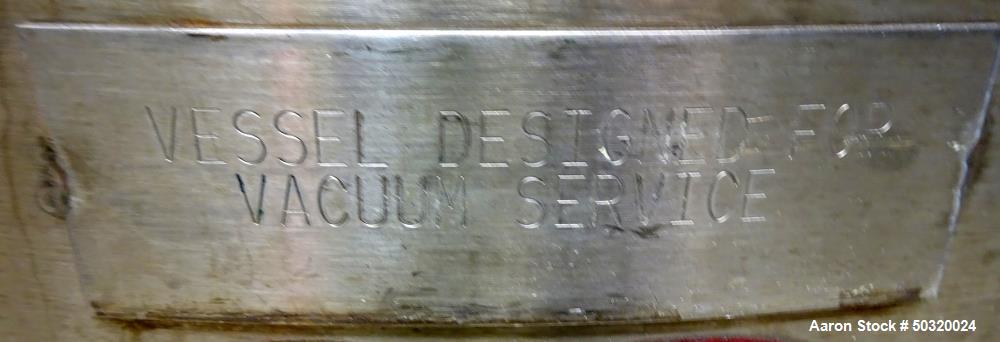

  • Internal pressure rating: 35 psi at 275°F (vacuum internal)
• Agitator:

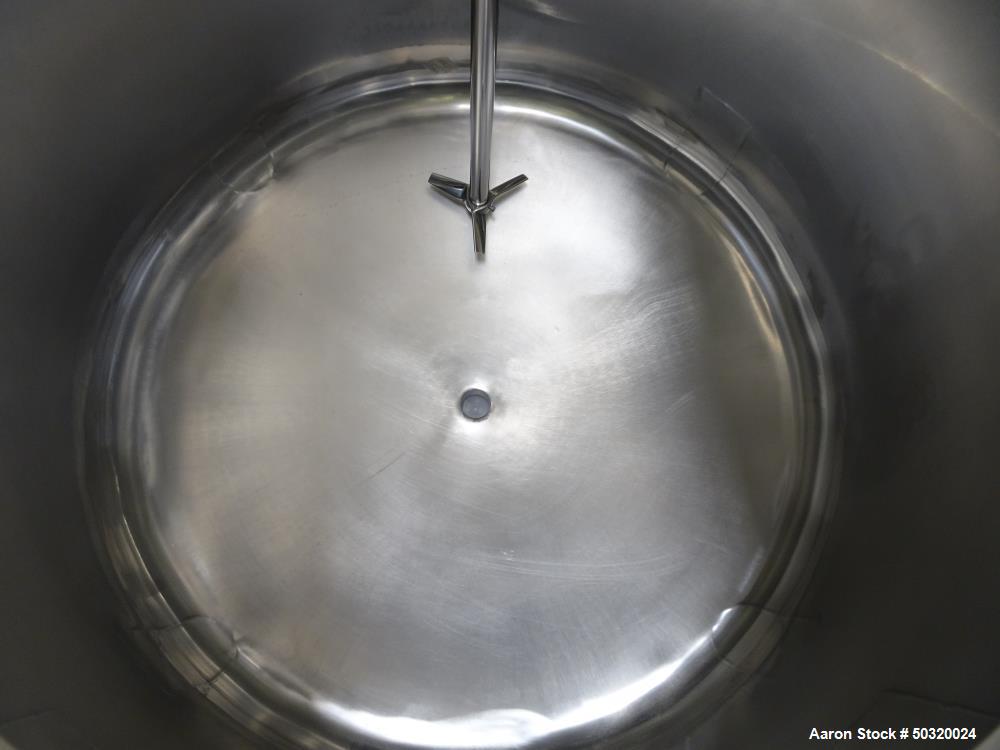

  • Top-entering 3-blade turbine agitator (motor/drive required, not included)

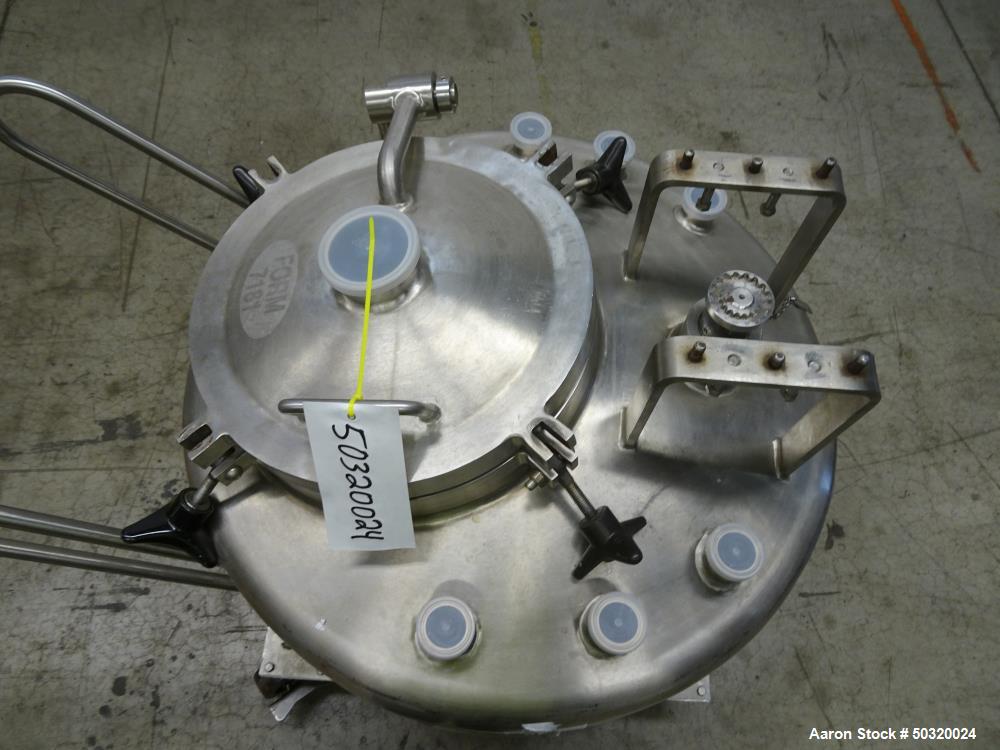

• Top Openings:
  • 14" opening with cover
  • 1 opening at 3"
  • 6 openings at 1-1/2" each
• Outlet:
  • 1-1/2" center bottom outlet
  • Discharge height: Approximately 6-1/2" without valve; 2-1/8" with valve

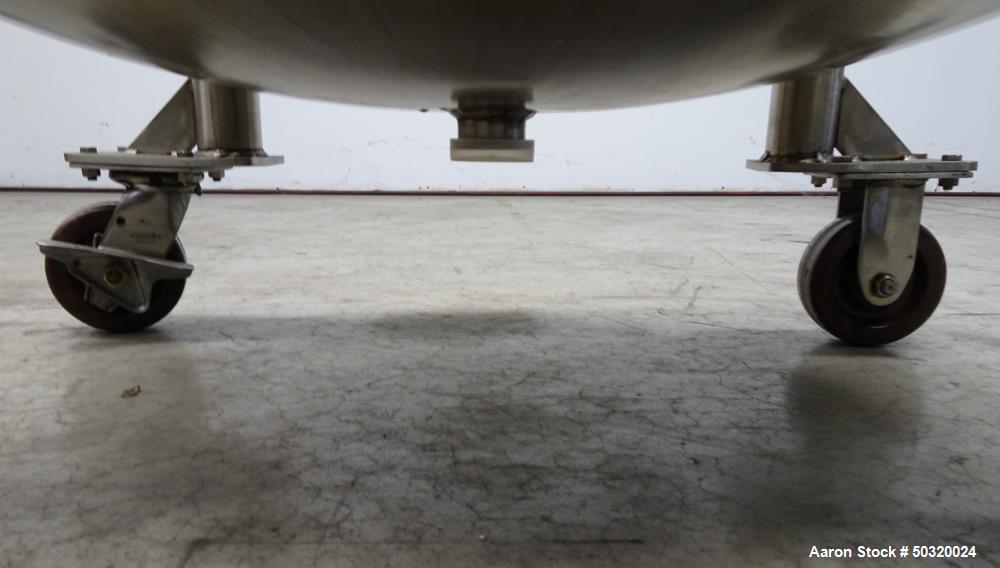

• Mounting: On 4 legs with casters
• Identification: National Board# 4381, Serial# B3834A8, Built 1989

Applications

Ideal for industrial mixing applications such as:

• Chemical and process mixing
• Pharmaceutical and biotech formulation
• Laboratory-scale batch processing
• Specialty chemical blending
• Industrial operations requiring controlled pressure mixing
