Used 316L Stainless Steel, Industrial Pressurized Mix Tank, Made by Lee Industries

Description

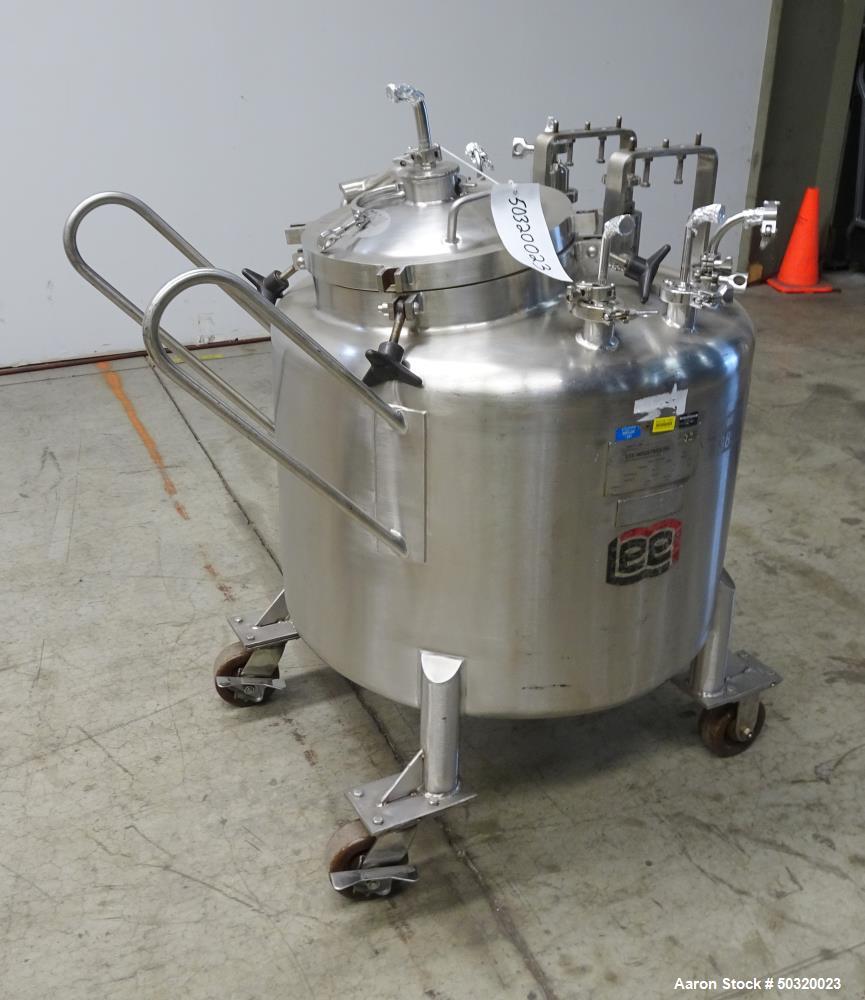

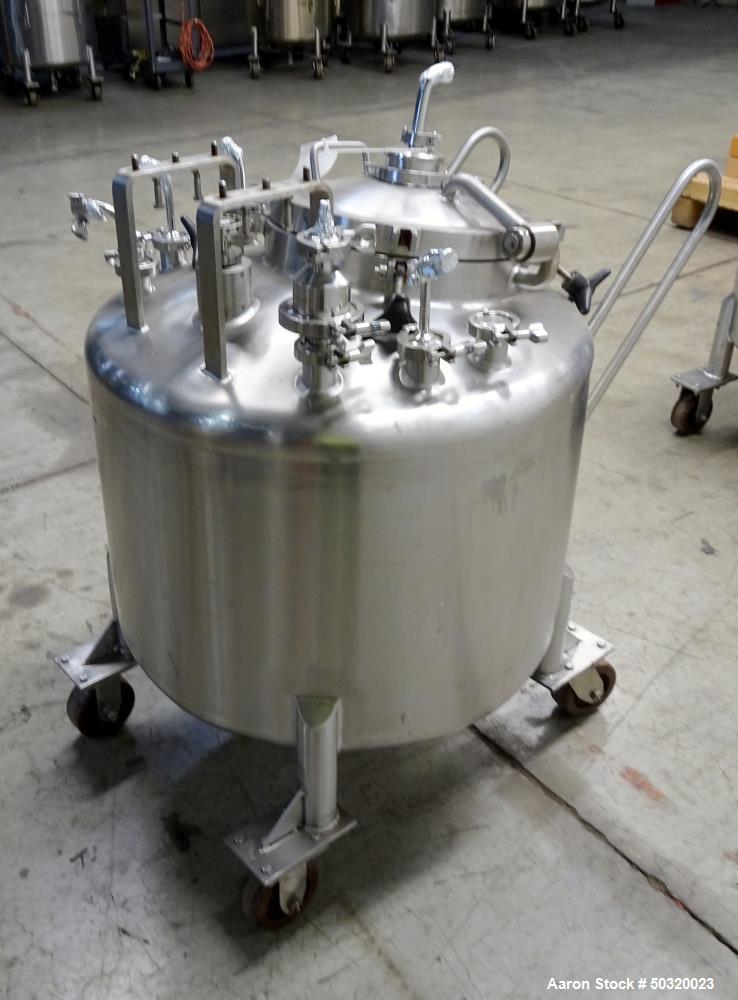

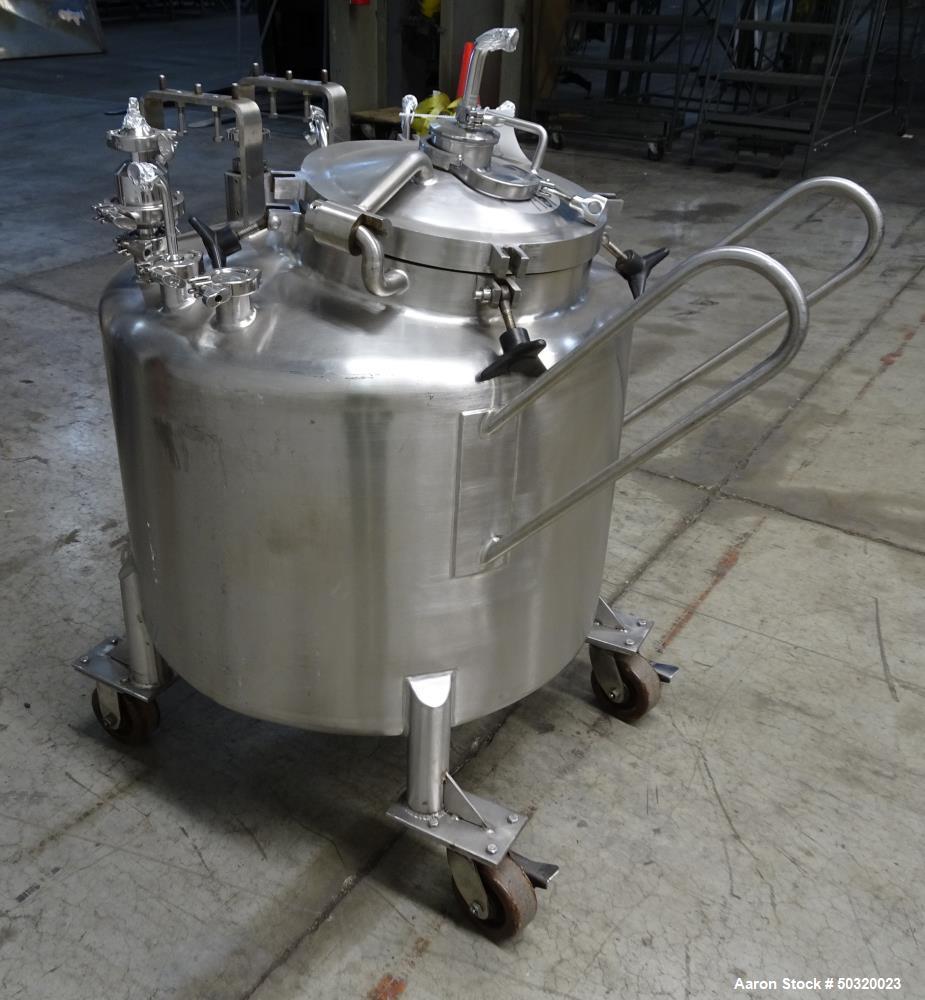

This used 250-liter pressure mix tank is constructed from 316L stainless steel and features a vertical design with dished top and bottom for optimal mixing and drainage. With an approximate 30" diameter and a 19" straight side, the tank is internally rated at 35 psi at 275°F (with vacuum capability). It is designed for efficient mixing with a top-entering 3-blade turbine agitator (motor/drive not included). The tank’s top includes multiple access openings—a 14" opening with cover, one 3" opening, and six 1-1/2" openings—while the bottom features a 1-1/2" center outlet with an approximate discharge height of 6-1/2" without a valve and 2-1/8" with a valve. The unit is mounted on four legs with casters for enhanced mobility.

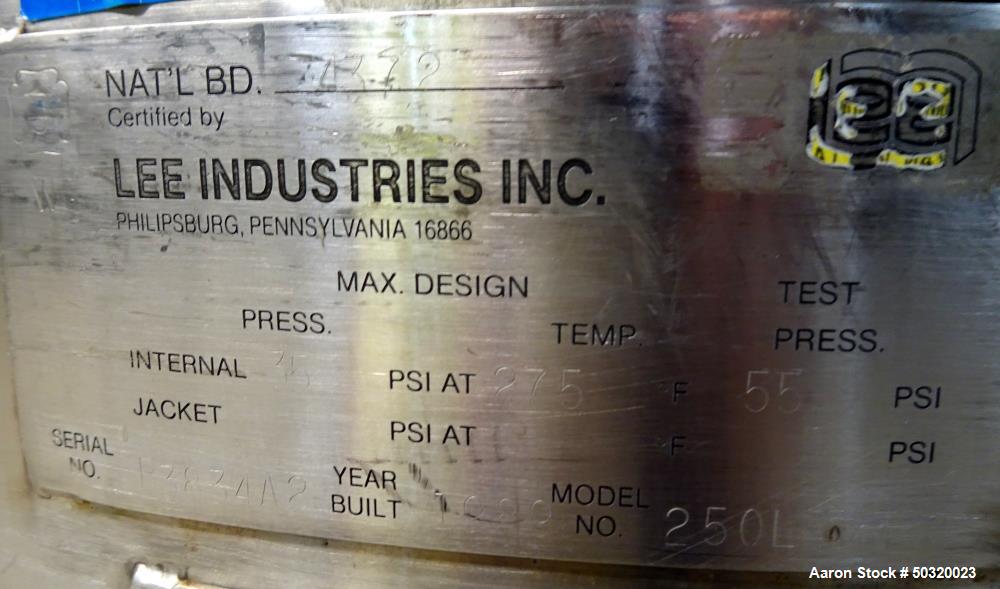

National Board#: 4372, Serial#: B3834A2, Built 1989

Specifications

• Capacity: 250 Liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Dimensions: Approximately 30" Diameter x 19" Straight Side
• Design Features:
  • Dished top and bottom

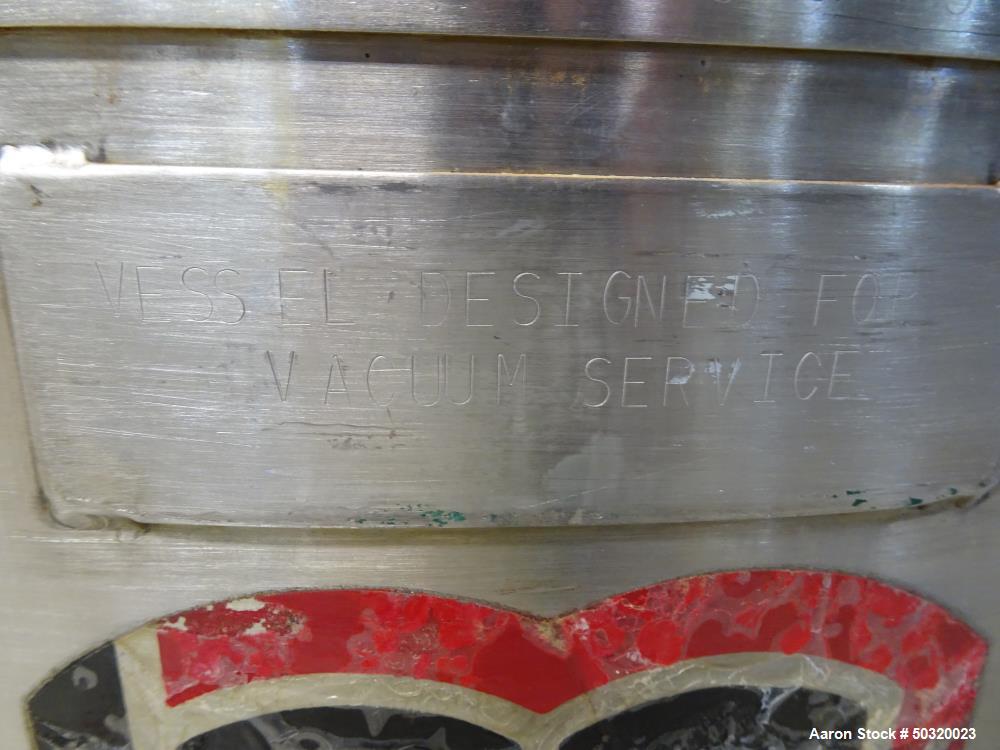

  • Internal pressure rating: 35 psi at 275°F (vacuum internal)
• Agitator:

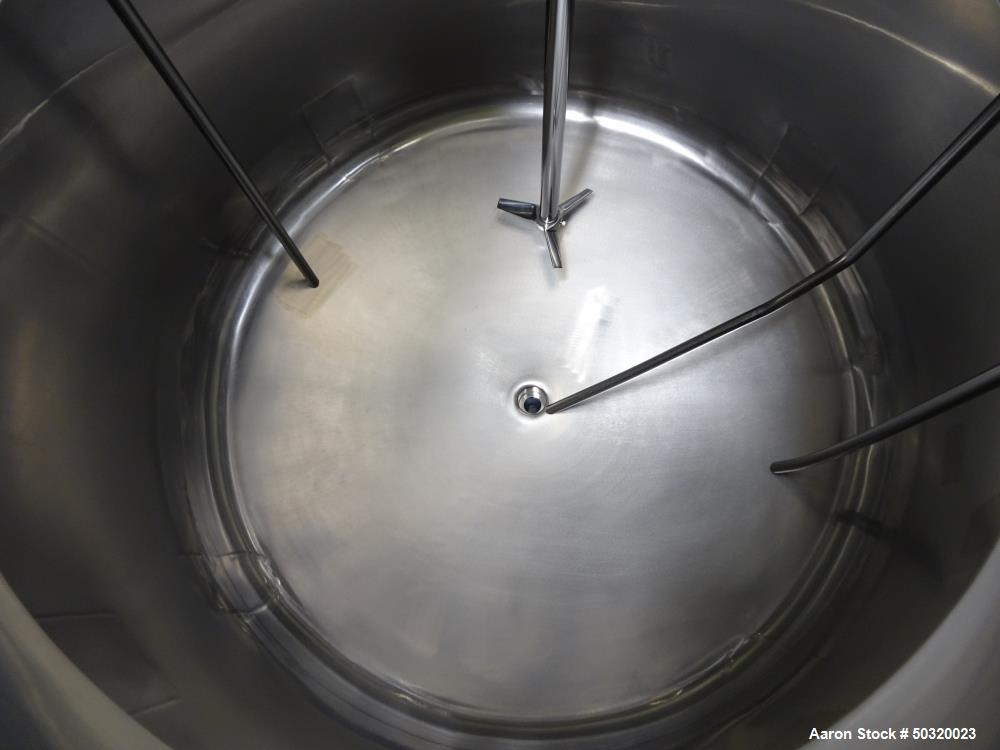

  • Top-entering 3-blade turbine agitator (motor/drive required, not included)

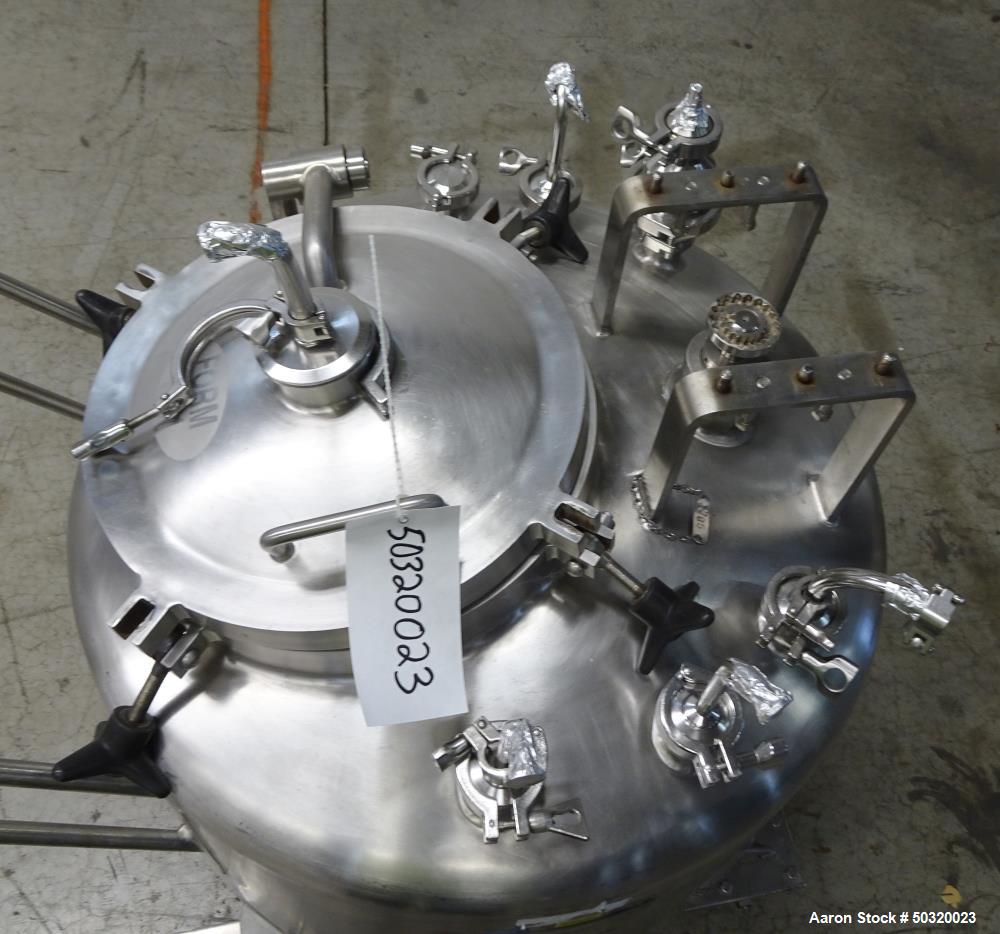

• Top Openings:
  • 14" opening with cover
  • 1 opening at 3"
  • 6 openings at 1-1/2" each
• Outlet:

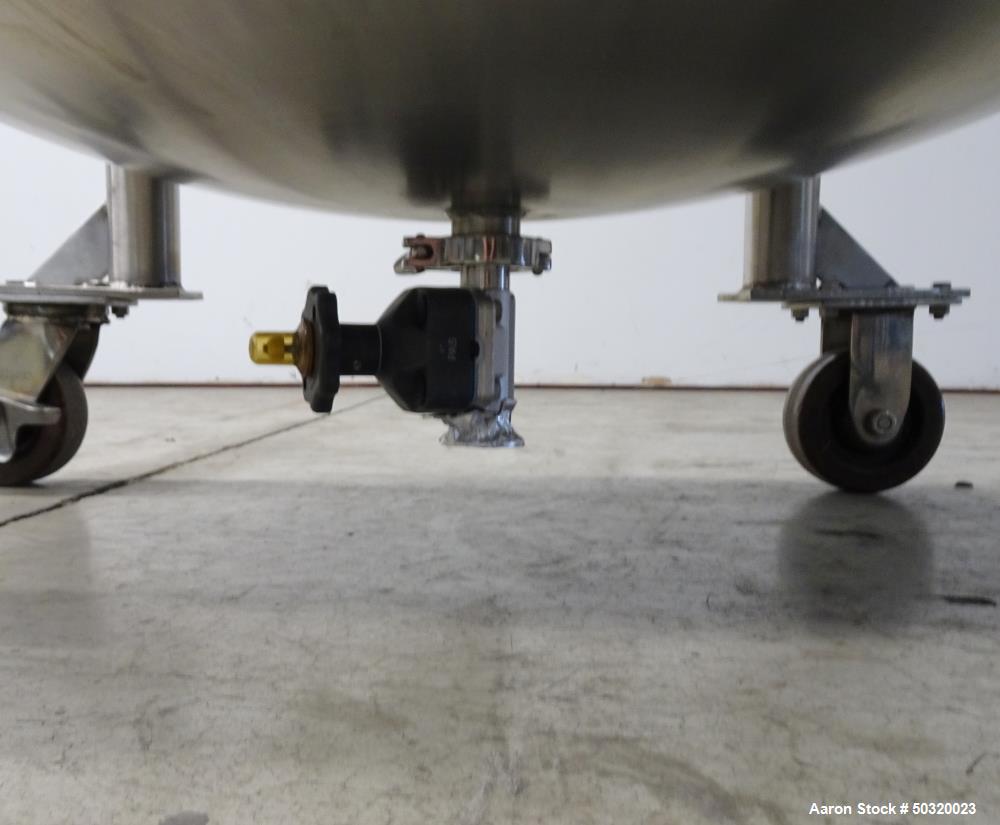

  • 1-1/2" center bottom outlet
  • Discharge height: Approximately 6-1/2" without valve; 2-1/8" with valve
• Mounting: On 4 legs with casters

Applications

This pressure mix tank is ideal for a range of industrial mixing applications, including:

• Chemical and process mixing
• Pharmaceutical and biotech formulation
• Laboratory-scale batch processing
• Specialty chemical blending
• Industrial mixing operations requiring precise pressure control
