Stock No.: 50320022

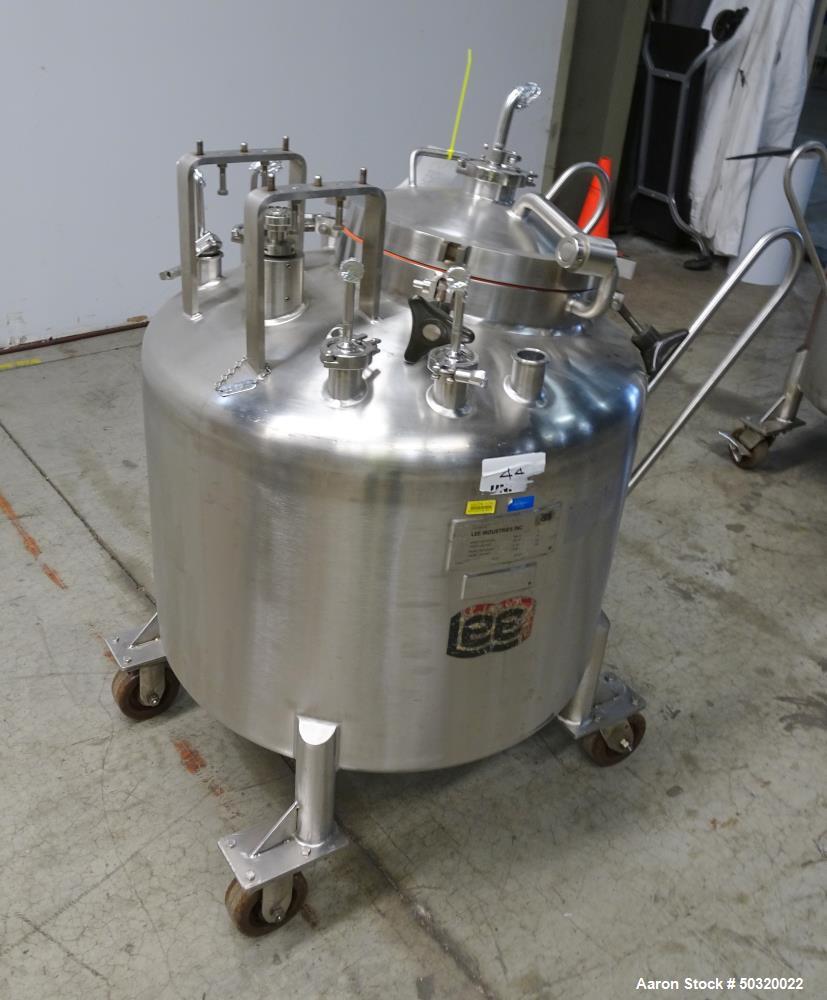

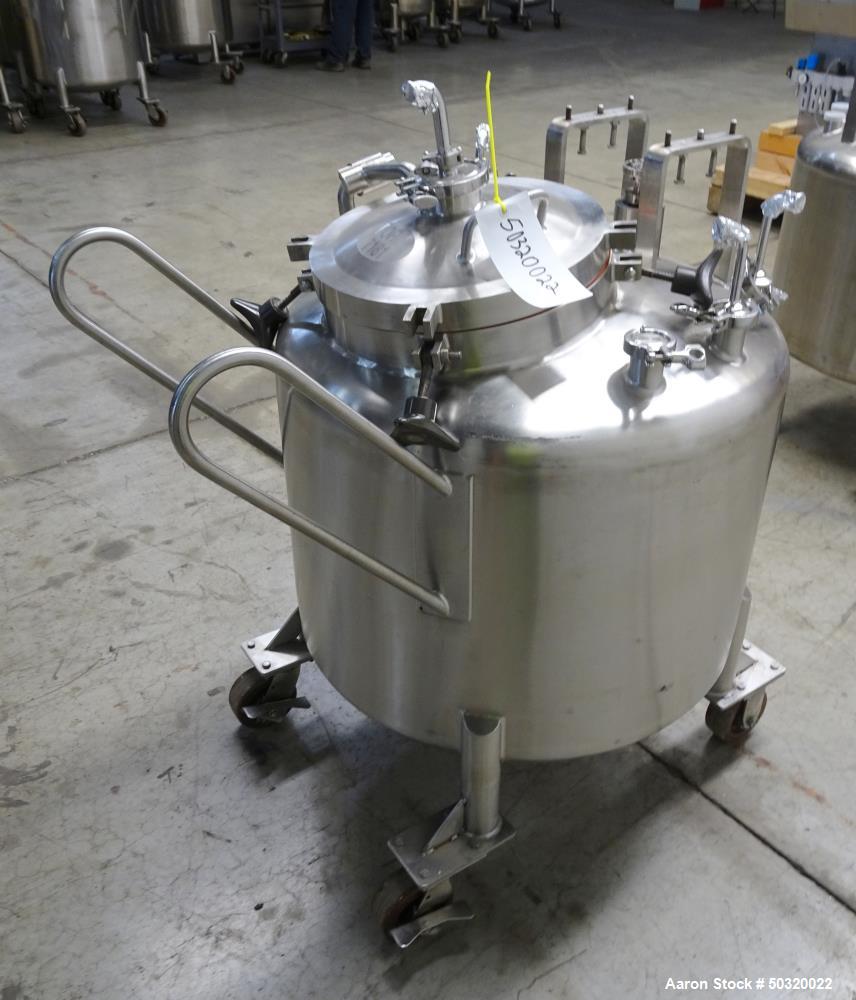

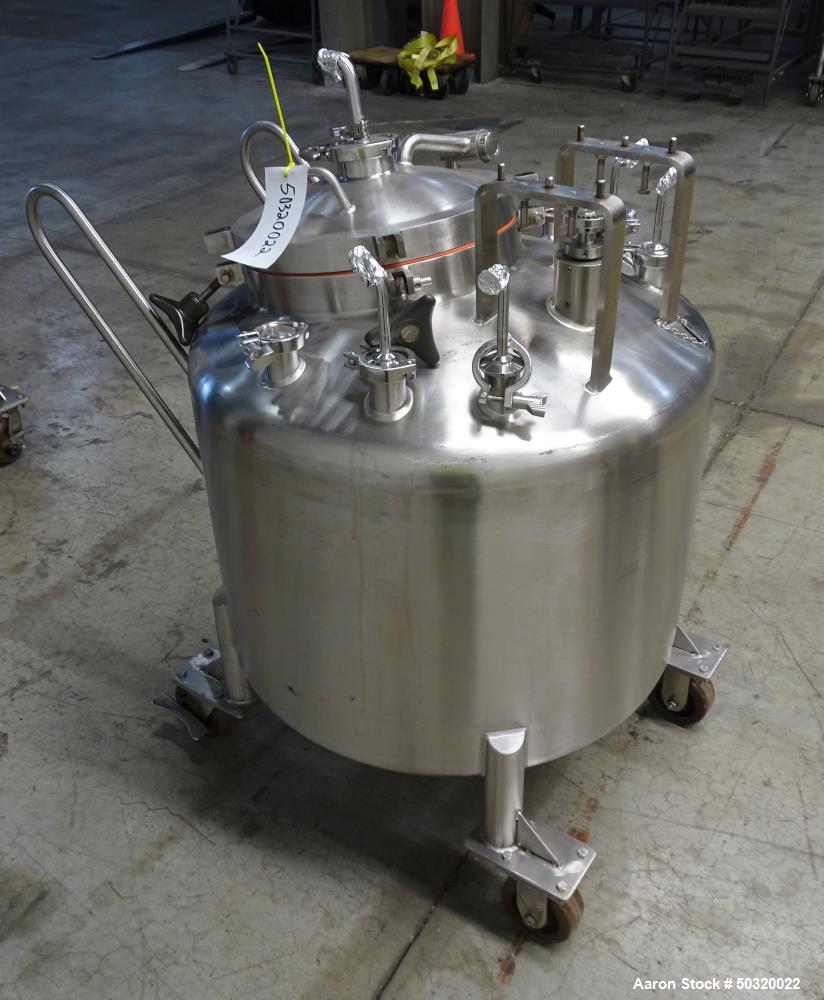

Used Industrial 250 Liter Mix Tank, Pressurized. Manufactured by Lee Industries

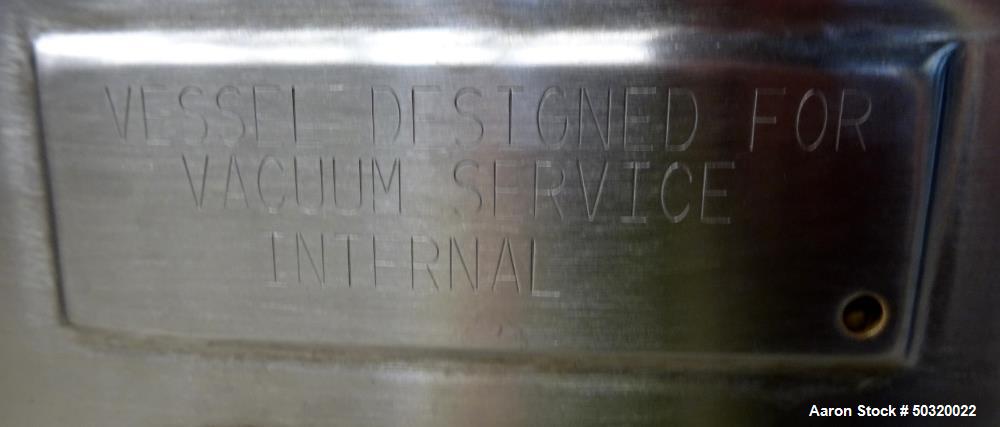

Submit Offer $2,250Used- Industrial 250 Liter Mix Tank, Pressurized. Manufactured by Lee Industries, Model 250 LDBT, 316L Stainless Steel, Vertical. Approximate 30" diameter x 19" straight side, dished top and bottom. Internal rated 35 psi at -20 to 275 degrees F, vacuum internal. Top entering 3-blade turbine agitator, requires motor/drive. Openings top: 14" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 6-1/2" discharge height w/o valve, 2-1/8" with valve. Mount on (4) legs with casters. National board# 5081, Serial# B6058A3, Built 1991.
-
ManufacturerLee Ind
-
Model250LDBT
-
Serial #B6058A3
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons66
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter30"
-
Straight Side19"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure35 PSI
-
Internal Temperature-20 TO 275 DEGREES F.
-
Agitator LocationTop Offset
-
Agitator TypeTop Entering
-
Mixer Type3 Blade Turbine
-
Outlet Size1-1/2"
-
Outlet LocationBottom
-
Discharge Height6-1/2"
-
MountedMounted on Casters
-

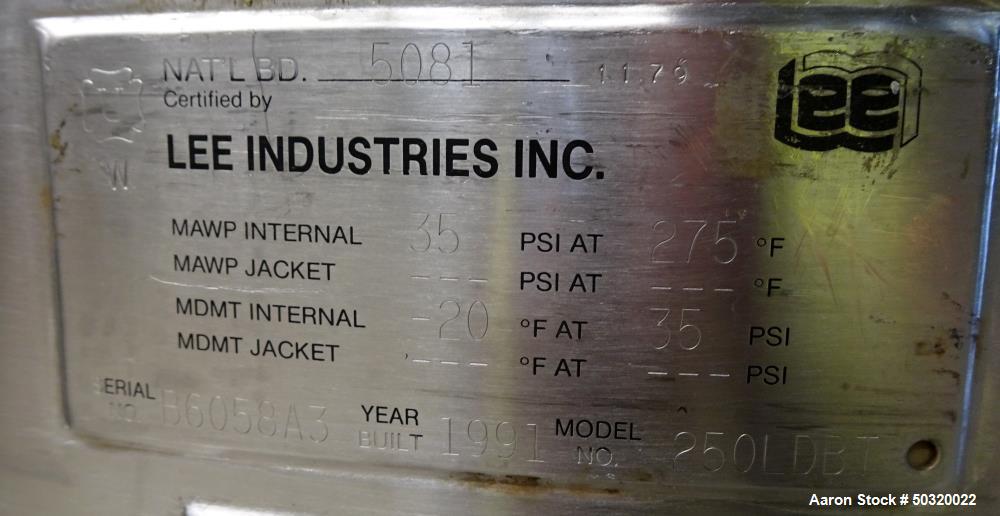

National Board No.5081
-
Overall Dimensions42"L X 34"W X 48"T
-
Year Built1991
Used equipment facts about this machine
Manufacturer Information
🏭 Manufacturer & Configuration Info
-
Manufacturer: Lee Industries
-
Model: 250 LDBT
-
Type: Pressurized Mixing Tank
-
Orientation: Vertical
-
Construction: 316L Stainless Steel
-
Mounting: 4-leg frame with casters
-
Condition: Used
-
Agitator: Top-entering 3-blade turbine (motor/drive not included)
📝 Description
This Used Lee 250 LDBT Vertical Pressurized Mixing Tank features a 250-liter (66-gallon) capacity and is constructed entirely from 316L stainless steel, offering corrosion resistance and hygienic processing in food, pharma, and cosmetic manufacturing.

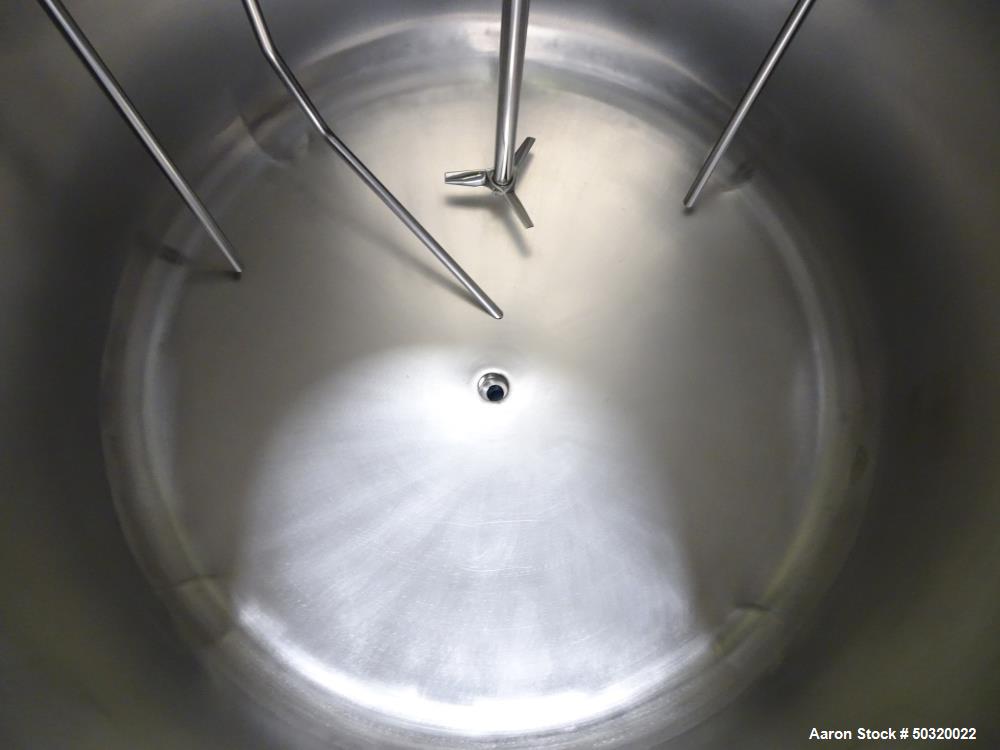

The tank includes a dished top and bottom, and is pressure rated to 35 PSI and full vacuum, with temperature tolerance from -20°F to 275°F. A top-entering 3-blade turbine agitator is installed (motor/drive not included), allowing for consistent product mixing.
Equipped with:
-

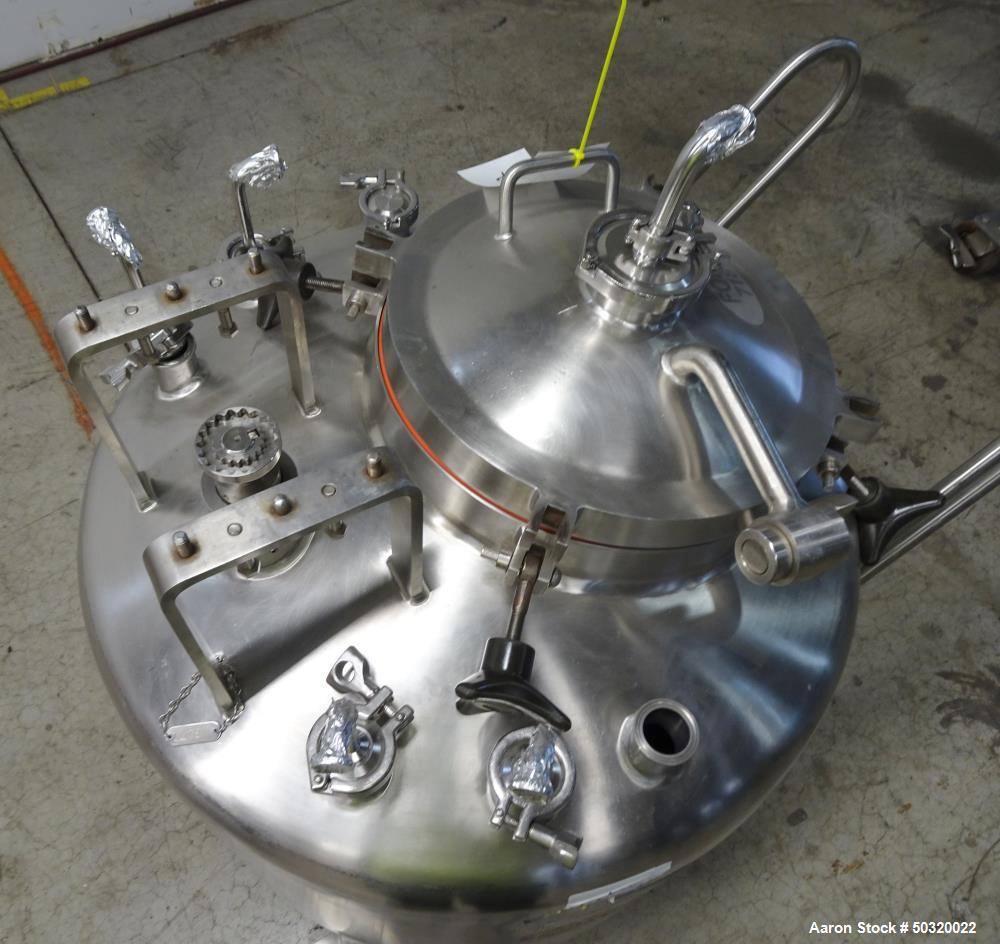

14” top manway with cover
-
(1) 3" and (6) 1.5" top ports
-

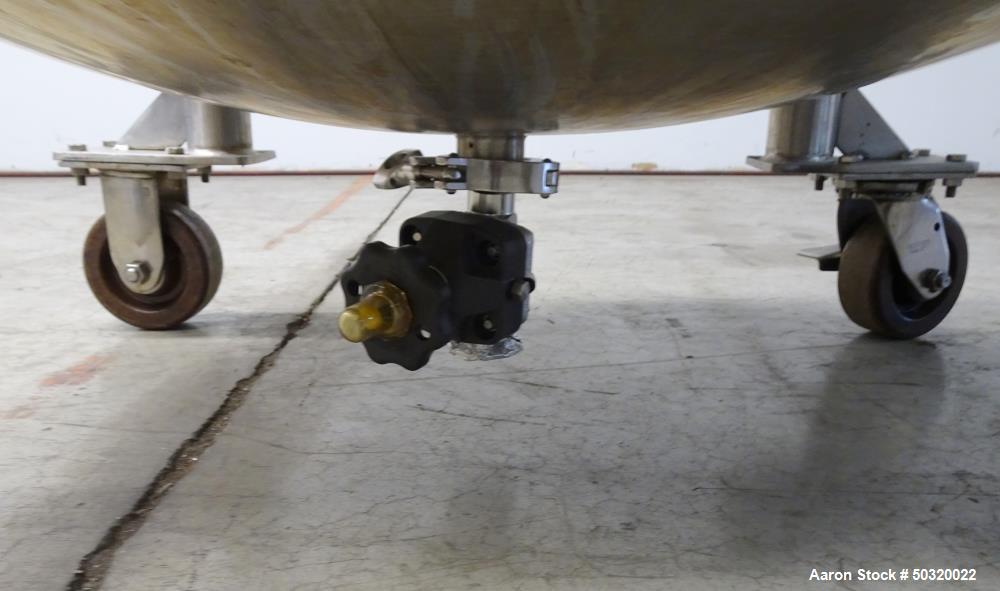

1.5" center bottom outlet, with discharge height of approx. 6.5" without valve and 2-1/8" with valve
-
Mounted on 4 legs with casters for mobility and compact plant footprint
📐 Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Lee Industries |
| Model | 250 LDBT |
| Capacity | 250 Liters (Approx. 66 Gallons) |
| Construction | 316L Stainless Steel |
| Orientation | Vertical |
| Tank Shape | Dished top and bottom |
| Pressure Rating (Internal) | 35 PSI / Full Vacuum @ -20°F to 275°F |
| Agitator | 3-blade top-entry turbine (motor/drive not included) |
| Top Openings | (1) 14” manway with cover, (1) 3”, (6) 1.5” ports |
| Bottom Outlet | 1.5” center, 6.5” discharge height (2-1/8" with valve) |
| Mounting | 4 legs with casters |
| Condition | Used |
🧪 Applications
-
Blending or mixing in food and beverage
-
Cosmetic cream or gel manufacturing
-
Nutraceutical or vitamin syrup production
-
API or excipient solution prep in pharmaceuticals
-
Fermentation media or broth prep
-
Personal care product mixing (shampoos, lotions)
-
Pilot-scale chemical reaction vessel
-
Creams, ointments, and thick emulsions
-
Sanitizer or disinfectant mixing
-
Heated/cooled prep tank in process lines
🎯 Products Typically Processed
-
Sauces and syrups
-
Topical creams and lotions
-
Cosmetic serums and gels
-
Nutritional supplements
-
Liquid pharmaceutical blends
-
Flavored concentrates
-
Botanical extracts
-
Sanitary chemicals
-
Dairy-based preps
-
Emulsions and suspensions
