Stock No.: 50320021
Used Lee 250 LDBT Mixing Tank – 250L, 316L SS, Pressurized, Mobile

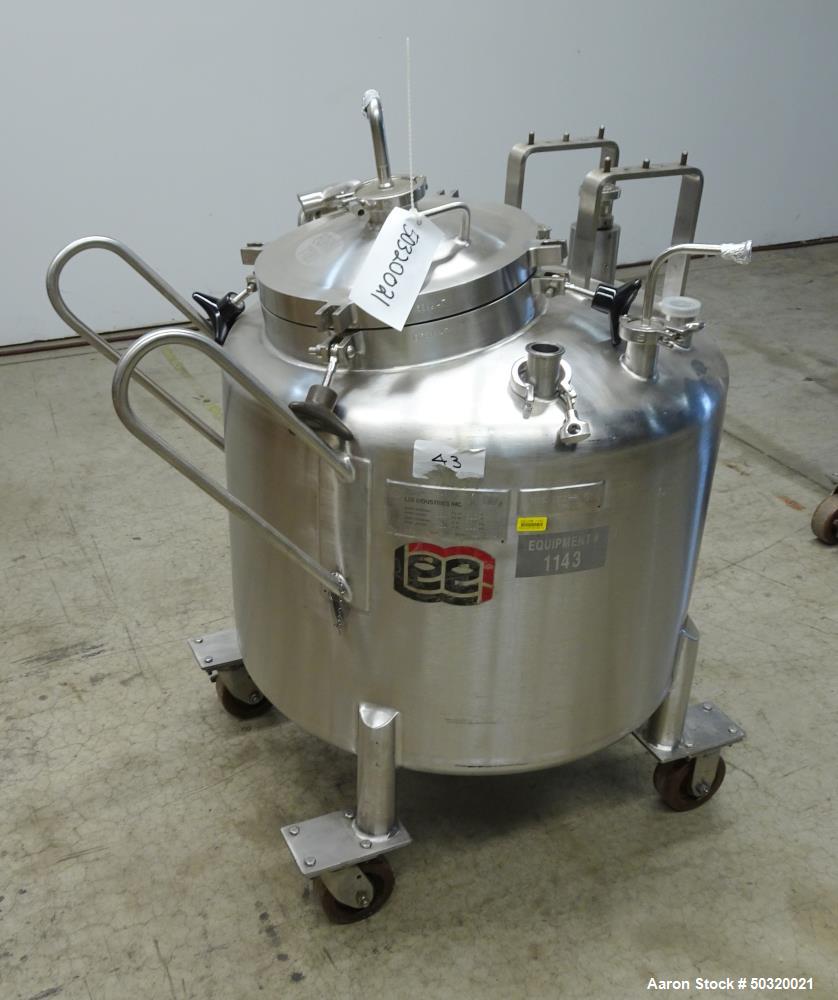

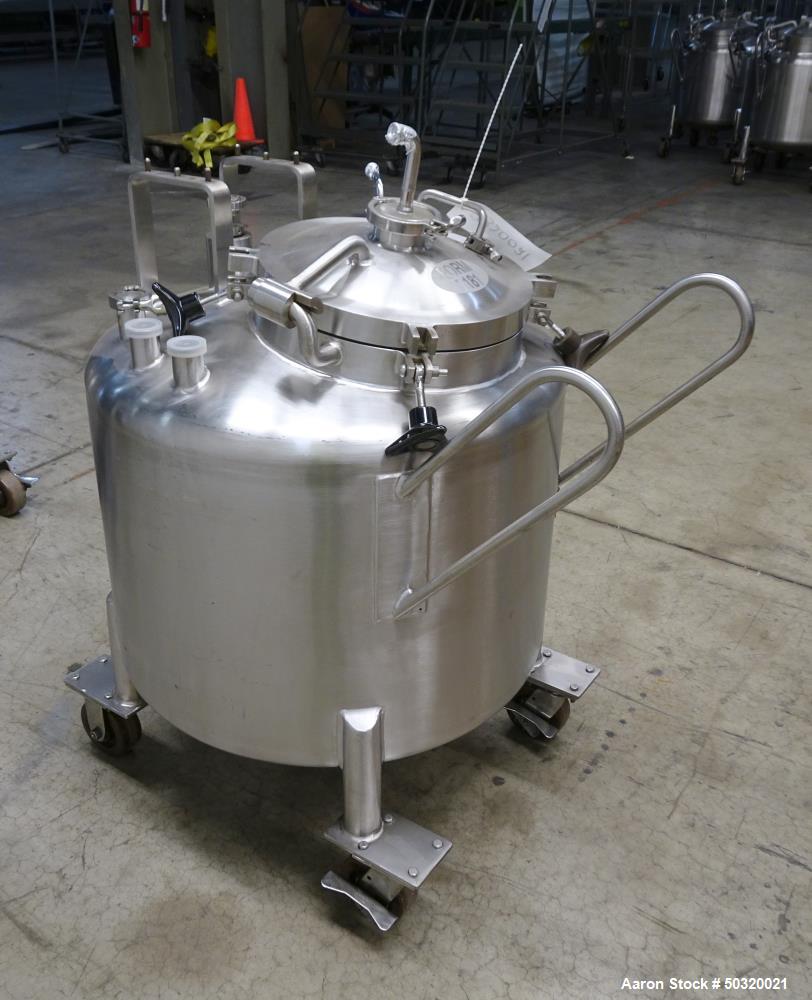

Submit Offer $2,250Used- Lee Pressurized Mixing Tank, Model 250 LDBT, 250 Liter Capacity, 316L Stainless Steel, Vertical. Approximate 30" diameter x 19" straight side, dished top and bottom. Internal rated 35 psi at -20 to 275 degrees F, vacuum internal. Top entering 3-blade turbine agitator, requires motor/drive. Openings top: 14" with cover, (1) 3", (6) 1-1/2". 1-1/2" Center bottom outlet, approximate 6-1/2" discharge height w/o valve, 2-1/8" with valve. Mount on (4) legs with casters. National board# 4913, Serial# B5399A7, Built 1990.
-
ManufacturerLee Ind
-
Model250LDBT
-
Serial #B5399A7
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons66
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter30"
-
Straight Side19"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure35 PSI
-
Internal Temperature-20 TO 275 DEGREES F.
-
Agitator LocationTop Offset
-
Agitator TypeTop Entering
-
Mixer Type3 Blade Turbine
-
Outlet Size1-1/2"
-
Outlet LocationBottom
-
Discharge Height6-1/2"
-
MountedMounted on Casters
-
National Board No.4913
-
Overall Dimensions42"L X 34"W X 48"T
-
Year Built1990
Used equipment facts about this machine
Manufacturer Information
Description
This used 250-liter pressure mix tank is constructed from 316L stainless steel and features a vertical design with dished top and bottom for optimal mixing and drainage. With an approximate 30" diameter and a 19" straight side, the tank is internally rated at 35 psi for temperatures ranging from -20°F to 275°F, with vacuum capability. It is designed for efficient mixing with a top-entering 3-blade turbine agitator (motor/drive not included). The top of the tank includes multiple access openings—a 14" opening with cover, one 3" opening, and six 1-1/2" openings—while the bottom features a 1-1/2" center outlet with an approximate discharge height of 6-1/2" without a valve and 2-1/8" with a valve. The unit is mounted on four legs with casters for enhanced mobility.

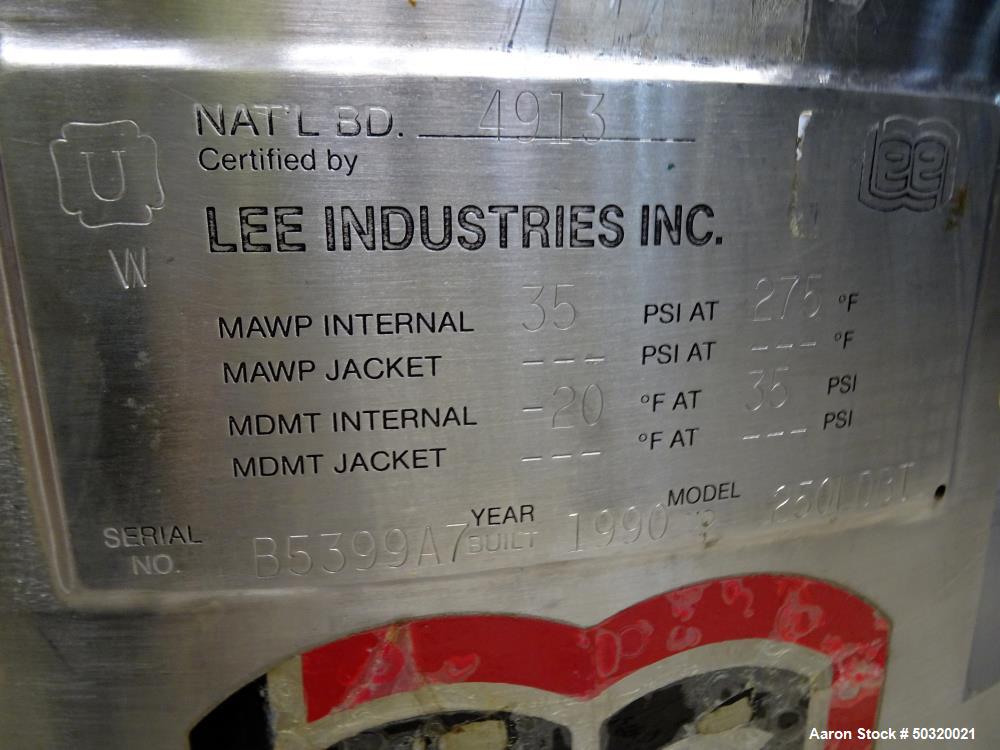

National Board#: 4913, Serial#: B5399A7, Built 1990
Specifications
- Capacity: 250 Liters
- Material: 316L Stainless Steel
- Orientation: Vertical
- Dimensions: Approximately 30" Diameter x 19" Straight Side
- Design Features:
- Dished top and bottom

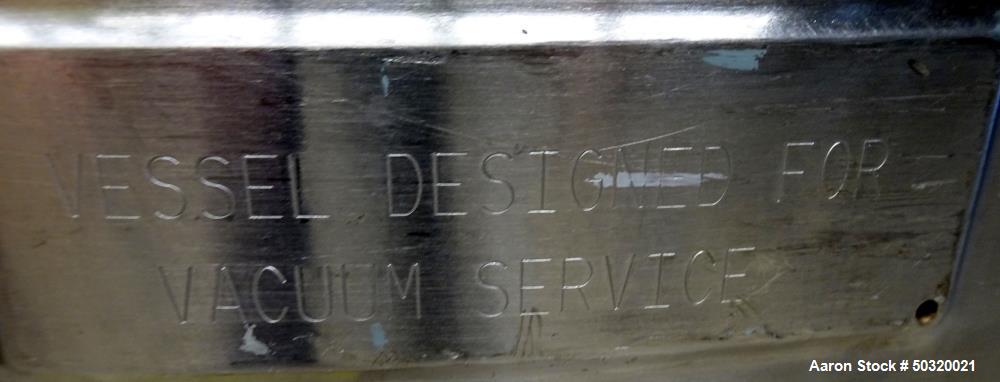

- Internal pressure rating: 35 psi at -20°F to 275°F (vacuum internal)
- Agitator:

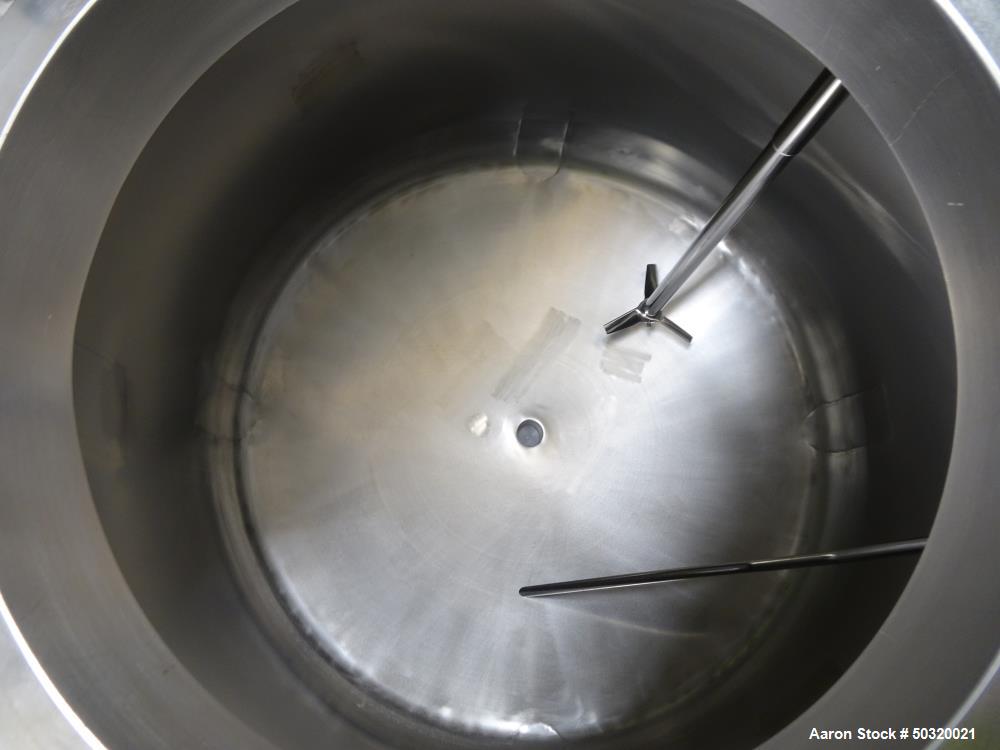

- Top-entering 3-blade turbine agitator (motor/drive required, not included)

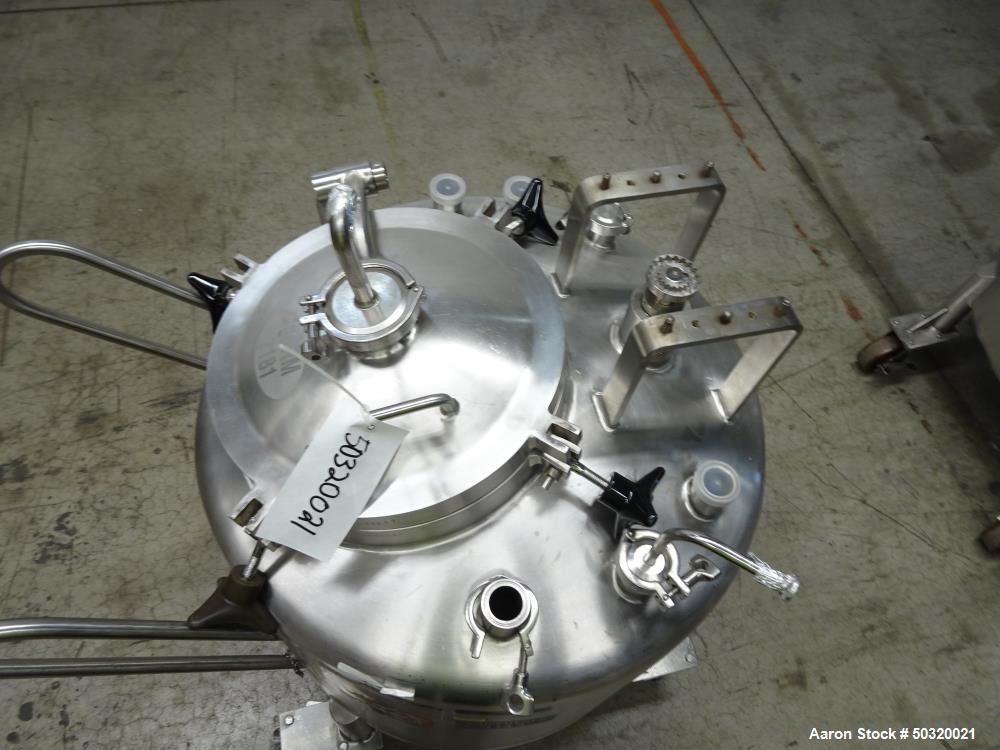

- Top Openings:
- 14" opening with cover
- 1 opening at 3"
- 6 openings at 1-1/2" each
- Outlet:

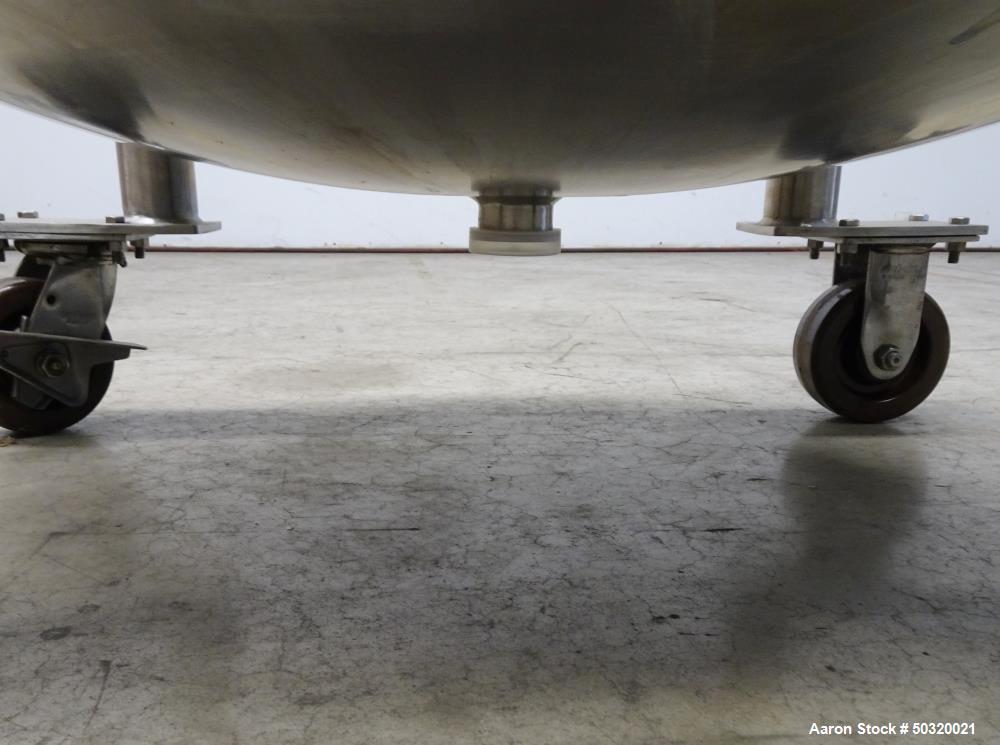

- 1-1/2" center bottom outlet
- Discharge height: Approximately 6-1/2" without valve; 2-1/8" with valve

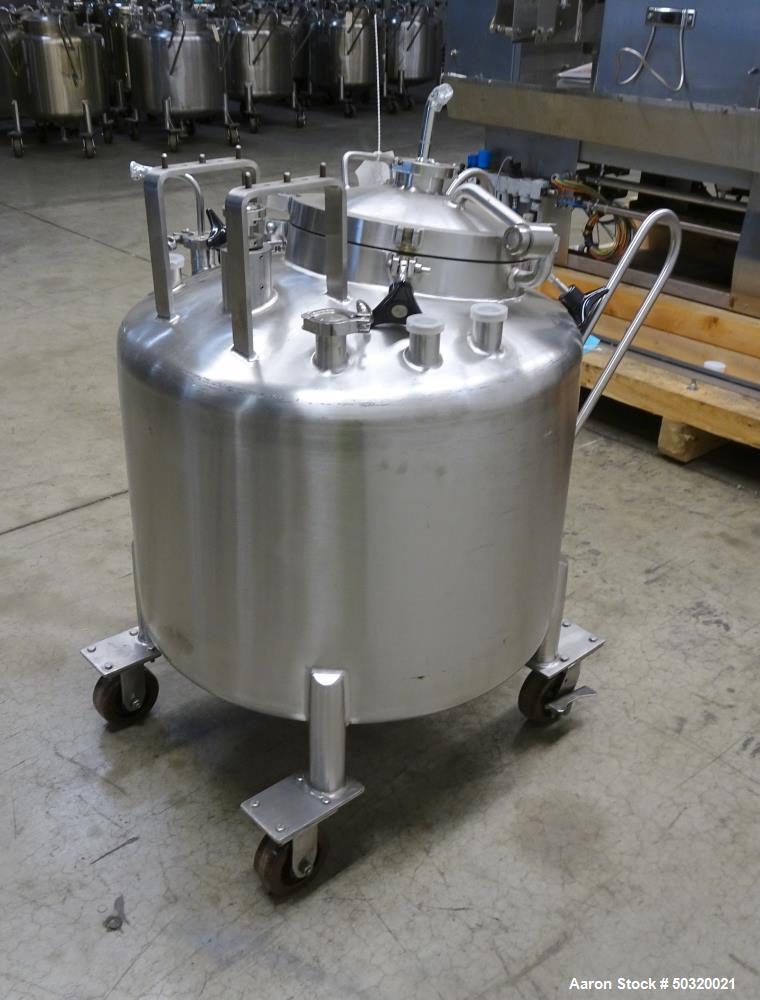

- Mounting: On 4 legs with casters
Applications
This pressure mix tank is ideal for:
- Chemical and process mixing
- Pharmaceutical and biotech formulation
- Laboratory-scale batch processing
- Specialty chemical blending
- Industrial mixing operations requiring precise pressure control
🧪 Applications
-
Blending or mixing in food and beverage
-
Cosmetic cream or gel manufacturing
-
Nutraceutical or vitamin syrup production
-
API or excipient solution prep in pharmaceuticals
-
Fermentation media or broth prep
-
Personal care product mixing (shampoos, lotions)
-
Pilot-scale chemical reaction vessel
-
Creams, ointments, and thick emulsions
-
Sanitizer or disinfectant mixing
-
Heated/cooled prep tank in process lines
🎯 Products Typically Processed
-
Sauces and syrups
-
Topical creams and lotions
-
Cosmetic serums and gels
-
Nutritional supplements
-
Liquid pharmaceutical blends
-
Flavored concentrates
-
Botanical extracts
-
Sanitary chemicals
-
Dairy-based preps
-
Emulsions and suspensions
Product Details
- Used mix tank
- Lee Industries pressure mix tank
- 250L mix tank
- Stainless steel mix tank
- Vertical mix tank
- Used Lee Industries 250L Pressure Mix Tank
- 316L stainless steel pressure mix tank
- Model 250 LDBT mix tank
- Industrial pressure mix tank
- Used Lee Industries 250L Pressure Mix Tank Model 250 LDBT in 316L stainless steel
- Vertical mix tank with dished top and bottom rated 35 psi (-20°F to 275°F) for industrial chemical mixing
- Lee Industries pressure mix tank with top-entering 3-blade turbine agitator and multiple access openings
- Used industrial mix tank for chemical, pharmaceutical, and biotech applications built in 1990
-
