Buy Lee 200 LDBT Stainless Steel Pressure Mixing Tank – 30 PSI Rated

Description

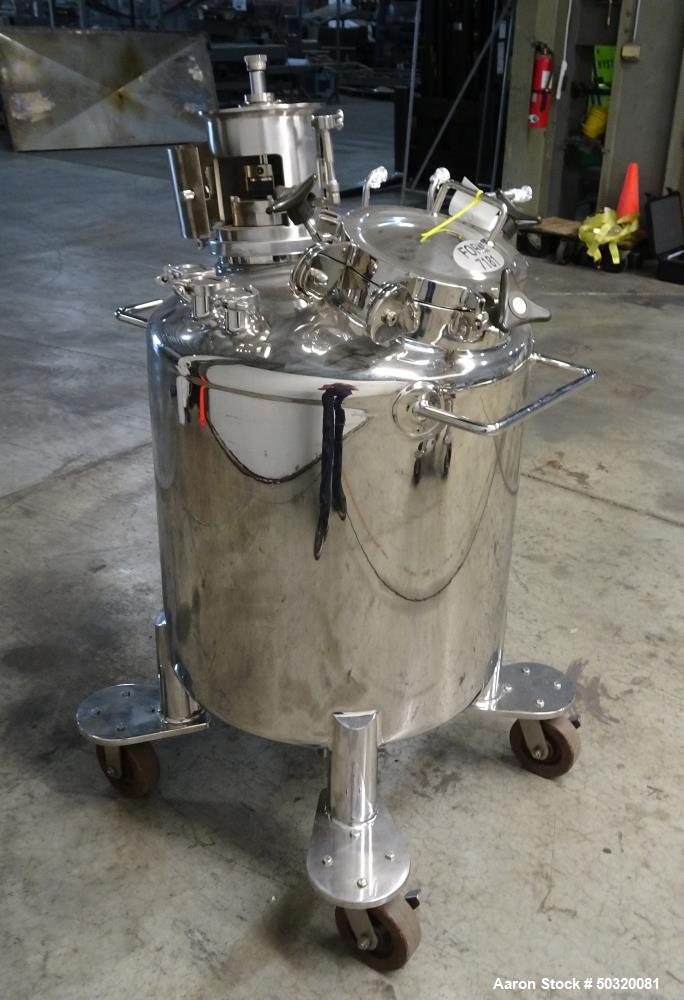

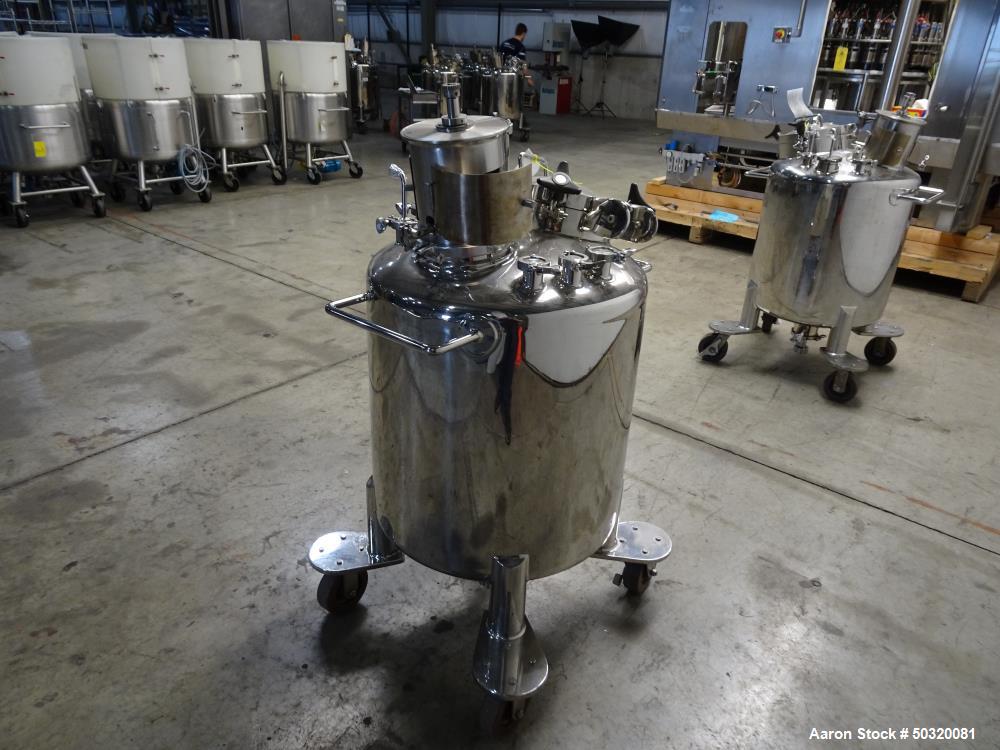

This used Lee Industries 200-liter industrial pressure mix tank is designed for high-performance mixing and processing in demanding industrial applications. Constructed from 316L stainless steel, this vertical mixing vessel ensures corrosion resistance, durability, and compliance with sanitary processing standards.

The tank features a dished top and bottom for optimized fluid flow and easy cleaning. It is internally rated for 30 psi at temperatures from -20°F to 300°F, with vacuum capability, making it suitable for a wide range of mixing, blending, and reaction processes.

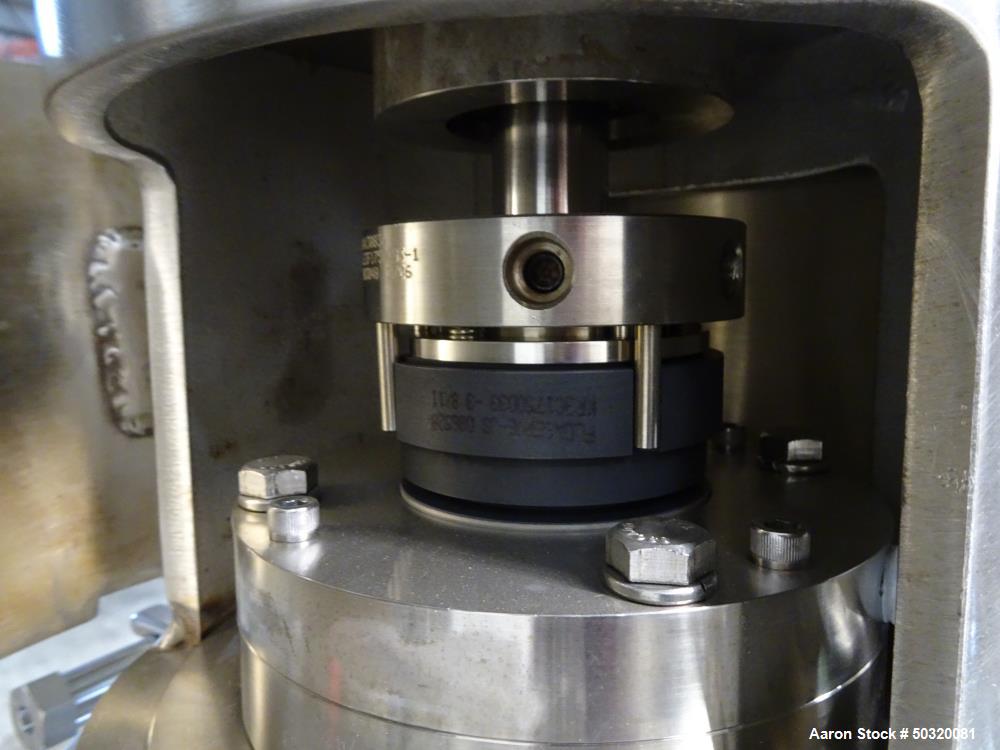

Equipped with a top-entering dual 3-blade turbine agitator, this tank enables efficient material dispersion and uniform mixing. The agitator requires a separate motor and drive for full functionality. Multiple top openings, including a 10-inch cover, one 3-inch port, and six 1-1/2-inch ports, allow for seamless ingredient addition and process integration. The 1-1/2-inch center bottom outlet is positioned at 5-1/2 inches discharge height for smooth product flow.

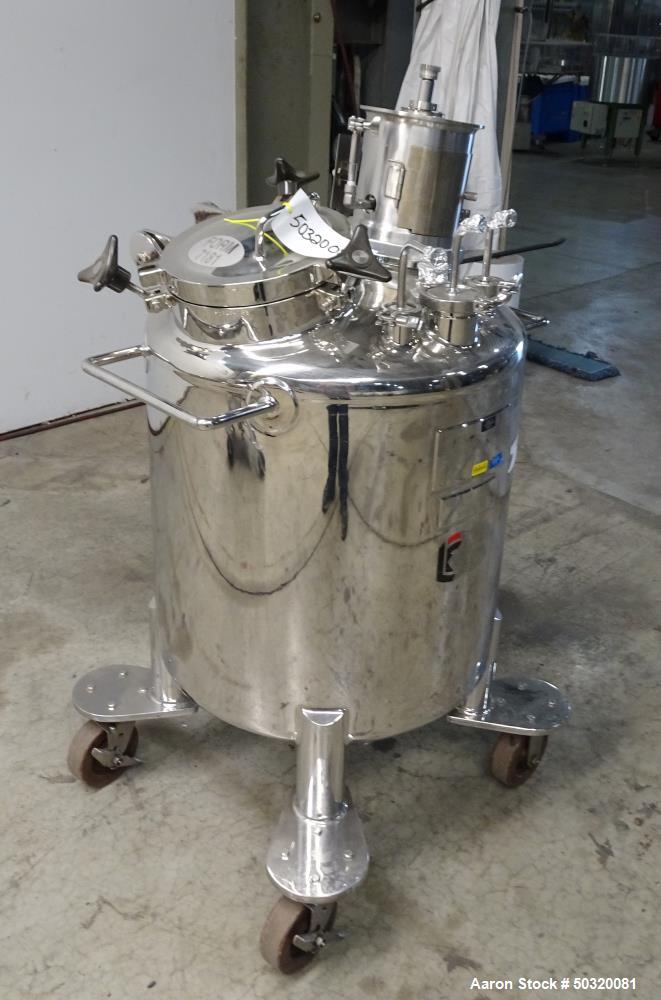

For operational flexibility, the tank is mounted on four legs with casters, ensuring easy mobility and reconfiguration within production environments.

Specifications

• Capacity: 200 liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Tank Dimensions:
  • Diameter: 26 inches
  • Straight Side Height: 24 inches
  • Discharge Height: Approx. 5-1/2 inches

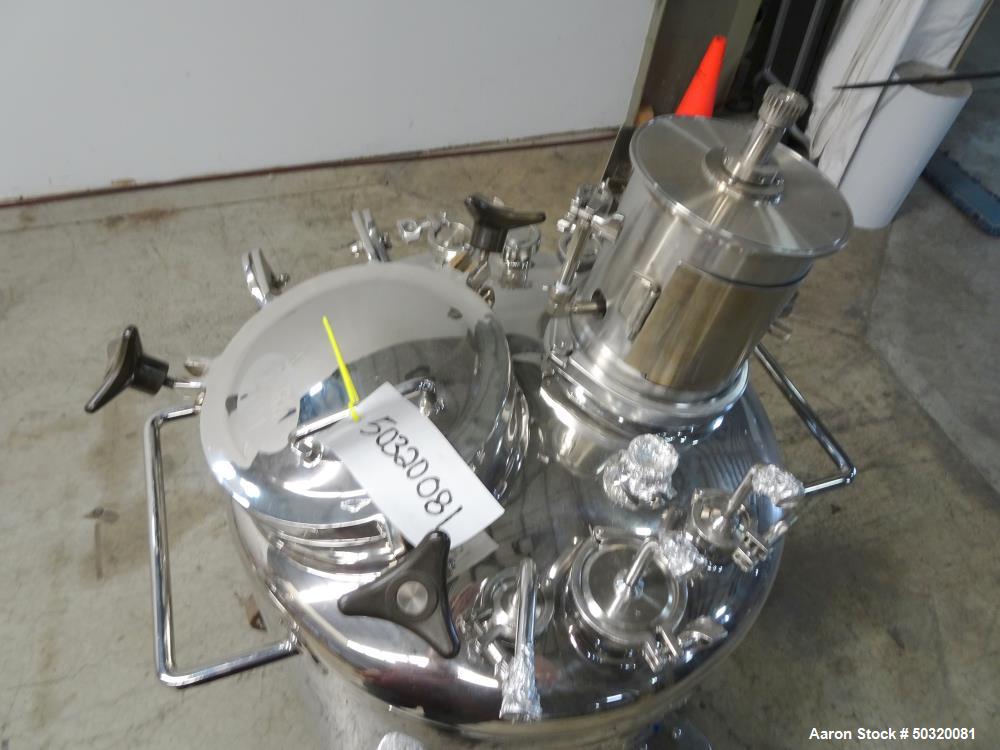

• Top Features:

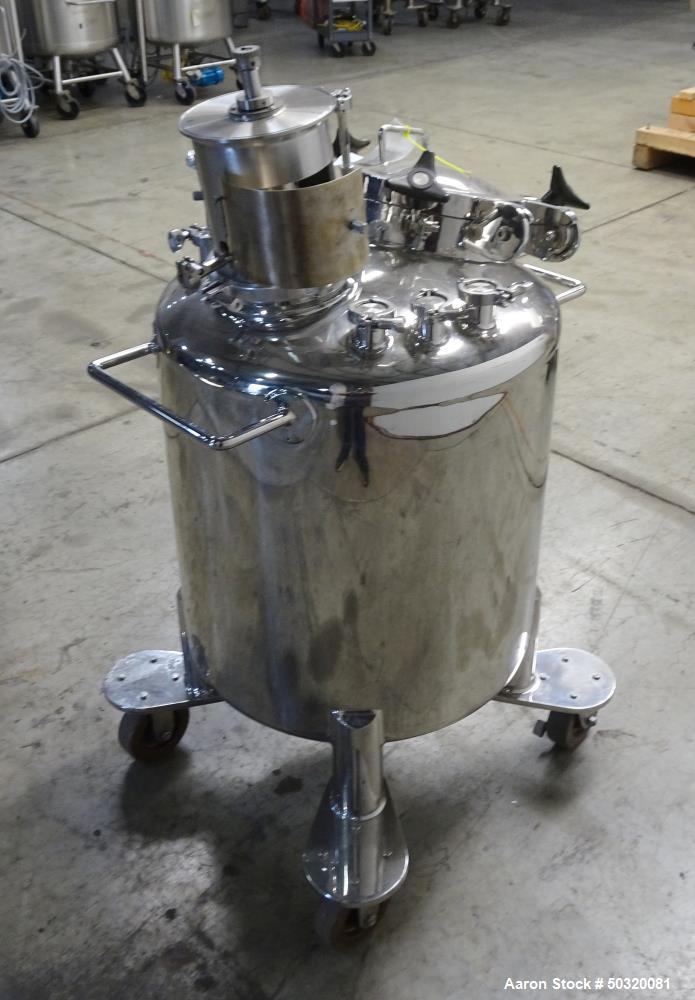

  • Dished top with multiple openings:
    • 10” with cover
    • (1) 3” opening
    • (6) 1-1/2” openings
• Bottom Features:
  • Dished bottom

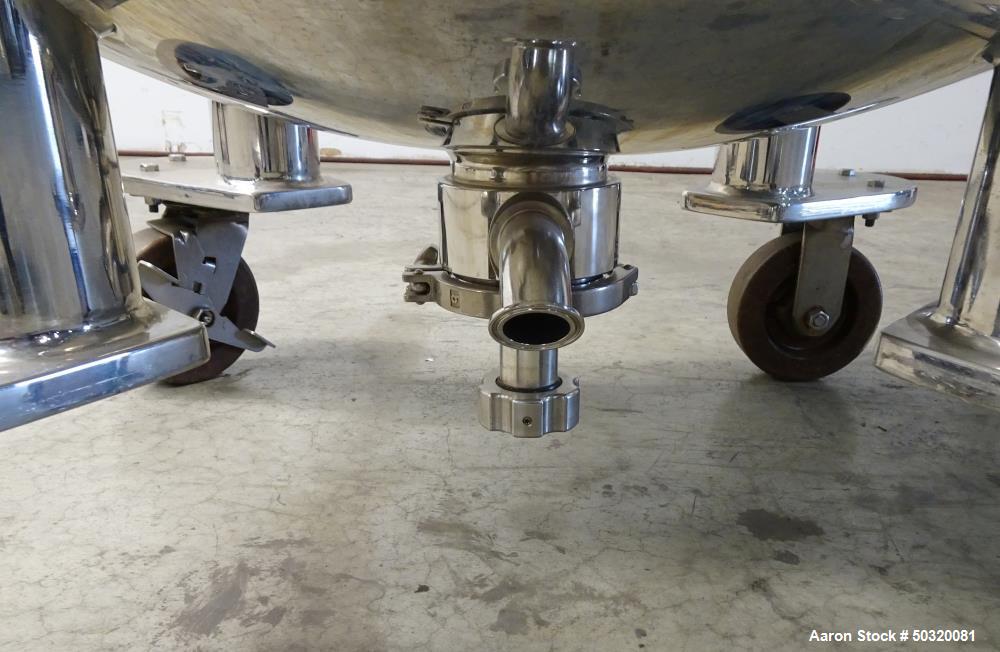

  • 1-1/2” center bottom outlet
• Pressure Rating:
  • Internal: 30 psi (-20°F to 300°F)

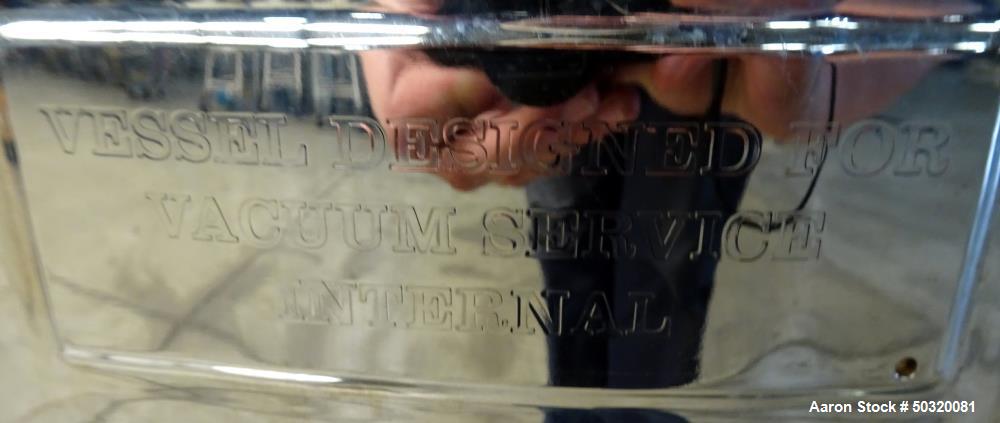

  • Vacuum-rated
• Agitator:

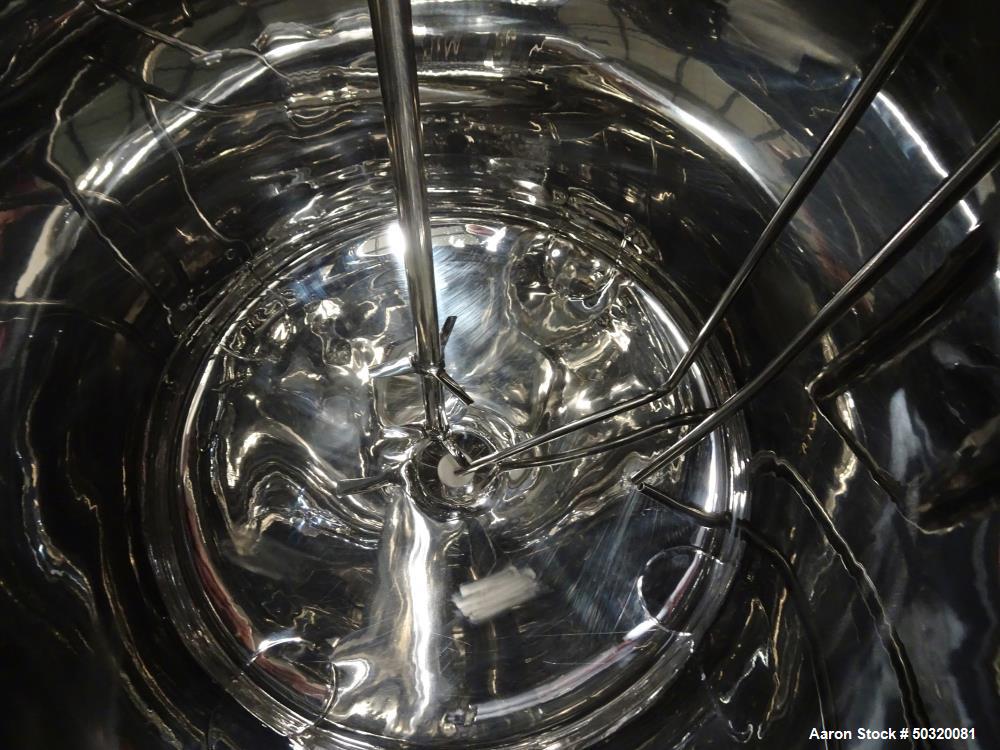

  • Dual 3-blade turbine (motor/drive required)
• Mobility:
  • Mounted on (4) legs with casters for ease of movement

Applications

This industrial-grade stainless steel pressure mix tank is ideal for use in food processing, pharmaceuticals, chemicals, and cosmetics. Typical applications include:

• Mixing, blending, and homogenization of liquids under vacuum or pressure
• Batch processing of temperature-sensitive or viscous materials
• Chemical reactions requiring controlled conditions
• Storage and handling of regulated substances

Compatible Products

• Food & beverage: Sauces, syrups, dairy-based formulations
• Pharmaceuticals: Liquid medications, chemical solutions
• Cosmetics & personal care: Creams, gels, emulsions
• Industrial chemicals: Adhesives, coatings, and specialty compounds

🧰 Applications

This pressure mix tank is ideal for industries and processes involving:

• Pharmaceuticals

• Chemicals

• Personal Care / Cosmetics

• Food & Beverage

• Laboratory-scale Production

• Nutraceuticals

• Adhesives and Sealants

• Fermentation

• Pilot Plant Testing

• Slurry or Paste Mixing

📦 Used For (Products)

• Creams, lotions, gels

• Liquid chemicals or reagents

• Viscous food products

• Suspensions and emulsions

• Batch samples and formulations

• Polymer solutions

• Drug formulations

• Flavorings and concentrates

• Paste-like adhesives

• Low-pressure fermentation
