Used 316L Stainless Steel Lee Pressure Mix Tank, 200 Liter, Model 200 LDBT

Description

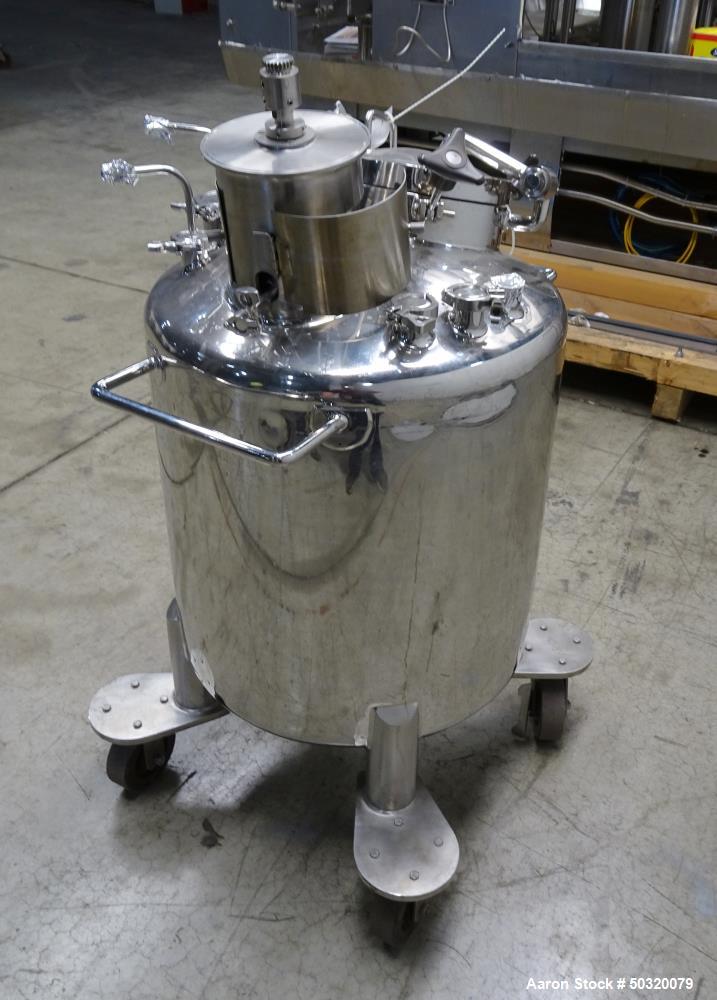

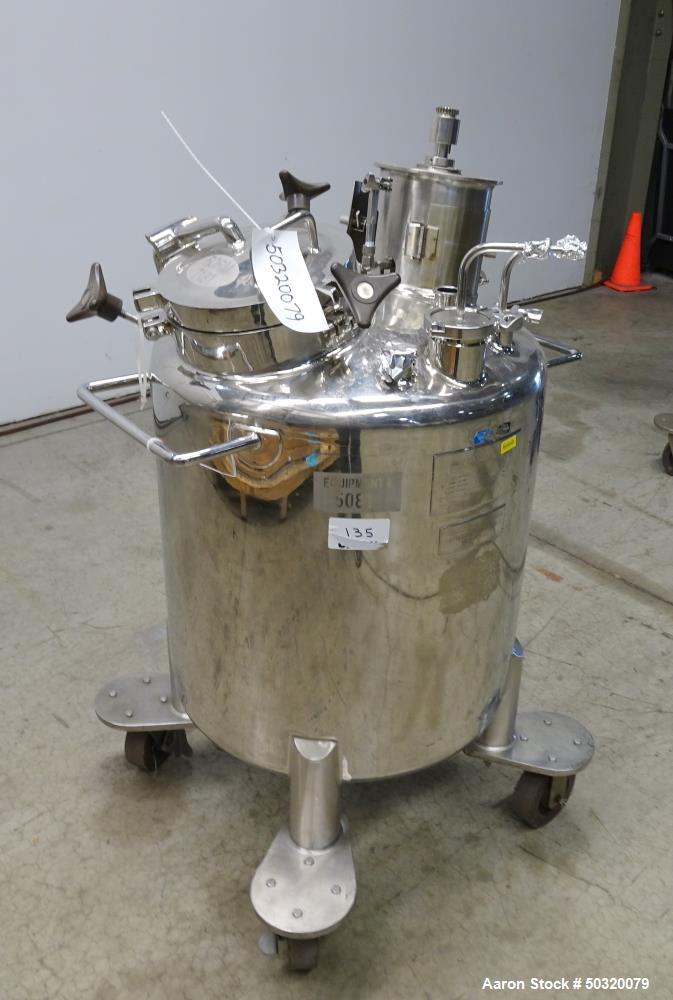

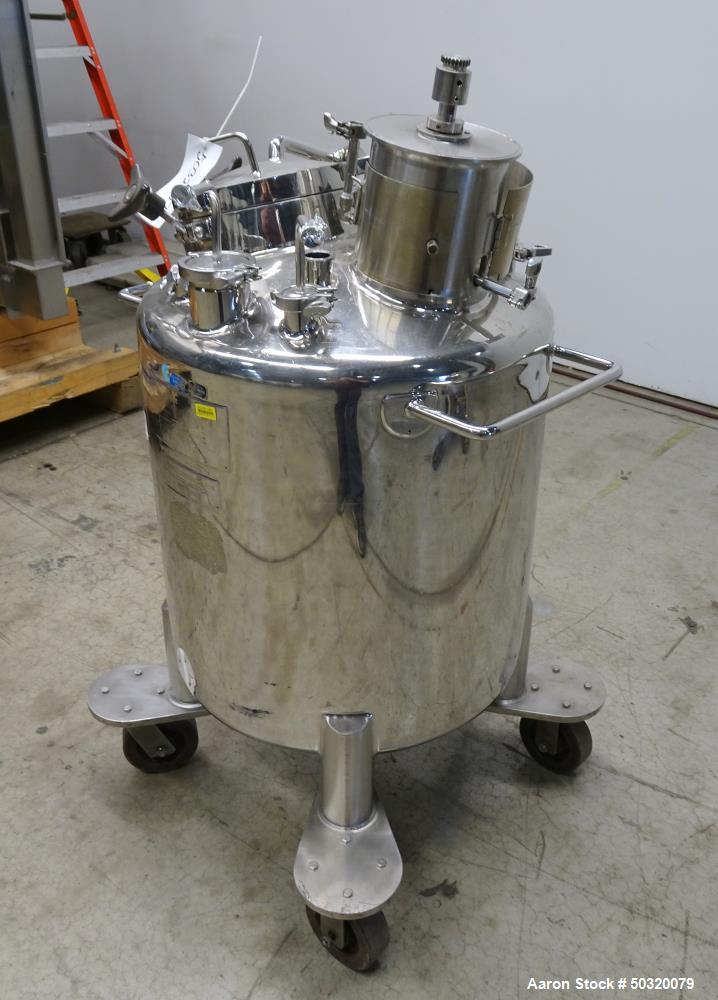

This used Lee Industries 200-liter pressure mix tank is constructed from 316L stainless steel, ensuring superior durability, corrosion resistance, and compliance with sanitary processing standards. The vertical tank features a dished top and bottom, optimizing fluid dynamics for efficient mixing and drainage. With an internal pressure rating of 30 psi (-20°F to 300°F) and vacuum capabilities, it is ideal for a variety of industrial mixing and processing applications.

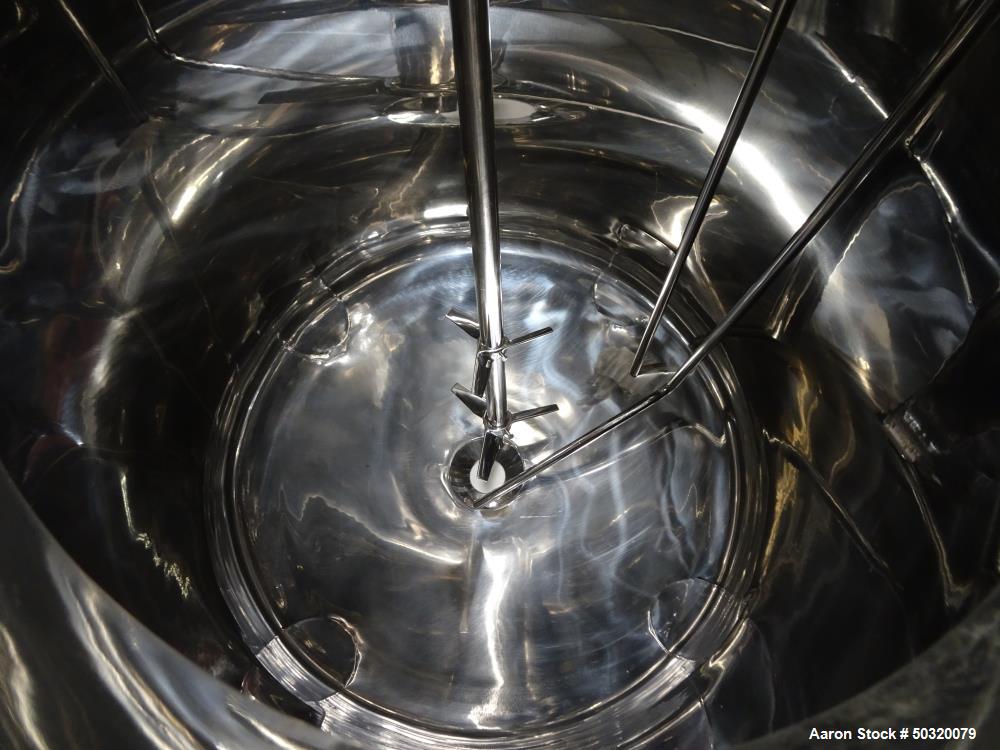

The unit comes equipped with a top-entering dual 3-blade turbine agitator, though a motor and drive are required for full operation. Multiple top openings, including a 10-inch cover, one 3-inch opening, and six 1-1/2-inch openings, allow for easy product addition and process integration. The 1-1/2-inch center bottom outlet is designed for efficient discharge, positioned at approximately 5-1/2 inches in height. For added convenience, the tank is mounted on four legs with casters, ensuring ease of movement and flexibility in production environments.

Specifications

• Capacity: 200 liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Tank Dimensions:
  • Diameter: 26 inches
  • Straight Side Height: 24 inches
  • Discharge Height: Approx. 5-1/2 inches
• Top Features:

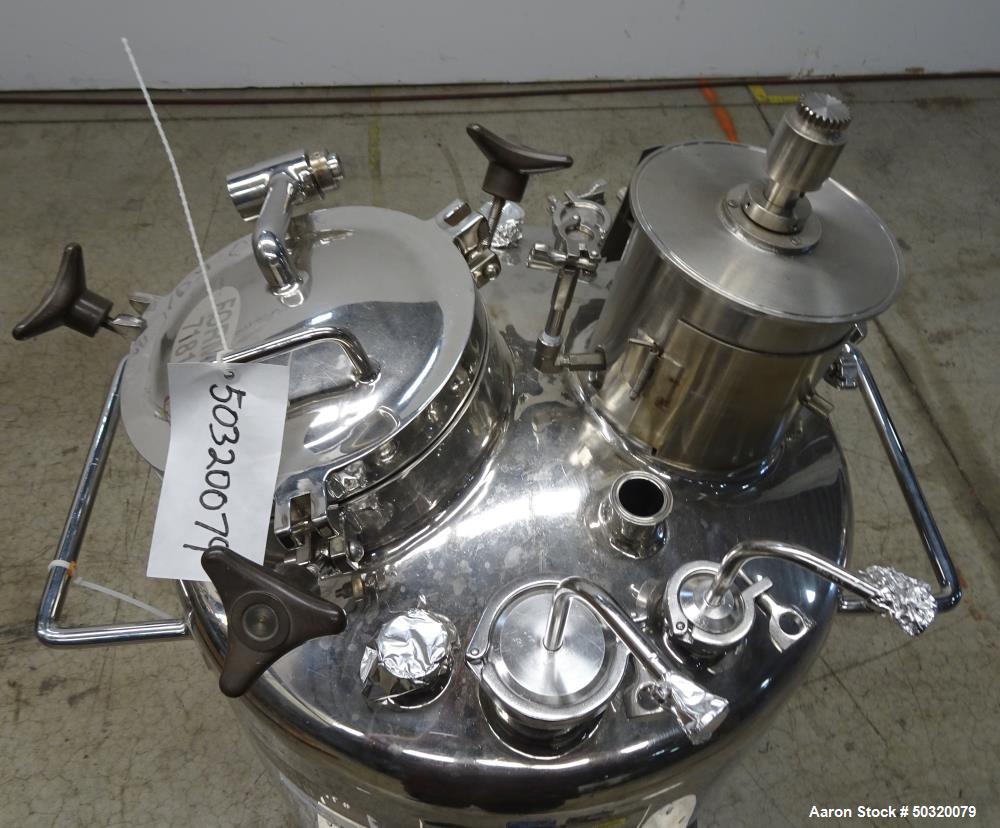

  • Dished top with multiple openings:
    • 10” with cover
    • (1) 3” opening
    • (6) 1-1/2” openings
• Bottom Features:
  • Dished bottom

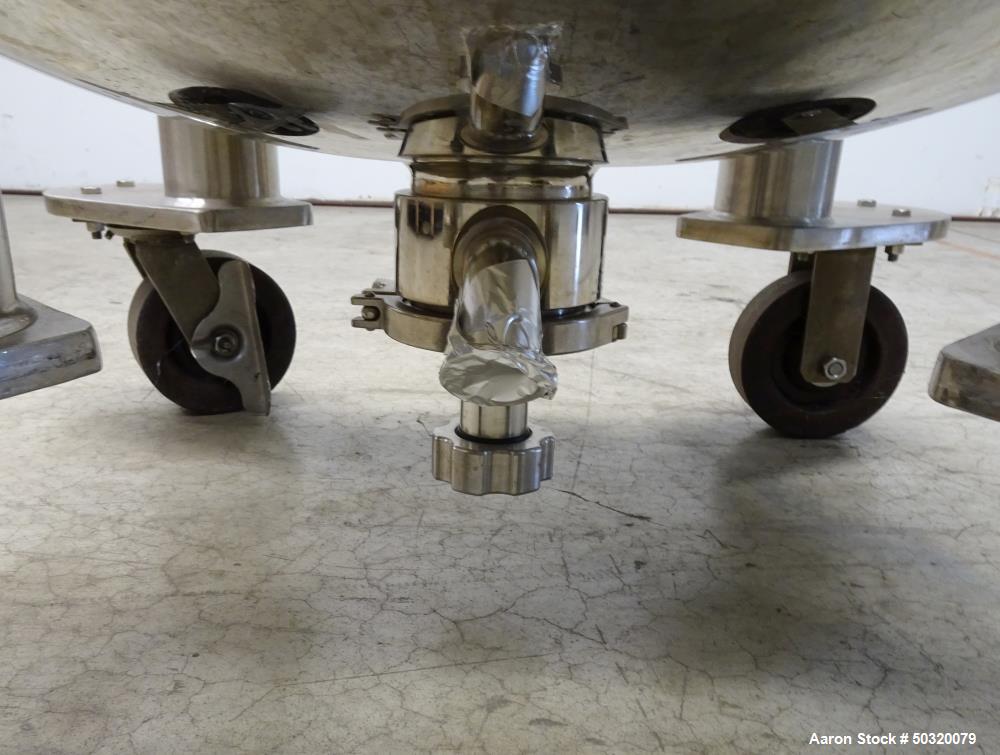

  • 1-1/2” center bottom outlet
• Pressure Rating:

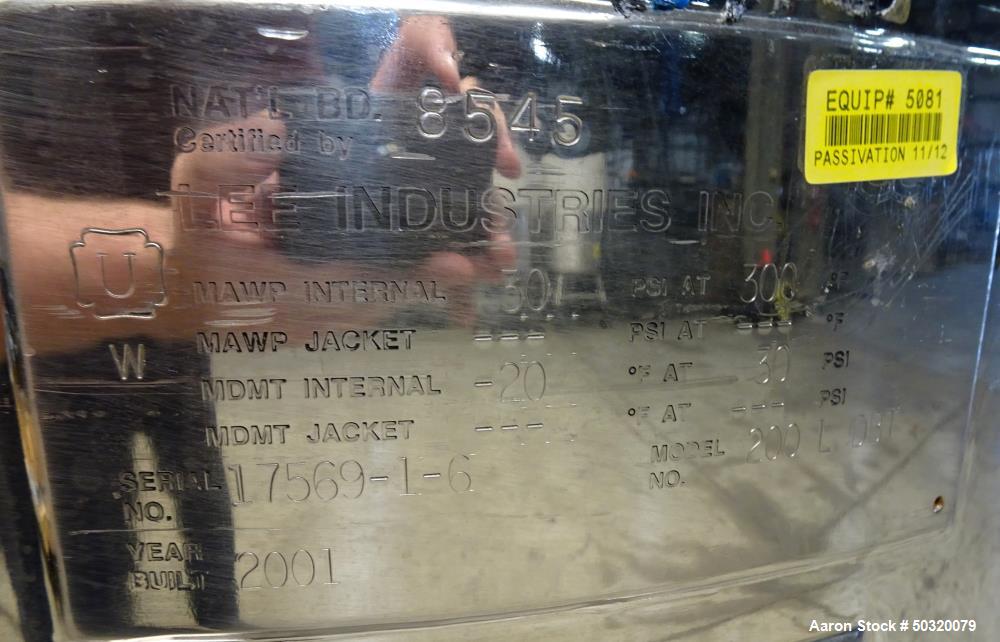

  • Internal: 30 psi (-20°F to 300°F)

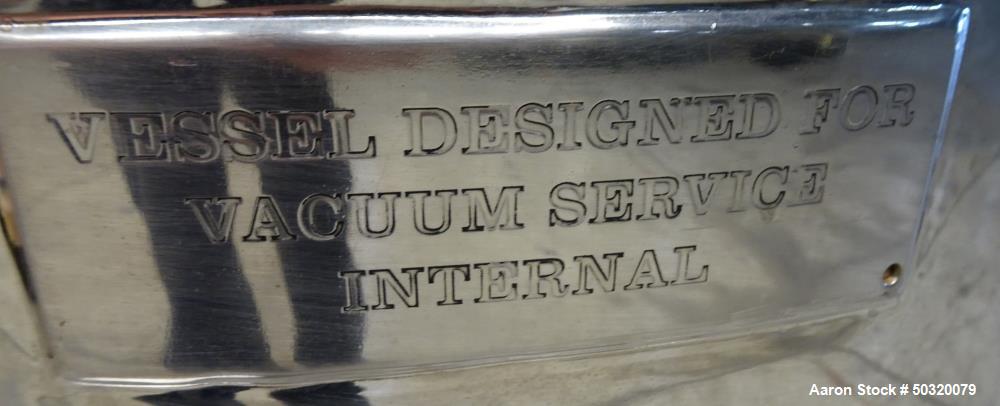

  • Vacuum rated
• Agitator:

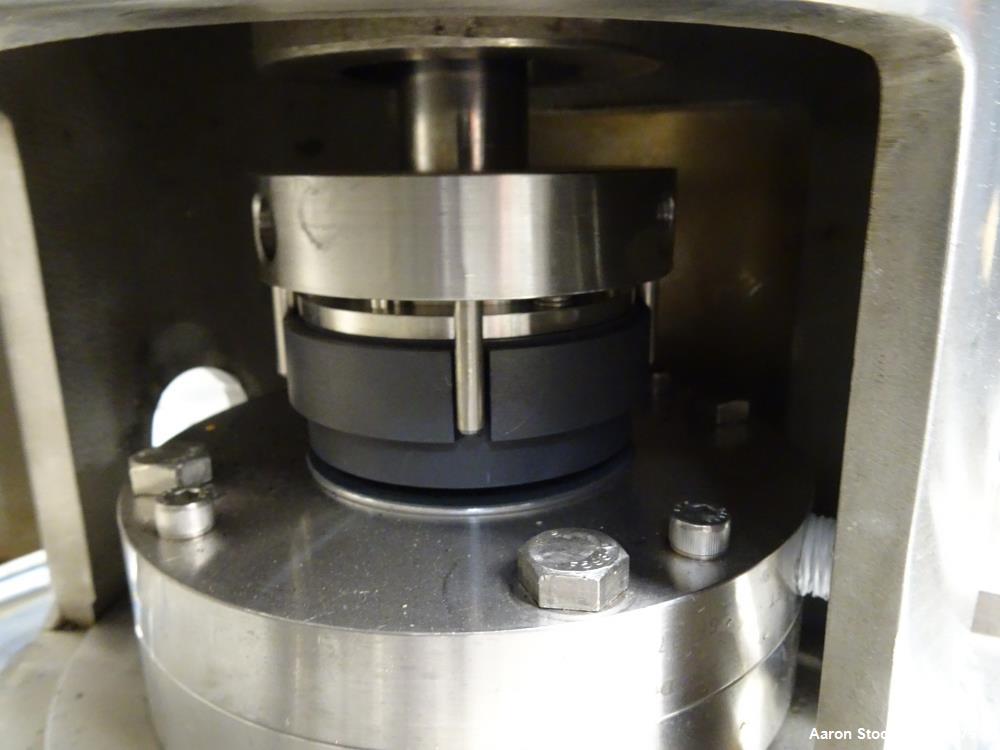

  • Dual 3-blade turbine (motor/drive required)
• Mobility: Mounted on (4) legs with casters

Applications

This Lee Industries pressure mix tank is ideal for food, pharmaceutical, chemical, and cosmetic industries, including:

• Mixing and blending liquids under vacuum or pressure
• Batch processing of temperature-sensitive materials
• Storage and handling of viscous or volatile compounds
• Emulsification, dissolution, and homogenization in industrial processes

Compatible Products

• Food and beverage formulations (sauces, syrups, dairy-based products)
• Pharmaceutical compounds and liquid medications
• Cosmetic and personal care products (creams, lotions, gels)
• Chemical solutions, adhesives, and coatings
