Used Lee Model 200 LDBT Pressure Mix Tank, 200 Liter

Description

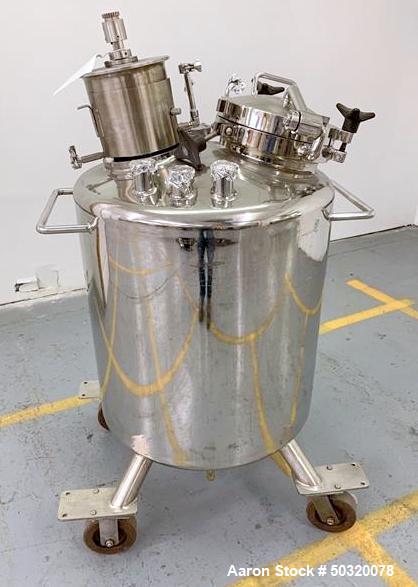

This used Lee Industries 200-liter pressure mix tank is constructed from 316L stainless steel, providing durability and resistance to corrosion. Designed with a vertical orientation, the tank features a dished top and bottom for enhanced fluid flow and ease of cleaning. It is rated for 30 psi internal pressure and vacuum conditions, allowing for a range of processing applications. The top-entering dual 3-blade turbine agitator ensures efficient mixing but requires a motor and drive for full operation. The tank is mounted on four legs with casters for mobility and convenience.

Specifications

• Capacity: 200 liters
• Material: 316L Stainless Steel
• Tank Dimensions:
  • Diameter: 26 inches
  • Straight Side Height: 24 inches
  • Discharge Height: Approx. 5-1/2 inches
• Top Design:

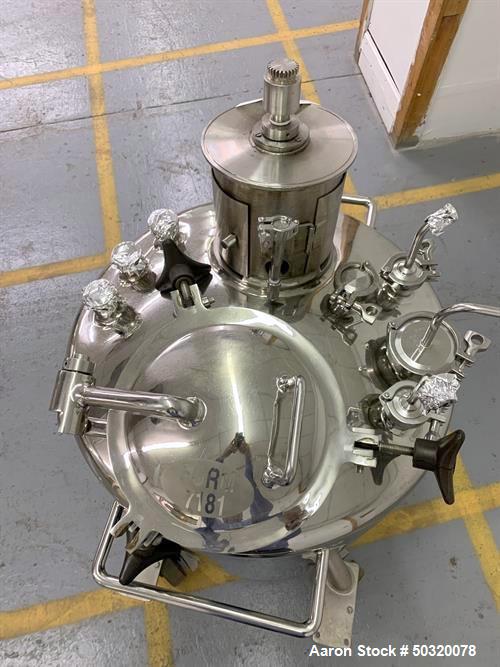

  • Dished top with multiple openings:
    • 10” with cover
    • (1) 3” opening
    • (6) 1-1/2” openings
• Bottom Design:
  • Dished bottom

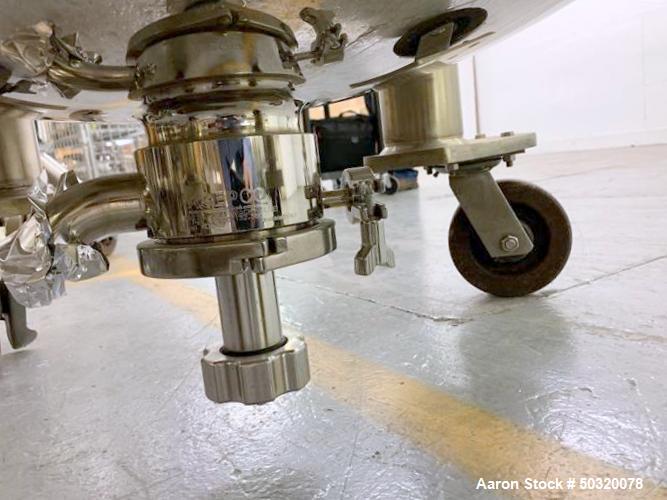

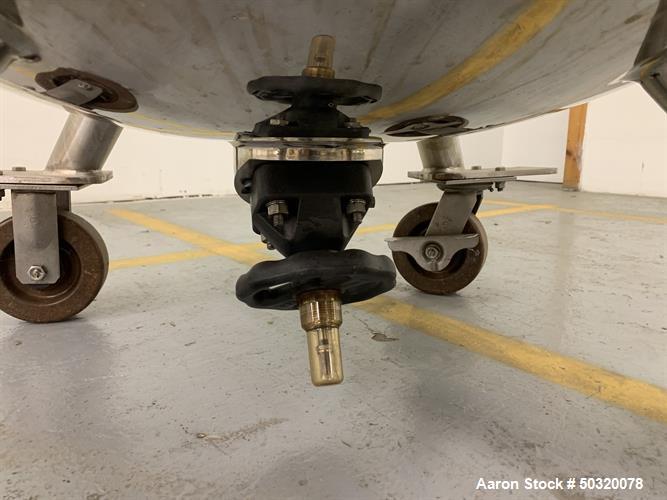

  • 1-1/2” center bottom outlet
• Pressure Rating:
  • Internal: 30 psi (-20°F to 300°F)
  • Vacuum rated
• Agitator:

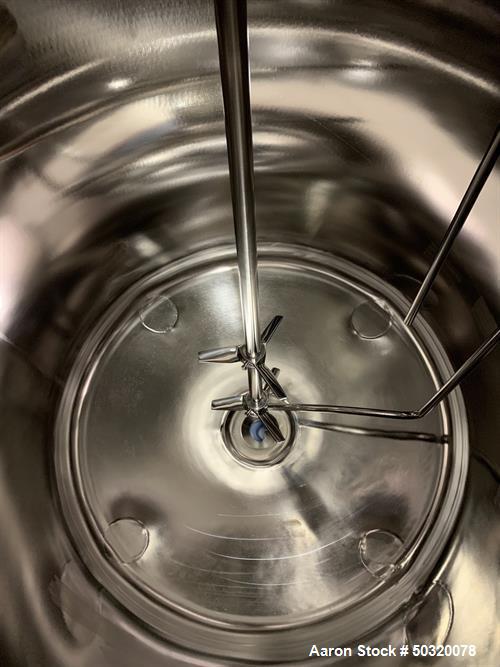

  • Dual 3-blade turbine (motor/drive required)
• Mobility: Mounted on (4) legs with casters

Applications

This pressure mix tank is ideal for food & beverage, pharmaceutical, chemical, and cosmetic industries. Typical uses include:

• Blending and mixing liquids under vacuum or pressure
• Storage and processing of sensitive or viscous materials
• Batch processing in regulated environments
• Industrial emulsification, dissolution, and homogenization

Compatible Products

• Food products such as sauces, syrups, and dairy mixtures
• Cosmetic creams, lotions, and personal care products
• Chemical solutions, adhesives, and coatings
• Pharmaceutical compounds and liquid formulations

🧰 Applications

Perfect for sanitary and industrial pressure mixing in:

• Pharmaceutical production

• Biotech and life sciences

• Cosmetic and personal care blending

• Food and beverage batch processing

• Nutraceutical and supplement formulation

• Chemical slurry or emulsions

• Lab-scale fermentation

• Pilot-scale process validation

• High-purity manufacturing

• Temperature-controlled fluid blending

📦 Used For (Products)

• Liquid drug formulations

• Ointments, gels, and creams

• Food flavor concentrates

• Pharmaceutical syrups

• Nutrient slurries and enzyme solutions

• Sanitizing agents

• Alcohol-based formulas

• Buffer solutions and suspensions

• Active pharmaceutical ingredients (API)

• Cosmetic serums and bases
