Used Industrial Vertical Mix Tank, Lee Industries, 250 Liter Capacity

Description

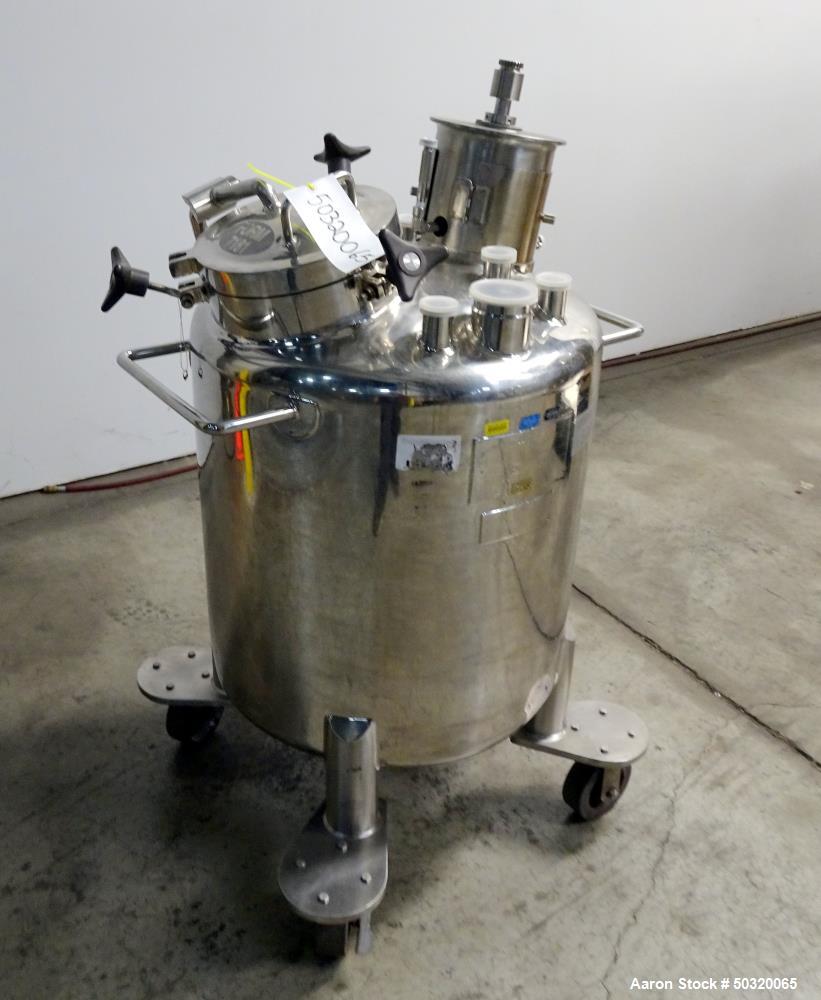

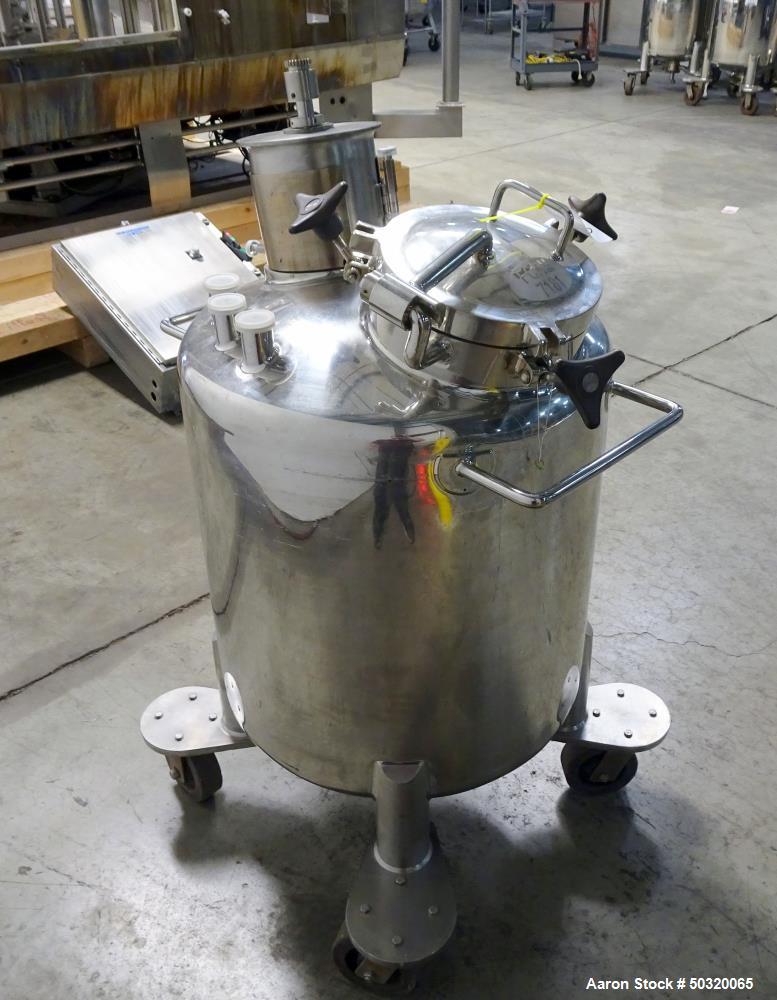

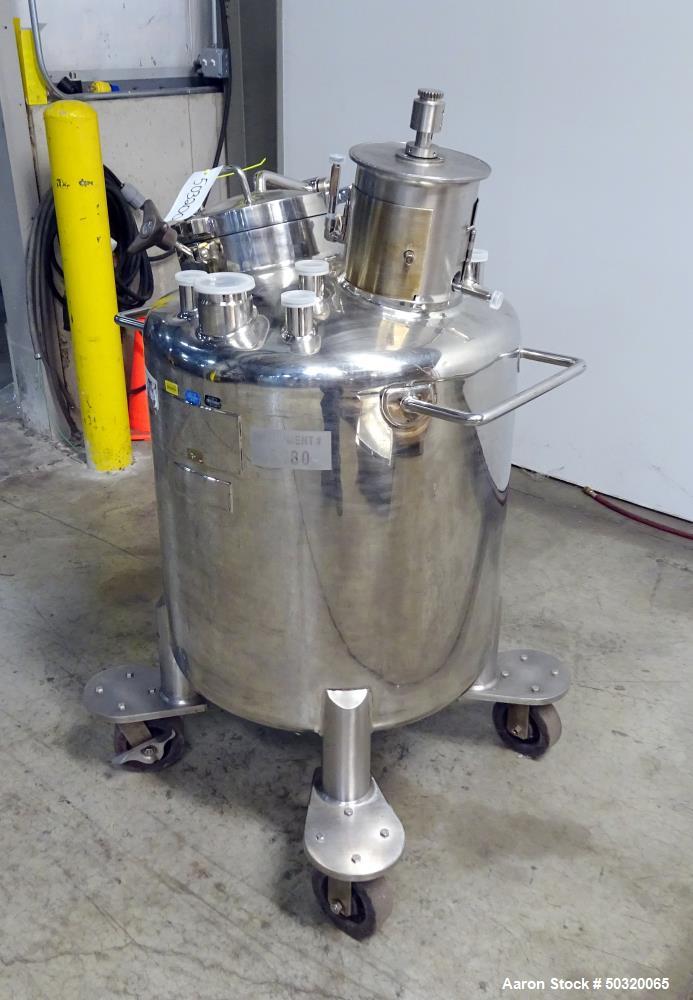

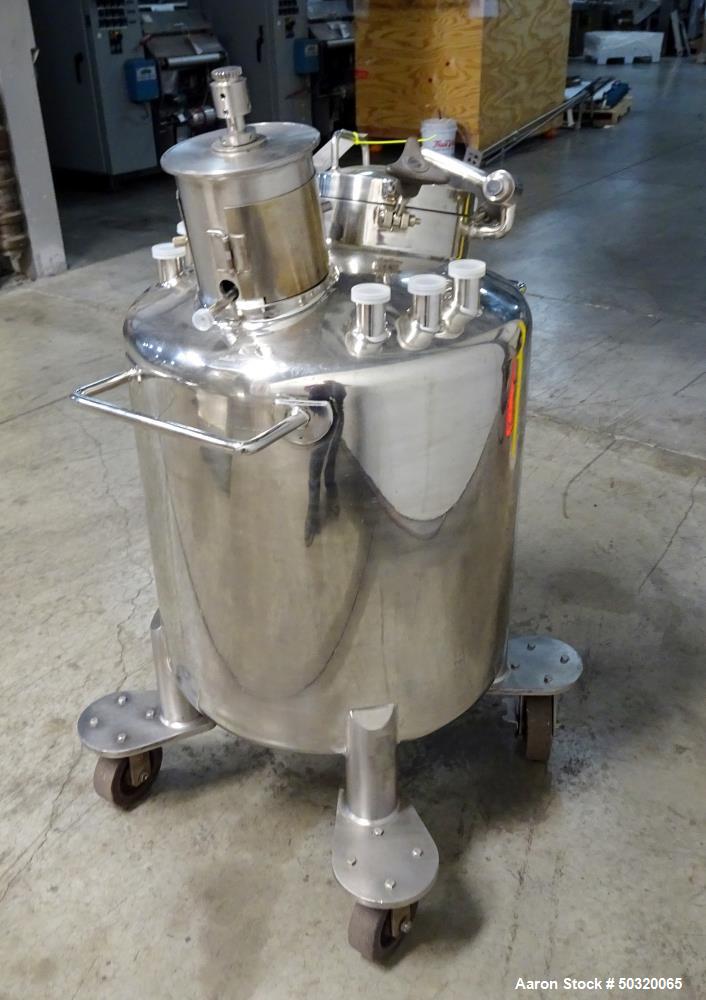

This used 250-liter industrial mix tank from Lee Industries is constructed from 316L stainless steel, making it ideal for industrial, pharmaceutical, and food processing applications. It features a vertical orientation with a dished top and bottom, allowing for efficient product flow and thorough mixing.

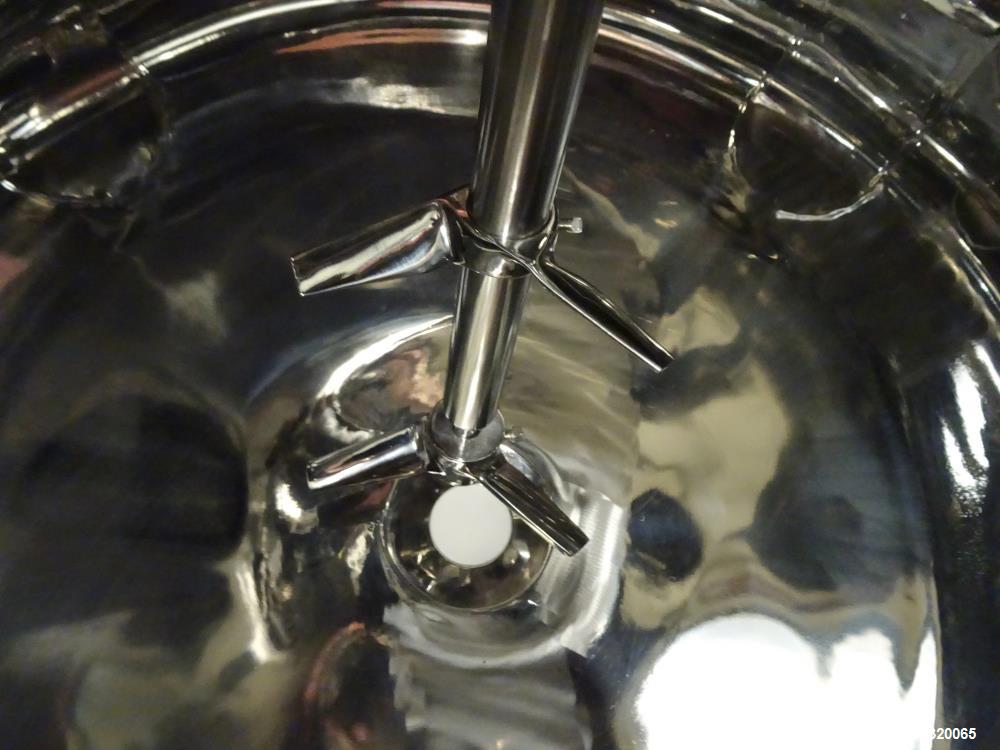

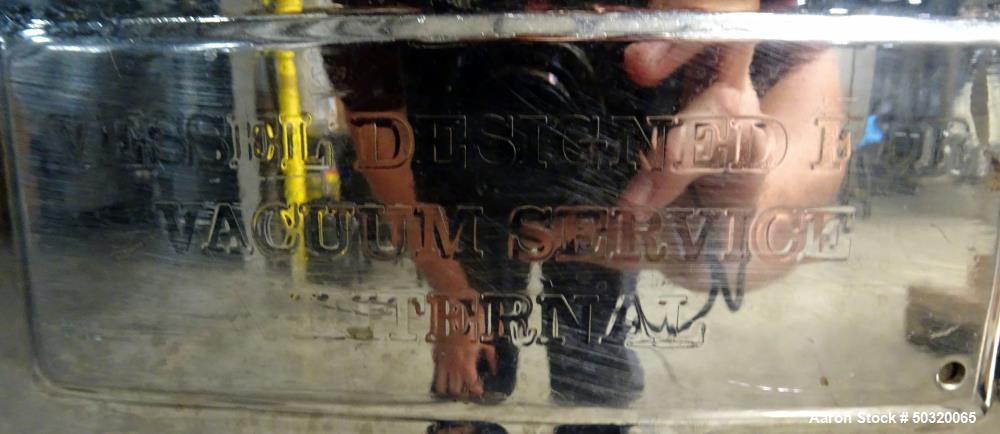

The tank is internally rated at 30 psi and is designed to handle temperatures ranging from -20°F to 300°F, with vacuum internal capability. It includes a top-entering dual 3-blade turbine agitator (motor/drive required but not included), ensuring effective and consistent product mixing.

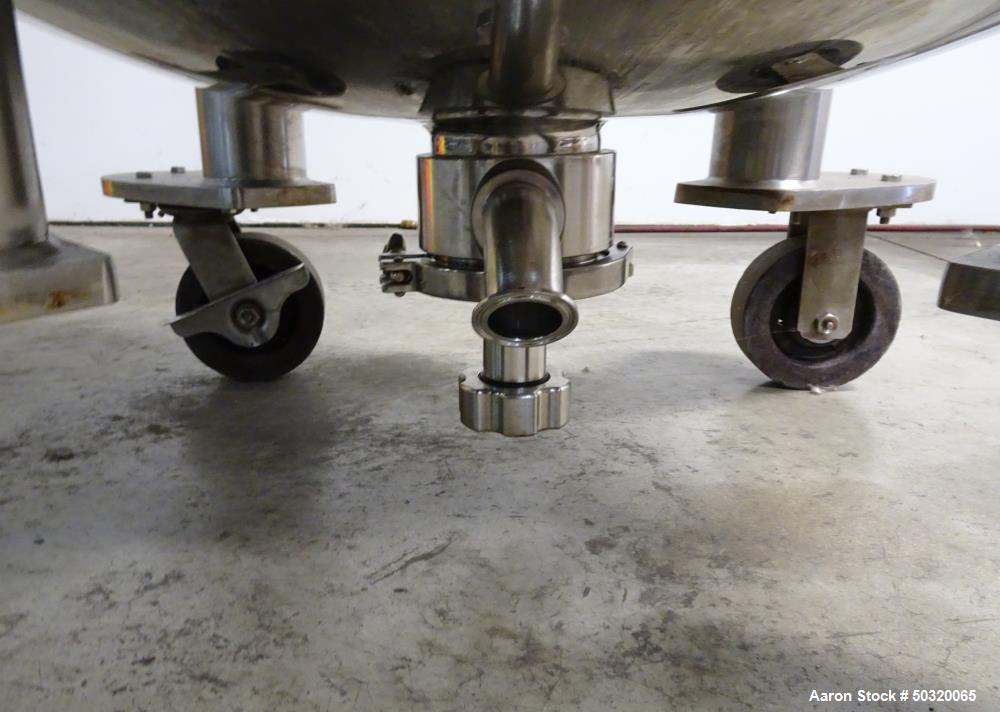

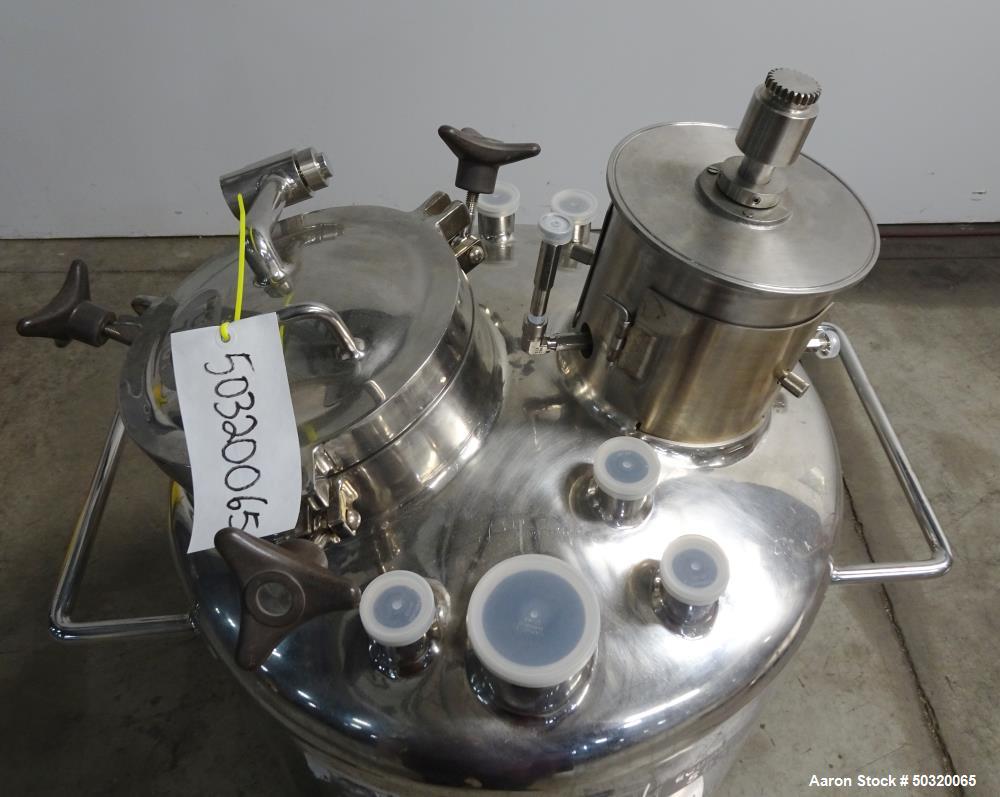

The top of the tank is equipped with multiple openings for process flexibility, including a 10" opening with cover, one 3" opening, and six 1-1/2" openings. The 1-1/2" center bottom outlet provides an approximate 5-1/2" discharge height, facilitating easy product transfer. The tank is mounted on four legs with casters, making it easy to move and position as needed.

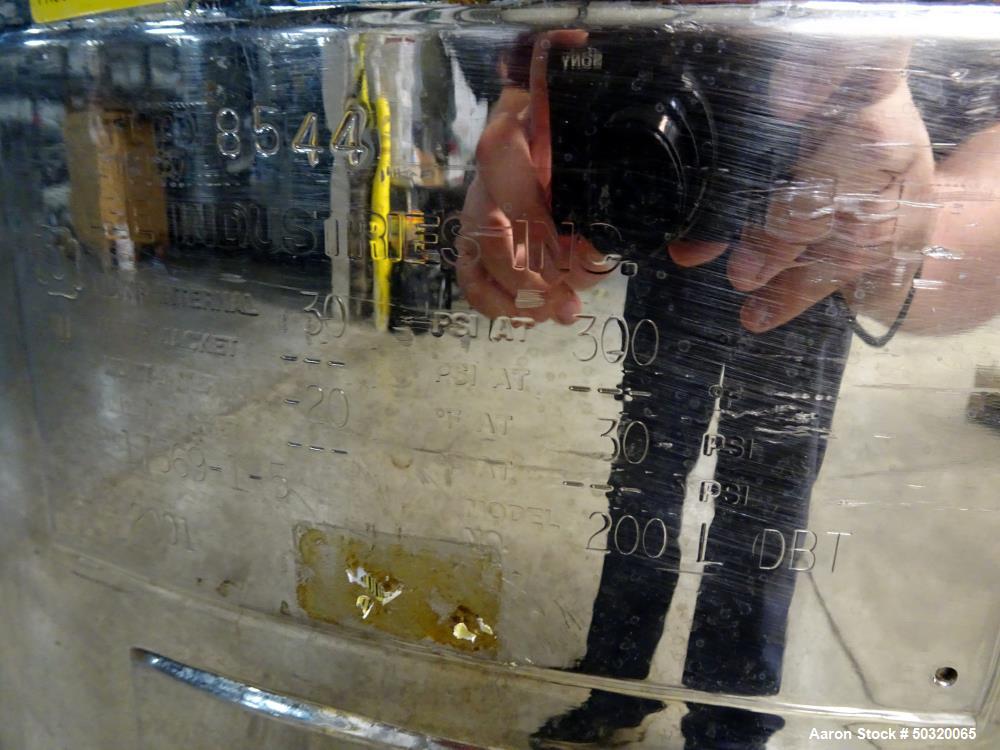

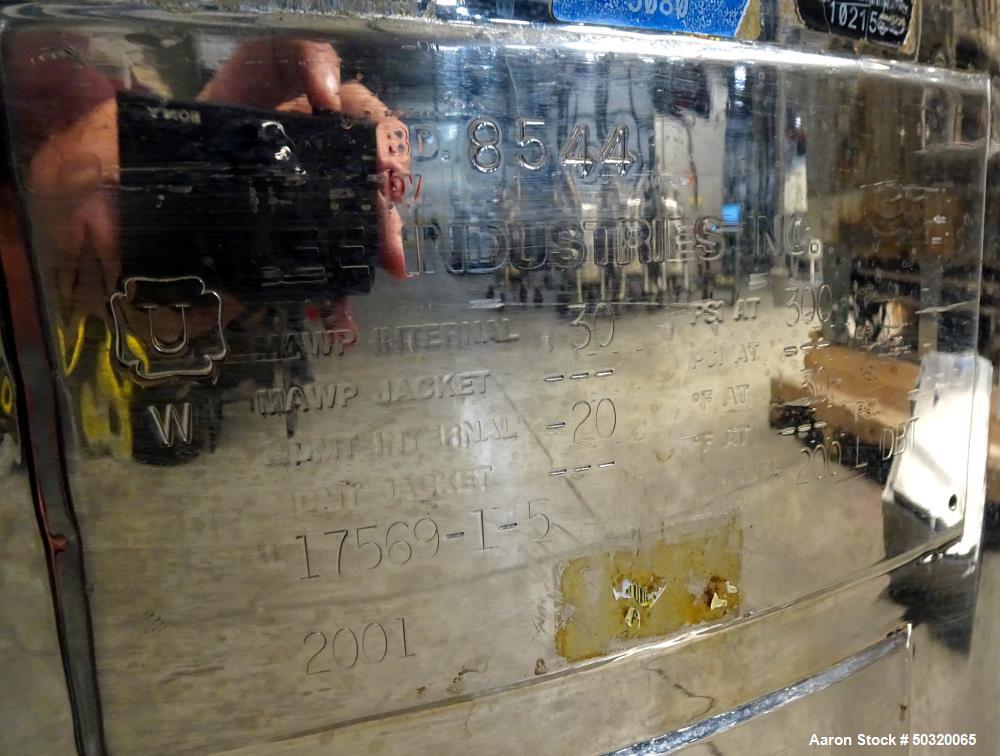

National Board#: 8544, Serial#: 17569-1-5, Built 2001

Specifications

• Capacity: 250 Liters
• Material: 316L Stainless Steel
• Orientation: Vertical
• Dimensions: Approx. 26" Diameter x 24" Straight Side
• Design Features:
  • Dished top and bottom for enhanced processing efficiency
  • Internal pressure rating: 30 psi (-20°F to 300°F, vacuum internal)
• Agitator:
  • Top-entering dual 3-blade turbine agitator (motor/drive required, not included)
• Top Openings:
  • 10" opening with cover
  • 1 opening at 3"
  • 6 openings at 1-1/2" each
• Outlet:
  • 1-1/2" center bottom outlet
  • Discharge height: Approx. 5-1/2"
• Mounting: Four legs with casters for mobility
• Identification: National Board# 8544, Serial# 17569-1-5, Built 2001

Applications

This industrial mix tank is ideal for a wide range of industrial applications, including:

• Chemical processing and formulation
• Pharmaceutical and biotech manufacturing
• Laboratory-scale batch processing
• Specialty chemical blending
• Food and beverage processing
• Industrial mixing operations requiring controlled pressure and temperature conditions

What Products Would This Be Used For?

• Chemical compounds and solvents
• Pharmaceutical formulations and emulsions
• Biotech and fermentation processes
• Food ingredients, flavorings, and extracts
• Specialty chemicals and coatings
• Industrial lubricants and oil-based formulations
