Stock No.: 51465008

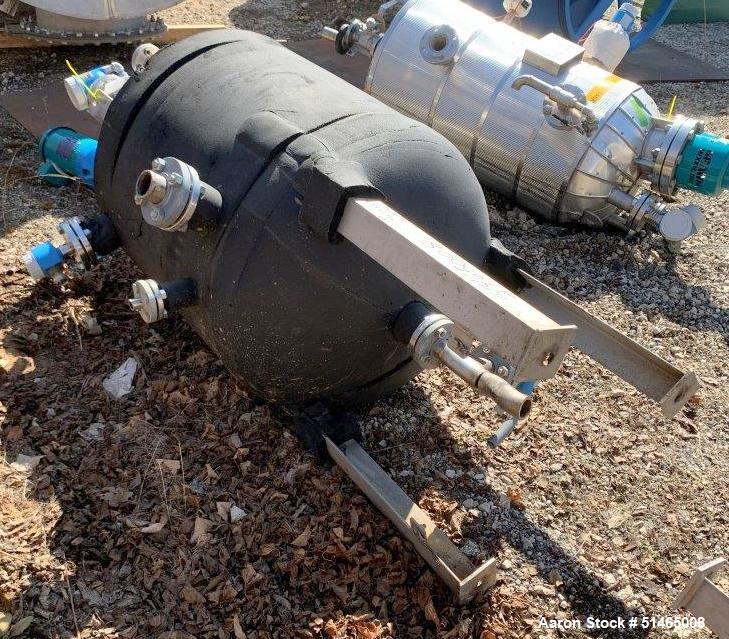

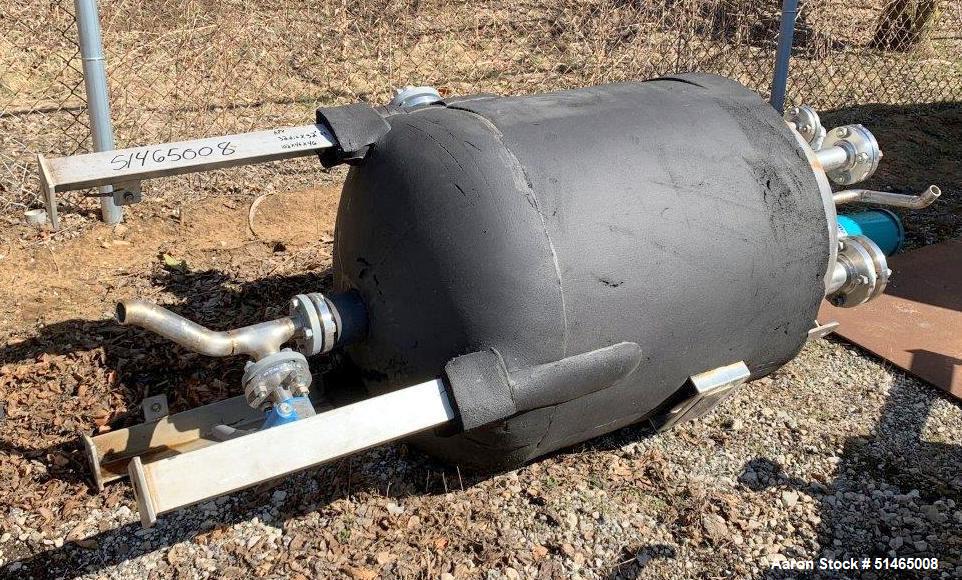

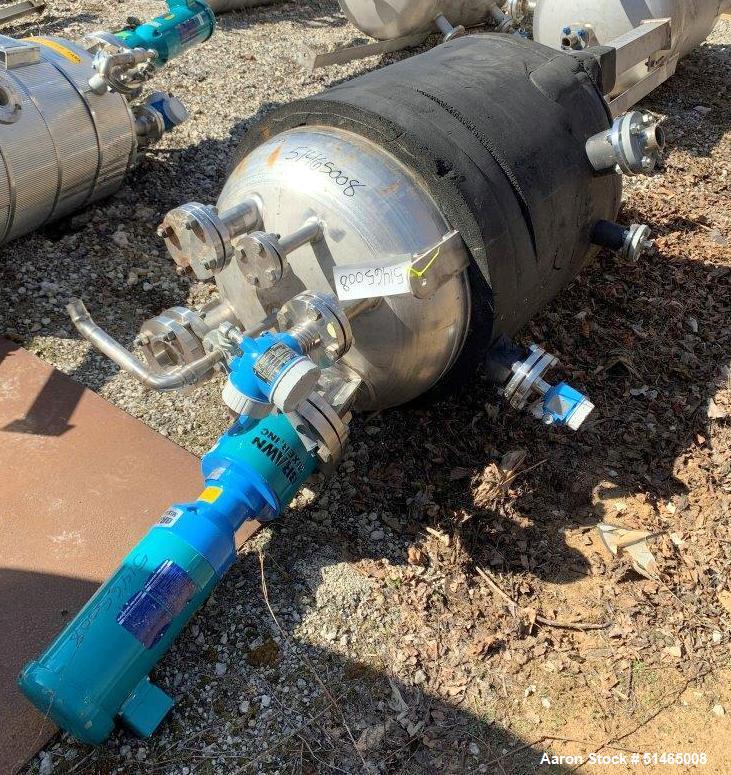

Stainless Steel 100 Gallon Pressure Tank

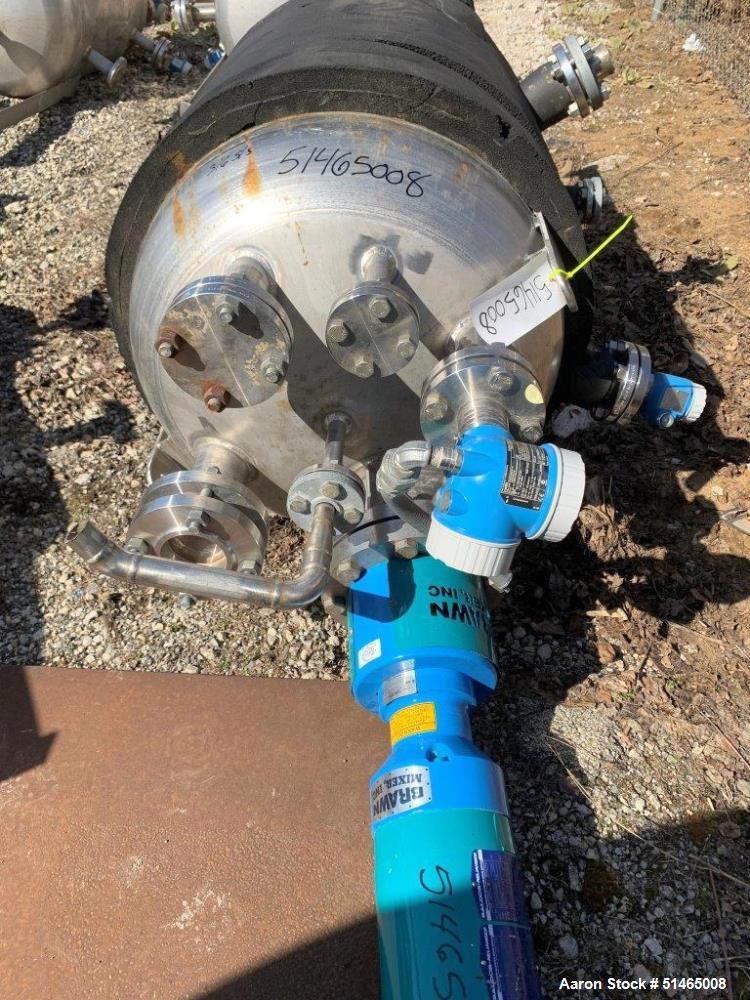

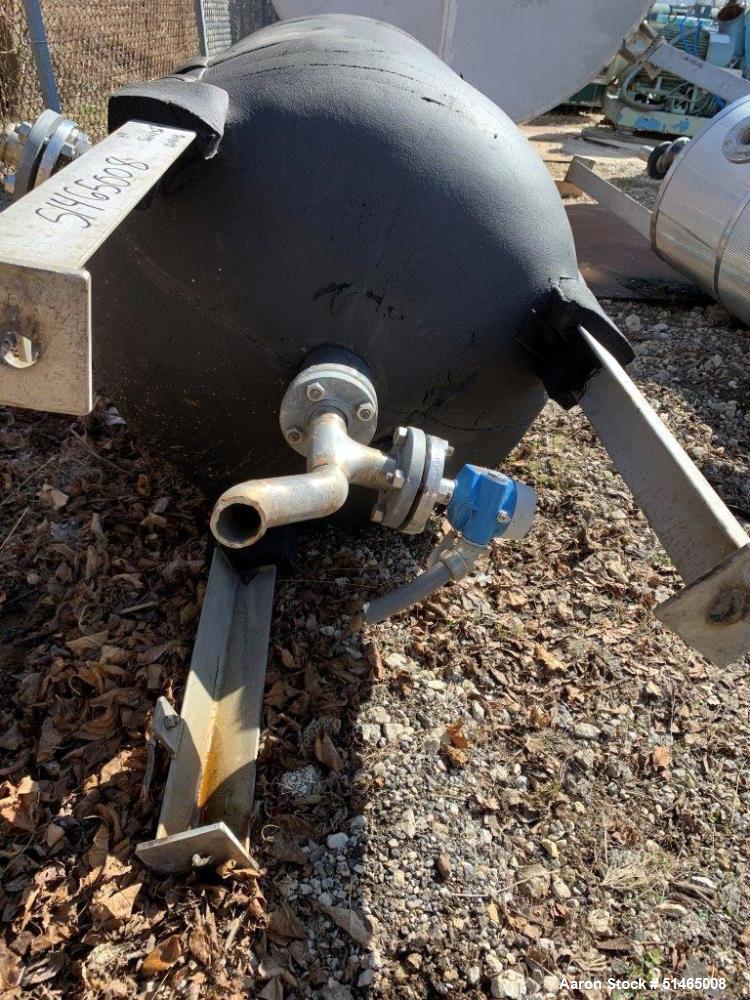

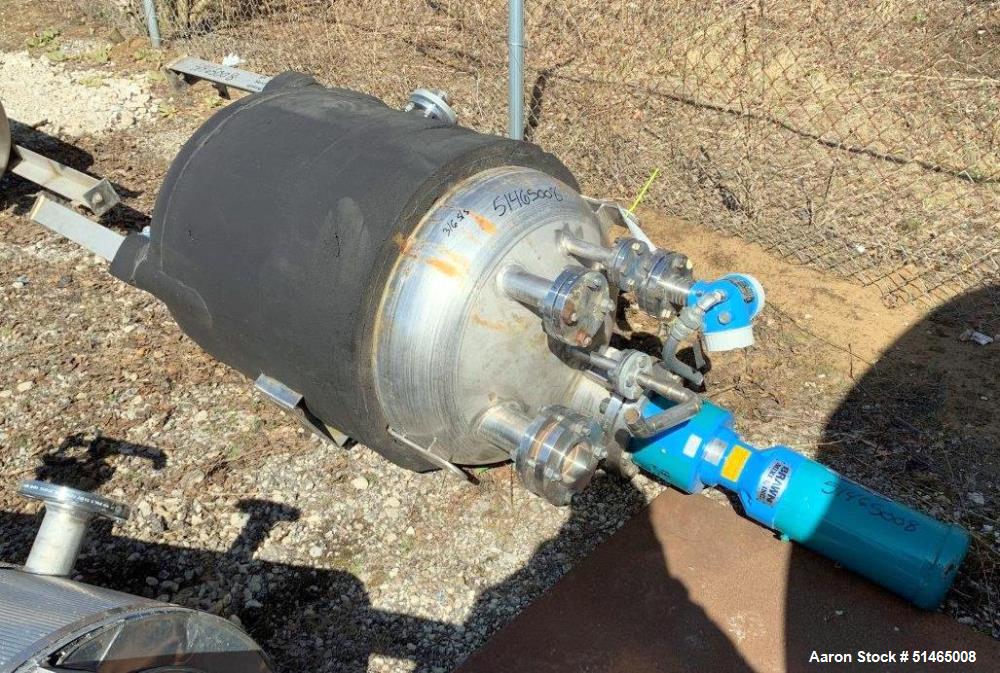

Used- Dusenbery Eng'R Pressure Tank, Approximately 100 Gallons, 316L Stainless Steel, Vertical. 28" Diameter x 32" straight side. Elliptical Top and bottom heads. Internal rated 14.9 psi at -20 to 250 degrees F. Openings: 6" for agitator, 4", (2) 2", 3/4", 3" with sight glass". 2" Center bottom outlet. Top entering Brawn Mixer model BDF100 XP agitator, 3-blade turbine, driven by a .75 hp 3/60/208-230/460 volt, 850 rpm motor. Mounted on (3) legs. Certified by Dusenbery Engineering. Serial # 3001A. Built 2015.
-
ManufacturerDusenberry Engr
-
Serial #3001A
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons100
-
Material Of Construction316 Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter28
-
Straight Side32
-
Top Head StyleEliptical
-
BottomEliptical Bottom
-

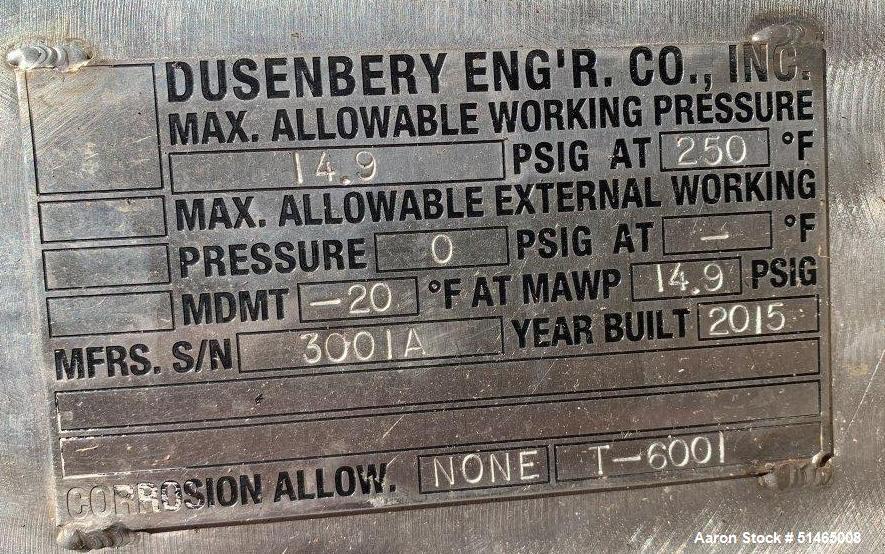

Internal Pressure14.9
-
Internal Temperature-20 to 250 Degrees F
-
Mixer Type3 Blade Prop
-

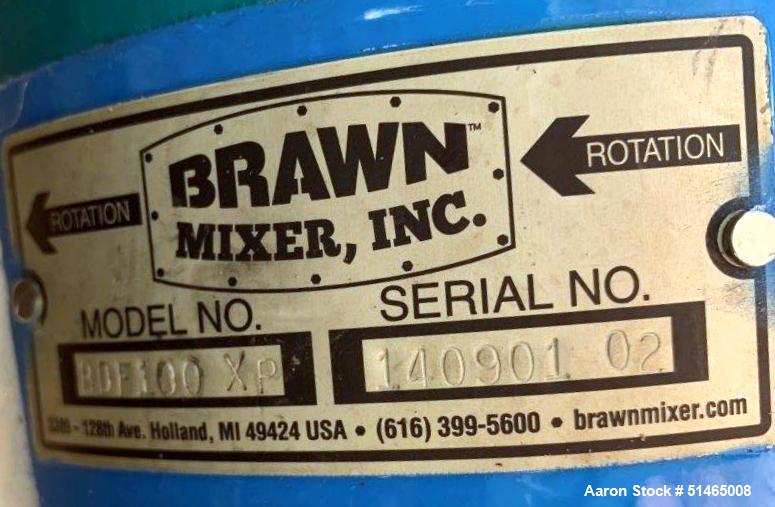

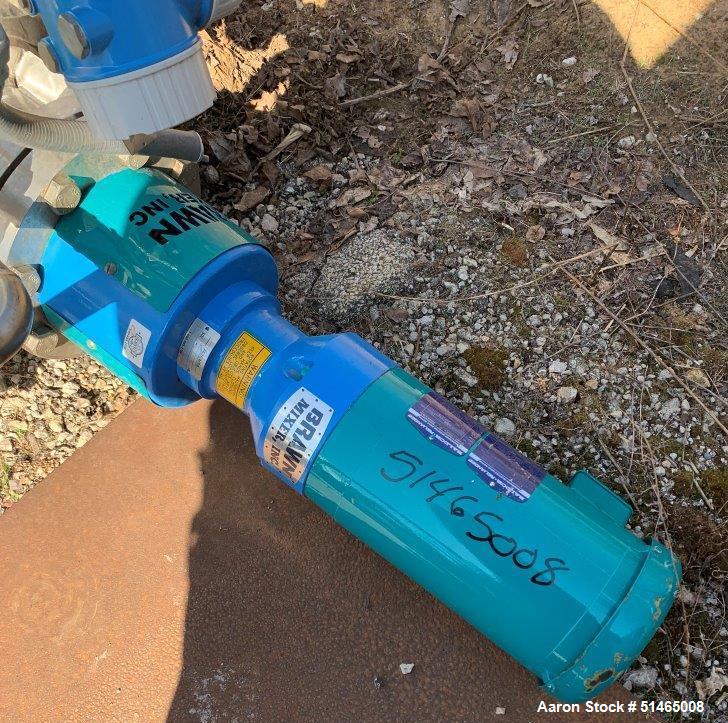

Agitator ManufacturerBrawn Mixer Inc
-
Agitator ModelBDF100 XP
-
Agitator Serial No.140901 02
-

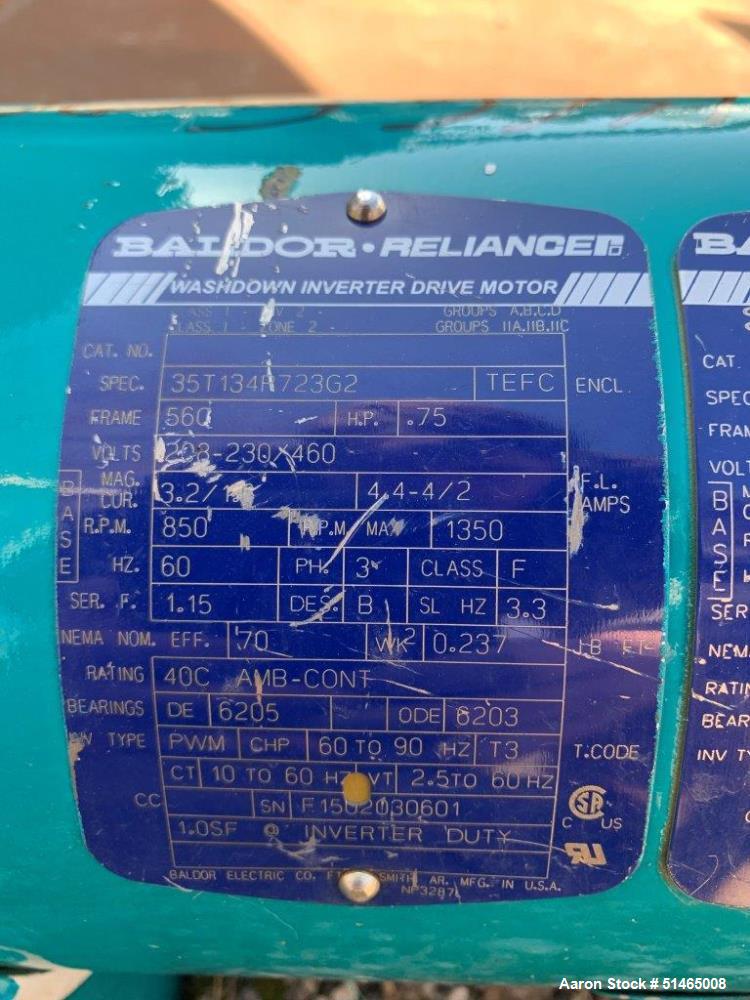

Agitator Hp.75
-
Agitator Phase3
-
Agitator Cycle60
-
Agitator Voltage208-230/460 Volt
-
Agitator Rpm850
-
Outlet Size2"
-
Outlet LocationBottom
-
Discharge Height17"
-
MountedMounted on 3 Legs
-
Overall Dimensions102" x 46" x 46"T
-
Year Built2015
