Stock No.: 50320058
Used 100 Liter 316L Stainless Steel Mixing Tank with Agitator & Pressure Rating
Submit Offer $1,500100 Liter 316L Stainless Steel Mixing Tank with Agitator & Pressure Rating, Vertical. Approximate 28" diameter x 2" straight side, dished top and bottom. Internal rated 59.46 psi at 20 to 212 degrees F. Bottom entering sanitary 4 blade agitator, requires motor/drive. Openings top: 10" with cover and 3" sight glass, 3" sight glass, (2) 2", (3) 1-1/2". 1-1/2" Tri-clamp center bottom outlet, approximate 24" discharge height. Mounted on (4) legs with casters. National Board# 115, Serial# 80056-200, Built 2008.
-

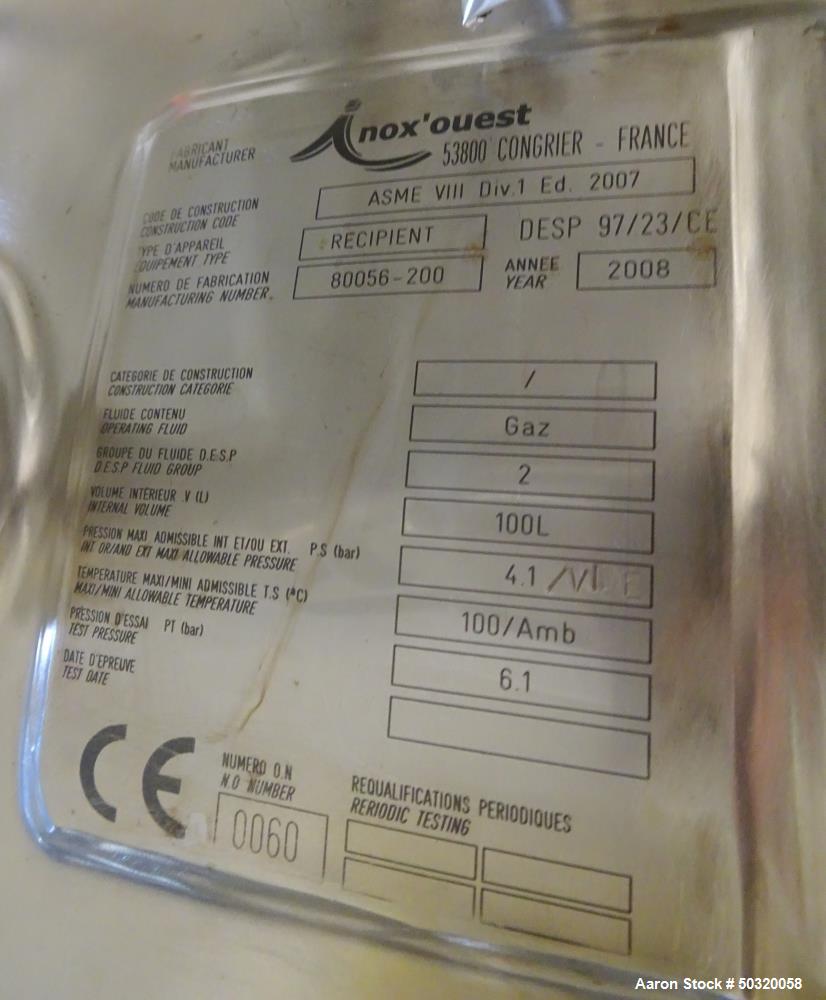

Serial #80056-200
-
CategoryTanks
-
SubcategoryStainless 0-499 Gal
-
Gallons26
-
Material Of Construction316L Stainless Steel
-
Horizontal Or VerticalVertical
-
Diameter28"
-
Straight Side2"
-
Top Head StyleDished Head
-
BottomDished Bottom
-
Internal Pressure59.46 PSI
-
Internal Temperature20 TO 212 DEGREES F.
-
Mixer Type4 Blade Turbine
-
Outlet Size1-1/2"
-
Outlet LocationBottom
-
Discharge Height24"
-
MountedMounted on Casters
-

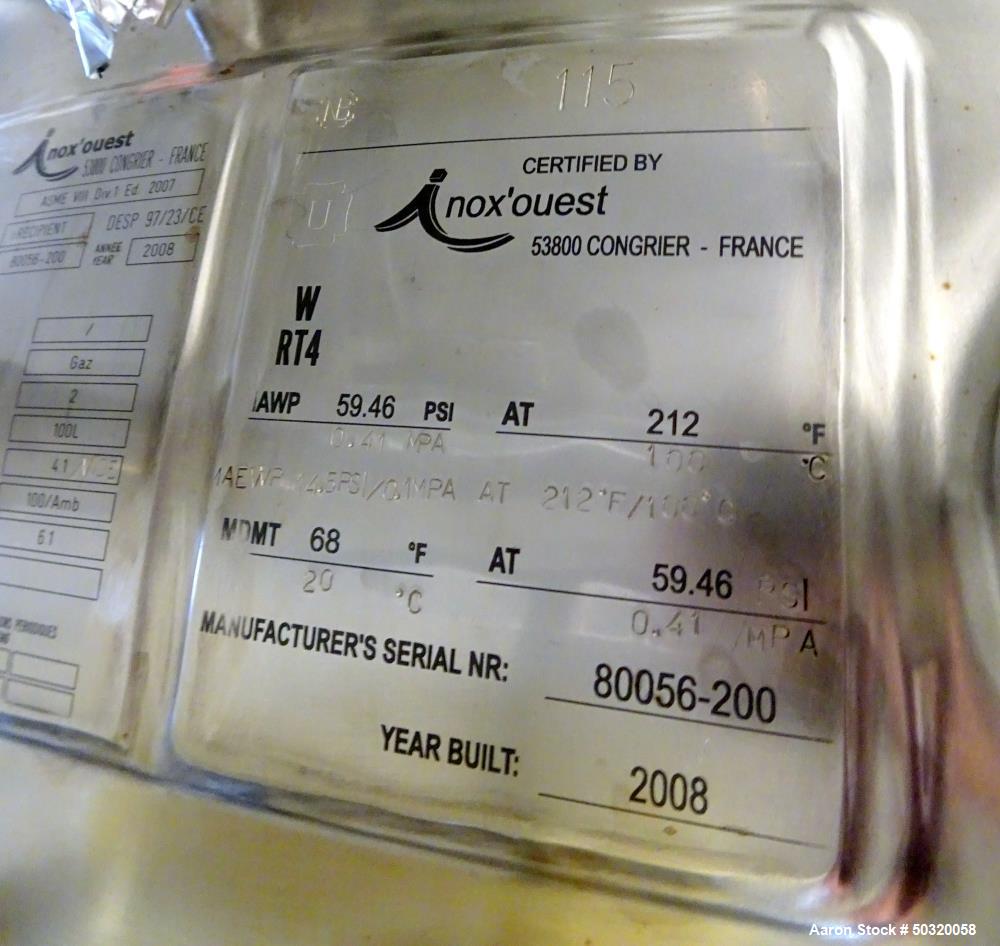

National Board No.115
-
Overall Dimensions48"L X 36"W X 48"T
-
Year Built2008
Used equipment facts about this machine
Manufacturer Information
Description:

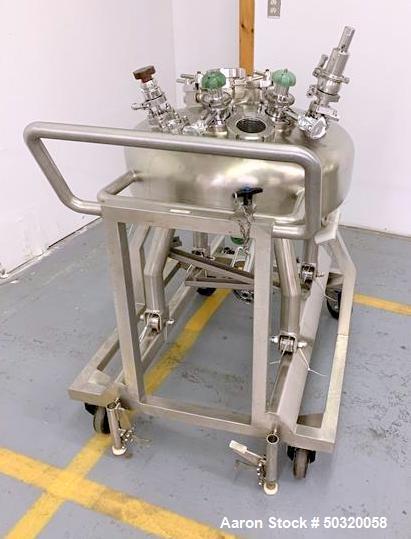

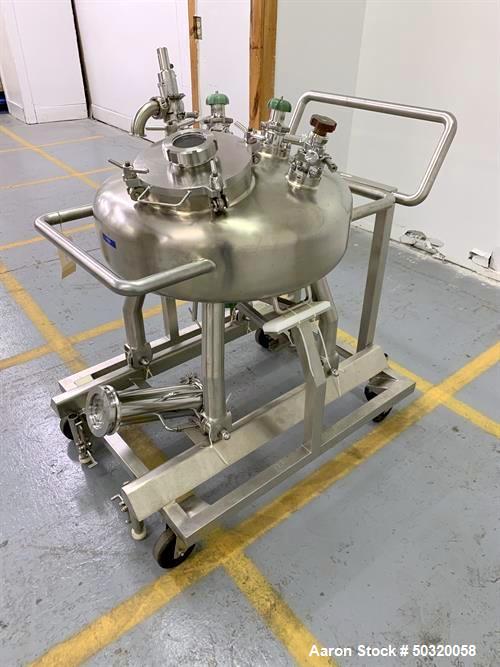

This 100-liter Inox'ouest pressure mix tank is constructed from 316L stainless steel, ensuring superior corrosion resistance and durability. It features a vertical orientation with an approximate 28" diameter and 2" straight side, along with a dished top and bottom. The tank is designed for pressure-rated applications, with an internal pressure rating of 59.46 psi at 20 to 212°F.

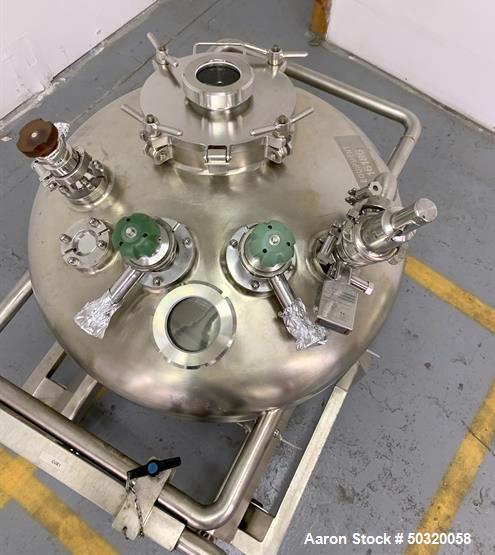

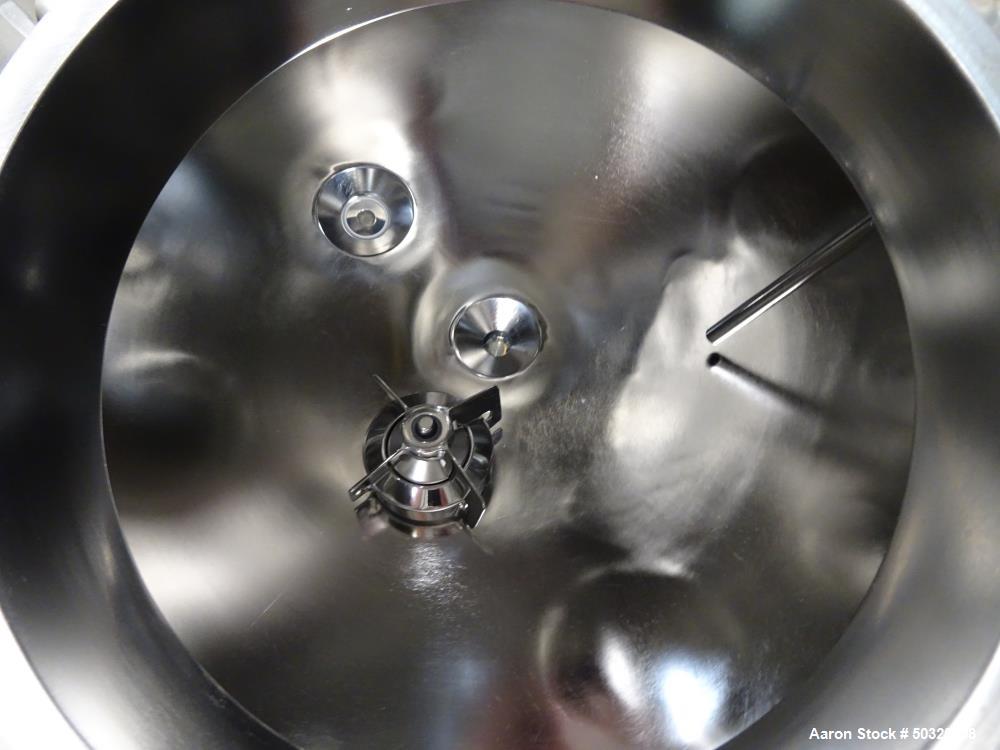

The unit is equipped with a bottom-entering sanitary 4-blade agitator that requires a motor/drive (not included). It has multiple top openings, including:
- 10" with cover and 3" sight glass
- Additional (2) 2" and (3) 1-1/2" ports

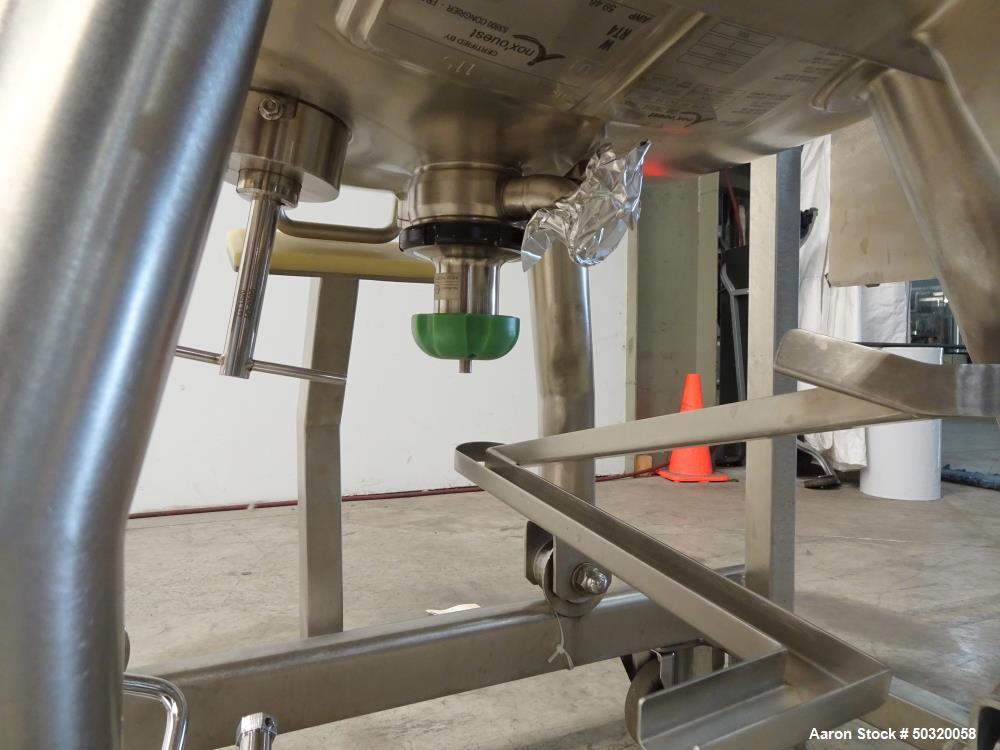

- 1-1/2" Tri-clamp center bottom outlet
The approximate discharge height is 24 inches. The tank is mounted on four legs with casters, allowing for easy mobility and stability.
Specifications:
- Capacity: 100 Liters
- Material: 316L Stainless Steel
- Orientation: Vertical
- Diameter: Approx. 28 inches
- Straight Side Height: 2 inches
- Top & Bottom Shape: Dished
- Pressure Rating: 59.46 psi
- Temperature Range: 20°F to 212°F
- Agitation: Bottom-entering sanitary 4-blade agitator (motor/drive required)
- Top Openings:
- 10" with cover and 3" sight glass
- (2) 2" ports
- (3) 1-1/2" ports
- Outlet: 1-1/2" Tri-clamp center bottom outlet
- Discharge Height: Approx. 24 inches
- Mobility: Mounted on four legs with casters
Applications:
This Inox'ouest pressure mix tank is suitable for various industries requiring controlled mixing and pressure-rated processing, including:
- Pharmaceutical manufacturing
- Biotech and laboratory applications
- Food and beverage production
- Cosmetic and personal care processing
- Chemical and specialty material mixing
- Brewing and distillation processes
Compatible Products & Processes:
- Liquid mixing and blending
- Viscous product agitation
- Pharmaceutical formulation
- Fermentation and bioprocessing
- Food-grade ingredient preparation
- Cosmetic cream and lotion production
- Chemical reaction processes
Product Details
- Used stainless steel mix tank
- Inox'ouest pressure tank
- 100L stainless steel mixing vessel
- Pharmaceutical processing tank
- Sanitary mixing tank for sale
- Industrial pressure mix tank
- 316L stainless steel mix tank with agitator
- Used pressure-rated mixing vessel
- Vertical 100-liter stainless steel tank
- Food-grade stainless steel pressure tank
- Sanitary mix tank with bottom outlet
- Used 100-liter Inox'ouest stainless steel mixing tank with pressure rating
- Pharmaceutical-grade 316L stainless steel pressure mix tank for sale
- Sanitary vertical mixing vessel with bottom-entering agitator and casters
- High-quality stainless steel processing tank for food, pharma, and cosmetics
We offer a variety of finance programs. Please contact your sales person for more information.
