Used Kason Model K72-1-SS 72" Single-Deck Circular Vibratory Screener With 2 HP Motor

MANUFACTURER INFORMATION

Kason manufactures circular vibratory screeners, sifters and separators used in food, chemical, pharmaceutical, plastics, mineral and other bulk-solids processing applications. Circular vibratory screeners are commonly used for scalping, sizing, classification and separation of powders, granules and other compatible materials.

PRODUCT DESCRIPTION

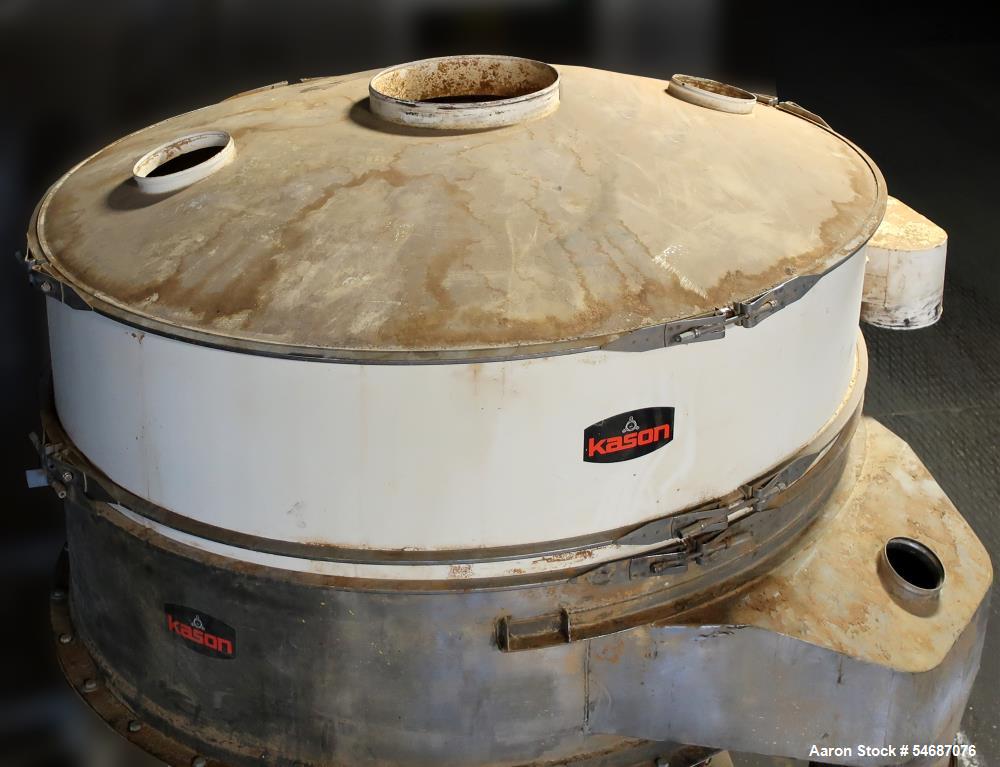

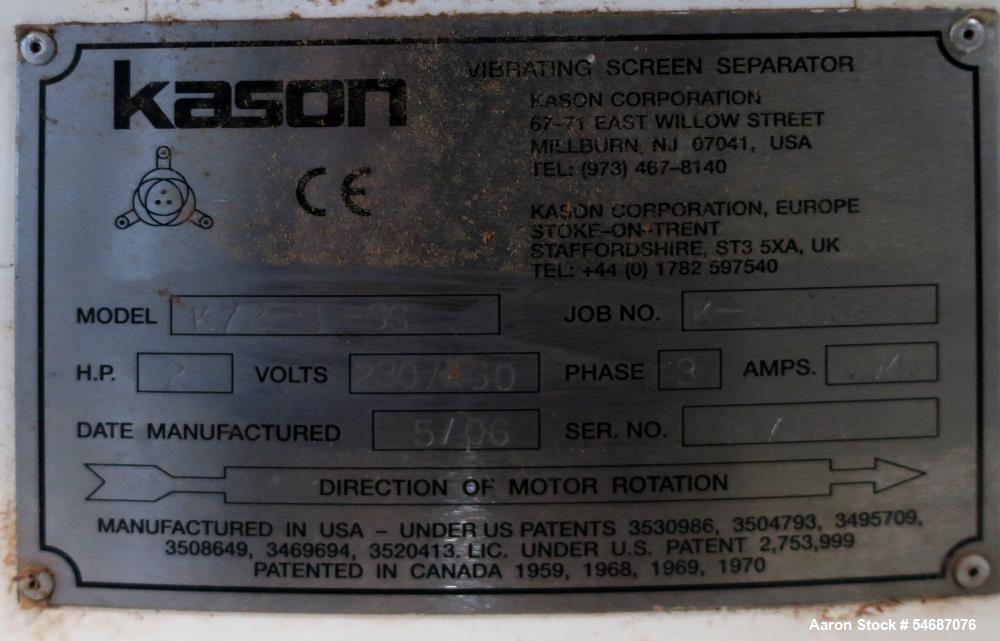

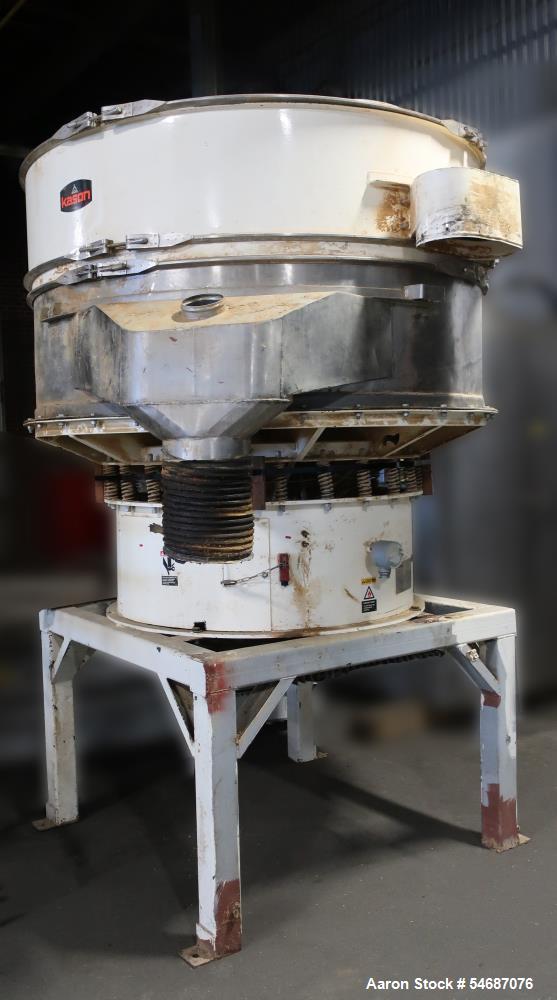

Used Kason Model K72-1-SS 72" single-deck circular vibratory screener, Serial #M7128, Job #83113, manufactured May 2006. The unit includes one 18" deep carbon steel upper section with one 18" center opening, two 8" openings and one 16" x 8" covered oval side discharge. The screener has one 18" deep stainless steel deck with a funneled 10" bottom opening and 5.5" top opening. The unit is mounted on a 36" high carbon steel base and is driven by a 2 HP motor requiring 230/460 VAC, 3-phase electrical service. Approximate overall dimensions are 108" x 80" x 80". Possible applications include screening, scalping, sizing and separation of compatible powders, granules, dry ingredients and other suitable bulk solids.

SPECIFICATIONS

• Manufacturer: Kason

• Model: K72-1-SS

• Equipment Type: Circular vibratory screener

• Diameter: 72"

• Deck Configuration: Single deck

• Serial Number: M7128

• Job Number: 83113

• Manufacture Date: May 2006

• Upper Section Construction: Carbon steel

• Upper Section Depth: Approximately 18"

• Upper Center Opening: 18"

• Additional Upper Openings: (2) 8"

• Side Discharge: 16" x 8" covered oval

• Deck Construction: Stainless steel

• Deck Depth: Approximately 18"

• Bottom Opening: 10" funneled

• Top Opening: 5.5"

• Base Construction: Carbon steel

• Base Height: Approximately 36"

• Drive Motor: 2 HP

• Electrical Requirements: 230/460 VAC, 3-phase

• Overall Dimensions: Approximately 108" x 80" x 80"

APPLICATIONS

• Powder screening

• Granule screening

• Scalping

• Particle sizing

• Bulk solids separation

• Dry ingredient screening

• Food powder screening

• Chemical powder screening

• Plastics screening

• Pharmaceutical ingredient screening

• Dry material classification

• Oversize removal

• Fine particle separation

• Ingredient conditioning prior to downstream processing

SUITABLE PRODUCTS / MATERIALS

Depending on screen mesh, particle size, bulk density and flow characteristics, this screener may be suitable for:

• Food powders

• Dry ingredients

• Flour-type materials

• Sugar

• Starch

• Seasonings

• Nutraceutical powders

• Pharmaceutical powders

• Chemical powders

• Granules

• Plastic pellets

• Resin powders

• Mineral powders

• Dry blends

• Other compatible bulk solids requiring screening or scalping

FAQ

• WHAT SIZE IS THIS KASON SCREENER?
  The machine has a 72" diameter circular screening deck.

• HOW MANY DECKS DOES IT HAVE?
  The unit is configured as a single-deck screener.

• WHAT MATERIAL IS THE SCREENING DECK?
  The deck is constructed of stainless steel.

• WHAT MATERIAL IS THE UPPER SECTION?
  The 18" deep upper section is constructed of carbon steel.

• WHAT SIZE IS THE SIDE DISCHARGE?
  The upper section includes a covered oval side discharge measuring approximately 16" x 8".

• WHAT SIZE IS THE BOTTOM OUTLET?
  The stainless steel deck has a funneled 10" bottom opening.

• WHAT SIZE MOTOR DOES THE SCREENER HAVE?
  The unit is driven by a 2 HP motor.

• WHAT ELECTRICAL SERVICE DOES IT REQUIRE?
  The motor requires 230/460 VAC, 3-phase electrical service.

• WHEN WAS THE MACHINE MANUFACTURED?
  The unit was manufactured in May 2006.

• WHAT TYPES OF PRODUCTS CAN IT SCREEN?
  Possible applications include compatible powders, granules, dry ingredients and other suitable bulk solids.

• CAN THIS SCREENER BE USED FOR SCALPING?
  Yes. Scalping and removal of oversized material are potential applications depending on the installed screen mesh.

• CAN AARON EQUIPMENT HELP DETERMINE IF THIS SCREENER WILL WORK FOR MY PRODUCT?
  Yes. Aaron Equipment can help review your product type, particle size, desired separation, screen mesh and required throughput to determine whether this Kason screener may be suitable.

• CAN AARON EQUIPMENT ARRANGE SHIPPING?
  Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
