Used Seepex N 240-24C Progressive Cavity Pump – 250 HP, 500–1,000 GPM

Manufacturer Information

Seepex is a manufacturer of progressive cavity pumps and fluid handling equipment used in wastewater treatment, environmental processing, chemical manufacturing, and other industrial applications. Progressive cavity pumps are commonly used for transferring viscous liquids, slurries, and solids-containing fluids where controlled positive displacement pumping is required. This Seepex Model N 240-24C is equipped with a Baldor-Reliance motor and Nord gearbox.

Main Product Description

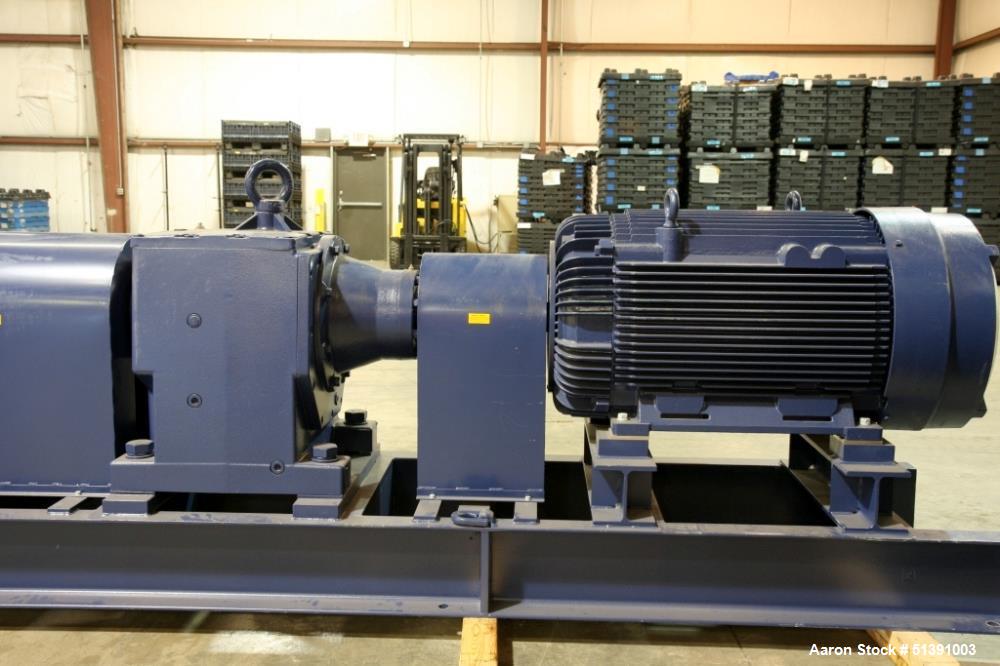

Used Seepex Model N 240-24C progressive cavity pump, manufactured in 2008, featuring a specified flow range of 500–1,000 GPM and operating and discharge pressure of 300 PSI. The pump is driven by a 250 HP Baldor-Reliance electric motor rated at 1,750 RPM with 460-volt, 3-phase, 60 Hz electrical requirements and is equipped with a Nord Model SK102-W gearbox. The pump features a 10-inch ANSI 150 suction flange and has approximately 20 hours of reported runtime. Previously used in wastewater treatment, this industrial positive displacement pump is suitable for evaluating applications involving wastewater transfer, sludge handling, industrial slurry pumping, and movement of compatible viscous or solids-containing fluids. Its progressive cavity pumping design is commonly used in processes requiring controlled fluid transfer and consistent displacement. Actual operating performance and material compatibility should be confirmed for the intended application.

Specifications

• Equipment Type: Progressive Cavity Pump

• Manufacturer: Seepex

• Model: N 240-24C

• Condition: Used

• Year Built: 2008

• Flow Range: 500–1,000 GPM

• Operating Pressure: 300 PSI

• Discharge Pressure: 300 PSI

• Motor Manufacturer: Baldor-Reliance

• Motor Power: 250 HP

• Motor Speed: 1,750 RPM

• Electrical Requirements: 460 V, 3 Phase, 60 Hz

• Gearbox Manufacturer: Nord

• Gearbox Model: SK102-W

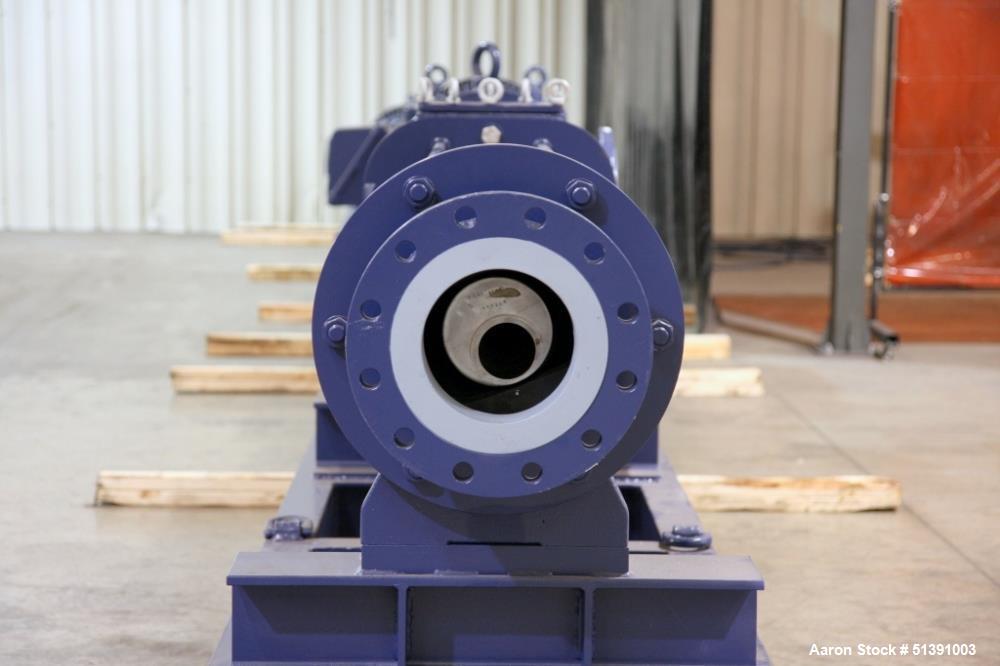

• Suction Connection: 10" ANSI 150 Flange

• Approximate Reported Runtime: 20 Hours

• Previous Application: Wastewater Treatment

Applications

• Wastewater treatment

• Industrial wastewater transfer

• Sludge pumping

• Industrial slurry transfer

• Viscous liquid pumping

• Solids-containing fluid transfer

• Environmental processing

• Industrial process fluid handling

• Positive displacement pumping

• Wastewater processing operations

Suitable Products and Materials

• Wastewater

• Compatible wastewater sludge

• Industrial process liquids

• Viscous fluids

• Solids-containing liquids

• Industrial slurries

• Compatible liquid-solid mixtures

• Wastewater treatment process streams

Material compatibility depends on fluid viscosity, solids content, temperature, chemical composition, and pump construction.

Frequently Asked Questions (FAQs)

- What is the flow capacity of the Seepex N 240-24C progressive cavity pump?

The pump has a specified flow range of 500–1,000 gallons per minute. Actual flow depends on operating conditions and pump speed.

- What is the pressure rating of this Seepex pump?

The listed operating and discharge pressure is 300 PSI. The applicable pressure limits should be verified against the pump and system documentation.

- What motor is installed on the pump?

The pump is equipped with a 250 HP Baldor-Reliance electric motor rated at 1,750 RPM.

- What are the electrical requirements?

The motor requires 460-volt, 3-phase, 60 Hz electrical power.

- What gearbox is included?

The pump is equipped with a Nord Model SK102-W gearbox.

- What size is the suction connection?

The pump features a 10-inch ANSI 150 suction flange.

- How many operating hours does this pump have?

The equipment is reported to have approximately 20 hours of runtime. The reported hours do not independently establish the pump's current mechanical condition.

- What year was this Seepex pump manufactured?

The pump was built in 2008.

- What was this pump previously used for?

The pump was last used in a wastewater treatment application.

- Can this progressive cavity pump handle sludge and viscous materials?

Progressive cavity pumps are commonly used for sludge, viscous liquids, and solids-containing fluids. Suitability for a specific material depends on pump configuration, elastomer compatibility, solids characteristics, and operating requirements.

- Can Aaron Equipment help arrange shipping for this Seepex pump?

Aaron Equipment can assist with coordinating freight and transportation arrangements for this industrial pump. Contact our team to discuss equipment location, loading requirements, shipping dimensions, and available transportation options.

- How can Aaron Equipment help determine whether this pump meets my application requirements?

Aaron Equipment can assist with available specifications, equipment information, and purchasing questions to help evaluate whether the Seepex N 240-24C meets your flow, pressure, and material handling requirements.
