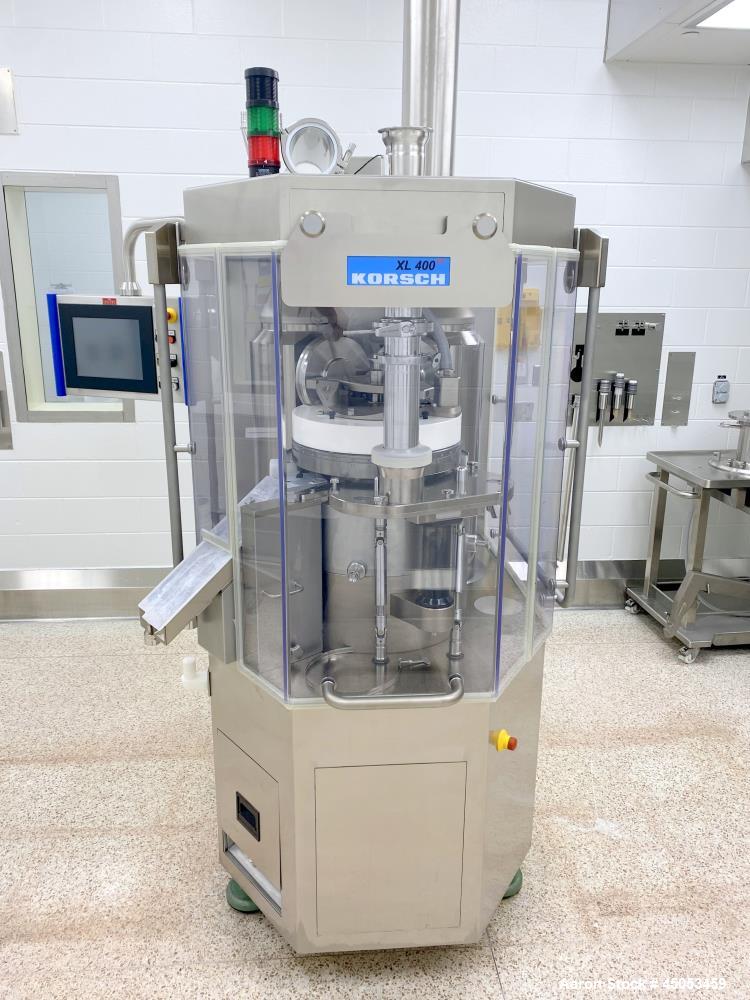

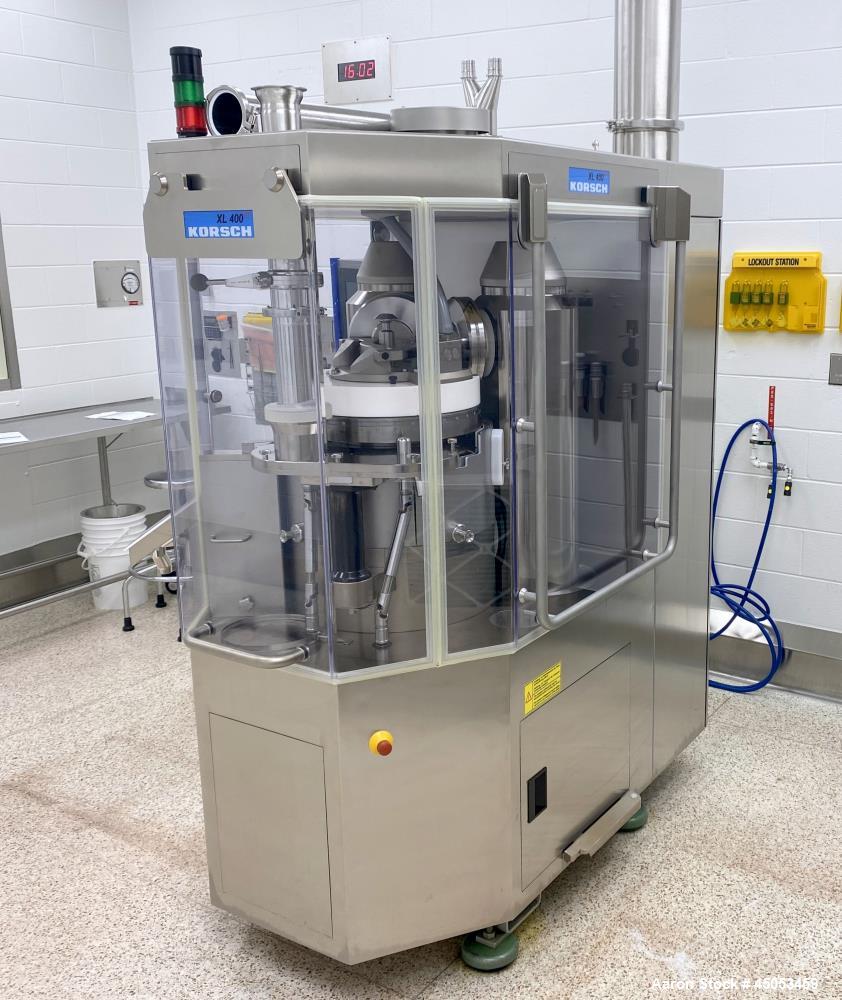

Used Korsch XL 400 FT Rotary Tablet Press – 35 Station, B Tooling, 252K TPH

🏭 Manufacturer Information

• Manufacturer: Korsch AG

• Model: XL 400 FT

• Type: Automatic Single-Layer Rotary Tablet Press

• Tooling Type: B Tooling

• Stations: 35

• Last Used For: Ibuprofen tablet production

• Compression Forces:

  • Main Compression: 100 kN

  • Precompression: 20–100 kN

  • Tamping: 5 kN

📄 Description

The Used Korsch Model XL 400 FT is a high-performance, 35-station rotary tablet press designed for single-layer tablet production at pharmaceutical-grade standards. Equipped with B Tooling and featuring a removable turret for ease of cleaning and changeover, this unit is capable of producing up to 252,000 tablets per hour depending on product and setup.

Ideal for medium to high-volume solid dose production, this press includes a pendant arm and tool kit for turret removal, and features robust compression capabilities with up to 100 kN main compression force. Originally used in Ibuprofen tablet production, it is well-suited for manufacturers of OTC drugs, supplements, or other high-volume pharmaceutical tablets.

⚙️ Specifications

• Model: XL 400 FT

• Type: Single-Layer Automatic Rotary Tablet Press

• Tooling: B Tooling

• Stations: 35

• Maximum Output: Up to 252,000 tablets/hour

• Tablet Diameter Range: Up to 16 mm

• Fill Depth: Up to 18 mm

• Max Tablet Thickness: Up to 8.5 mm

• Main Compression Force: Up to 100 kN

• Precompression Force: 20–100 kN

• Tamping Force: 5 kN

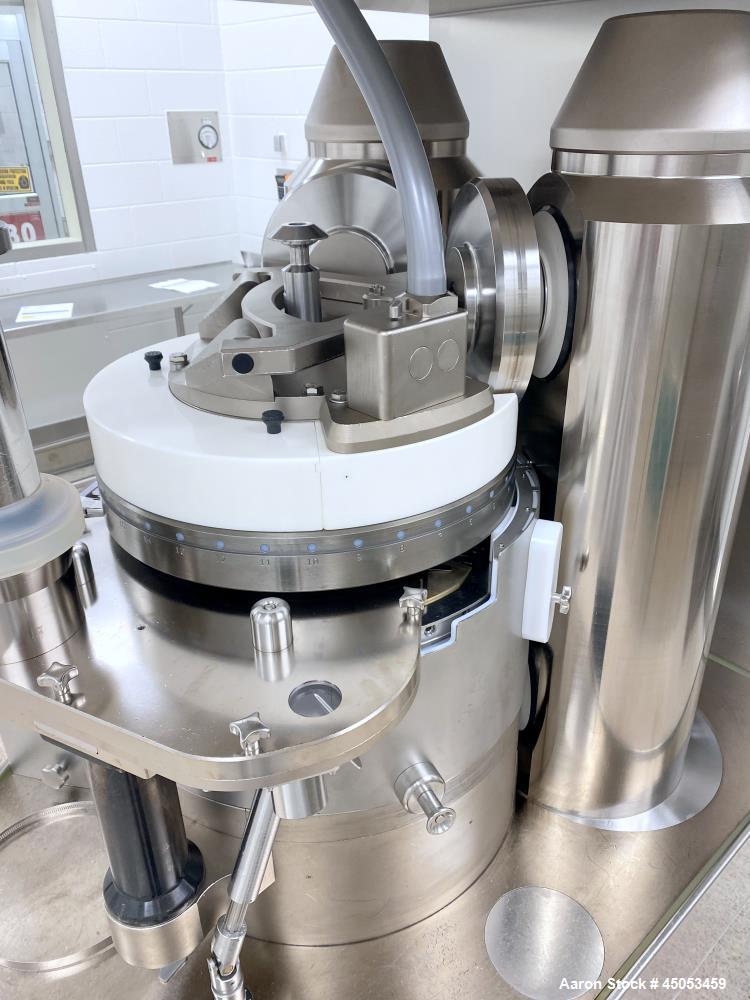

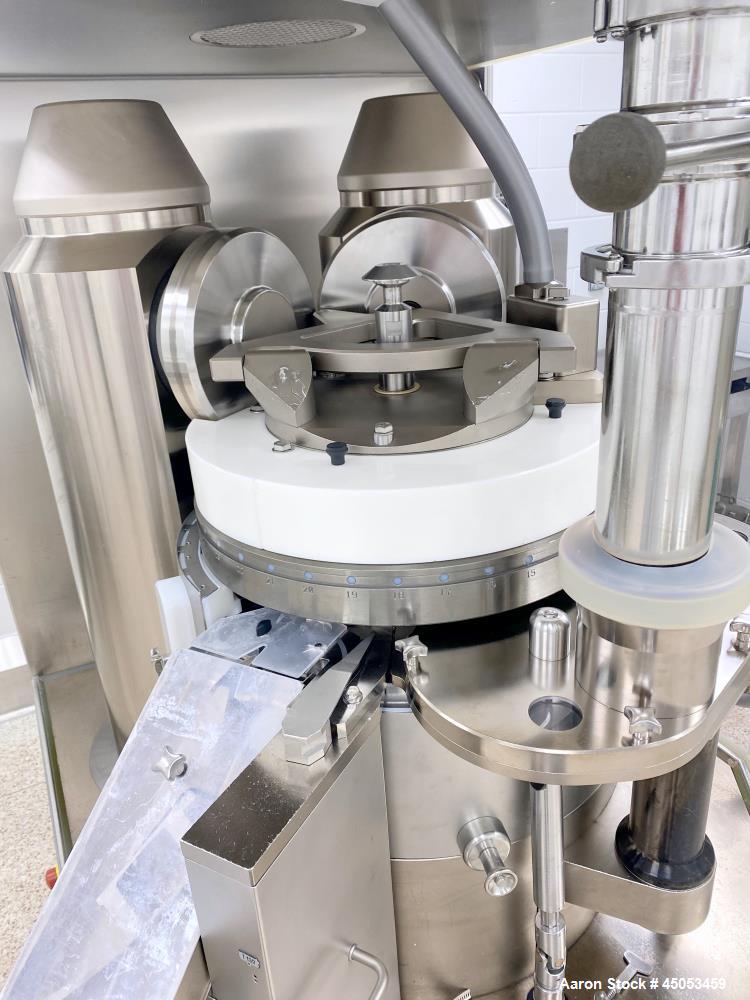

• Turret: Removable design

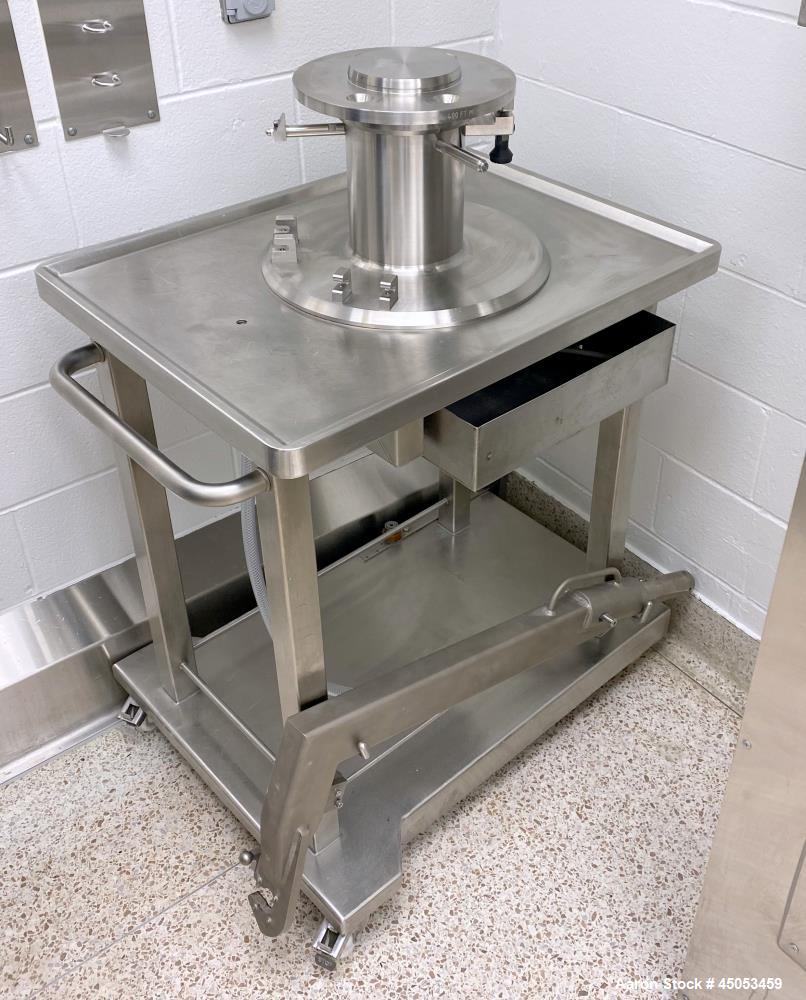

• Includes: Turret pendant, turret removal tool kit

• Last Product Run: Ibuprofen tablets

🧴 Typical Applications

• Over-the-counter pain relief tablets

• Prescription tablet formulations

• Nutritional supplements

• Effervescent tablets

• Single-layer solid dose manufacturing

• Veterinary pharmaceuticals

• Herbal medicine tablets

• Industrial tablet-form powder compaction

📦 Products This Machine Is Ideal For

• Ibuprofen tablets

• Acetaminophen or paracetamol tablets

• Multivitamin and mineral tablets

• Herbal or botanical extract tablets

• Single-dose cold and flu remedies

• Antacids and stomach relief tablets

• Chewable dietary supplements

• Pharmaceutical placebos for R&D

• Compressed sweeteners

• Veterinary solid dose medications
