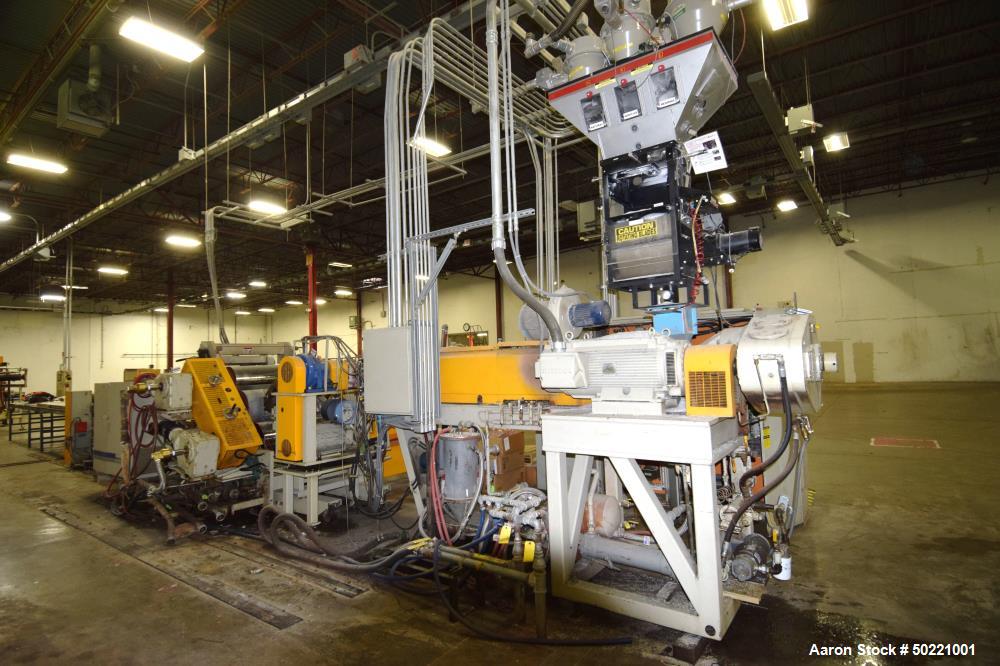

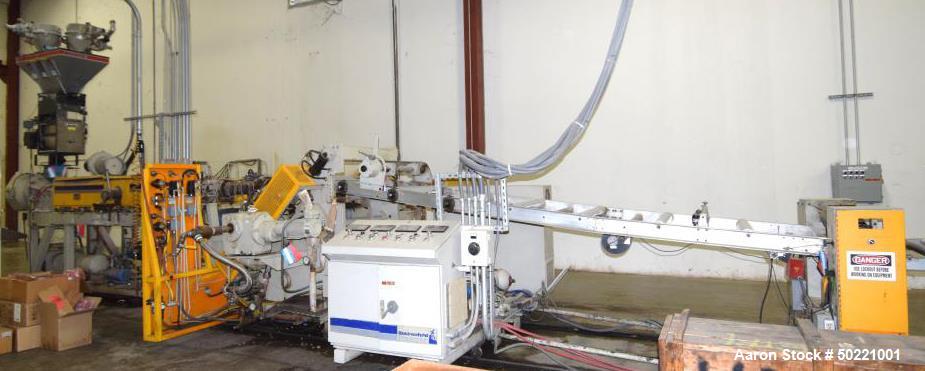

Used Battenfeld Gloucester 36” Wide Inclined Sheet Line.

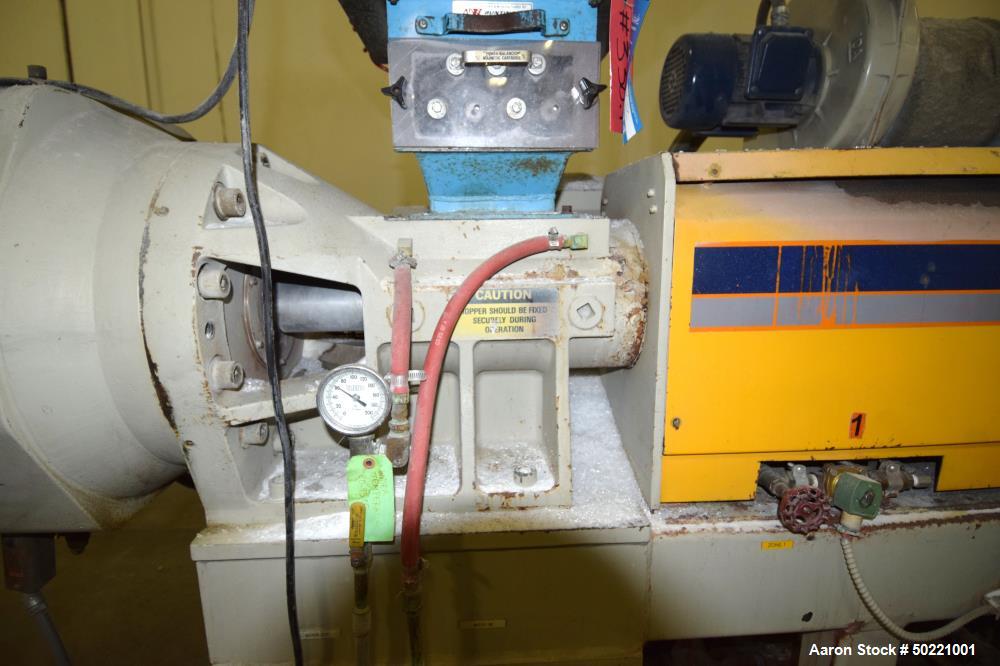

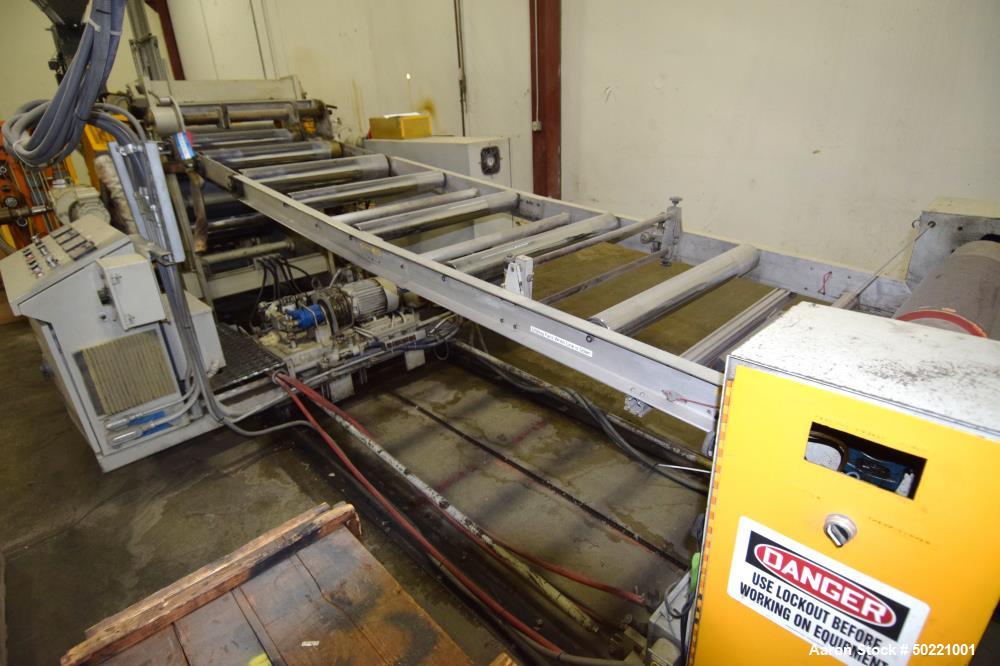

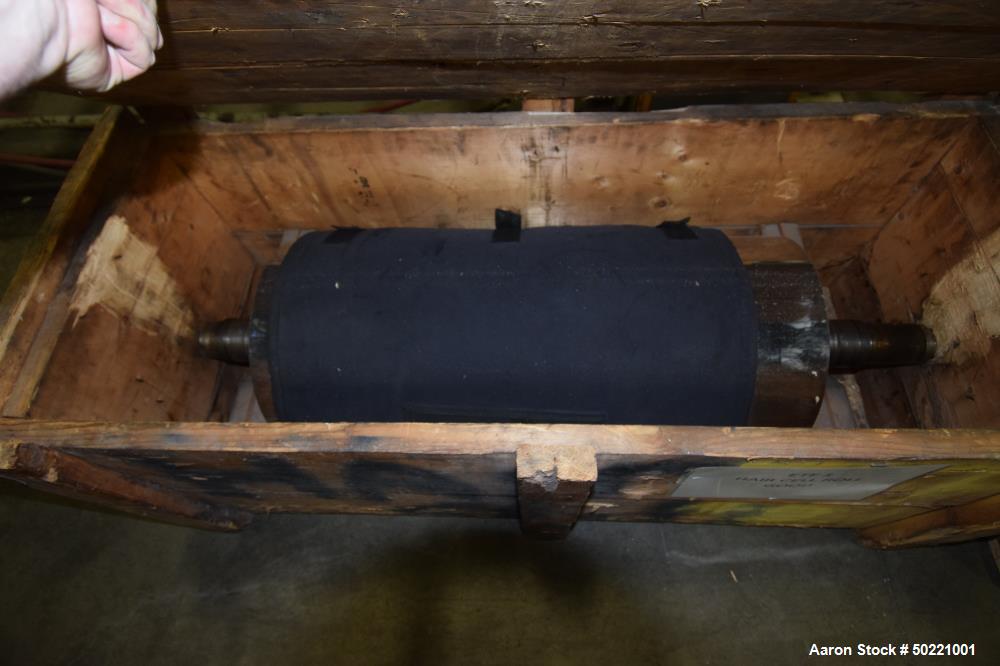

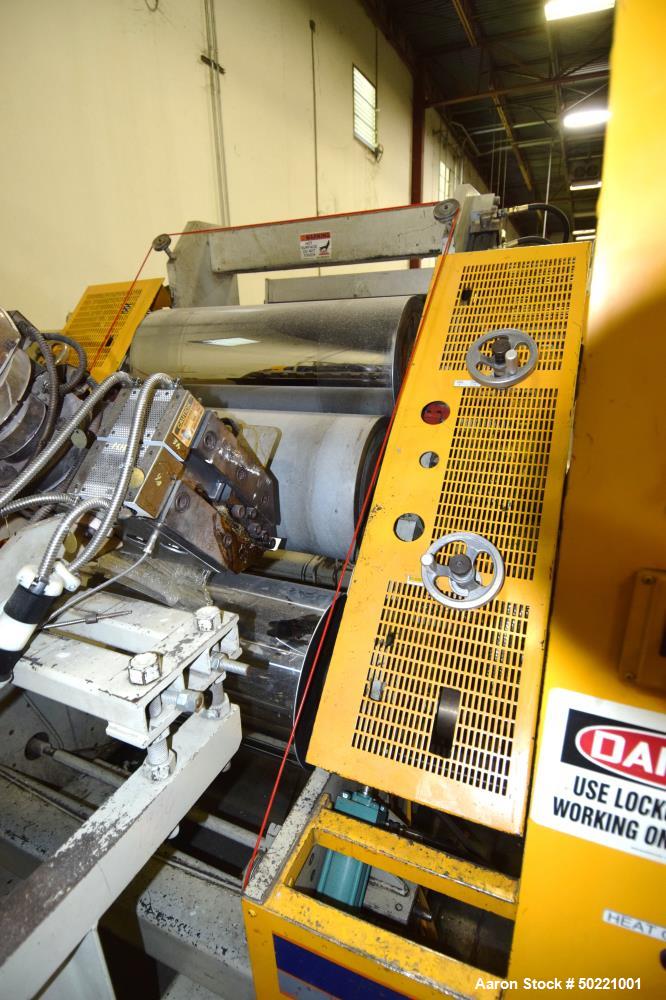

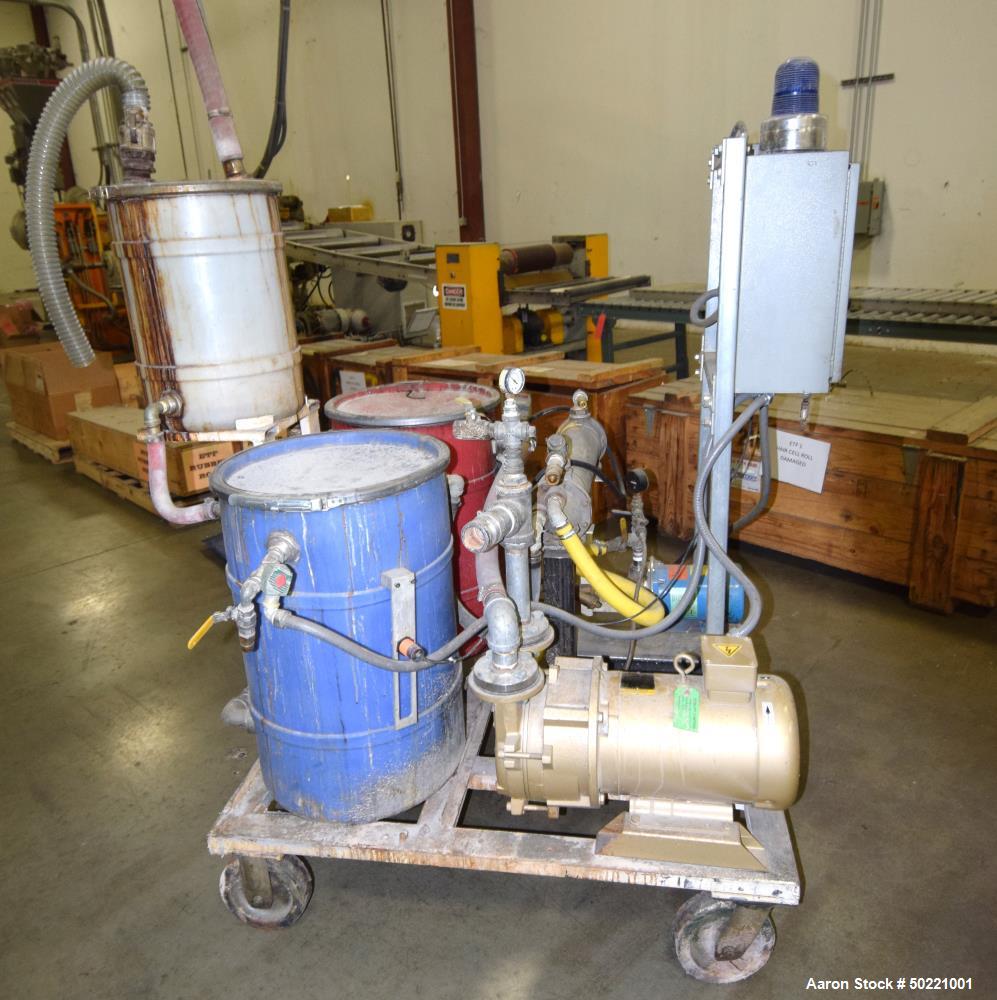

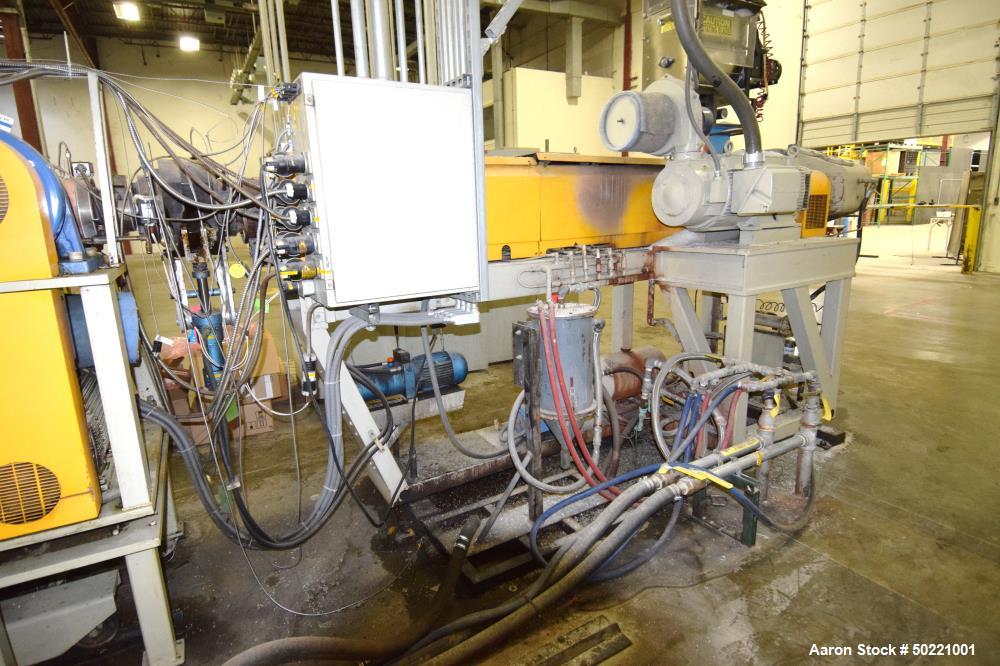

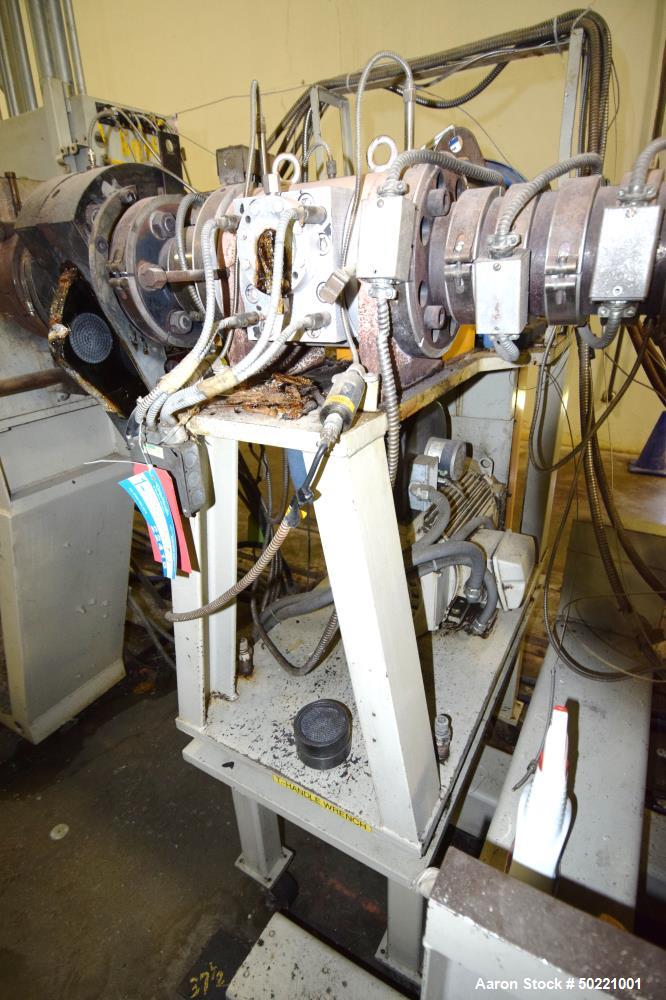

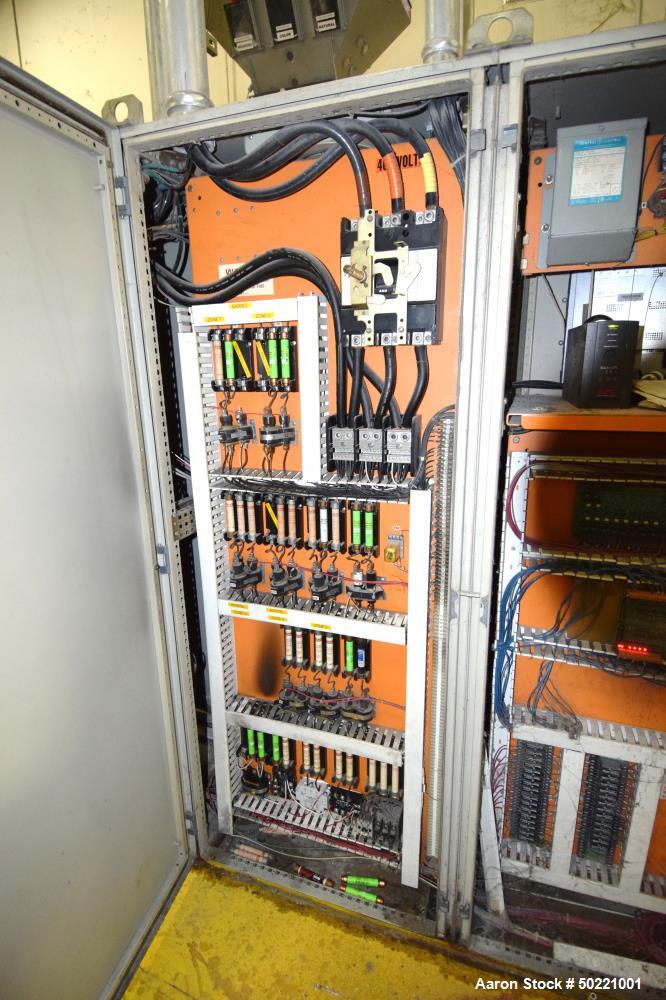

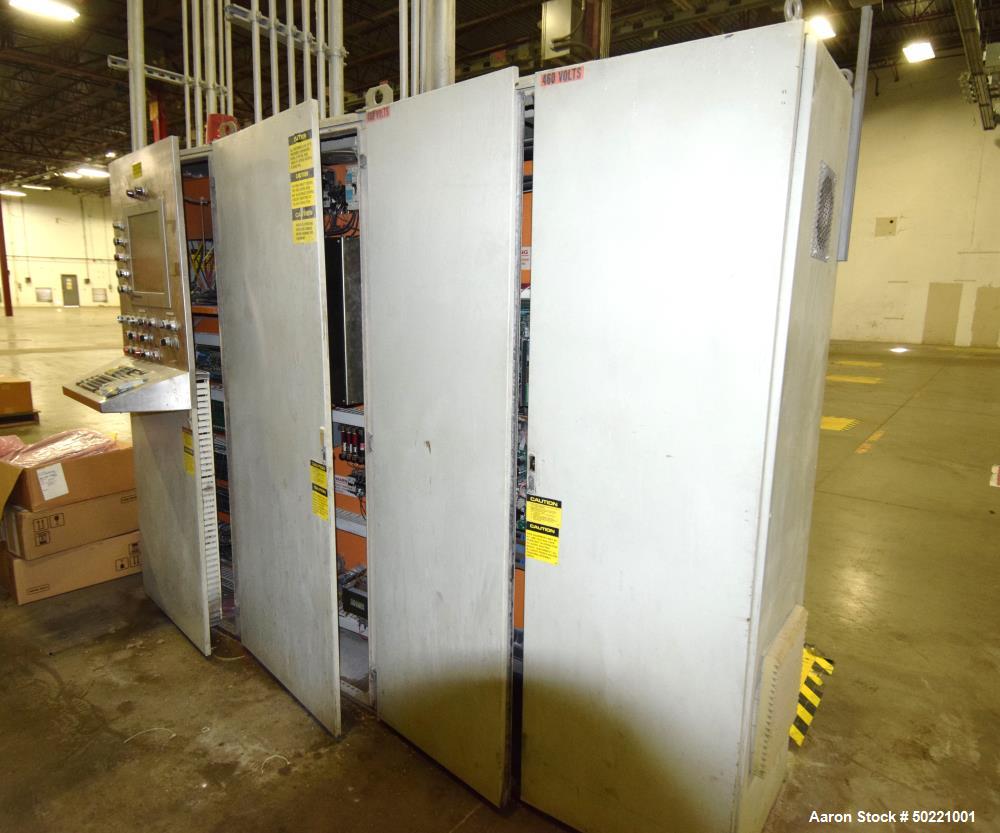

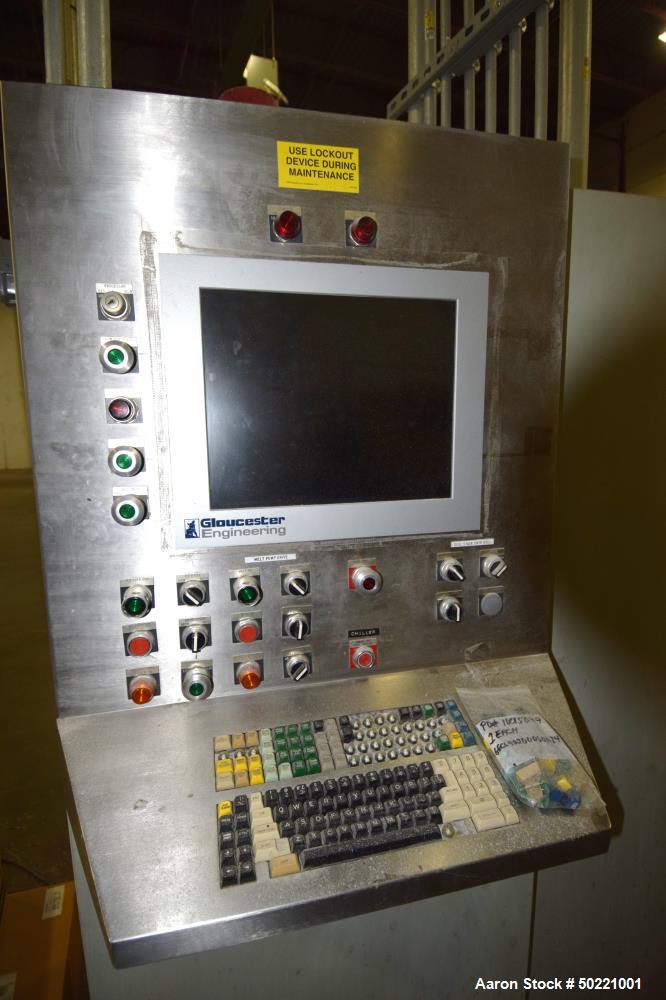

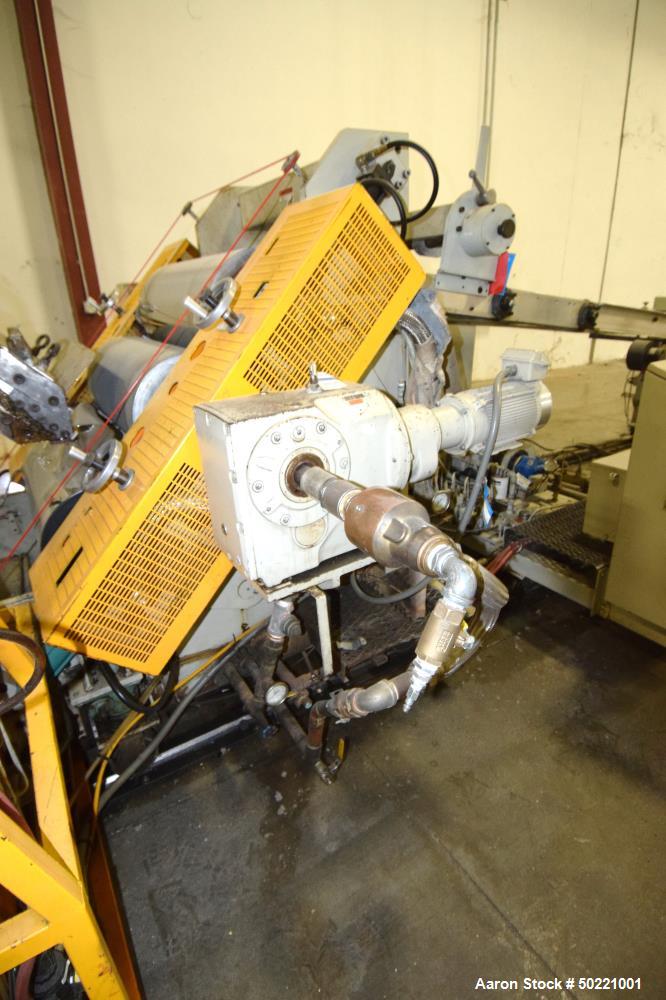

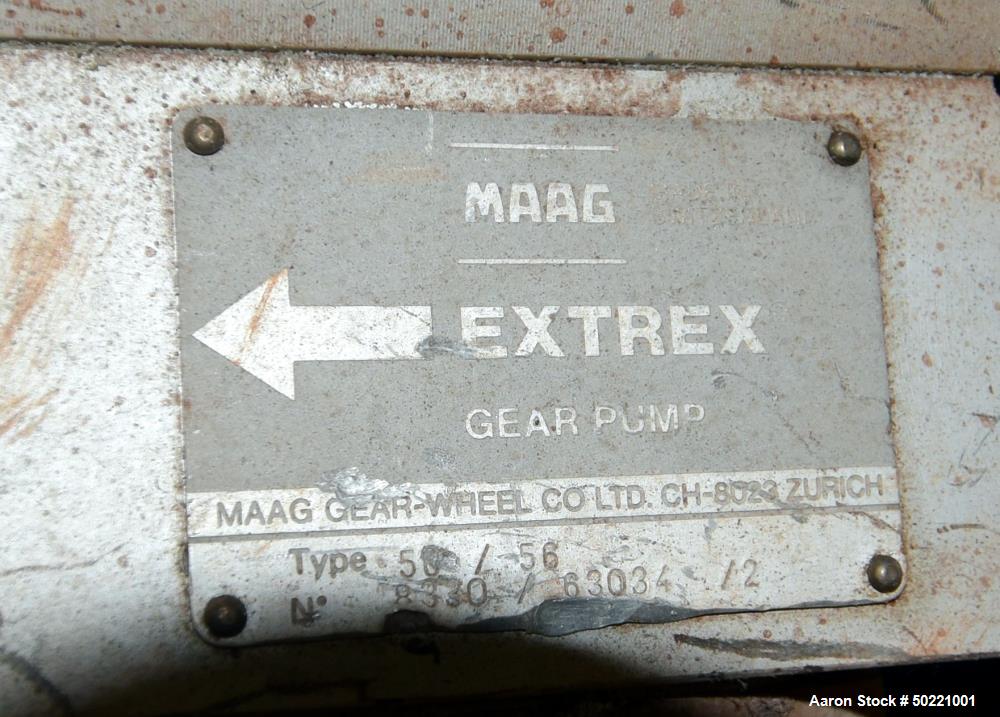

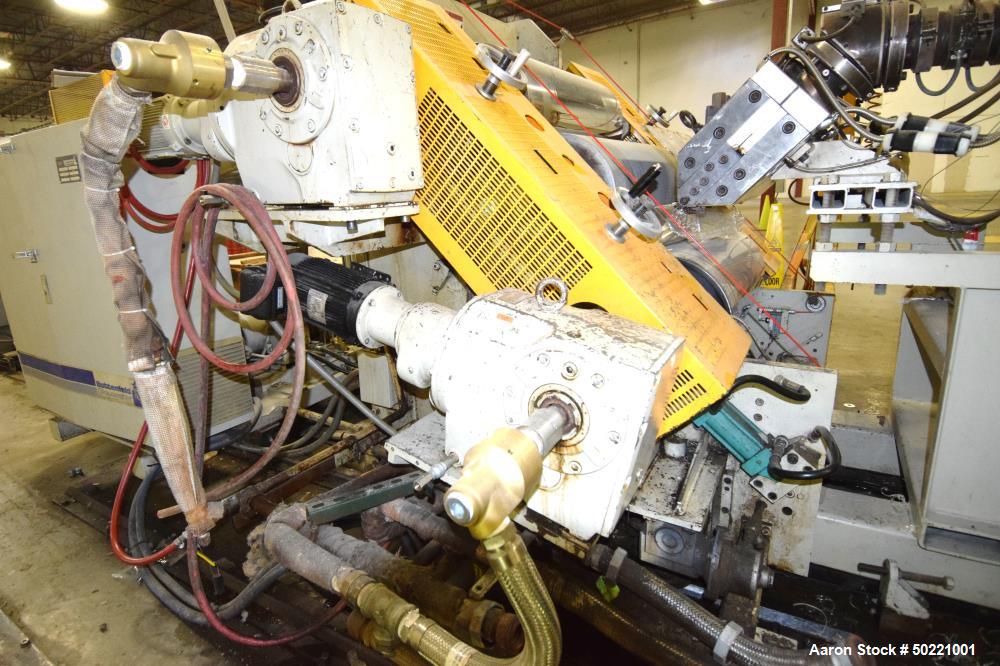

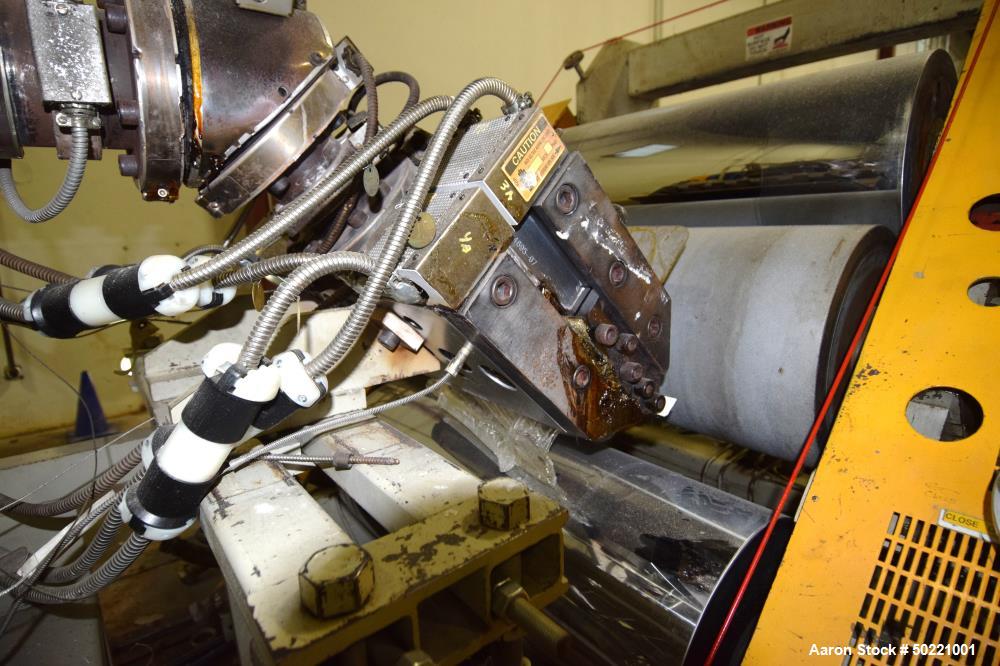

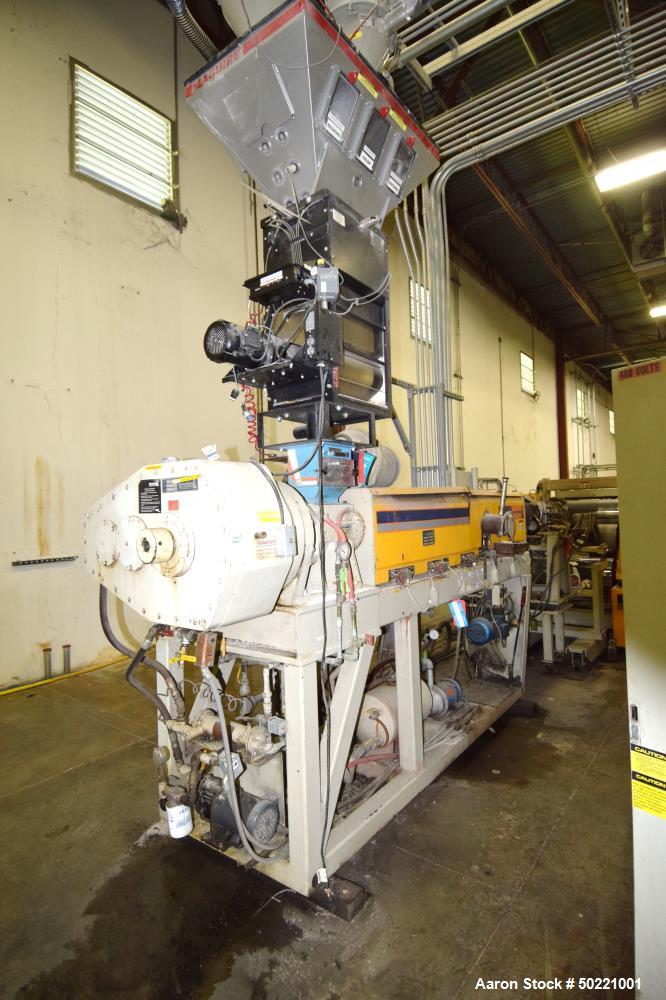

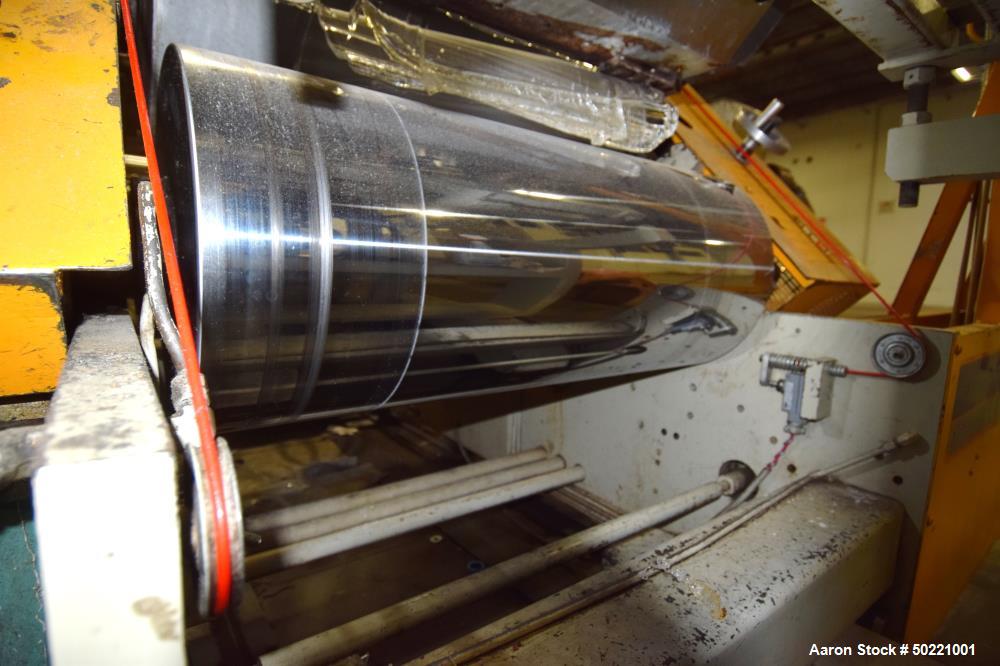

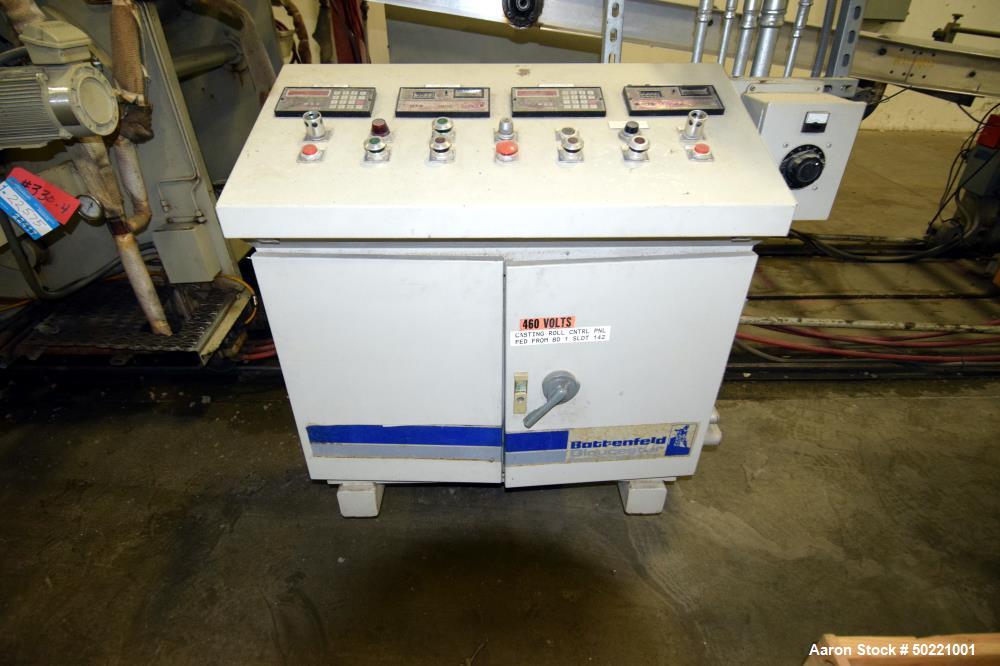

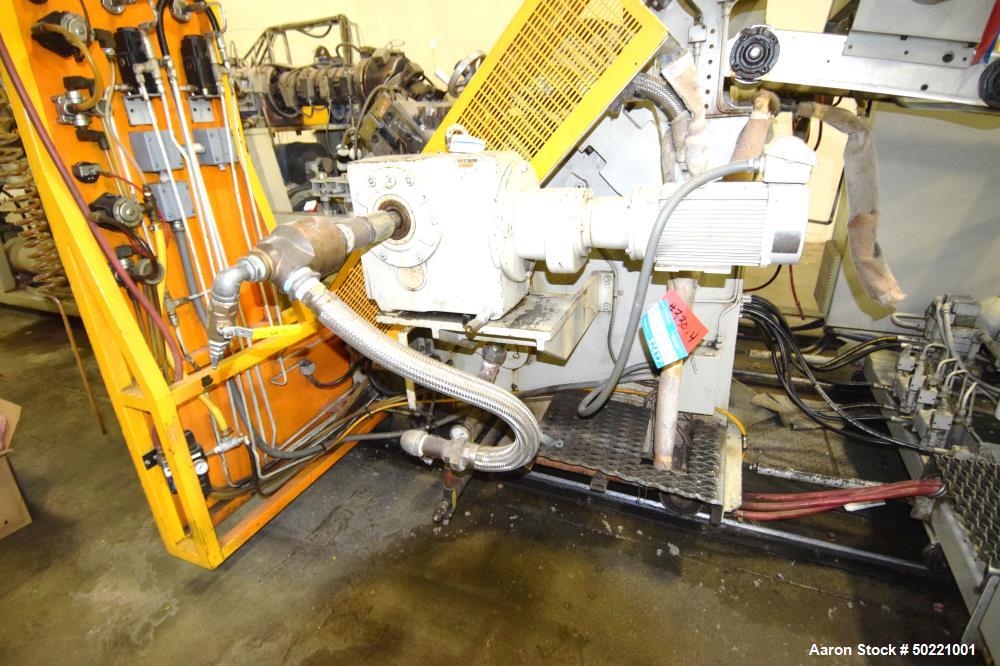

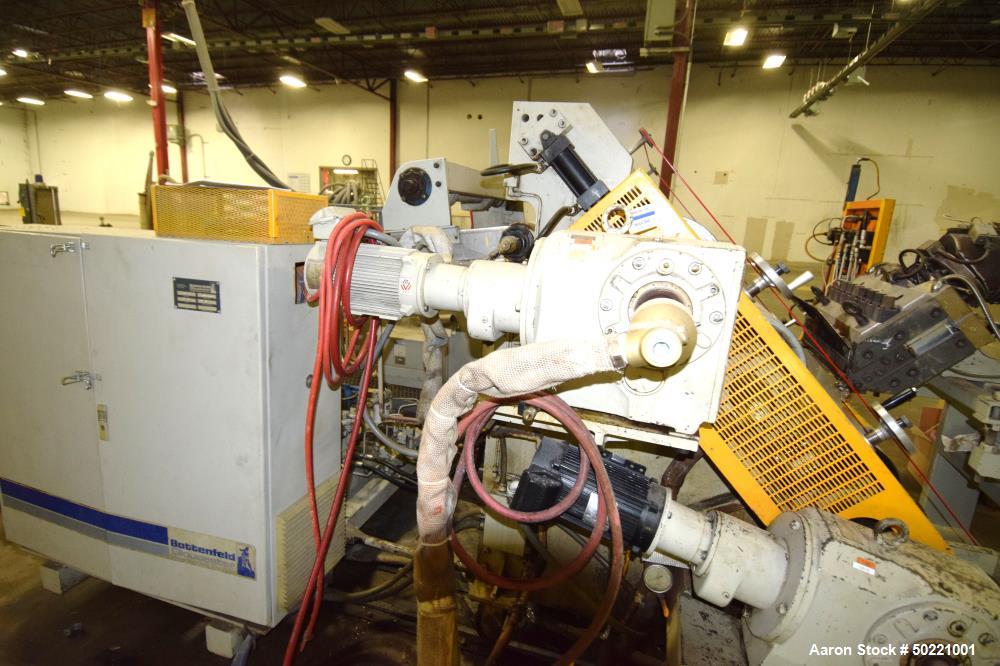

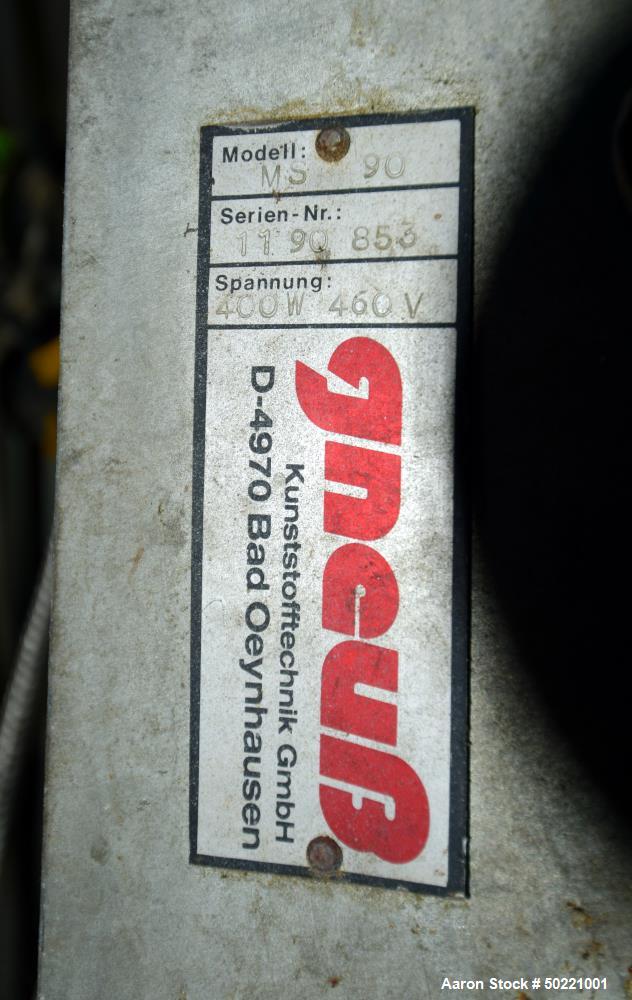

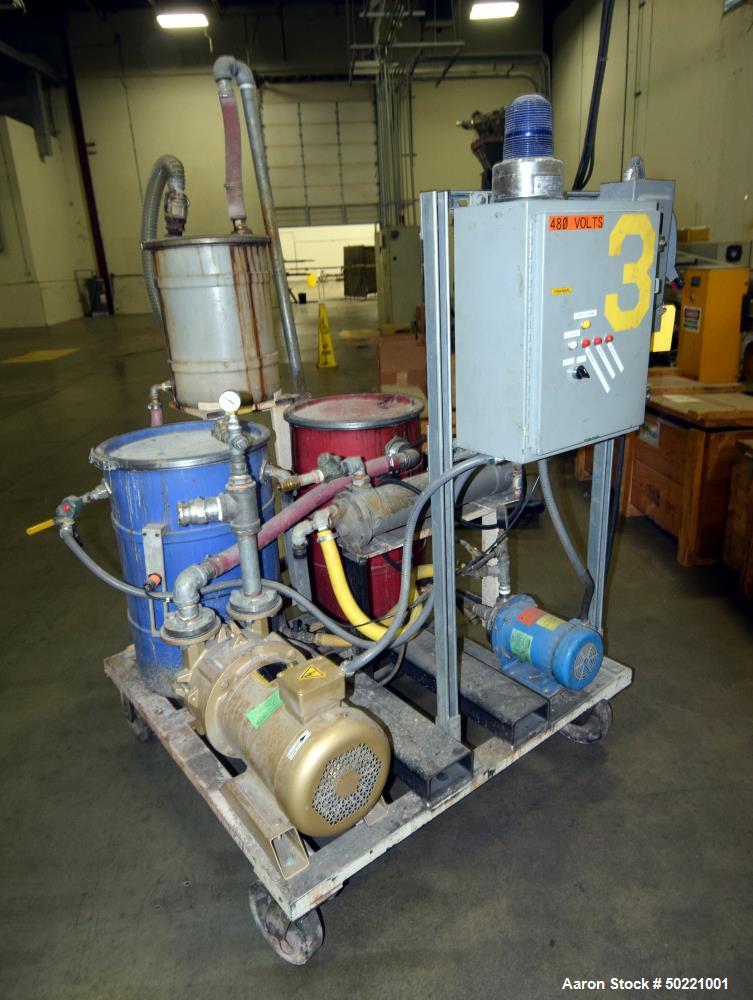

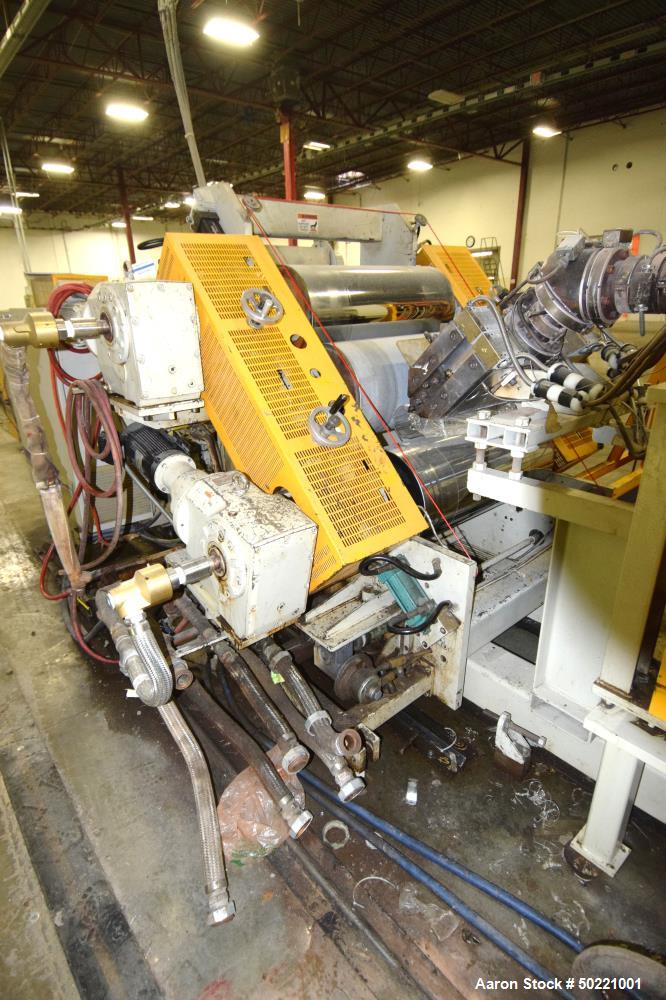

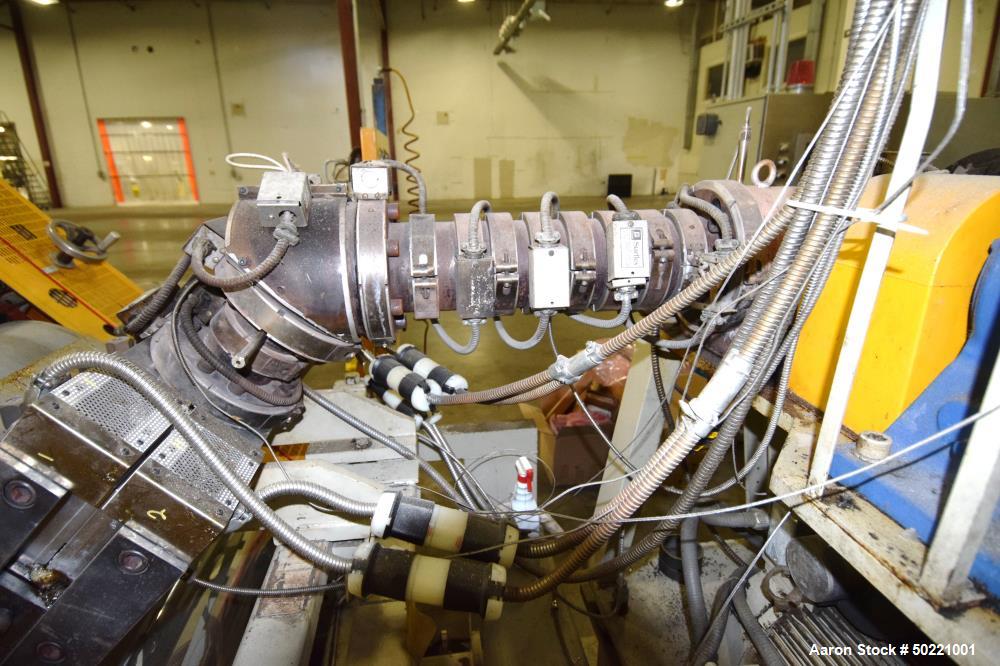

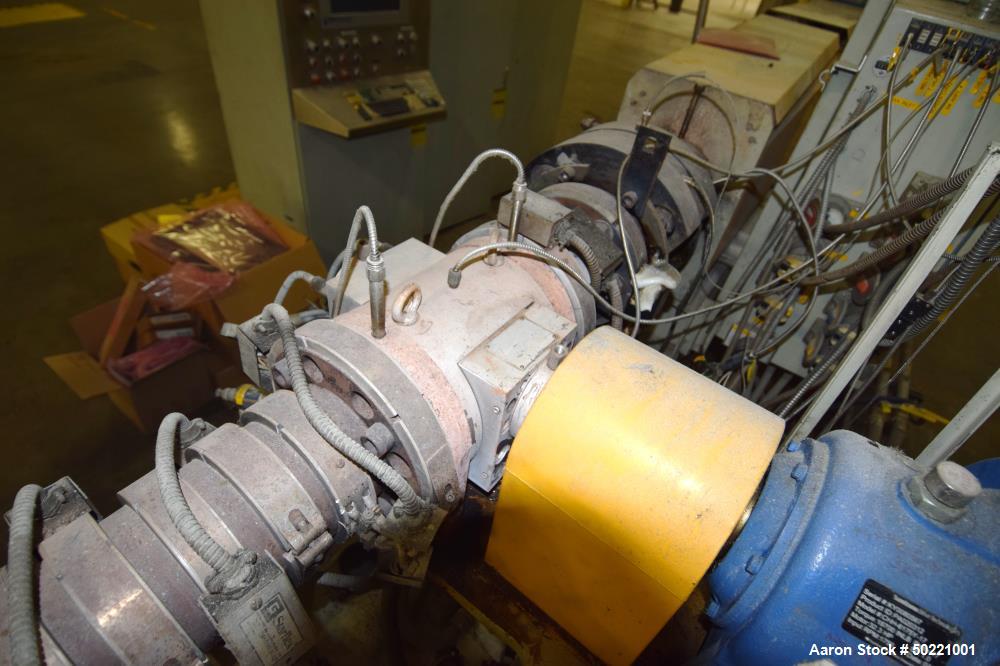

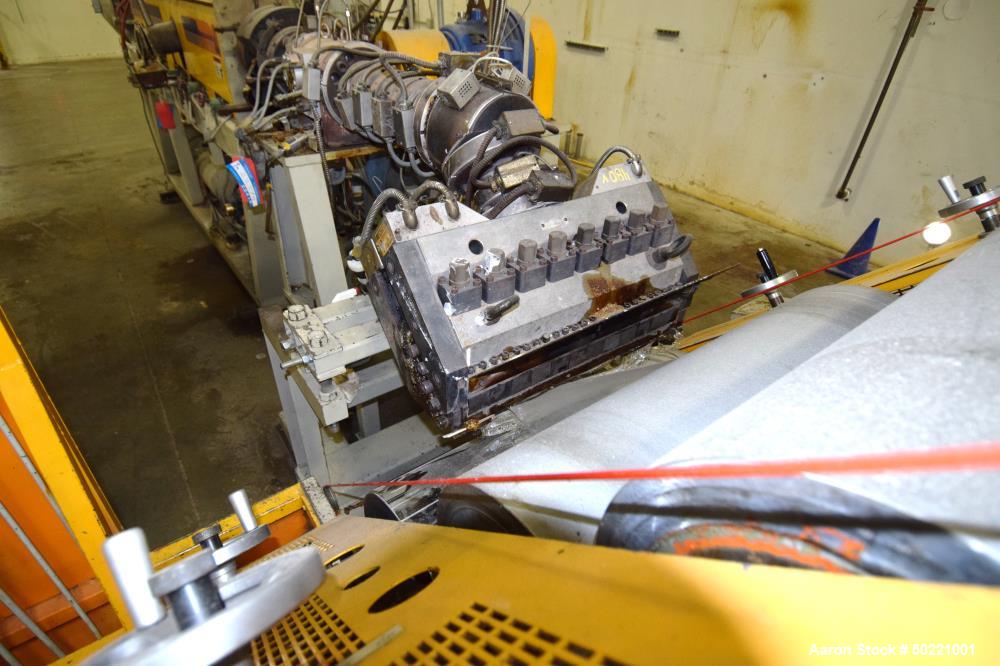

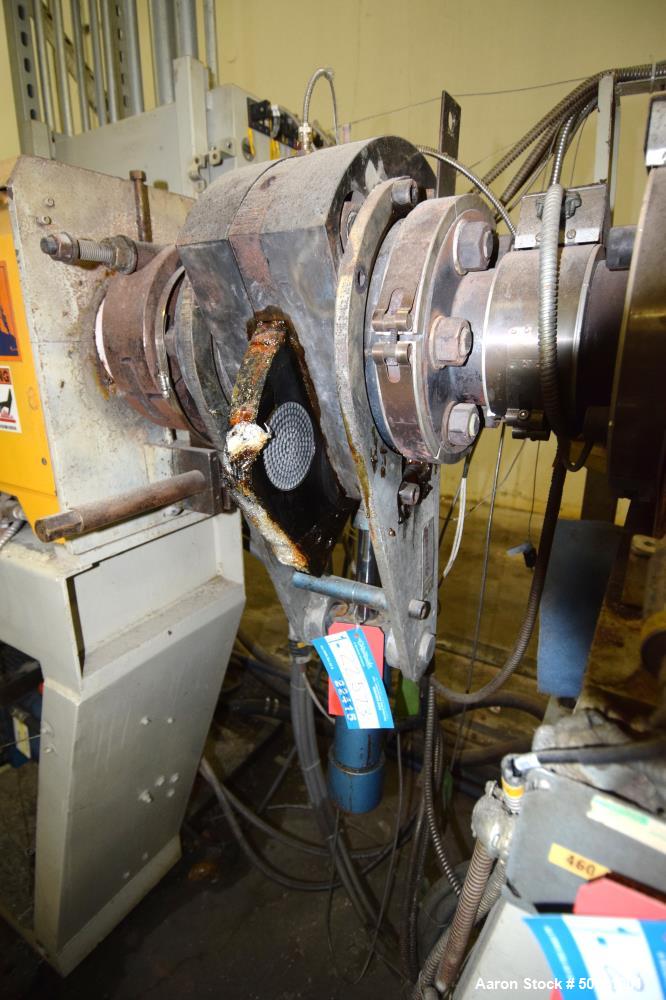

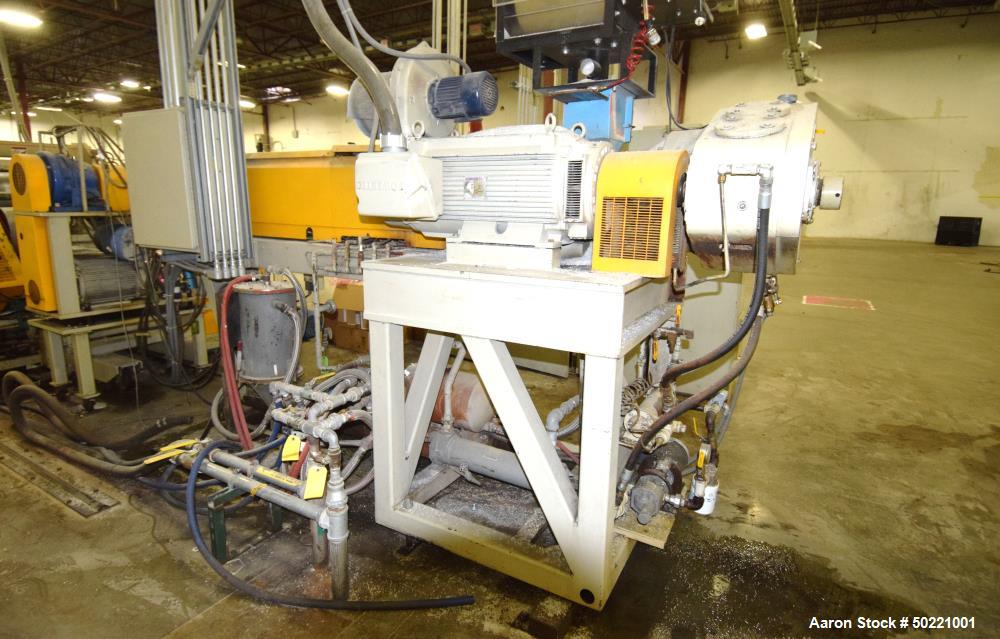

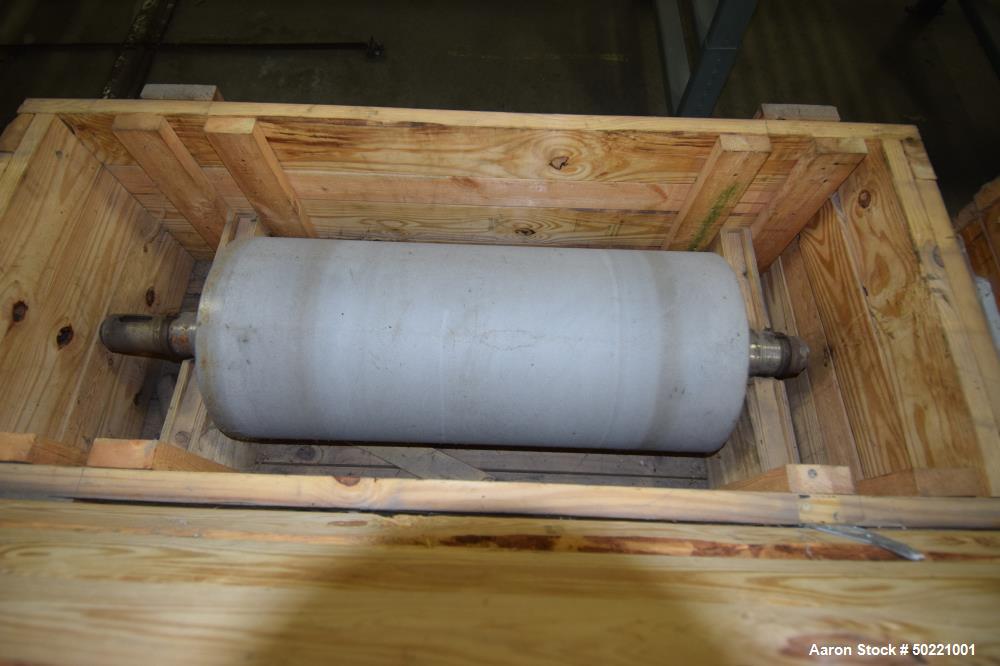

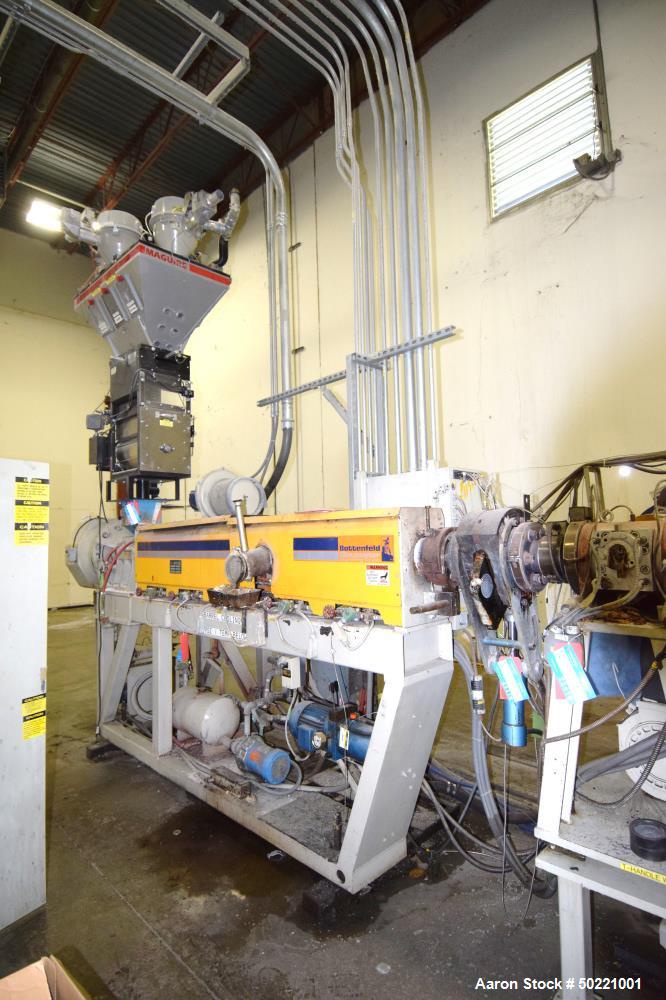

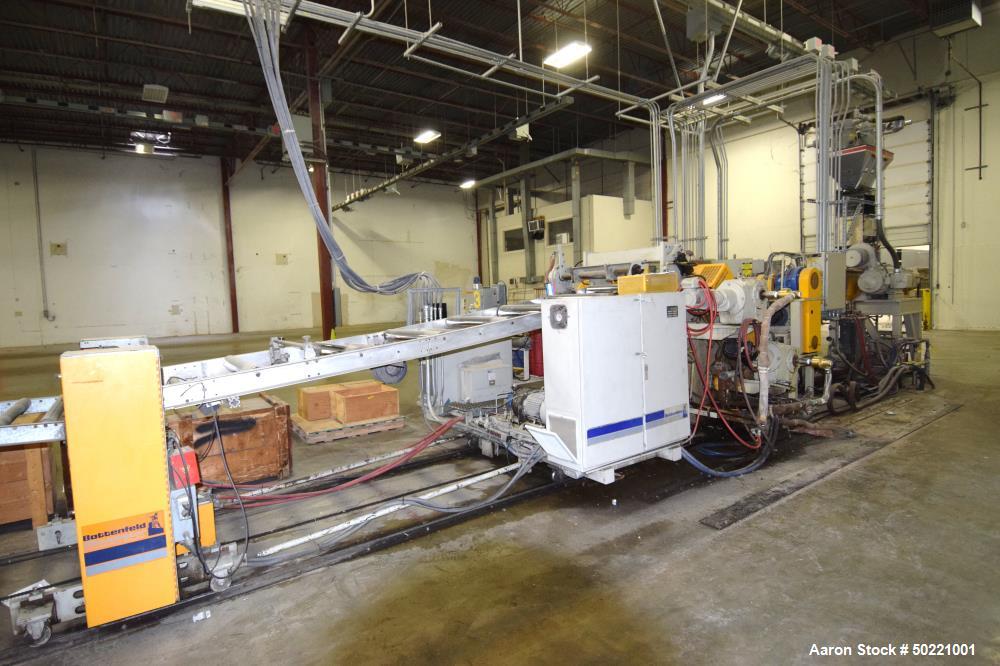

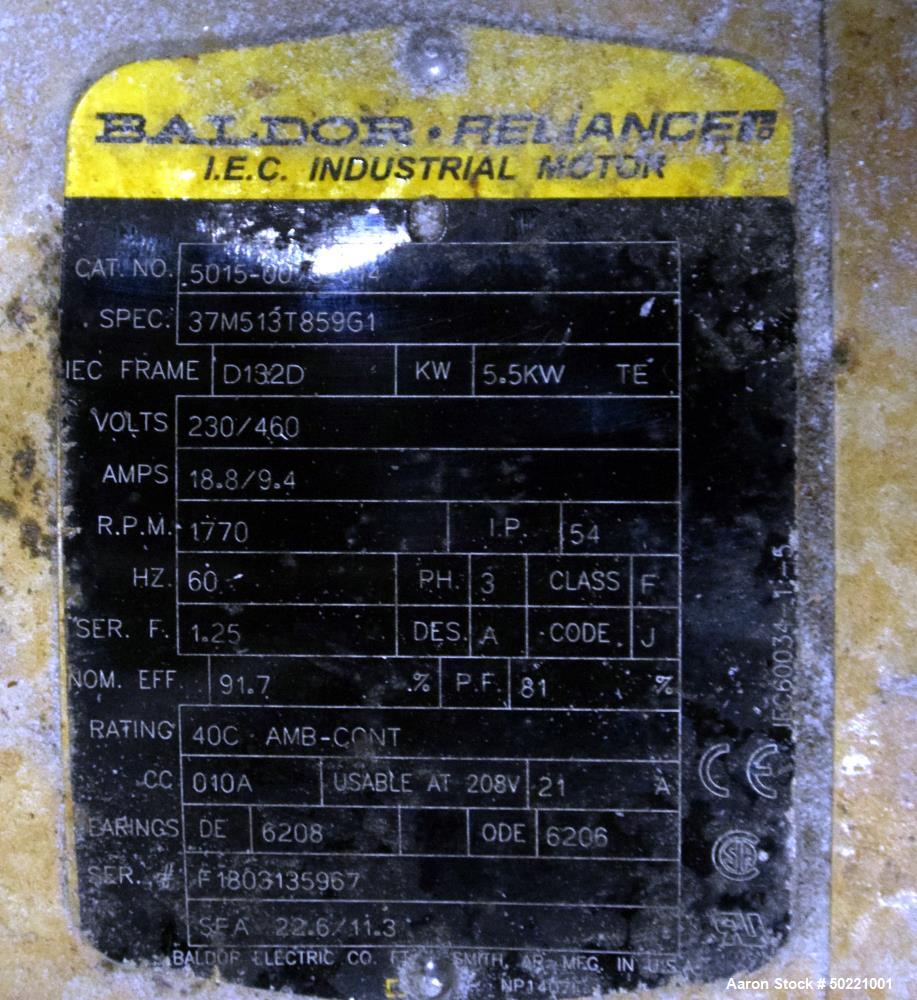

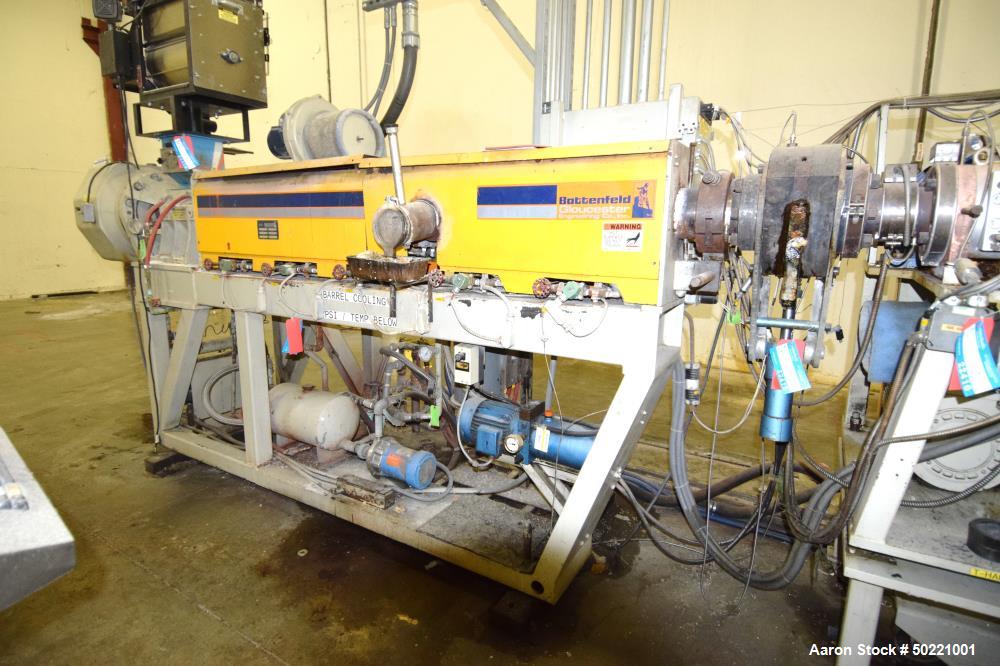

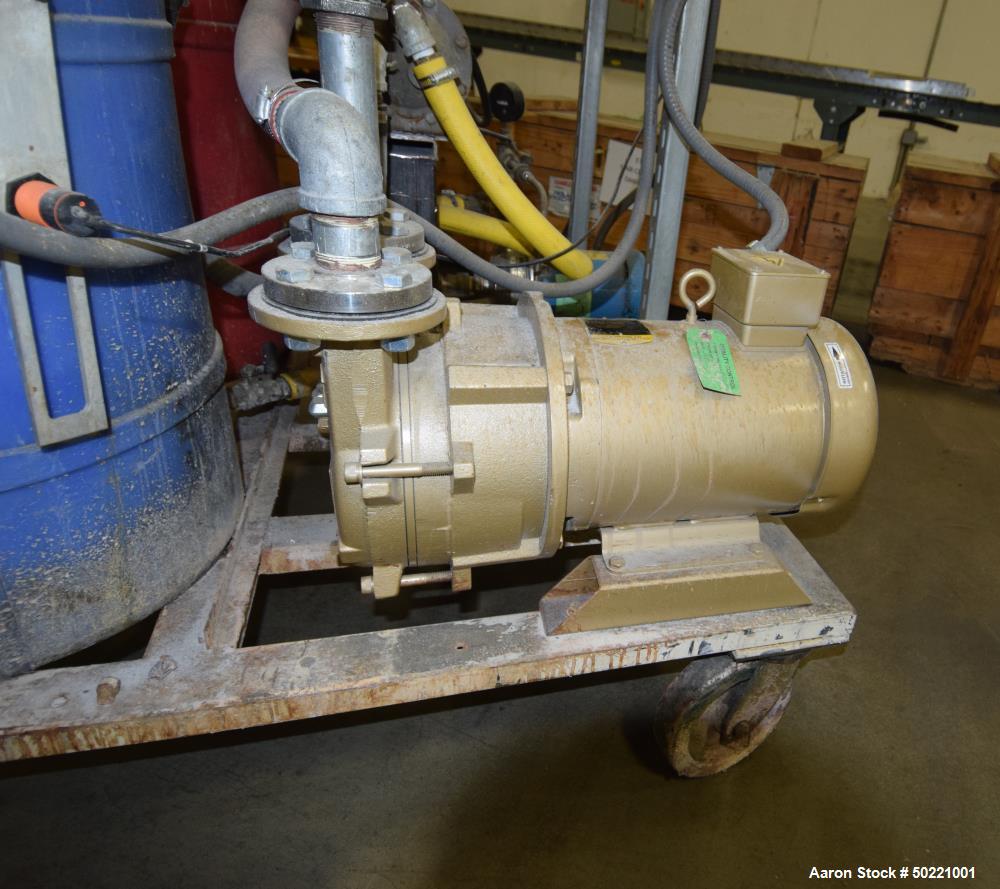

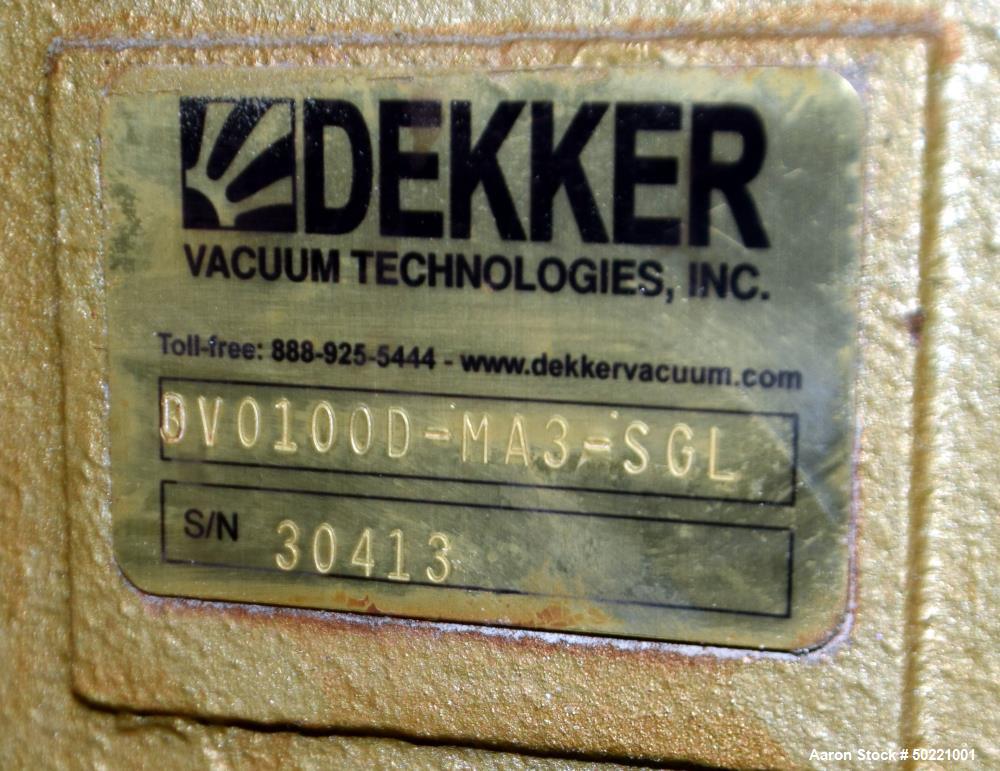

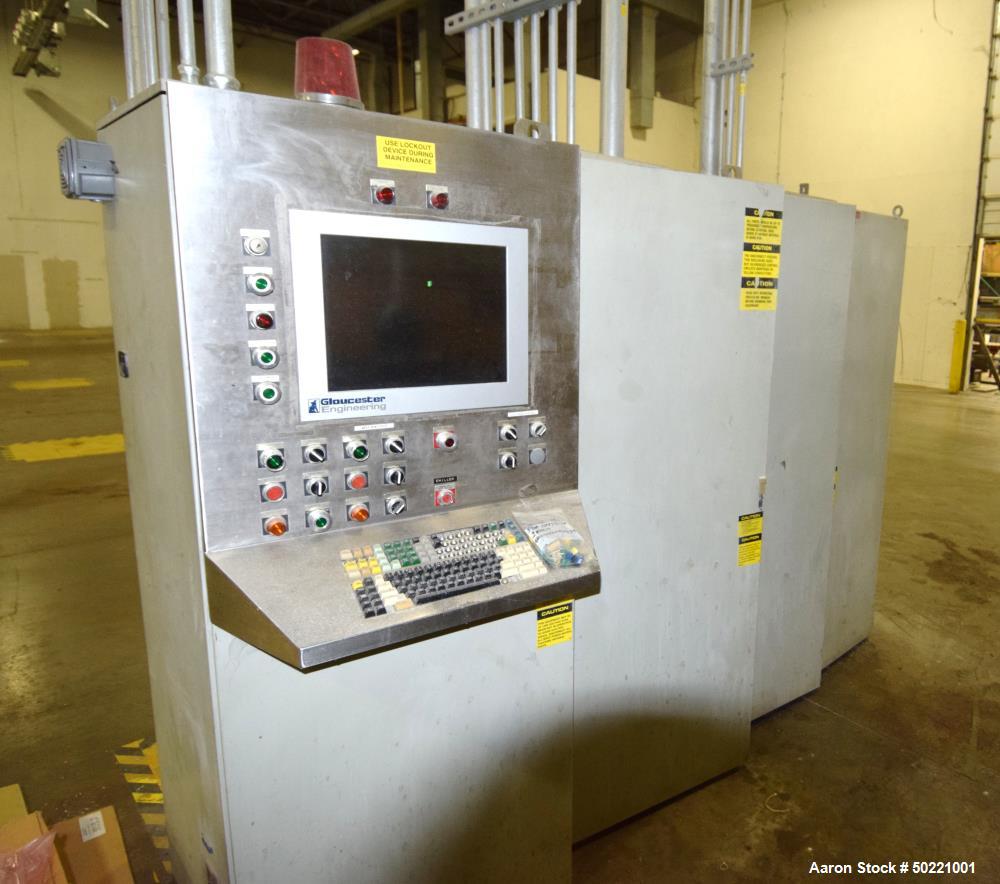

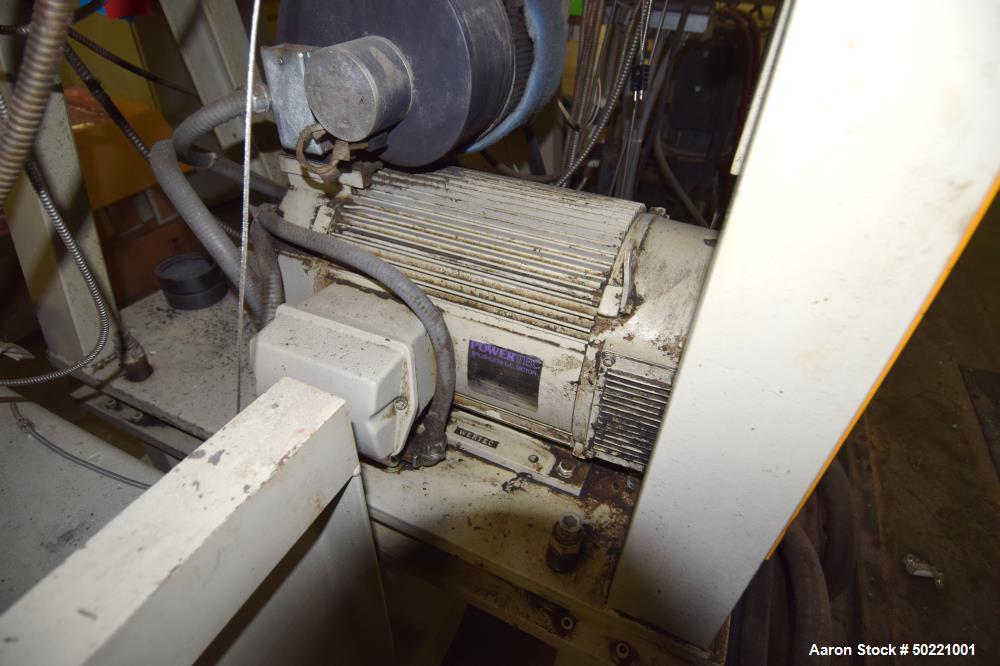

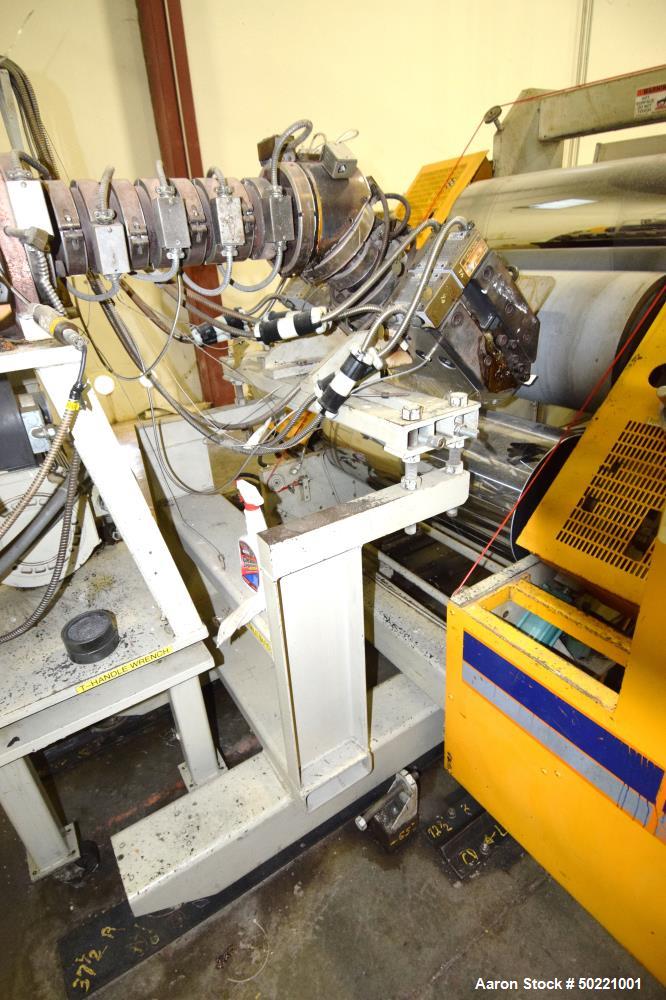

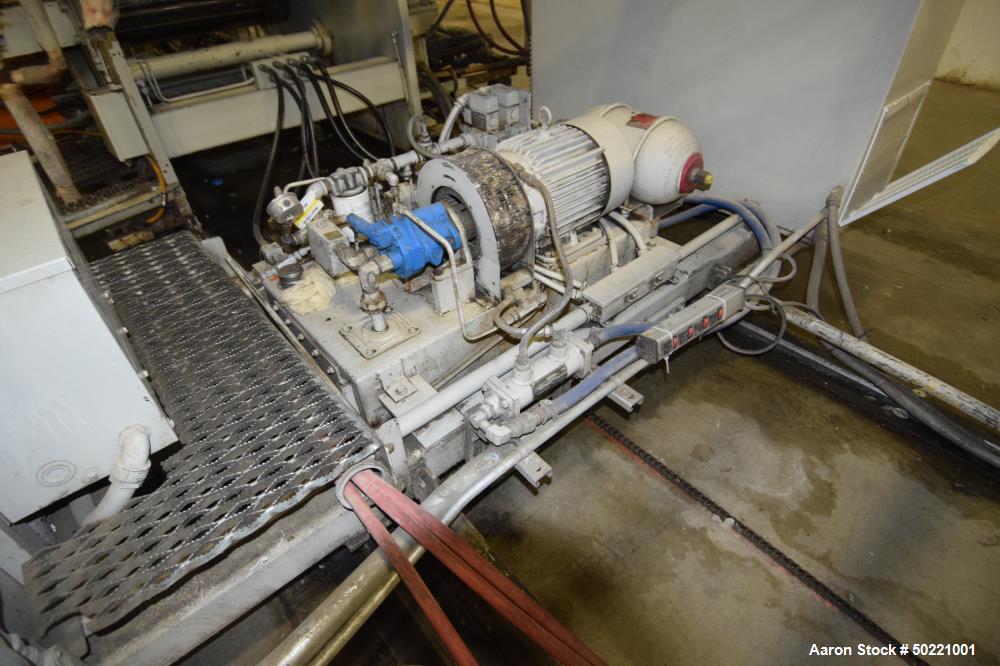

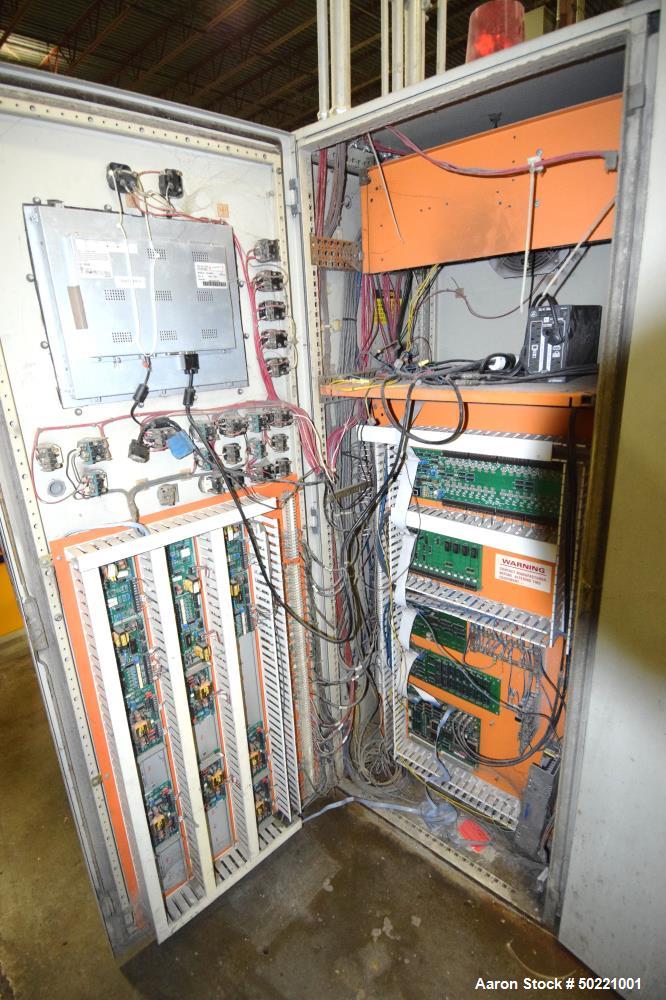

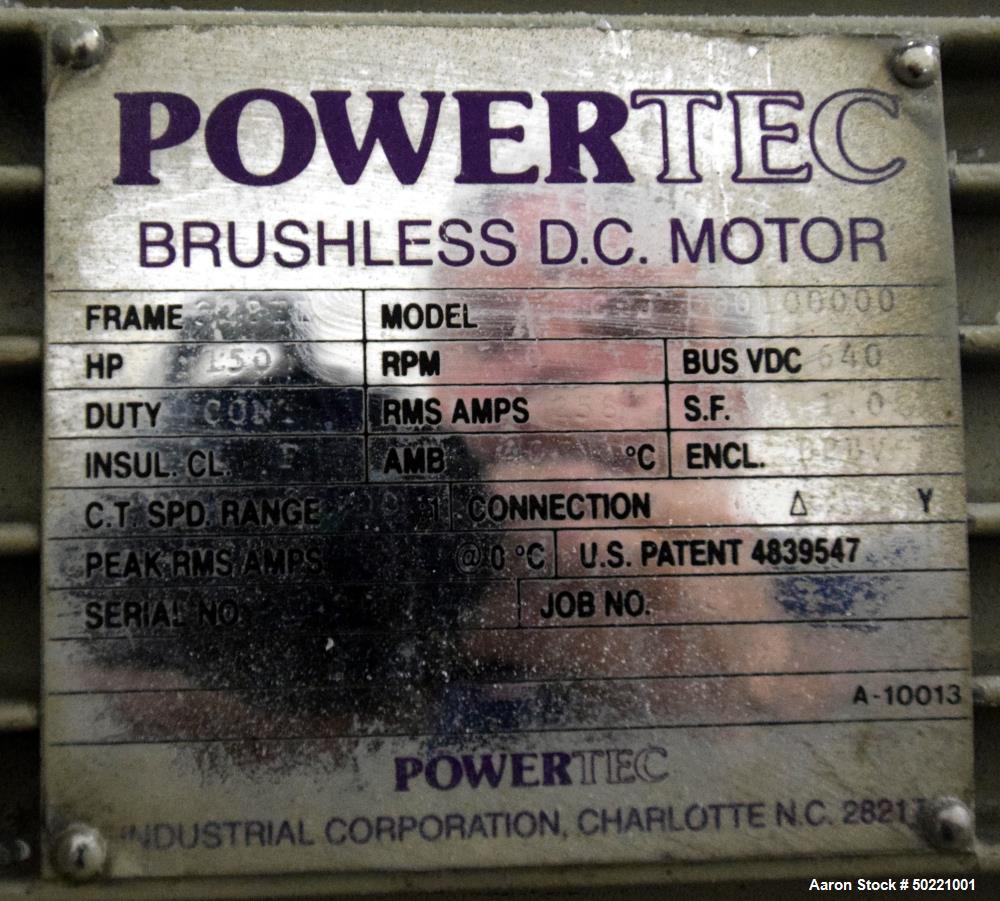

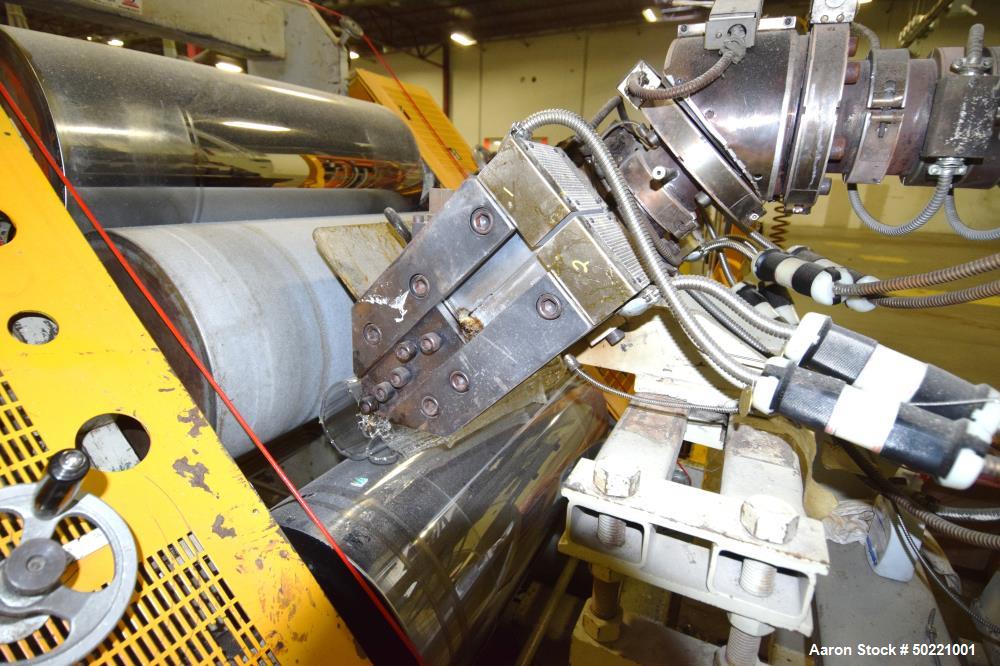

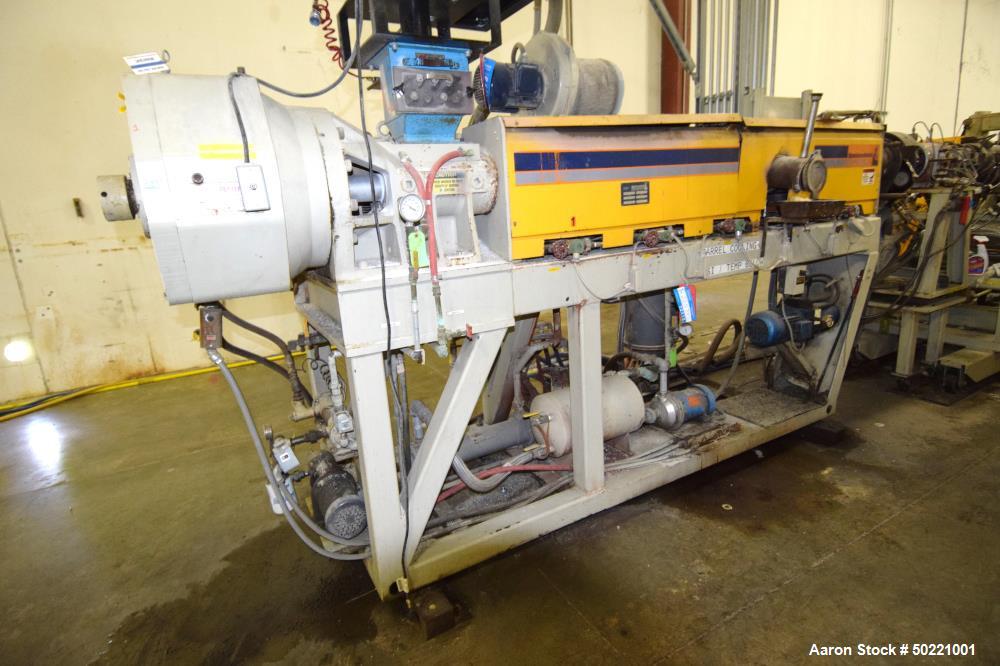

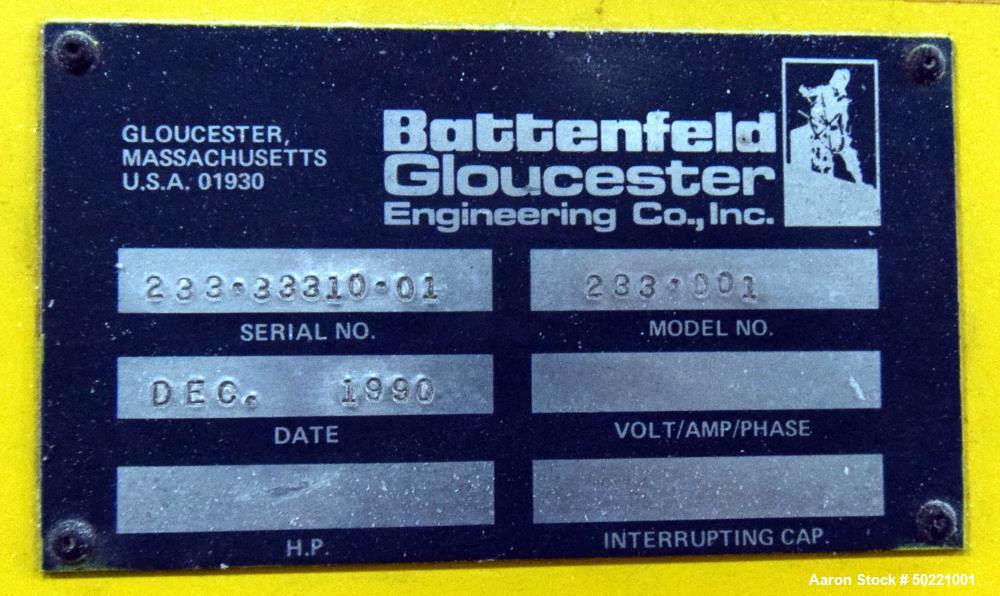

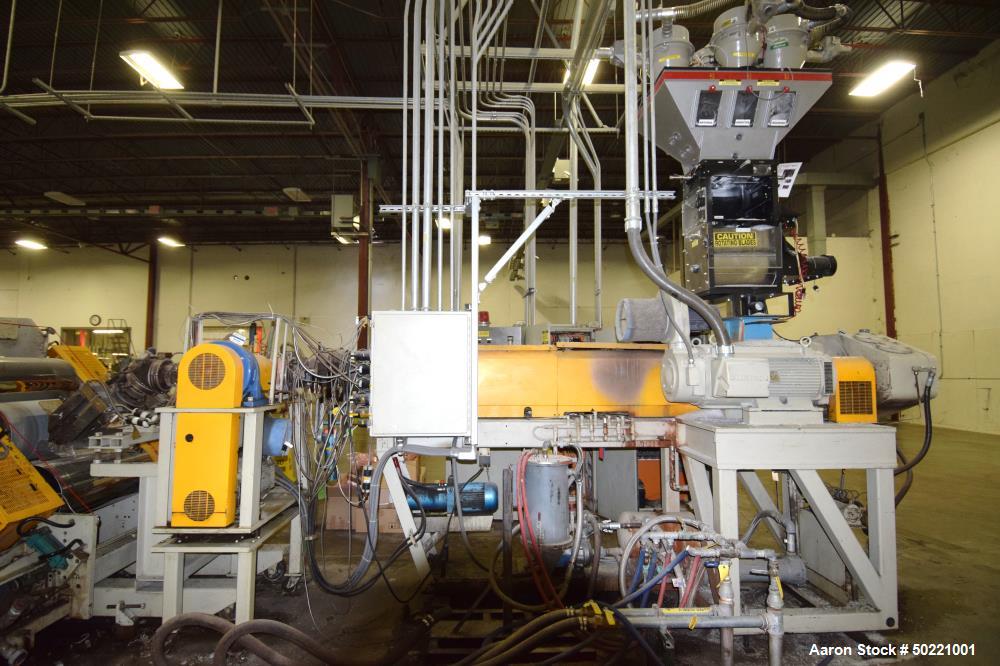

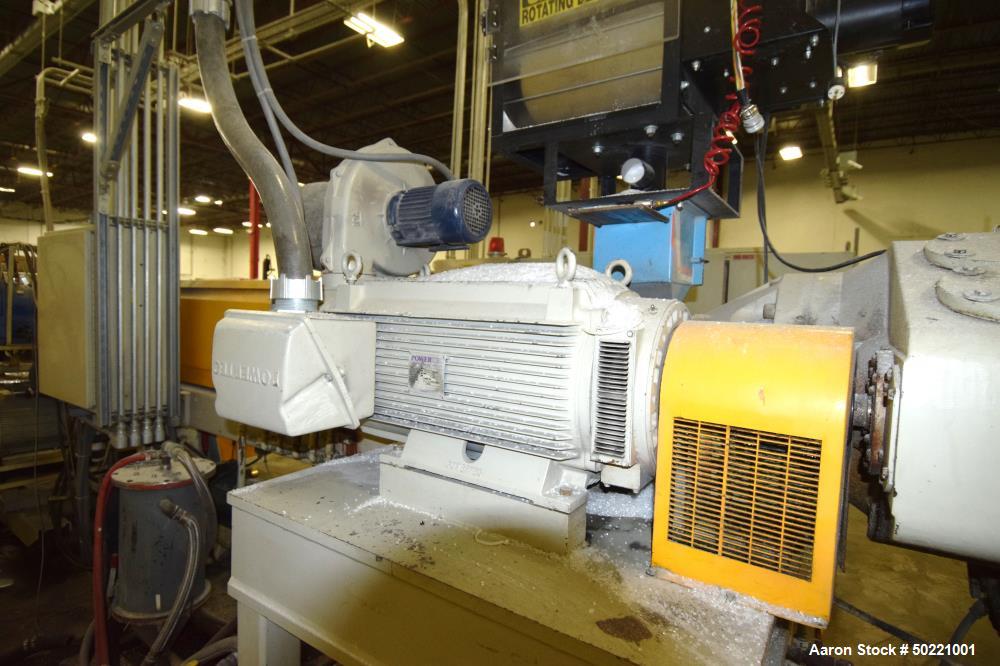

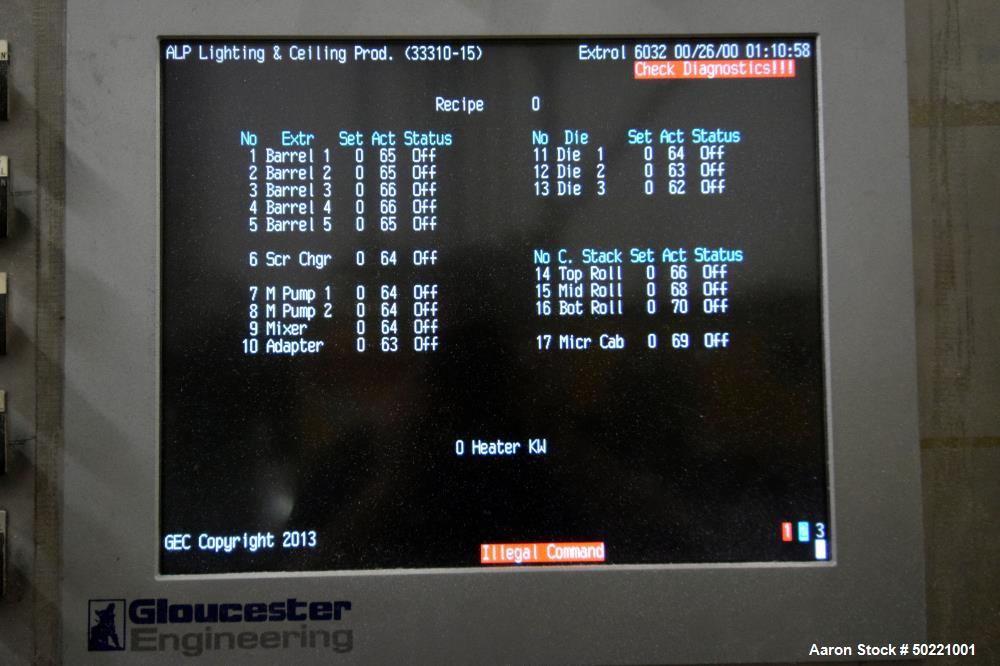

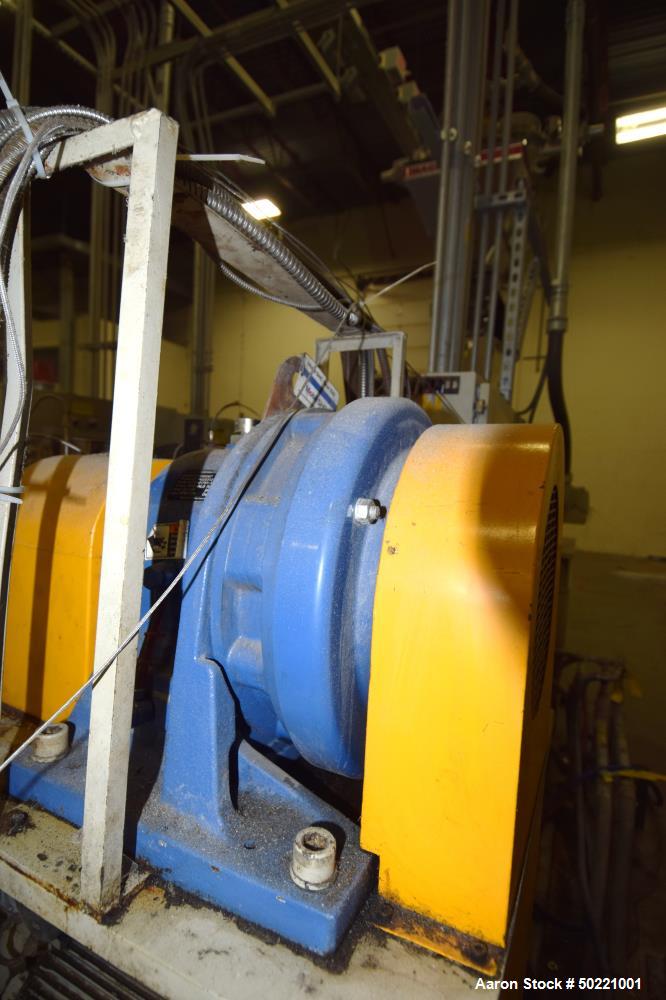

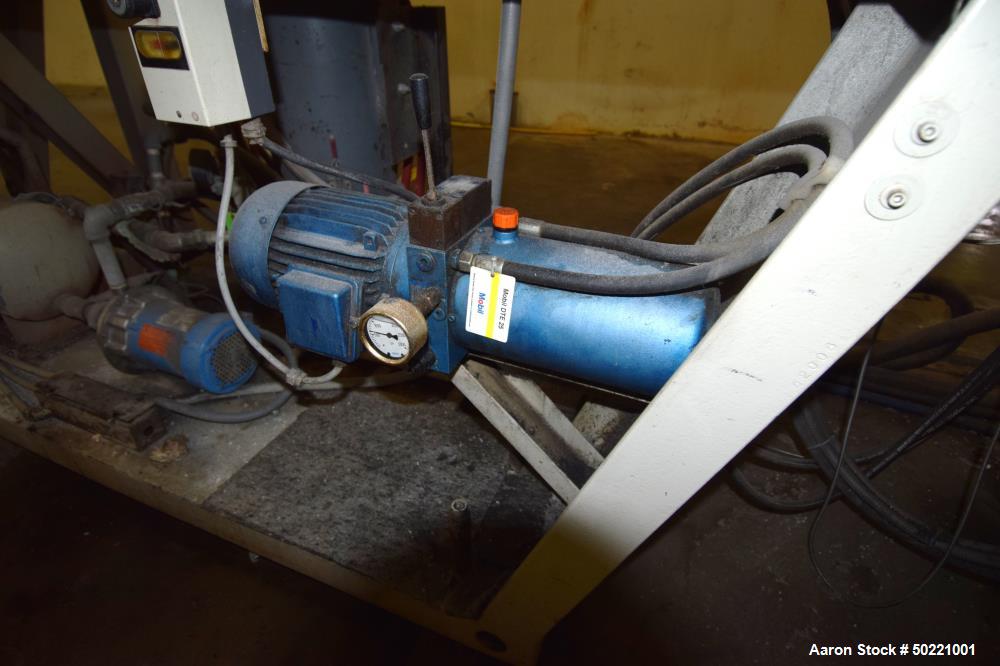

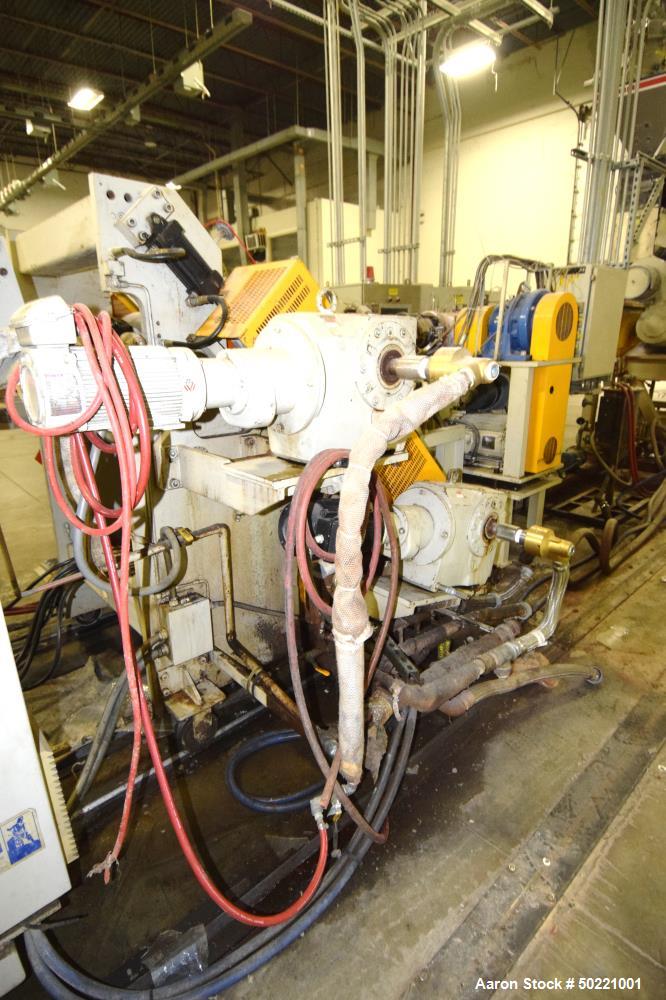

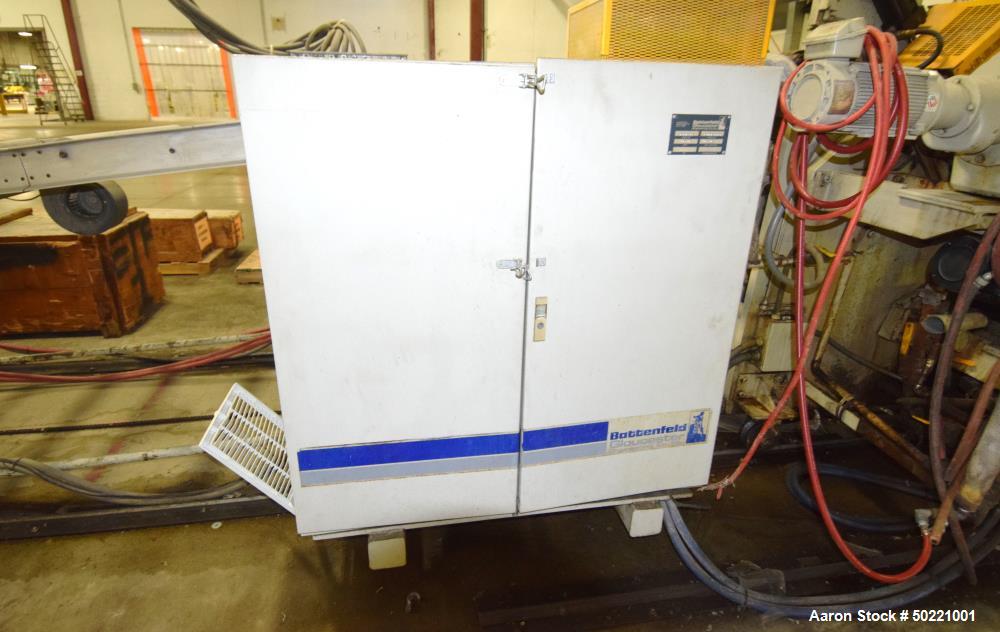

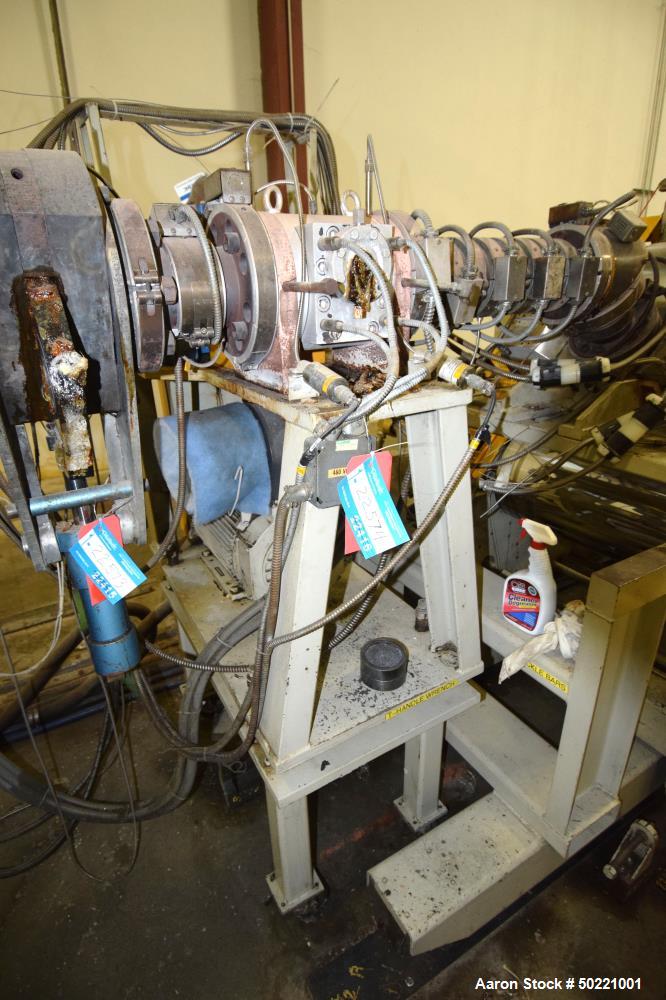

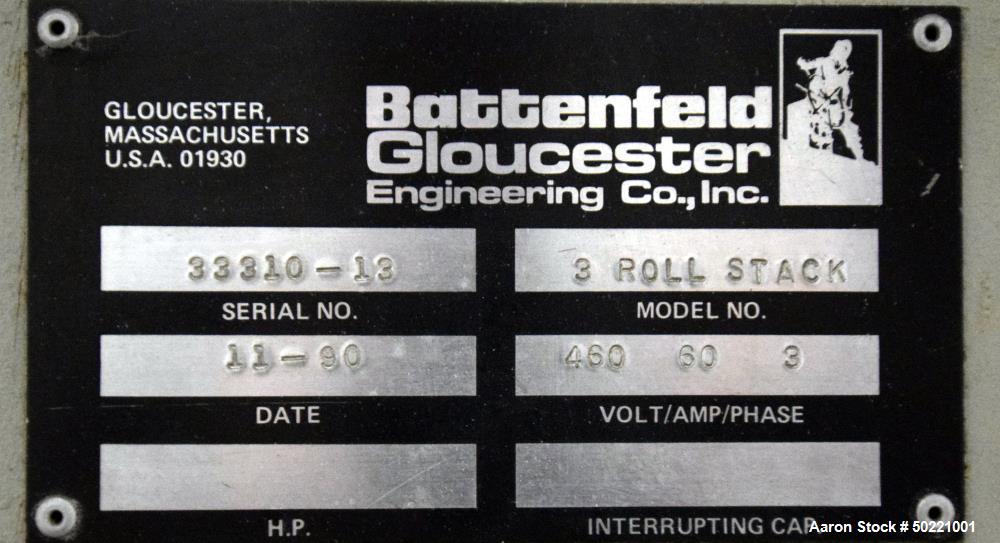

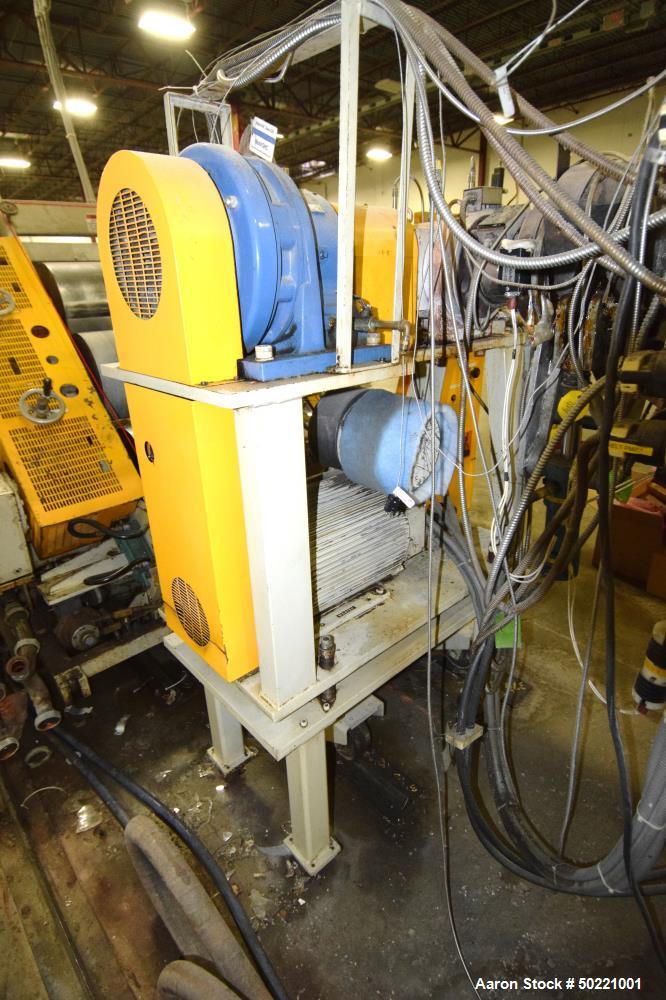

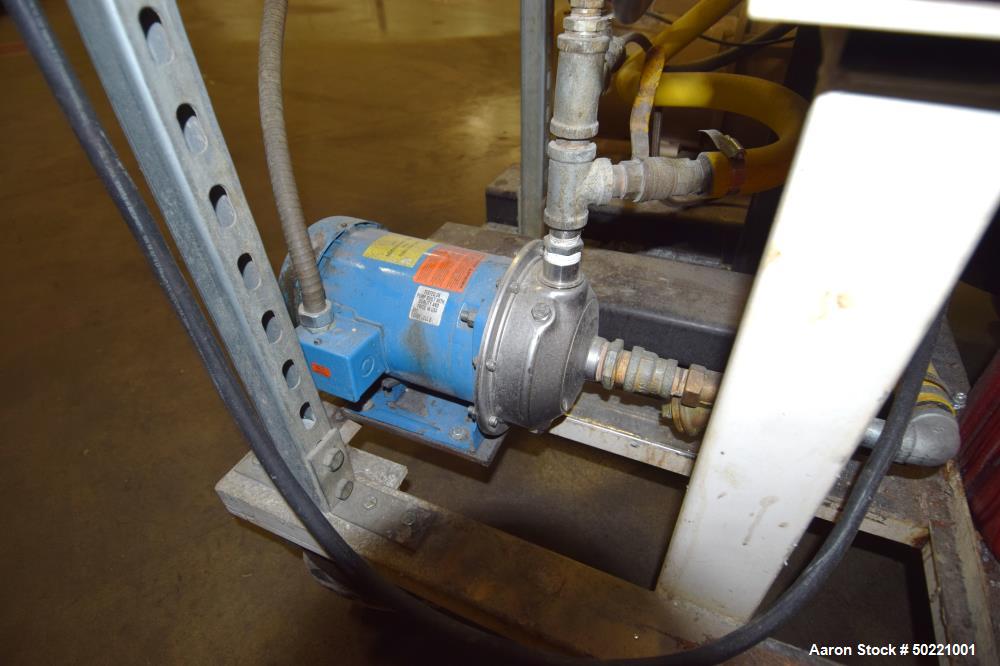

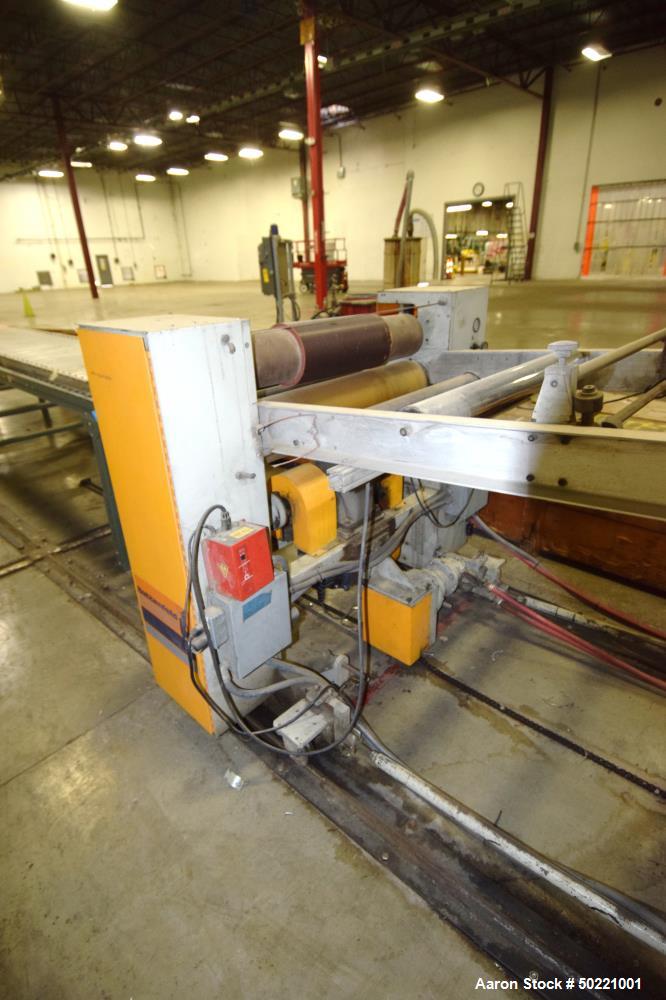

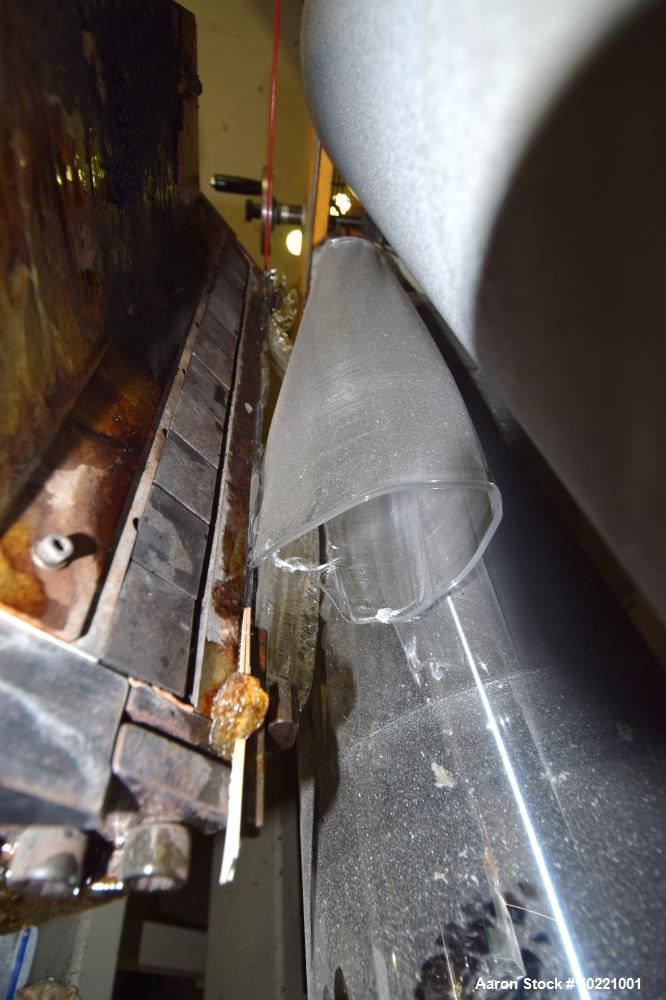

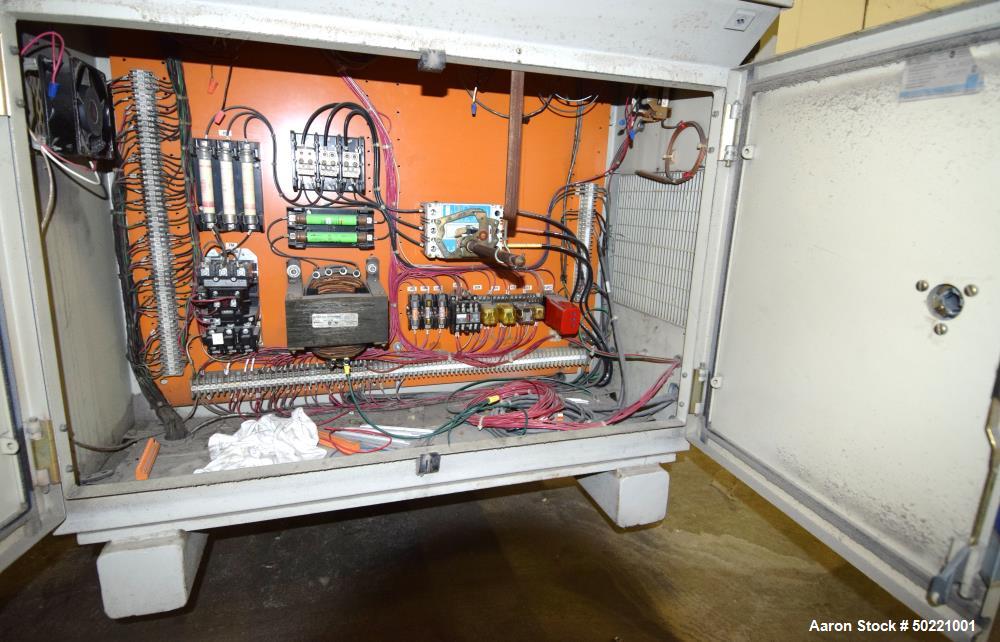

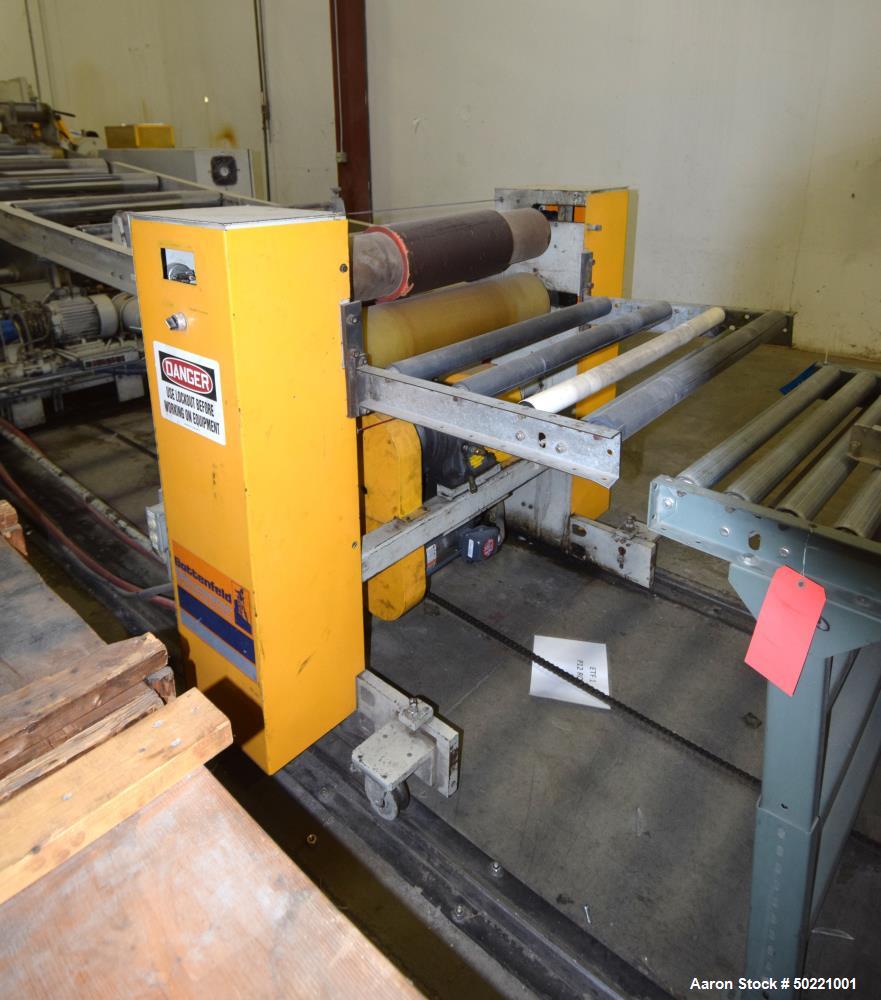

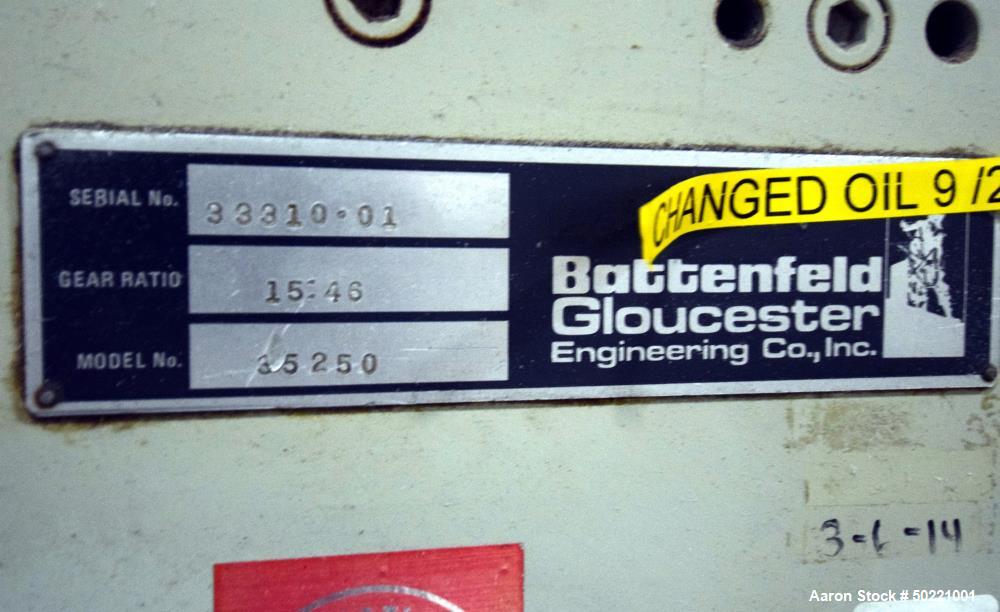

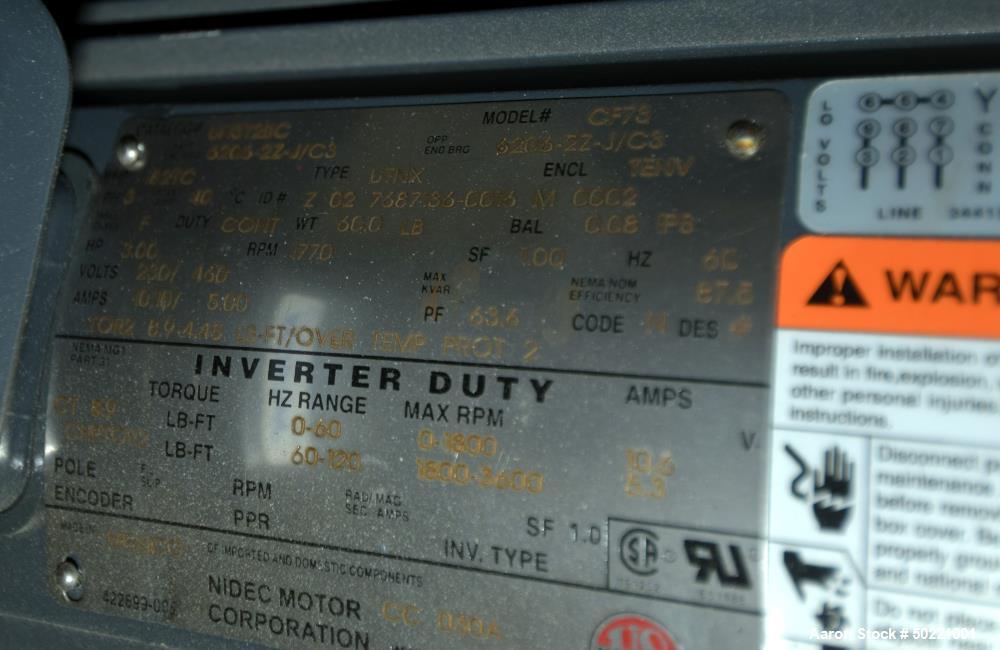

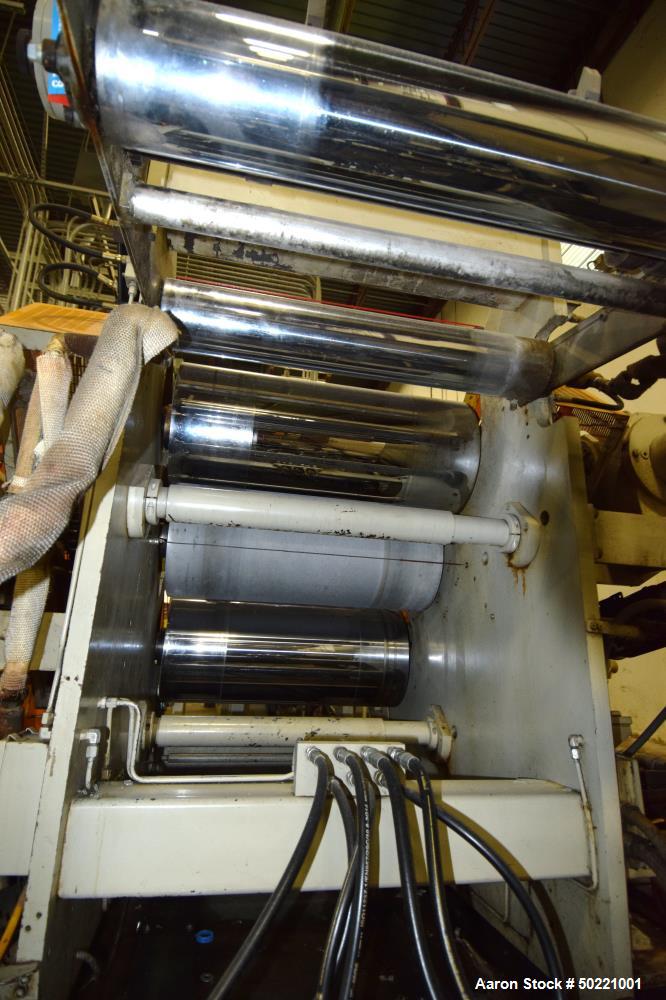

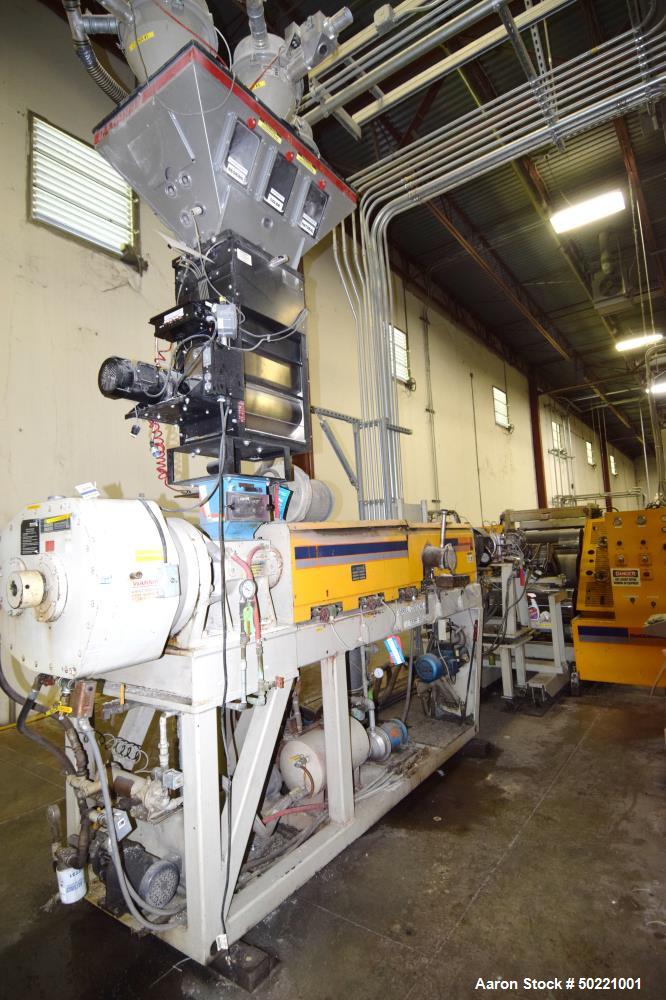

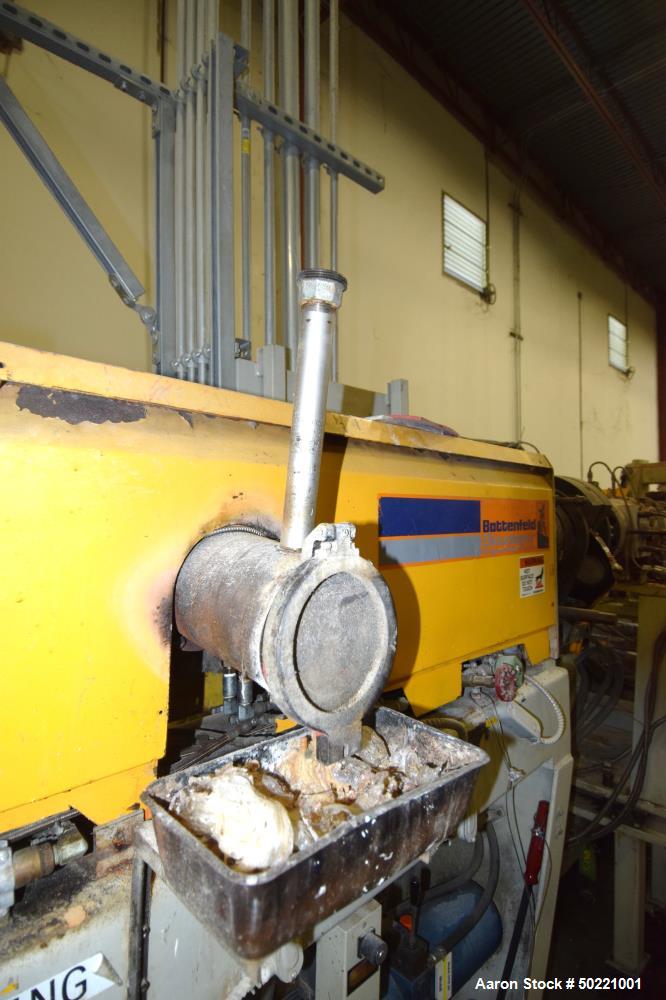

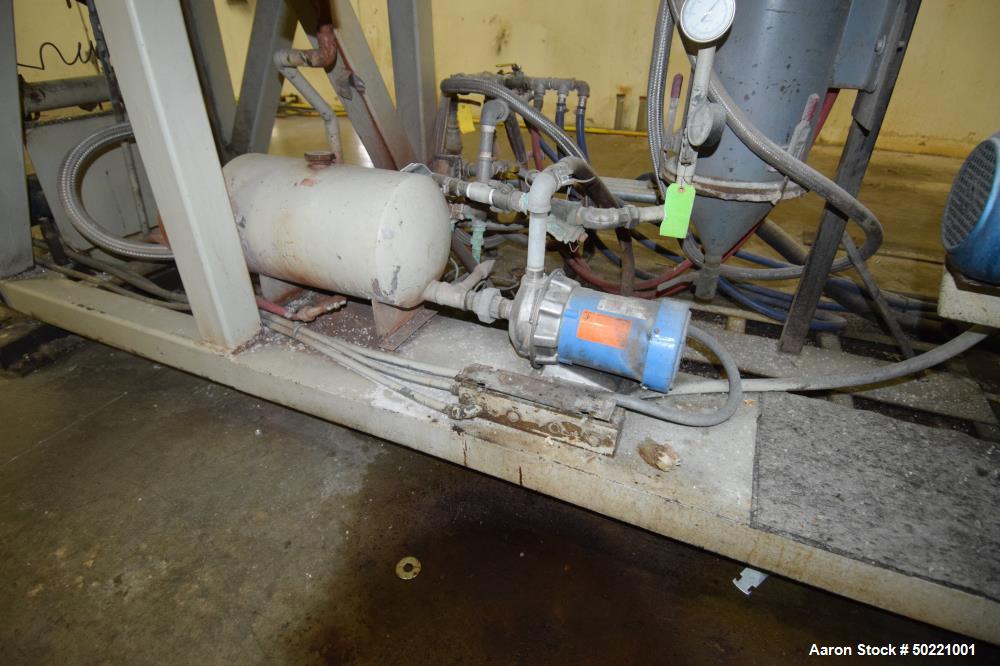

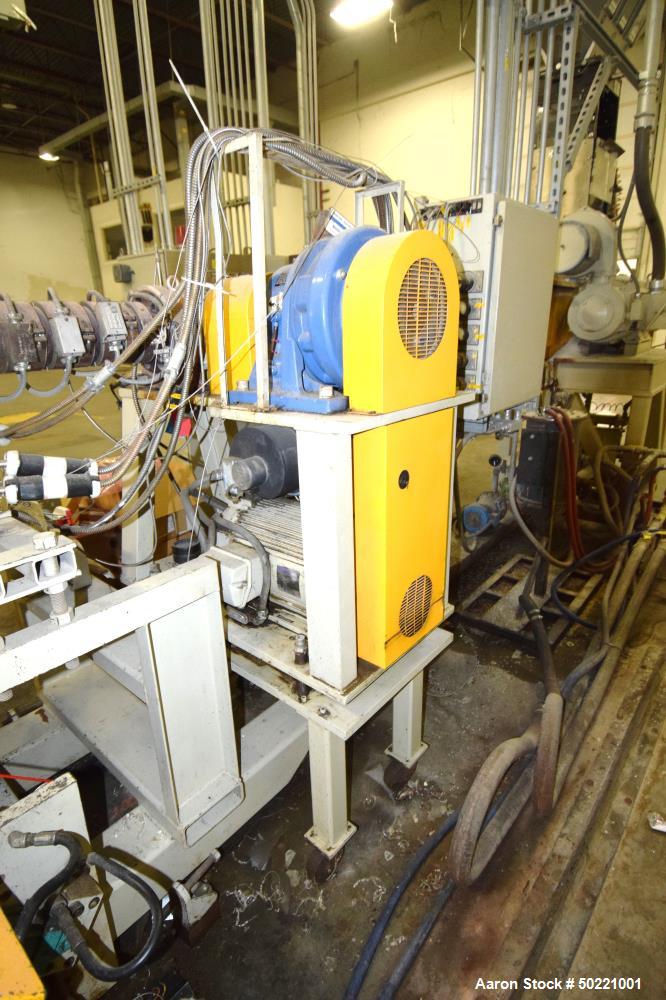

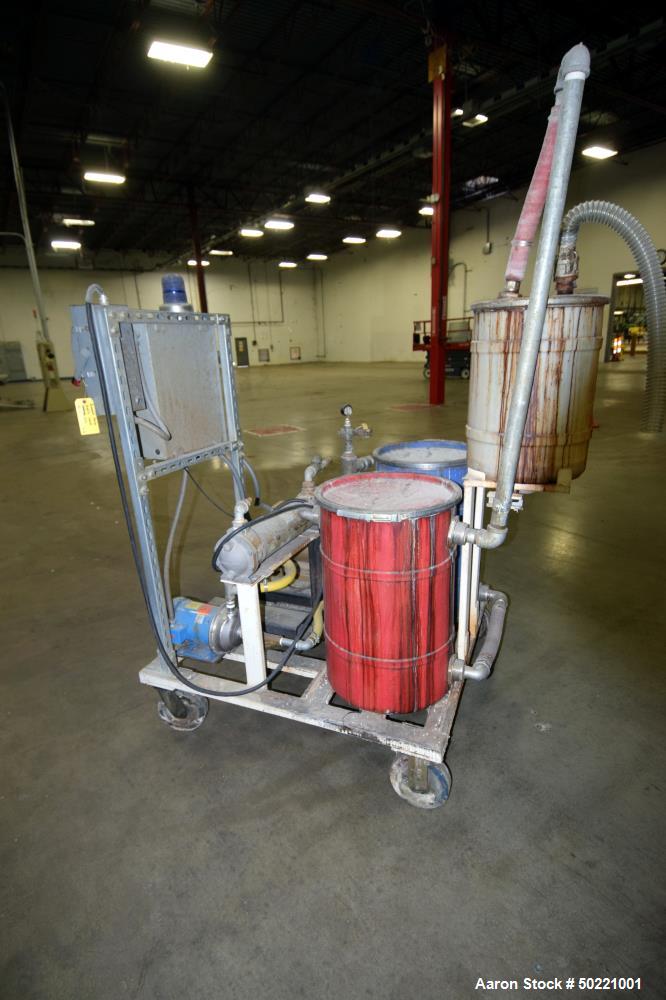

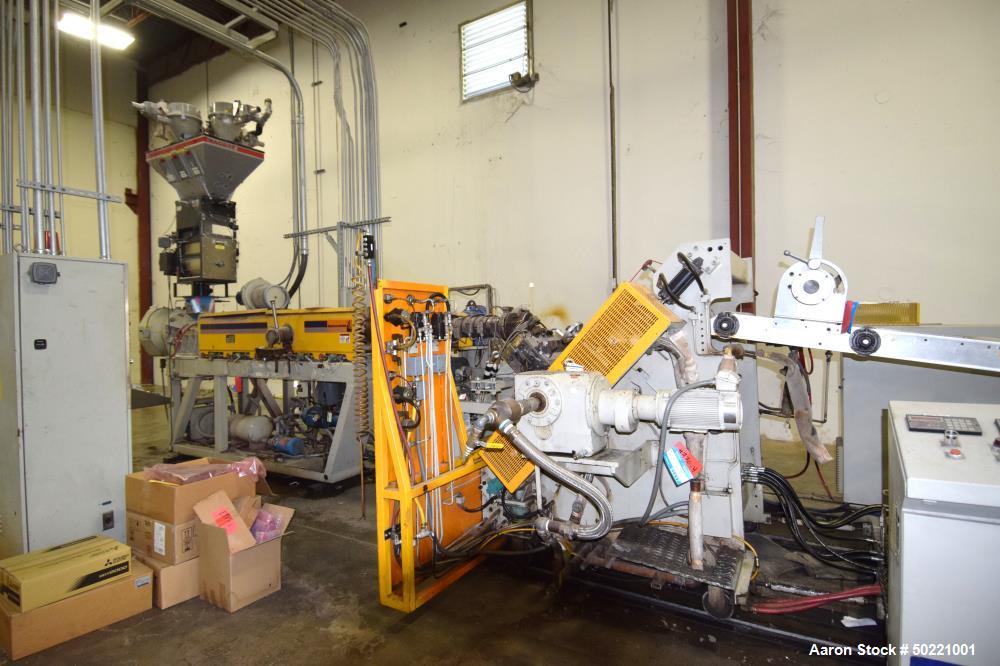

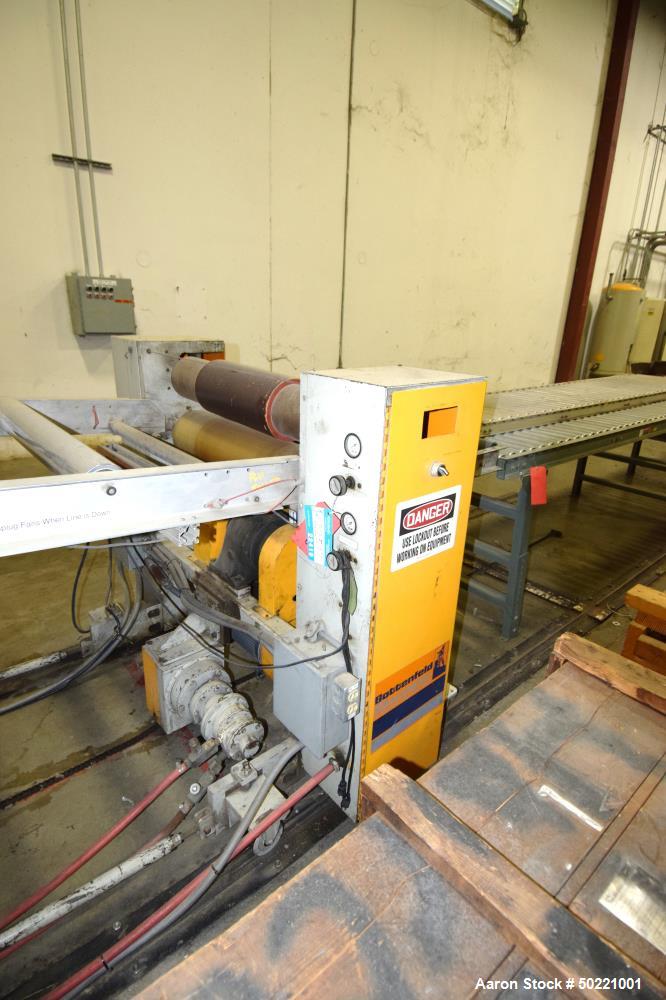

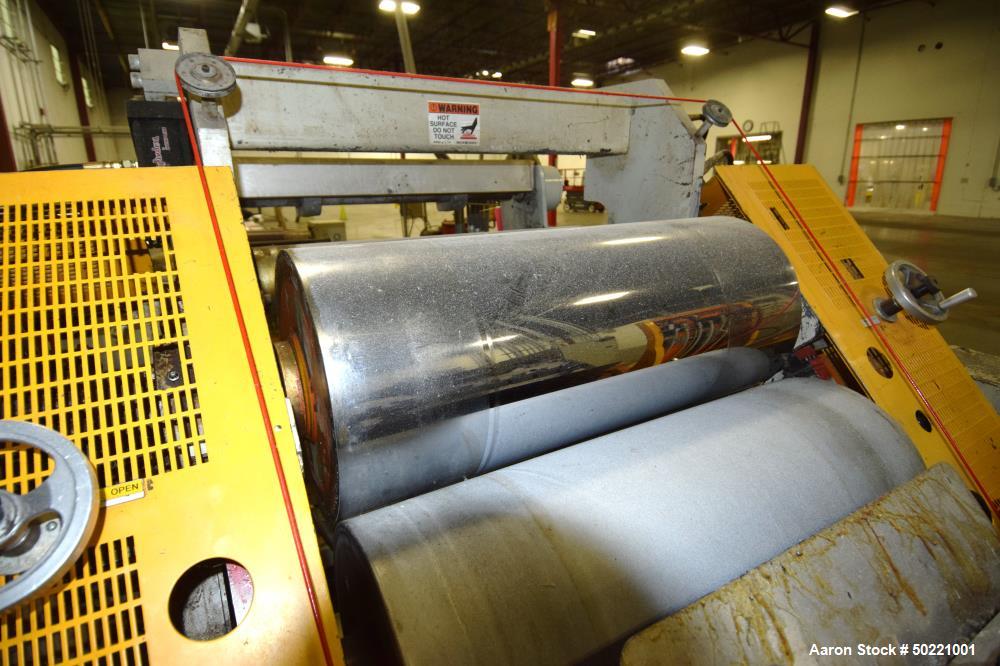

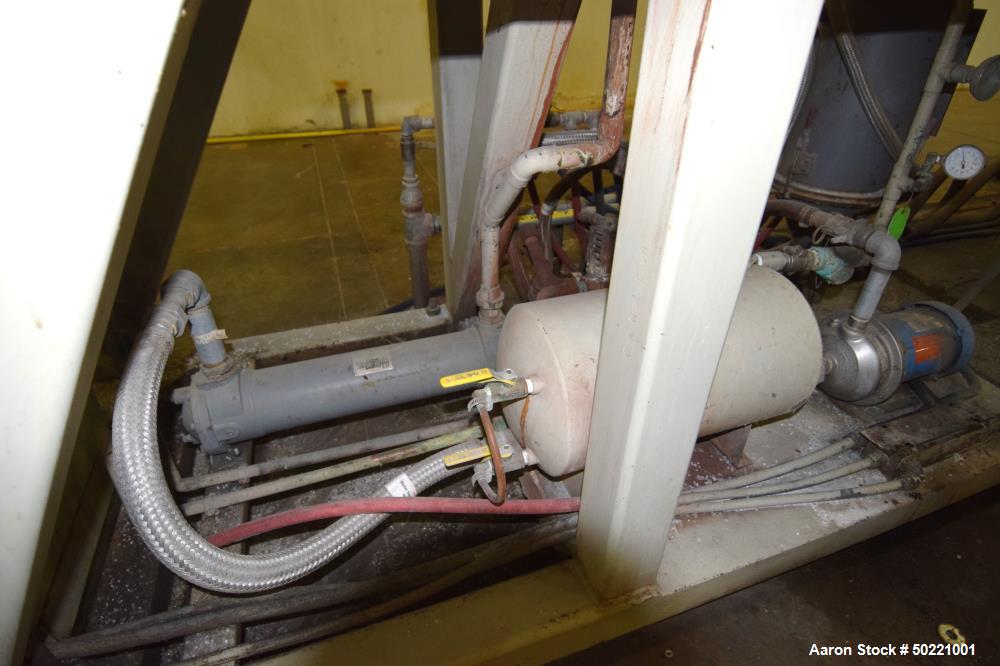

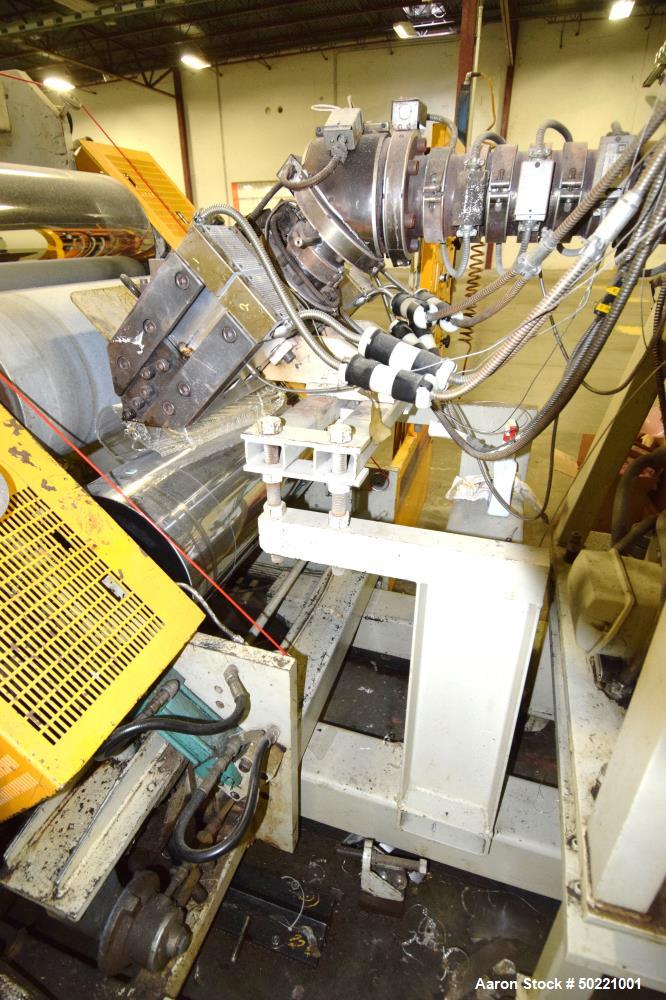

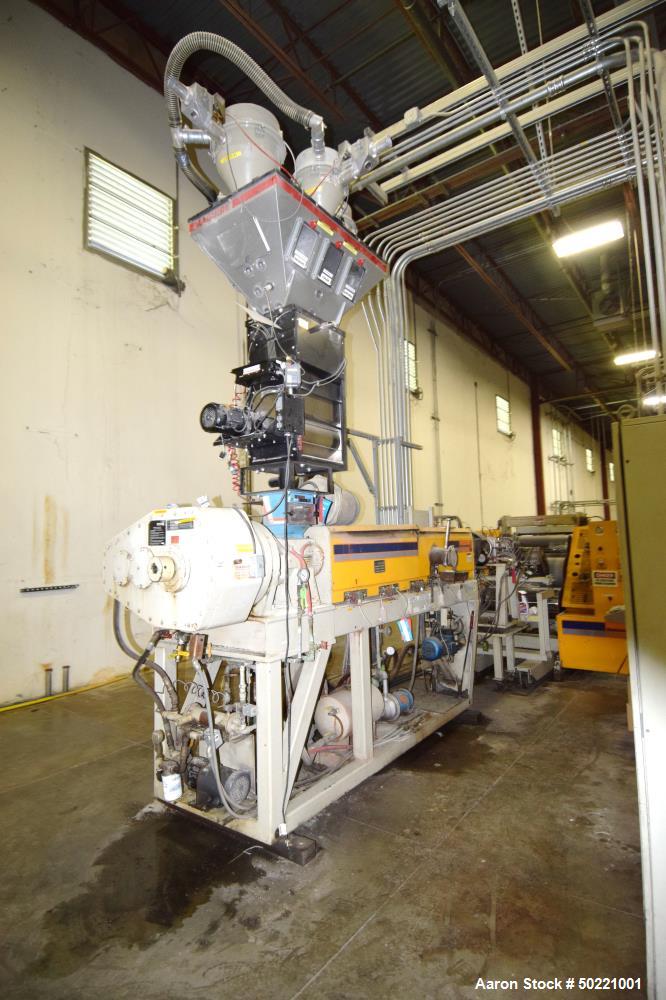

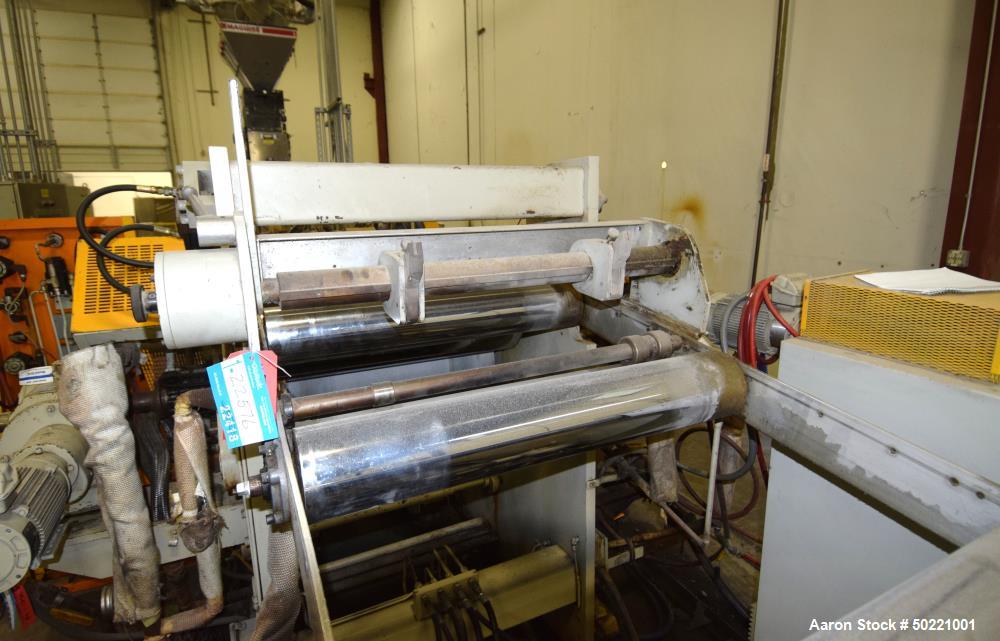

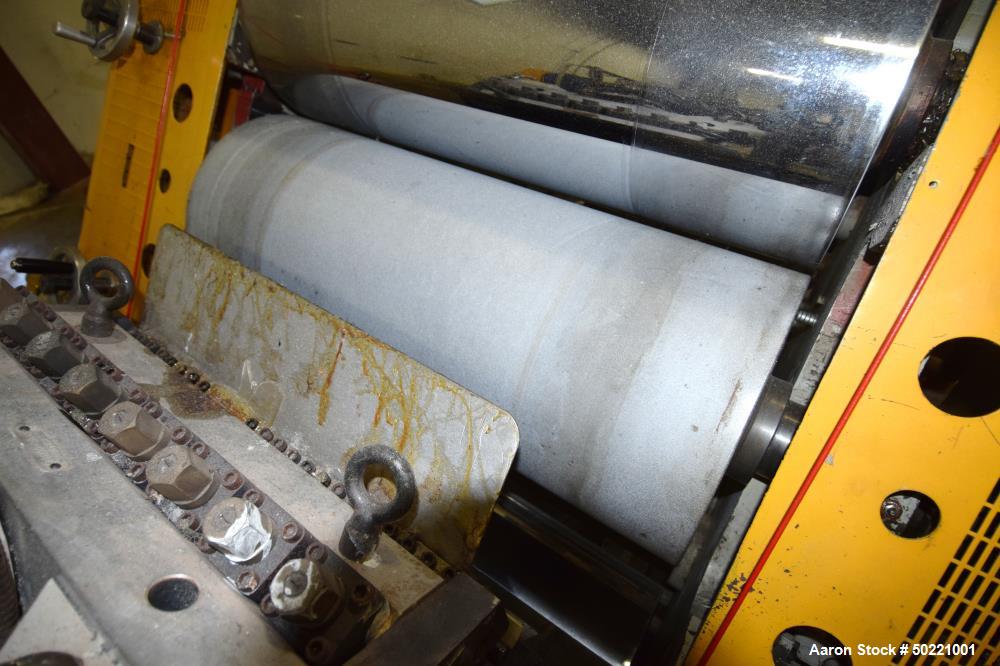

Used- Battenfeld Gloucester 36" Wide Inclined Sheet Extrusion Line, New 1990. Consisting of the following: - 3.5" Gloucester 30/1 L/D vented Extruder, Model 35250, Serial # 33310-01. Extruder is driven by a 150 hp DC motor, direct connected to a 15.46/1 gearbox. Has a 3.5" Gneub hydraulically actuated screen changer including hydraulic pumping system and a temperature control panel. Has electrically heated water cooled barrel, water cooled feed throat and pump and heat exchanger for gearbox cooling. Includes closed loop water cooling system for extruder barrel and a Dekker, Titan series Model 3V0100D-MA3-SGL, singel stage liquid ring vacuum pump with 5.5KW motor, 100 ACFM for the extruder vent. -Downstream includes Maag 56/56 melt pump Serial # 8330 63034/2 with approximately 10 hp motor, 24" flex lip die with 45 degree restrictor bar and 30-45 degree down angle adapter. - 3 roll chill roll stack is a hydraulically loaded Battenfeld-Gloucester inclined style with individually driven 36" wide x 16" diameter rolls. Includes hydraulic pump for roll pressure. Top and bottom roll are polished chrome plated while center roll is a matte finish. Includes (3) Sterling temperature control units, cooling conveyor with edge trim razor slitting station and pull roll stand. - Includes (2) spare chrome rolls, (2) spare rubber rolls and (2) spare damaged chill rolls.
