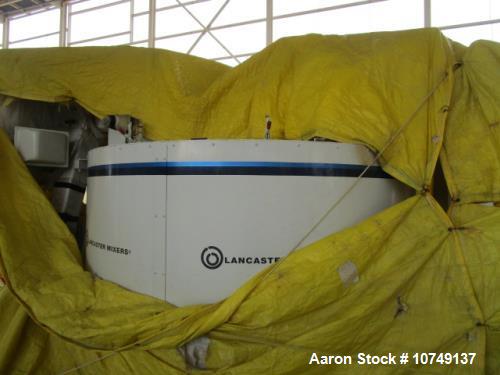

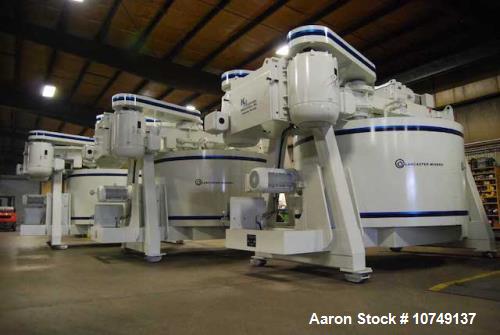

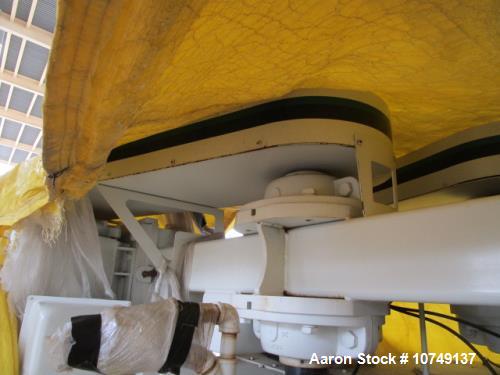

Lancaster K-8 High Intensity Mixer, Unused and Uninstalled. Dual Rotor High Intensity Mixer

Description:

The Lancaster K-8 High Intensity Mixer is a dual-rotor high-speed industrial mixer, designed for efficient and precise high-intensity mixing of various materials, including damp sulfur mixes, powders, and bulk solids. This mixer combines clockwise pan rotation with a counterclockwise rotating mixing plow, creating three-dimensional macro mixing streams for superior material blending.

With a maximum batch capacity of 3,000 liters (~1,680 kg of damp sulfur mix at 560 kg/m³ loose bulk density), this unit can handle high-volume processing. The mixing pan and plow drive systems ensure efficient blending with adjustable speed control.

Constructed from carbon steel with a 316 stainless steel liner, this mixer is built for durability and sanitary compliance in various industrial applications.

Specifications:

• Mixer Type: Dual Rotor High Intensity Mixer
• Batch Capacity: 3,000 liters (~1,680 kg of damp sulfur mix at 560 kg/m³ bulk density)
• Working Capacity: 105 cubic feet (~10,500 lbs at 100 lbs/cu ft material density)

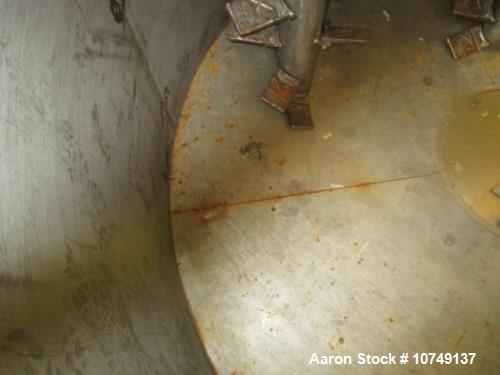

• Construction Material: Carbon Steel with 316 Stainless Steel Liner

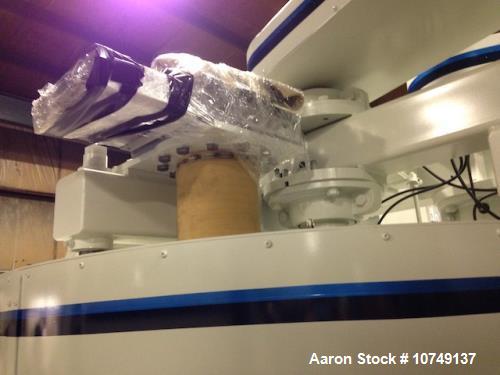

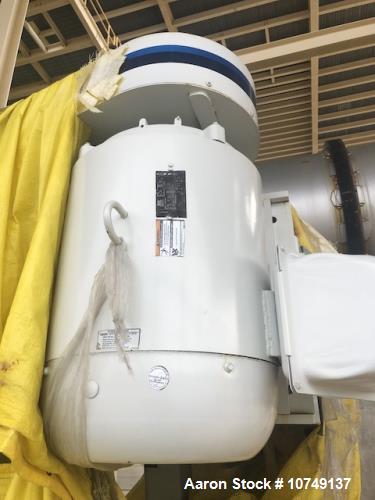

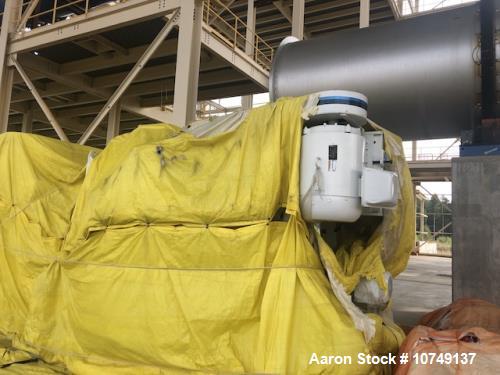

• High-Speed Rotor Drive:

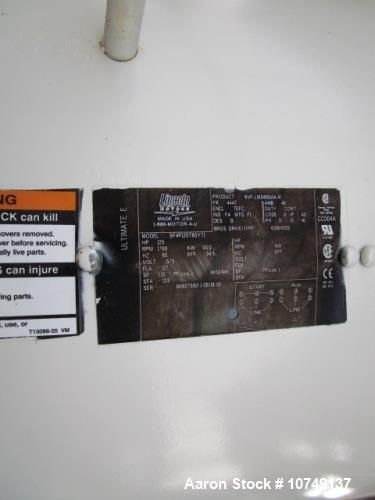

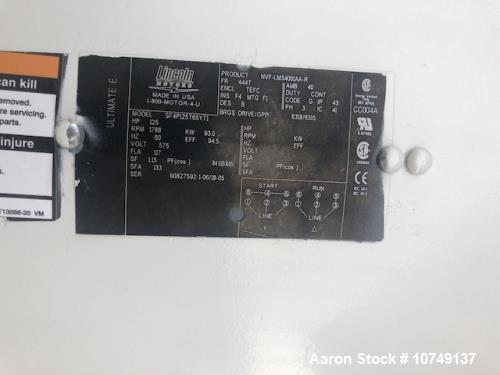

  • (2) 125 HP, 575V, 3 Phase, 60 Hz (Belt Drive)

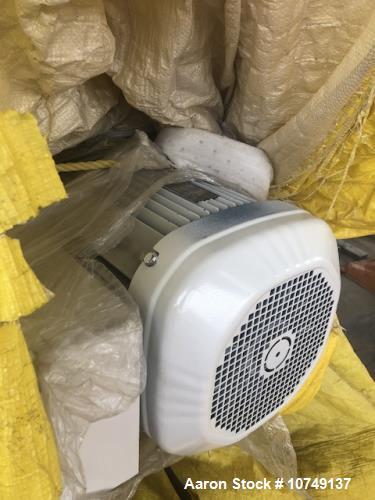

• Mixing Pan Drive:
  • 30 HP, 575V, 3 Phase, 60 Hz (Gear Type)
• Plow Drive:
  • 30 HP, 575V, 3 Phase, 60 Hz (Gear Type)
• Discharge System: Bottom Hydraulically Operated Pan Discharge Valve

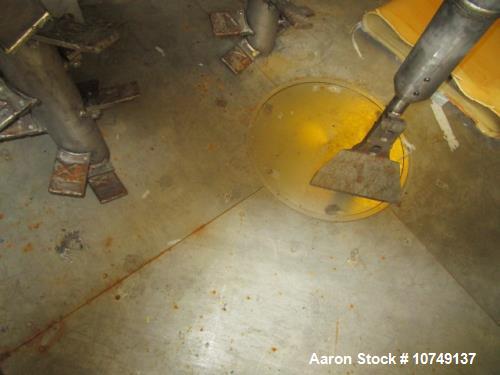

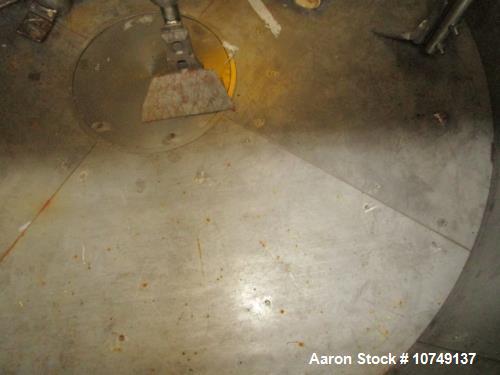

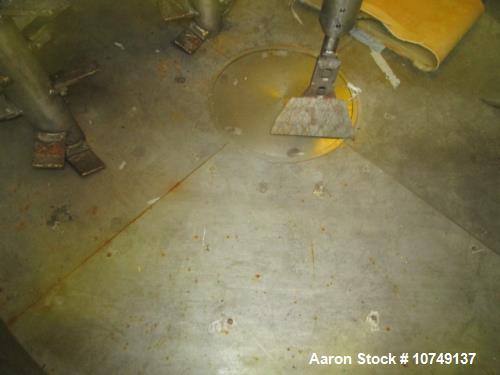

• Mixing Action: Clockwise Rotating Pan, Counterclockwise Mixing Plow, Stationary Side Scrapers, Two Counterclockwise Rotors for High-Intensity Mixing
• Dimensions:
  • Height: 9'7 3/8"
  • Length: 13'6"
  • Width: 8'9 1/2"
• Condition: Unused & Uninstalled
• Sold As-Is, Where-Is

Applications:

This Lancaster K-8 High Intensity Mixer is ideal for high-speed, intensive mixing of bulk solids and powders, making it suitable for various industrial applications, including:

• Chemical Processing – Blending of powders, granules, and industrial chemicals
• Pharmaceutical & Nutraceuticals – Homogeneous mixing of active ingredients and excipients
• Food & Beverage Processing – High-speed blending of powdered and granular food products
• Mining & Minerals Processing – Mixing of mineral concentrates and fine ores
• Construction & Building Materials – Blending of cement, mortar, and composite materials
• Battery & Energy Storage Manufacturing – Precise mixing of battery components and slurries
• Metallurgical & Powdered Metals – High-intensity blending of metal powders
• Agricultural & Fertilizer Industry – Mixing of soil additives, fertilizers, and agricultural products

What Products Would This Be Used For?

This high-intensity mixer is suitable for mixing:

• Powdered chemicals and industrial blends
• Pharmaceutical ingredients and granules
• Dry and damp sulfur mixes
• Cement, mortar, and construction materials
• Metal powders and metallurgical compounds
• Fertilizers and soil treatment materials
• Battery materials and electrode slurries
• Specialty food powders and ingredients
