Used Lanfranchi Model L3-SR18/24 High-Speed Bottle Unscrambler And OR-20P Vision Orientator With Hopper Feeder

MANUFACTURER INFORMATION

Lanfranchi manufactures high-speed bottle handling, unscrambling and orienting systems used in beverage, food, pharmaceutical, personal-care and household-product packaging lines. Lanfranchi systems are designed to automatically feed, separate, stand and orient compatible empty plastic containers before downstream filling, capping, labeling or other packaging operations.

PRODUCT DESCRIPTION

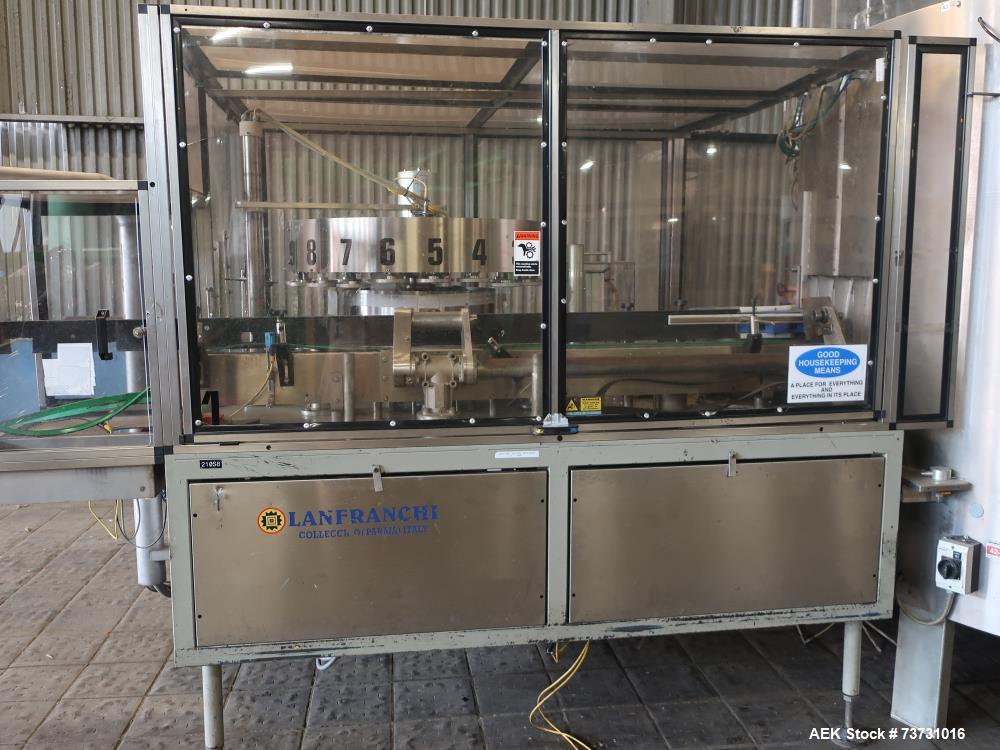

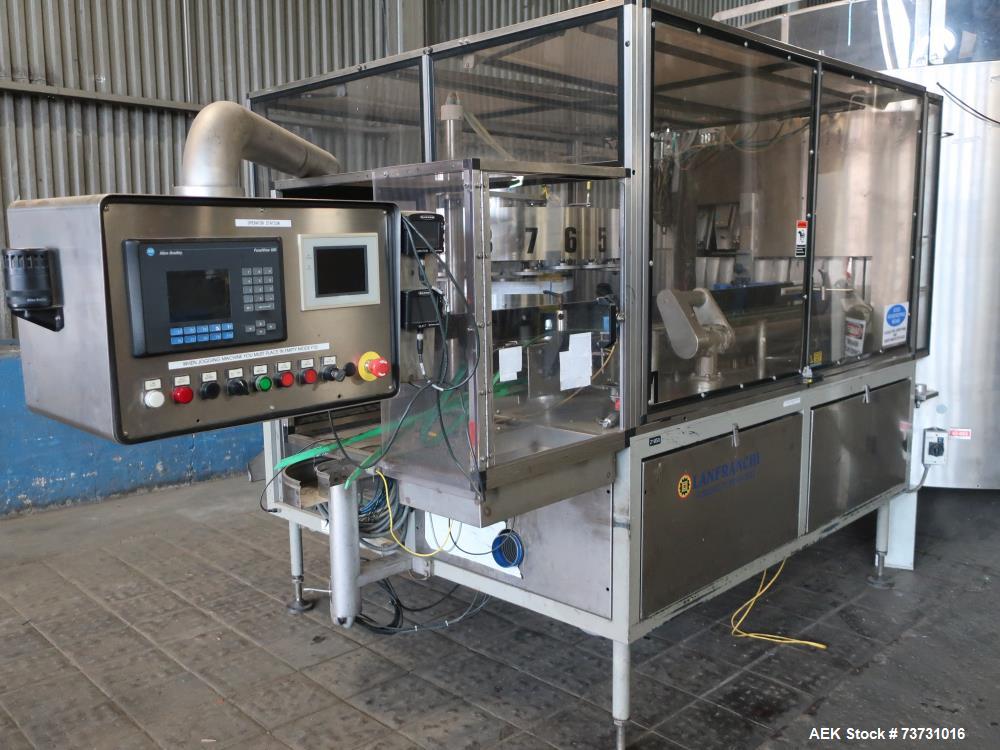

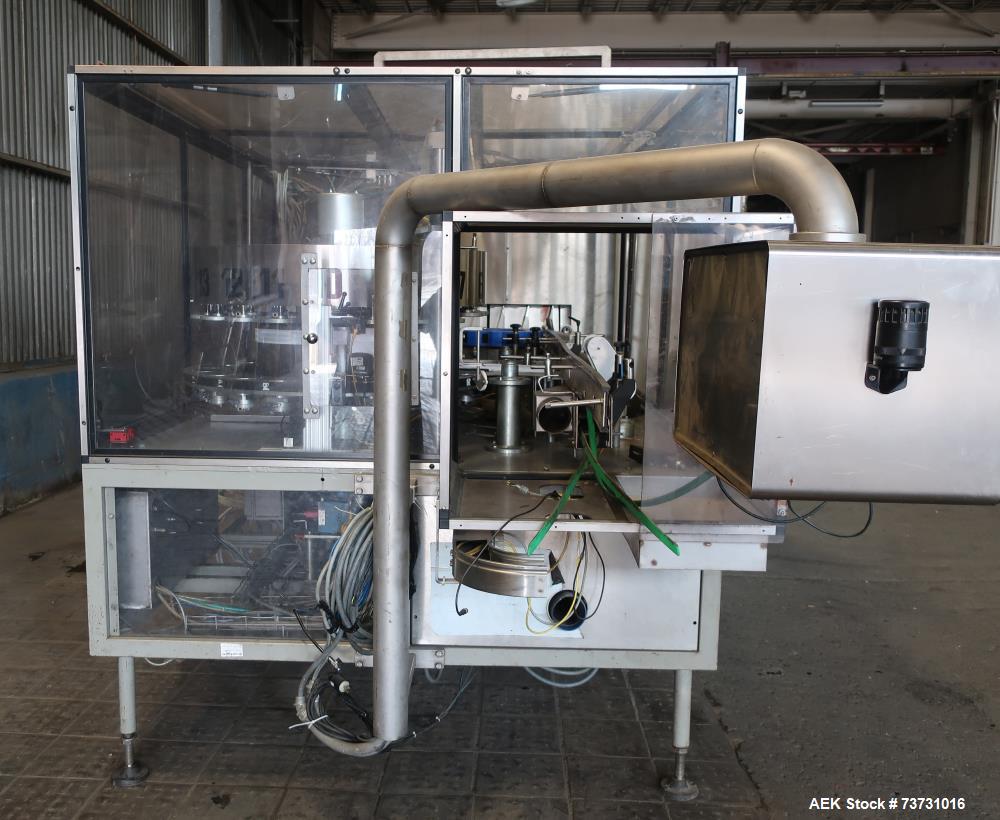

Used Lanfranchi monoblock bottle unscrambler and orientator system consisting of Model L3-SR18/24 bottle unscrambler, Model OR-20P orientator with machine vision and bottle hopper feeder. The system is capable of handling bottle sizes from approximately 200 ml to 750 ml and can operate at speeds up to approximately 450 containers per minute depending on bottle size, geometry and machine setup. The unit was last running 375 ml flask-style bottles at speeds up to approximately 320 containers per minute. A vacuum conveyor is installed at the discharge to help stabilize bottles during transfer to downstream equipment. Includes bottle-specific change parts for 200 ml and 375 ml flask containers; additional change parts would be required for other bottle configurations. Built October 2004. Serial #14398-1038-04. Unit is reported to be in good condition. Possible applications include high-speed unscrambling, orienting and feeding of compatible plastic bottles and containers for beverage, food, pharmaceutical, personal-care, household chemical and other packaging lines.

SPECIFICATIONS

• Manufacturer: Lanfranchi

• Equipment Type: Bottle unscrambler and orientator system

• Unscrambler Model: L3-SR18/24

• Orientator Model: OR-20P

• Orientation System: Machine vision

• Hopper Feeder: Included

• Bottle Size Range: Approximately 200 ml to 750 ml

• Maximum Speed: Up to approximately 450 containers per minute

• Previous Bottle Size: 375 ml flask-style bottle

• Previous Operating Speed: Up to approximately 320 containers per minute

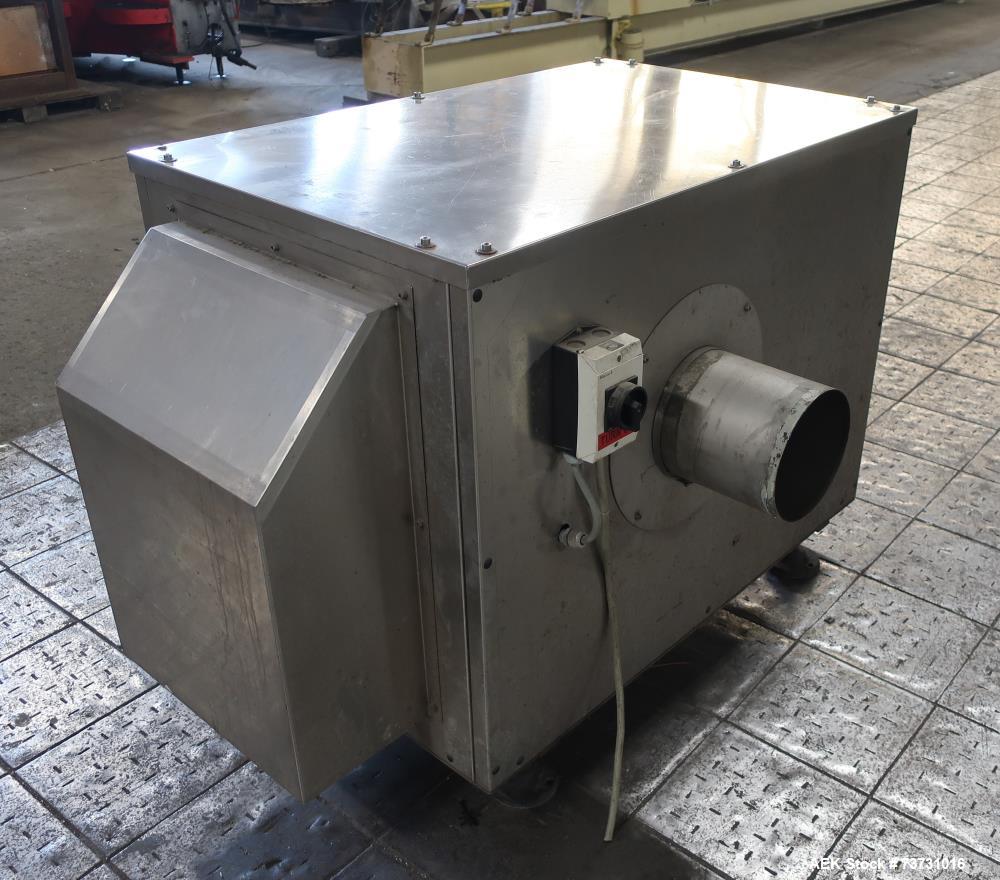

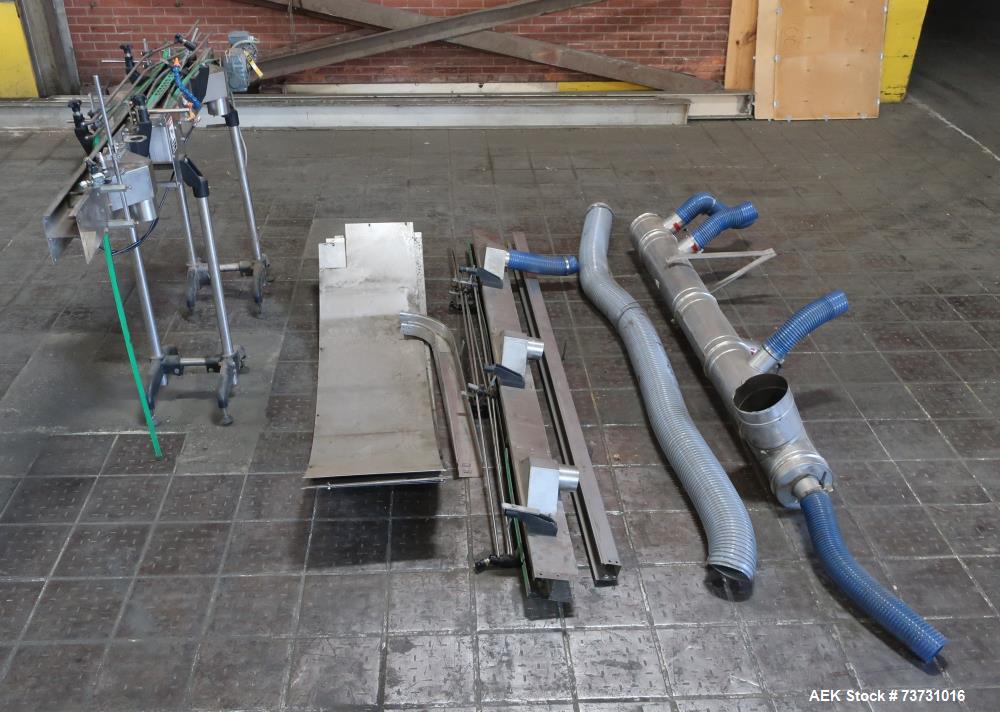

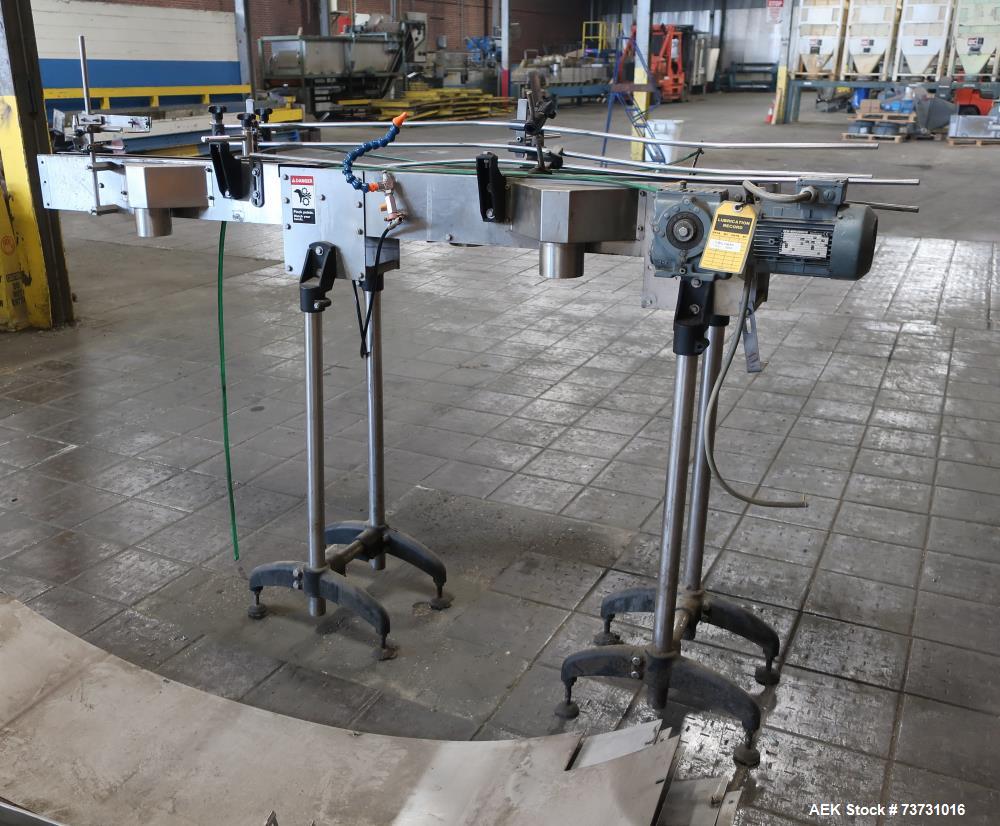

• Discharge: Vacuum conveyor

• Included Change Parts: 200 ml flask bottles

• Included Change Parts: 375 ml flask bottles

• Additional Bottle Configurations: Require additional change parts

• Build Date: October 2004

• Serial Number: 14398-1038-04

• Condition: Good

APPLICATIONS

• Bottle unscrambling

• Bottle orientation

• Empty-container feeding

• High-speed bottle handling

• Machine-vision bottle orientation

• Packaging-line bottle feeding

• Beverage bottle handling

• Pharmaceutical bottle feeding

• Food-container feeding

• Personal-care bottle handling

• Household-product packaging

• Chemical bottle handling

• Feeding bottles to fillers

• Feeding bottles to labelers

• Feeding bottles to cappers

• High-speed plastic-container transfer

SUITABLE PRODUCTS / CONTAINERS

Depending on bottle dimensions, shape and available change parts, this system may be suitable for:

• Plastic bottles

• PET bottles

• HDPE bottles

• Flask-style bottles

• 200 ml bottles

• 375 ml bottles

• Bottles up to approximately 750 ml

• Beverage bottles

• Food-product bottles

• Pharmaceutical containers

• Nutraceutical bottles

• Personal-care containers

• Household-product bottles

• Chemical containers

• Other compatible rigid plastic containers

FAQ

• WHAT DOES THIS LANFRANCHI SYSTEM DO?
  The system automatically unscrambles, orients and feeds compatible empty bottles into a packaging line.

• WHAT MODELS ARE INCLUDED?
  The system includes a Lanfranchi L3-SR18/24 bottle unscrambler and OR-20P orientator.

• DOES THE SYSTEM USE MACHINE VISION?
  Yes. The OR-20P orientator is equipped with machine vision for bottle-orientation control.

• HOW FAST CAN THE SYSTEM RUN?
  The system is capable of speeds up to approximately 450 containers per minute depending on bottle size, shape and machine configuration.

• WHAT SPEED WAS IT LAST RUNNING?
  The system was last running approximately 375 ml flask-style bottles at speeds up to about 320 containers per minute.

• WHAT BOTTLE SIZES CAN IT HANDLE?
  The stated handling range is approximately 200 ml to 750 ml, depending on bottle geometry and available change parts.

• WHAT CHANGE PARTS ARE INCLUDED?

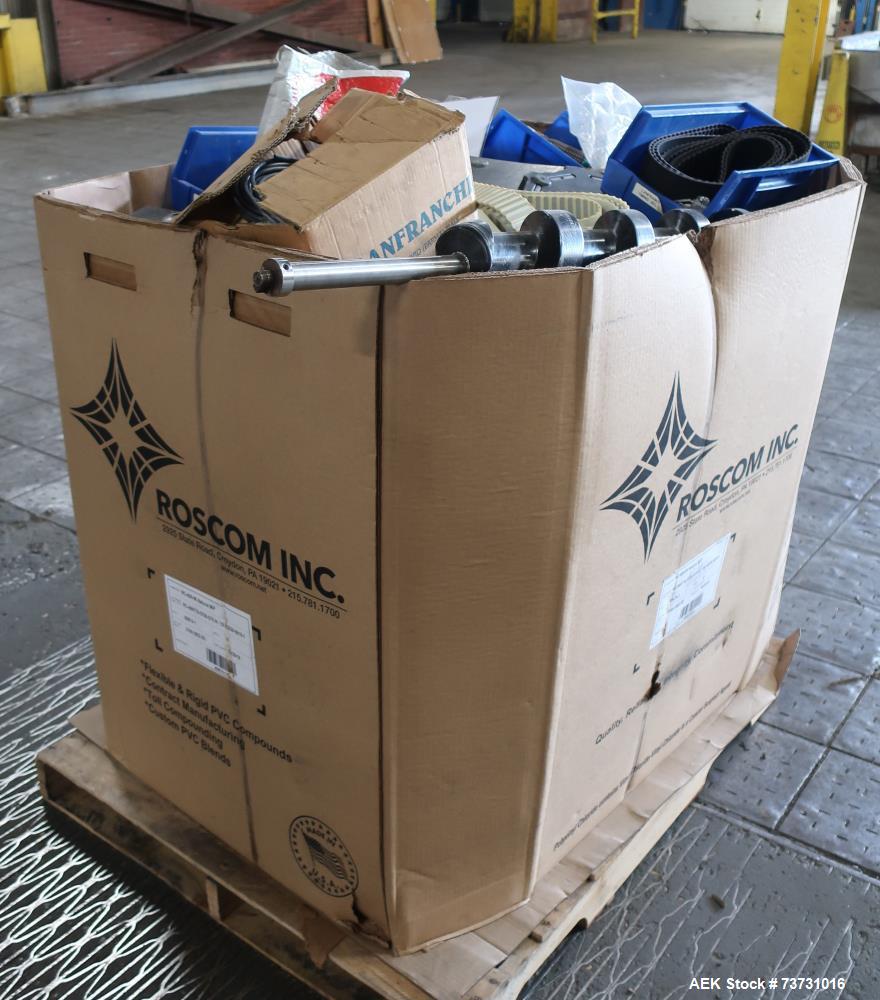

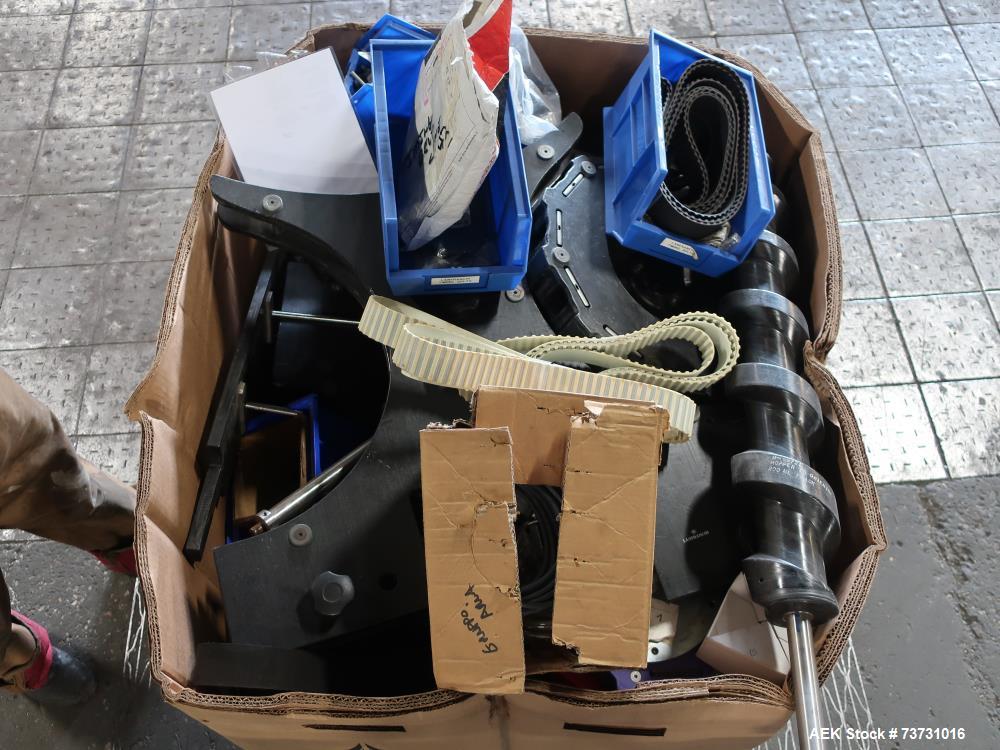

  Bottle-specific change parts are included for 200 ml and 375 ml flask containers.

• ARE CHANGE PARTS INCLUDED FOR EVERY BOTTLE SIZE?
  No. Additional change parts are required for bottle configurations other than the included 200 ml and 375 ml flask setups.

• DOES THE MACHINE INCLUDE A BOTTLE HOPPER?

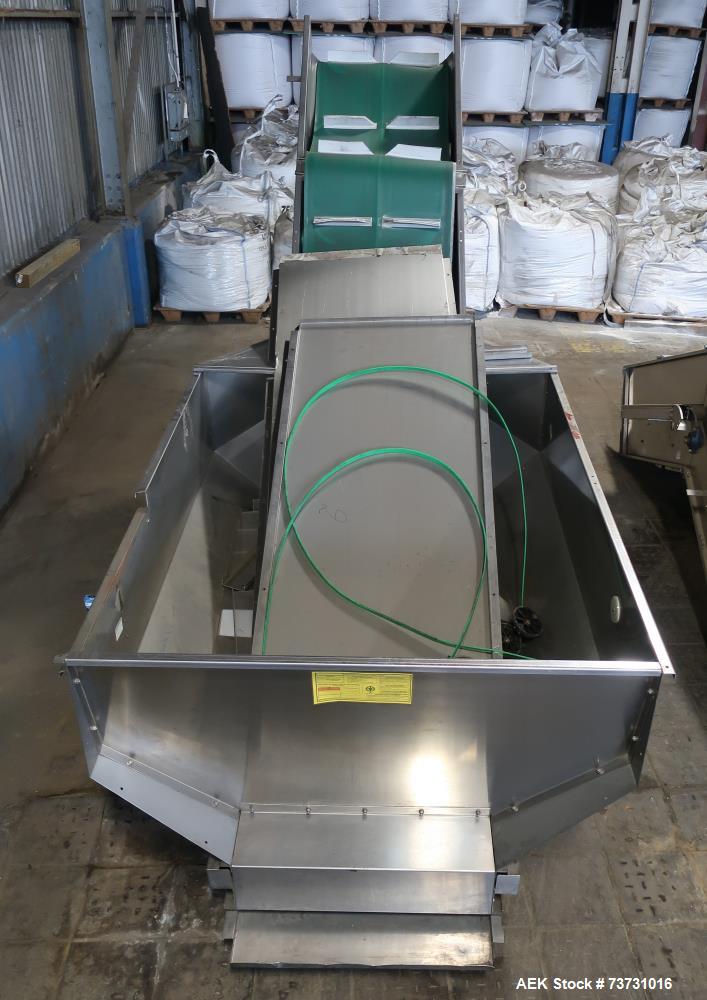

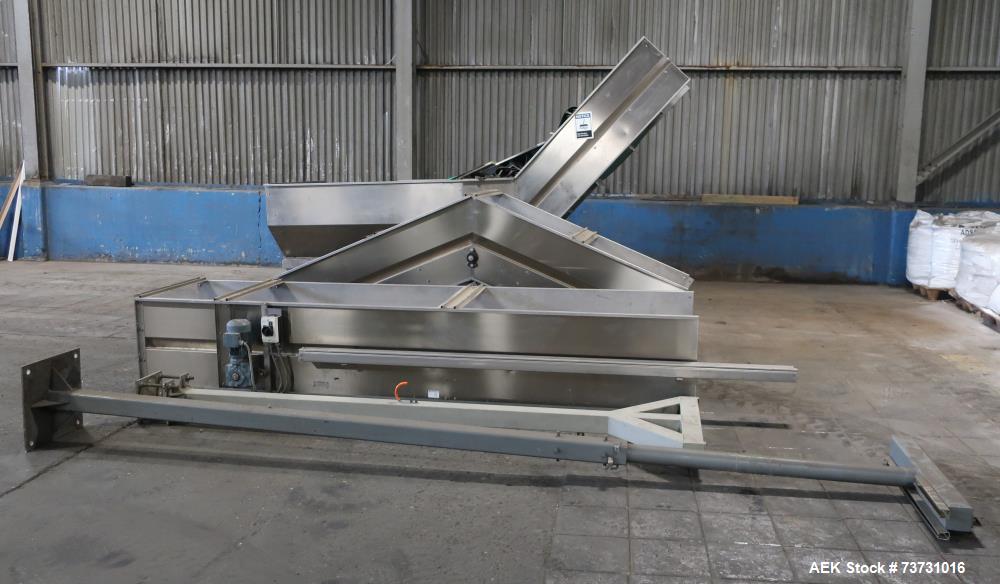

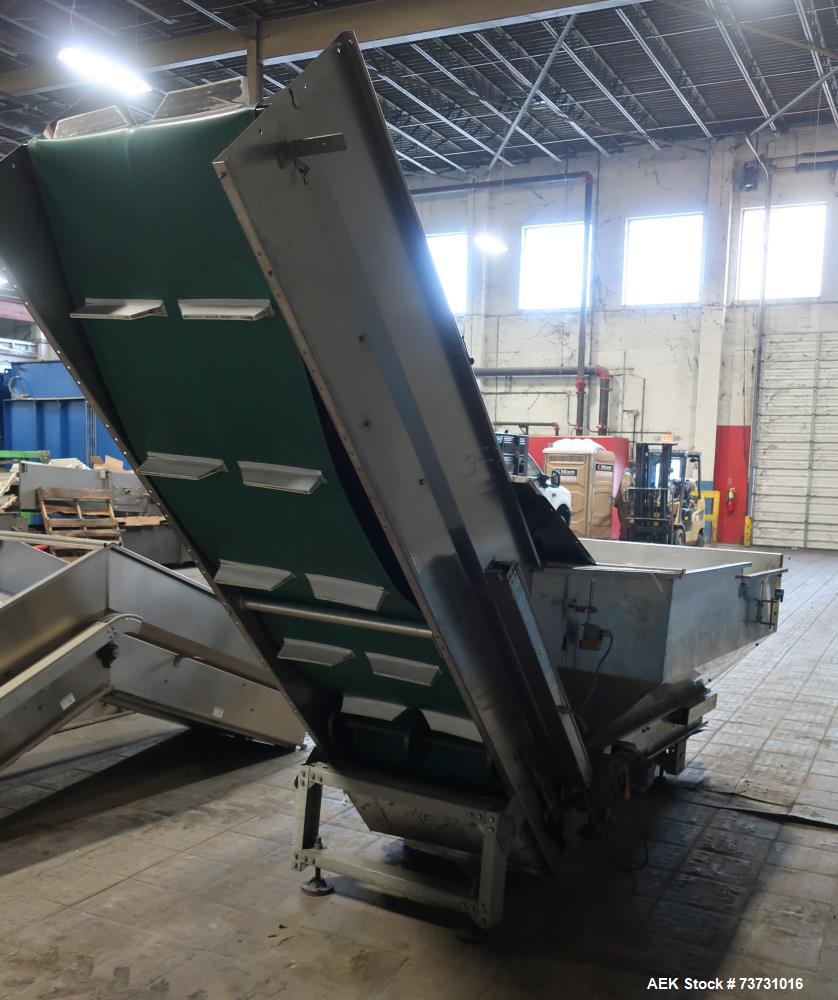

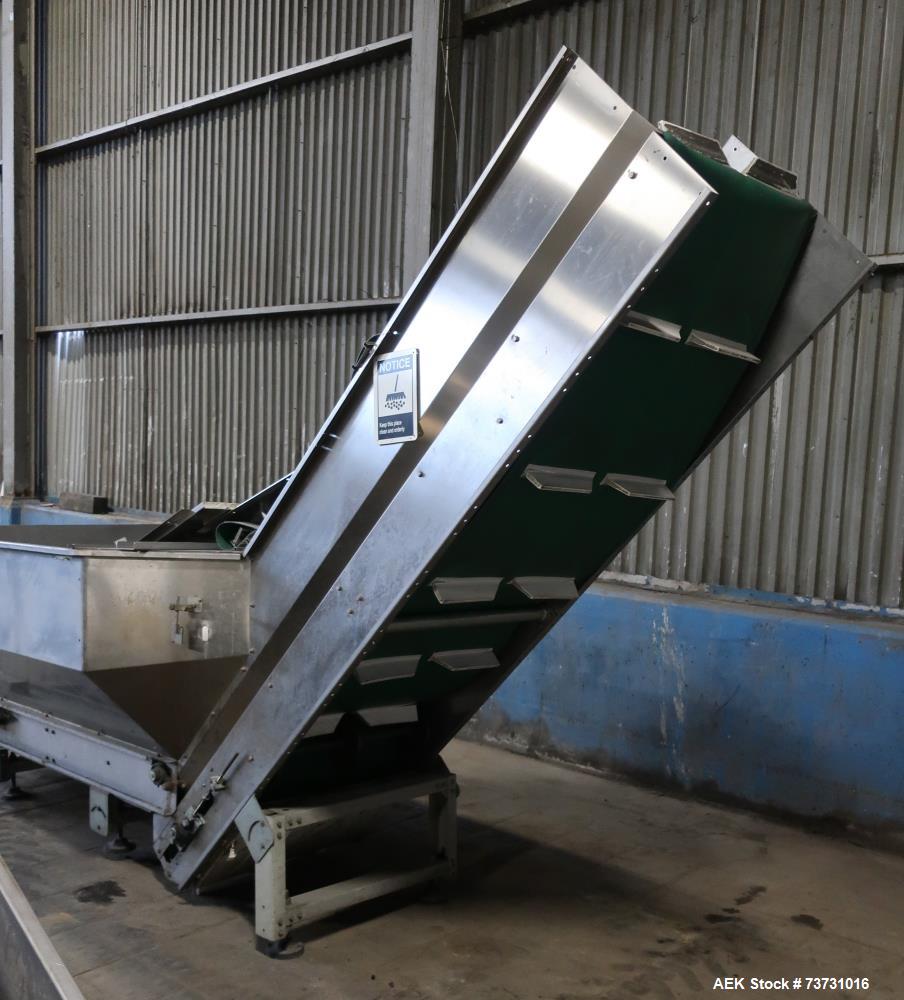

  Yes. A bottle hopper feeder is included.

• WHAT IS THE PURPOSE OF THE VACUUM CONVEYOR?
  The discharge vacuum conveyor helps stabilize bottles as they leave the system and transfer to downstream packaging equipment.

• WHEN WAS THIS MACHINE BUILT?
  The system was built in October 2004.

• CAN AARON EQUIPMENT HELP DETERMINE IF MY BOTTLES WILL RUN ON THIS SYSTEM?
  Yes. Aaron Equipment can help review your bottle dimensions, shape, material, orientation requirements and required line speed to determine whether this Lanfranchi system may be suitable and what change parts may be required.

• CAN AARON EQUIPMENT ARRANGE SHIPPING?
  Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
