Used Muller Octopus 1825B Automatic Rotary Ring Stretch Wrapper – Up to 100 Loads/Hour

Manufacturer Information

Muller / Octopus

Muller is known for automated stretch-wrapping and load-containment equipment used in warehousing, distribution, manufacturing, food and beverage, consumer goods, and other high-volume packaging operations. The Octopus rotary ring stretch wrapper design rotates the film carriage around a stationary pallet load, making it well suited for automatic end-of-line packaging systems.

The Octopus 1825B is designed for high-throughput automatic pallet wrapping and load stabilization prior to storage, handling, or shipment.

Description

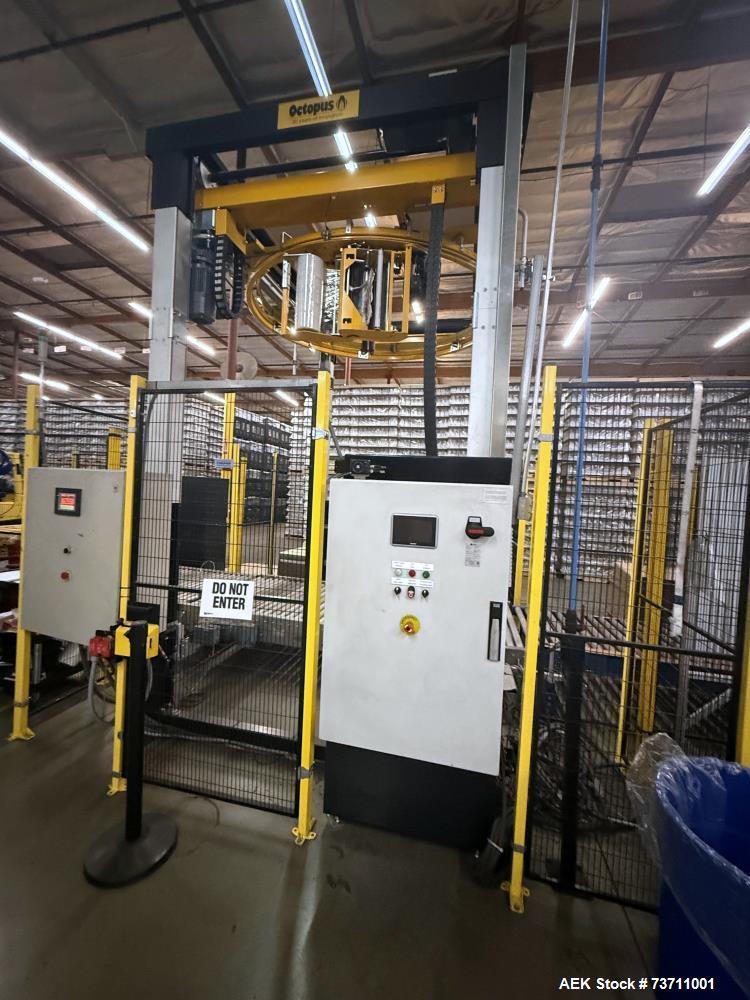

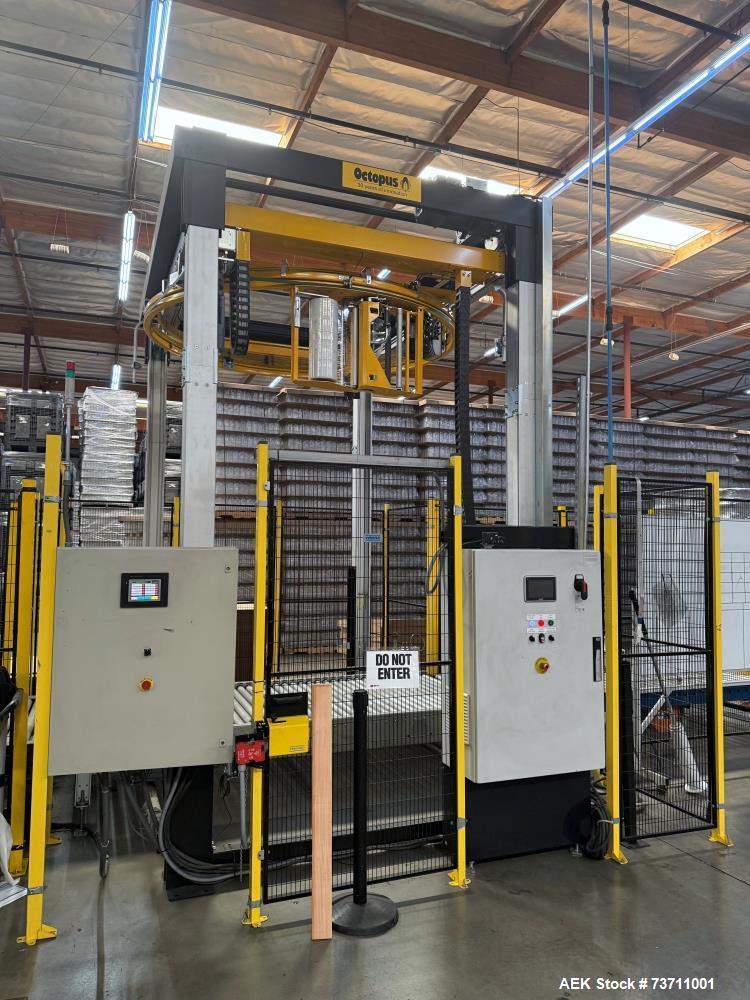

Available for sale is a used Muller Model Octopus 1825B automatic rotary ring stretch wrapper capable of production speeds up to approximately 100 loads per hour, depending on load dimensions, film pattern, operating configuration, and line conditions.

The system accommodates pallet loads ranging from approximately 36" to 48" wide x 36" to 80" long x 28" to 80" high, allowing it to handle a broad range of palletized products.

The rotary ring operates at approximately 25 to 40 RPM, wrapping stretch film around the stationary palletized load. This design is particularly useful for high-speed operations and loads where rotating the pallet itself may be undesirable.

Film capacity is approximately 20" wide x 10" diameter.

Designed for integration into automatic packaging and material-handling lines, the Muller Octopus 1825B can provide consistent stretch-film application for load containment, stabilization, warehouse handling, and transportation preparation.

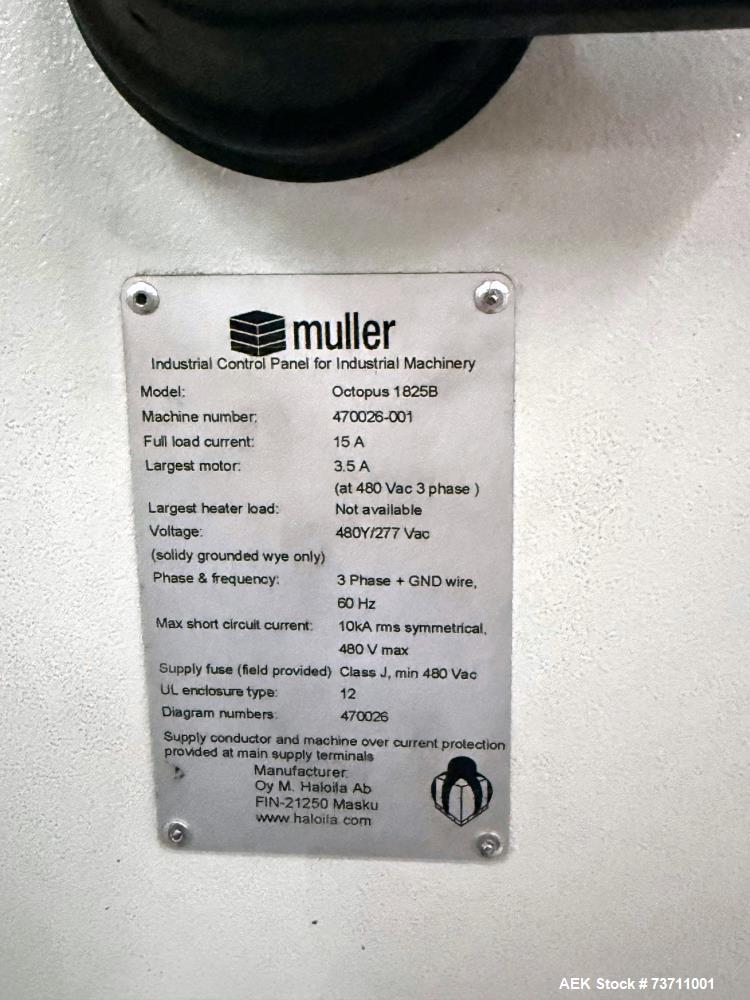

Electrical requirements are 480V, 3-phase, 60 Hz.

Serial Number: 470026-001

Specifications

Typical Applications

• Automatic pallet stretch wrapping
• End-of-line packaging
• Pallet load stabilization
• Shipping preparation
• Warehouse load containment
• High-volume pallet wrapping
• Distribution-center packaging
• Automated packaging lines
• Unit-load securing
• Manufacturing line integration
• Finished-goods packaging
• Transportation preparation

Products This Stretch Wrapper Could Be Used For

• Corrugated cases
• Cartoned food products
• Beverage cases
• Bagged products
• Bottled and canned products
• Consumer packaged goods
• Pet food cases and bags
• Household products
• Industrial components
• Building materials
• Bulk packaged products
• Other compatible palletized loads

Actual production speed and load compatibility depend on pallet dimensions, load stability, weight, film characteristics, wrap pattern, conveyor configuration, controls, and upstream/downstream equipment.

Frequently Asked Questions

• How fast can the Muller Octopus 1825B operate? The system is rated for speeds up to approximately 100 pallet loads per hour, depending on the load, wrap pattern, film, and line configuration.
• What pallet-load sizes can it accommodate? Stated load dimensions range from approximately 36"–48" wide x 36"–80" long x 28"–80" high.
• How does a rotary ring stretch wrapper work? The palletized load remains stationary while the rotary ring carries stretch film around the load, providing automatic film application without rotating the pallet itself.
• What size stretch film does it use? The machine is configured for film approximately 20" wide with rolls up to 10" in diameter.

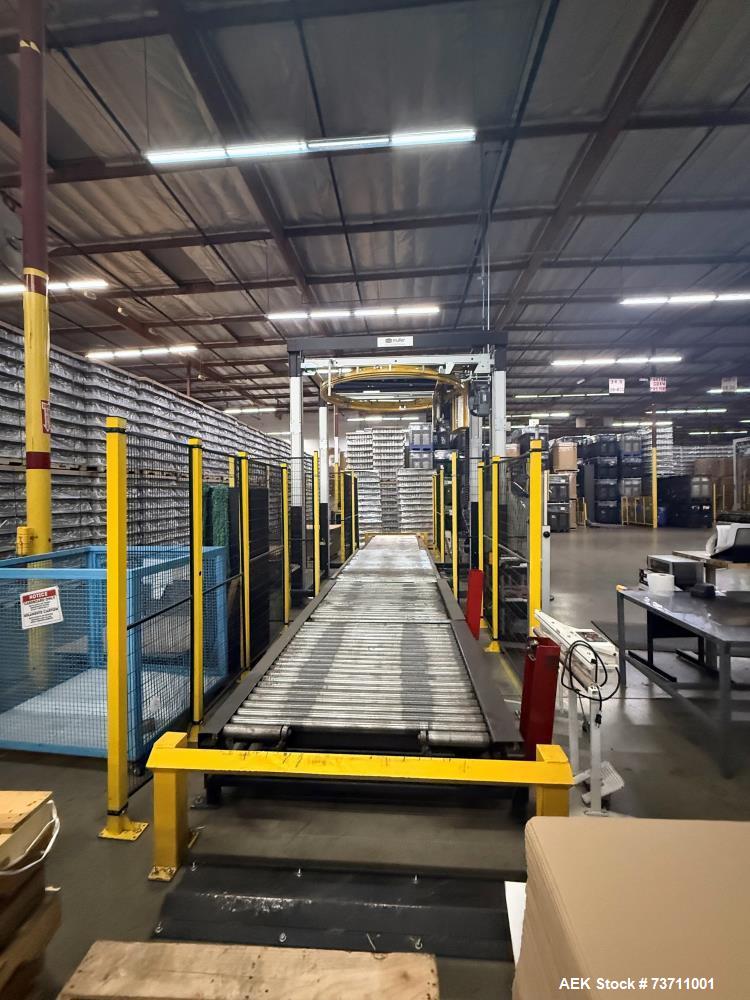

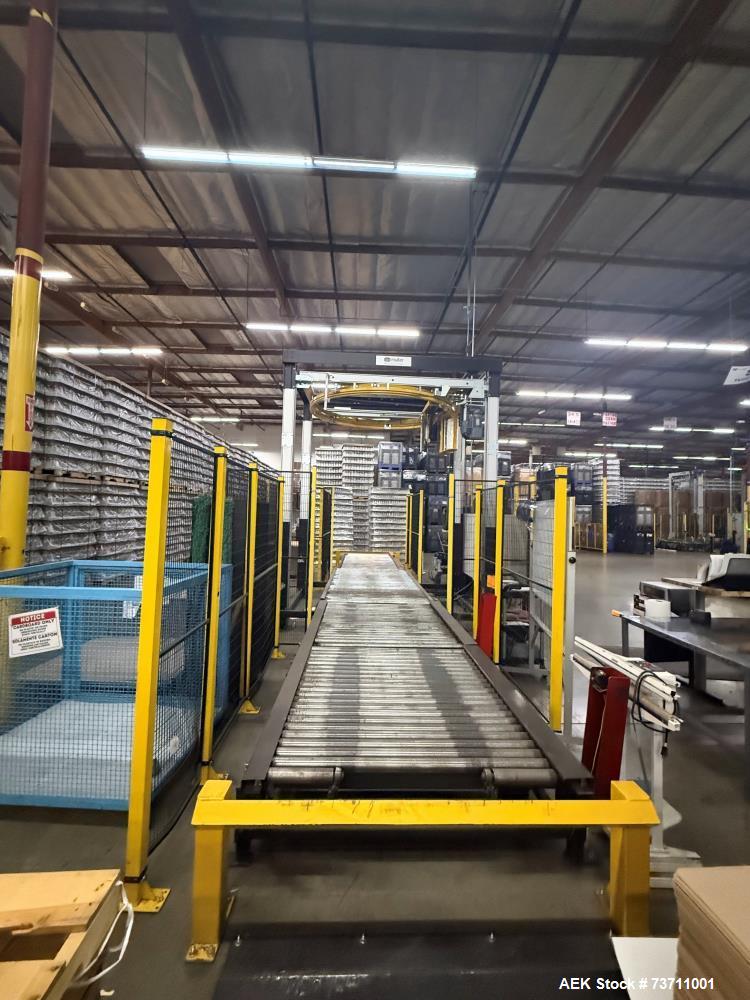

• Can the Octopus 1825B be integrated into an automatic packaging line? Yes. Rotary ring stretch wrappers are commonly incorporated into conveyorized end-of-line systems after case packing and palletizing. Compatibility with existing conveyors and controls should be verified.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, and logistics planning for stretch wrappers and other end-of-line packaging machinery.
