Used Conflex Sync Servo/Vortex 72 Automatic Side-Sealer and Shrink Tunnel System

Manufacturer Information

Conflex manufactures shrink wrapping and packaging machinery, including automatic side-sealing systems and heat shrink tunnels. Its equipment is used for wrapping a variety of consumer and industrial products with shrink film. This Conflex Sync Servo/Vortex 72 system combines servo-driven side sealing with an integrated heat tunnel for automated shrink packaging operations.

Main Product Description

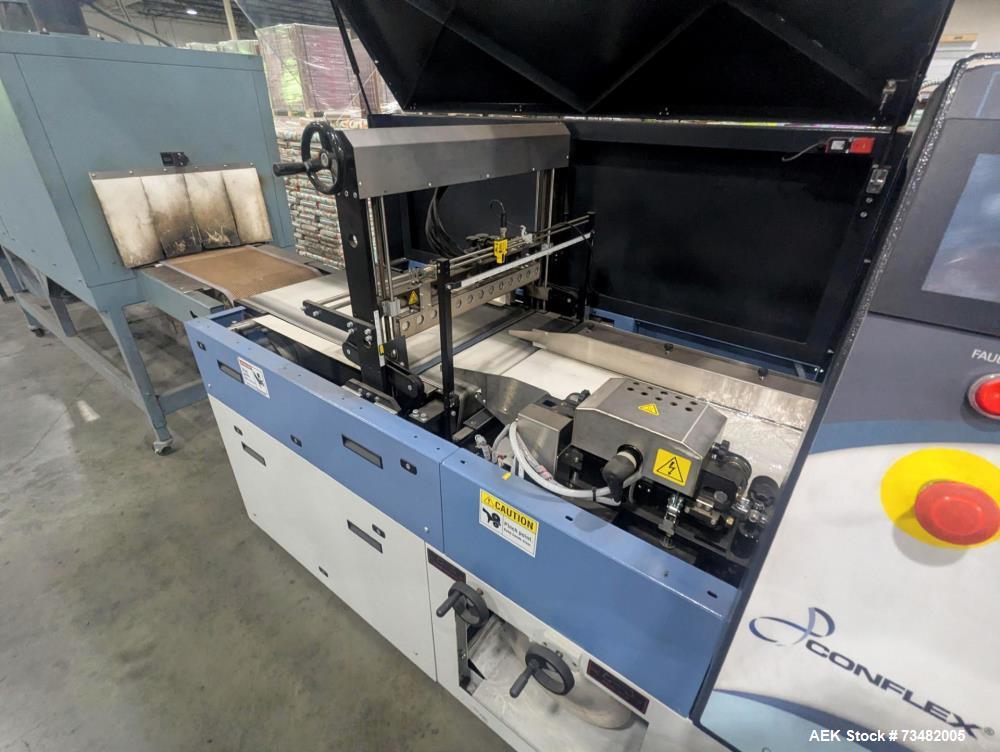

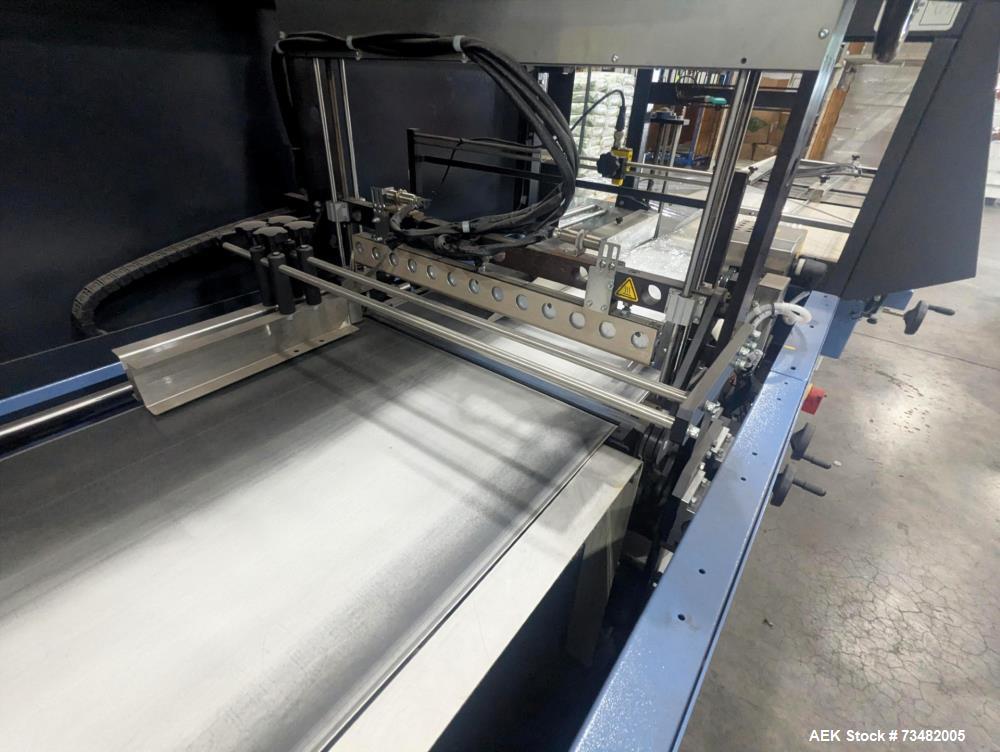

Used Conflex Model Sync Servo/Vortex 72 servo-driven automatic side-sealer and heat tunnel shrink wrapping system, manufactured in 2020, designed for continuous-motion packaging operations at rated speeds up to 100 packages per minute depending on product and application. The system accommodates packages from 3" to unlimited specified length, 1" to 22" wide, and 1/8" to 10" high. Features individual servo drives, self-tracking conveyor belts, a 4-foot extended infeed, and a color touchscreen operator HMI for machine operation and adjustments. The integrated Conflex heat shrink tunnel measures 72" long and features a chamber opening approximately 25" wide x 13" high. Designed for automated side-seal shrink wrapping, the system provides a continuous-motion packaging configuration for compatible products requiring shrink film enclosure and heat shrinking. Electrical requirements are 240 volts, 3 phase, 60 Hz. Suitable for industrial and consumer product packaging applications where consistent film sealing, product handling, and shrink wrapping are required.

Specifications

• Equipment Type: Automatic Side-Sealer and Heat Shrink Tunnel System

• Manufacturer: Conflex

• Model: Sync Servo/Vortex 72

• Condition: Used

• Year Built: 2020

• Maximum Rated Speed: Up to 100 Packages Per Minute

• Operating Configuration: Continuous Motion

• Drive System: Individual Servo Drives

• Sealing System: Automatic Side Sealer

• Minimum Package Length: 3"

• Maximum Package Length: Unlimited (As Specified)

• Package Width Range: 1" to 22"

• Package Height Range: 1/8" to 10"

• Conveyor Belts: Self-Tracking

• Extended Infeed: 4 Feet

• Heat Tunnel Manufacturer: Conflex

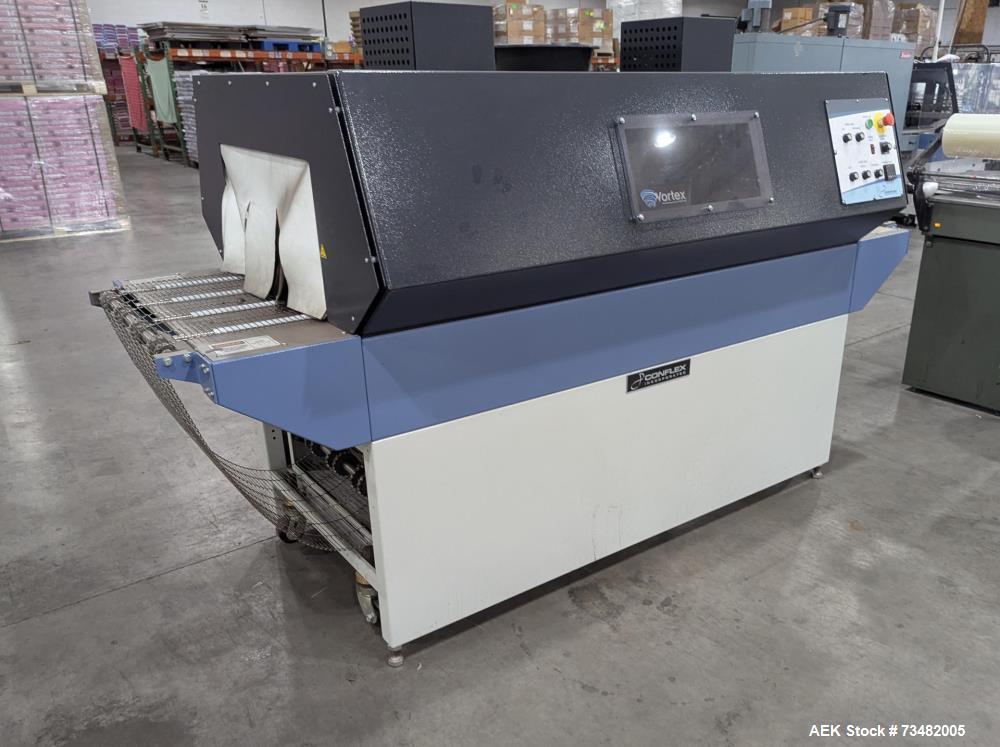

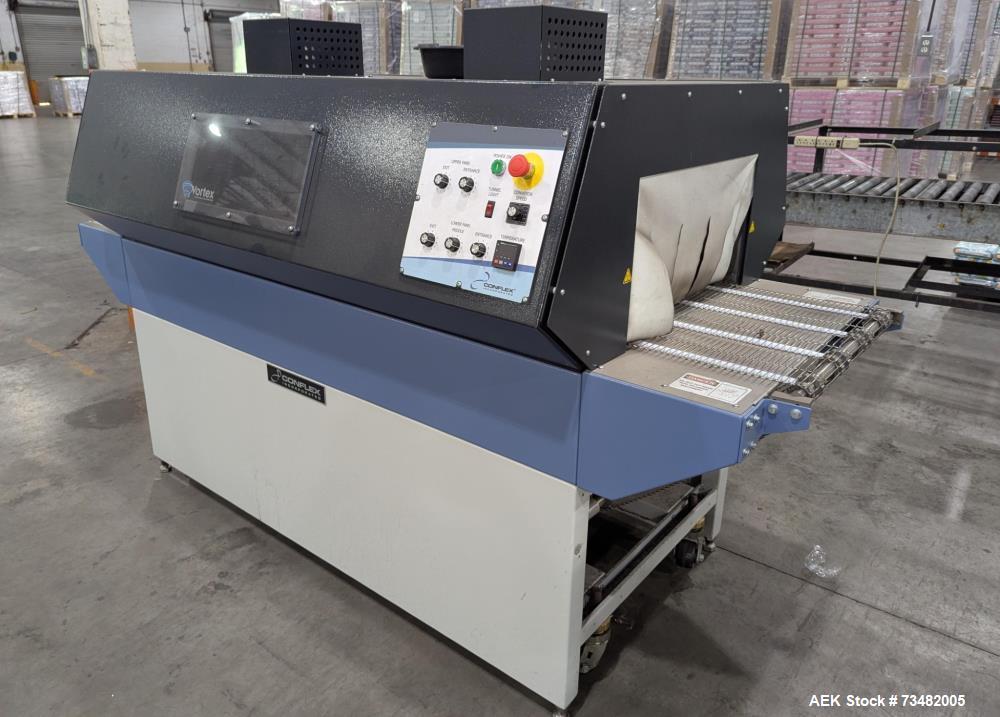

• Heat Tunnel Length: 72"

• Heat Tunnel Chamber Opening: Approximately 25" Wide x 13" High

• Operator Interface: Color Touchscreen HMI

• Electrical Requirements: 240 V, 3 Phase, 60 Hz

Applications

• Automatic shrink wrapping

• Continuous-motion shrink packaging

• Industrial product packaging

• Consumer product shrink wrapping

• Retail product packaging

• Multipack shrink wrapping

• High-speed side-seal packaging

• Automated shrink film sealing

• Product bundling and wrapping

• Packaging line integration

Suitable Products and Materials

• Boxed consumer products

• Retail packaged goods

• Cartons

• Printed materials

• Stationery products

• Compatible multipack products

• Industrial components

• Packaged household products

• Products suitable for shrink film packaging

Actual product suitability depends on dimensions, stability, film selection, and heat sensitivity.

Frequently Asked Questions (FAQs)

- What is the maximum production speed of the Conflex Sync Servo/Vortex 72?

The system is rated for speeds up to 100 packages per minute, depending on the product, film, and application.

- What package sizes can this Conflex side-sealer handle?

The specified package range is 3" to unlimited length, 1" to 22" width, and 1/8" to 10" height. Actual handling capabilities should be verified for the intended product.

- Does this system include a heat shrink tunnel?

Yes. The system includes a Conflex heat shrink tunnel measuring 72" long.

- What is the heat tunnel opening size?

The heat tunnel has a chamber opening approximately 25" wide by 13" high.

- Is this Conflex shrink wrapper servo-driven?

Yes. The system is configured with individual servo drives for continuous-motion operation.

- Does the machine include a touchscreen control panel?

Yes. The system features a color touchscreen operator HMI.

- Does this side-sealer have an extended infeed conveyor?

Yes. The machine includes a 4-foot extended infeed and self-tracking belts.

- What year was this Conflex shrink wrapping system manufactured?

The equipment was built in 2020.

- What are the electrical requirements?

The system requires 240-volt, 3-phase, 60 Hz electrical power.

- Can this machine be used for different product sizes?

The side-sealer is designed to accommodate a range of package dimensions within its specified operating limits. Product handling and film compatibility should be confirmed for each application.

- Can Aaron Equipment help arrange shipping for this shrink wrapping system?

Aaron Equipment can assist with coordinating freight and transportation arrangements for this packaging system. Contact our team to discuss equipment location, loading requirements, shipping dimensions, and delivery options.

- How can Aaron Equipment help determine whether this system meets my packaging requirements?

Aaron Equipment can help review available equipment specifications, package size requirements, production speeds, and included components to assist buyers in evaluating the Conflex Sync Servo/Vortex 72 for their packaging operations.
