Used 2021 AFM SL-LX150-V2B Shrink Sleeve Labeling Line – Up to 300 Containers/Min with Codi Depalletizer, Steam Tunnel & Repalletizing System

Manufacturer Information

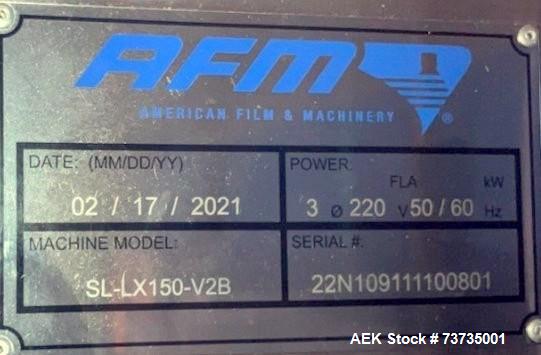

Primary Manufacturer: AFM Primary Model: SL-LX150-V2B Equipment Type: Automatic Shrink Sleeve Labeling and Container Handling Line Condition: Used Year Built: 2021

Additional Equipment Manufacturers:

• Codi Manufacturing: Empty-can depalletizing, accumulation, and repalletizing conveyor equipment

• Reimers: RH-60 electric steam boiler

• Taizhou Jiangyan: JYEE GS90 2K steam shrink tunnel

• Eoslift: Adjustable hydraulic fork stackers

AFM manufactures shrink sleeve labeling equipment designed to apply heat-shrinkable film sleeves to bottles, cans, and other compatible containers.

Codi Manufacturing specializes in container-handling equipment for beverage and packaging operations, including depalletizing and conveying systems.

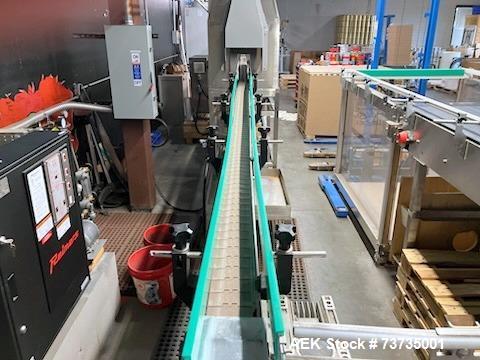

This 2021 AFM shrink sleeving line combines automatic sleeve application with steam shrinking, container feeding, accumulation, conveying, and pallet-handling equipment.

Description

Available for sale is a used 2021 AFM automatic shrink sleeve labeling line with Codi Manufacturing depalletizing and repalletizing equipment, designed for high-speed labeling of compatible bottles, cans, and other containers.

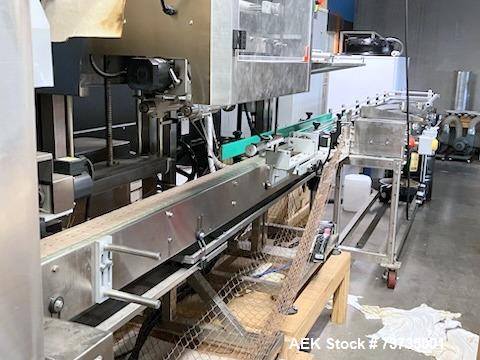

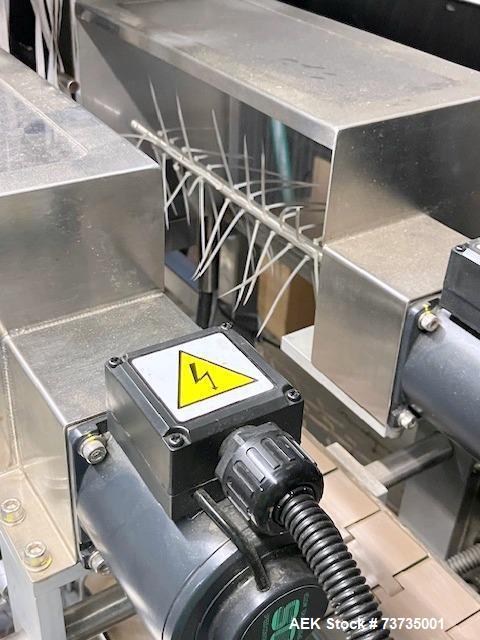

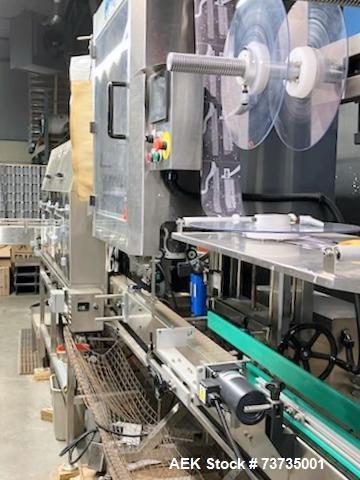

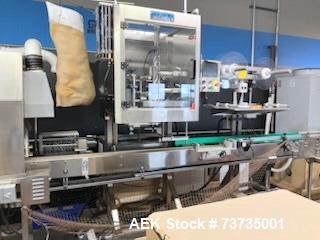

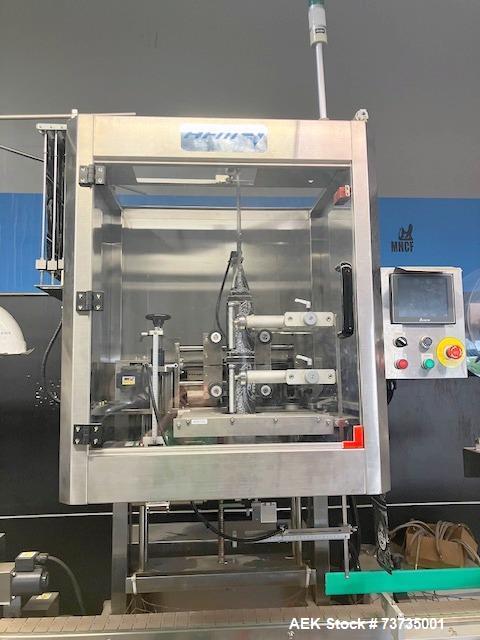

The centerpiece of the line is an AFM Model SL-LX150-V2B shrink sleeve applicator, rated for approximately 50–300 containers per minute, with maximum speeds of up to 300 bottles per minute, depending on the application.

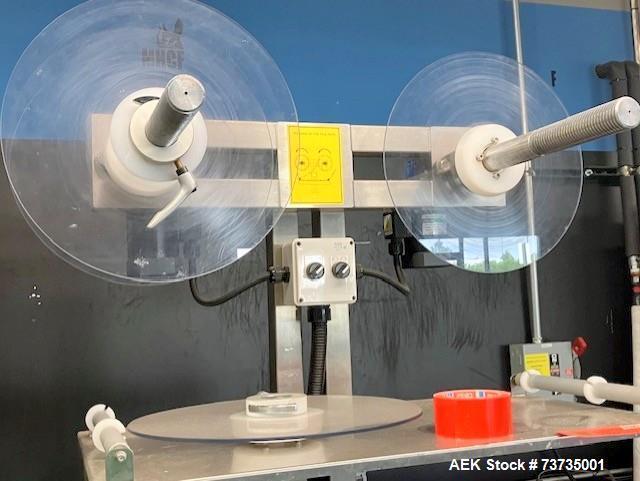

The sleeve applicator is designed to accommodate film widths ranging from approximately 1.58" to 9.45" and cut lengths ranging from 1.58" to 9.45".

The specified film thickness range is approximately 0.0014" to 0.027". Film compatibility and the upper thickness limit should be confirmed against the manufacturer's documentation.

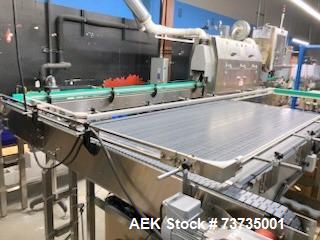

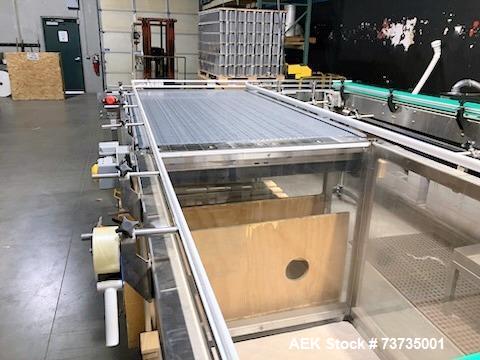

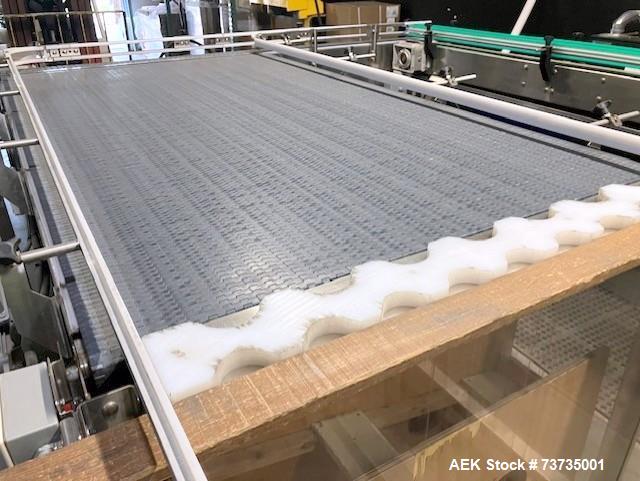

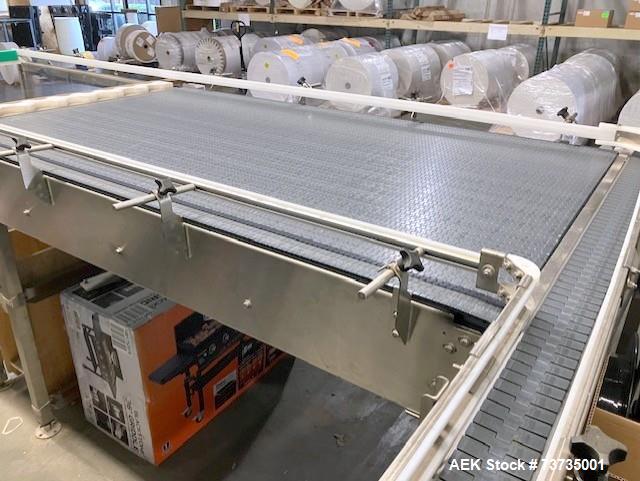

The line includes a Codi Manufacturing empty-can depalletizing and accumulation feeder, designed to introduce containers into the labeling process.

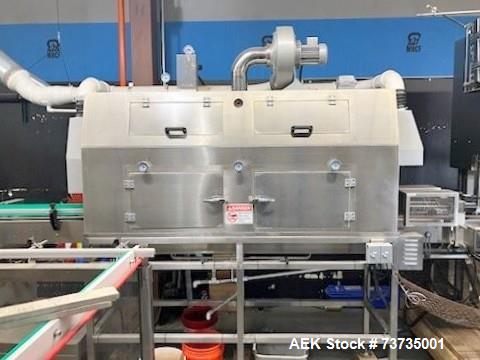

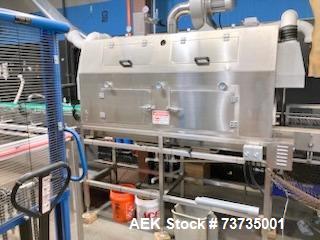

Following sleeve application, containers pass through a Taizhou Jiangyan Model JYEE GS90 2K steam tunnel with conveyor, where steam heat is used to shrink compatible sleeve material around the container.

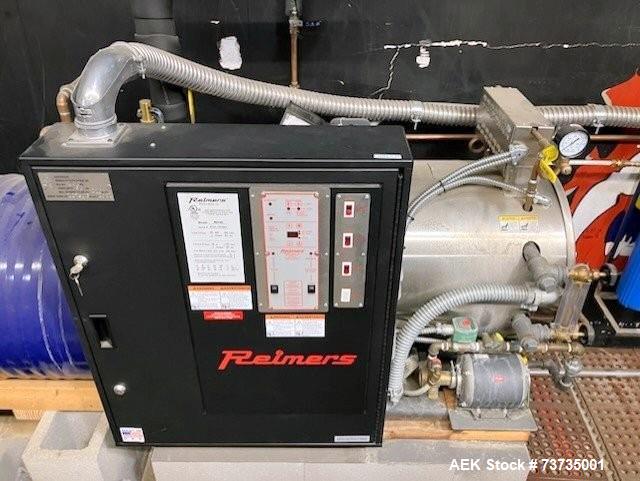

Steam generation equipment includes a Reimers Model RH-60 electric steam boiler, with a stated maximum designed steam capacity of 10 lbs. per hour.

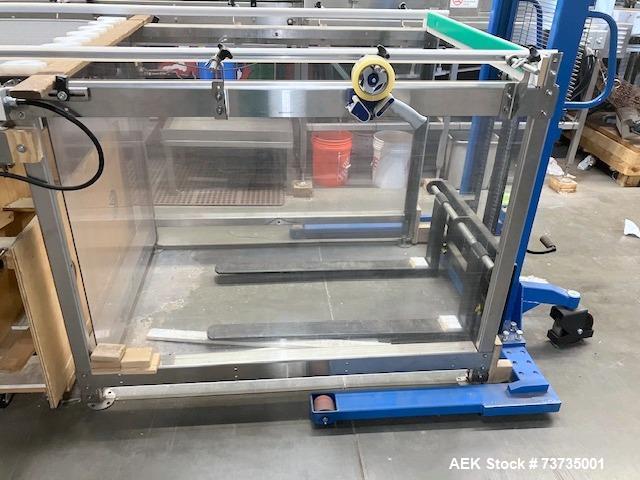

The system also includes a Codi depalletizer measuring approximately 10' long x 2' wide, along with a Codi repalletizing conveyor system with pallet tank, measuring approximately 13' long x 9' wide.

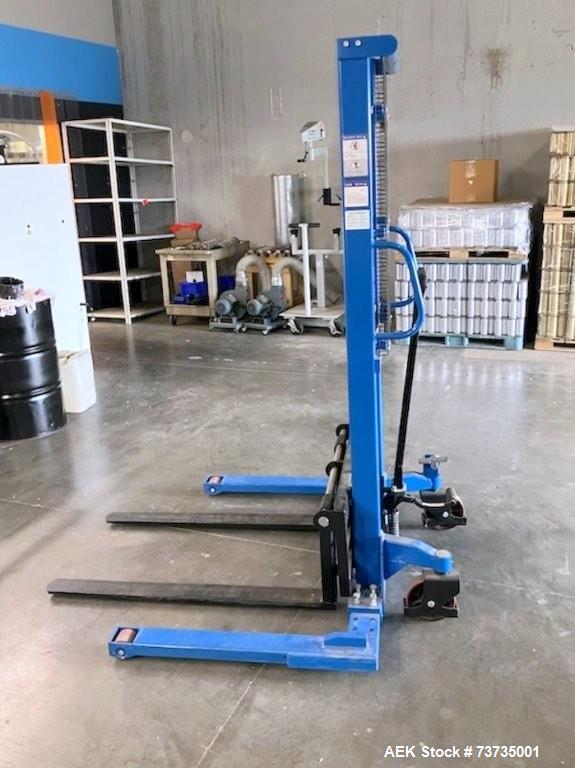

For pallet and material handling, the package includes two Eoslift adjustable hydraulic fork stackers, each rated for a 2,200 lb load capacity and 63" maximum lift height.

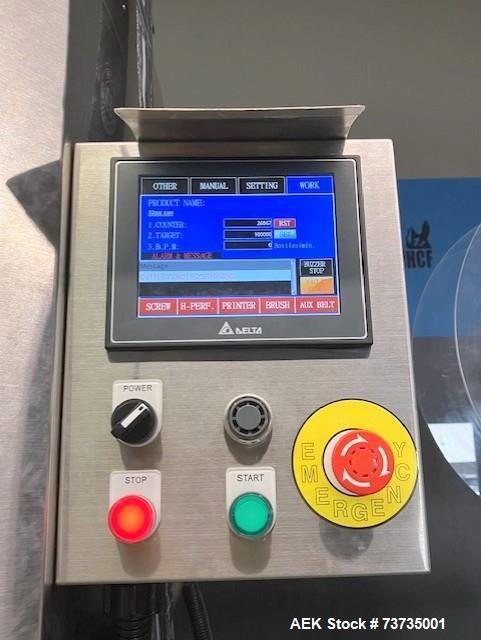

Controls are included with the line.

This integrated shrink sleeving system could be suitable for beverage packaging, canned products, bottled products, promotional packaging, and other applications requiring automated shrink sleeve labeling.

The actual production speed will depend on container dimensions, sleeve material, product spacing, steam tunnel performance, and overall line integration.

Specifications

General Line Specifications

AFM Shrink Sleeve Applicator

Steam Boiler and Shrink Tunnel

Codi Container Handling Equipment

Eoslift Hydraulic Fork Stackers

The stated boiler capacity of 10 lbs./hour should be verified against the boiler nameplate and the steam demand of the shrink tunnel. Complete-line production capacity may be lower than the applicator's maximum rated speed. Electrical requirements, container size range, film material compatibility, overall line footprint, and current operating condition were not provided.

Included Equipment

• (1) AFM SL-LX150-V2B automatic shrink sleeve applicator

• (1) Codi Manufacturing empty-can depalletizing and accumulation feeder

• (1) Codi depalletizer

• (1) Reimers RH-60 electric steam boiler

• (1) Taizhou Jiangyan JYEE GS90 2K steam shrink tunnel with conveyor

• (1) Codi repalletizing conveyor system with pallet tank

• (2) Eoslift adjustable hydraulic fork stackers

• Associated line controls

Typical Applications

• Beverage can shrink sleeve labeling

• Bottled beverage labeling

• Full-body container decoration

• Promotional packaging

• Product branding and relabeling

• Automatic container sleeving

• Food and beverage packaging

• Contract packaging operations

• Private-label product packaging

• Steam shrink sleeve applications

• Empty container handling

• Automated packaging line integration

Products This Shrink Sleeve Line Could Be Used For

• Aluminum beverage cans

• Plastic beverage bottles

• Water bottles

• Juice bottles

• Energy drink containers

• Sports drink bottles

• Ready-to-drink beverage containers

• Compatible glass bottles

• Specialty beverage containers

• Personal care bottles

• Household product containers

• Other compatible cylindrical or shaped containers

Actual product suitability depends on container dimensions, material, heat tolerance, sleeve specifications, and available tooling. Containers must be compatible with the sleeve applicator and steam shrink tunnel.

Frequently Asked Questions

- What is the production speed of this AFM shrink sleeve line? The AFM SL-LX150-V2B applicator is rated for 50–300 containers per minute, with maximum stated speeds of up to 300 bottles per minute, depending on the application.

- What sleeve sizes can the AFM applicator handle? The specified film width range is 1.58"–9.45", with sleeve cut lengths from 1.58"–9.45". Film thickness compatibility should be verified.

- Does this line include a steam shrink tunnel? Yes. The package includes a Taizhou Jiangyan JYEE GS90 2K steam tunnel with conveyor and a Reimers RH-60 electric steam boiler.

- Is depalletizing equipment included? Yes. The system includes Codi Manufacturing depalletizing and accumulation equipment for feeding compatible empty containers into the labeling line.

- Does the package include repalletizing and material-handling equipment? Yes. It includes a Codi repalletizing conveyor system with pallet tank and two Eoslift hydraulic fork stackers, each rated for 2,200 lbs.

- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with dismantling and rigging coordination, equipment loading, domestic and international freight, customs documentation, and transportation planning. Multi-component packaging lines may require separate freight arrangements for conveyors, labeling equipment, steam systems, and pallet-handling equipment.
