Used PSG Lee RD-314 Duplex Pre-Made Pouch Packager – Up to 90 Pouches/Min, 7-Station Rotary System

Manufacturer Information

PSG Lee

PSG Lee manufactures automated packaging machinery and systems for pre-made pouches and flexible packaging applications. Equipment of this type is used across food, snack, confectionery, pet food, dry ingredient, and other packaged-product industries.

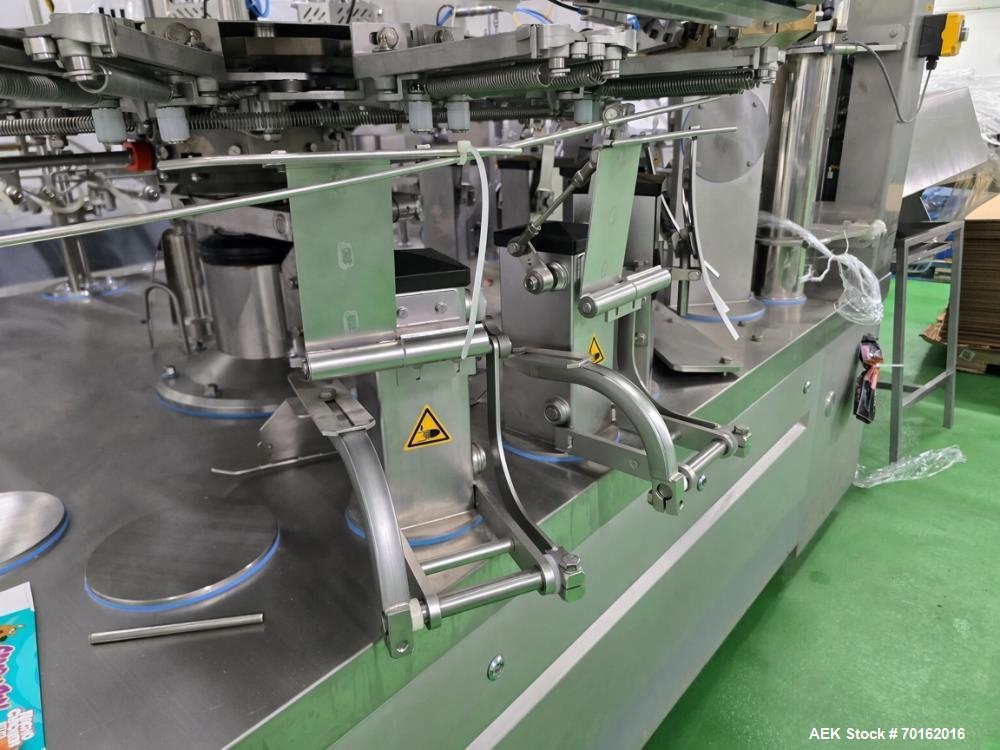

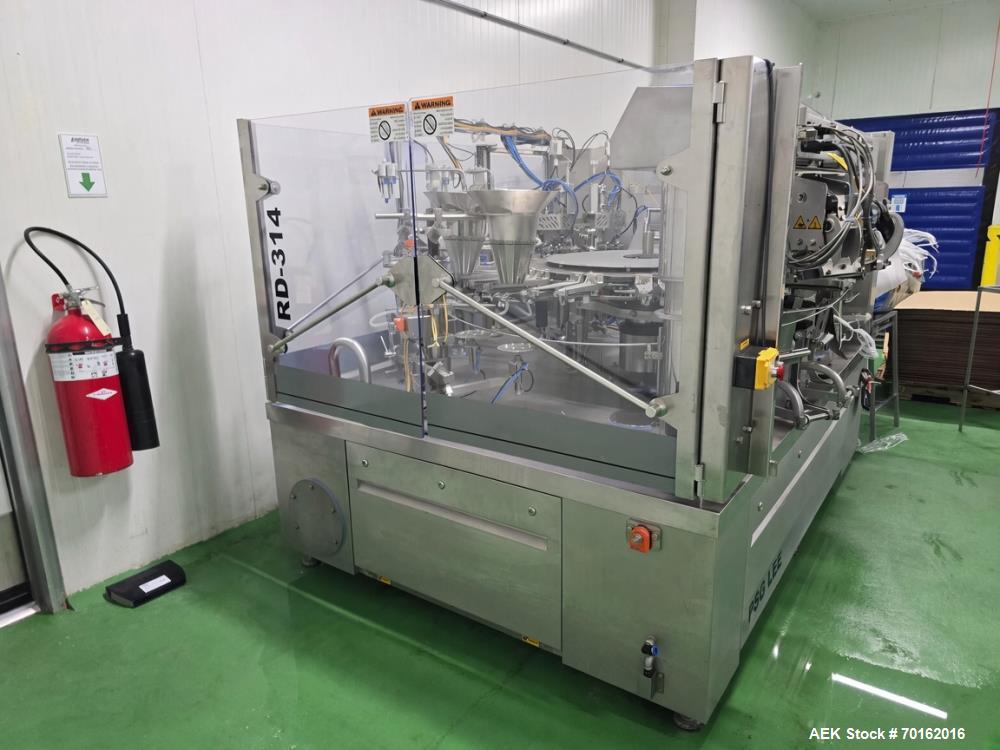

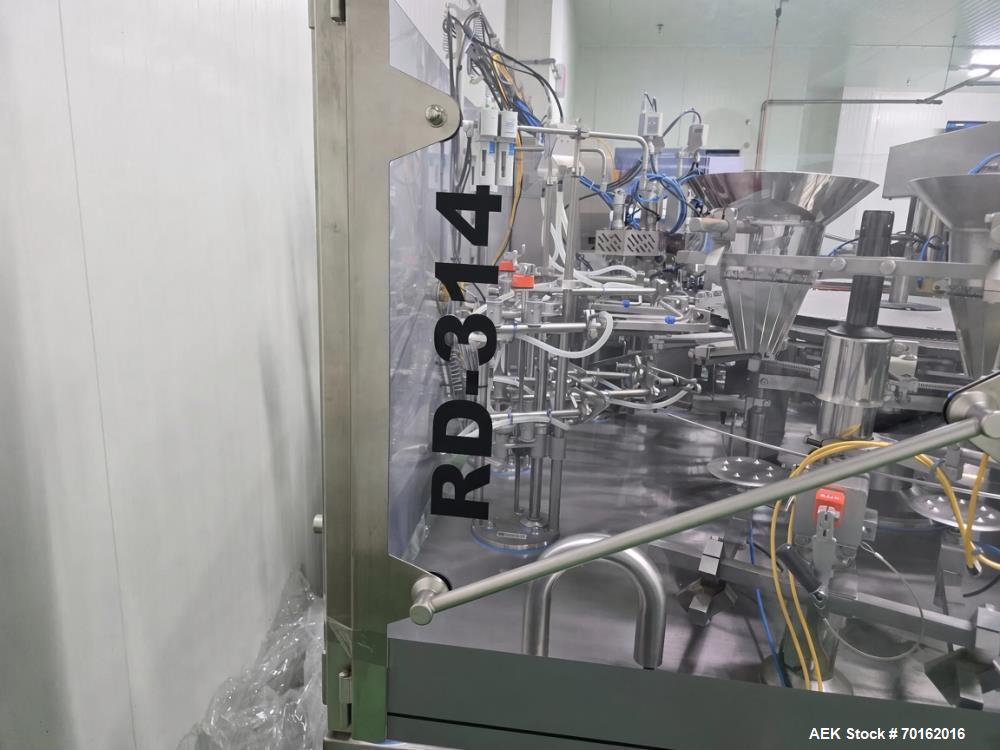

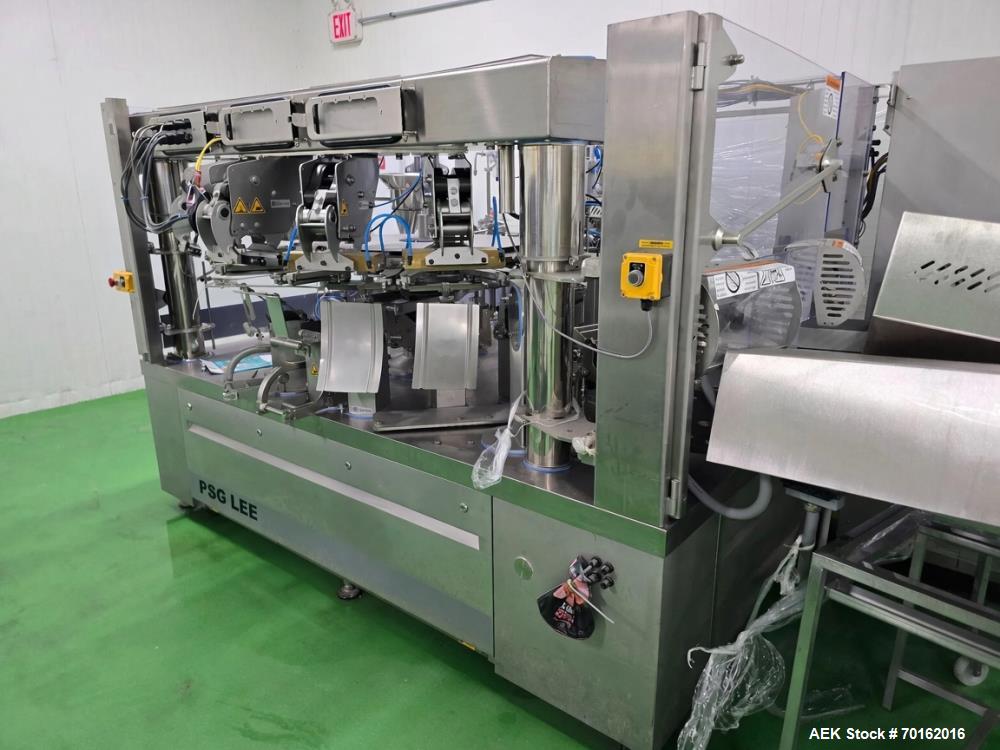

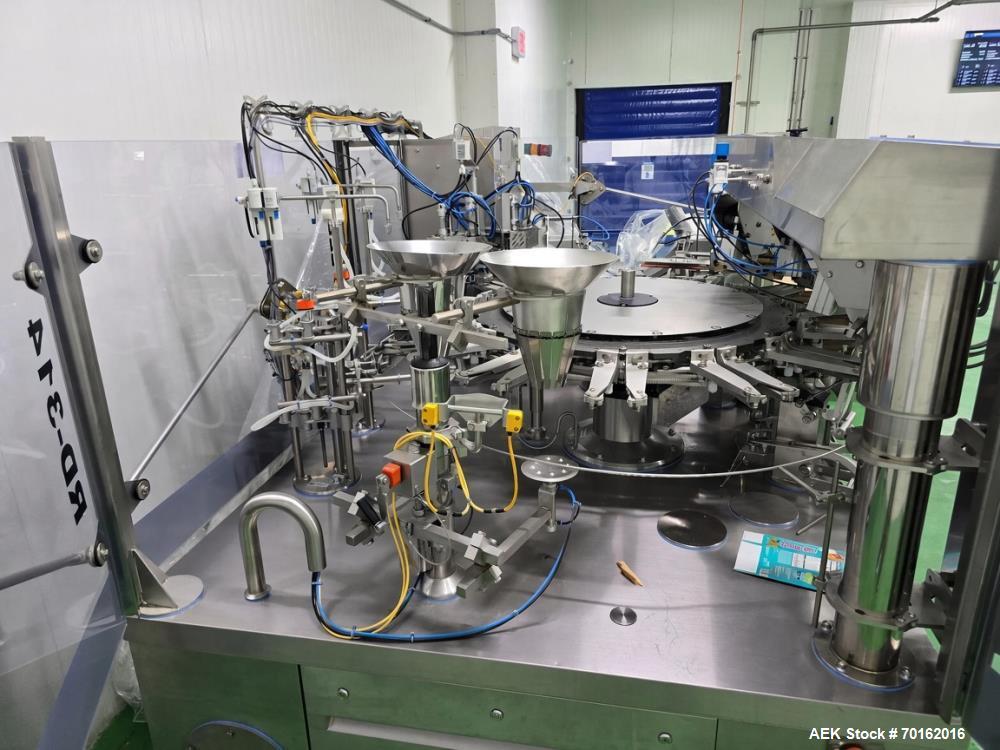

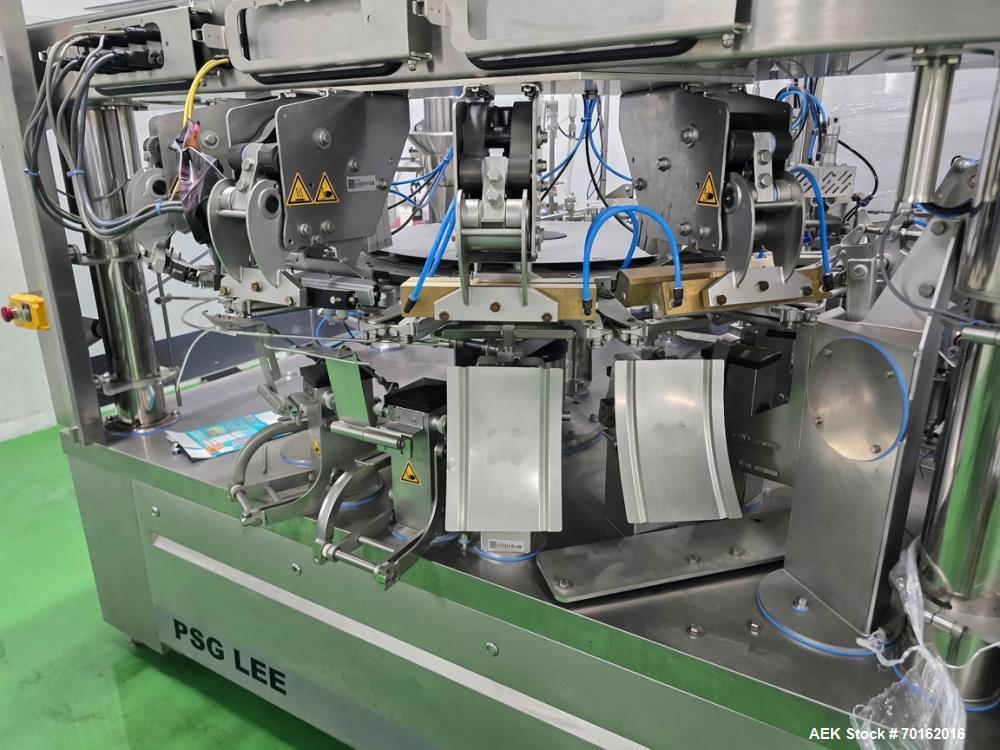

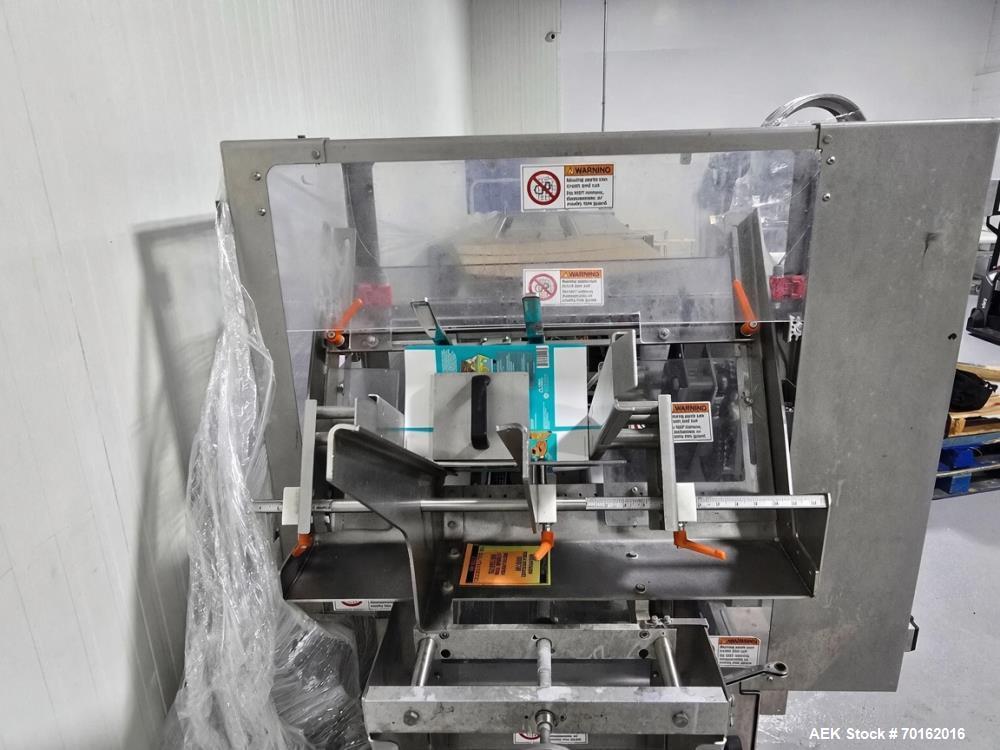

This PSG Lee Model RD-314 features a duplex 7-station rotary indexing system designed for high-speed handling, filling, and sealing of compatible pre-made pouches.

Description

Available for sale is a used PSG Lee Duplex Pre-Made Pouch Packager, Model RD-314, designed for automated flexible pouch packaging applications.

The machine features a 7-station duplex rotary indexing system capable of operating at speeds of up to approximately 90 pouches per minute, depending on pouch dimensions, product characteristics, filling equipment, and application.

Its duplex configuration allows two pouches to be processed during the packaging sequence, supporting higher production rates than typical single-pouch indexing configurations.

The RD-314 accommodates pouches ranging from approximately 3.9" to 10.6" wide x 6" to 13.8" long. An automatic adjustable gripper system assists with pouch handling across the specified size range.

Additional features include gas flush capability, traveling pouch openers and formers, a vibratory product settling station, and a seal inspection station. These features make the machine potentially suitable for applications requiring efficient pouch opening, product settling, controlled atmosphere packaging, and seal-quality monitoring.

Controls include an Allen-Bradley PLC with color touchscreen HMI operator station. Electrical requirements are 220V, 3-phase, 60 Hz, 30 amps.

Specifications

Typical Applications

• Pre-made pouch packaging
• Stand-up pouch packaging
• Flexible packaging
• High-speed pouch filling
• Gas-flush packaging
• Dry product packaging
• Snack-food packaging
• Granular product packaging
• Powder packaging
• Confectionery packaging
• Pet food packaging
• Retail pouch production

Products This Pouch Packager Could Be Used For

• Snack foods
• Nuts and seeds
• Candy and confectionery
• Coffee
• Granola
• Cereal
• Rice and grains
• Dried fruit
• Pet treats and compatible pet foods
• Powders and dry ingredients
• Granular products
• Other products compatible with the pouch and filling system

Actual product suitability and production speed depend on pouch construction and dimensions, product characteristics, fill weight, filling equipment, gas-flush requirements, sealing parameters, and overall line configuration.

Frequently Asked Questions

• How fast can the PSG Lee RD-314 run? The machine is capable of speeds up to approximately 90 pouches per minute, depending on the application, pouch size, product, and filling system.
• What does duplex mean on this pouch packager? The duplex configuration allows the machine to handle two pouches through the packaging process, supporting higher throughput than a typical single-pouch configuration.
• What pouch sizes can this machine handle? The stated range is approximately 3.9"–10.6" wide x 6"–13.8" long.
• Does the RD-314 have gas-flush capability? Yes. The machine is equipped with gas-flush capability for compatible modified-atmosphere packaging applications when properly configured with the required gas supply.
• What controls are included? The machine features an Allen-Bradley PLC with a color touchscreen HMI operator station for machine operation and control.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for pouch packaging machinery and complete packaging lines.
