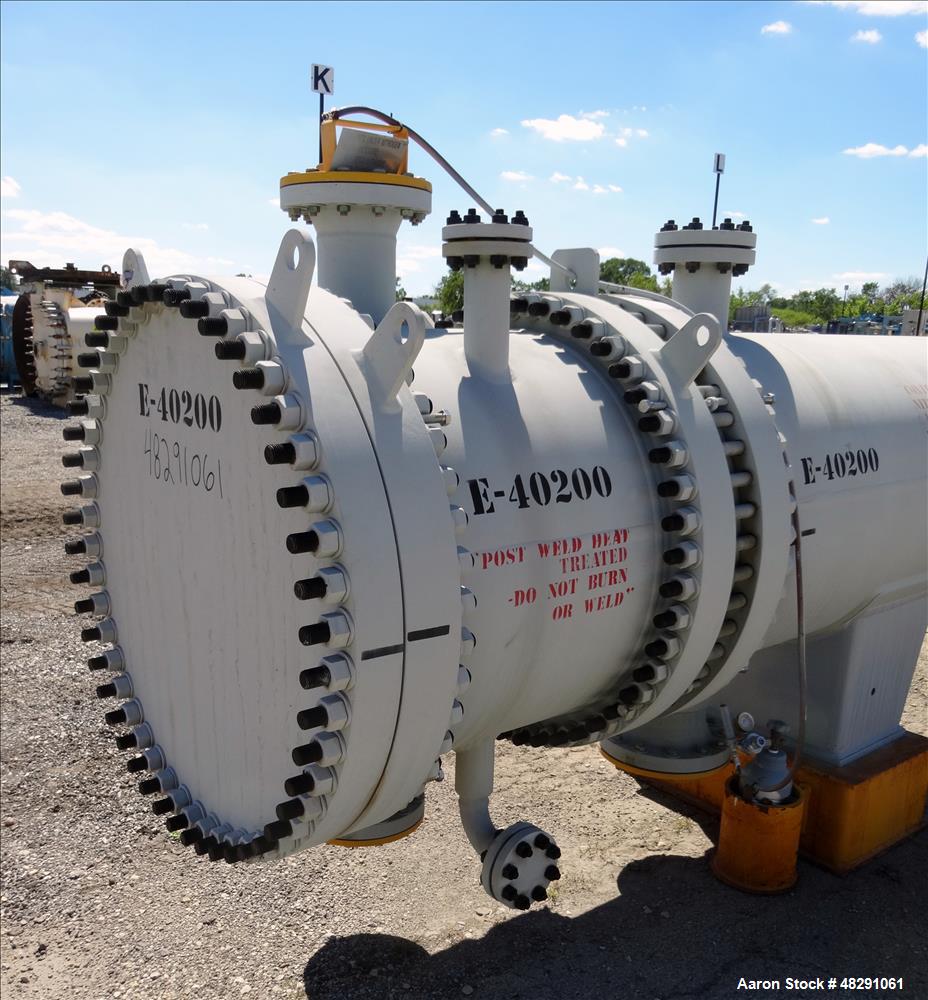

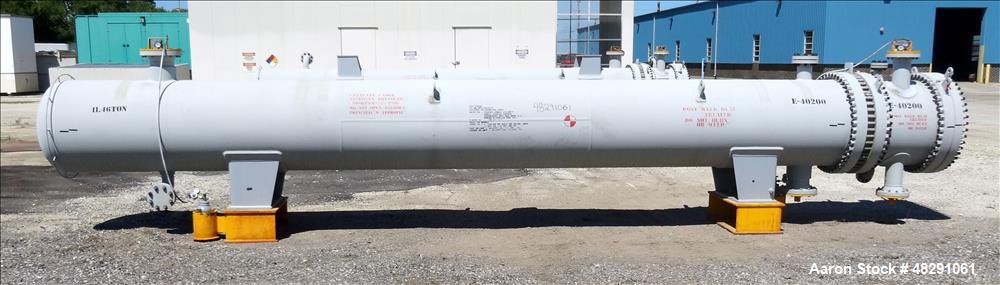

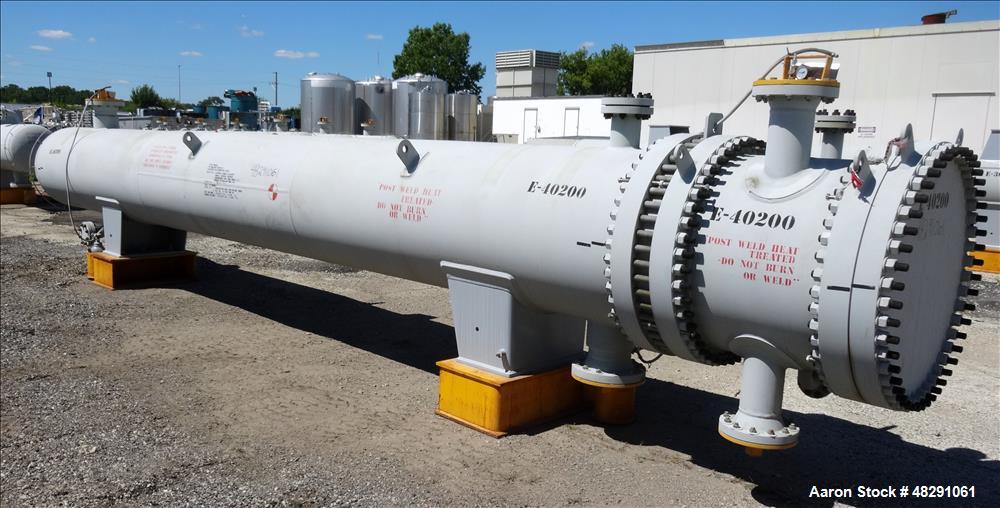

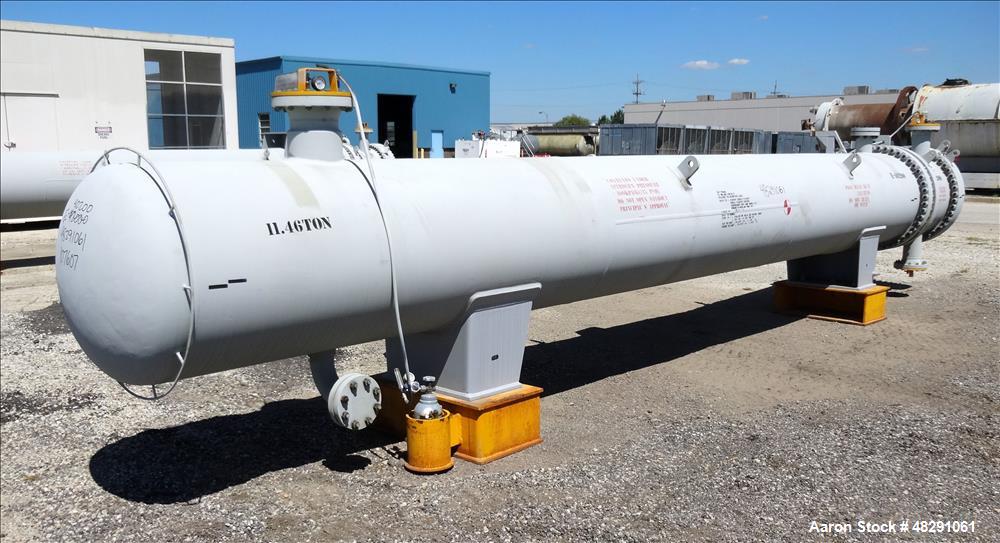

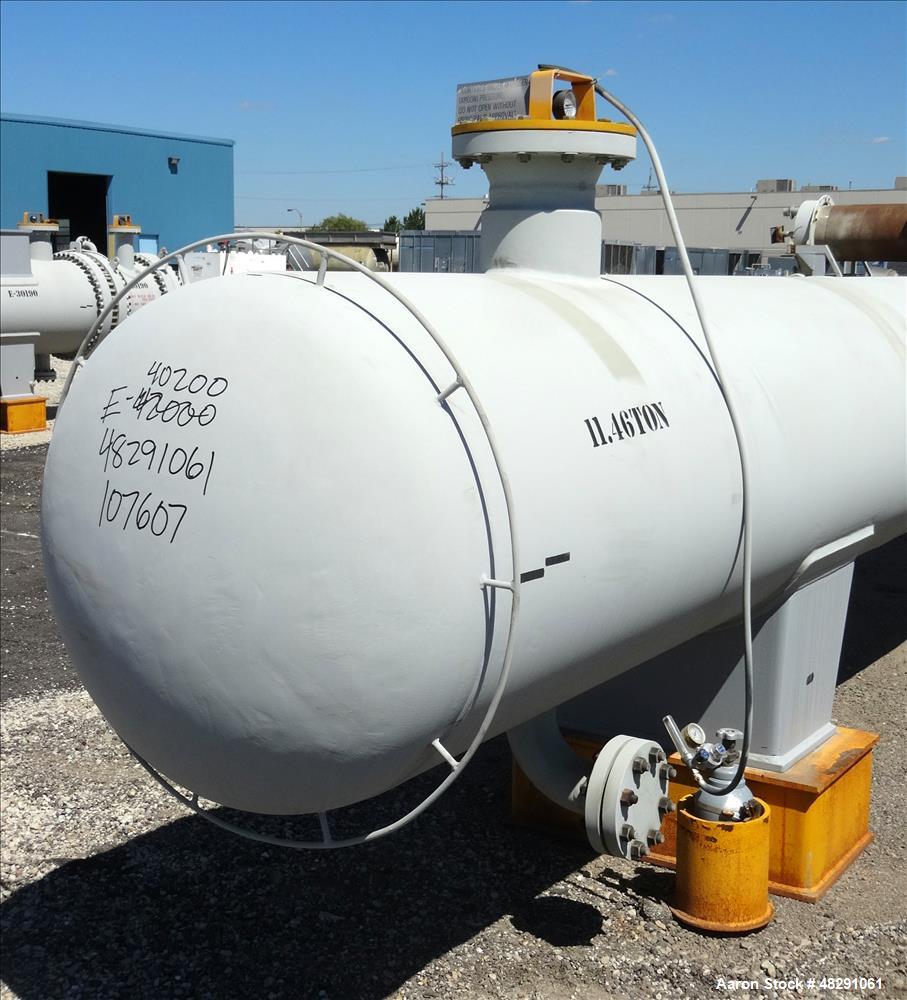

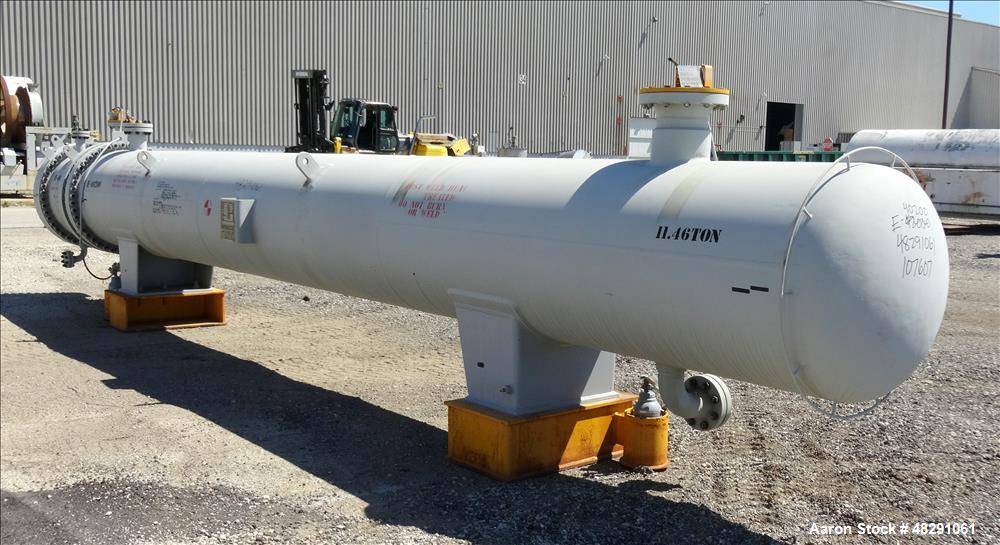

Shell & Tube Heat Exchanger, Unused- U Tube

Manufacturer Information:
Ilsung Corporation is listed as the manufacturer of this unused shell and tube heat exchanger. The unit is identified as a TEMA Type AEU, 4-pass U-tube heat exchanger with carbon steel construction and a horizontal saddle-mounted design. This type of heat exchanger is commonly used in industrial process applications requiring high surface area heat transfer, pressure/vacuum service, and controlled heating, cooling, condensing, or heat recovery.

Main Product Description:
Available for sale is an unused Ilsung Corporation AEU 4-pass U-tube shell and tube heat exchanger with approximately 3409 square feet of heat transfer surface area. This horizontal carbon steel exchanger is designed as a TEMA Type AEU unit and includes a shell rated for 369 psi/full vacuum at 392 degrees F and 368 tubes measuring 3/4" diameter x 288" long, rated for 364 psi/full vacuum at 320 degrees F. The unit includes shell openings of (2) 4" and (2) 8", tube openings of (2) 2" and (2) 6", carbon steel shell, carbon steel tubes, carbon steel head, saddle-mounted construction, National Board #2062, and overall dimensions of 358" L x 44" W x 82" T. This unused industrial heat exchanger is suited for process heating, cooling, condensing, and heat recovery applications where a large-surface-area carbon steel U-tube exchanger is required.

Specifications:

• Stock Number: 48291061
• Manufacturer: Ilsung Corporation
• Model: AEU
• Equipment Type: Shell and tube heat exchanger
• Style: U-tube shell and tube heat exchanger
• TEMA Type: AEU
• Condition: Unused
• Number of Passes: 4
• Heat Transfer Surface Area: Approximately 3409 sq. ft.
• Orientation: Horizontal
• Mounting: Saddle mounted
• Shell Material: Carbon steel
• Tube Material: Carbon steel
• Head Material: Carbon steel
• Shell Pressure Rating: 369 psi/full vacuum
• Shell Temperature Rating: 392 degrees F
• Tube Pressure Rating: 364 psi/full vacuum
• Tube Temperature Rating: 320 degrees F
• Tubes: (368) tubes
• Tube Diameter: 3/4"
• Tube Length: 288"
• Shell Openings: (2) 4", (2) 8"
• Tube Openings: (2) 2", (2) 6"

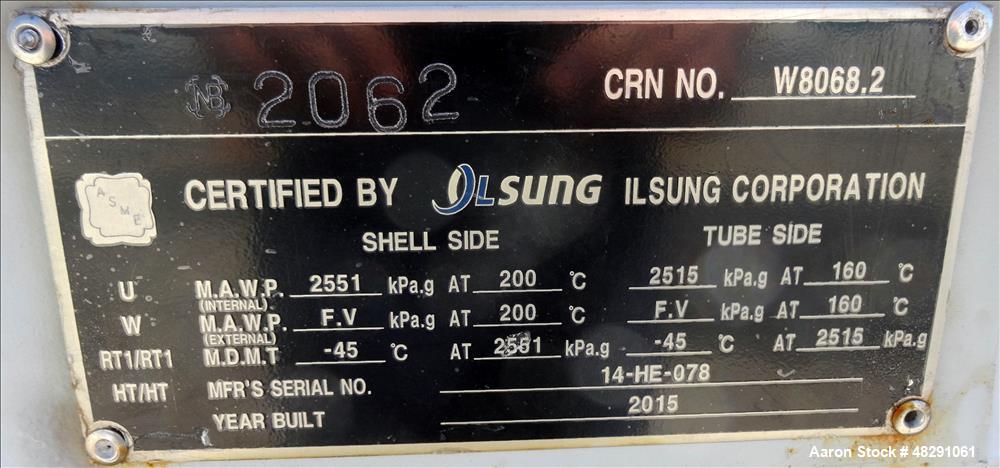

• National Board Number: 2062 listed in main specifications

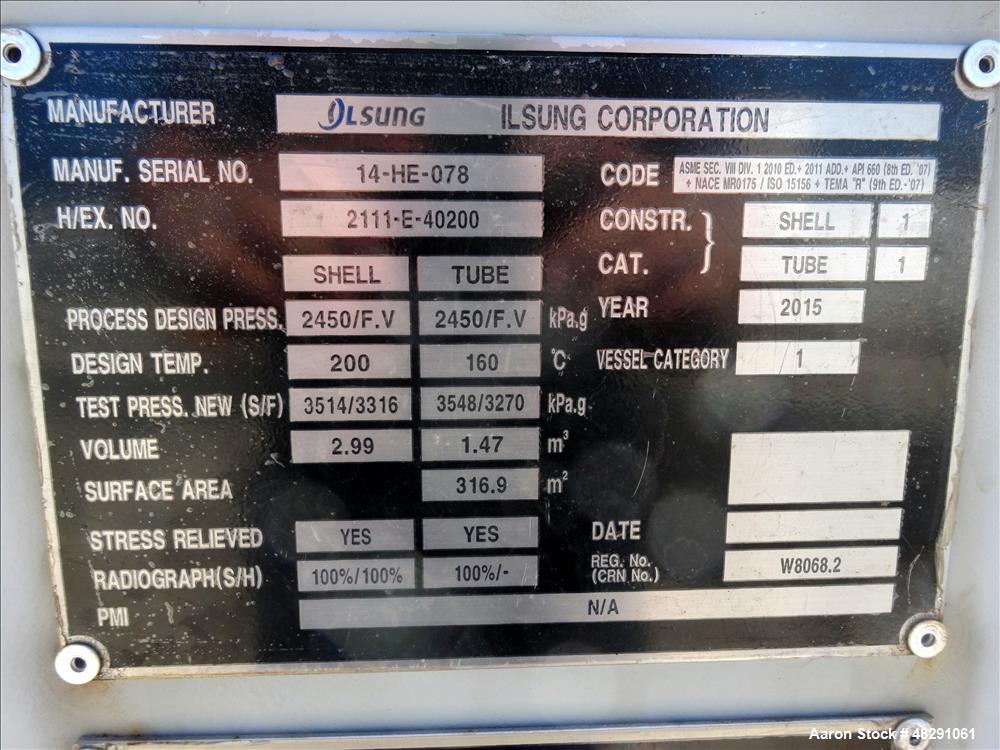

• Serial Number: 14-HE-078 listed in main specifications
• Year Built: 2015
• Overall Dimensions: 358" L x 44" W x 82" T
• ASME Stamp: Yes
• Approximate Shipping Weight: 26,609 lbs.

Product Details:

• Unused Ilsung Corporation shell and tube heat exchanger
• TEMA Type AEU design
• 4-pass U-tube configuration
• Approximately 3409 sq. ft. heat transfer surface area
• Horizontal carbon steel construction
• Carbon steel shell
• Carbon steel tubes
• Carbon steel head
• Shell rated 369 psi/full vacuum at 392 degrees F
• Tube side rated 364 psi/full vacuum at 320 degrees F
• Includes (368) 3/4" diameter x 288" long tubes
• Shell openings include (2) 4" and (2) 8"
• Tube openings include (2) 2" and (2) 6"
• Saddle-mounted design
• Built in 2015
• Overall dimensions: 358" L x 44" W x 82" T
• Suitable for industrial process heating, cooling, condensing, and heat recovery applications

Applications:

• Chemical processing
• Petrochemical processing
• Refinery process service
• Process fluid heating
• Process fluid cooling
• Heat recovery
• Condensing service
• Oil and gas processing
• Power generation systems
• Steam and hot water process systems
• Industrial utility systems
• Thermal fluid systems
• Waste heat recovery
• High-pressure process heat transfer
• Vacuum-rated process applications

Suitable Products / Materials:

• Process water
• Cooling water
• Condensate
• Steam service, depending on process requirements
• Hydrocarbon streams, subject to compatibility review
• Chemical process fluids, subject to compatibility review
• Thermal fluids, subject to compatibility review
• Glycol solutions, subject to compatibility review
• Oil-based process fluids, subject to compatibility review
• Other compatible non-corrosive or carbon-steel-compatible process fluids

FAQs:

• What type of heat exchanger is this?
  This is an unused 4-pass U-tube shell and tube heat exchanger with a TEMA Type AEU design.
• Who is the manufacturer?
  The manufacturer is listed as Ilsung Corporation.
• What is the heat transfer surface area?
  The listed heat transfer surface area is approximately 3409 square feet.
• What materials of construction are listed?
  The shell, tubes, and head are listed as carbon steel.
• What are the pressure and temperature ratings?
  The shell is rated 369 psi/full vacuum at 392 degrees F. The tubes are rated 364 psi/full vacuum at 320 degrees F.
• How many tubes does this exchanger have?
  The listing states the exchanger has (368) 3/4" diameter x 288" long tubes.
• What are the overall dimensions?
  The listed overall dimensions are 358" L x 44" W x 82" T.
• What year was this heat exchanger built?
  The listed year built is 2015.
• Is there a serial number or National Board number conflict on the listing?
  Yes. The main listing and specifications show Serial #14-HE-078 and National Board #2062.
• Can this heat exchanger be used for chemical or petrochemical service?
  This type of carbon steel shell and tube heat exchanger is commonly used in chemical, petrochemical, refining, and industrial process applications, but final suitability depends on the process fluid, temperature, pressure, corrosion requirements, and buyer engineering review.
• Can Aaron Equipment help with shipping?
  Yes. Aaron Equipment can help coordinate freight, loading, logistics, and shipping support for used industrial equipment purchases. Buyers should contact Aaron Equipment with the stock number, destination, and shipping requirements.
• How can Aaron Equipment help with this purchase?
  Aaron Equipment can provide a quote, answer equipment questions, review available photos and specifications, help verify serial and National Board information, confirm included documentation when available, and assist with logistics for this unused Ilsung Corporation shell and tube heat exchanger.
