Stock No.: 53595001
Used Praxair Model SDBP Nitrogen Freeze Tunnel – 24” Wide x 22’ Long Conveyor

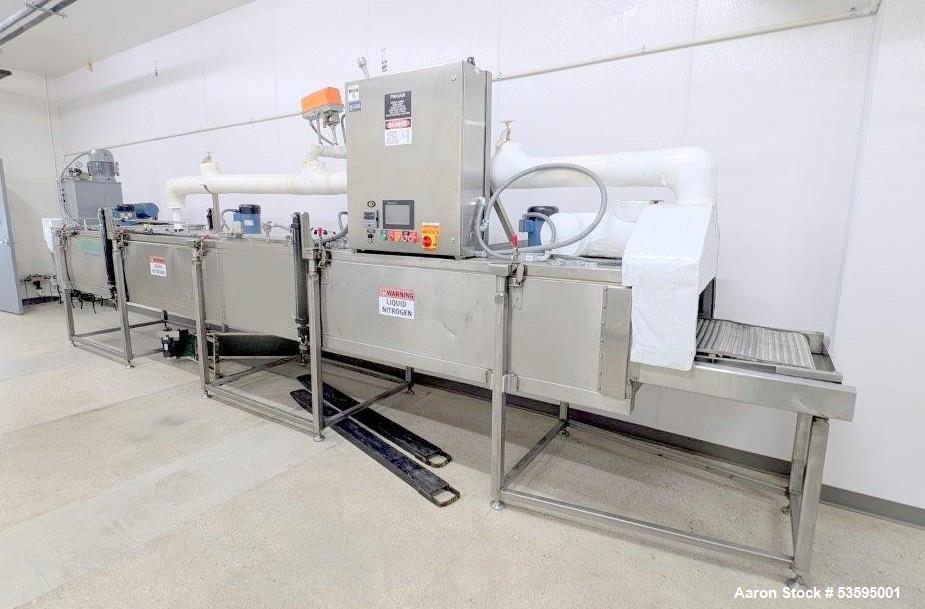

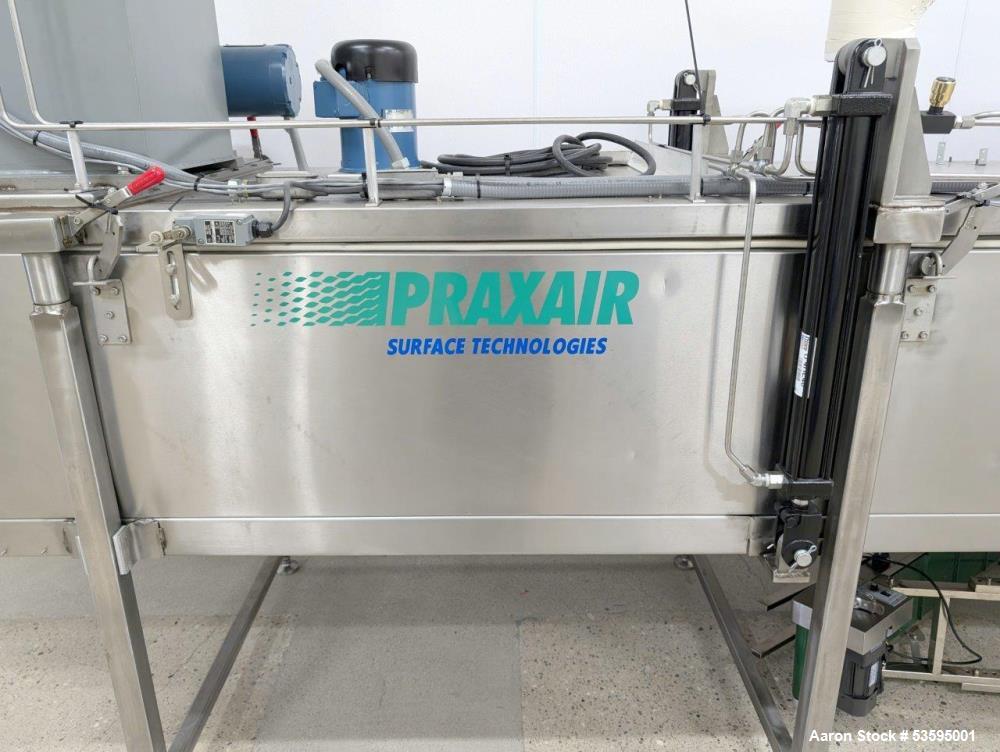

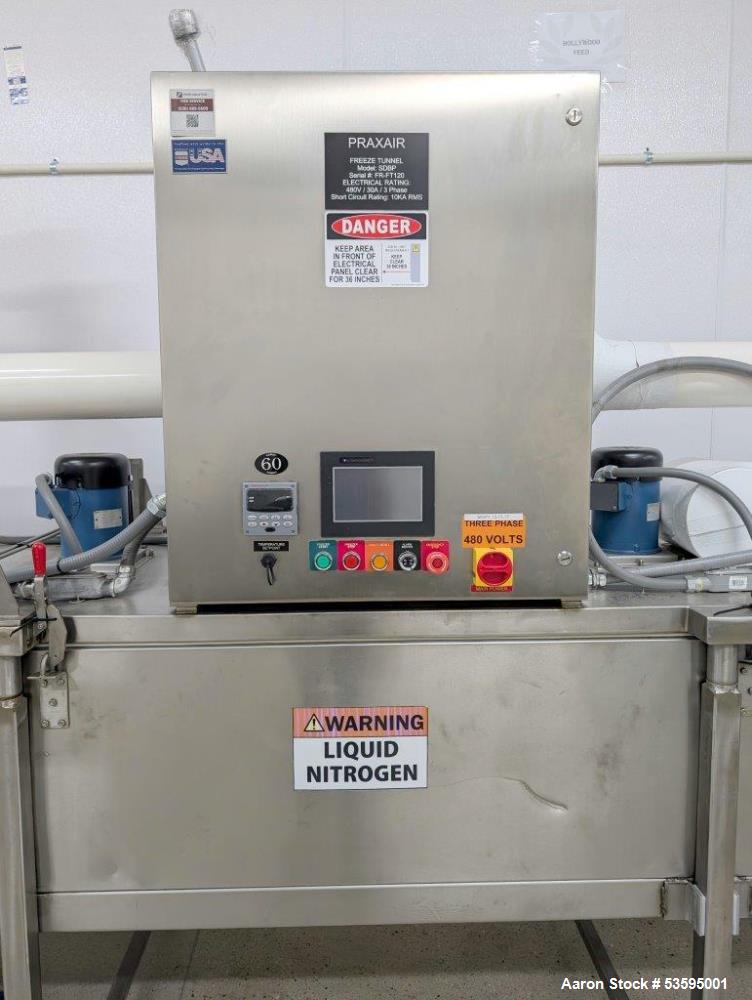

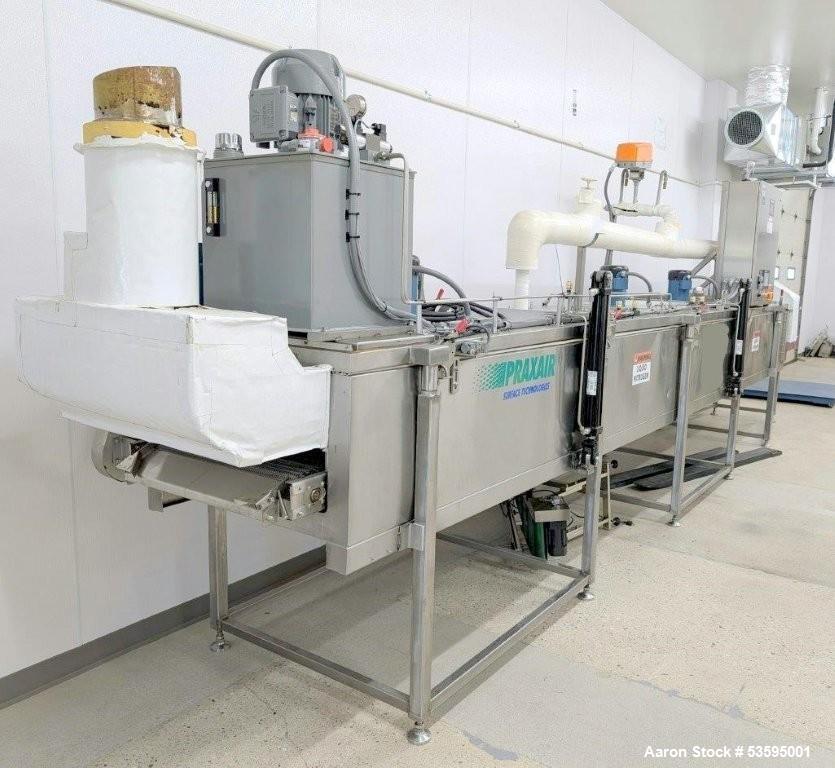

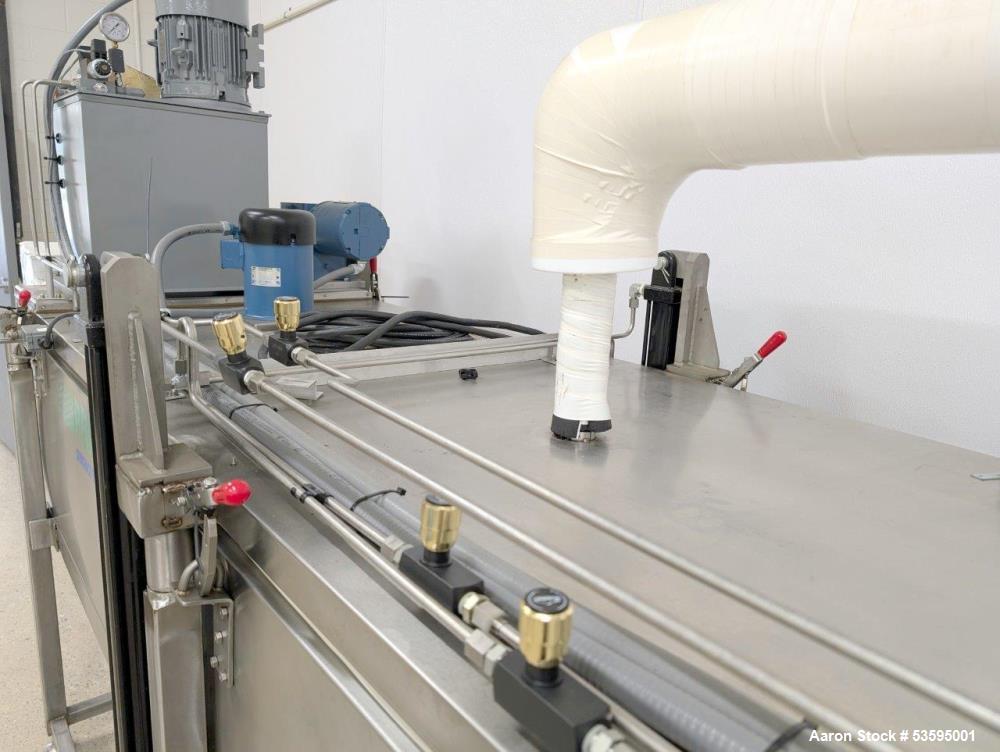

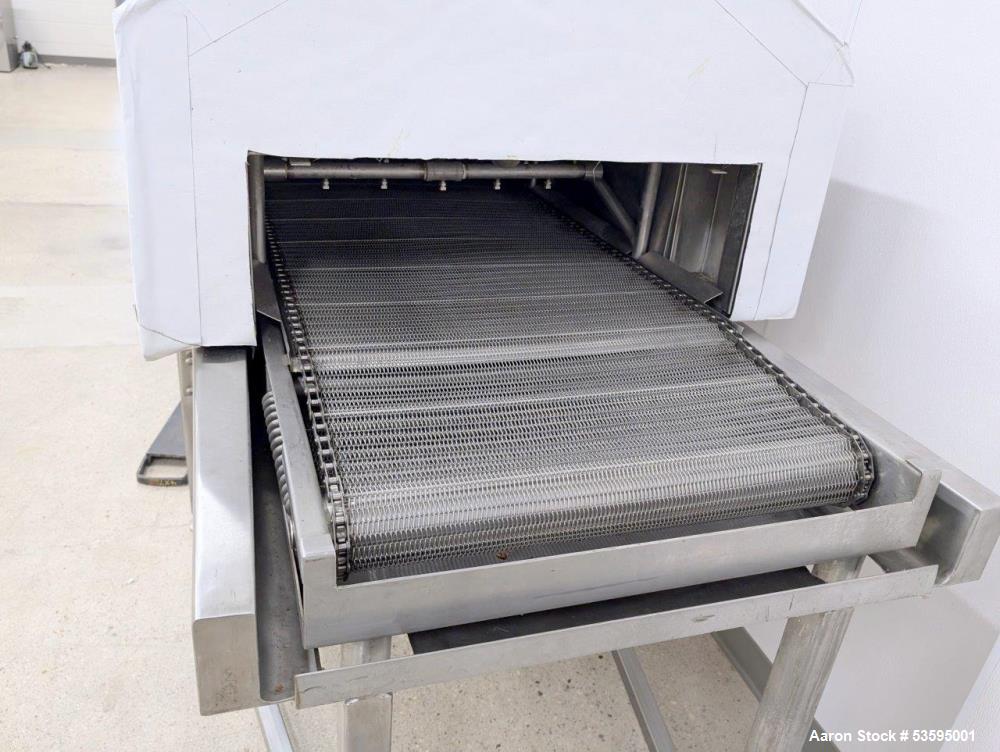

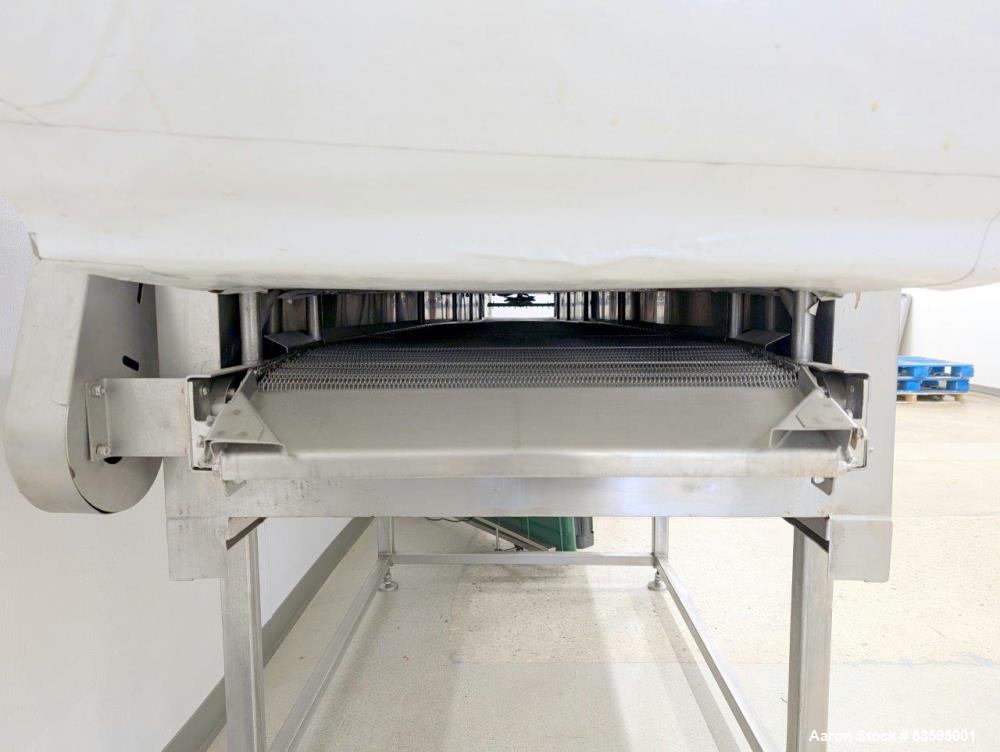

Used- Praxair Model SDBP Nitrogen Stainless Steel Freeze Tunnel. Single door, bottom pan, with number of product per hour - depending on materials, application, temperature rates and conveyor belt speed. Equipped with 24" wide x 22' long mesh conveyor belt with 6" high aperture. (3) 1/2 Hp top mounted motor driven fans, (11) discharge nozzles, Foxboro temperature controller and bounce pan. Includes (1) door across the quadrants. (2) doors total (1) each side and control panel with push button controls and e-stops. Mounted on (12) leg base frame. 1 HP, 3/60/480V. OAD: 24' L x 40" W x 84" H.
-
ManufacturerPraxair Inc
-
ModelSDBP
-
CategoryFreezers
-
SubcategoryTunnel Freezer
Used equipment facts about this machine
Manufacturer Information
Manufacturer Information:
- Manufacturer: Praxair
- Model: SDBP
- Condition: Used
Description:
The Praxair Model SDBP Nitrogen Freeze Tunnel is a high-capacity industrial cryogenic freezing system, designed for efficient and rapid freezing of food products. This system is constructed from stainless steel and features a 24” wide x 22’ long mesh conveyor belt with a 6” high aperture, providing ample space for high-volume processing.
Equipped with three (3) 1/2 HP top-mounted motor-driven fans and eleven (11) discharge nozzles, this freezer ensures even and rapid cooling for various food products. A Foxboro temperature controller allows for precise temperature regulation, while the bounce pan system helps manage product movement within the freezing tunnel.
Designed for operator convenience and safety, the unit includes two doors (one on each side), a single-door access across the quadrants, and a control panel with push-button controls and emergency stops (e-stops). The system is mounted on a 12-leg base frame, ensuring stability and durability.
This unit operates on a 1 HP, 3-phase, 60 Hz, 480V power supply, making it suitable for high-demand industrial applications.
Specifications:
- Model: SDBP
- Freezing Type: Nitrogen Freeze Tunnel
- Material: Stainless Steel
- Conveyor Belt: 24” Wide x 22’ Long Mesh Belt (6” High Aperture)
- Fans: (3) 1/2 HP Top-Mounted Motor-Driven Fans
- Discharge Nozzles: (11) for Even Freezing
- Temperature Control: Foxboro Temperature Controller
- Access Doors:
- (1) Single-Door Access Across Quadrants
- (2) Side Doors (One on Each Side)
- Control System: Push-Button Controls with E-Stops
- Frame: Mounted on a 12-Leg Base Frame
- Power Requirements: 1 HP, 3-Phase, 60 Hz, 480V
- Overall Dimensions (OAD): 24’ L x 40” W x 84” H
- Condition: Used
Applications:
The Praxair SDBP Nitrogen Freeze Tunnel is ideal for cryogenic freezing applications in industries such as:
- Food Processing & Manufacturing
- Meat, Poultry & Seafood Processing
- Bakery & Confectionery Production
- Ready-to-Eat Meal Processing
- Dairy & Frozen Dessert Production
What Products Would This Be Used For?
- Frozen bakery goods (bread, cakes, pastries)
- Meat, poultry, and seafood products
- Pre-cooked meals and ready-to-eat foods
- Dairy products and frozen desserts
- Fruits, vegetables, and frozen produce
