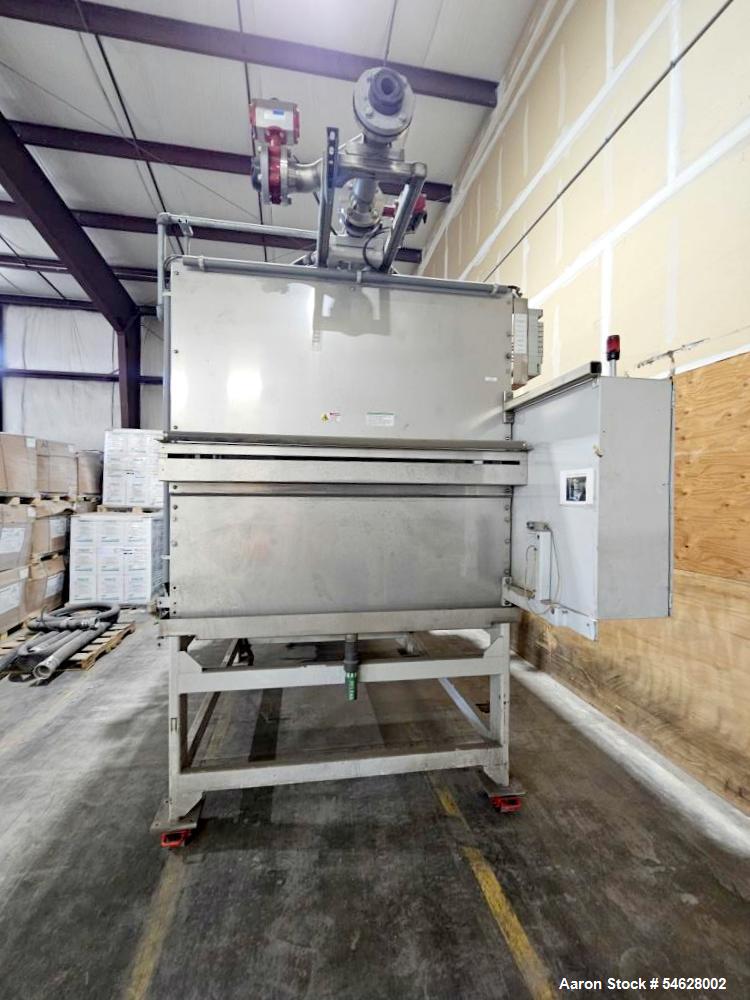

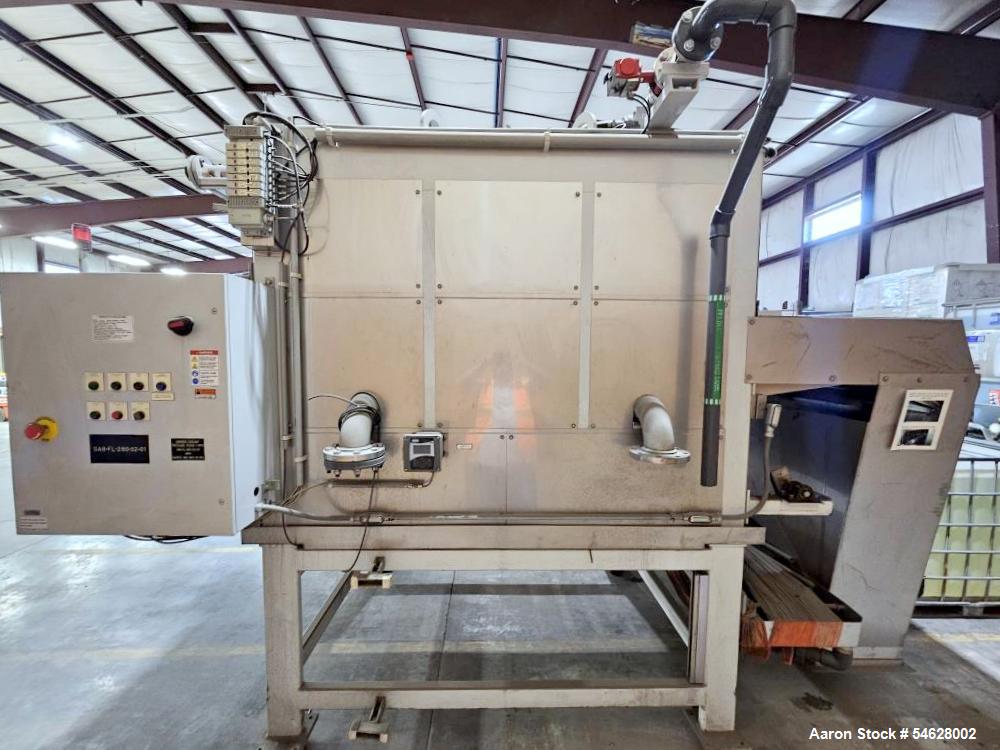

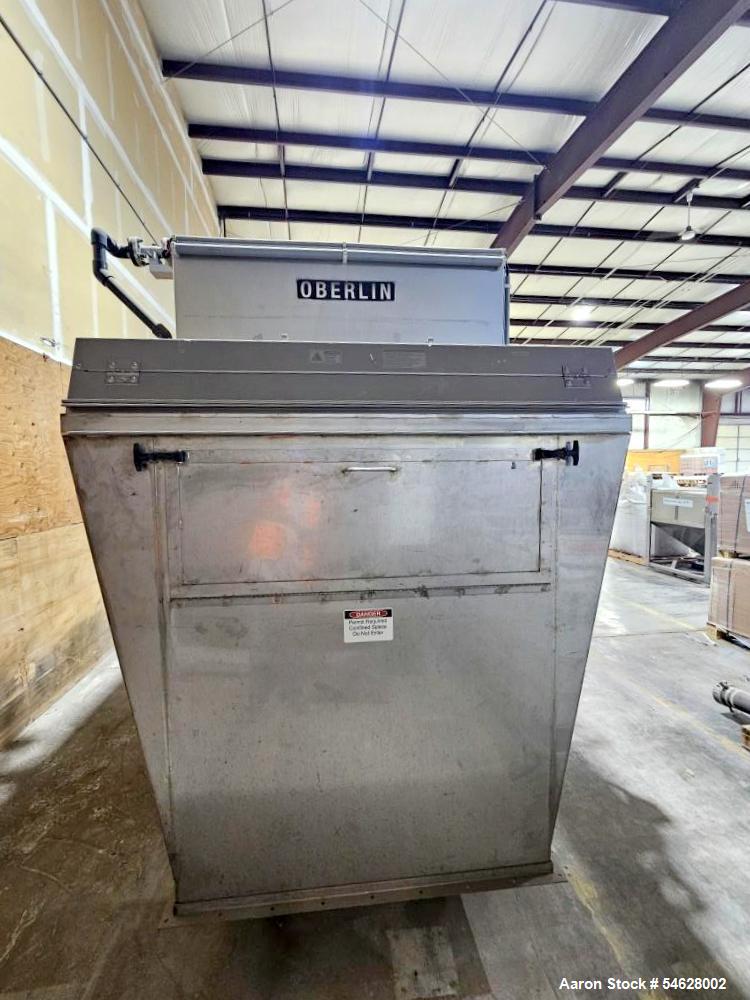

Used Oberlin OPF-24 Pressure Filtration System – Up to 960 GPM

Manufacturer Information

Manufacturer: Oberlin
Model: OPF-24

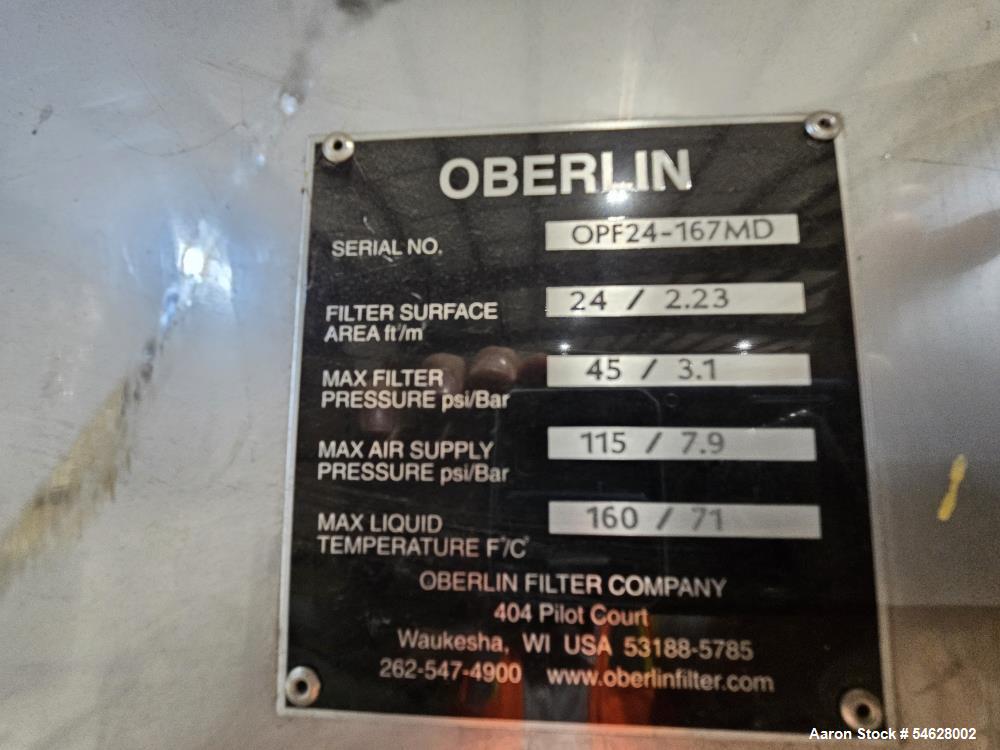

Serial/Configuration: OPF24-167MD
Equipment Type: Fully Automatic Horizontal Pressure Filtration System

Main Product Description

Used Oberlin Model OPF-24 fully automatic horizontal pressure filtration system featuring 24 square feet (2.23 m²) of filtration area with nominal capacity up to 960 GPM on certain water-based applications or 400 GPM on 200-SSU oil. The system is rated for a maximum filter pressure of 45 psi, maximum air supply pressure of 115 psi, and maximum liquid temperature of 160°F. Its automatic operating cycle includes pressure filtration, filter cake formation, air drying, media advancement, and dry-cake discharge. The OPF-24 can operate using disposable filter media or a reusable cleanable belt for automated industrial liquid-solid separation and process filtration applications.

Specifications

• Manufacturer: Oberlin
• Model: OPF-24
• Serial/Configuration: OPF24-167MD
• Type: Fully automatic horizontal pressure filtration system
• Filtration Area: 24 sq ft
• Filtration Area Metric: 2.23 m²
• Nominal Capacity: Up to 960 GPM on certain water-based applications
• Oil Capacity: Up to 400 GPM on 200-SSU oil

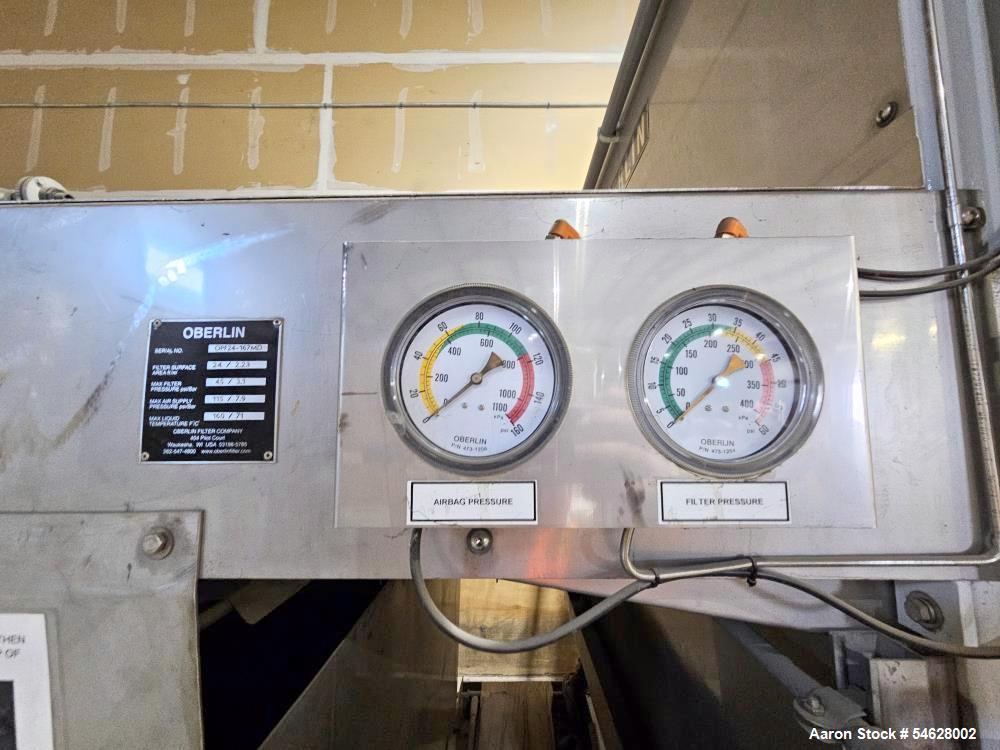

• Maximum Filter Pressure: 45 psi

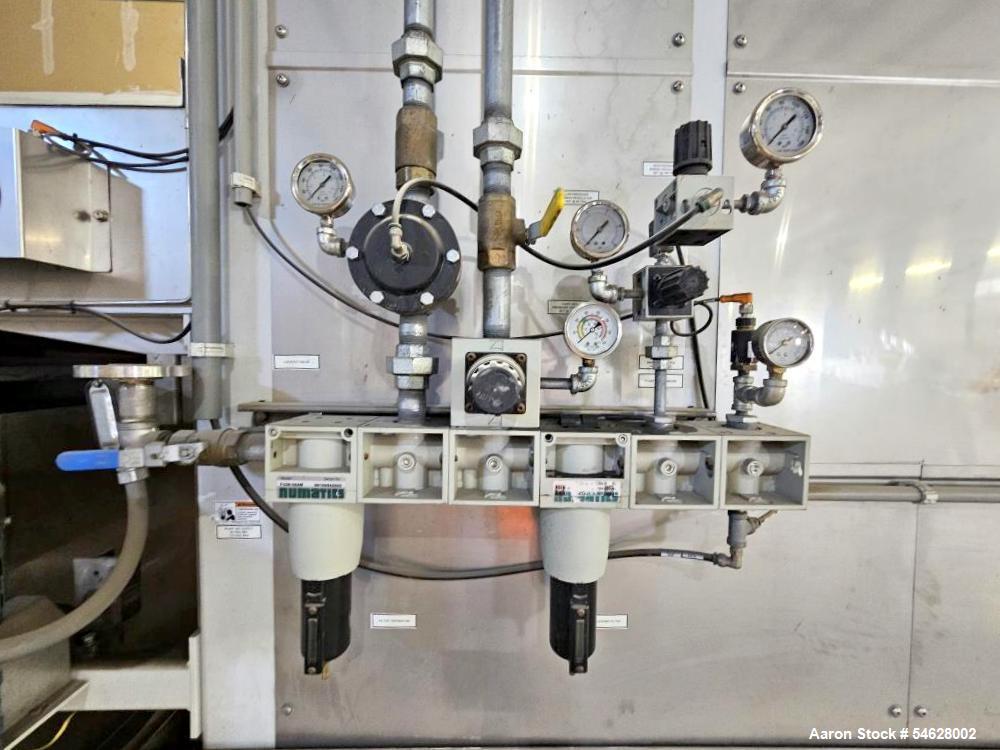

• Maximum Air Supply Pressure: 115 psi
• Maximum Liquid Temperature: 160°F
• Filtration Cycle: Automatic
• Cycle Functions: Pressure filtration, cake formation, air drying, media advancement, and dry-cake discharge
• Filter Media: Disposable filter media or reusable cleanable belt
• Approximate Length: 145"
• Approximate Width: 77"
• Approximate Height: 82"

Applications

• Industrial liquid-solid separation
• Process liquid filtration
• Coolant filtration
• Oil filtration
• Water-based fluid filtration
• Filter cake formation
• Filter cake dewatering
• Automated solids removal
• Metalworking fluid filtration
• Manufacturing process filtration

Suitable Products / Materials

• Water-based process liquids
• Industrial oils
• 200-SSU oil
• Metalworking coolants
• Cutting fluids
• Process fluids containing suspended solids
• Liquids requiring filter cake separation
• Compatible industrial process water

FAQs

• What is the filtration area of the Oberlin OPF-24?
  The Oberlin OPF-24 provides 24 square feet, or approximately 2.23 m², of filtration area.
• What is the capacity of this Oberlin OPF-24 filtration system?
  Nominal capacity is up to 960 GPM on certain water-based applications or up to 400 GPM when filtering 200-SSU oil. Actual filtration rates can vary depending on the liquid, solids loading, filter media, and operating conditions.
• What is the maximum filter pressure?
  The system is rated for a maximum filter pressure of 45 psi.
• What is the maximum air supply pressure?
  Maximum air supply pressure is 115 psi.
• What is the maximum liquid temperature?
  The Oberlin OPF-24 is rated for a maximum liquid temperature of 160°F.
• Is the Oberlin OPF-24 fully automatic?
  Yes. Its automatic cycle includes pressure filtration, cake formation, air drying, media advancement, and dry-cake discharge.
• What type of filter media can this system use?
  The system can operate with disposable filter media or a reusable cleanable belt.
• What are the approximate dimensions of this filtration system?
  The approximate footprint is 145" long x 77" wide x 82" high.
• Can Aaron Equipment help determine if this Oberlin OPF-24 is suitable for my application?
  Yes. Aaron Equipment can help review your process requirements, fluid characteristics, desired flow rate, and filtration needs to help determine whether this equipment may be suitable for your operation.
• Can Aaron Equipment assist with shipping this Oberlin filtration system?
  Yes. Aaron Equipment can assist with coordinating freight and shipping options for industrial equipment. Contact Aaron Equipment with your destination and delivery requirements for additional shipping information.
