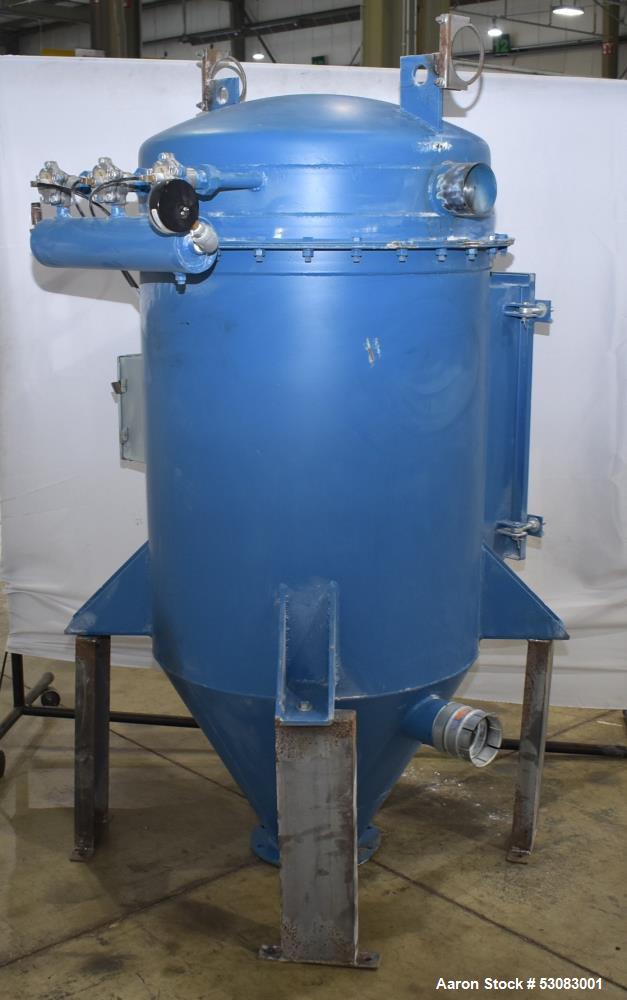

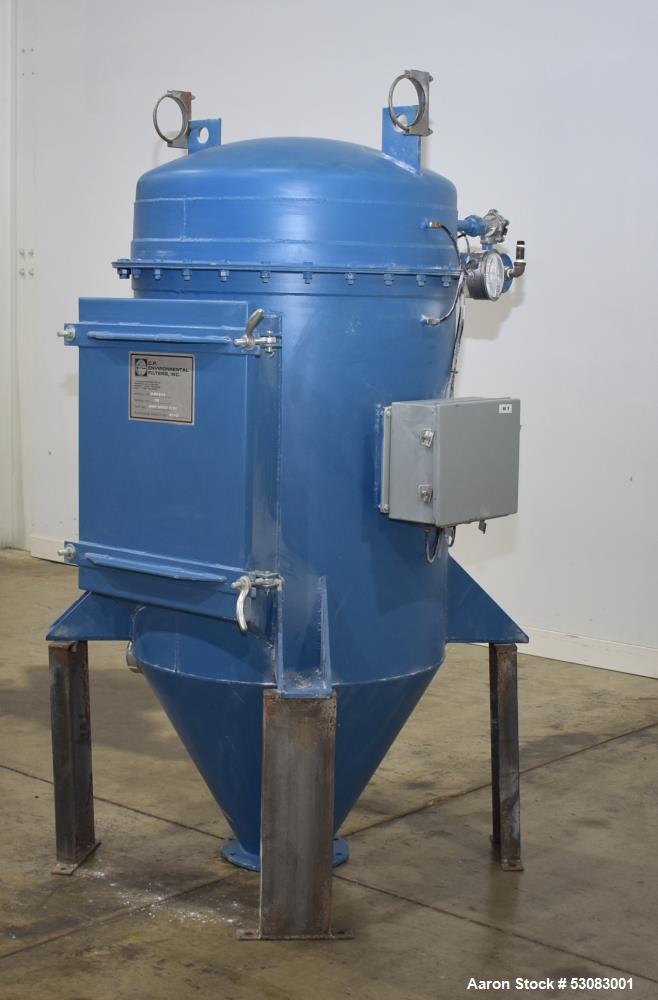

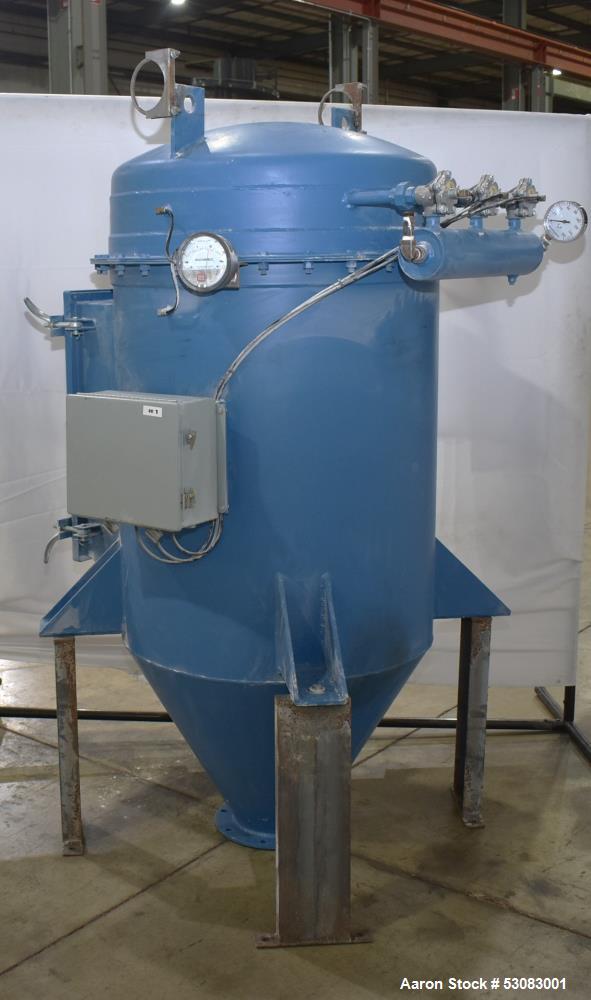

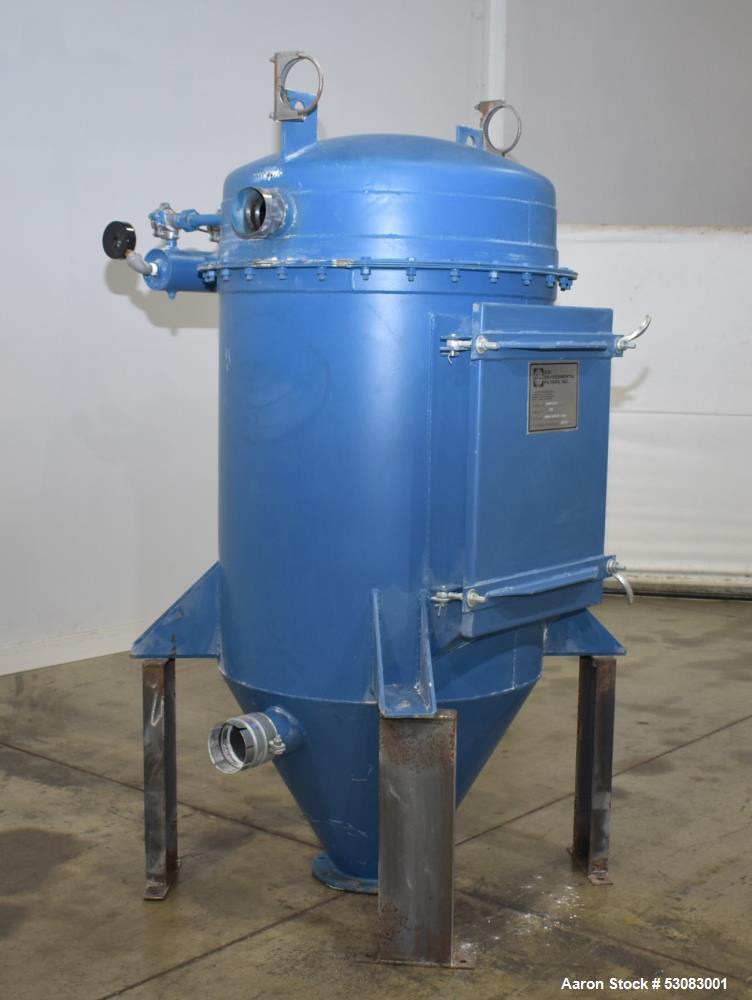

Used CPE Filters Inc. Model 24-CFR-009-C Cartridge Filter Receiver – 400 ACFM Dust Collector

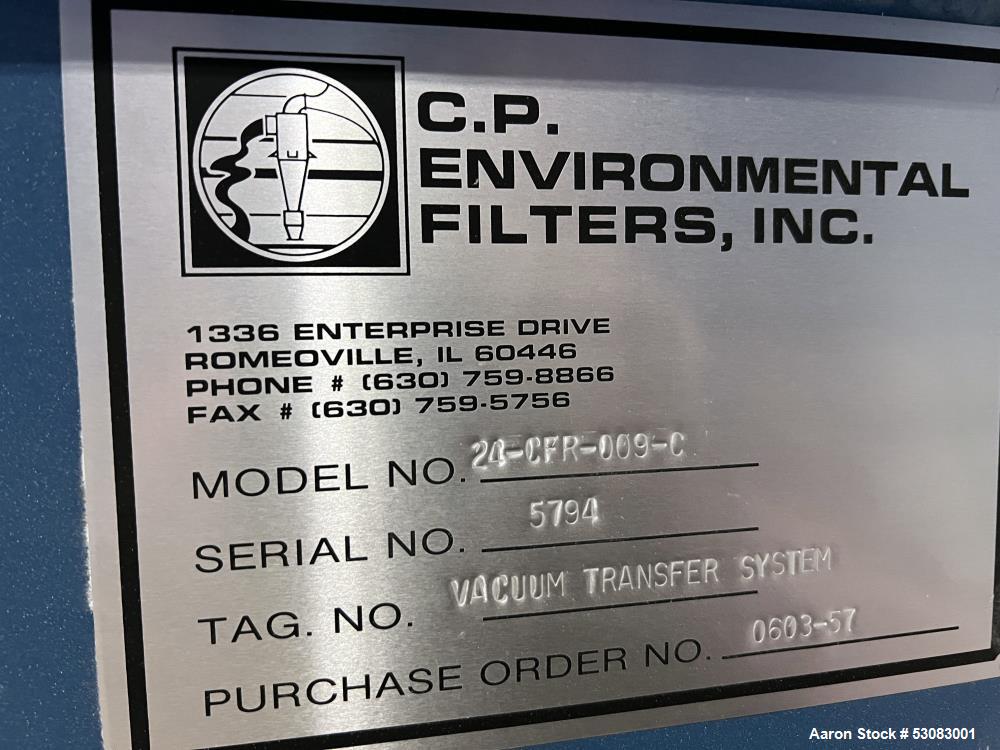

Manufacturer Information:

• Manufacturer: CPE Filters Inc.
• Model: 24-CFR-009-C
• Type: Cartridge Filter Receiver / Dust Collector (Vertical)
• Condition: Used
• Serial Number: 5794

Manufacturing Data:

Dust Collector Specifications:

• Material: Carbon Steel
• Orientation: Vertical
• Airflow Capacity: 400 ACFM
• Filtering Area: 142 Square Feet
• Dust Density Capacity: 50 lbs/Cubic Foot
• Temperature Rating: 200°F Max

Structural Details:

• Housing Dimensions: 28" Diameter x 36" Straight Side
• Top Configuration: Dished Top
• Bottom Configuration: Coned Bottom

Filtration System:

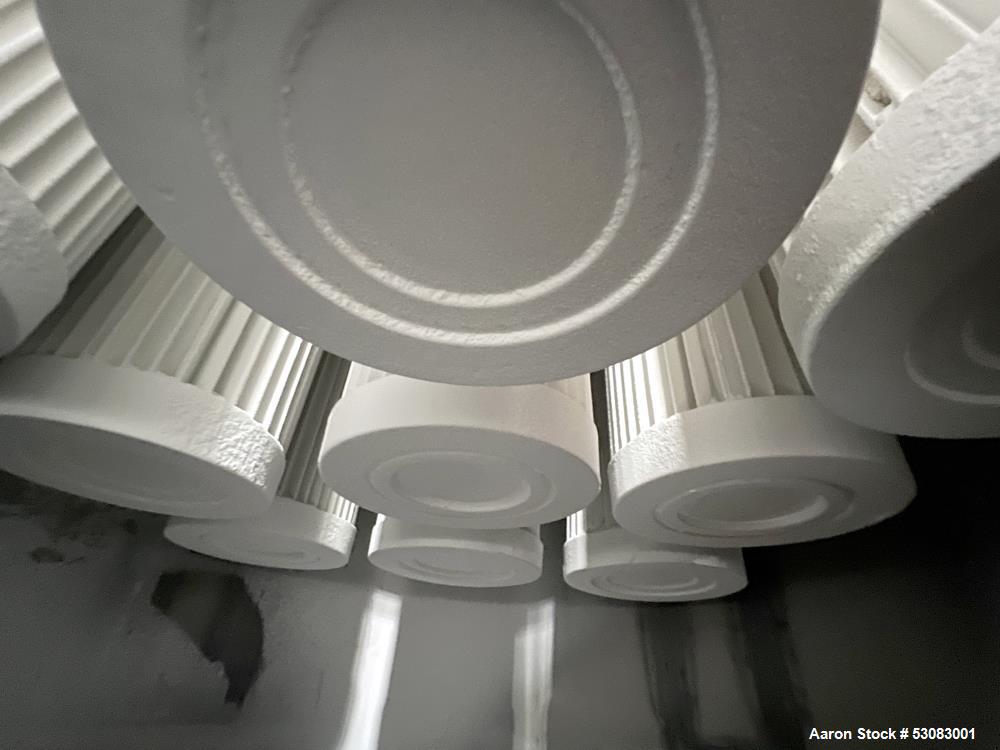

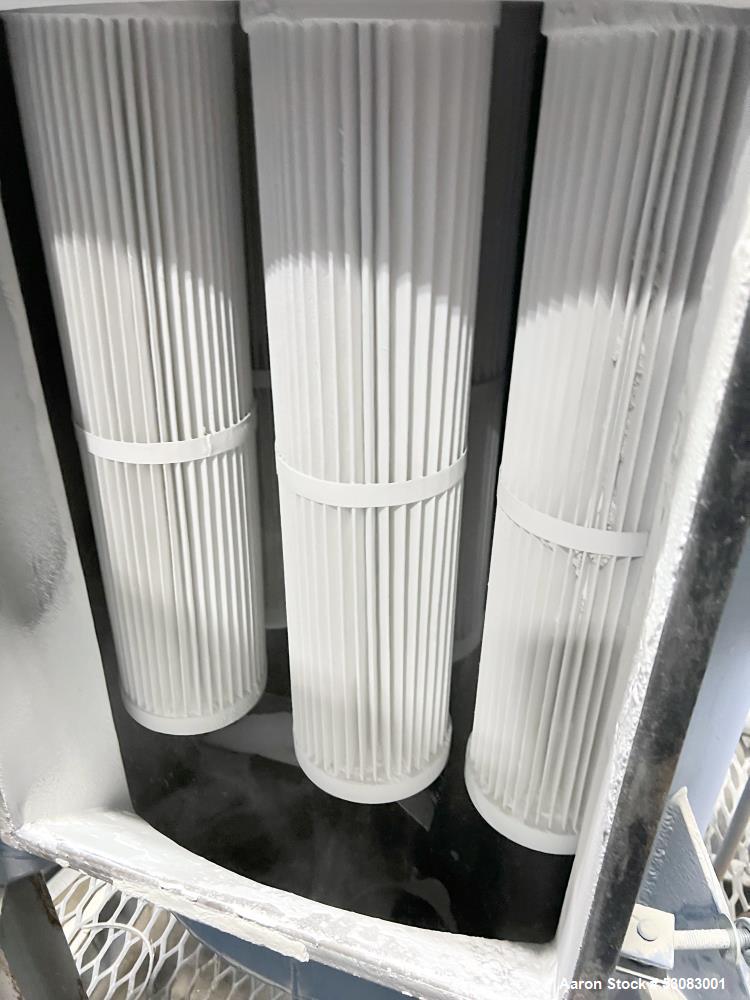

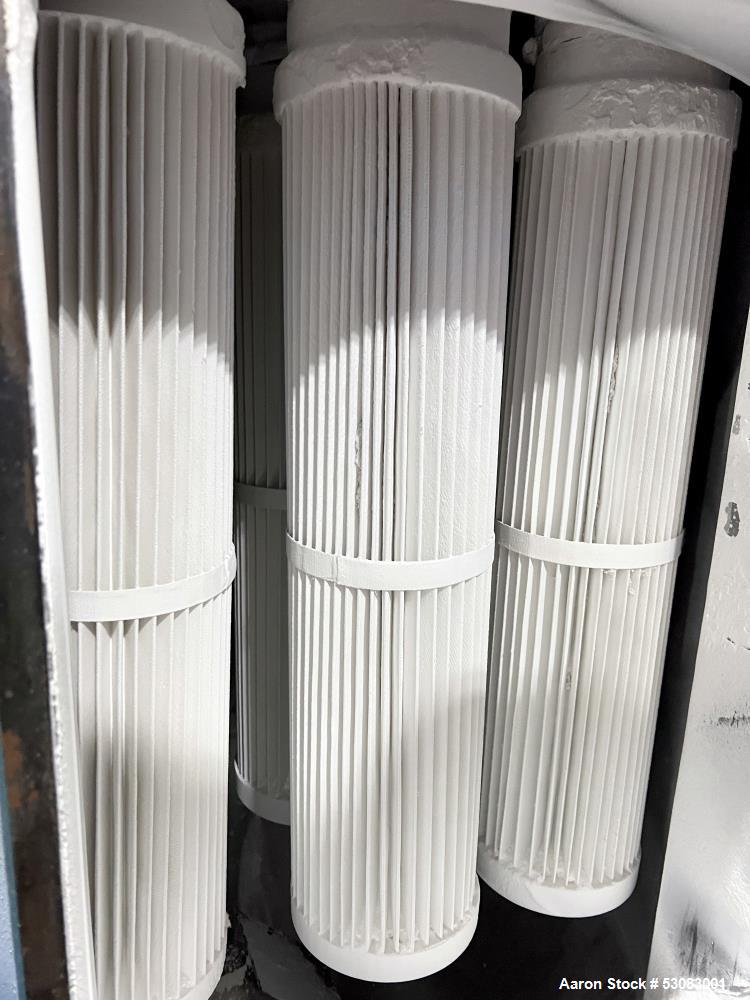

• Filter Cartridges: (9) Filters
• Cartridge Dimensions: 6" Diameter x 24" Long Each

Airflow & Access Points:

• Clean Air Outlet: 4" Diameter

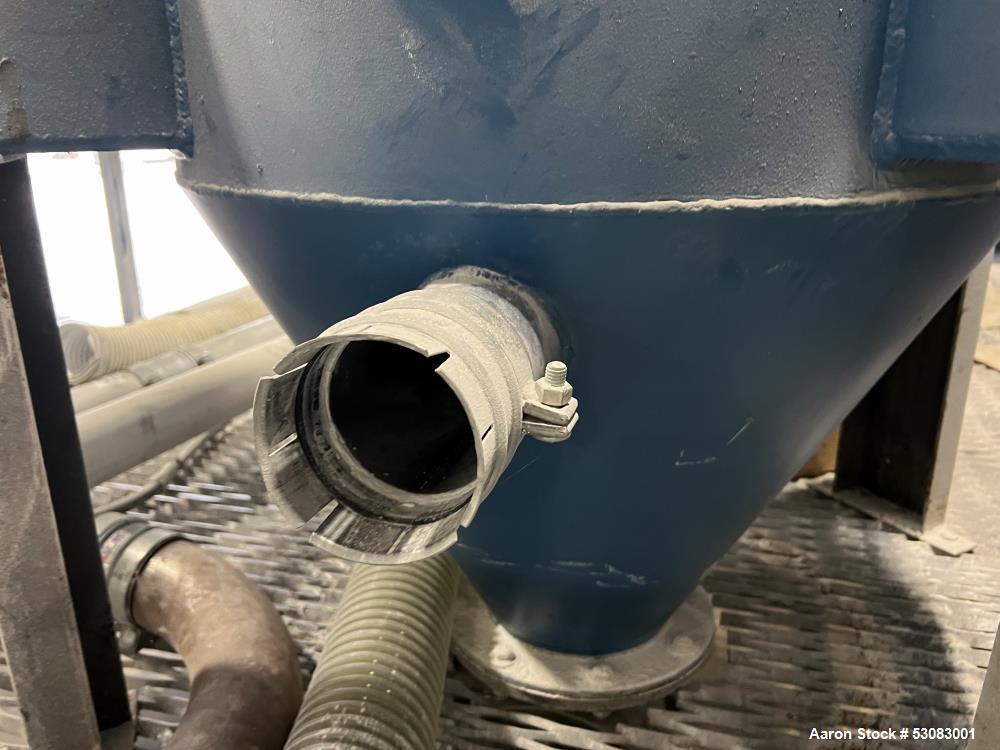

• Dusty Air Inlet: 4" Tube Inlet with Internal Baffle

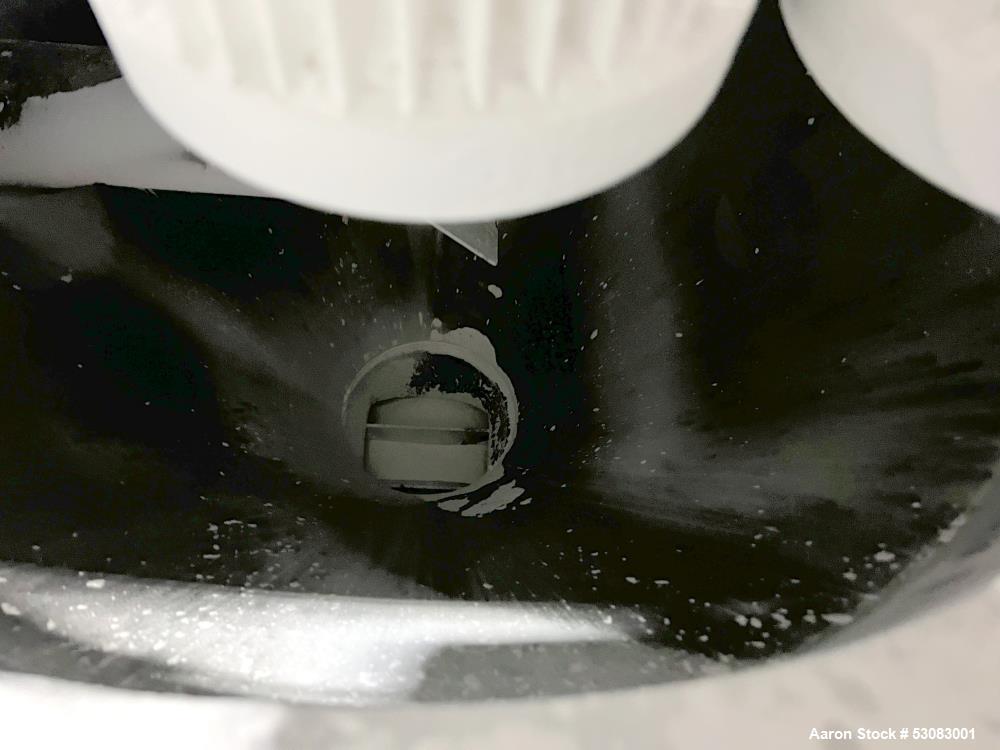

• Dust Collection Outlet: Approx. 8" Center Bottom Outlet

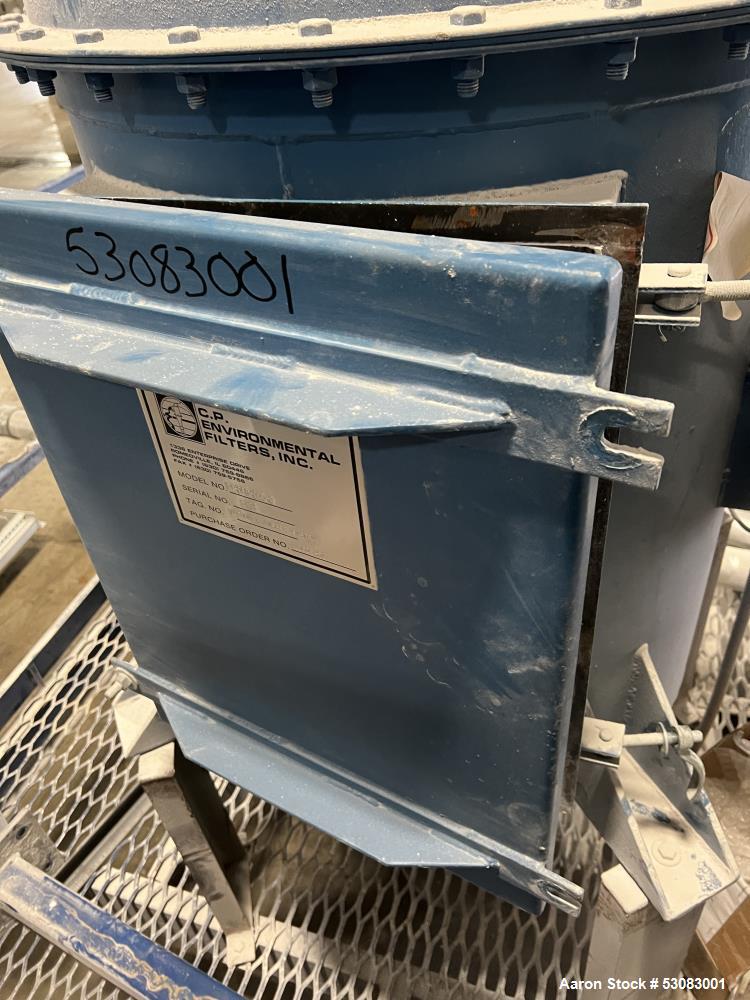

• Side Access Door: 18" x 24" for Maintenance & Filter Replacement

Mounting & Support:

• Side Lug Mounted
• Supported by (4) Carbon Steel Legs

Additional Components:

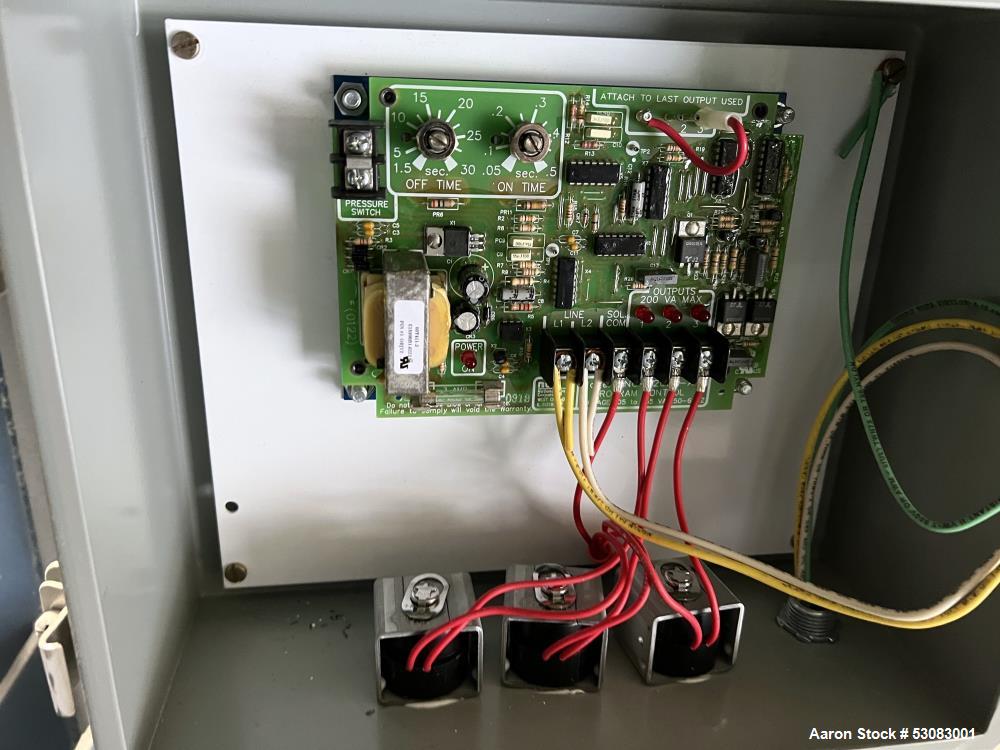

• (3) Valves for Airflow & Dust Control
• Blower Not Included

Description:

The Used CPE Filters Inc. Model 24-CFR-009-C Cartridge Filter Receiver is a high-efficiency dust collection and air filtration system, designed for industrial and manufacturing dust control applications.

With an airflow capacity of 400 ACFM and 142 square feet of filtering area, this system efficiently removes dust, particulates, and airborne contaminants from food processing, pharmaceutical, chemical, and manufacturing environments.

Equipped with nine 6" x 24" filter cartridges, a 4" clean air outlet, and a 4" dusty air inlet with an internal baffle, this unit provides optimal filtration with minimal pressure drop. The coned bottom and 8" center bottom outlet allow for efficient dust discharge and collection.

The 18" x 24" side access door ensures easy filter maintenance and replacement, while the carbon steel construction and side lug-mounted design with four sturdy legs provide stability and durability.

This unit does not include a blower, allowing users to integrate it into existing dust collection systems or customize airflow control.

Specifications:

• Airflow Capacity: 400 ACFM
• Filtering Area: 142 Square Feet
• Dust Density Capacity: 50 lbs/Cubic Foot
• Material: Carbon Steel
• Housing Dimensions: 28" Diameter x 36" Straight Side
• Top Design: Dished Top
• Bottom Design: Coned Bottom
• Temperature Rating: 200°F Max
• Filter Cartridges: (9) Filters (6" Dia. x 24" Long Each)
• Clean Air Outlet: 4" Diameter
• Dusty Air Inlet: 4" Tube with Internal Baffle
• Dust Collection Outlet: 8" Center Bottom Outlet
• Side Access Door: 18" x 24"
• Mounting: Side Lug Mounted, Supported by (4) Carbon Steel Legs
• Valves: (3) Airflow & Dust Control Valves
• Blower: Not Included
• Serial Number: 5794
• Condition: Used, Good Working Order

Applications:

• Industrial dust collection & air filtration
• Pharmaceutical powder & airborne particulate control
• Food processing & flour dust collection
• Chemical plant air purification
• Metalworking & welding fume extraction
• Woodworking shop sawdust collection
• Paint booth & coating process air filtration
• Manufacturing plant dust control & environmental compliance

What Products Would This Be Used For?

• Fine particulate filtration in industrial environments
• Dust collection for food & pharmaceutical processing plants
• Powder coating & finishing air filtration
• Chemical & solvent-based fume extraction
• Metalworking and welding smoke & dust control
• Plastic & composite manufacturing dust collection
• HVAC & cleanroom air purification
• Sawdust & wood debris extraction in woodworking applications
