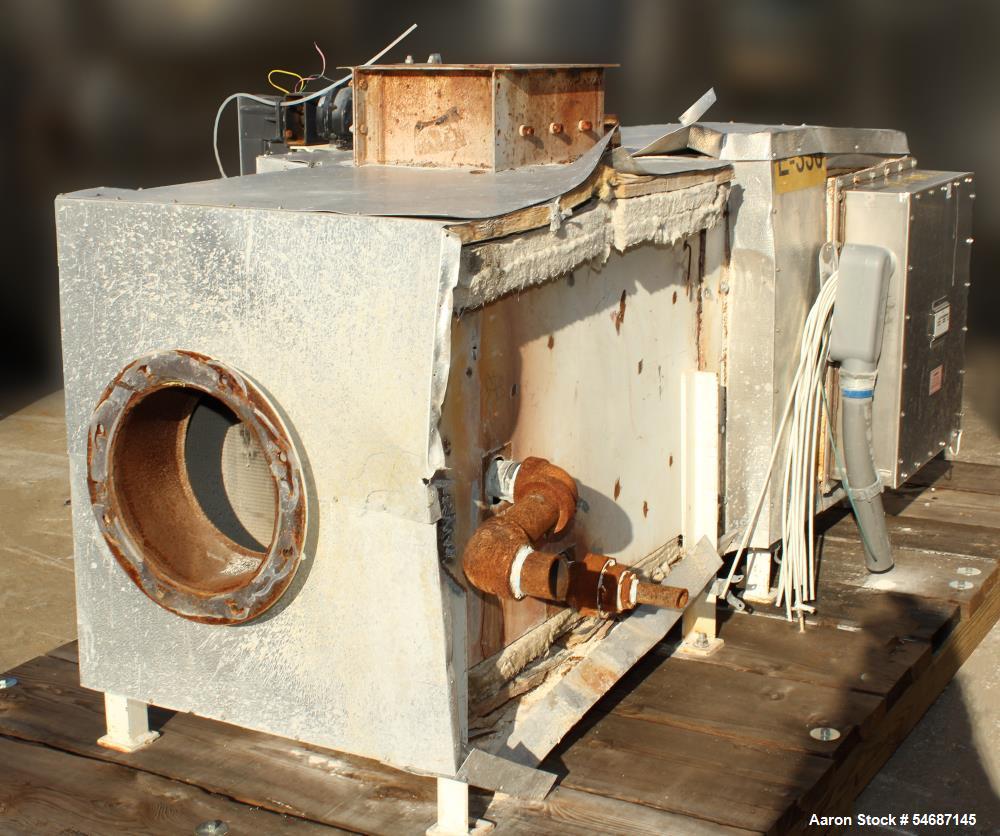

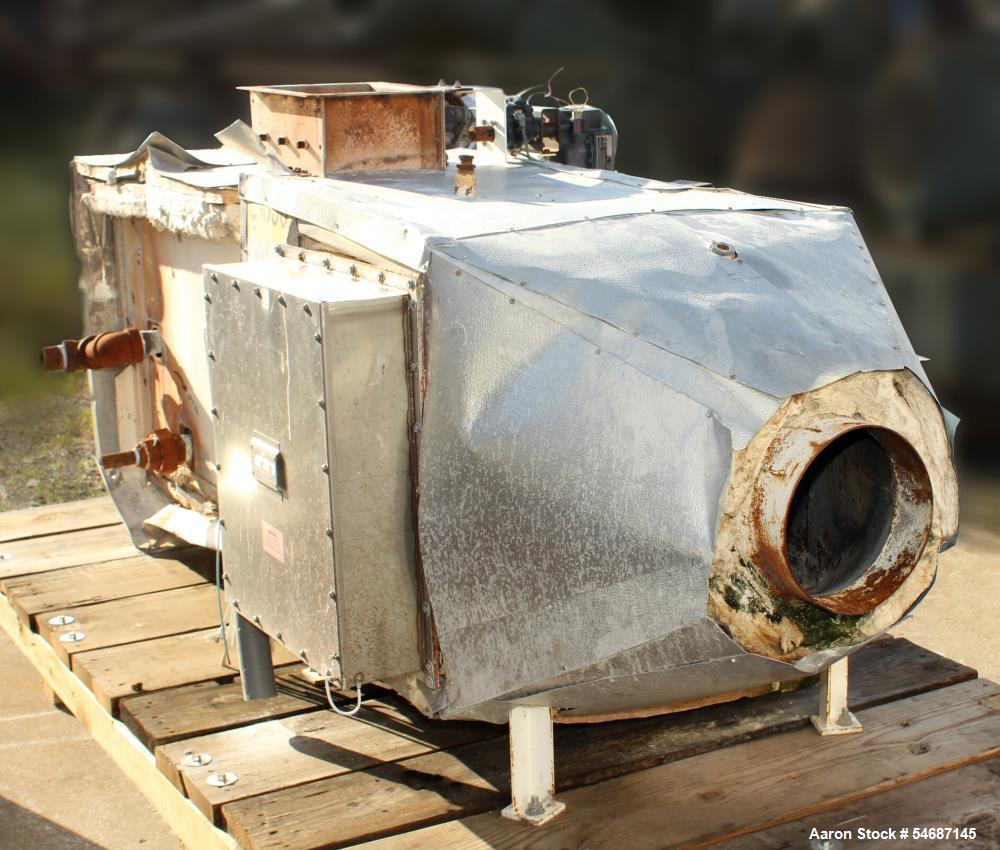

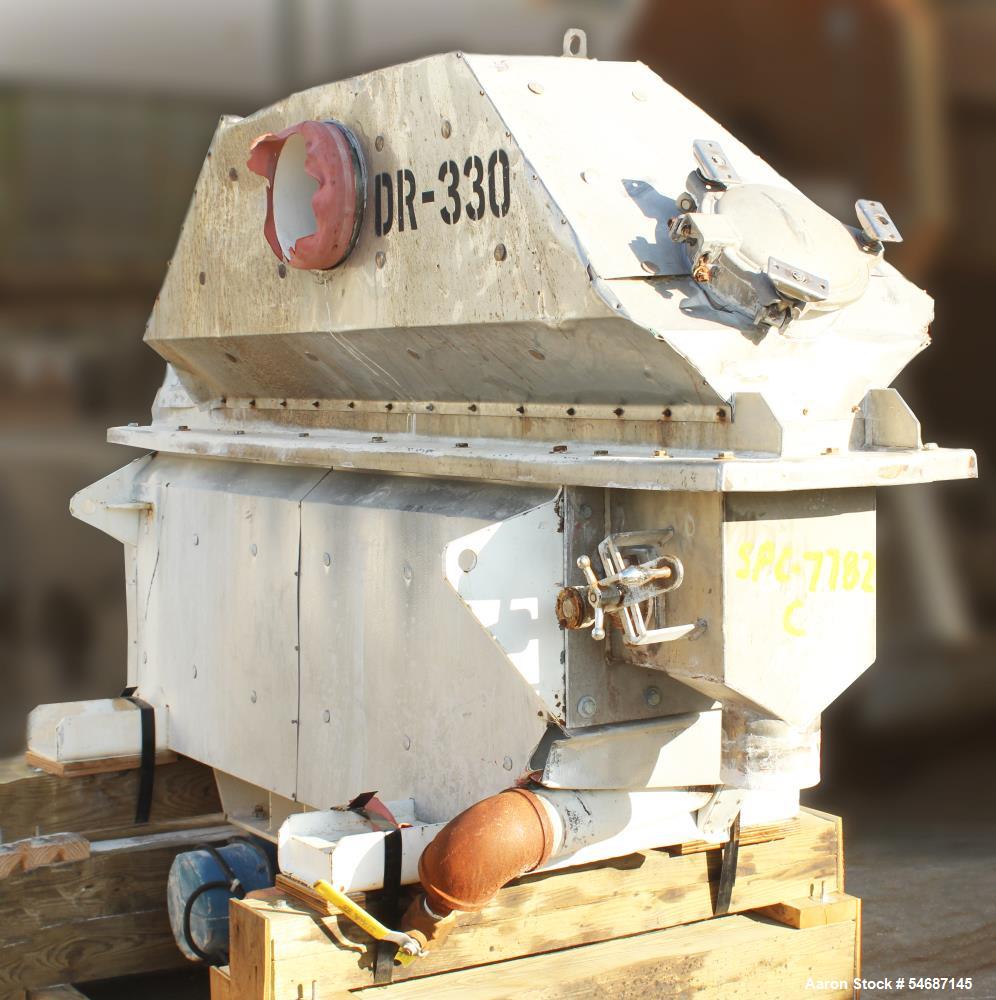

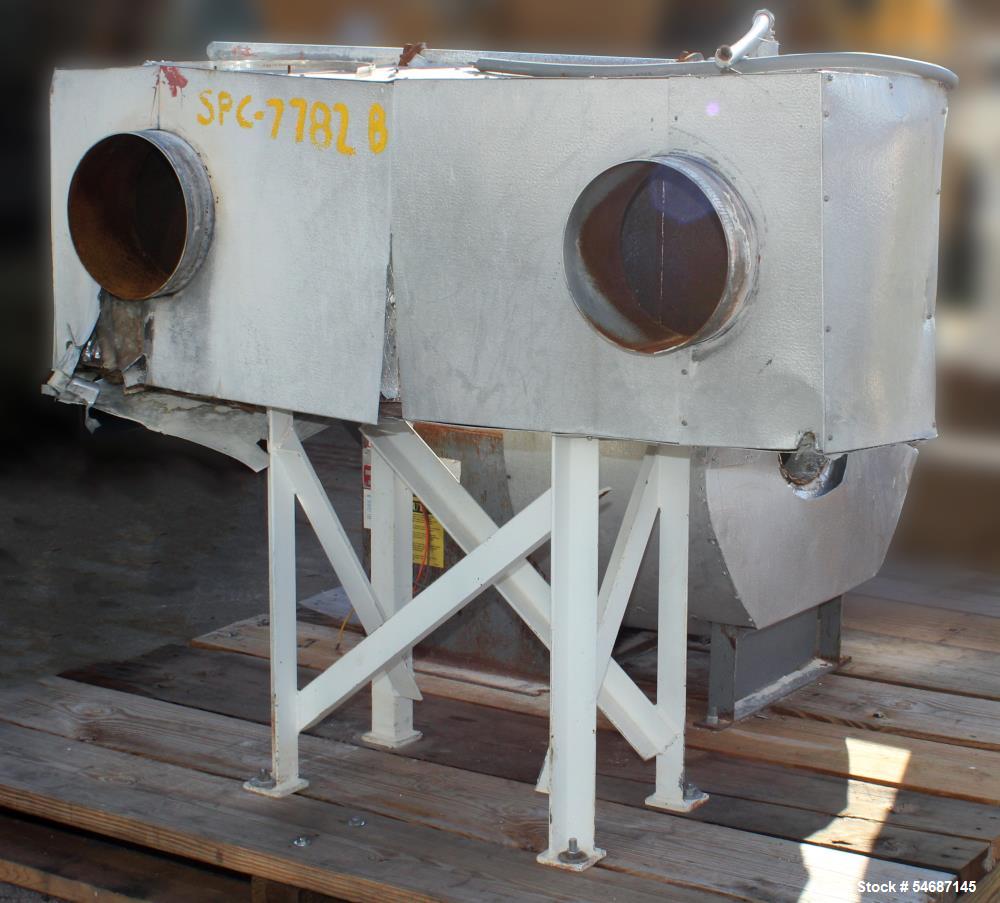

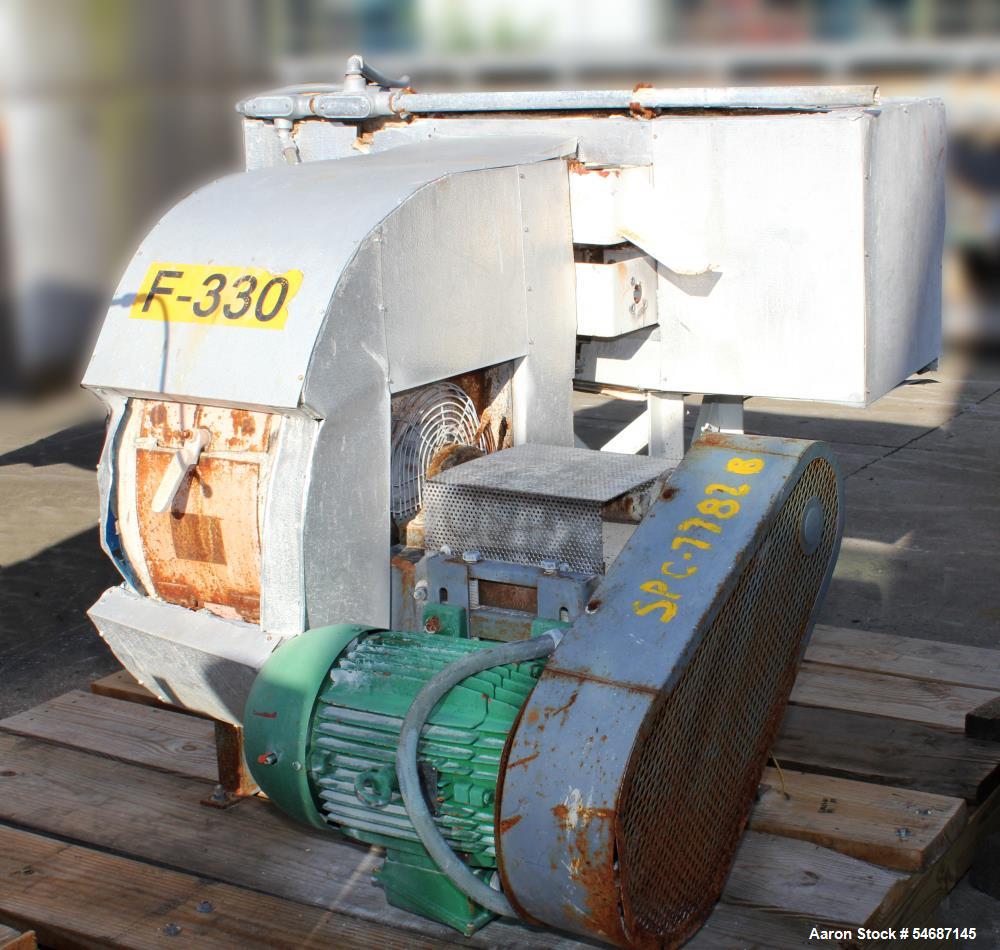

Used Carman Vibrating Fluid Bed Dryer, also including a Blower Unit and an Electric Process Air Heater. Carman Fluid Bed Model FB-50, equipped with 2 vibrators of 1 hp, Single zone, 11" wide x 72" long perforated bed. The Unit overall dimensions are 44'' x 93'' x 75''. The serial Number is FB-10522. There is no ductwork, controls stands or springs included. Stainless steel contact parts. The Supply-Side Equipment: - New York Blower Co. series 20GI FAN 194 LS. Driven by a 15hp Weg Motor, 1760 rpm. Power required 208-230/ 460 vac3. The Unit dimensions are 61" x 62" x 46". - Process Air Heater CAT no. 164x221428. Has an outlet Temperature of 575 F. 150kw. Power required 460 vac3. The Unit overall dimensions are 50" x 100" x 45". All these items are insulated and appear to be in good condition.
