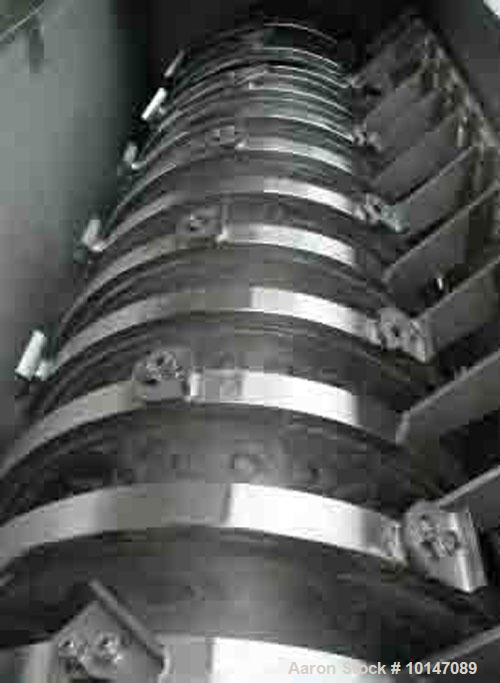

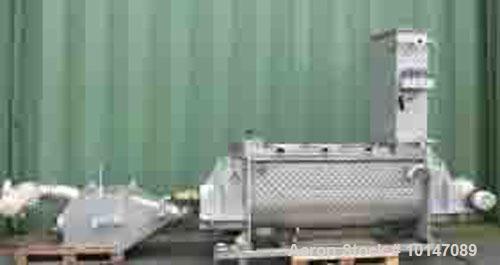

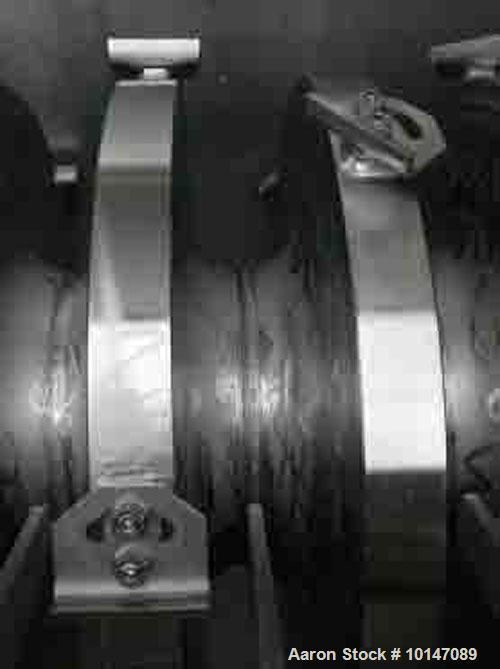

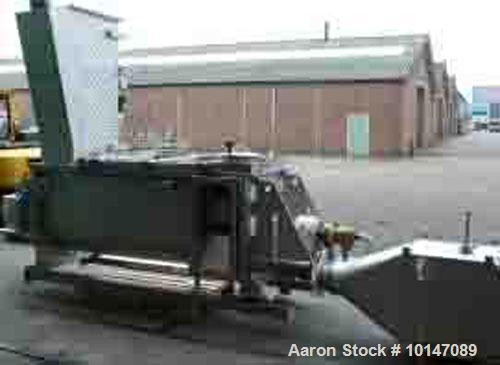

Used Hosokawa Micron B.V. Doetinchem Torus Disc Dryer, Type TDJS 630/2.0

Used- Hosokawa Micron B.V. Doetinchem Torus Disc Dryer, Type TDJS 630/2.0. Heating surface 103.2 square feet (10m2). Material of construction is 304 stainless steel. Capacity 30.4 cubic feet (860 liters). Drying chamber 6'10" x 2'3" x 2'6" high (2150 mm x 710 mm x 800 mm long). Product inlet 27.7" x 15.2" (710 mm x 390 mm), product outlet 15.6" x 7.8" (400 mm x 200 mm). Jacketed, working pressure 75 psi/5 bar, test pressure 105 psi/7 bar. Shaft can be heated. Max temperature 356 deg C/180 deg C. Driven by an 8.25 hp/5.5 kW, 380/660 volt motor. Speed mixing shaft 32 rpm. Overall dimensions: 13' x 6'8" x 8'2" high (4000 mm x 2100 mm x 2500 mm high).
