Used Sandvik 47.5" Wide x 43' Long Stainless Steel Belt Flaker with Rotoformer – Industrial Cooling & Pastillation System

Manufacturer Information

Manufacturer: Sandvik Equipment Type: Stainless Steel Belt Flaker with Rotoformer Condition: Used Belt Width: 47.5" Overall Length: Approximately 43' Electrical: 230/460V, 3-Phase

Sandvik is an established industrial equipment manufacturer associated with steel belt processing, cooling, solidification, and pastillation technology. Sandvik's steel belt processing equipment has been used in chemical, petrochemical, food, and specialty materials manufacturing.

This used Sandvik stainless steel belt flaker with Rotoformer combines continuous product deposition, belt cooling, and mechanical discharge in a single industrial processing system.

The unit features a 47.5" wide stainless steel belt, approximately 43' overall length, Rotoformer pastillation assembly, underside cooling tray, exhaust hood, and knife discharge.

Designed for continuous processing of compatible molten or semi-molten materials, this system was previously used to produce pastilles approximately 3/16" to 1/4" in size.

Equipment Description

Available for sale is a used Sandvik stainless steel belt flaker with Rotoformer, designed for continuous cooling, solidification, and pastillation of compatible industrial materials.

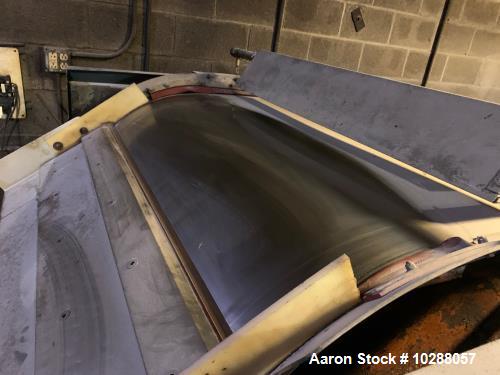

The system features a 47.5" wide stainless steel conveyor belt with an overall equipment length of approximately 43 feet, providing an extended cooling surface for controlled product solidification.

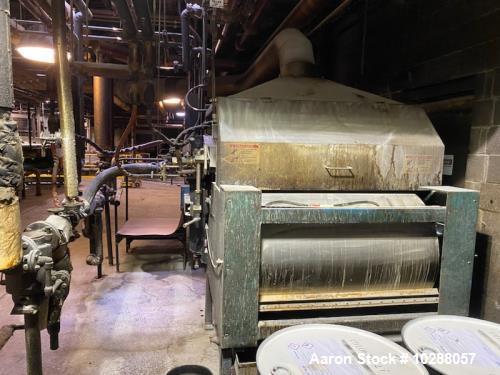

An integrated Rotoformer deposits compatible molten or flowable material onto the moving steel belt in discrete portions. As the material travels along the belt, it cools and solidifies into individual pastilles.

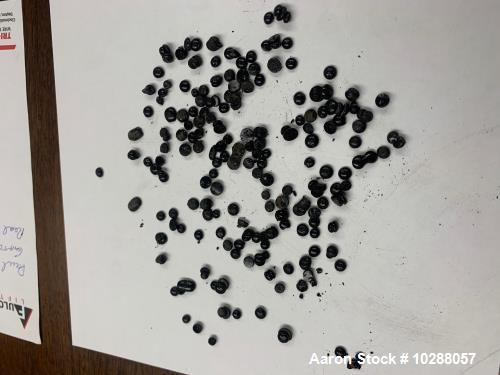

The system was previously used to produce pastilles approximately 3/16" to 1/4" in size. Actual product size depends on material characteristics, operating conditions, and Rotoformer configuration.

The stainless steel belt incorporates V-belt tracking on the underside, helping maintain proper belt alignment during operation.

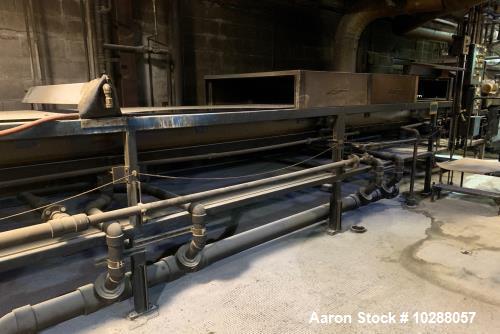

A cooling tray positioned beneath the belt provides the cooling interface needed for product solidification. Cooling media, temperature requirements, and associated utility equipment should be verified for the intended application.

An exhaust hood covers a portion of the belt, providing a connection point for suitable process ventilation or vapor management equipment.

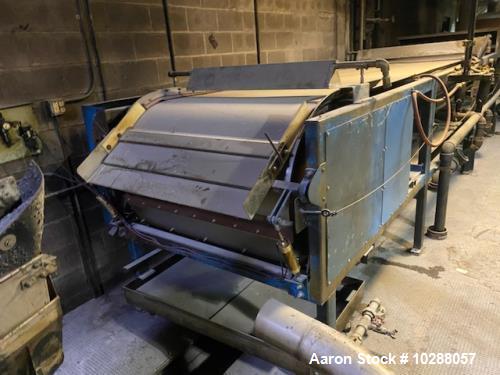

At the discharge end, a knife discharge assembly removes the solidified product from the belt.

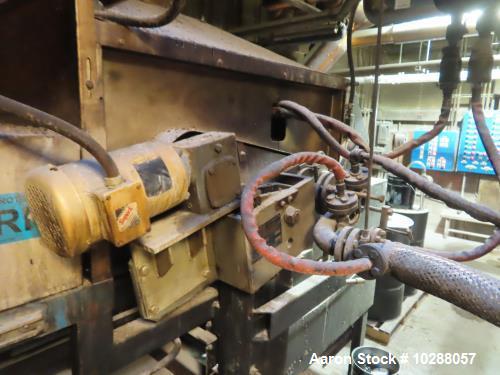

The main belt is powered by a 2 HP gear-reduced drive connected through a chain-and-sprocket arrangement with a protective guard.

The Rotoformer is equipped with a separate 2 HP gear-reduced drive.

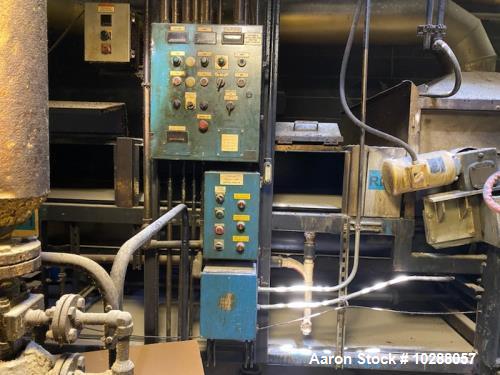

The system operates on 230/460V, 3-phase electrical power and includes a control panel.

For transportation and installation, the equipment can be separated into multiple sections, including a 74.5" discharge end, two 16' cooling sections, and a 54" feed end. The discharge knife adds approximately 6" to the discharge-end length.

This Sandvik belt flaker could be suitable for chemical pastillation, wax solidification, resin processing, specialty material cooling, and continuous production of uniform solid pastilles, subject to material compatibility and engineering verification.

Specifications

General Equipment Specifications

Drive Specifications

Shipping and Section Dimensions

Section dimensions are provided as reported and should be verified before transportation planning. Overall equipment length may include additional assemblies or connections not reflected in the individual section measurements.

Included Equipment and Features

• Stainless steel processing belt, 47.5" wide

• Rotoformer pastillation assembly

• Underside cooling tray

• V-belt tracking system

• Knife discharge assembly

• Exhaust hood over a portion of the belt

• Main 2 HP gear-reduced belt drive

• Chain-and-sprocket drive with guard

• Separate 2 HP Rotoformer drive

• Electrical control panel

• Modular feed, cooling, and discharge sections

Production capacity, operating temperature, cooling utility requirements, belt speed, Rotoformer hole configuration, and control specifications were not provided. The included cooling tray does not establish that a chiller or cooling-water system is included.

Typical Applications

• Industrial chemical pastillation

• Continuous molten material solidification

• Wax pastille manufacturing

• Resin cooling and solidification

• Specialty chemical processing

• Hot-melt material processing

• Industrial product flaking

• Continuous steel belt cooling

• Chemical intermediate solidification

• Bulk material pastille production

• Temperature-controlled product forming

• Continuous cooling and discharge operations

Products This Sandvik Belt Flaker Could Be Used For

• Paraffin wax pastilles

• Polyethylene wax pastilles

• Compatible petroleum waxes

• Hot-melt adhesives

• Thermoplastic resins

• Specialty chemical intermediates

• Compatible fatty acids

• Industrial wax blends

• Synthetic wax products

• Compatible sulfur-based materials

• Selected polymer compounds

• Other compatible melt-solidifying chemical products

Actual product compatibility depends on melting point, viscosity, solidification behavior, corrosion characteristics, thermal requirements, and Rotoformer configuration. Not all listed products can be processed without modifications or specialized operating conditions.

Frequently Asked Questions

- What are the dimensions of this Sandvik belt flaker? The equipment features a 47.5" wide stainless steel belt and an approximate overall length of 43 feet.

- What is the purpose of the Rotoformer? The Rotoformer deposits compatible molten or flowable materials onto the moving steel belt in controlled portions, allowing the material to cool and solidify into pastilles.

- What size pastilles was this system previously producing? The machine was previously used to produce pastilles approximately 3/16" to 1/4" in size. Actual output dimensions depend on product formulation and equipment settings.

- Does this Sandvik system include cooling equipment? Yes. It includes an underside cooling tray and an exhaust hood over part of the belt. External chillers, pumps, and cooling-water systems were not identified in the supplied equipment description.

- Can the equipment be disassembled for transportation? Yes. The system breaks down into a 74.5" discharge end, two 16' cooling sections, and a 54" feed end. The discharge knife adds approximately 6" to the discharge section.

- Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with equipment dismantling and rigging coordination, loading, domestic and international freight, customs documentation, and logistics planning. Because this system is approximately 43 feet long when assembled, shipment in sections may simplify handling and transportation.
