Used Sandvik Industrial Belt Flaker 47.5" x 43', Asphalt Pastille, 32' Cooling Zone, 2HP Drive

Manufacturer:

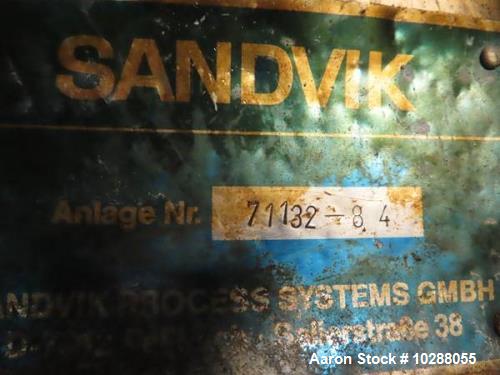

Brand: Sandvik
Type: Belt Flaker with Rotoformer
Drive Motor: 2 HP
Electrical: 3 Phase, 60 Hz, 230/460V
Condition: Belt has been cut and rolled on spool

🔹 Description:

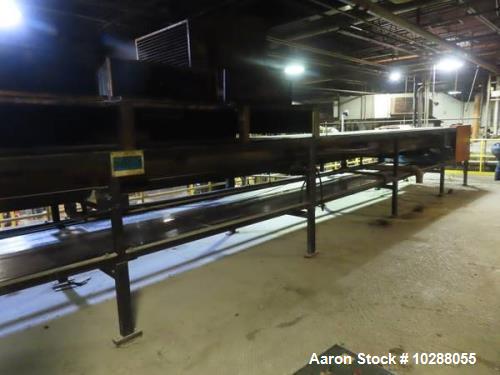

This used Sandvik belt flaker system includes a 47.5" wide x 43' long stainless steel belt, paired with a Sandvik Rotoformer for producing pastilles from molten materials. The line was last used for asphalt pellet/pastille production, making it ideal for sticky, viscous materials that require controlled solidification.

The system includes 32 feet of cooling with integrated spray nozzles and water collection, providing efficient temperature reduction for fast-setting products. The line features a knife discharge, 74" feed end, (2) 16-foot cooling zones, and a 54" discharge section. Includes a 2 HP gear-reduced main drive, full control panel, and stainless steel belt (currently cut and rolled for transport).

🔹 Specifications:

• Belt Width: 47.5 inches

• Overall Length: 43 feet

• Belt Material: Stainless steel (cut and spooled)

• Cooling Zone: 32 feet with spray nozzles & water collection

• Feed Section: 74 inches

• Cooling Sections: (2) x 16 feet

• Discharge Length: 54 inches

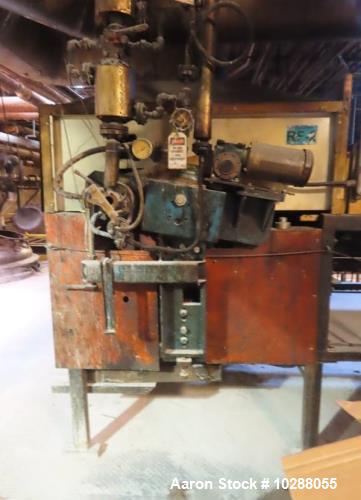

• Product Former: Sandvik Rotoformer for pastilles

• Discharge Style: Knife discharge

• Drive Motor: 2 HP, gear-reduced

• Electrical Requirements: 3/60/230/460V

• Control Panel: Included

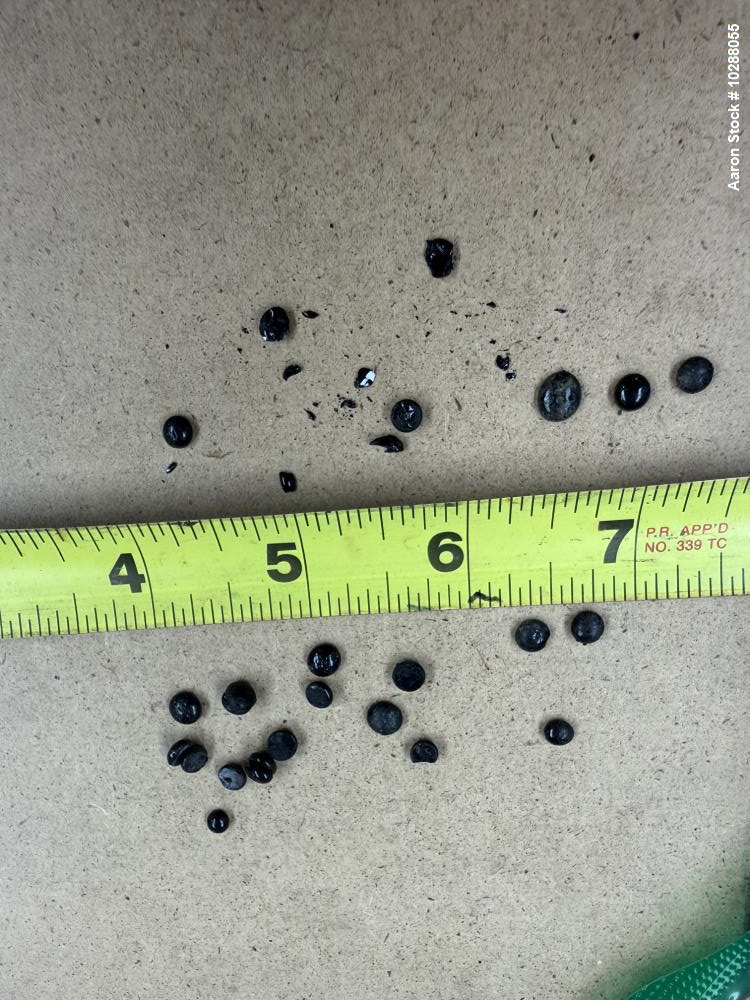

• Last Product Run: Asphalt pellet / pastille

🔹 What Might This Be Used For:

• Pastille formation from asphalt or bitumen-based materials

• Solidification of waxes, resins, or hot melts

• Cooling and forming of chemical pastilles or flakes

• Flake and pellet production from molten industrial byproducts

• Controlled forming of adhesives, glues, or tackifiers

• Cooling-line for bio-based or eco-friendly melts

• Pelletizing of lubricants or processing additives

• Processing of sulfur or paraffin-based products

• Batch or continuous molten product cooling

• Off-spec reprocessing or thermal byproduct solidification

🔹 Applications:

• Asphalt and roofing material production

• Chemical and resin manufacturing

• Industrial adhesive and hot-melt processing

• Wax and oil-based solid product lines

• Plastics and additive masterbatch production

• Paint and coatings materials

• Recycled or reclaimed melt solidification

• Industrial cooling belt systems

• Packaging prep for pastilles or flakes

• Heat-sensitive product forming operations
