Used Quincy QCD-20 Rotary Screw Air Compressor System with 120 Gallon Tank, Dryer & Oil Water Separator

Manufacturer Info

Manufacturer: Quincy Compressor
Model: QCD-20
Type: Rotary Screw Air Compressor System
Year Built: 2010
Condition: Used
Hours: 32,211

Description

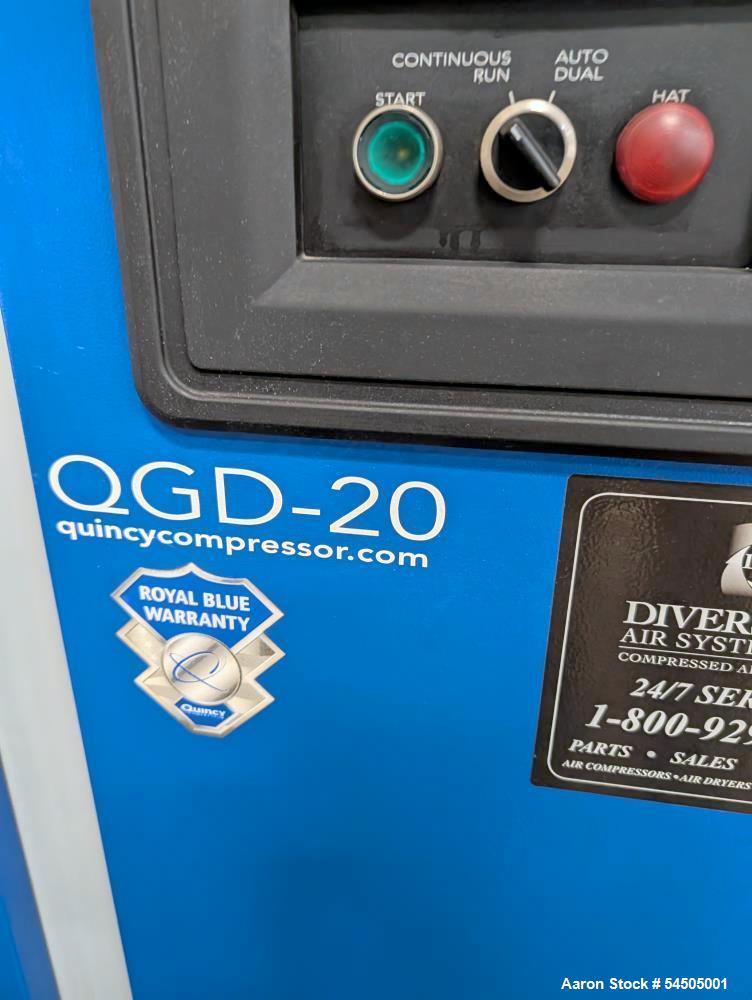

Used Quincy QCD-20 air compressor package rated for 125 PSIG and 97.2 CFM. Powered by a 20 HP, 3 phase, 60 Hz, 460V motor. Includes SPVG 120 gallon vertical air receiver tank, Mikropor MK-US-125 digital 125 SCFM air dryer, and Clean Resources IDC Pak Series oil water separator. Suitable for industrial compressed air applications requiring reliable shop air, dry air, and condensate management.

Specifications

• Model: Quincy QCD-20
• Horsepower: 20 HP
• Rated Pressure: 125 PSIG
• Capacity: 97.2 CFM

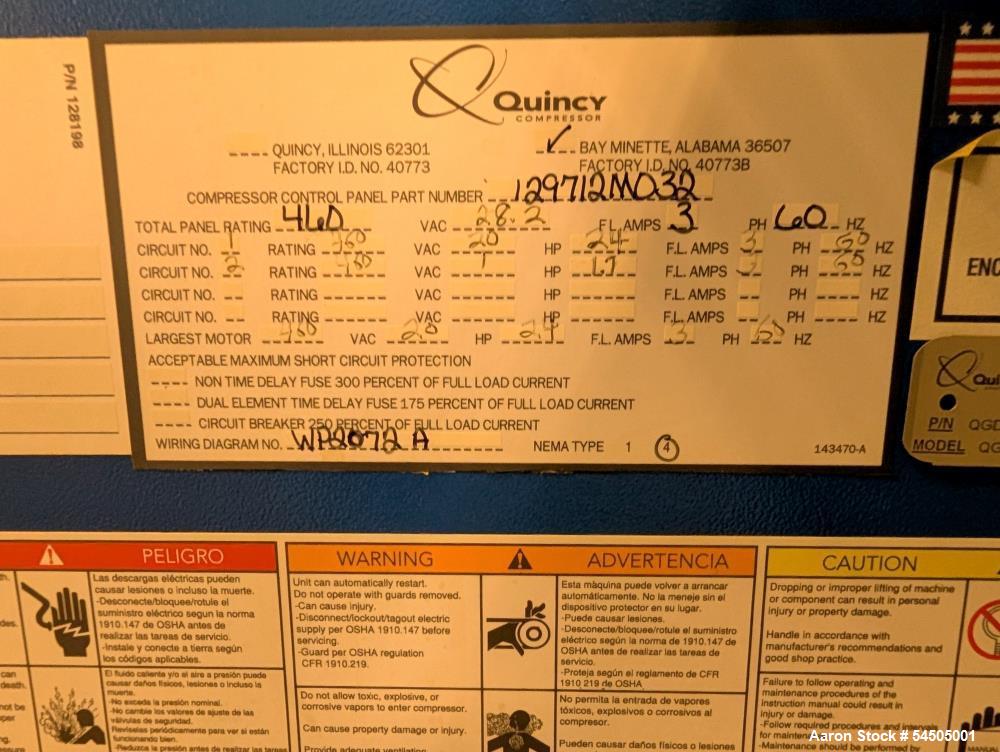

• Electrical: 3/60/460V
• Receiver Tank: SPVG 120 gallon vertical
• Air Dryer: Mikropor MK-US-125 digital, 125 SCFM
• Oil Water Separator: Clean Resources IDC Pak Series
• Hours: 32,211
• Built: 2010

Applications

• Manufacturing plants
• Machine shops
• CNC operations
• Automotive service facilities
• Packaging lines
• Fabrication shops
• Pneumatic tool systems
• Maintenance departments
• Assembly operations
• Industrial production air systems

Products This Would Be Used For

• CNC machines
• Air tools
• Pneumatic cylinders
• Spray equipment
• Packaging machinery
• Blow-off stations
• Sandblasting equipment
• Assembly tools
• Air operated pumps
• Industrial automation equipment

Frequently Asked Questions

• What type of compressor is the Quincy QCD-20?
  The Quincy QCD-20 is a rotary screw air compressor designed for continuous industrial compressed air applications.
• What is the air output capacity?
  This unit is rated for 97.2 CFM at 125 PSIG.
• What voltage does this compressor require?
  The compressor operates on 460 Volt, 3 Phase, 60 Hz electrical power.

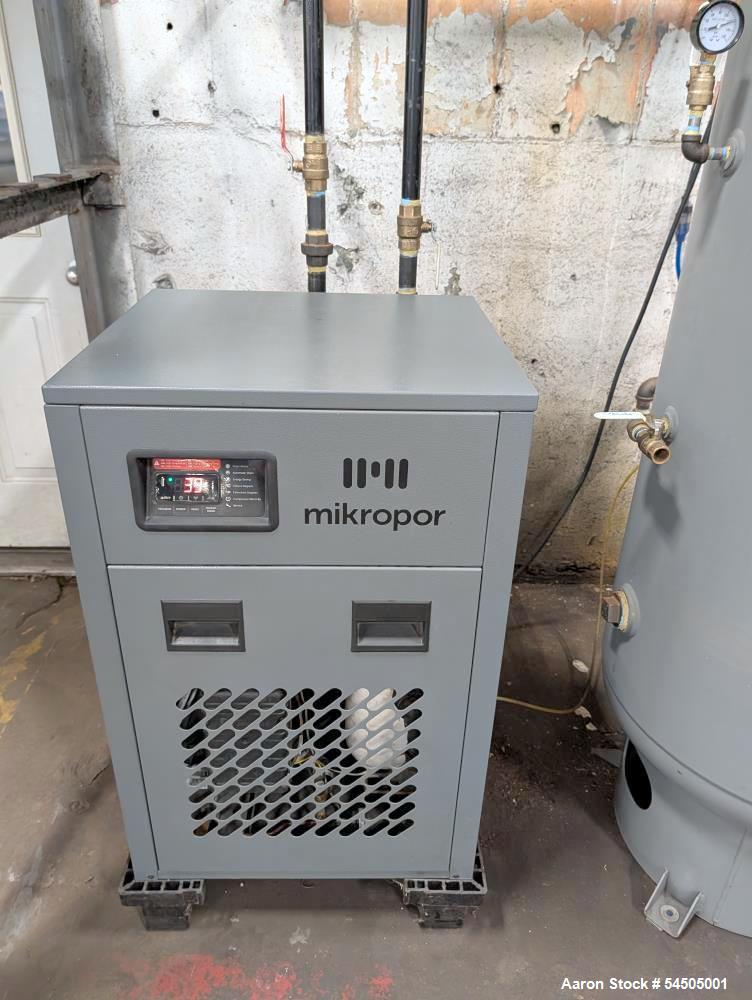

• Does this unit include an air dryer?
  Yes, the package includes a Mikropor MK-US-125 digital refrigerated air dryer rated for 125 SCFM.

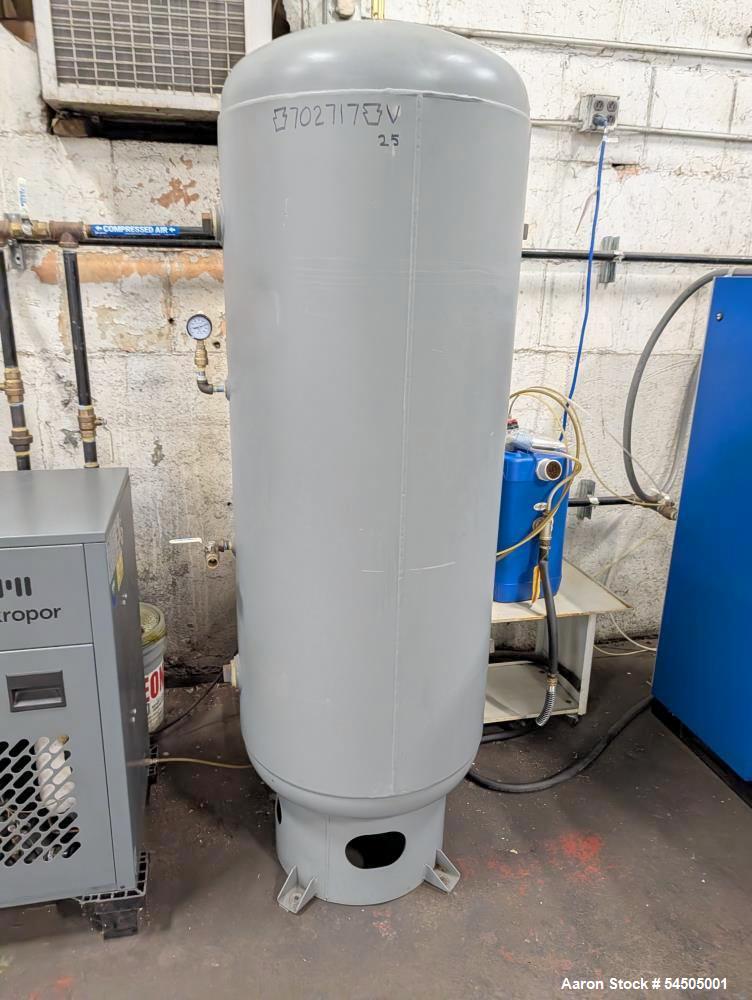

• Is an air receiver tank included?
  Yes, it includes an SPVG 120 gallon vertical air receiver tank.

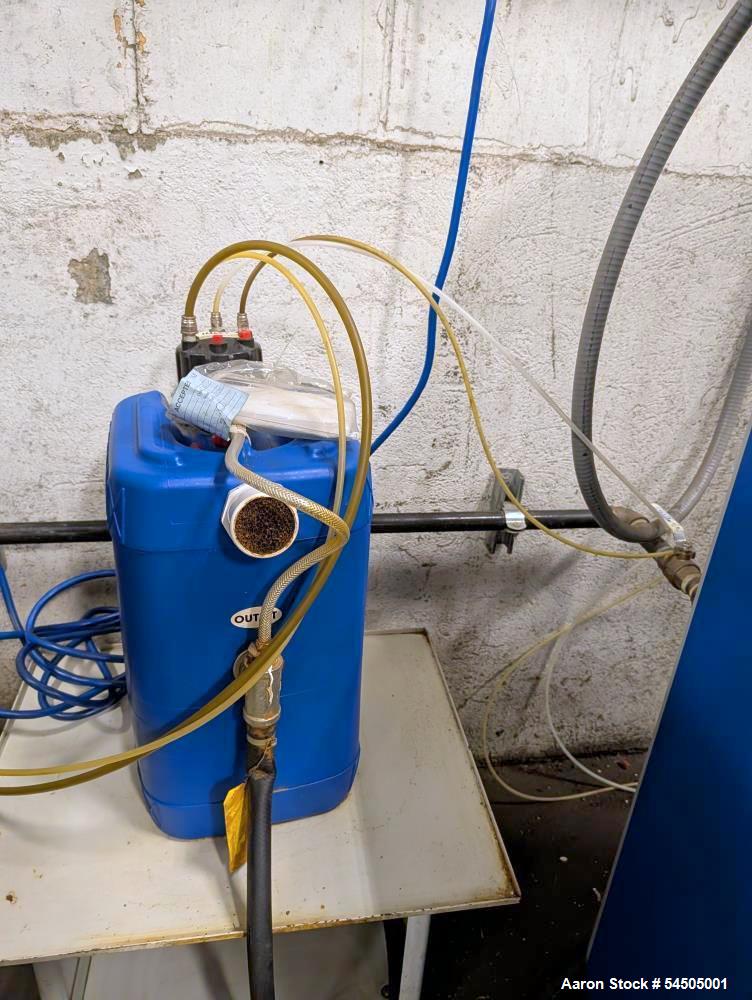

• What is the purpose of the oil water separator?
  The Clean Resources IDC Pak Series separator helps remove oil contaminants from compressor condensate before disposal.

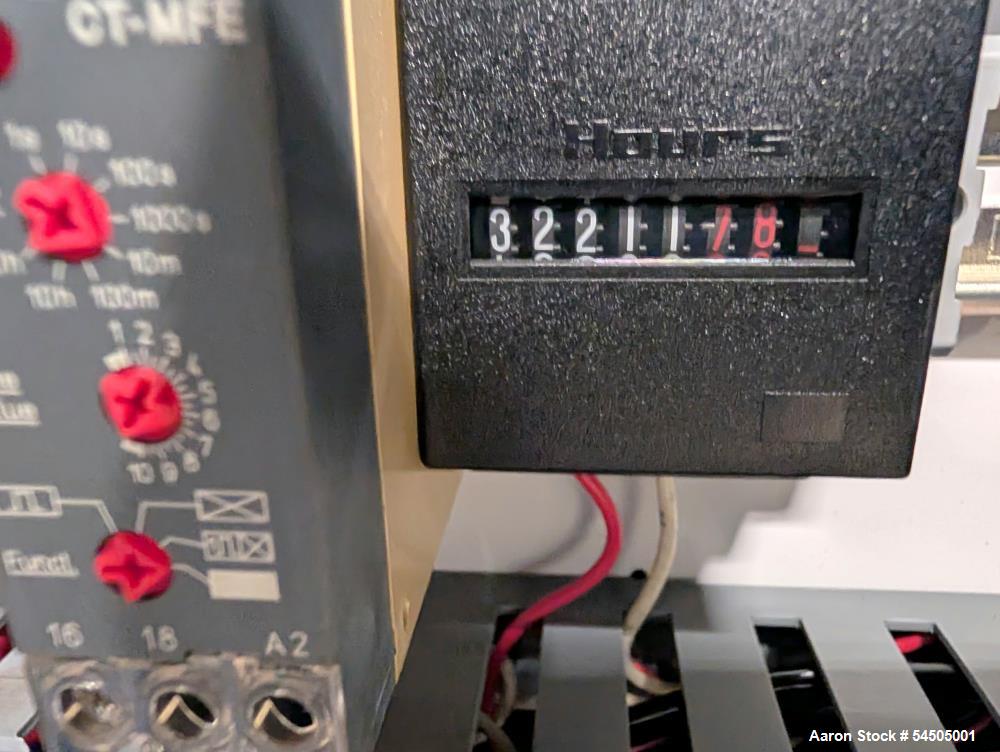

• How many operating hours are on the unit?
  The compressor currently shows 32,211 operating hours.
• What industries commonly use this compressor system?
  Manufacturing, automotive, fabrication, packaging, machining, and industrial production facilities commonly use this type of air compressor package.
• Can this compressor run pneumatic production equipment?
  Yes, the system is suitable for powering pneumatic tools, cylinders, automation equipment, and production machinery.
• Is this a complete compressed air package?
  Yes, this system includes the compressor, receiver tank, refrigerated air dryer, and oil water separator.
