Used 2016 Carrier WeatherMaker 48A4E040 40-Ton Packaged Rooftop HVAC Unit – Gas Heat, R-410A Cooling

Manufacturer Information

Carrier

Carrier manufactures commercial and industrial heating, ventilation, air-conditioning, and refrigeration equipment. The WeatherMaker product line includes packaged rooftop HVAC systems that combine cooling, air circulation, and heating functions into a single outdoor unit.

This Carrier WeatherMaker Model 48A4E040-E-521FE was built in 2016 and is configured as a 40-ton packaged rooftop gas heat/electric cooling unit.

Description

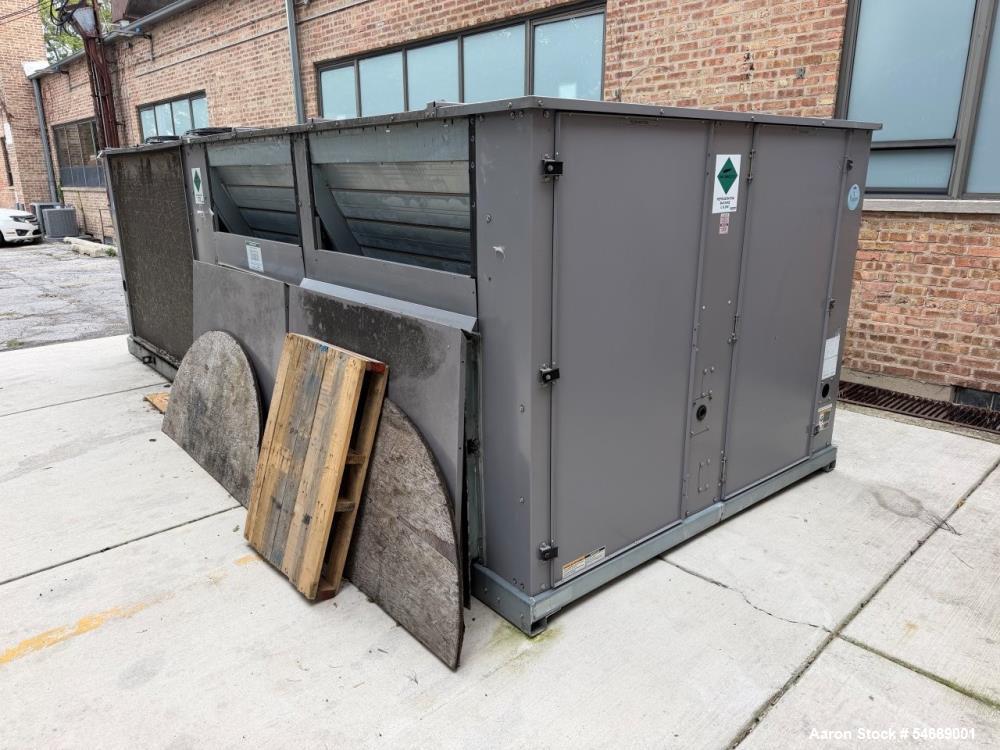

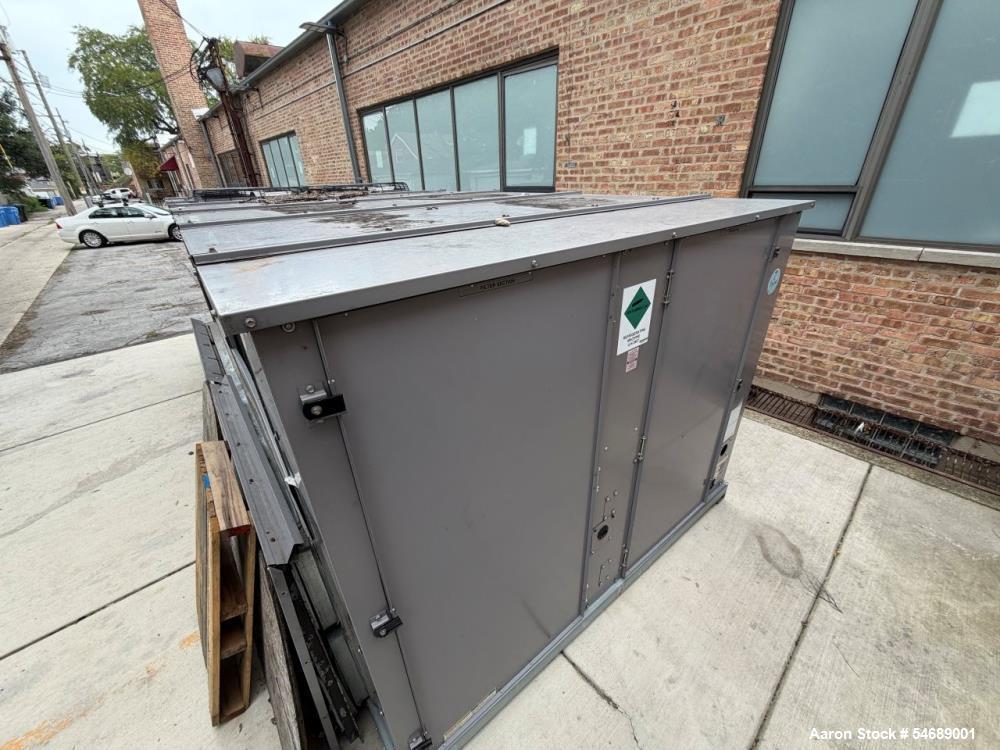

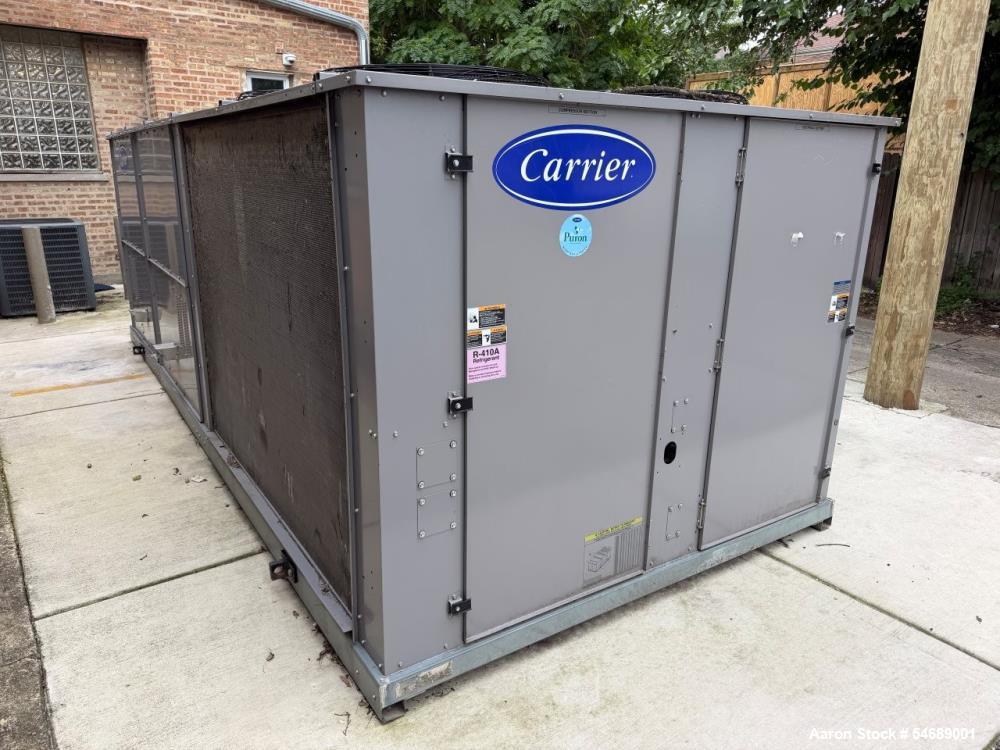

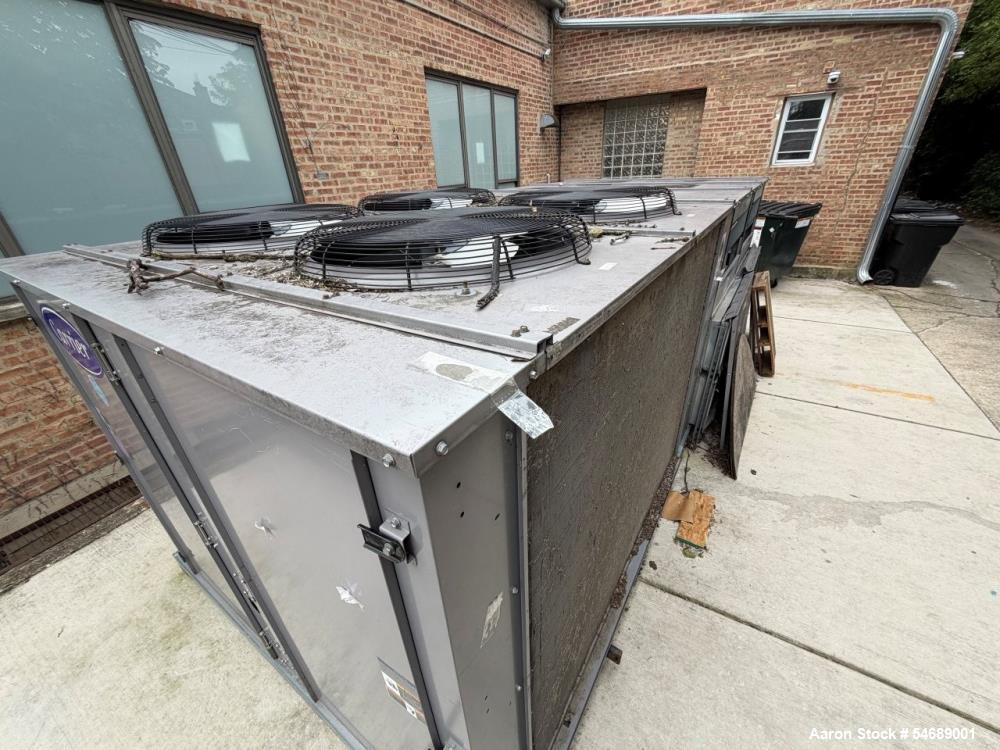

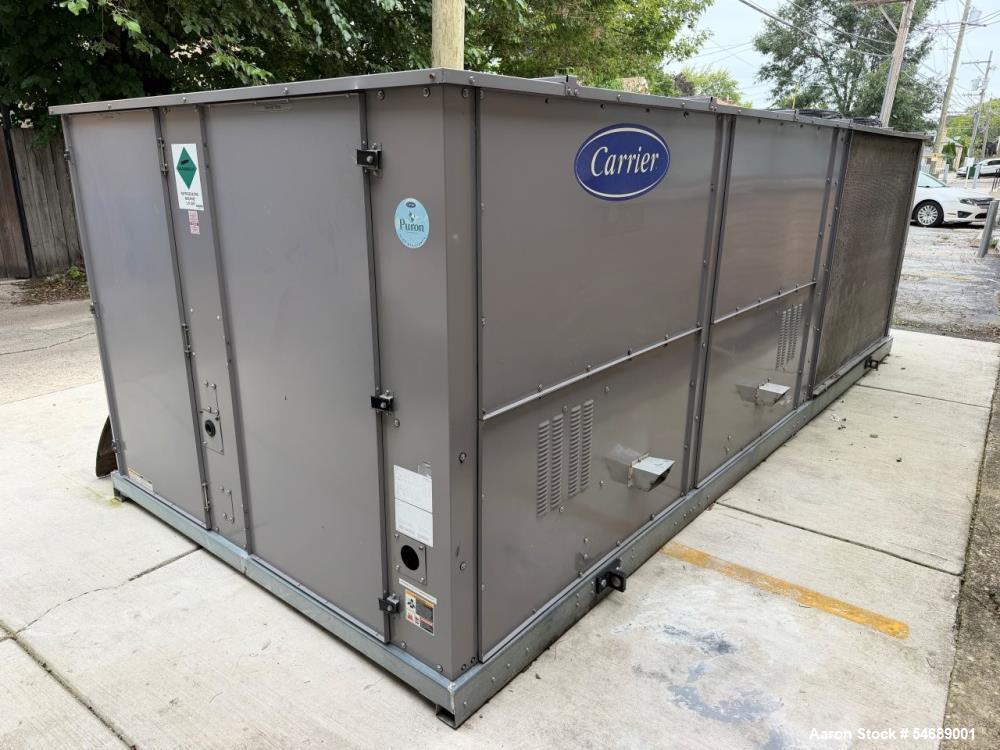

Available for sale is a used 2016 Carrier WeatherMaker Model 48A4E040-E-521FE packaged rooftop HVAC unit, rated at approximately 40 tons of cooling capacity.

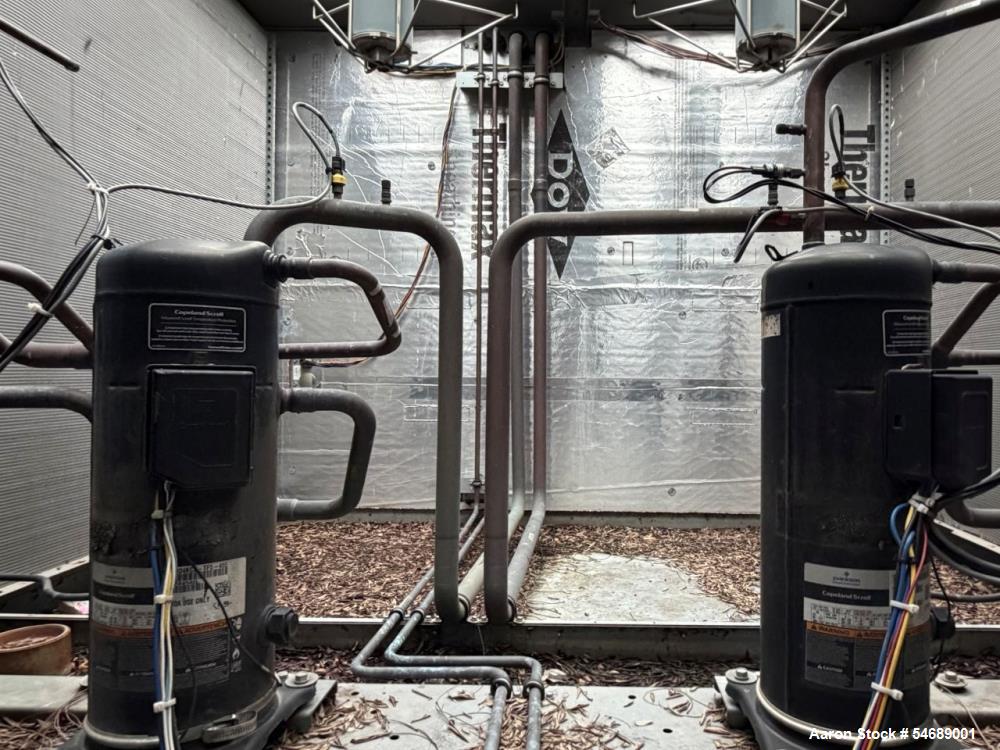

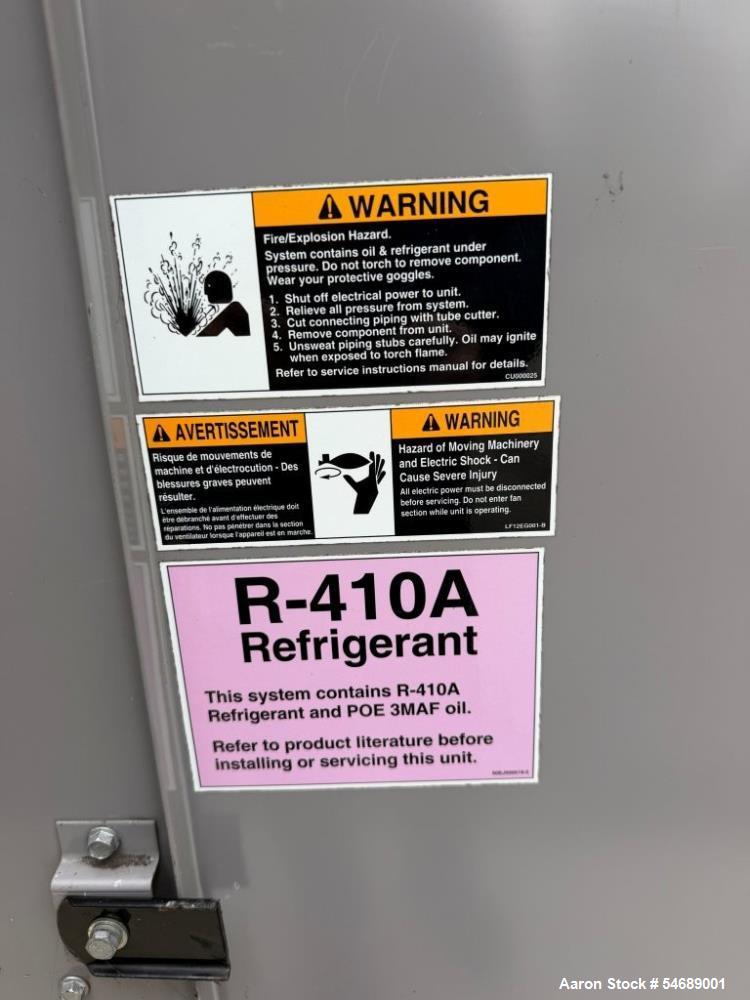

The unit uses R-410A refrigerant and features dual refrigerant circuits with an approximately 88 lb total factory refrigerant charge. Air circulation is provided by a 20 HP indoor supply fan, while the condenser section incorporates four 1 HP condenser fan motors.

Natural-gas heating is rated at a stated 600,000–800,000 BTU/hr input, with 648,000 BTU/hr output.

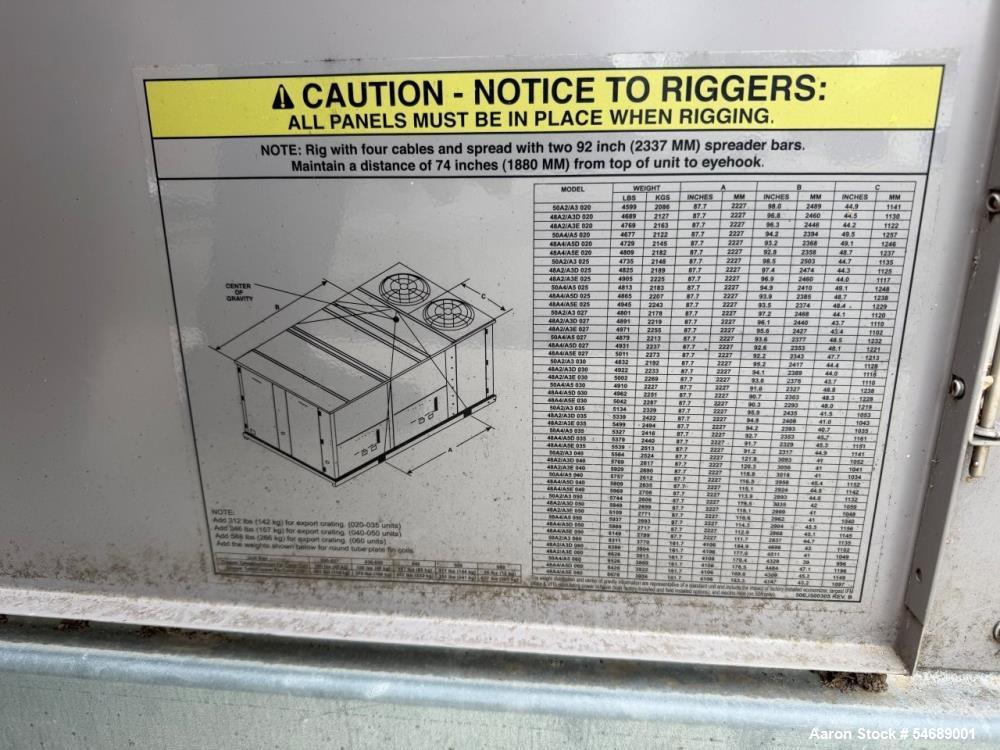

Electrical requirements are 208/230V, 60 Hz, 3-phase. The approximate base unit weight is 5,334 lbs, making appropriate lifting, rooftop placement, and structural planning important when relocating and installing the system.

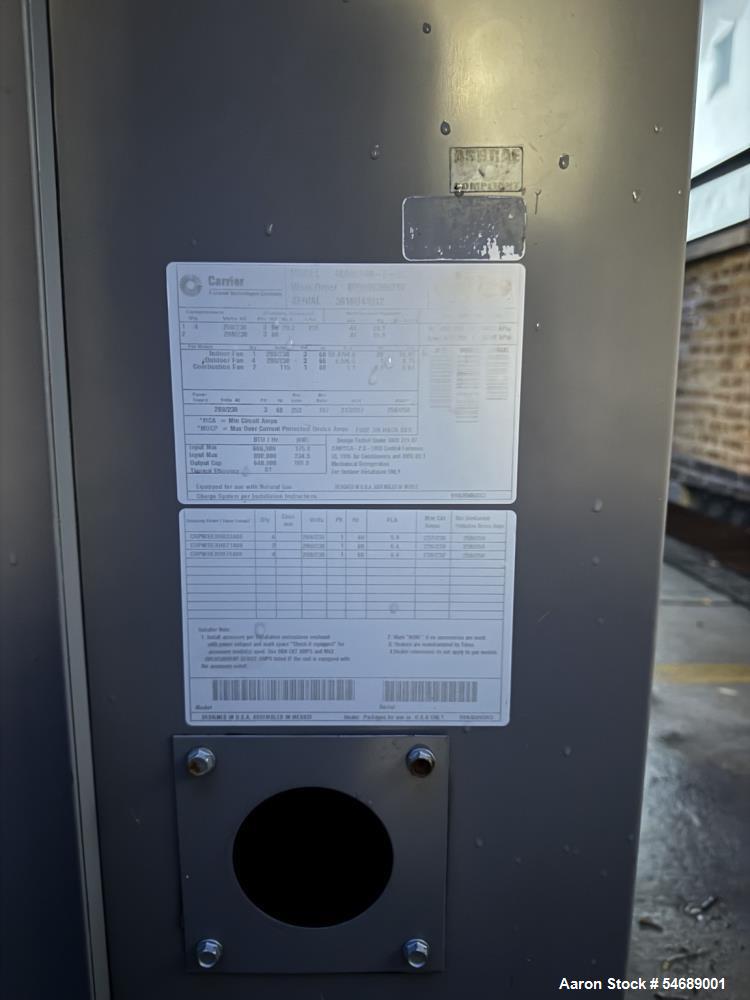

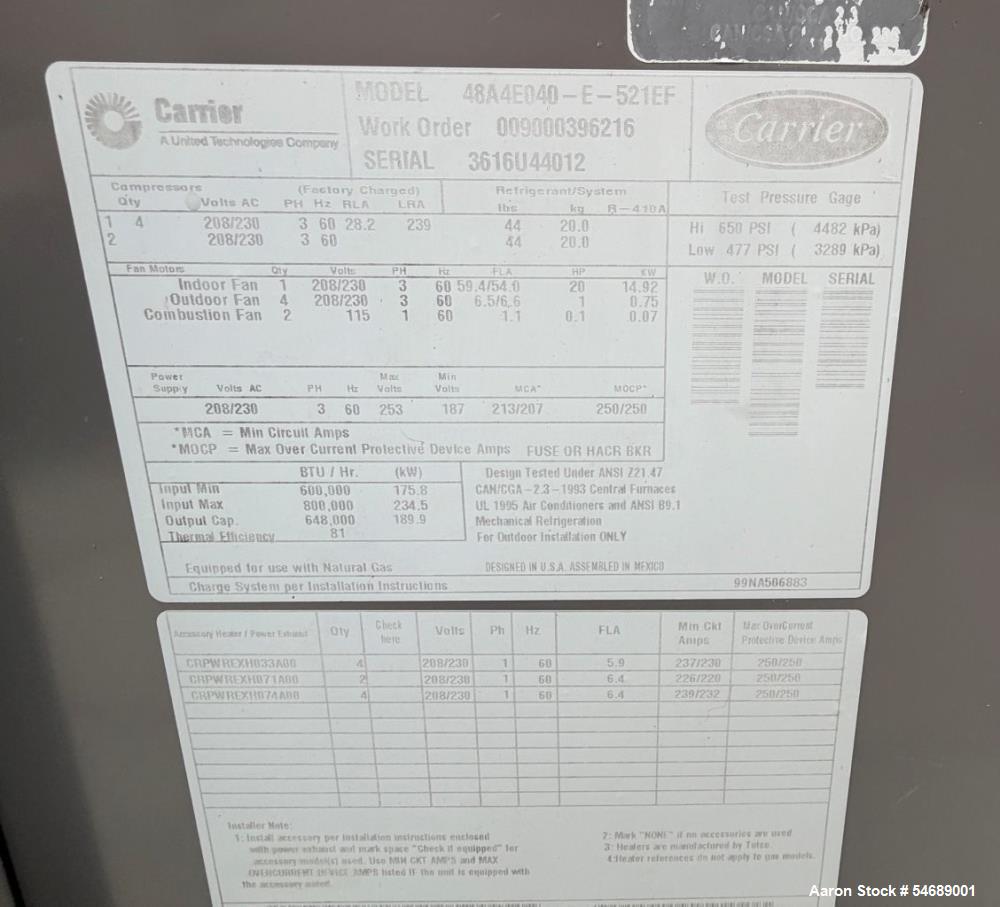

Serial number is 3616U44012.

Specifications

Typical Applications

• Commercial building HVAC
• Industrial facility climate control
• Warehouse heating and cooling
• Manufacturing facility HVAC
• Distribution center HVAC
• Retail building climate control
• Food-processing facility HVAC
• Large commercial spaces
• Institutional facilities
• Production areas
• Commercial replacement HVAC
• Rooftop heating and cooling

Facilities This Rooftop Unit Could Be Used For

• Warehouses
• Manufacturing plants
• Distribution centers
• Commercial buildings
• Retail facilities
• Food-processing facilities
• Packaging plants
• Workshops
• Storage facilities
• Institutional buildings
• Large production areas
• Other appropriately sized commercial or industrial spaces

Actual heating and cooling performance depends on ambient conditions, airflow, ductwork, building load, installation, controls, equipment condition, and other operating factors. A qualified HVAC professional should verify capacity and application suitability before installation.

Frequently Asked Questions

• What is the cooling capacity of this Carrier WeatherMaker? The unit is rated at approximately 40 tons of nominal cooling capacity.
• What refrigerant does the unit use? This Carrier rooftop unit uses R-410A refrigerant with dual refrigerant circuits and an approximately 88 lb total factory charge.
• Does the unit provide heating? Yes. It has natural-gas heat, with a stated input range of 600,000–800,000 BTU/hr and output rating of 648,000 BTU/hr.
• What electrical service is required? The unit is configured for 208/230V, 60 Hz, 3-phase electrical service.
• How much does the Carrier rooftop unit weigh? The approximate base unit weight is 5,334 lbs. Final lifting and structural requirements should be based on verified installed weight and configuration.
• Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging, crane and loading coordination, domestic freight, international transportation, customs documentation, and logistics planning for this approximately 5,334 lb packaged rooftop unit.
