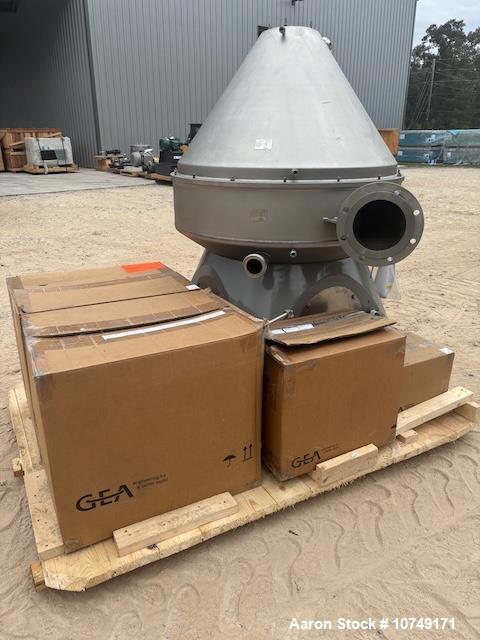

Unused GEA Westphalia RSI-300-01-072 Vertical Degumming Separator Centrifuge

Manufacturer Information

GEA Westfalia Separator is a well-established manufacturer of industrial centrifugal separation equipment, including disc stack centrifuges and separators used in edible oil refining, food processing, chemical manufacturing, and other liquid separation applications. Its separation technology is used for liquid-liquid separation, solids removal, and clarification. This GEA Westphalia RSI-300-01-072 is an unused vertical degumming separator featuring a self-cleaning disc stack configuration and 304 stainless steel construction.

Main Product Description

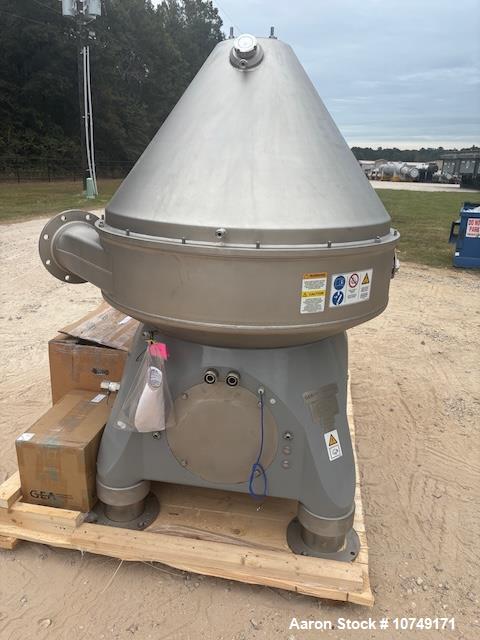

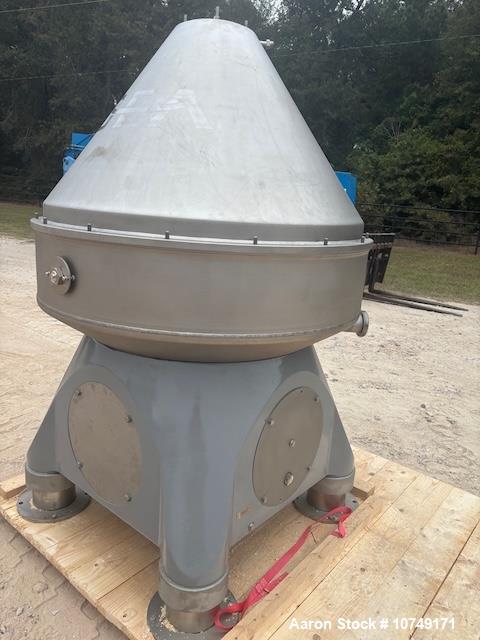

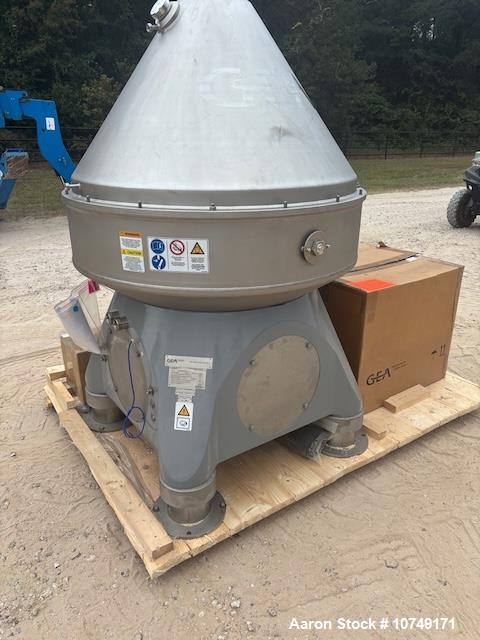

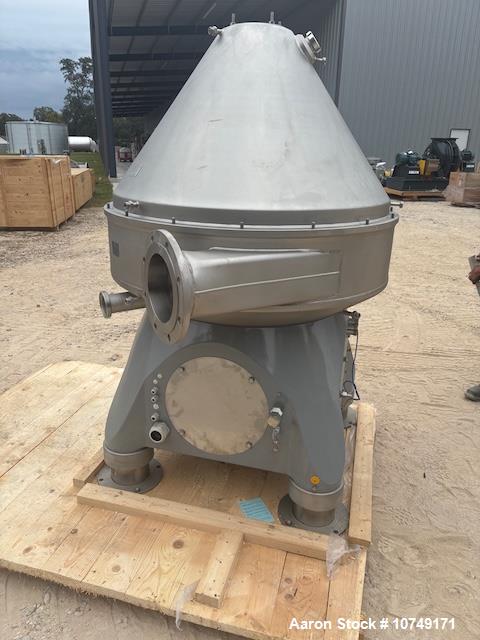

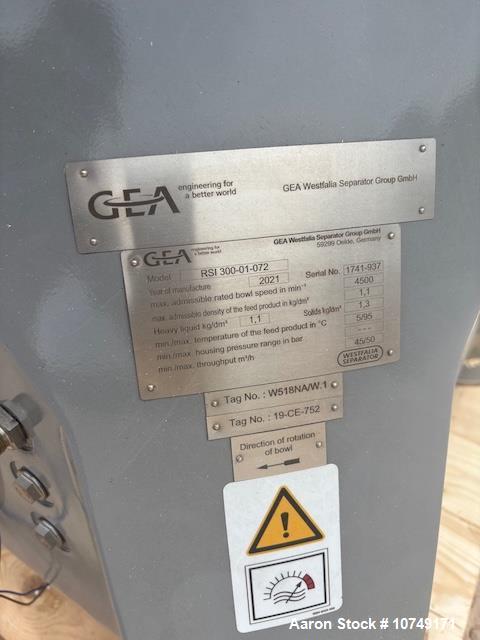

Unused GEA Westphalia Model RSI-300-01-072 vertical degumming separator centrifuge, manufactured in 2021, featuring 304 stainless steel construction and a self-cleaning disc stack design for industrial liquid separation and degumming applications. The separator is equipped with a 75 HP motor and has a maximum admissible rated bowl speed of 4,500 RPM. Specified minimum and maximum throughput is 45–50 m³/h, with a separately listed design flow of 470 GPM. The unit has a stated design pressure of 80 PSI at 250°F, a design fluid density of 55.3 lb/ft³, and fluid viscosity of 12.6 cP. Maximum admissible feed product density is 1.1 kg/dm³, with a heavy liquid density rating of 1.1 kg/dm³ and solids density rating of 1.3 kg/dm³. The specified feed product temperature range is 5°C to 90°C (41°F to 194°F). Designed for centrifugal degumming and separation processes, this unused GEA Westphalia separator is suitable for evaluation in edible oil refining, vegetable oil processing, and other compatible industrial liquid separation applications.

Specifications

• Equipment Type: Vertical Degumming Separator Centrifuge

• Manufacturer: GEA Westphalia

• Model: RSI-300-01-072

• Condition: Unused

• Year Built: 2021

• Construction: 304 Stainless Steel

• Separator Type: Self-Cleaning Disc Stack

• Motor Power: 75 HP

• Maximum Admissible Rated Bowl Speed: 4,500 RPM

• Minimum Specified Throughput: 45 m³/h

• Maximum Specified Throughput: 50 m³/h

• Design Flow: 470 GPM

• Design Pressure: 80 PSI

• Design Temperature: 250°F (Approximately 121°C)

• Design Fluid Density: 55.3 lb/ft³

• Design Fluid Viscosity: 12.6 cP

• Maximum Admissible Feed Product Density: 1.1 kg/dm³

• Heavy Liquid Density Rating: 1.1 kg/dm³

• Solids Density Rating: 1.3 kg/dm³

• Minimum Feed Product Temperature: 5°C (41°F)

• Maximum Feed Product Temperature: 90°C (194°F)

Applications

• Edible oil degumming

• Vegetable oil refining

• Crude vegetable oil processing

• Industrial liquid-liquid separation

• Oil clarification

• Centrifugal solids removal

• Self-cleaning disc stack separation

• Food oil processing

• Industrial liquid purification

• Compatible oil refining operations

Suitable Products and Materials

• Compatible crude vegetable oils

• Edible oil processing streams

• Vegetable oil degumming mixtures

• Oil and water mixtures

• Oil refining process liquids

• Compatible liquid-liquid mixtures

• Process liquids containing suspended solids

• Compatible industrial separation feedstocks

Actual material compatibility and separation performance depend on feed characteristics, density differences, viscosity, temperature, and the separator's operating configuration.

Frequently Asked Questions (FAQs)

- What is the model of this GEA Westphalia separator centrifuge?

The equipment is a GEA Westphalia Model RSI-300-01-072 vertical degumming separator centrifuge.

- Is this GEA Westphalia centrifuge new or used?

The equipment is listed in unused condition and was manufactured in 2021. Storage history and current inspection details should be verified.

- What is the throughput capacity of this separator?

The specified minimum and maximum throughput is 45–50 m³/h, equivalent to approximately 198–220 US GPM. A separate design flow rating of 470 GPM is also provided.

- Does this centrifuge have a self-cleaning disc stack?

Yes. The unit features a self-cleaning disc stack configuration designed for centrifugal separation applications.

- What is the maximum bowl speed?

The maximum admissible rated bowl speed is 4,500 RPM.

- What horsepower motor is installed?

The separator is equipped with a 75 HP motor.

- What material is the centrifuge constructed from?

The unit is specified as having 304 stainless steel construction.

- What is the feed product temperature range?

The specified feed temperature range is 5°C to 90°C, equivalent to approximately 41°F to 194°F.

- What is the maximum admissible feed product density?

The maximum admissible feed product density is 1.1 kg/dm³. The listed heavy liquid density is also 1.1 kg/dm³, while the solids density rating is 1.3 kg/dm³.

- What is the design pressure of this separator?

The supplied design pressure is 80 PSI at 250°F. The original nameplate pressure notation should be verified before operation.

- Can this separator be used for vegetable oil degumming?

The equipment is identified as a vertical degumming separator and is suitable for evaluation in compatible vegetable oil and edible oil refining processes. Actual performance depends on feed characteristics and operating conditions.

- Can Aaron Equipment assist with shipping this separator centrifuge?

Aaron Equipment can help coordinate freight and transportation arrangements for this industrial centrifuge. Contact our team to discuss equipment location, loading requirements, shipping dimensions, rigging considerations, and delivery options.

- How can Aaron Equipment help determine whether this separator meets my processing requirements?

Aaron Equipment can assist with available equipment specifications, additional information, and purchasing questions to help evaluate whether the GEA Westphalia RSI-300-01-072 meets your degumming and separation requirements.
