Featuring:

Stainless Steel Pump/Filter Skids

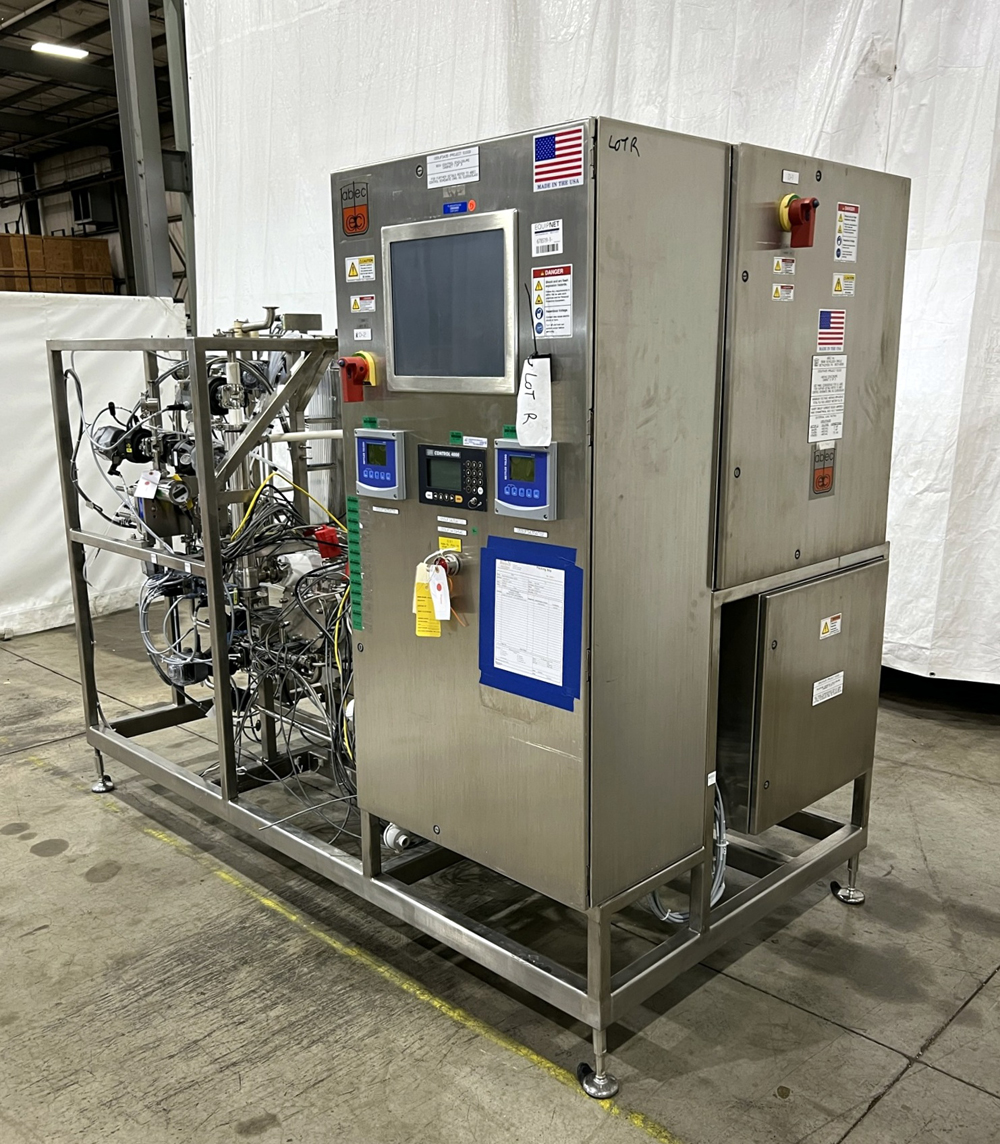

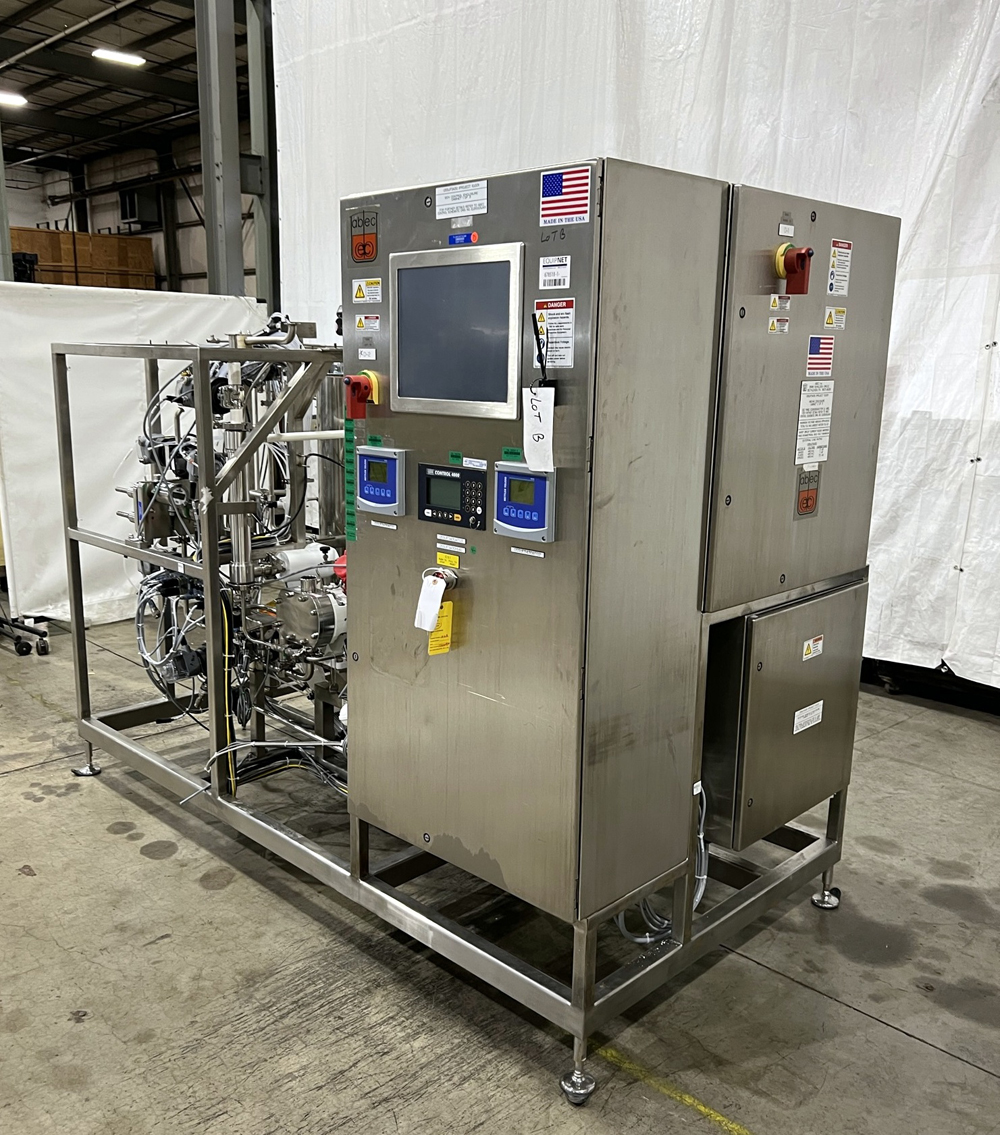

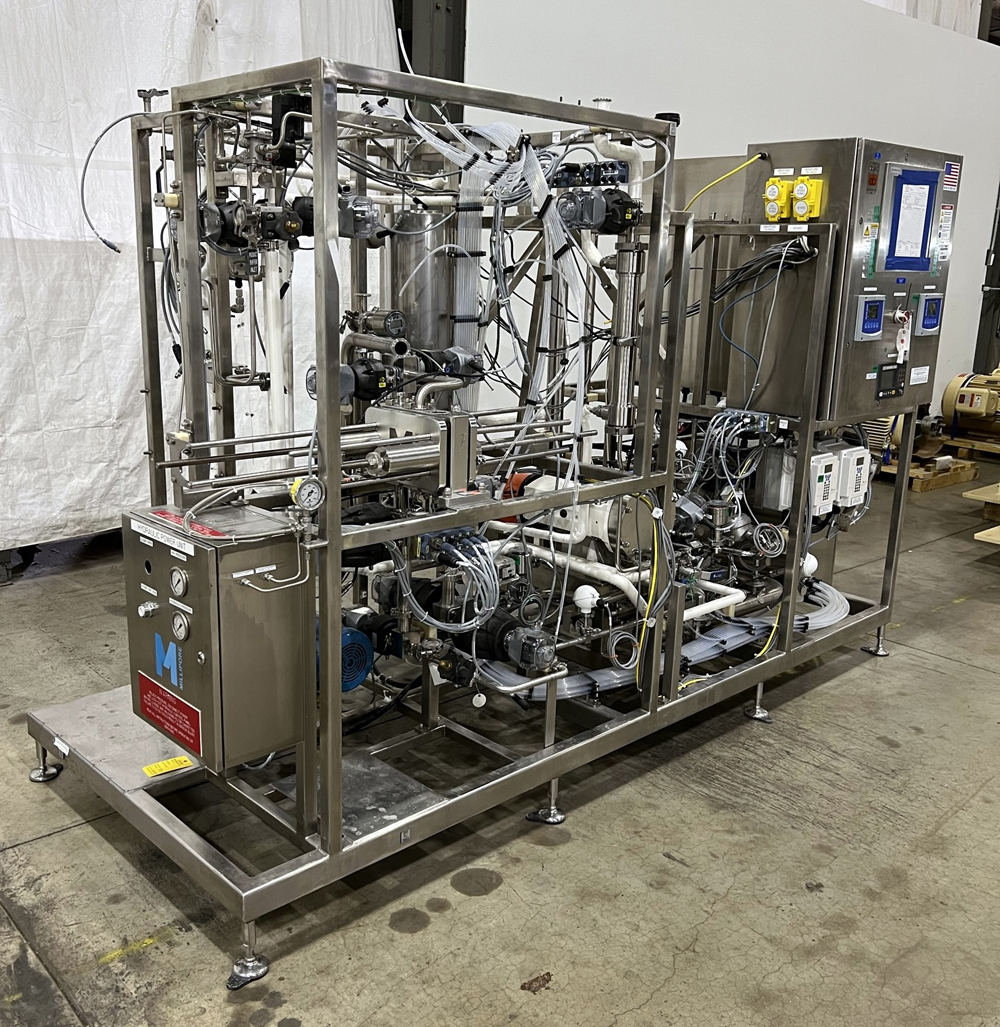

Stainless Steel Pump/Filter skid consisting of (2) Chromalox Heaters, (2) Grundfos Pumps, (1) driven by .33hp 3/60/230/460v 3450rpm motor, (1) driven by a .5hp 3/60/208-230/460v 3450rpm motor. Mounted control panels with a Hope Industrial Systems Model HIS-ML17-STAH Monitor, (4) Mettler Toledo M800 Flow Sensors, and (4) Watson Marlow W05055 Peristaltic Pumps. Mounted on a Stainless Steel Frame.  OAD 90”L x 54”W x 82”T

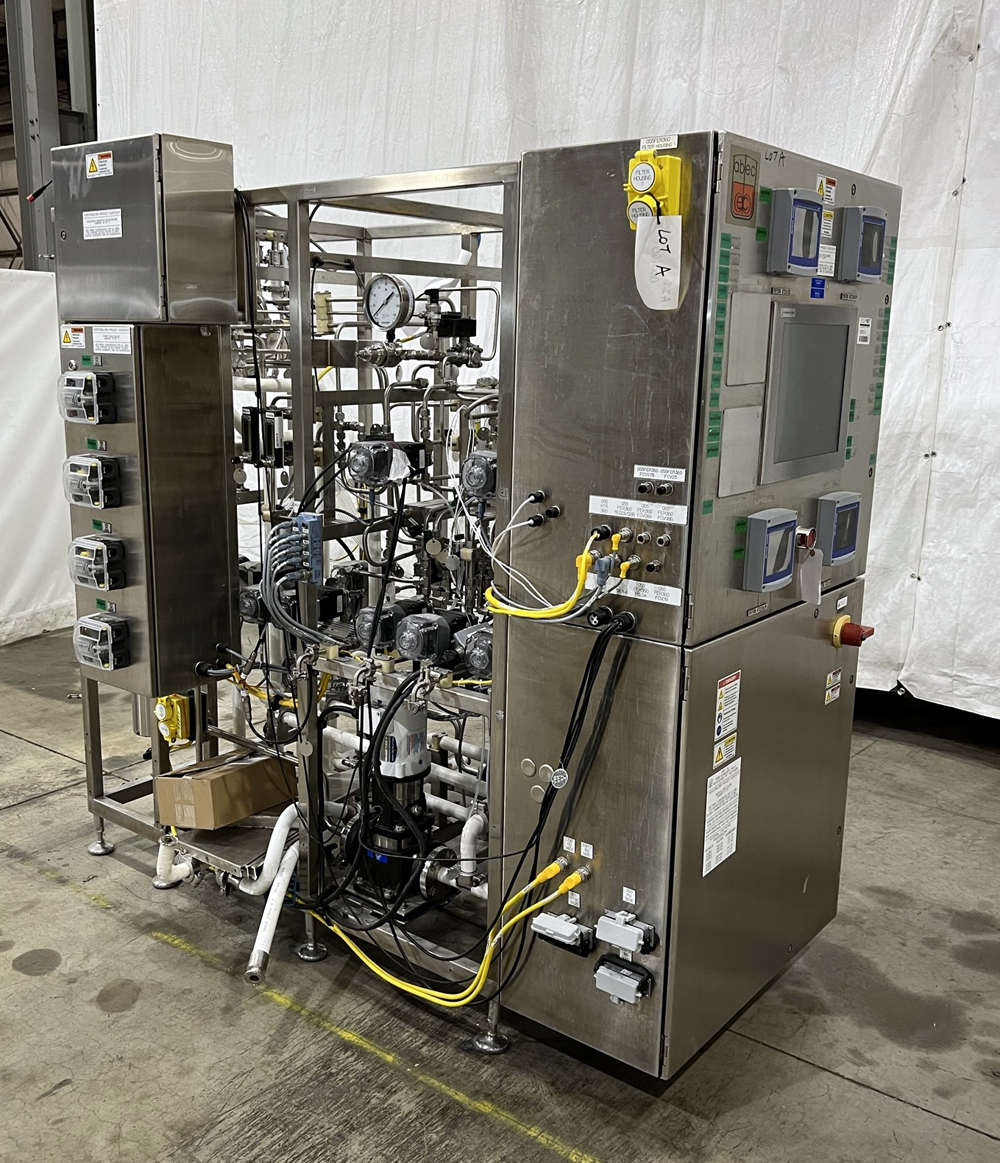

Stainless Steel Pump/Filter skid consisting of (1) Chromalox Heater, (1) Alfa Lavall Pump, Model SX3/027/, driven by 3hp 3/60/230/460v 300-1800rpm motor, through a reducer 3.37:1. (1) Goulds Pump, Model NPE driven by a 1hp 3/60/208-230/460v 3450rpm motor. Mounted control panels with a Arista Model ARP-2217AP Monitor, (2) Mettler Toledo M300 Flow Sensors, and (1) Optek Control 4000 Controller. Mounted on a Stainless Steel Frame.  OAD 105” L x 60” W x 78” T

Stainless Steel Pump/Filter skid consisting of (1) Chromalox Heater, (1) Alfa Lavall Pump, Model SX4/046/, driven by 5hp 3/60/230/460v 1750rpm motor, through a reducer 3.37:1. (1) Goulds Pump, Model NPE driven by a 2hp 3/60/208-230/460v 3450rpm motor. Mounted control panels with a Hope Industrial Systems Model HIS-ML17-STAF, (2) Mettler Toledo M300 Flow Sensors, and (1) Optek Control 4000 Controller. Includes Hydraulic Power Unit. Mounted on a Stainless Steel Frame.  OAD 112” L x 60” W x 80” T

Stainless Steel Pump/Filter skid consisting of (1) Chromalox Heater, (1) Alfa Lavall Pump, Model SX3/027, driven by 3hp 3/60/230/460v 300-1800rpm motor, through a reducer 3.37:1. (1) Goulds Pump, Model NPE driven by a 1hp 3/60/208-230/460v 3450rpm motor. Mounted control panels with an Arista Model ARP-2217AP Monitor, (2) Mettler Toledo M300 Flow Sensors, and (1) Optek Control 4000 Controller. Mounted on a Stainless Steel Frame.  OAD 105” L x 60” W x 78” T

Bioreactors

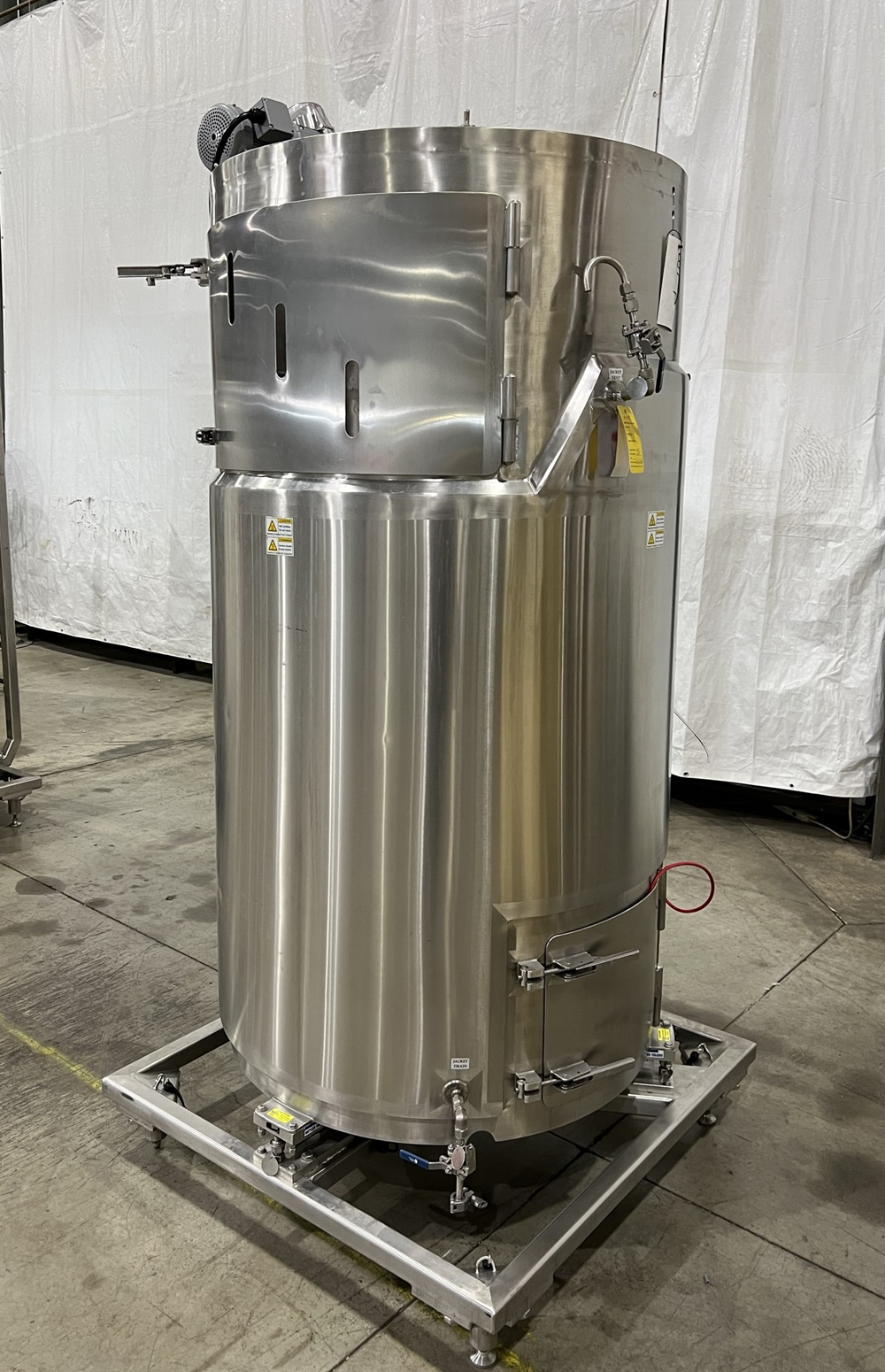

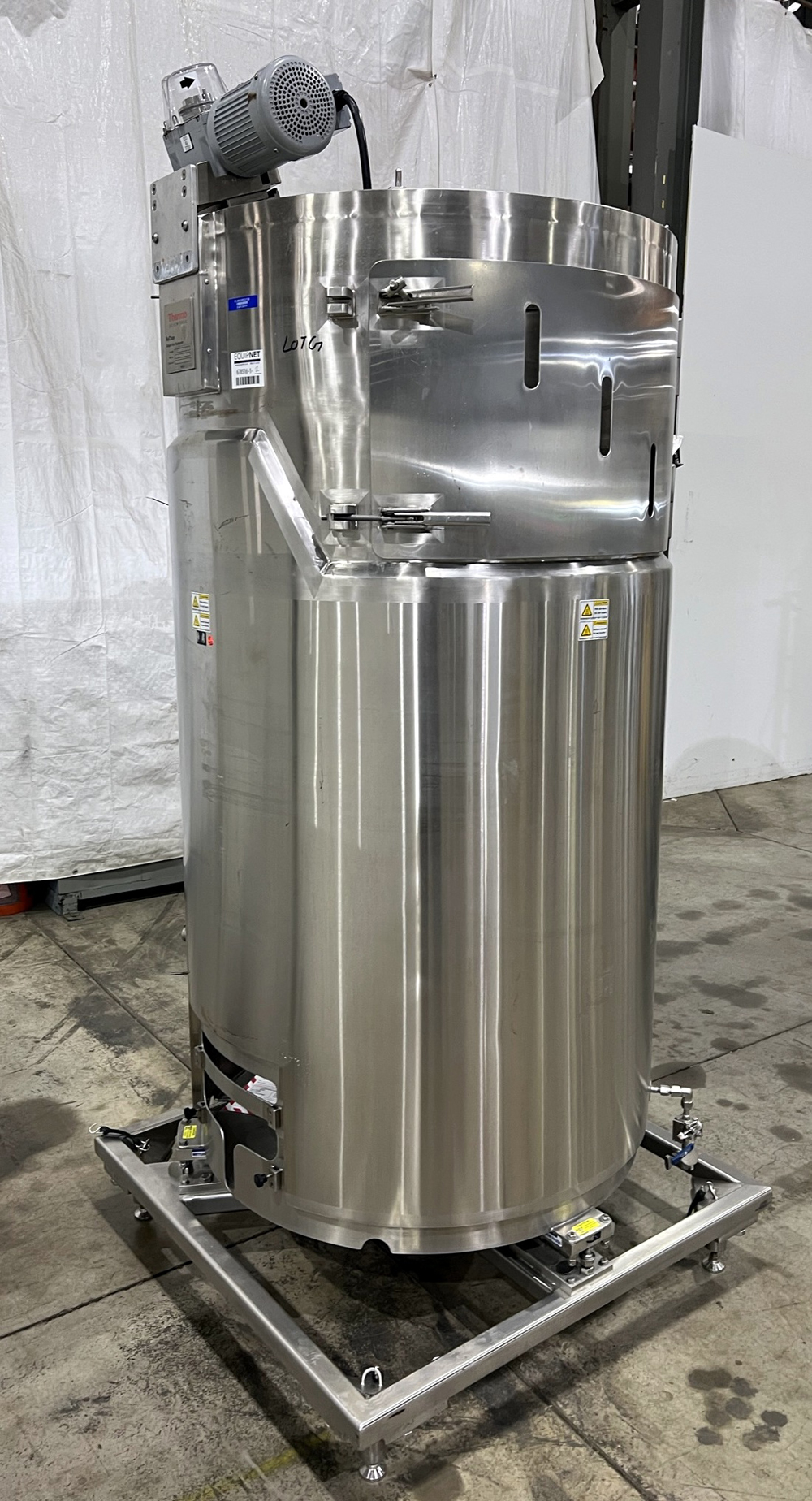

(2) Thermo Scientific Single Use Bioreactors, Model HyClone, 1000 liter capacity, Stainless Steel. Open top, flat bottom shell. 38” diameter x 50” straight side. Dimple Jacket. Includes Brother 3 phase induction motor, 1/2hp 3/60/208-230/460v 1720rpm, 15:1 Ratio. Mounted on Stainless Steel Frame. Serial# H10289-03 & Serial # H10289-04. OAD 50” L x 44” W x 94” T

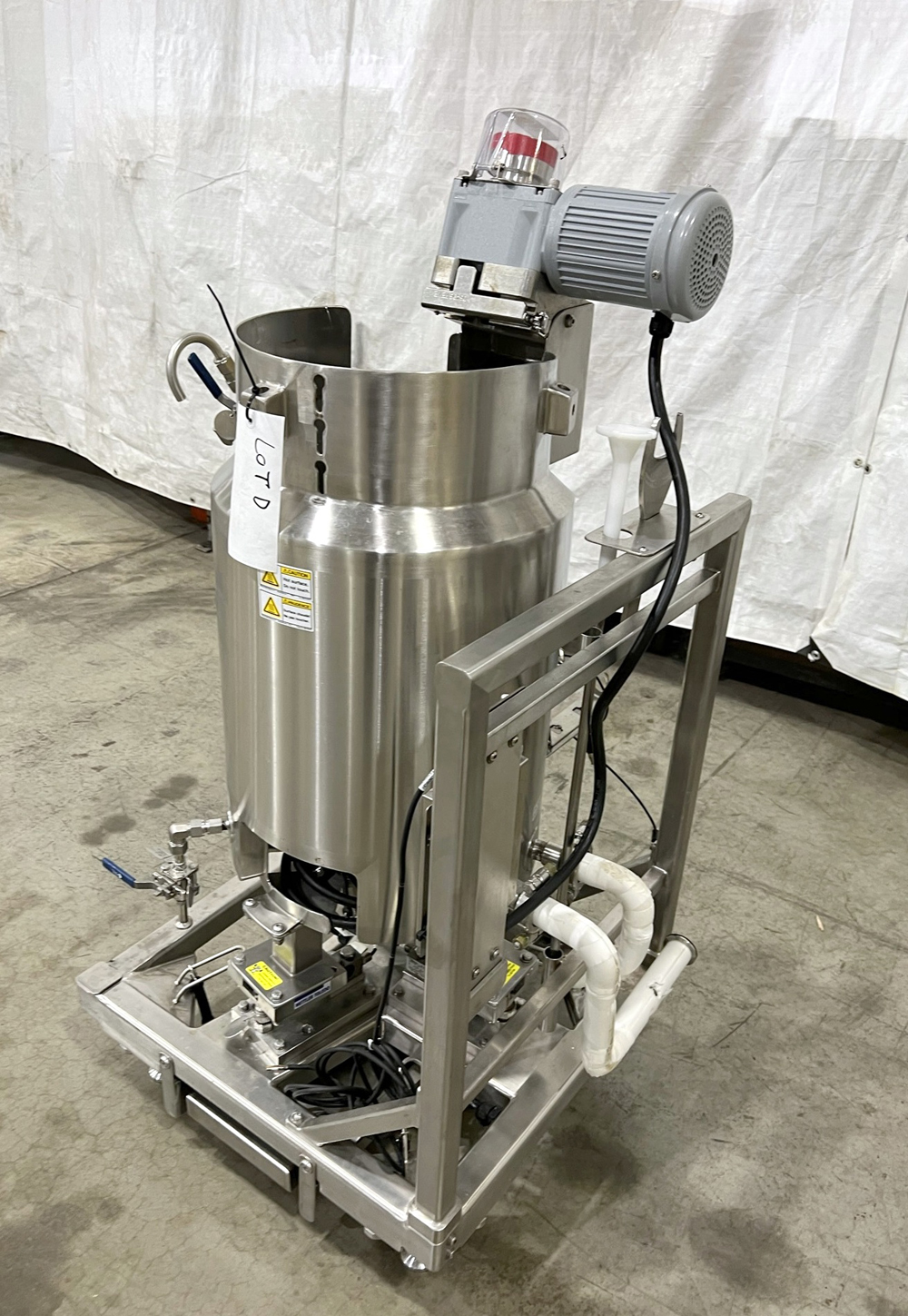

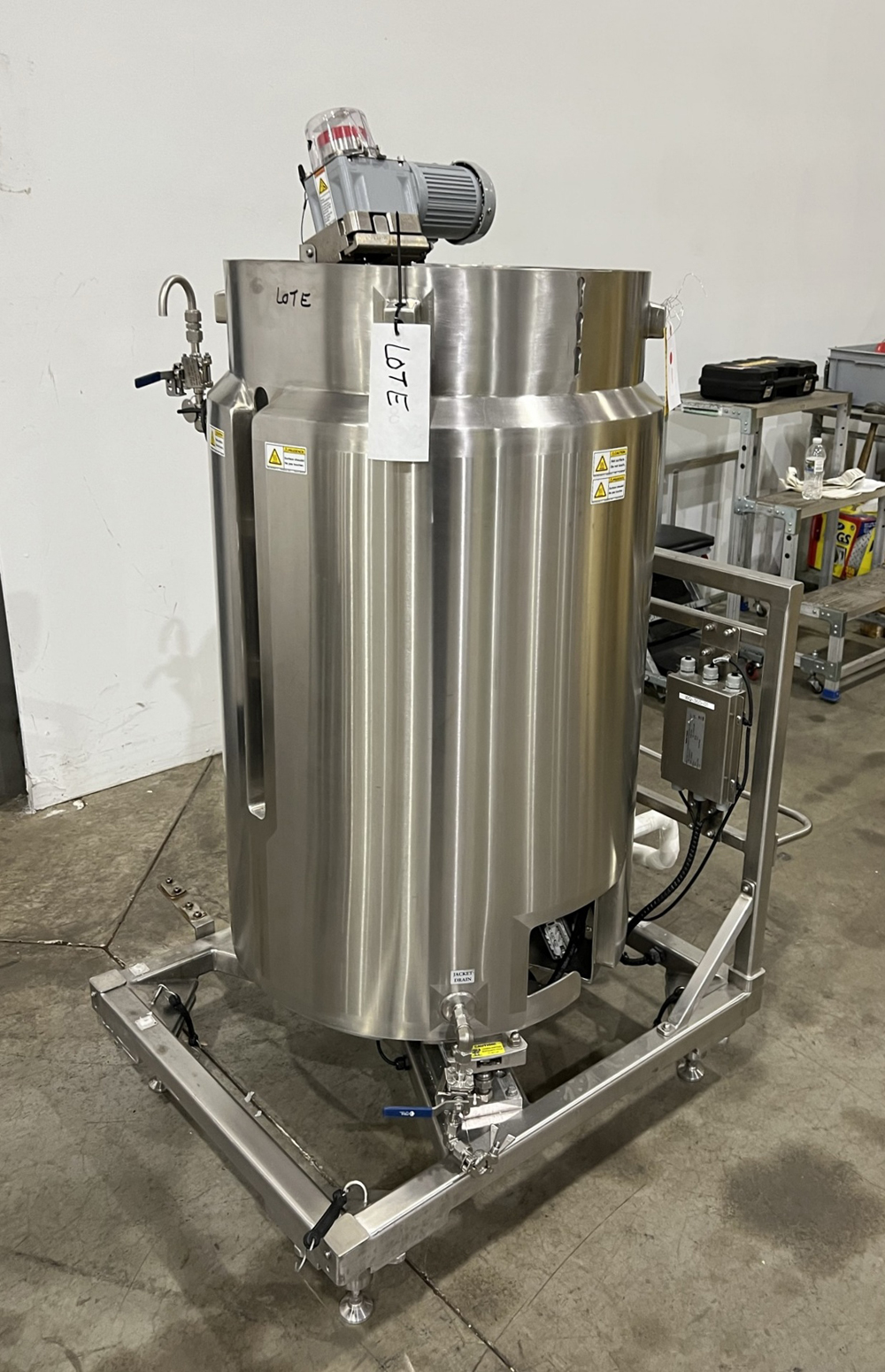

Thermo Scientific Single Use Bioreactor, Model HyClone, 250 liter capacity, Stainless Steel. Open top, flat bottom shell. 24” diameter x 36” straight side. Dimple Jacket. Includes AB Series A Drive, Brother 3 phase induction motor, 1/4hp 3/60/208-230/460v 1720rpm, 12.5:1 Ratio. Mounted on Stainless Steel Frame. Serial# H10289-02.  OAD 44” L x 40” W x 64” T
Thermo Scientific Single Use Bioreactor, Model HyClone, 50 liter capacity, Stainless Steel. Open top, flat bottom shell. 14” diameter x 22” straight side. Dimple Jacket. Includes AB Series A Drive, Brother 3 phase induction motor, 1/4hp 3/60/208-230/460v 1720rpm, 10:1 Ratio. Mounted on Stainless Steel Frame. Serial# H10289-01.  OAD 30” L x 30” W x 54” T

Reactors

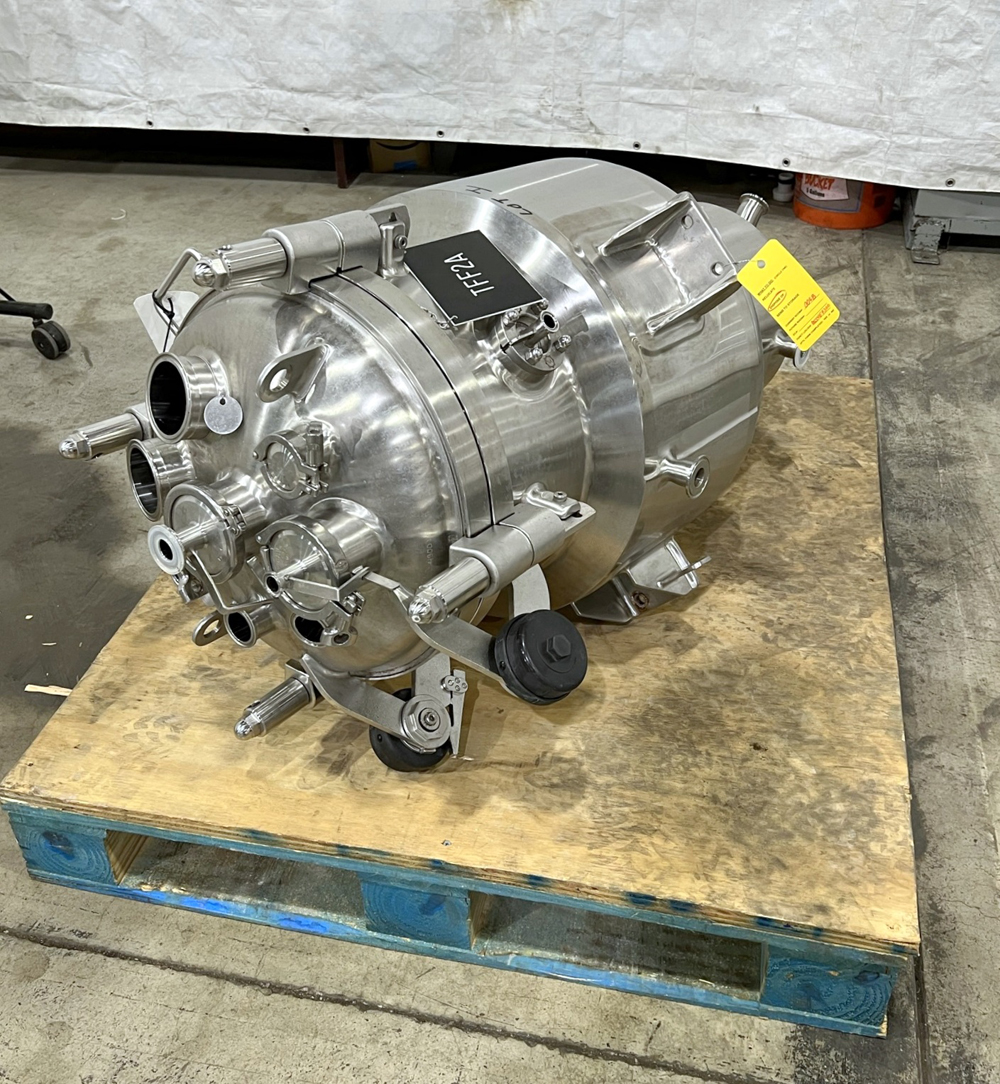

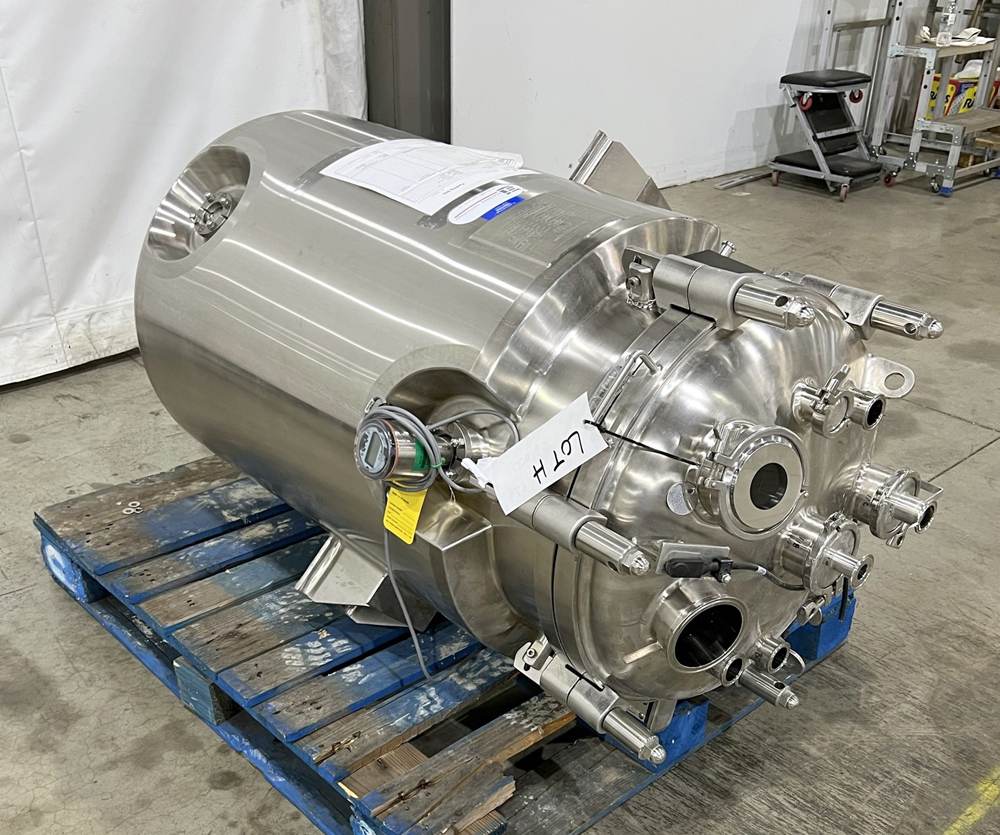

Precision Stainless Reactor, 270 Liter capacity, 316L Stainless Steel, Vertical. Approximately 22” diameter x 38” straight side. Dished top and bottom. Internal rated 45psi at -20 to 356 degrees F, 316L stainless steel jacket rated 90psi at -20 to 356 degrees F. Clamp down top cover, openings top: (4) 1-3/4”, 4”, 4” with sight glass, (2) 3”, 2” center bottom outlet, 1-1/2” side bottom outlet. . Includes spray ball. Serial# PJS0010004, National Board# 970, built 2011.   OAD 60” L x 40” W x 40”T

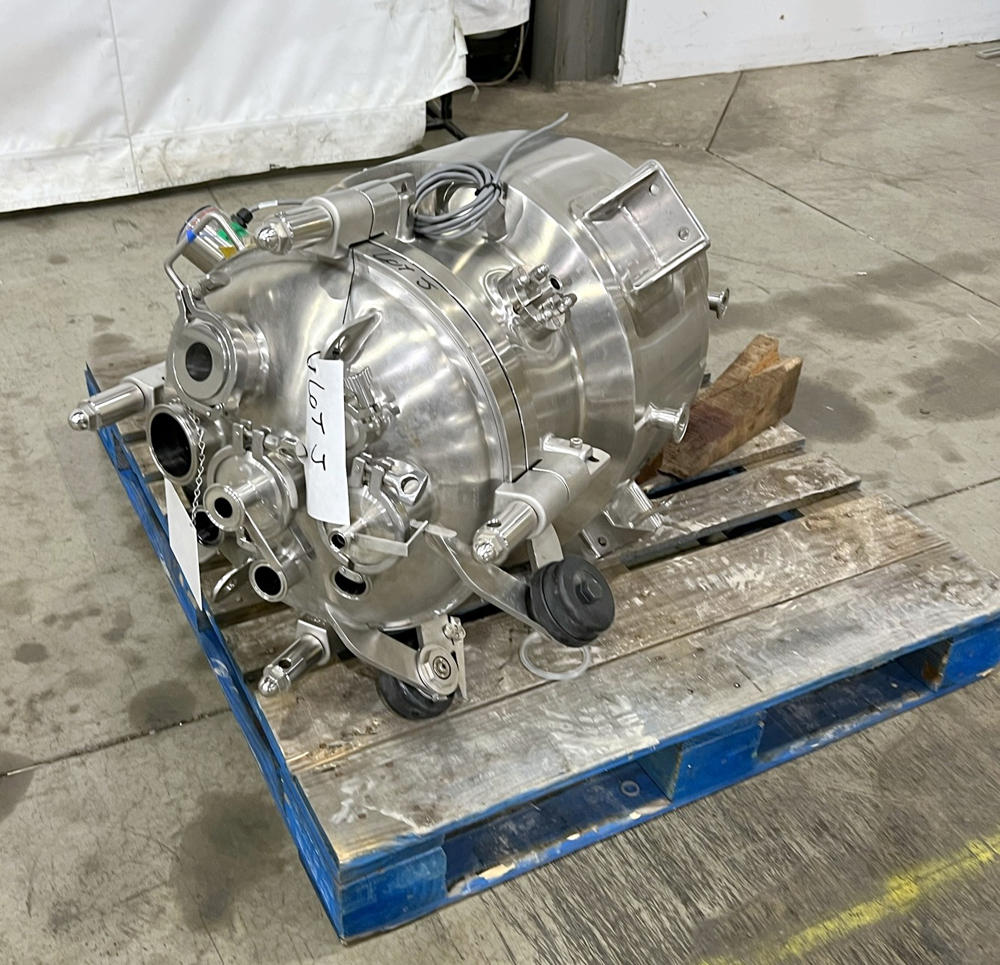

Precision Stainless Reactor, 60 Liter capacity, 316L Stainless Steel, Vertical. Approximately 16” upper diameter, 8” lower diameter x 18” straight side. Dished top and bottom. Internal rated 45psi at -20 to 356 degrees F, 316L stainless steel jacket rated 90psi at -20 to 356 degrees F. Clamp down top cover, openings top: (4) 3”, (4) 1-1/2”, 2” center bottom outlet, 1-1/2” side bottom outlet. Includes spray ball. Serial# PJS0010006, National Board# 973, built 2011.   OAD 48” L x 40” W x 30”T

Precision Stainless Reactor, 60 Liter capacity, 316L Stainless Steel, Vertical. Approximately 16” upper diameter, 8” lower diameter x 18” straight side. Dished top and bottom. Internal rated 45psi at -20 to 356 degrees F, 316L stainless steel jacket rated 90psi at -20 to 356 degrees F. Clamp down top cover, openings top: (4) 3”, (4) 1-1/2”, 2” center bottom outlet, 1-1/2” side bottom outlet. Includes spray ball. Serial# PJS0010007, National Board# 974, built 2011.   OAD 48” L x 40” W x 30”T

Incubator
Thermo Scientific Series 2 Water Jacketed C02 Incubator, 184L (6.5 cu. Ft.) Capacity. Inside Glass door, 21-1/2” wide x 27” tall x 19-1/2” deep stainless steel chamber.  OAD 48” x 32” x 30”T

Laboratory Refrigerators
Thermo Scientific Laboratory Upright Refrigerator, Model REL500A23. 20oz charge of R-134A Refrigerant. Approximately 51.1 Cu ft capacity, -58 to -123 Degrees F Temperature Range. Approximately 52-1/2” wide x 57-1/2” tall x 26” deep chamber, with (4) 25-1/2” deep x 23” wide wire shelves. 115V 60hz power requirements. On Casters. Serial# 0116102301110712   OAD 58” x 38” x 80”T

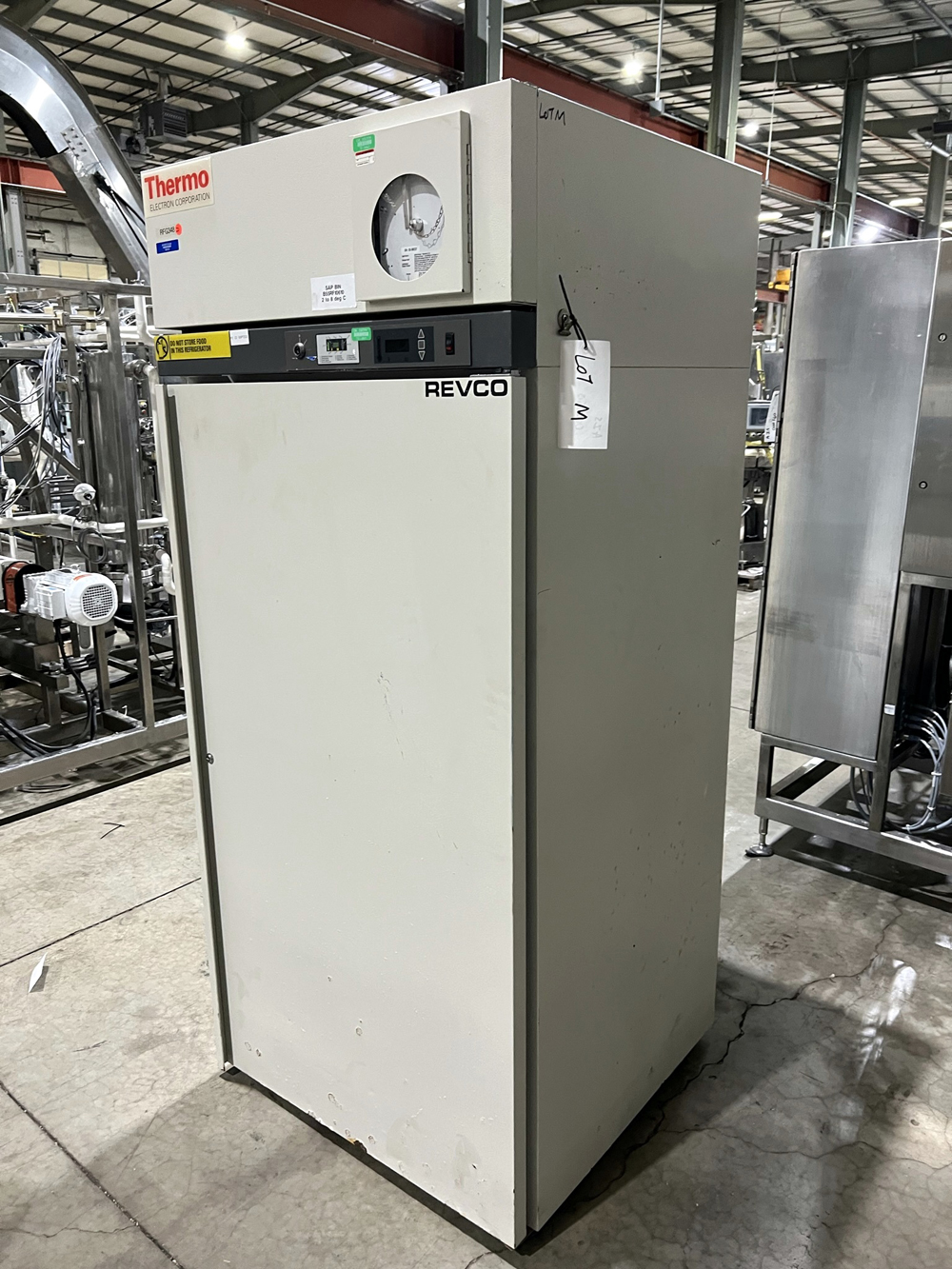

Thermo Revco Upright Refrigerator, Model REL3004A21. 12oz charge of R-134A Refrigerant. 29.2 Cu ft capacity, 1 to 8 Degrees C Temperature Range. Approximately 29” wide x 53” tall x 26” deep chamber, with (3) 29” wide x 26” deep wire shelves. 115V, 60hz power requirements. Serial# P14R-119636-PR   OAD 35” x 35” x 78”T

Fume Hood

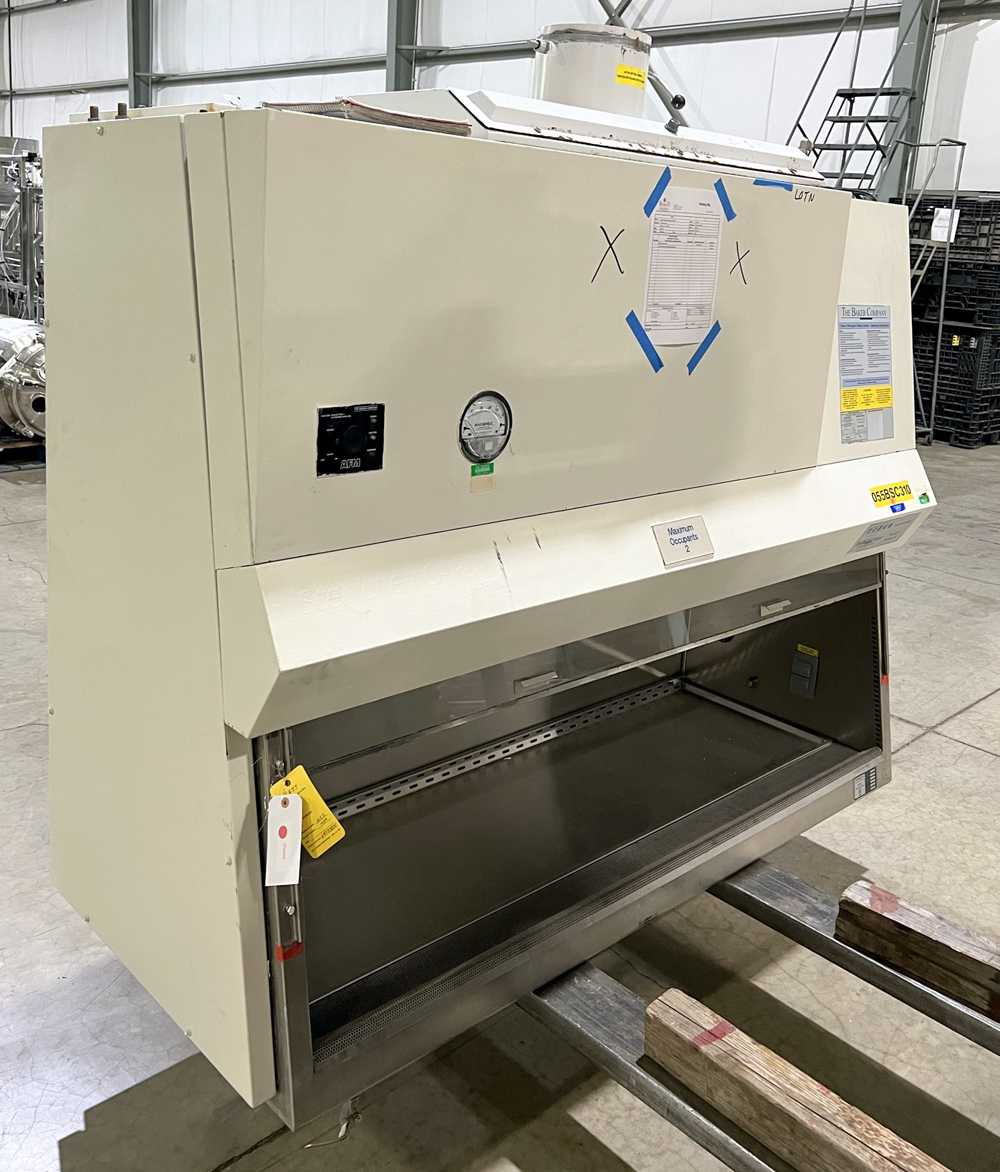

Baker Company Fume Hood, Model SG603 TX. 70” wide x 23” deep x 28” tall stainless steel chamber, with sliding glass door. 115V 60Hz power requirements. Serial# 84198, built 2005  OAD 78” x 32” x 74”T

Bag Sealers

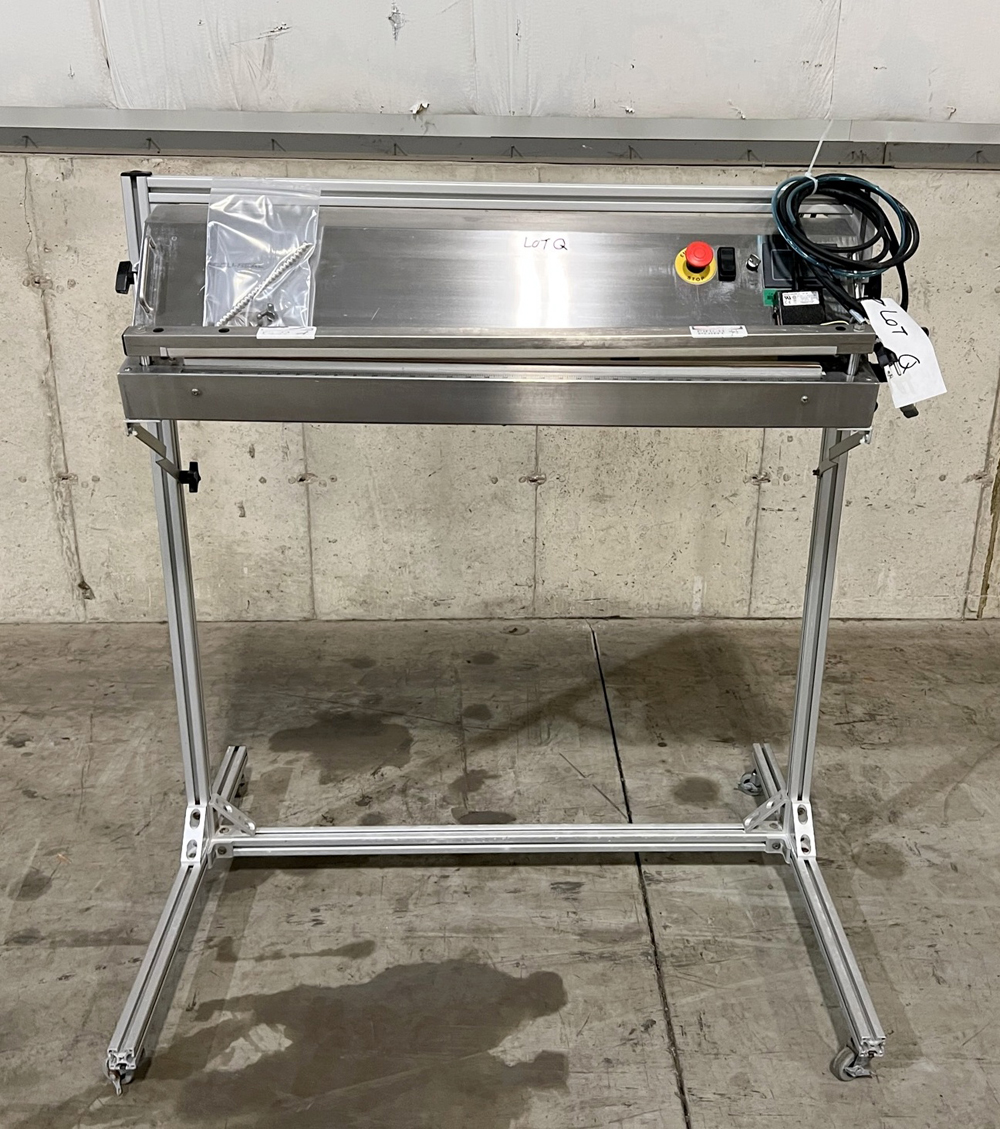

(3) Accu-Seal Bag Sealer, Model 6300-35-B. 34” maximum width. 120v 15amp Power Requirement. Serial# 48999, Serial# 48389-1, Serial# 48389-2, built 2012. Mounted on Casters.  OAD 46” x 34” x 52”T
