Featuring:

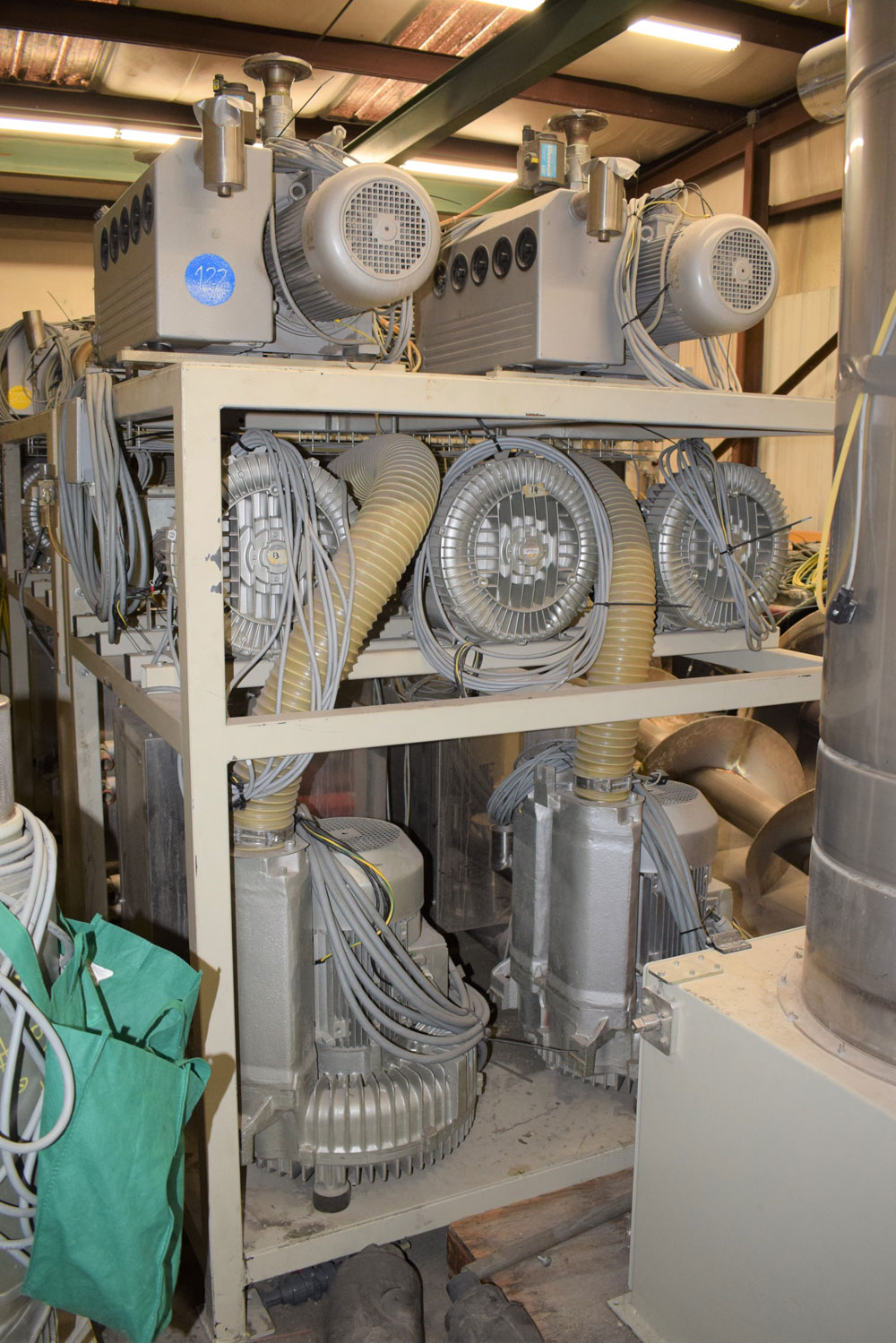

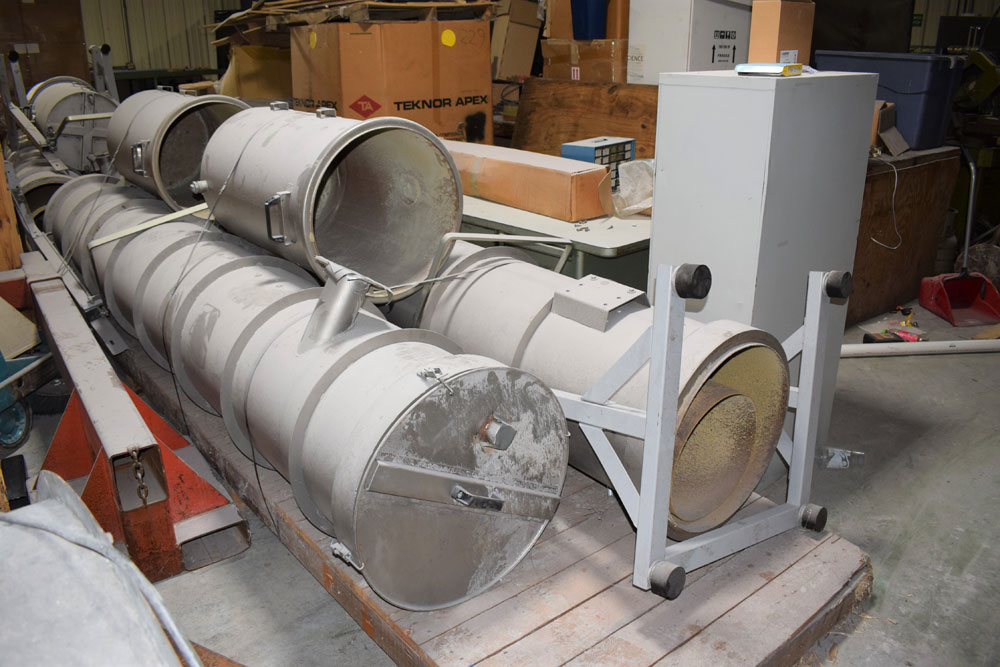

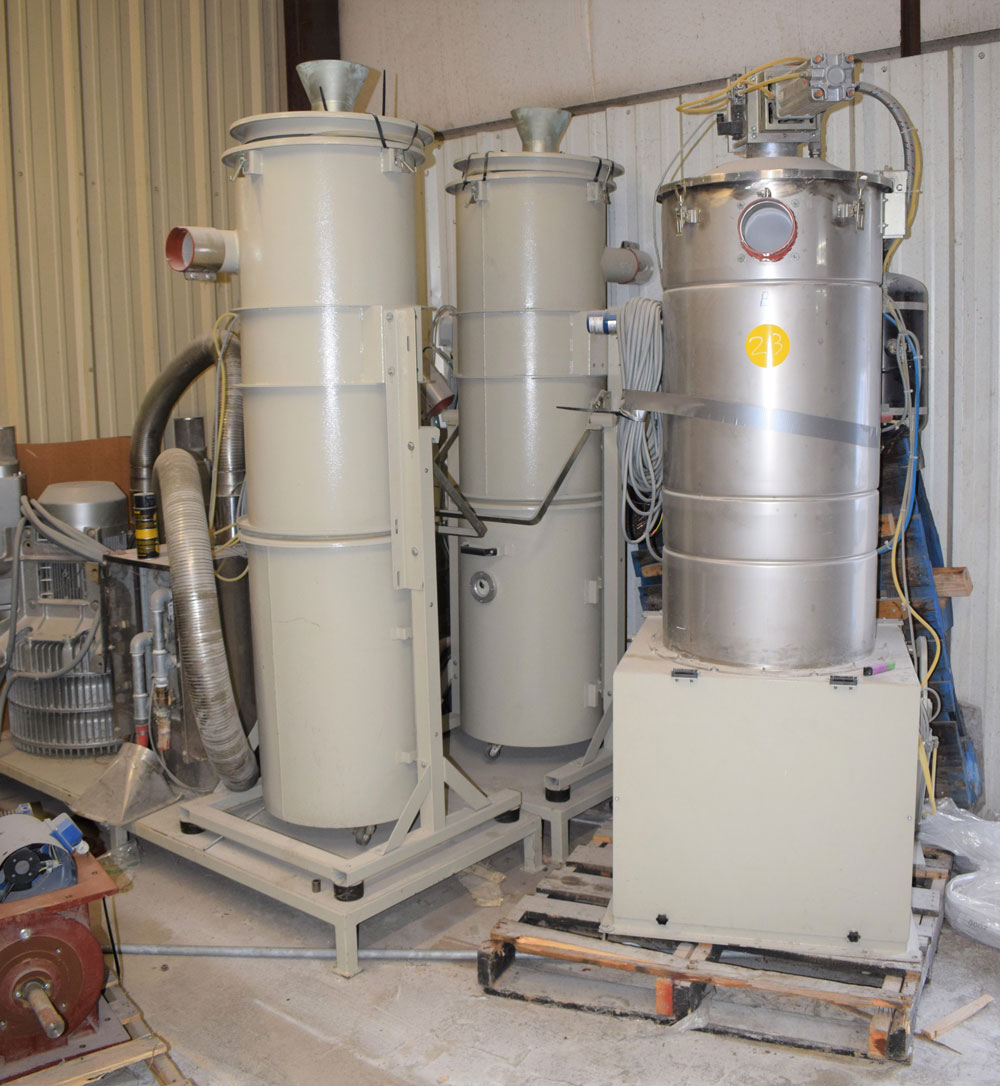

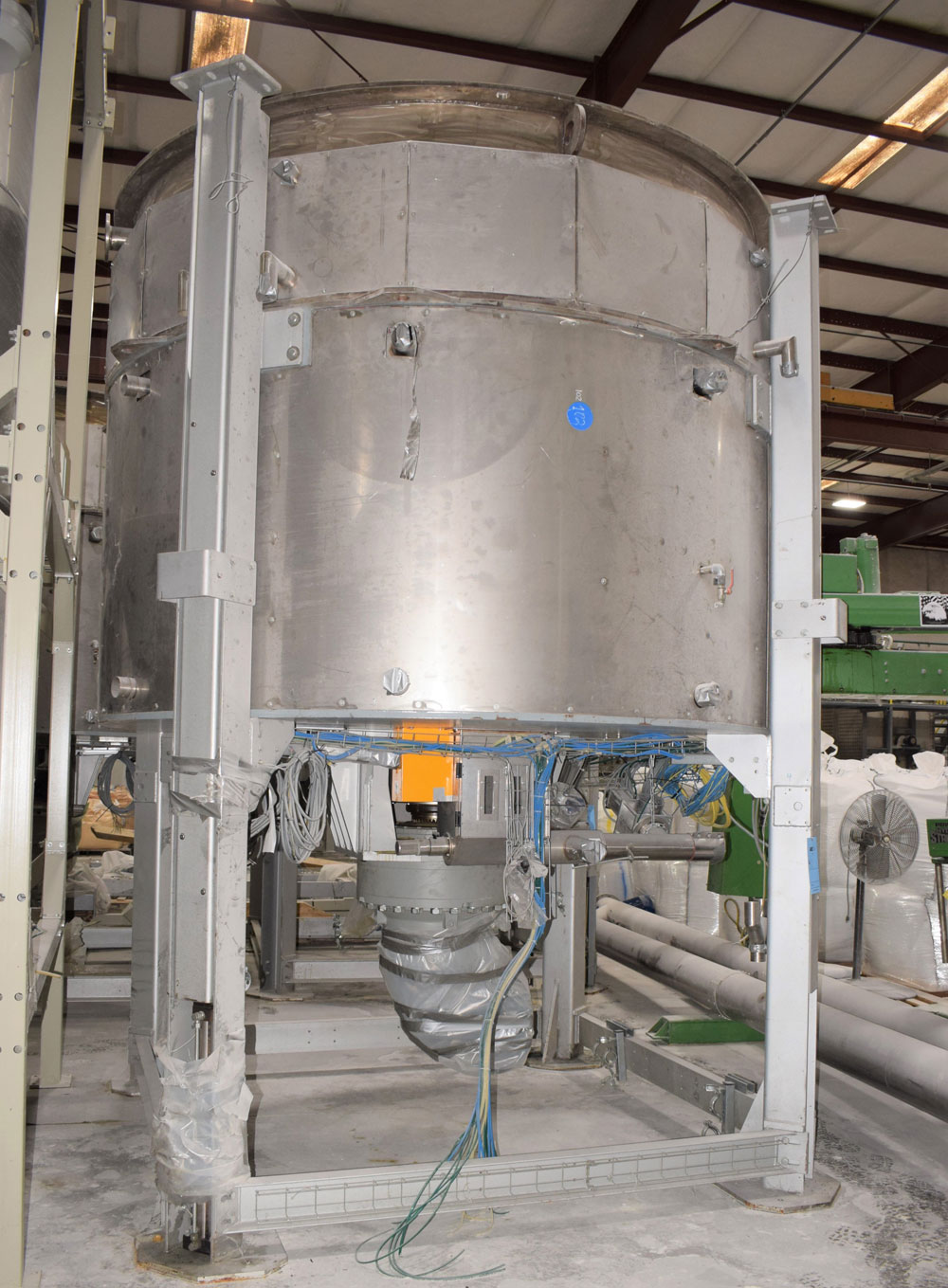

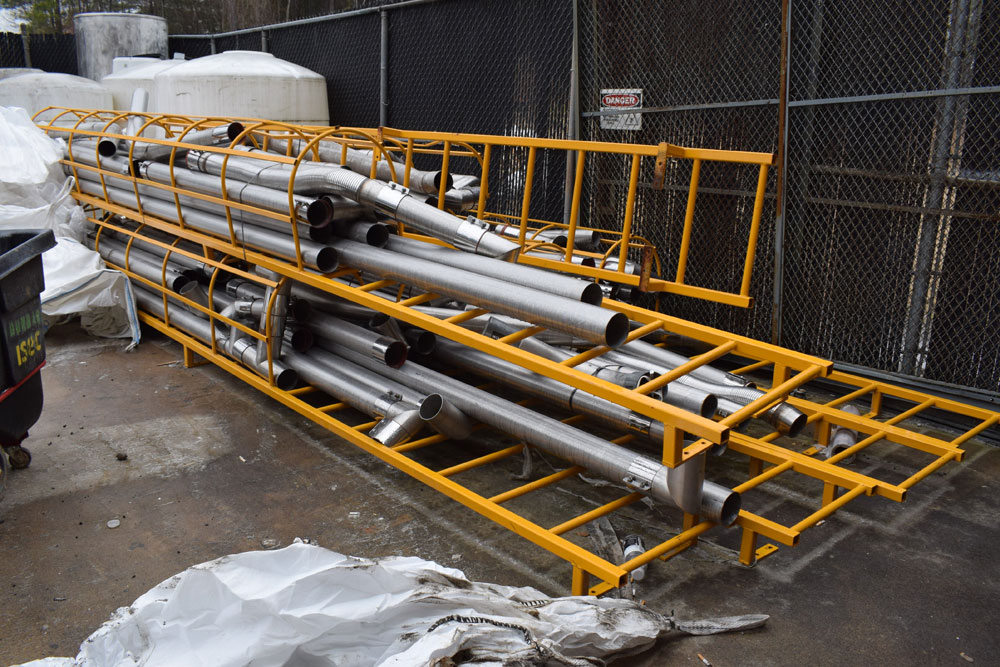

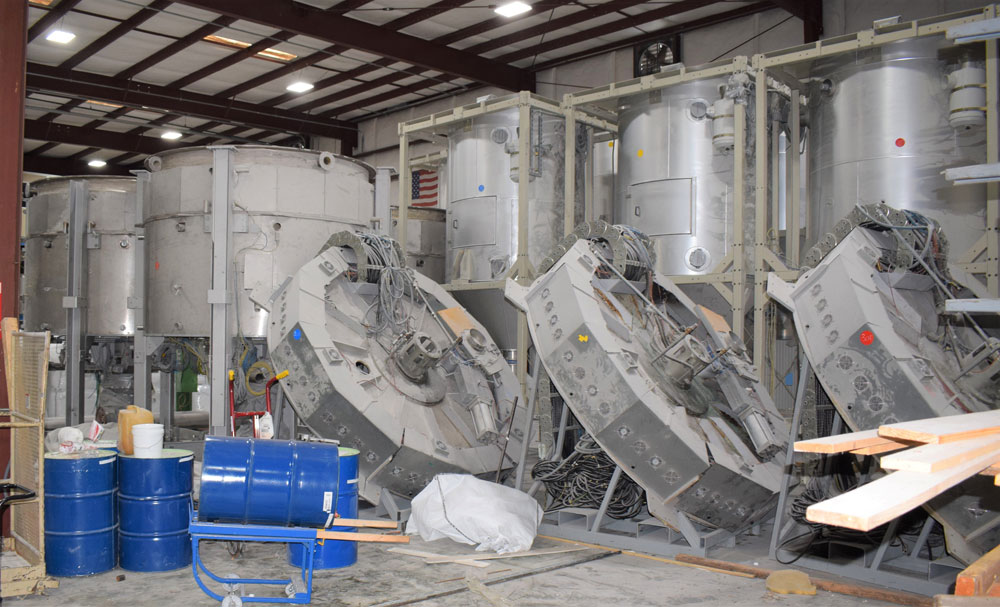

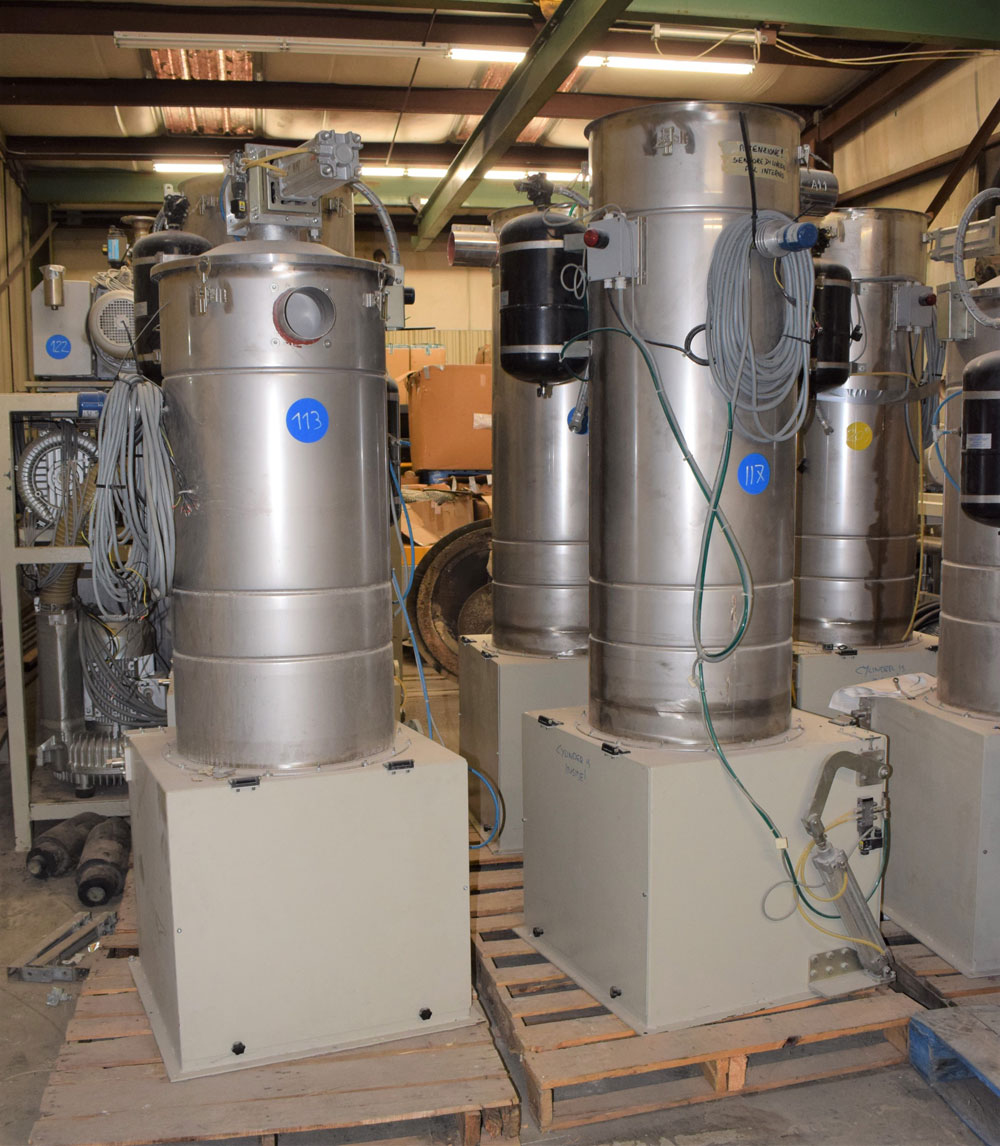

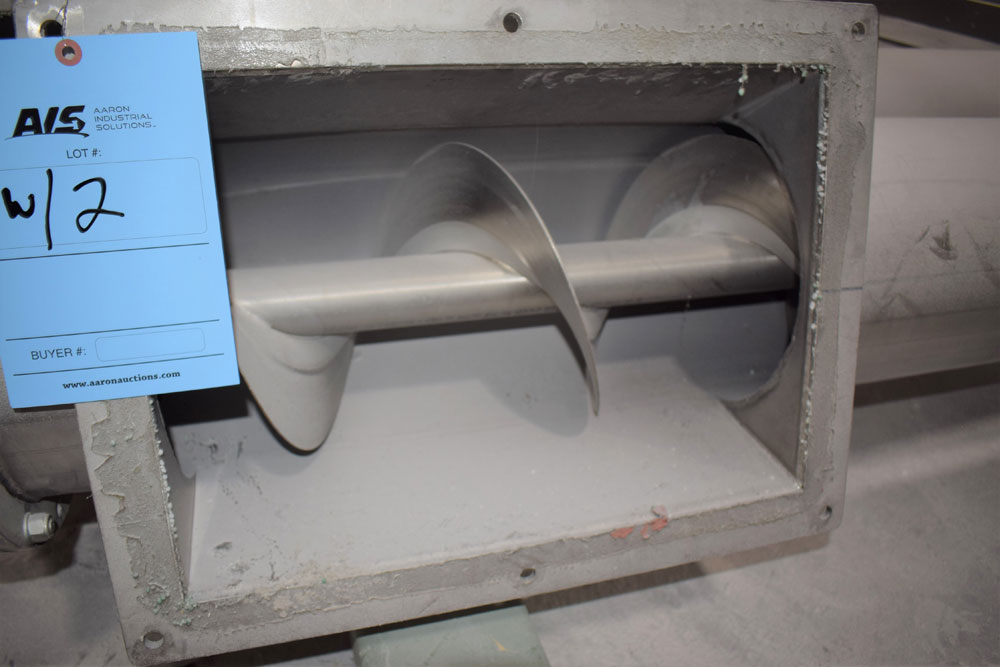

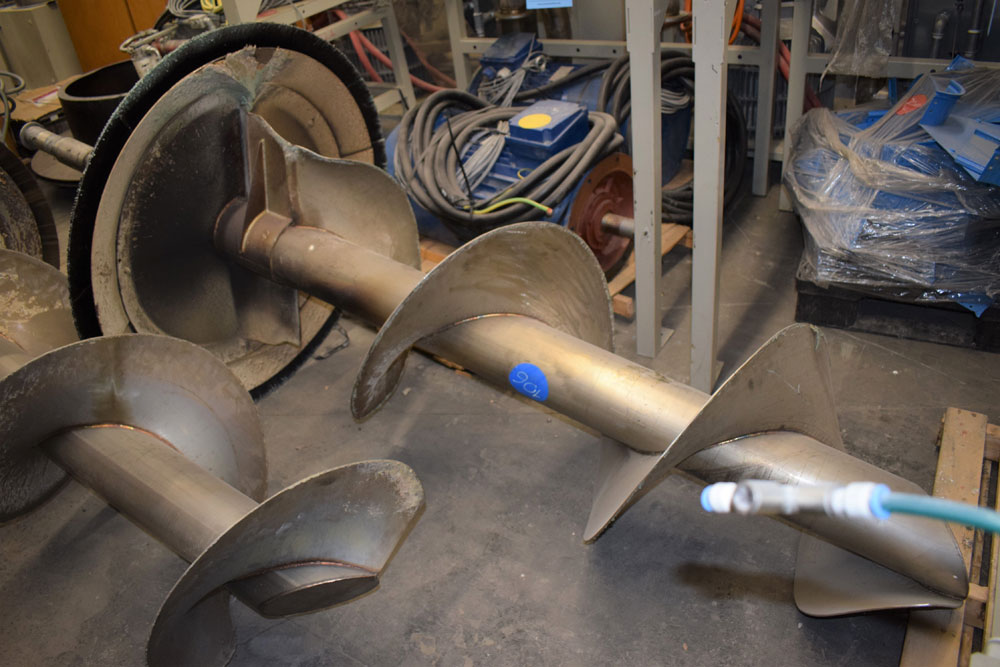

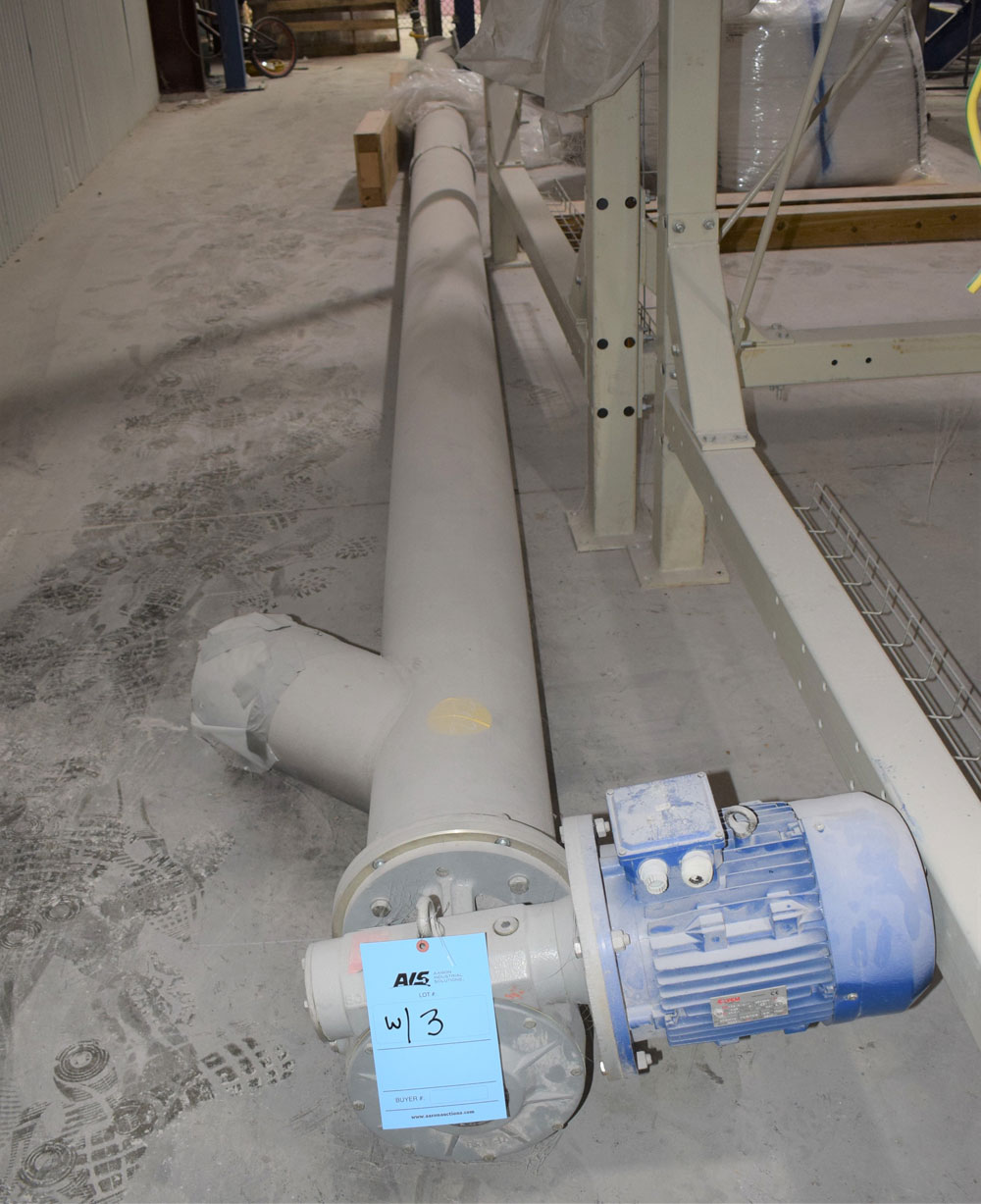

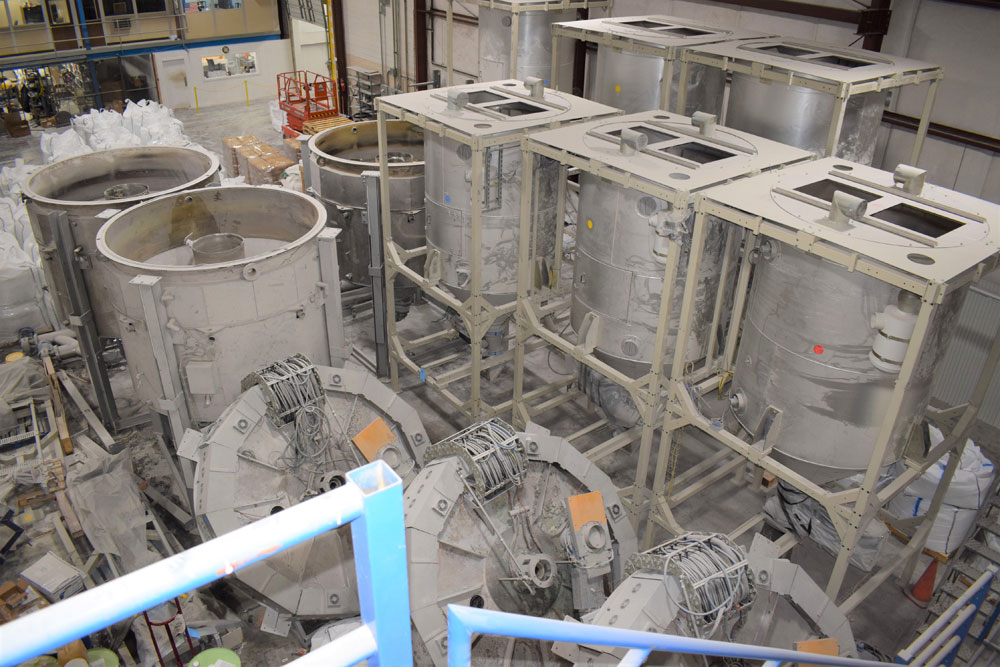

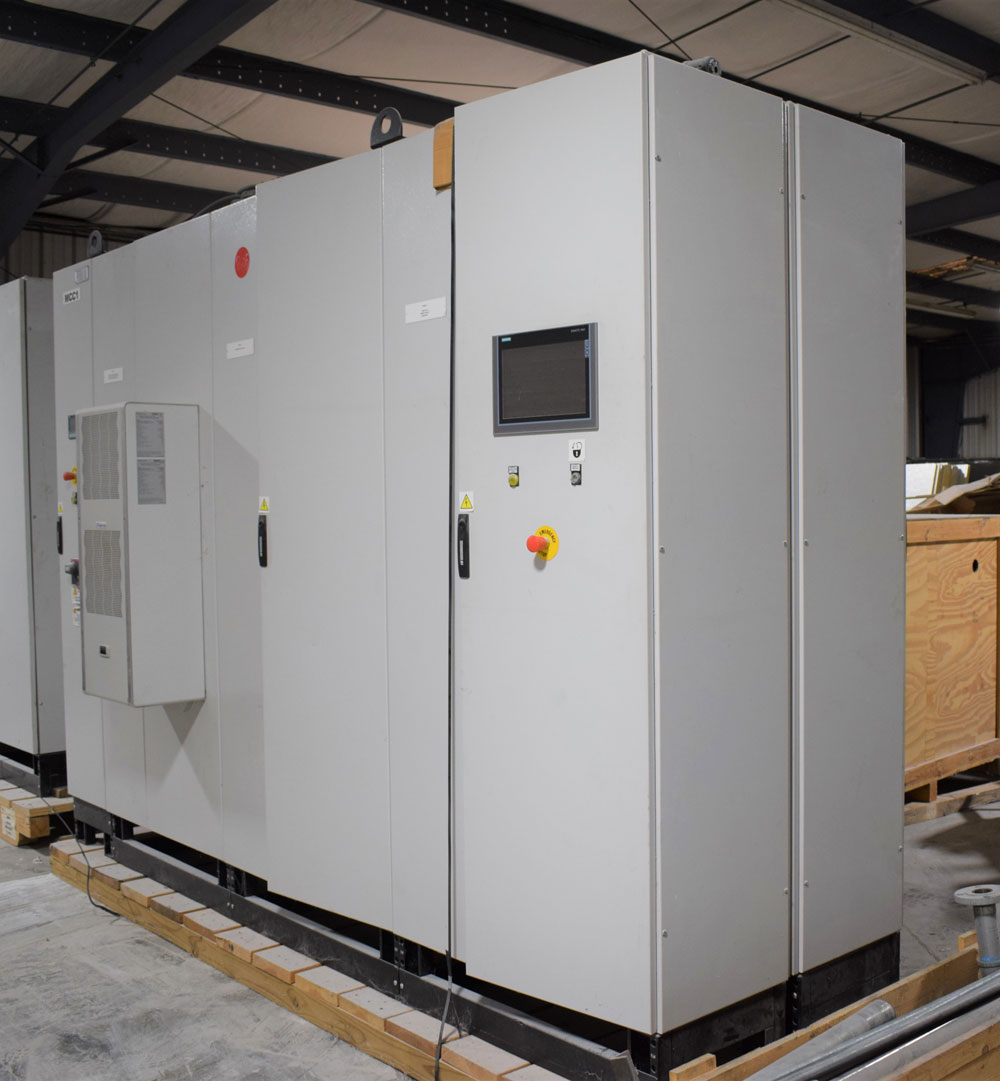

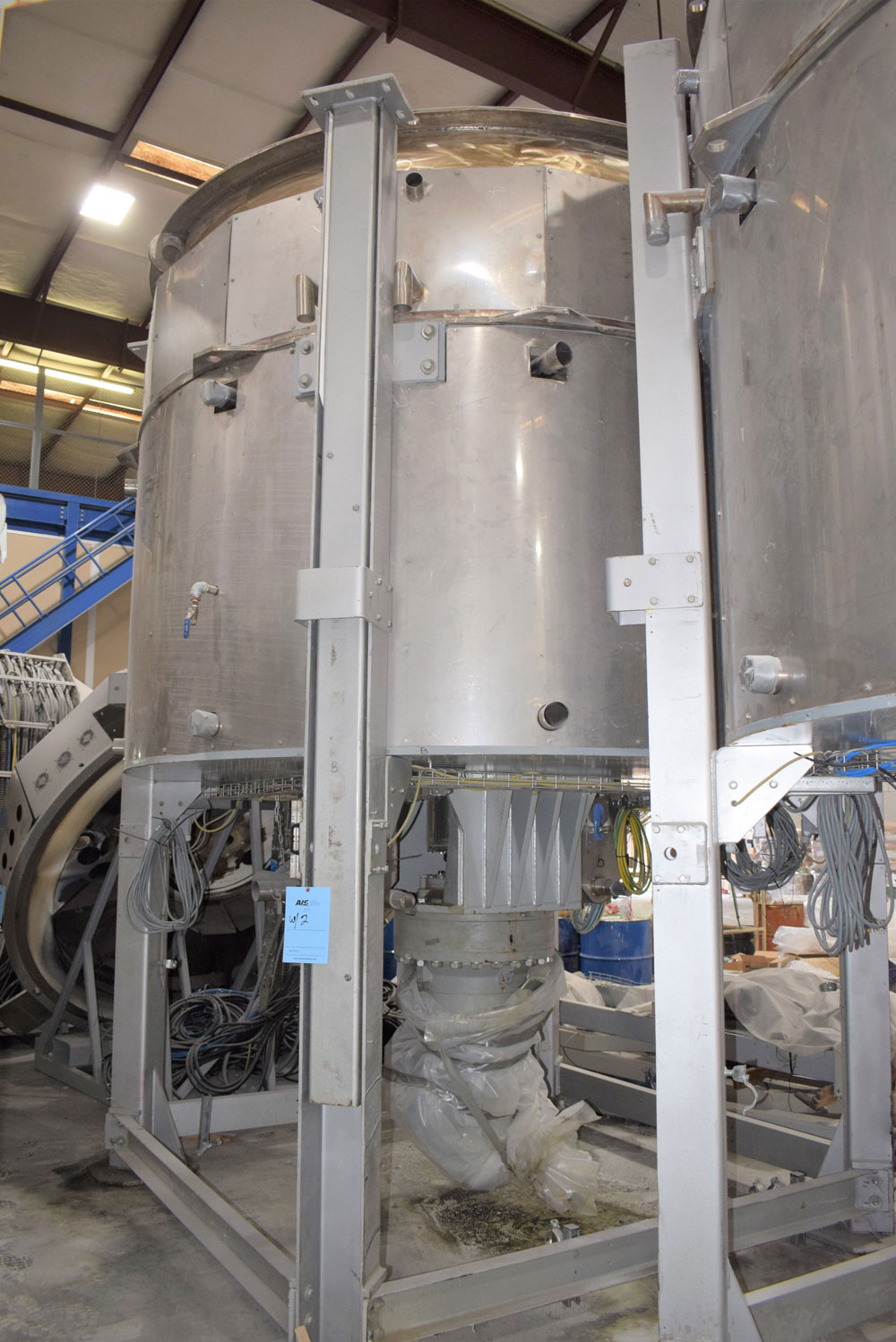

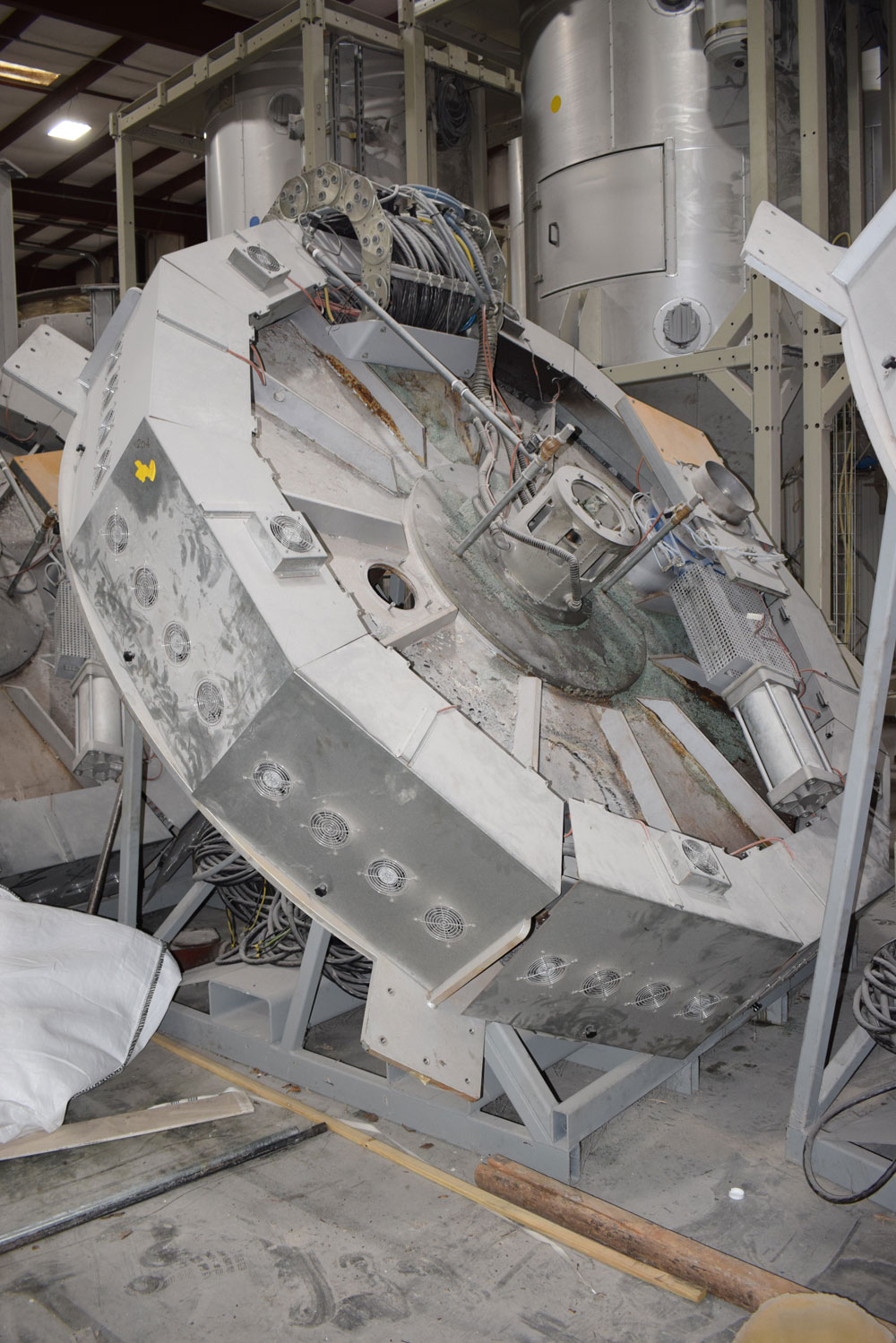

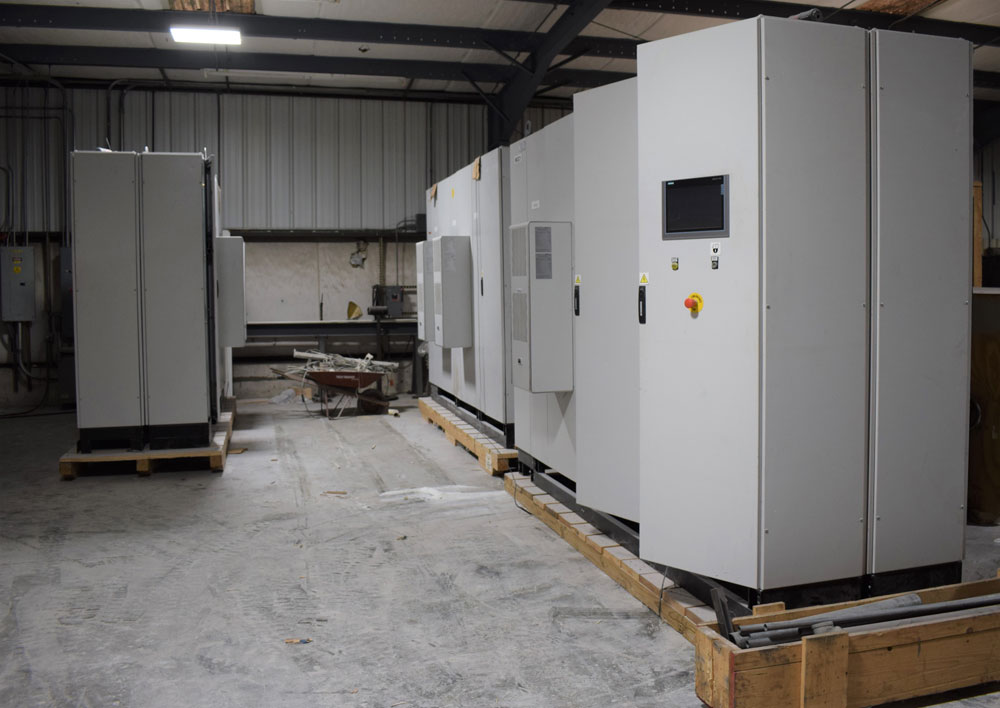

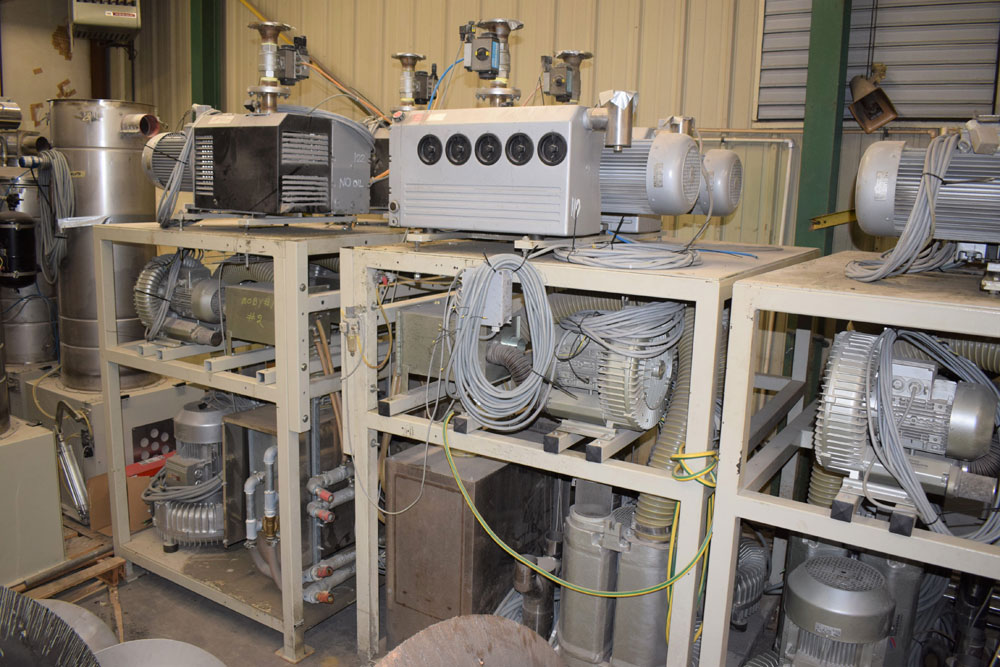

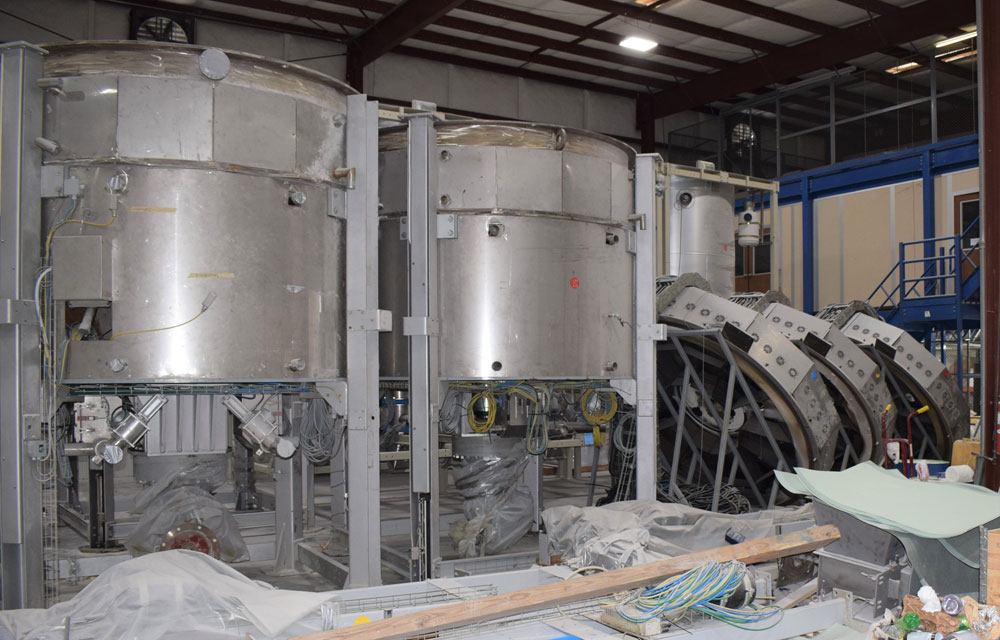

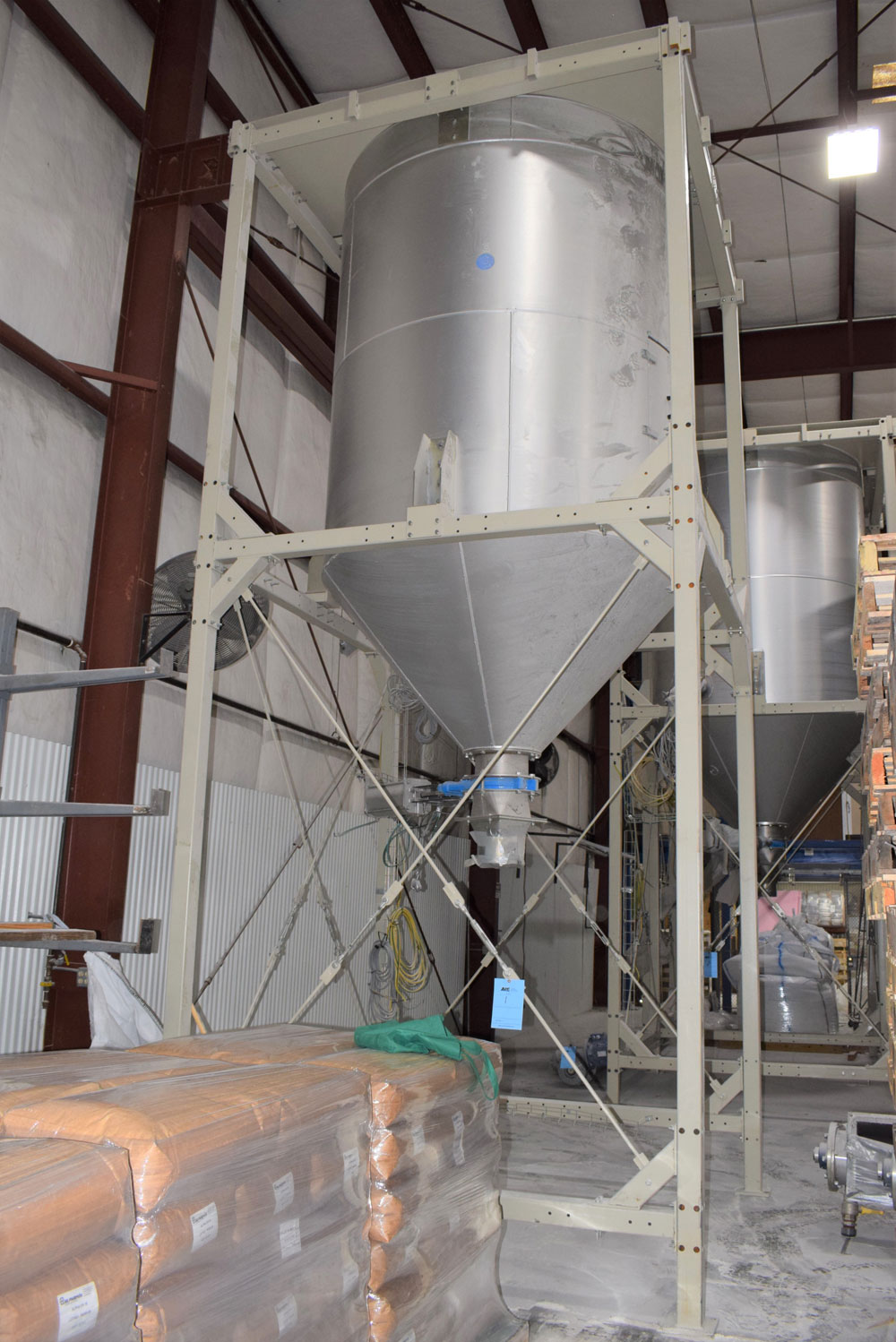

LINE 1 - SB Plastics Machinery Continuous Infrared + Vacuum Systems Moby SSP Solid State Polycondensation Line, Type MOBY 1-6000. Completely electric, crystallization is done in the reactor with the infrared lamps. To raise (low bulk density) PCR flake the same : 6000 L * 0.3 kg/L = 1800 kg capacity per reactor; however, because of the surface area to volume per particle is greater, SSP rate will be faster (0.045 dl/g/hr.) -> 0.1 IV gain /0.045/hr. = 2.22 hrs. SSP time 1800 kg / 2.22 hrs. = 818 kg/ hr. Also, IV rate varies depending on the type of PET – 0.035 dl/g/hr. is usually a normal rate for chips. To raise PCR pellets from 0.74 (water type) to 0.84 IV (CSD type) -> 0.1 IV gain / 0.035/hr. = 2.85 hrs. SSP time required 6000 L * 0.8 kg/L = 4800 kg capacity per reactor 4800 kg/2.85 hr. = 1680 kg/hr. (per reactor.) Consists of (1) Pre-heat silo, (1) transfer screw into (1) MOBY reactor body, (1) buffer silo, control panel, miscellaneous receivers, vacuum pumps, and piping. LINE PIECES COLOR-CODED BLUE
LINE 2 - SB Plastics Machinery Continuous Infrared + Vacuum Systems Moby SSP Solid State Polycondensation Line, Type MOBY 1-6000. Completely electric, crystallization is done in the reactor with the infrared lamps. To raise (low bulk density) PCR flake the same : 6000 L * 0.3 kg/L = 1800 kg capacity per reactor; however, because of the surface area to volume per particle is greater, SSP rate will be faster (0.045 dl/g/hr.) -> 0.1 IV gain /0.045/hr. = 2.22 hrs. SSP time 1800 kg / 2.22 hrs. = 818 kg/ hr. Also, IV rate varies depending on the type of PET – 0.035 dl/g/hr. is usually a normal rate for chips. To raise PCR pellets from 0.74 (water type) to 0.84 IV (CSD type) -> 0.1 IV gain / 0.035/hr. = 2.85 hrs. SSP time required 6000 L * 0.8 kg/L = 4800 kg capacity per reactor 4800 kg/2.85 hr. = 1680 kg/hr. (per reactor.) Consists of (1) Pre-heat silo, (1) transfer screw into (1) MOBY reactor body, (1) buffer silo, control panel, miscellaneous receivers, vacuum pumps, and piping. LINE PIECES COLOR-CODED RED
LINE 3 - SB Plastics Machinery Continuous Infrared + Vacuum Systems Moby SSP Solid State Polycondensation Line, Type MOBY 1-6000. Completely electric, crystallization is done in the reactor with the infrared lamps. To raise (low bulk density) PCR flake the same : 6000 L * 0.3 kg/L = 1800 kg capacity per reactor; however, because of the surface area to volume per particle is greater, SSP rate will be faster (0.045 dl/g/hr.) -> 0.1 IV gain /0.045/hr. = 2.22 hrs. SSP time 1800 kg / 2.22 hrs. = 818 kg/ hr. Also, IV rate varies depending on the type of PET – 0.035 dl/g/hr. is usually a normal rate for chips. To raise PCR pellets from 0.74 (water type) to 0.84 IV (CSD type) -> 0.1 IV gain / 0.035/hr. = 2.85 hrs. SSP time required 6000 L * 0.8 kg/L = 4800 kg capacity per reactor 4800 kg/2.85 hr. = 1680 kg/hr. (per reactor.) Consists of (1) Pre-heat silo, (1) transfer screw into (1) MOBY reactor body, (1) buffer silo, control panel, miscellaneous receivers, vacuum pumps, and piping. LINE PIECES COLOR-CODED YELLOW
