Multi-Location Plastic Equipment Consignment Auction

Featuring:

Granulators
Cumberland, Model 20x72-5kn, Granulator, Serial # 66300-91002. 20" x 72" feed throat, 5 knife steep angle step adjustable knife rotor (10 segments), 2 bed knife, 2 auxiliary bed knives, 1 tear bed knife. Designed for film granulation and film blow in in-feed, directly driven by dual 200 hp 1190 rpm 460 volt only motors, 18" airveyor discharge. Approximately 3/8" holes close fitting screens, does not include starter/controls or blow in in-feed hopper. Rebuilt in 2004.

Cumberland, Model 18X37, Granulator. 18" X 37" Feed Throat. 5-Knife Steep Angle Step Adjustable Rotor Knives (10 Segments). 2- Bed Knives. Designed for Film Granulation. Belt Driven by a 100 HP, 460 Volt, 1780 RPM Motor. Gravity Discharge. 6" Diameter x 37" Wide Knurled and Grooved Offset Position Feed Roll Infeed with Pneumatic Pinch. Feed Roll Infeed Trumpet, Feed Rolls are Chain and Sprocket Driven by a 7.5 HP, 1750/1930 RPM Continuous Duty, DC Motor Thru a Reliance 2.76/1 Gearbox. All Mounted on Leg Base. Swing Out Chamber Door on Downstroke Side

(3) Sprout Waldron Granulators, 15" x 18" feed. 30 Hp motor. Previously used for recycling polyester film edge trim.

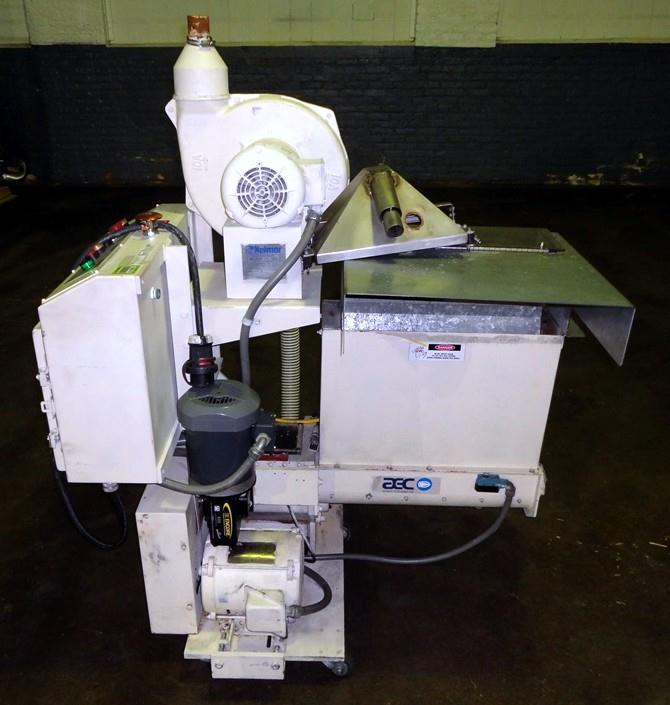

AEC Nelmor AK Series Auger Fed Granulator, Model AK68. Carbon Steel. Approximate 7-1/2" wide x 6" diameter (3) bolt on blade open rotor. Approximate 6" diameter x 32" long screw feed with enclosed tube. Includes a feed hopper, bottom catch box, set up for blower discharge with a 1hp blower, approximate 5/16" diameter screen, and controls. Screw driven by a 1hp gear motor, blades driven by a 5hp, 3/60/230/460 volt, 1755 rpm motor. Mounted on a cast carbon steel base with casters. Serial# 00E03908

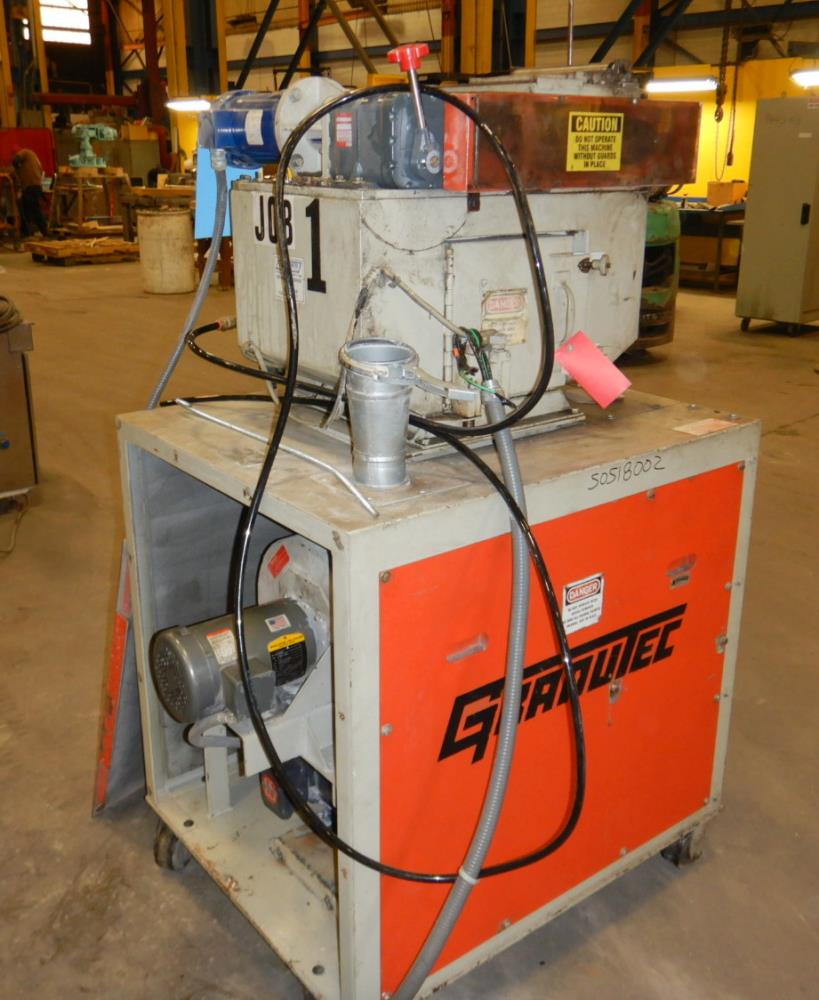

Granutec Granulator, TFG121210. 3 Knife, open rotor. Driven by a 10 HP main drive, pull rolls driven by 3/4 HP motor. Includes 1.5 HP on blower. Screen size approximately 5/16" diameter. Serial# 196-2697.

Shredder

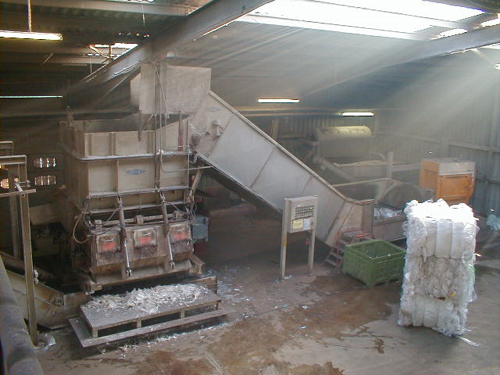

Zeno Single Roll Shredder, Type ZTLL 2000 x 1900. Material of construction is carbon steel. 27.7" diameter x 78" straight side (710 mm x 2000 mm) roll with hydraulic ram feed. 54 interchangeable knives. 5.46" diameter (140 mm) bottom screen. Maximum roll speed 120 rpm via an SEW 135 hp/90 kW, type MC2PLHT07 gearbox by an Elektron 165 hp/110 kW, 380/420/440/480 volt, 50 cycle, 3 ph belt driven motor. Includes operating hydraulics and hopper. Overall dimensions: 15'6" long x 12'3" wide x 9'1" high (4800 mm x 3700 mm x 2500 mm).

Extruders & Extrusion Lines

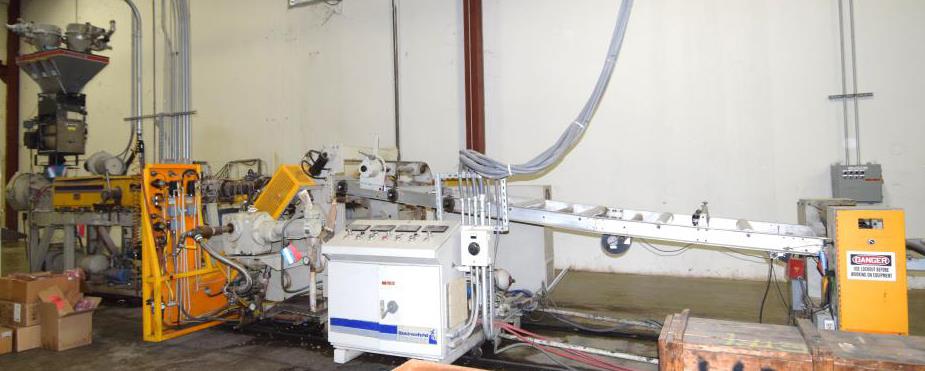

Battenfeld Gloucester 36" Wide Inclined Sheet Extrusion Line, New 1990. Consisting of the following: - 3.5" Gloucester 30/1 L/D vented Extruder, Model 35250, Serial # 33310-01. Extruder is driven by a 150 hp DC motor, direct connected to a 15.46/1 gearbox. Has a 3.5" Gneub hydraulically actuated screen changer including hydraulic pumping system and a temperature control panel. Has electrically heated water cooled barrel, water cooled feed throat and pump and heat exchanger for gearbox cooling. Includes closed loop water cooling system for extruder barrel and a Dekker, Titan series Model 3V0100D-MA3-SGL, singel stage liquid ring vacuum pump with 5.5KW motor, 100 ACFM for the extruder vent. -Downstream includes Maag 56/56 melt pump Serial # 8330 63034/2 with approximately 10 hp motor, 24" flex lip die with 45 degree restrictor bar and 30-45 degree down angle adapter. - 3 roll chill roll stack is a hydraulically loaded Battenfeld-Gloucester inclined style with individually driven 36" wide x 16" diameter rolls. Includes hydraulic pump for roll pressure. Top and bottom roll are polished chrome plated while center roll is a matte finish. Includes (3) Sterling temperature control units, cooling conveyor with edge trim razor slitting station and pull roll stand. - Includes (2) spare chrome rolls, (2) spare rubber rolls and (2) spare damaged chill rolls.

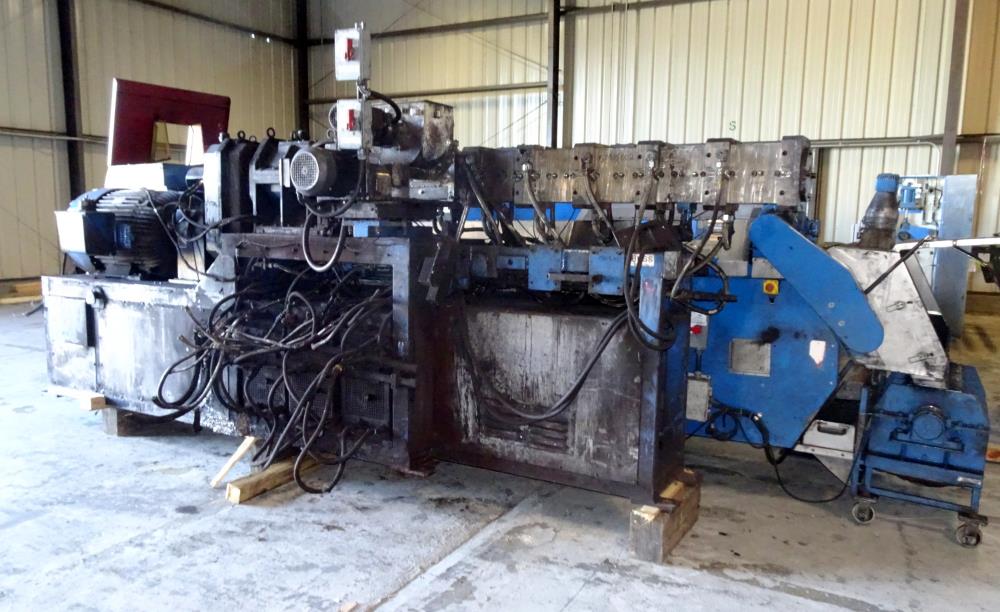

Buss Ko-Kneader Extruder, Model TCS 100-16 D. 100mm (3.93") Diameter heated screw, 16 to 1 L/D ratio. Approximate 57-1/4" centerline height. (6) Jacketed barrel sections, side feeder, also has top center port. Screw driven by a 125 hp, 3/60/460 volt, 1785 rpm AC motor. Has (4) Regloplas P160 temperature controllers. Serial # 452126-1, Sales Order # 96/4521. Includes cooling conveyor, belt approximate 39-3/8" wide x 18 long, (2) cored rolls 8" diameter & 16" diameter, Netzsch-Condux small granulator at the end of the cooling conveyor. Has Vac-U-Max Bulk collection system with Roots Model 33 U-RAI rotary lobe blower, (4) Sterling Model M2B2010-D temperature controllers, Sterling Model GRT45-5-4 pump tank. Operators panel with Siemens/Moore PLC, (6) Door control panel with ABB ACS 600 main drive, ABB ACS 300 feeder drive, Square D Telemecanique Altivar 18 drive granulator drive.

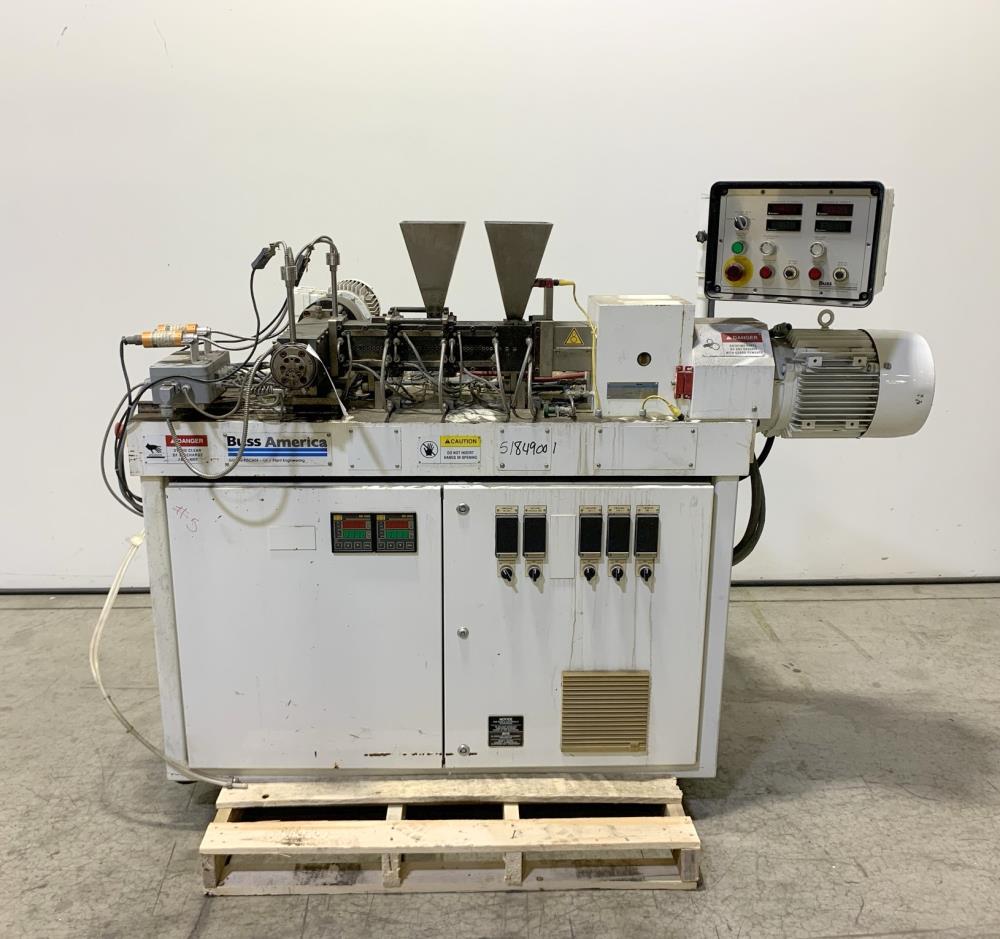

Buss Model MKS 30 Laboratory Ko-Kneader Extruder, Serial# 97-1030 (1997). 30mm Diameter x approximate 17" long single screw. 3 Zone barrel electrically heated, water cooled. Water cooled feed throat with hopper. Driven by a 10 hp, 3/60/230/460 volt, 1740 rpm AC motor with reducer. Includes a discharge screw extruder, driven by an approximately 1.5 kw, 3/60/230/460 volt, 1710 rpm gear motor with 2 hole strand die. Includes an operators panel, a control panel with Eurotherm controllers, (2) ABB drive panels. 837 Hours used on the meter.

OMV 4.5" Single Screw Extruder. Approximately 36 to 1 L/D. Electrically heated, water cooled 8 zone barrel. Water cooled feed throat with 6-1/4" x 6-1/4" tangential feed openings. Approximate 54" centerline height. Barrel approximately 172" long. Manual screen changer. Driven by a 219kW DC motor. Includes Cincinnati milacron control panel with GE Fanuc series one PLC, Parker drive, (2) Baldor vector drives, missing temperature controllers. Mounted on a painted carbon steel frame. Machine# 00455. Built 1988.

Slitter

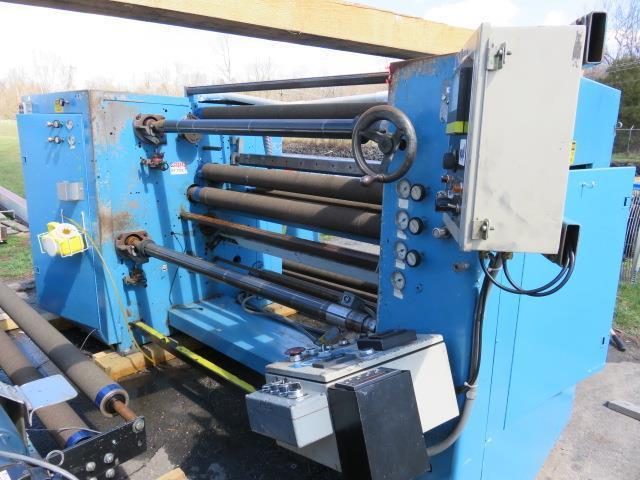

Dusenbery 60" Slitter, Model 815 LR. Duplex design with 3" rewind shafts. 2 Motor design with (1) 15 hp GE DC motor and (1) 7.5 hp GE DC motor. Razor in groove slitting with six razor knife holders and six female grooved sections. Duplex rewind with 3" core shafts and set of lay on roll arms for each shaft with one lay on roll each. 65" Wide x 40" to 60" diameter unwind stand with 3" shaft. Fife guide design with disc brake clutch. Includes drive cabinet with drives and control panel. Serial # 54750.

Pelletizers

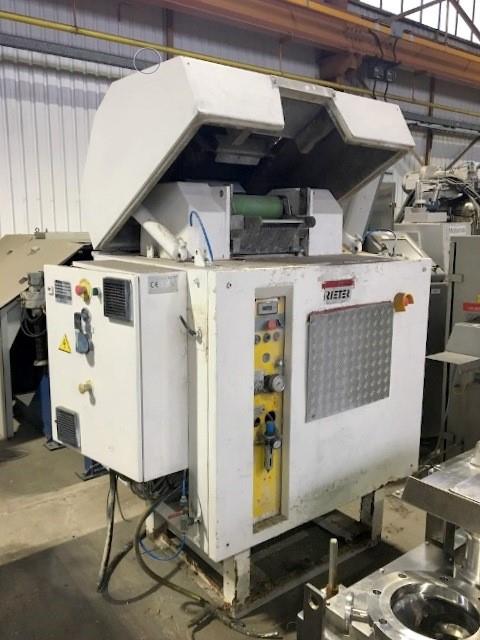

Reiter Automatik Strand Pelletizer, Model ASG300. (30) Knife solid helical rotor, power roll feed with pneumatic tension control. Belt driven motor. Mounted on a base. Approximate rating up to 10,500 pounds per hour. Serial # 18002-3188. Built 1995.

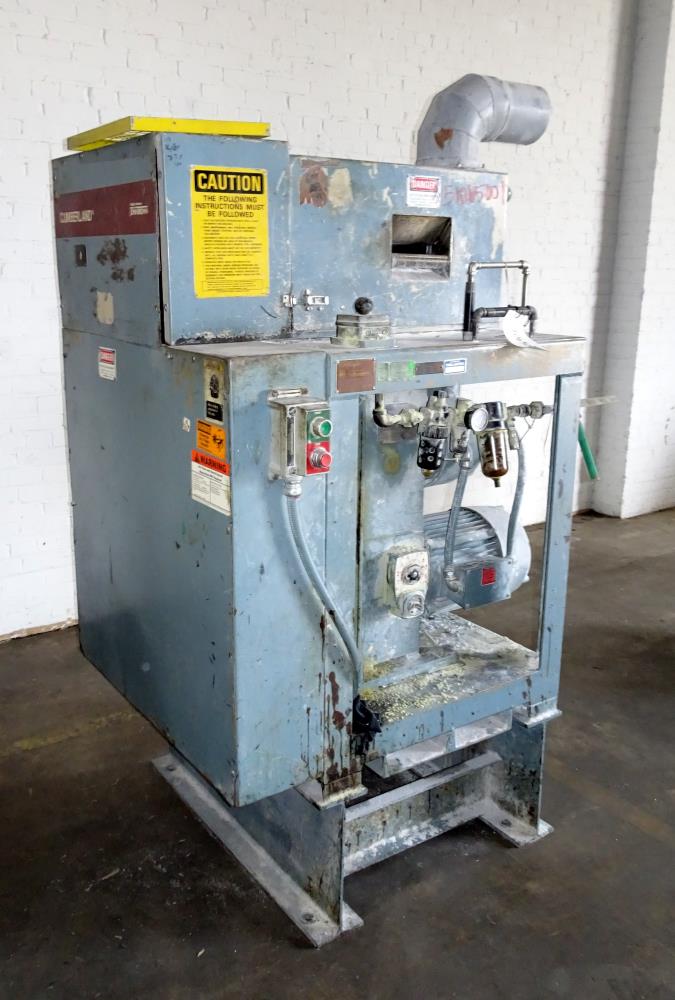

Cumberland Quietizer Pelletizer, Model 6. Approximate 6-5/8" long x 8" diameter. 16 Blade, 8 installed. Driven by a 10 hp, 3/60/230/460 volt, 1745 rpm variable speed gear motor. Approximate 3" diameter rubber roll. Mounted on painted carbon steel frame. Serial# 326050-B-85005.

Cumberland Pelletizer, Model 6. Approximate 6-5/8" long x 8" diameter rotor. 8 Blade, 4 installed. Driven by a 5 hp, 3/60/230/460 volt, 1745 rpm variable speed gear motor. Approximate 3" diameter rubber roll. Mounted on painted carbon steel frame. Serial# 26820-691.

Mixing & Blending System

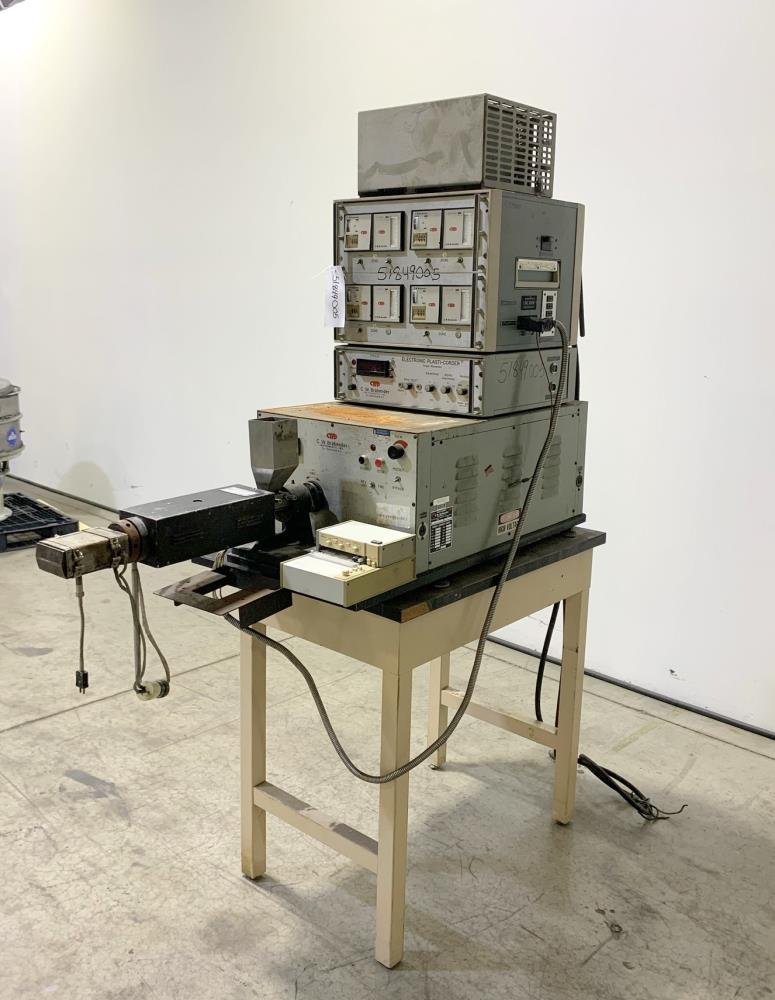

C.W. Brabender Plasti-Corder Torque Rheometer Mixing System. Consisting of: (1) Plasti-Coder direct drive unit model EPL-V301 electronic torque rheometer, 3hp motor, stepless variable speed up to 120 rpm, constant torque output 26,000 metergrams. (1) Deluxe model 2003 extruder, 3/4" diameter screw, 20:1 L/D, 416 stainless steel barrel, 2-zone 1000 watt/zone, heater-cooler collars (air cooling), with 2" wide sheet die. (1) 4-Zone temperature control console, model 2504, controls up to 400 degrees C, 1/60/230 volt, advanced design digital set-point controller & deviation indicator assembly, true-proporting thyristor unit. (1) Omega chart recorder. (1) Sigma blade mixing head attachment. (1) Measuring head attachment, type R.E.O. 6/230V 8.5 Amp.

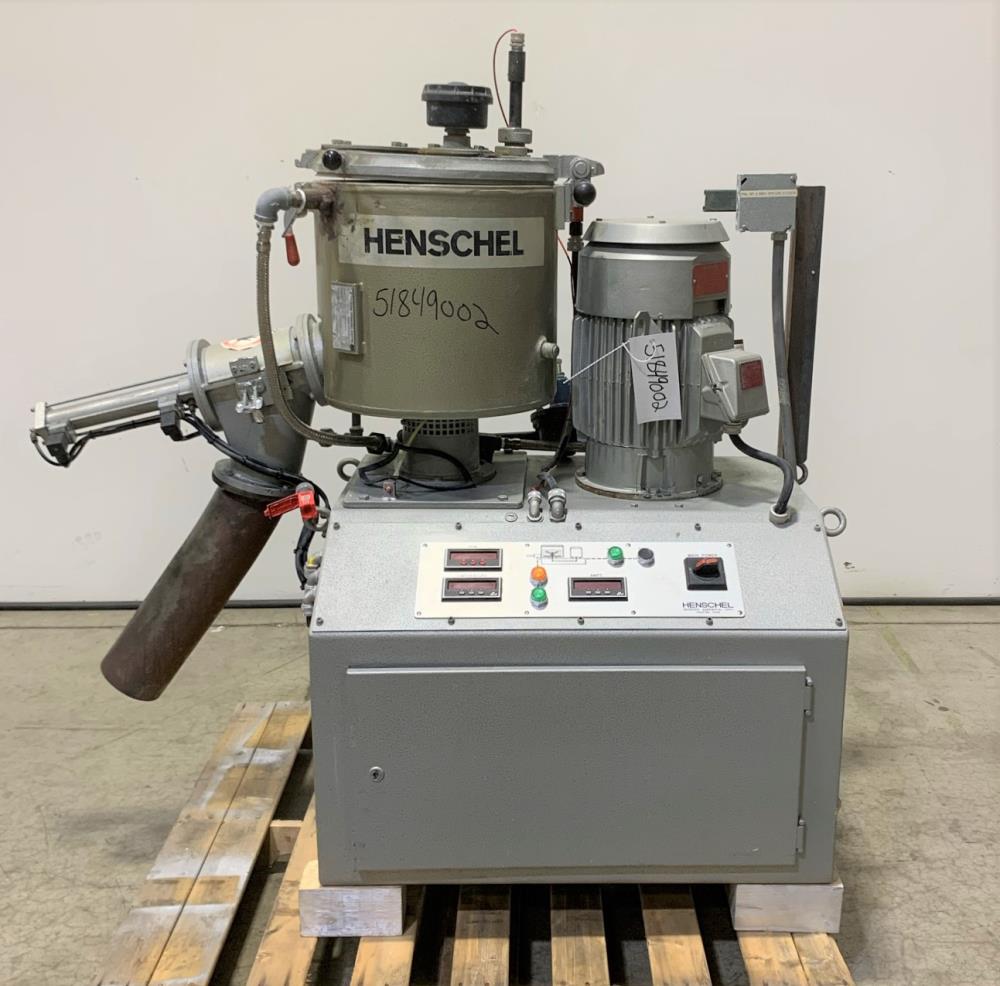

Thyssen Henschel High Intensity Mixer, Model FM 40, 304 Stainless Steel. 32 Liter (1.1 Cubic Feet) working capacity, 40 liter (1.4 cubic feet) total capacity. Carbon steel jacketed bowl approximate 15-1/8" diameter x 14" deep, rated 5 bar (72.5 psi) at 200 degrees C., (392 F.). Hinged top cover with baffle, (3) tier blade. Side bottom outlet with plug valve. Driven by a 10hp, 3/60/460 volt, 1755 rpm motor, manual side speed adjustment. Unit includes an operators control panel

Welex High Efficiency Horizontal Cooler / Mixer. Model 1200HC, 1200 Liter Total Capacity, Stainless Steel. Typical rate 2400 - 4000 lbs per hour. Approximate 26 cubic foot, 800 liter, working capacity. Cooling surface 54 square foot. Approximate 32" diameter x 99" long jacketed chamber. Approximate 5-1/4" diameter shaft with (8) bolt on "T" paddles. Driven by a 20hp, 3/60/575 volt, 880 rpm motor. Openings: (2) 36" long x 12" tall hinged doors, (2) 12" diameter, (1) 6" diameter with 2hp blower. 10" x 7" Center bottom outlet with valve. Serial# 4675 4/87.

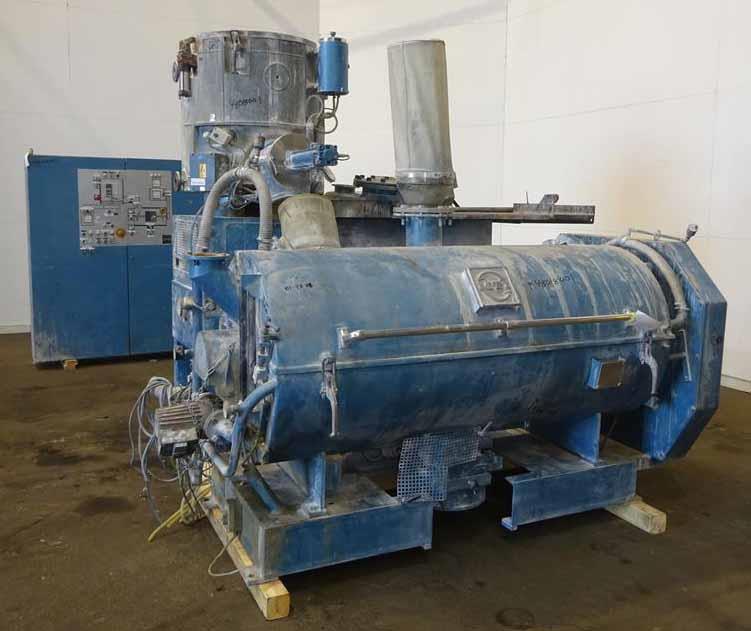

MTI Mixer Cooler Combination, Type M300/K800. Consists of: (1) MTI high intensity mixer, Model M300, 304 stainless steel, 10.6 cubic foot (300 liter) jacketed bowl, approximate 27" diameter x 31" deep, Top cover with 9", 8", 5" openings, 8" side bottom outlet, Driven by a 55/67 KW dual motor, (1) MTI cooler, Type K800, 304 stainless steel, 27.5 cubic foot (780 liter), chamber approximate 72" long x 30" diameter, 7-1/2" center bottom outlet jacketed bowl rated 0-0.5 bar at 80 degrees C, motor drive, controls and base mount.
Kawata SMB Series High Intensity Super Mixer, Type SM-B-200. 200 Liter total capacity, 120 to 140 working capacity. Jacketed chamber, 304 stainless steel. Driven by a 30hp, 3/60/460 volt, 1750 rpm XP motor. Swing away top cover with 6", 4" openings. Side bottom outlet, approximate 6" diameter with plug valve. Mounted on a painted carbon steel base. Serial# M390027, Built 1987.

Doteco 6 Component Gravimetric Blending System, Model Grado, Type J60. Rated at 82 KG/HR (188 pounds/hour). Includes (6) receivers. No operator controls included. Serial # 24SN4902, Built 2010. Previously installed on 2.5" extruder


Sheet Line

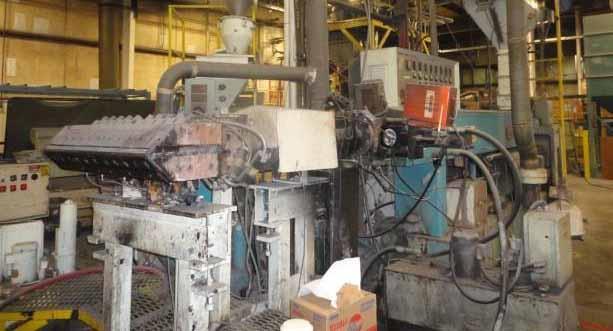

Welex Sheet Line. Consisting of: (1) 4-1/2'' 30:1 Non Vented Extruder, Water Cooled with Control Panel, 250 hp D.C. Baldor Motor, Lufkin gearbox approximate 8.5 to 1. and 54'' Centerline. (1) 15 HP Dynisco Melt Pump. (1) 4.5 '' Beringer Screen Changer with Power Pak. (1) Davis Standard 2.5'' 30:1 Water Cooled Extruder Mfg. in 1998 with Beringer Hydraulic Screen Changer and Power Pack, 60 HP Drive and Controls. (1) COEX Feed Block with Flex Lip Die. (1) Approximate 42'' Welex 3 Roll Sheet Stack with Pull Rolls and Temperature Controls, (3) 18" diameter rolls. (2) Cart Style Torque Motor Rewinders with drive pedestal.

Pulverizer

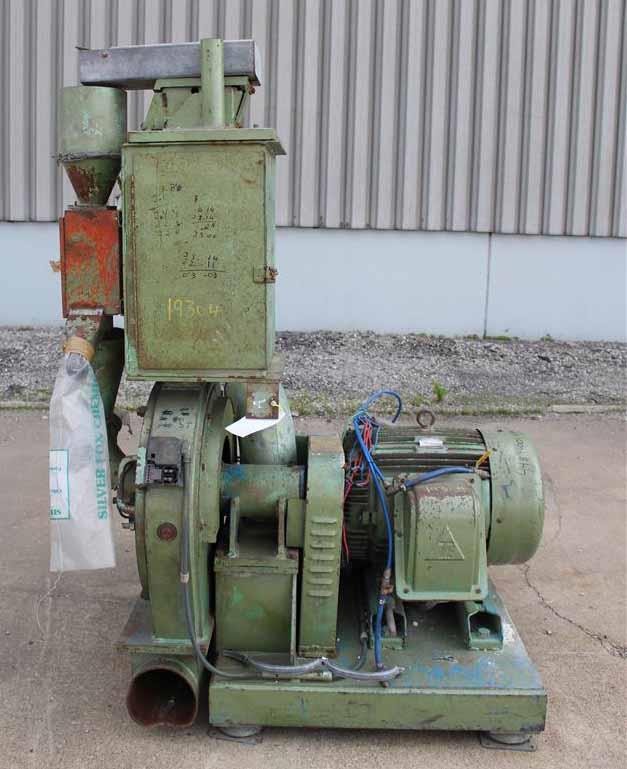

Herbold PU500 Pulverizer. Carbon Steel. Driven by a 75 hp, 3/50/415 volt motor. Capacity: 150-1000 kg/hour.

Rotary Grinder

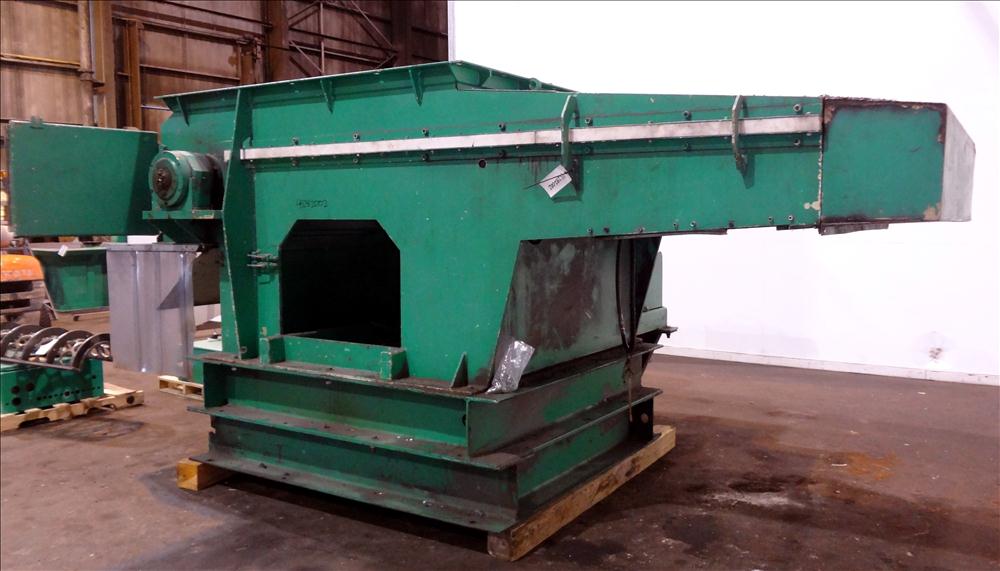

Vecoplan Single-Shaft Rotary Grinder, Model RG62/150 SPKFF, Carbon Steel. Approximately 14.57" diameter x 62.99" wide cored fiber rotor with approximate 74 bolt-on cutting inserts, speed 145 rpm. Feed opening 63" wide x 80" long with a bolt on hopper. Horizontal hydraulic feed ram. End discharge with 2" diameter screen holes. Shredder driven by a 150 hp, 3/60/460 volt, 1784 rpm motor thru a Flender reducer. Approximate up to 25,000 pounds an hour throughput depending on product. Includes a control panel with a Vecoplan Touch screen panel, and a 55" wide x 234" long rubber belt conveyor, driven by a 1.5 hp gear motor. Serial # 7661010. Built 2004

Densifier
Reg-Mac Film Densifier. Chamber is 50" O.D. X 47" deep, 2 blade design. Driven by a 517 kw AC motor with variable speed inverter. Previously used for polyester film densification.

Roll Stacks

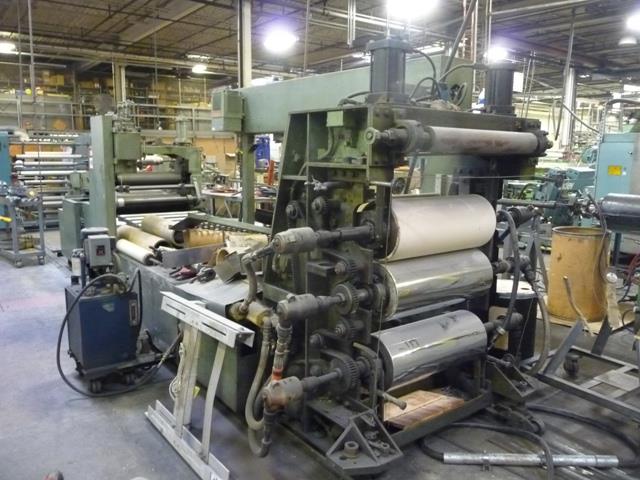

Davis Standard 3- Roll Sheet Stack, 30" Wide, Model F8082, SO#98080. Includes 10' Long idler conveyor, pull roll stand, and shear. Hydraulic pump for cylinders on stack and Mokon oil unit. Includes (1) spare chrome roll, (2) spare silcon rolls and (3) spare eteched hair cell rolls.

Cincinnati Milacron (2) Roll Stack. Sheet take-off with 34" face x nominal 18" diameter rolls mounted in a vertical arrangement with temperature control system and pull rolls. Last used with a 2.5" extrusion line.

Trim Presses
Brown Horizontal Trim Press, Model T350l. 30 ton maximum compression, 16.25" x 50" (413mm x 1270mm) stationary platen opening, 18" x 72" stamping platen size, 4.5" (114mm) - 16.5" (419mm) stoke adjustment range, 53" (1346mm) maximum sheet width. With controls, 480 volt, serial # 14688. New 2004.

Brown Trim Press, Model T-300. 11.75" x 37.5" Wide cutting window, driven by AC motor, with canopy, control panel, 480 volt, serial #8791.

Fly-Knife Cutter
G.F. Goodman & Sons Rotary Fly-Knife Cutter. Set up with a 2-1/4" maximum O.D. die. Single blade driven by a Baldor servo motor with drive. Includes an operator panel. 230 Volt. Mounted on casters. Serial#6701

Screen Changer

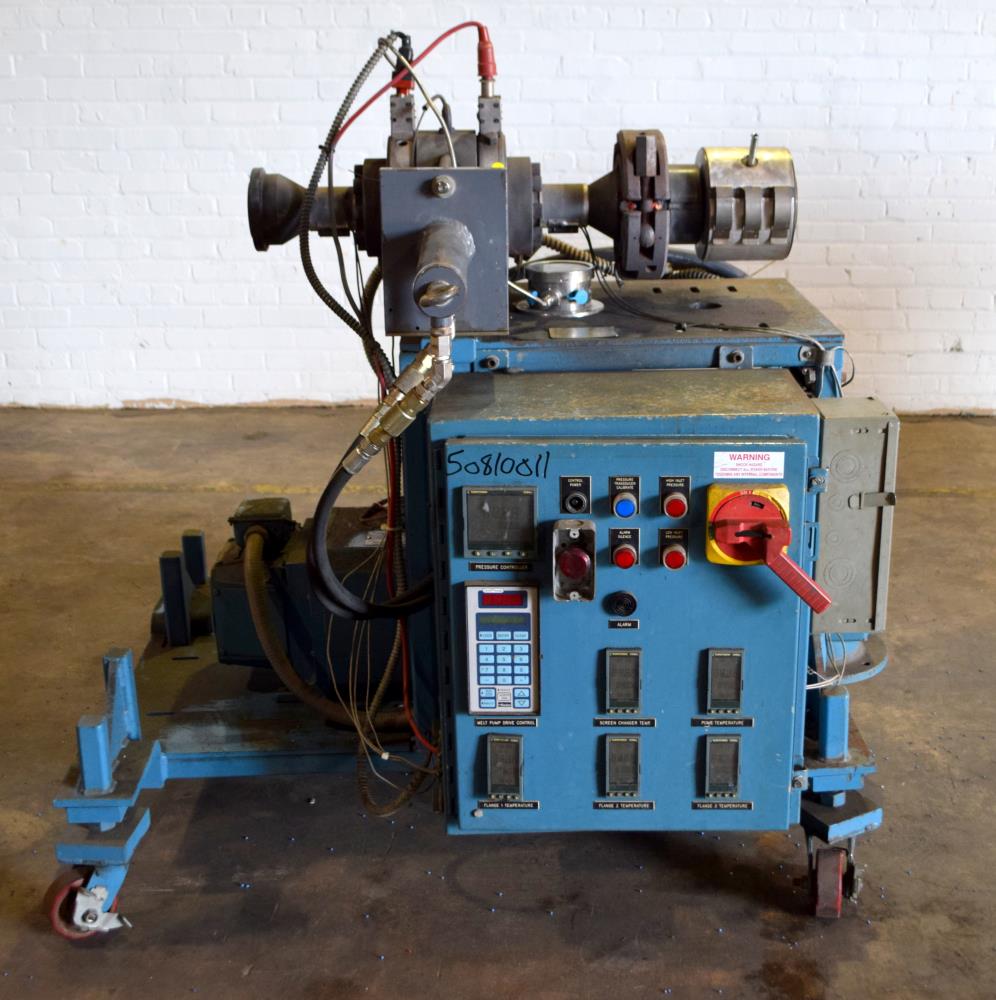

Nokia-Maillefer Approximate 3.14" Hydraulic Screen Changer. Includes a power pack; control panel with an Allen-Bradley MicroLogix 1000 controller. Mounted on a cart with a 5hp DC motor for a gear pump (not included). No manufacturers tag.

Blenders

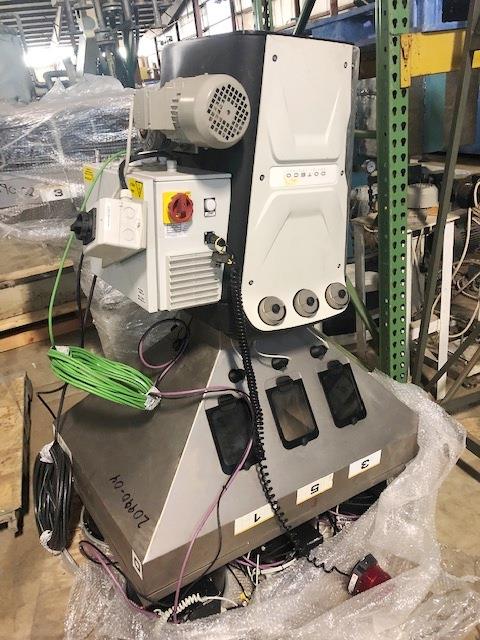

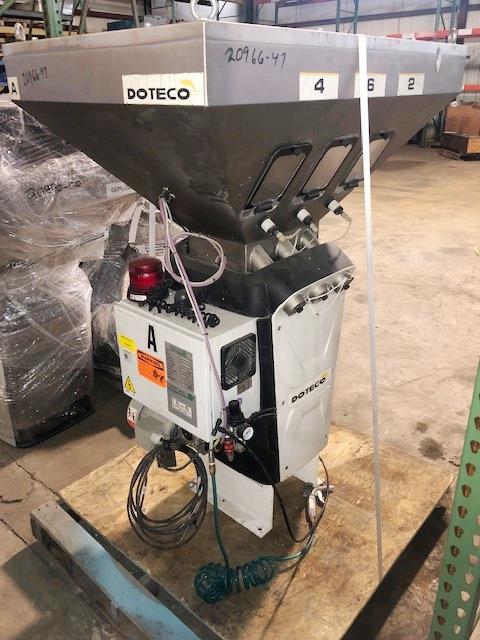

Doteco 6-Component Gravimetric Blender, Model Grado, Type J60. Throughput rated at 227 kg/hr, based on polymer pellet feed. Includes material receiver. Serial# 11027803, built 2012. No operator controls included

Used- Doteco 6-Component Gravimetric Blender, Model Grado, Type J60. Throughout rated at 137 kg/hr, based on polymer pellet feed. Includes material receiver. Serial# 11027804, Built 2012. No operator controls included.


Drying Hoppers
Conair Insulated Drying Hopper. Approximate working capacity 100 cubic feet. Mounted on a stand. Includes magnet on the discharge, and screw conveyor with controls.

Belt Pullers
(3) Maillefer Belt Puller; Model RC81. (2) 2-1/2" wide x approximate 36" long contact area belts. Approximate maximum manual opening 6". Driven by an approximate 2.5kw motor. Includes an operator panel and control panel. Mounted on an I-beam frame. 240 volt Plug.

Ovens & Heaters
(4) Infrared Systems Tubing Heater Profile Oven. Approximate 6' long; 3-1/2" diameter maximum material O.D. Includes a bottom mounted blower; top hinged cover; Avatar Instruments power controller and an operator panel. Mounted on 4 legs.

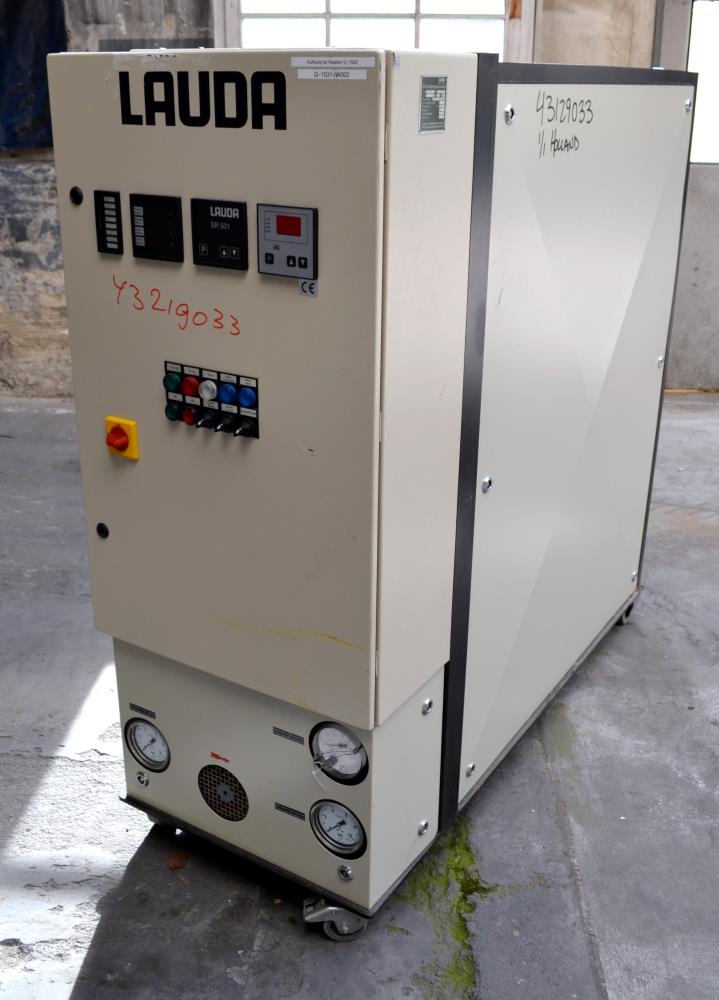

Lauda 29kW Secondary Circle Unit Heater, Type TR400HKK. Temperature range -60 to 200 degrees C. (-76 to 392 F.). 3/50/400 volt. Mounted on casters. Built 2002.
(2) Lauda 28kW Secondary Circle Unit Heater, Type TR400HKK. Temperature range -60 to 200 degrees C. (-76 to 392 F.). 3/50/400 volt. Mounted on casters. Built 2000.
(2) Lauda 24kW Secondary Circle Unit Heater, Type TR400HKK. Temperature range -60 to 200 degrees C. (-76 to 392 F.). 3/50/400 volt. Mounted on casters. Built 2002.
