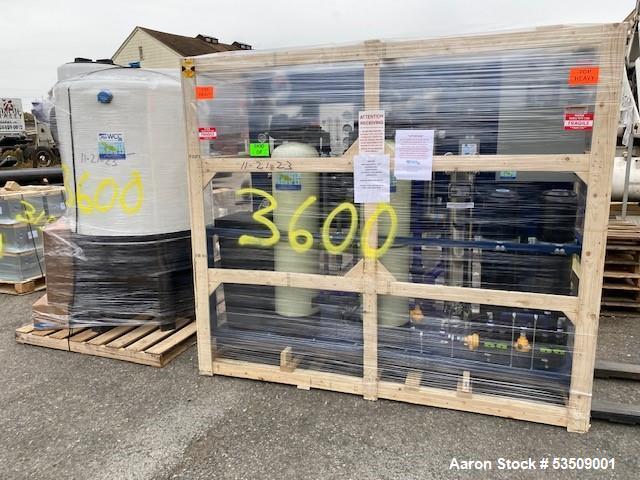

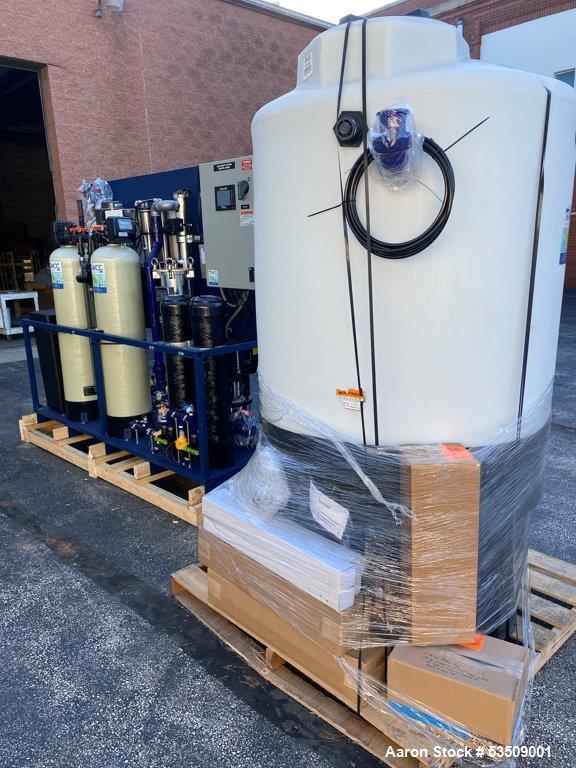

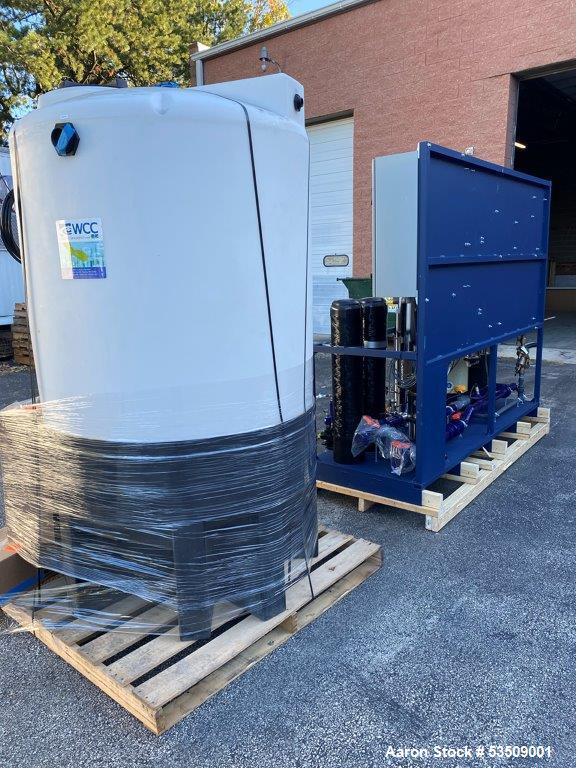

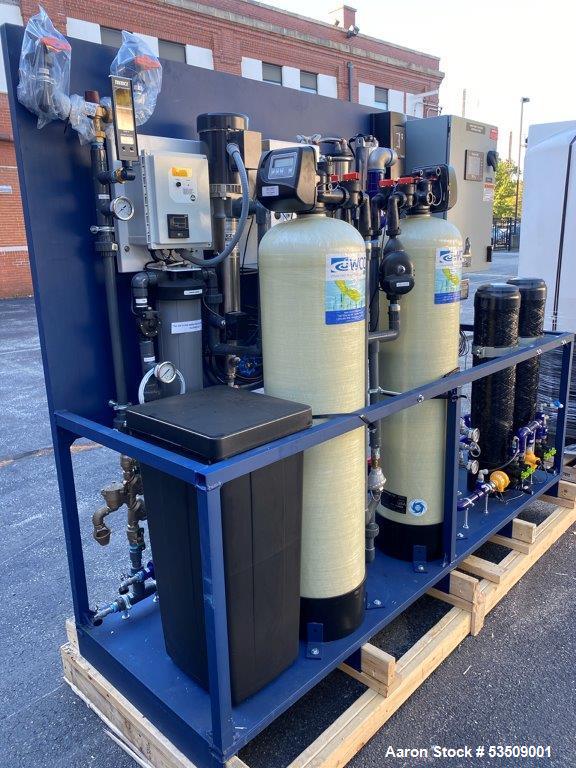

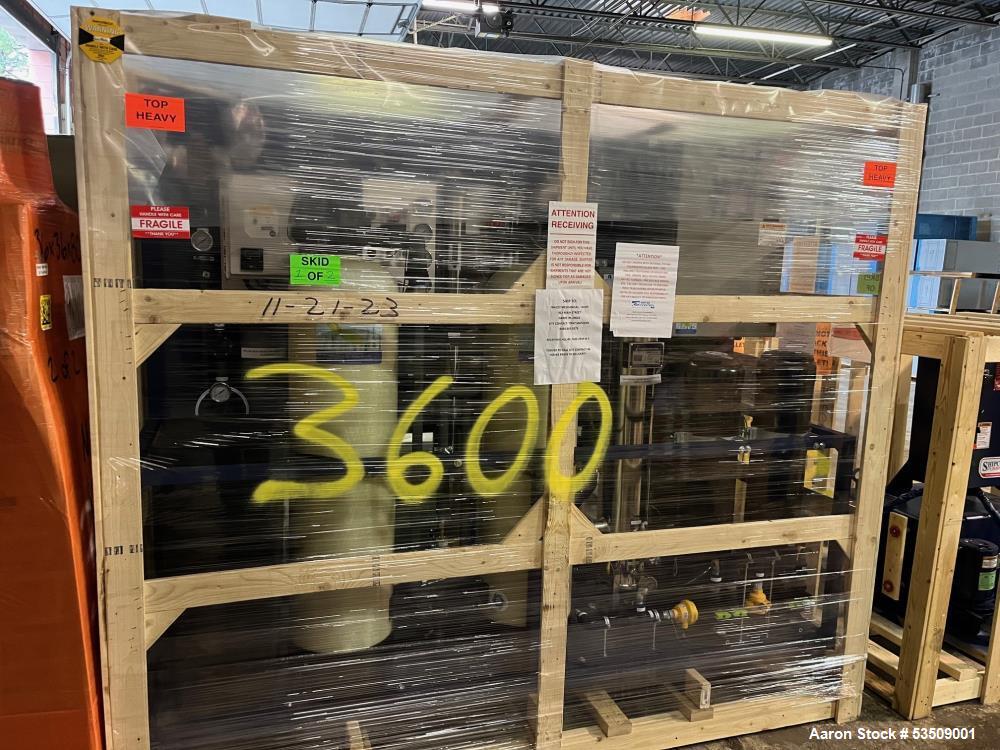

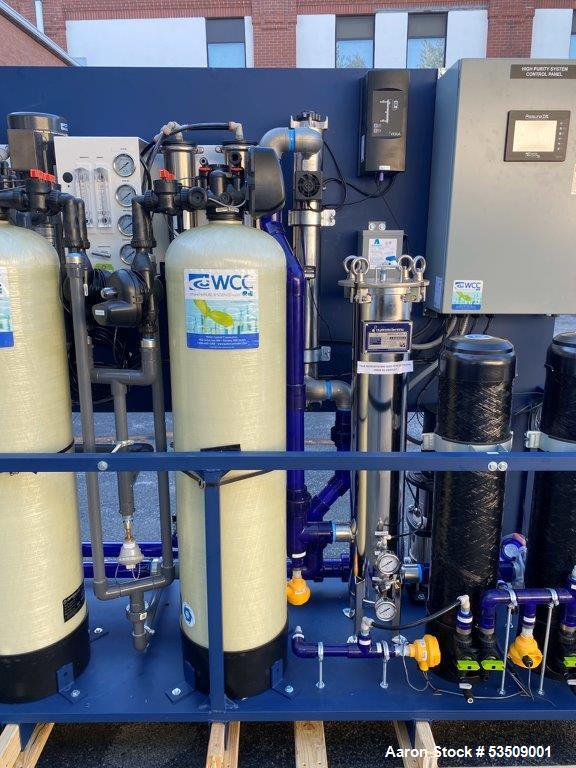

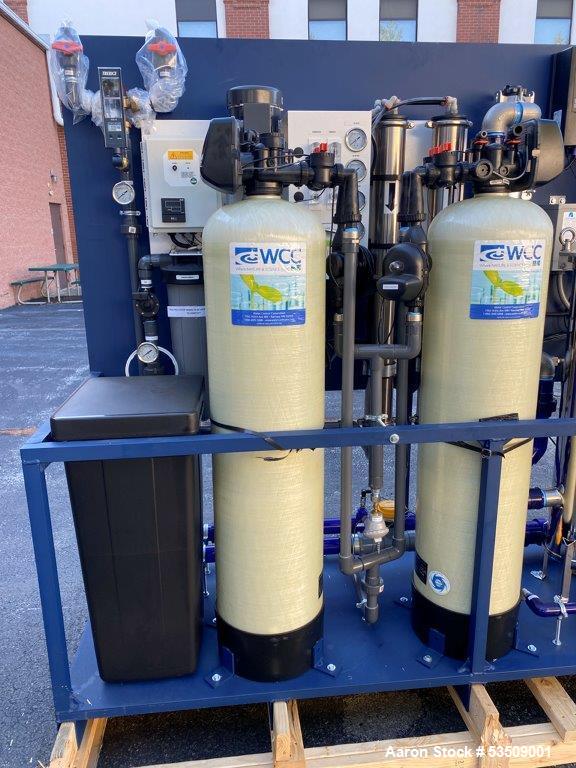

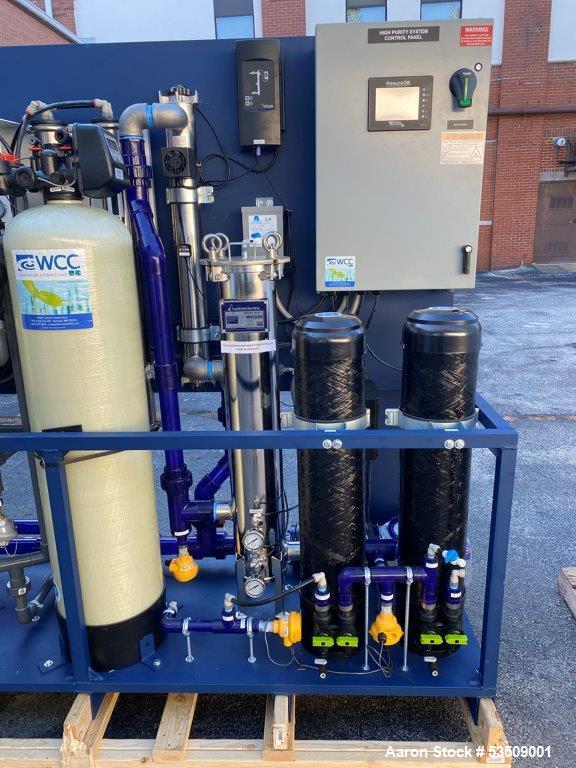

Unused Water Control Corporation (WCC) High Purity Filtration Package – Model R-4000-MTM2

Manufacturers Info:

• Manufacturer: Water Control Corporation (WCC)
• Model: R-4000-MTM2
• Condition: Unused
• Technology Type: High Purity Water Filtration & Reverse Osmosis System

System Highlights & Features:

• 4,000 GPD Reverse Osmosis Unit – Operates with soft, chlorine-free water at 77°F
• Twin-Alternating Carbon Filter & Water Softener – Ensures removal of chlorine, organic compounds, and hardness
• Dual Mixed Bed Deionization (DI) Cartridges – Provides ultra-pure water purification
• 599-Gallon Cone Bottom Storage Tank – Equipped with a level sensor & 0.2-micron tank vent filter
• 316 Stainless Steel Multi-Stage Delivery & Recirculation Pumps – Delivers 50 GPM at 60 PSI
• Monitored UV Disinfection System – Eliminates bacteria, viruses, and microorganisms
• Sub-Micron Post Filter – Ensures final ultra-fine particulate removal
• AssureIQ Control Panel – Provides fully automated system monitoring & operation

Process Intelligence & Monitoring:

• Feed Water Monitoring: Temperature, flow rate, pressure & differential pressure tracking
• Digital Temperature Gauge – Ensures precise control & monitoring of water conditions
• Mixing Valve – Allows adjustable water blending for optimal purity & performance
• Reverse Pressure Zone (RPZ) Protection – Prevents contamination & ensures system integrity
• UV System Performance Monitoring – Ensures proper disinfection & system efficiency
• Single-Point Power Connection: 460V / 3-Phase

Facts About the WCC R-4000-MTM2 High Purity Filtration Package:

• Designed for ultra-pure water applications requiring precision filtration
• Combination of carbon filtration, softening, reverse osmosis, deionization, UV, and sub-micron filtration
• Capable of producing 4,000 gallons per day of high-purity water
• Recirculates purified water at 50 GPM with 316 stainless steel multi-stage pumps
• **Integrates real-time water quality monitoring for flow, pressure, and filter performance
• AssureIQ control panel for centralized system automation & efficiency tracking
• Compliant with industrial water purification standards

Description:

The Unused Water Control Corporation (WCC) R-4000-MTM2 High Purity Filtration Package is a comprehensive water purification system designed for precision filtration and ultra-pure water production. With a 4,000 gallon per day reverse osmosis unit, twin-alternating carbon filter/water softener combination, and dual mixed-bed deionization (DI) cartridges, this system provides exceptional water quality for industrial and commercial applications.

The 599-gallon cone bottom storage tank, equipped with a level sensor and a 0.2-micron vent filter, ensures safe and efficient water storage. The 316 stainless steel vertical multi-stage delivery & recirculation pumps are capable of delivering 50 GPM at 60 PSI, making this system ideal for high-demand purification environments.

Additional features include a monitored UV disinfection system, sub-micron post-filter for final polishing, and an AssureIQ control panel for automated system operation and real-time performance tracking. The mixing valve, digital temperature gauge, and RPZ backflow protection further enhance system reliability and efficiency.

With a single-point 460V/3-phase power connection, this system is designed for seamless integration into industrial water treatment applications.

Specifications:

• Machine Type: High Purity Filtration & Reverse Osmosis System
• Manufacturer: Water Control Corporation (WCC)
• Model: R-4000-MTM2
• Condition: Unused
• Filtration Capacity: 4,000 Gallons Per Day (GPD) Reverse Osmosis (RO) Unit
• Water Recirculation Flow Rate: 50 GPM at 60 PSI
• System Components:
  • Twin-Alternating Carbon Filter & Water Softener
  • Dual Mixed Bed Deionization (DI) Cartridges
  • 599-Gallon Cone Bottom Storage Tank with Level Sensor & 0.2 Micron Vent Filter
  • 316 Stainless Steel Multi-Stage Delivery & Recirculation Pumps
  • Monitored UV Disinfection System
  • Sub-Micron Post Filter
  • Mixing Valve & Digital Temperature Gauge
  • Reverse Pressure Zone (RPZ) Protection
  • AssureIQ Control Panel with Automated Monitoring
• Monitoring & Control:
  • Real-time monitoring for feed water temperature, flow rate, pressure & filter differential pressure
  • Automated performance tracking & system alerts
• Power Requirements: 460V / 3-Phase

Applications:

• Pharmaceutical & Biotechnology – Ultra-pure water for laboratory, research, and manufacturing processes
• Food & Beverage Processing – Ensures high-quality purified water for food production
• Industrial Water Treatment – Removes impurities for clean process water in manufacturing plants
• Medical & Healthcare Facilities – Sterile water production for medical & laboratory use
• Microelectronics & Semiconductor Manufacturing – High-purity water for precision component manufacturing
• Cosmetic & Personal Care Products – Water purification for lotions, creams, and skincare products

What Products Would This Be Used For?

• Ultra-Pure Process Water for Pharmaceuticals & Biotech
• Reverse Osmosis (RO) Water for Beverage Bottling & Food Processing
• High-Purity Water for Medical & Healthcare Applications
• Deionized (DI) Water for Electronics & Semiconductor Manufacturing
• Sterile Water for Cosmetics & Personal Care Formulations
