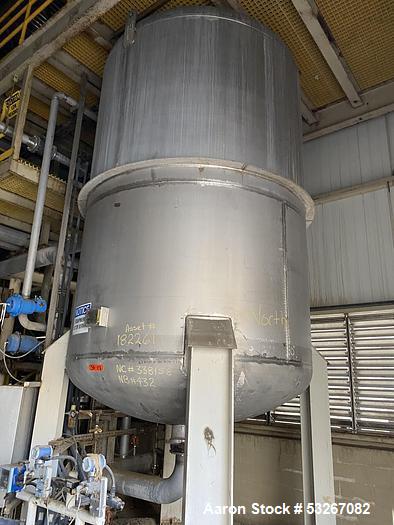

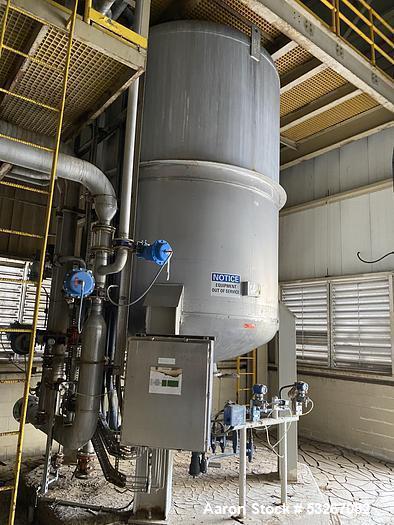

Used Tate Metalworks 2205 Duplex Stainless Steel Vertical Sand Filter – 4,000 Gallon, 100 PSI

Description:

The Tate Metalworks 2205 Duplex Stainless Steel Vertical Sand Filter is a high-capacity filtration system, designed for industrial water treatment, filtration, and process applications. With a 4,000-gallon capacity, this 8' diameter x 11' straight-side tank is internally rated for 100/-15 PSI at 20°F to 175°F, ensuring high-pressure durability and corrosion resistance.

The unit features a dished top and bottom for structural strength, along with a 4” wide middle stiffener ring for added support. It has a 24” middle top cover with an 8” flanged opening, leading to an internal pipe with diffuser openings, which helps optimize water distribution and filtration performance.

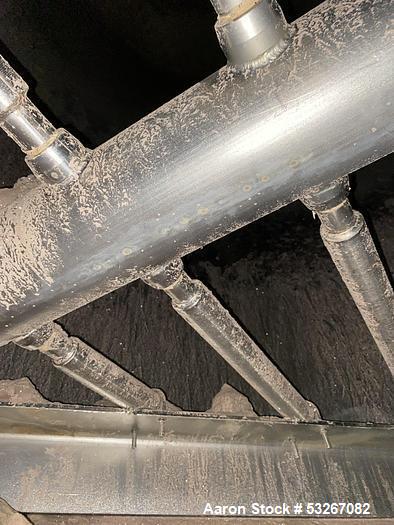

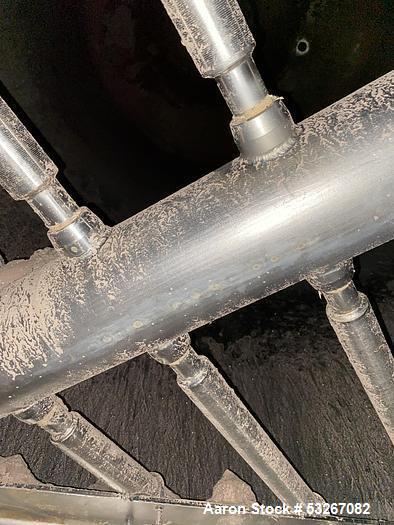

The bottom of the unit is equipped with a diffuser for enhanced filtration efficiency. The all-stainless steel face piping ensures long-lasting performance in harsh environments.

Specifications:

• Capacity: 4,000 Gallons
• Material: 2205 Duplex Stainless Steel
• Orientation: Vertical
• Pressure Rating: 100 PSI / -15 PSI (Full Vacuum)
• Temperature Rating: 20°F to 175°F
• Dimensions:
  • Diameter: 8'
  • Straight Side Height: 11'
• Top Fittings:

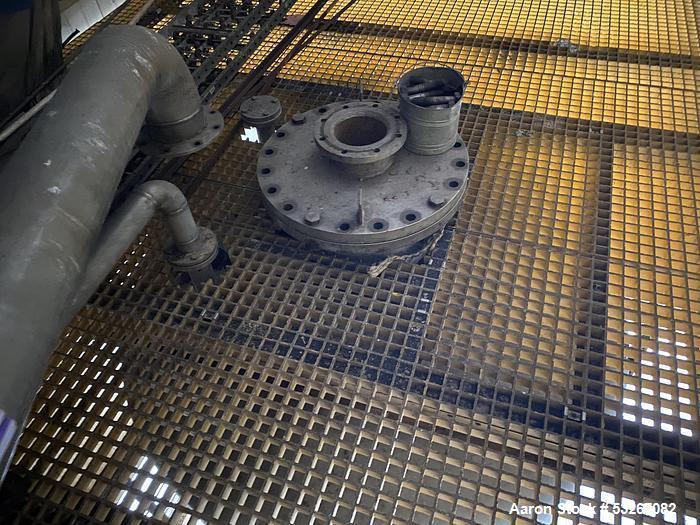

  • 24” Middle Top Cover
  • 8” Flanged Opening to Internal Pipe with Diffuser Openings
  • (2) 4” Inlets
• Bottom Fittings:

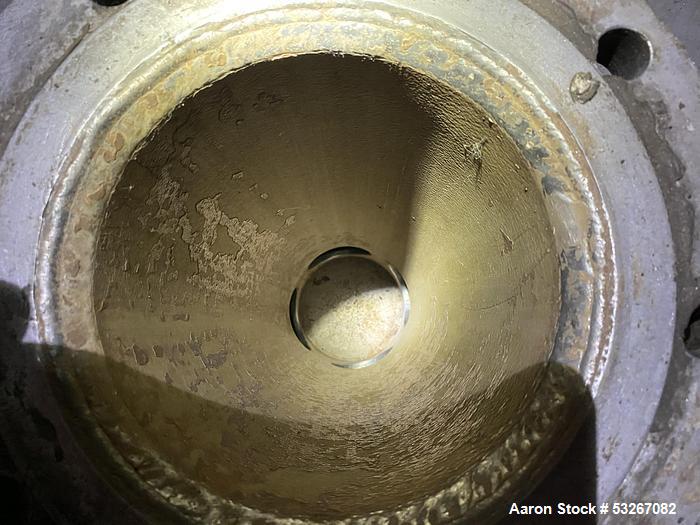

  • 8” Center Bottom Discharge
  • 6” Offset Bottom Outlet with Blind
• Construction Features:
  • Dished Top & Bottom for Strength
  • 4” Wide Middle Stiffener Ring

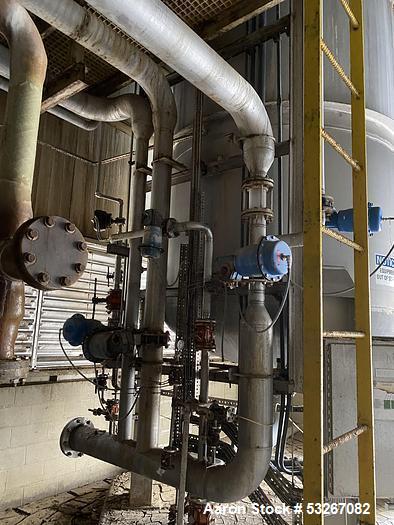

  • All Stainless Steel Face Piping
  • Equipped with Bottom Diffuser

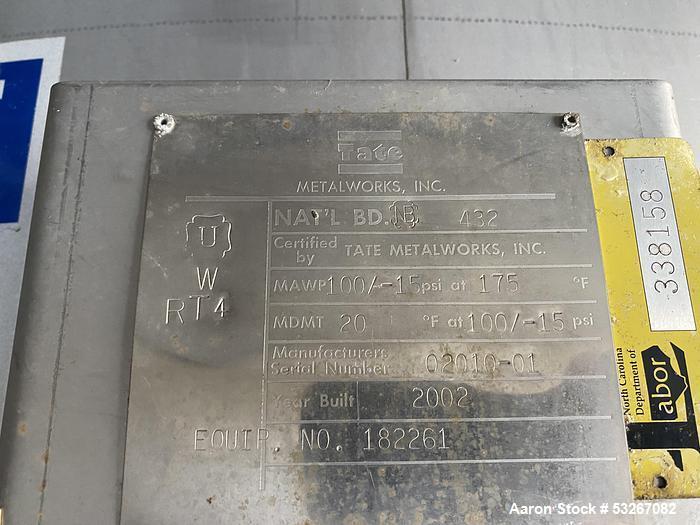

• Certification Details:
  • NB# 432
  • S/N 02010-01
• Condition: Used (Built in 2002)

Applications:

This high-efficiency sand filter is designed for industrial and commercial filtration applications, including:

• Municipal Water Treatment – Filtration of drinking water and wastewater treatment
• Industrial Process Water Filtration – Removing particulates in chemical and manufacturing industries
• Power Plants & Cooling Systems – Pre-filtration for cooling towers and heat exchangers
• Food & Beverage Industry – Water purification for production processes
• Pharmaceutical & Biotech Manufacturing – Filtration for high-purity water systems
• Oil & Gas Processing – Sand and solid removal in petrochemical operations
• Aquaculture & Fisheries – Water filtration for fish farming and seafood processing
• Agricultural & Irrigation Systems – Removing suspended solids from irrigation water

What Products Would This Be Used For?

This vertical sand filter is ideal for processing and filtering:

• Potable water and drinking water treatment
• Process water in food, beverage, and pharmaceutical applications
• Industrial wastewater filtration and pre-treatment
• Cooling water filtration for HVAC and power plants
• Oilfield water treatment and sand separation
• Groundwater and well water purification
• Agricultural irrigation water treatment
• Recirculating water systems in aquaculture and fish farms
